Model Whirlpool 7MLGR3624JT3 29`` GAS DRYER – Common Parts & Diagrams

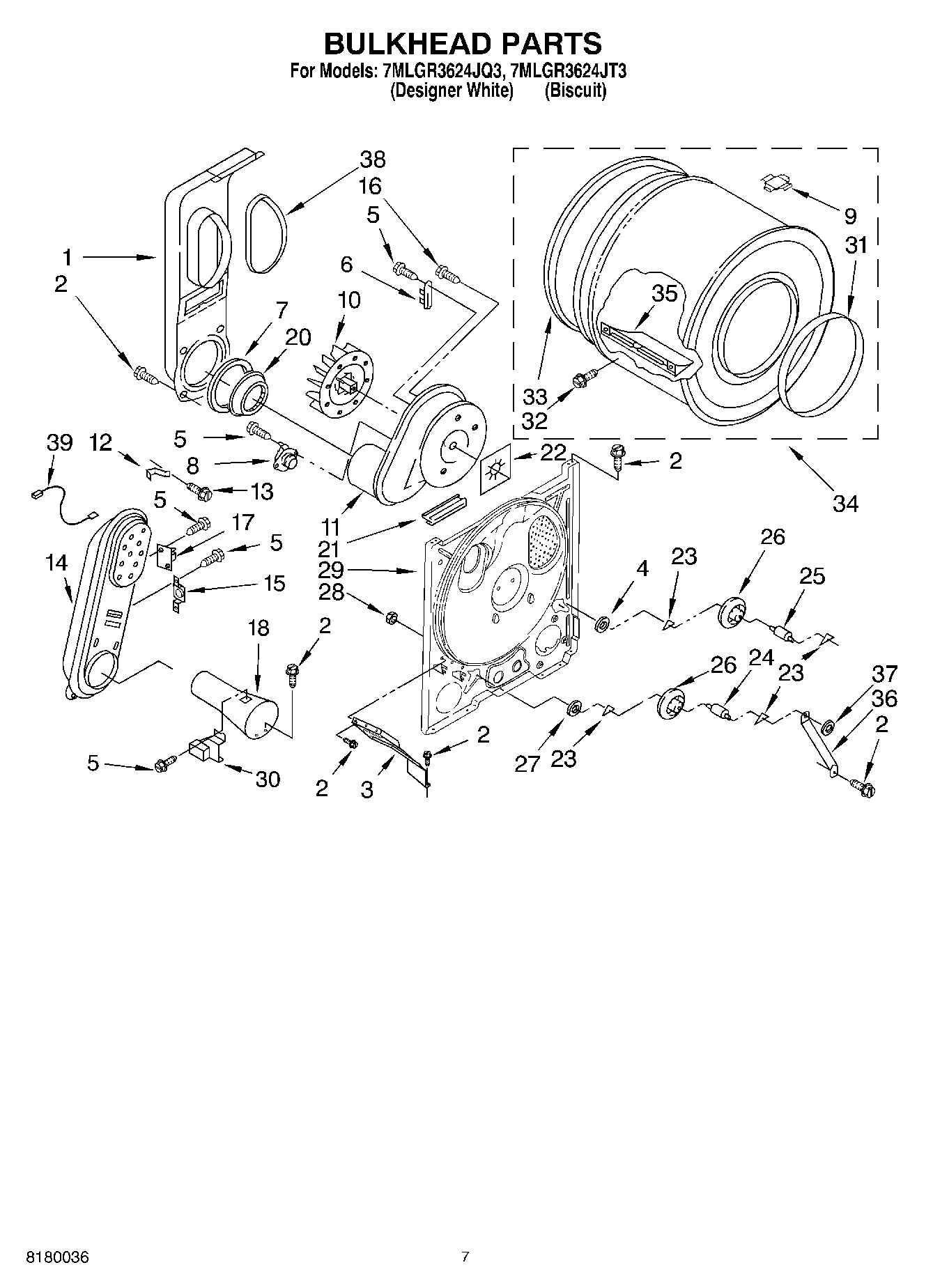

04 - BULKHEAD PARTS

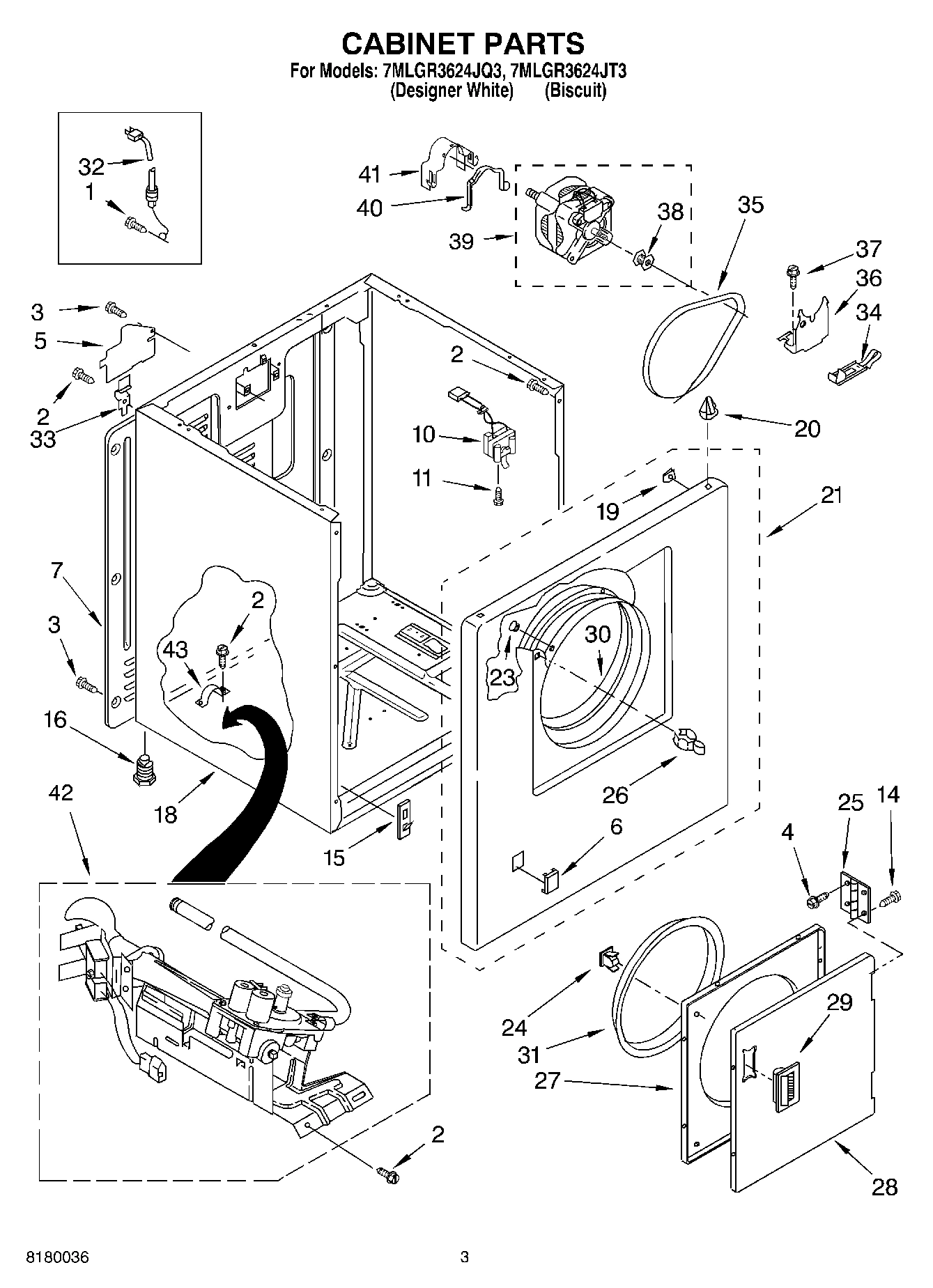

02 - CABINET PARTS

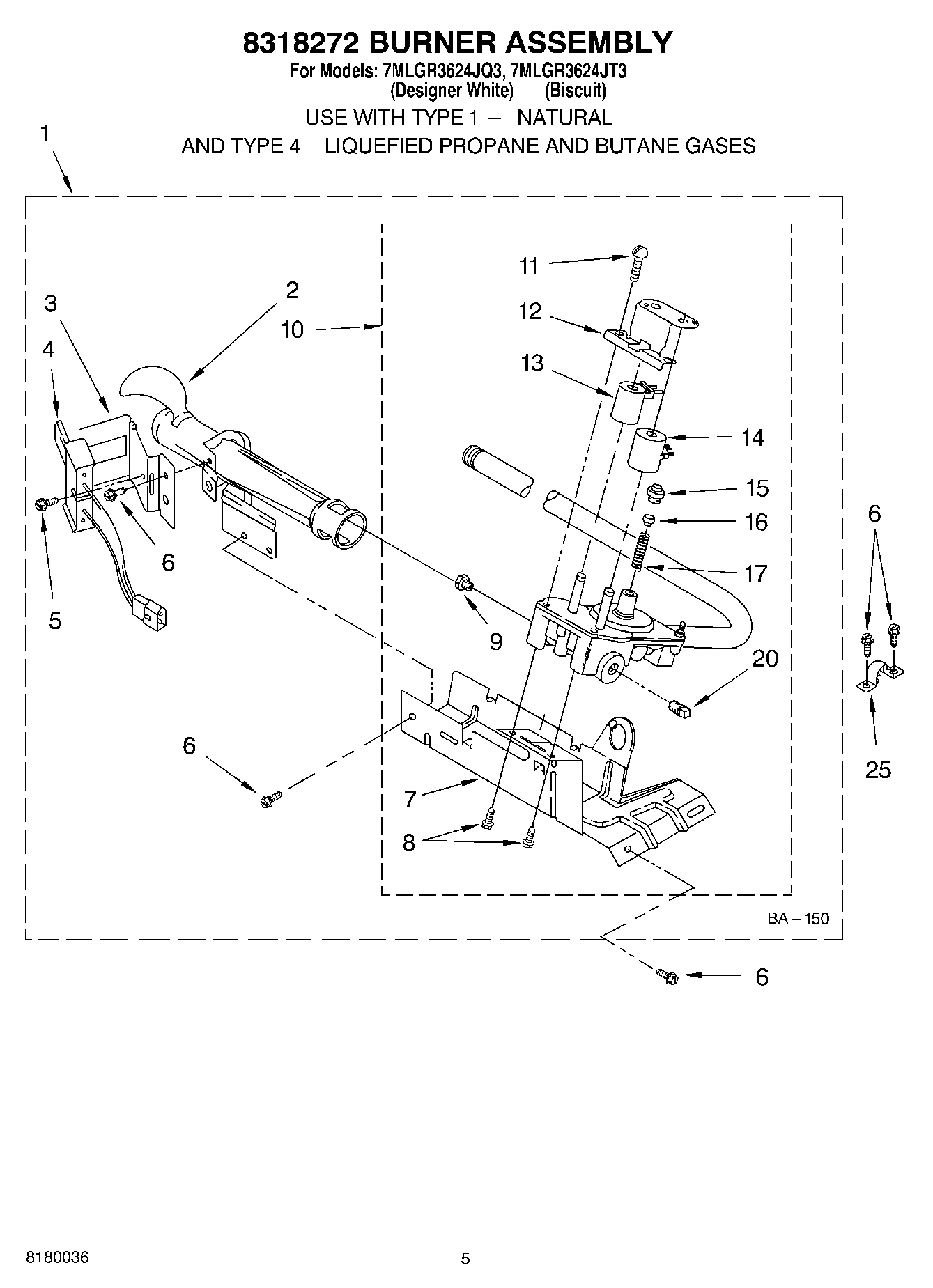

03 - 8318272 BURNER ASSEMBLY

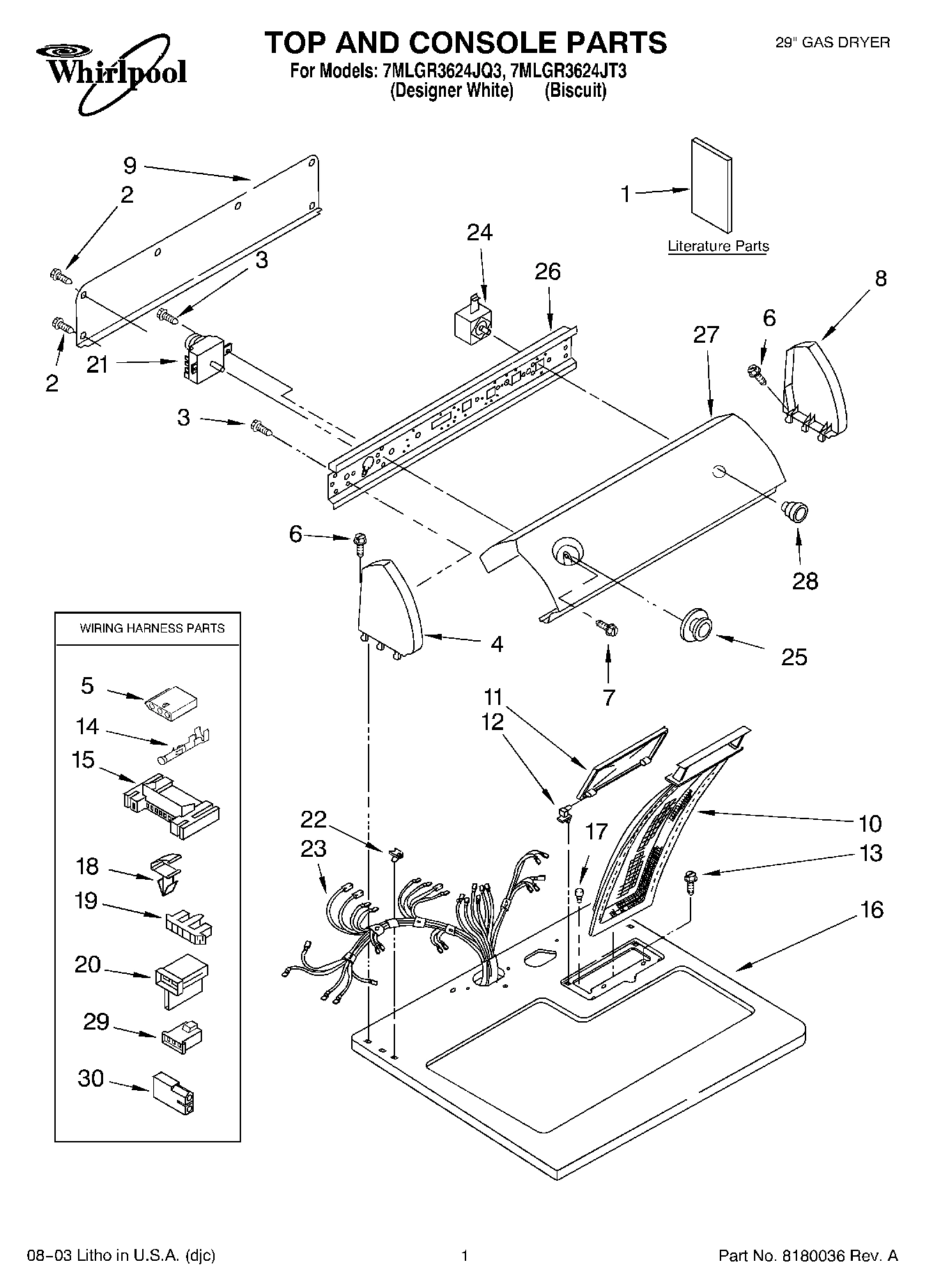

01 - TOP AND CONSOLE PARTS
Common parts from model Whirlpool 7MLGR3624JT3 29`` GAS DRYER
1
Following May Be Purchased DO-IT-YOURSELF REP WPL ARI142192A Contact Us For Availability
1
Literature Parts (Installation Instructions ( WPL LIT3978910 Contact Us For Availability
1
Literature Parts (Dryer) WPL LIT677818 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8533202 Contact Us For Availability
1
Use & Care Guide WPL LIT8543092 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
4
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
6
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
8
Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability
8
Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 8283378 Contact Us For Availability
11
Cover, Lint Screen (Biscuit) WPL 8283380 Contact Us For Availability
16
Top (White) WPL 8271390 Contact Us For Availability
16
Top (Biscuit) WPL 8271392 Contact Us For Availability
17
Bumper, Lint Lid WPL 297535 Contact Us For Availability
19
Connector, Timer WPL 3397269 Contact Us For Availability
22
Seal, Blower Shaft WPL 3394196 Contact Us For Availability
25
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI142195A Contact Us For Availability
26
Bracket, Control WPL 8271418 Contact Us For Availability
27
Panel, Control (Biscuit) WPL 8528133 Contact Us For Availability
27
Panel, Control (White) WPL 8543126 Contact Us For Availability
28
Knob, Push To Start (Biscuit) WPL 8271349 Contact Us For Availability
30
Receptacle, 2 Way WPL 717252 Contact Us For Availability
36
Bracket, Support WPL 3976435 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
