Whirlpool 665.15821692 Undercounter Dishwasher (Kenmore 66515821692) Parts List

1

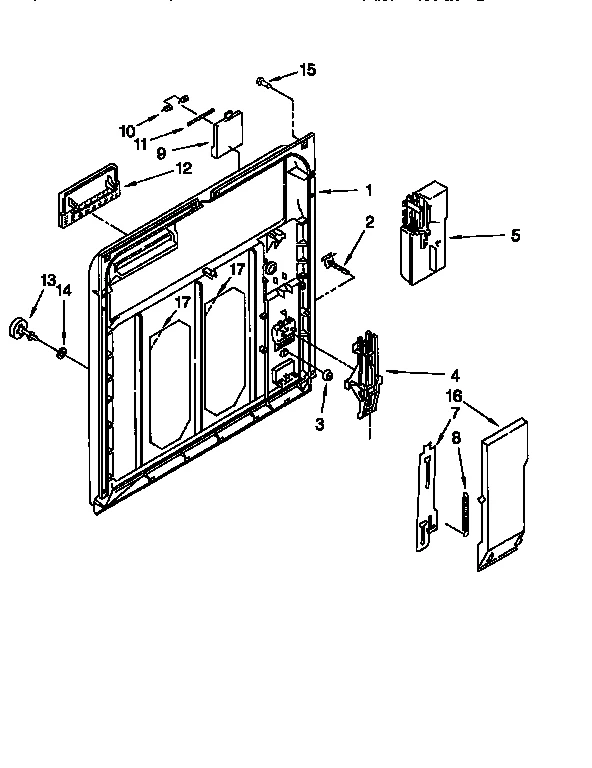

Dishwasher Door Inner Panel WPL 3371435 Contact Us For Availability

View on Model

1

Clip WPL 303722 Contact Us For Availability

View on Model

1

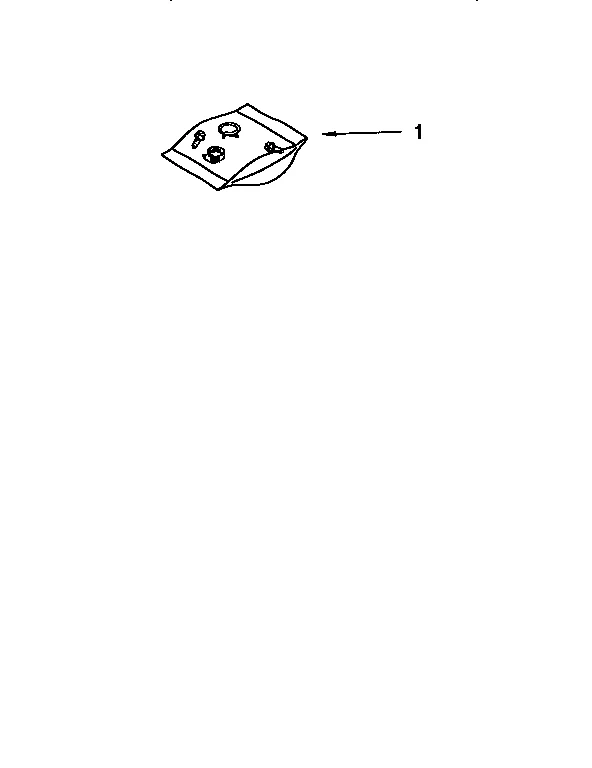

Miscellaneous Parts WPL 3369816 Contact Us For Availability

View on Model

1

Perforated Plate WPL 9740982 Contact Us For Availability

View on Model

1B

Technical Sheet WPL LIT3379906 Contact Us For Availability

View on Model

1C

Parts List WPL LIT3378831 Contact Us For Availability

View on Model

1D

Owner's Manual WPL LIT3373964 Contact Us For Availability

View on Model

1E

Dishwasher Owner's Manual WPL LIT4321605 Contact Us For Availability

View on Model

2

Tub Wheel WPL 3380371 Contact Us For Availability

View on Model

2

Dishwasher Upper Spray Arm Support WPL 3368290 Contact Us For Availability

View on Model

2

Insert WPL 3378348 Contact Us For Availability

View on Model

2

Inlet Base WPL 3367173 Contact Us For Availability

View on Model

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $4.36

View on Model

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

View on Model

3

Switch WPL 3369530 Contact Us For Availability

View on Model

4

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

View on Model

4

WP3369505 Whirlpool Dishwasher Actuator Backorder WPL WP3369505 $33.84

View on Model

5

WP8052028 Whirlpool Dishwasher Dispenser Backorder WPL WP8052028 $81.02

View on Model

5

Dishwasher Detergent Dispenser Actuator WPL 3374501 Contact Us For Availability

View on Model

5

Ball WPL 302709 Contact Us For Availability

View on Model

6

Dishwasher Wheel WPL 302819 Contact Us For Availability

View on Model

6

Seal WPL 3372245 Contact Us For Availability

View on Model

6

O-Ring WPL 95080 Contact Us For Availability

View on Model

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

View on Model

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

View on Model

7

Draw Bar WPL 3369448 Contact Us For Availability

View on Model

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $5.30

View on Model

8

Dishwasher Dishrack Spray Arm Mount Lock WPL 3374702 Contact Us For Availability

View on Model

8

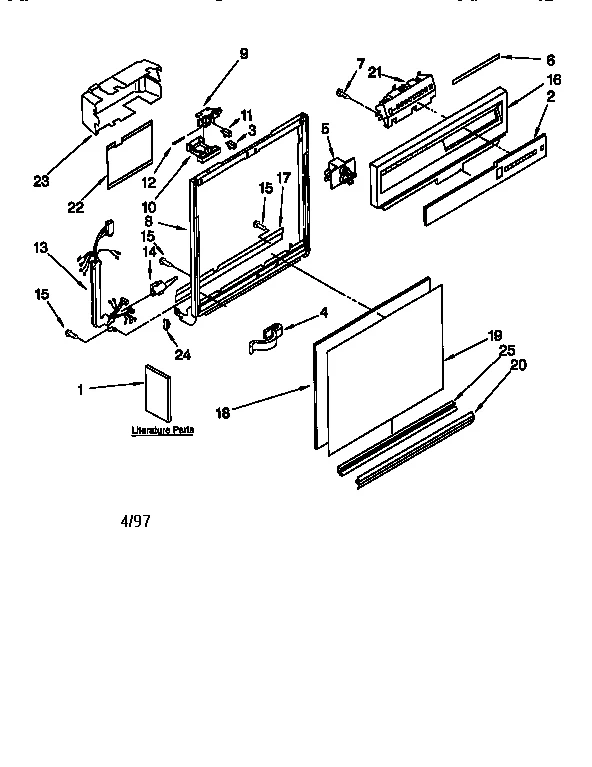

Frame WPL 3374712 Contact Us For Availability

View on Model

9

WP3370964 Whirlpool Dishwasher Latch Bolt Backorder WPL WP3370964 $65.36

View on Model

9

WP3378138 Whirlpool Cover Assembly In Stock WPL WP3378138 $20.85

View on Model

9

Dishwasher Filter Assembly WPL 9742968 Contact Us For Availability

View on Model

10

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $5.30

View on Model

10

Lever WPL 3369790 Contact Us For Availability

View on Model

10

Dishwasher Screw WPL 3400001 Contact Us For Availability

View on Model

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $5.69

View on Model

11

Dishwasher Dishrack Slide Rail Stop WPL 3380595 Contact Us For Availability

View on Model

11

Dishwasher Switch WPL 3369325 Contact Us For Availability

View on Model

12

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

View on Model

12

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $4.82

View on Model

12

Pin WPL 3369504 Contact Us For Availability

View on Model

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

View on Model

13

Wire Harness WPL 3379904 Contact Us For Availability

View on Model

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $5.30

View on Model

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

View on Model

14

Dishwasher Wire Harness Retainer WPL 3376405 Contact Us For Availability

View on Model

14

Outlet Pump WPL 3376844 Contact Us For Availability

View on Model

15

675238 Whirlpool Check Valve In Stock WPL 675238 $62.57

View on Model

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

View on Model

15

WPW10348413 Whirlpool Dishwasher Screw In Stock WPL WPW10348413 $4.99

View on Model

16

Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability

View on Model

16

Dishwasher Rinse-Aid Dispenser Drip Cover WPL 3371569 Contact Us For Availability

View on Model

16

Console WPL 3373930 Contact Us For Availability

View on Model

17

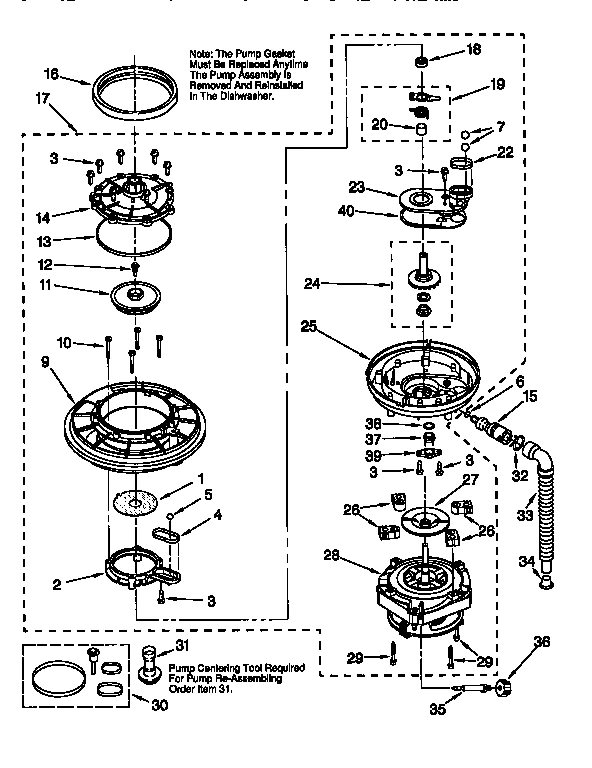

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $371.04

View on Model

17

Barrier WPL 3374776 Contact Us For Availability

View on Model

17

Damper WPL 3374772 Contact Us For Availability

View on Model

18

Absorber WPL 3374777 Contact Us For Availability

View on Model

18

Bushing WPL 302707 Contact Us For Availability

View on Model

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $88.63

View on Model

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $28.60

View on Model

20

Dishwasher Tine Pivot Clip WPL 3373360 Contact Us For Availability

View on Model

20

Dishwasher Door Outer Panel Retainer WPL 3374011 Contact Us For Availability

View on Model

20

Sleeve WPL 3378139 Contact Us For Availability

View on Model

21

Microcomputer WPL 3376984 Contact Us For Availability

View on Model

22

Shield WPL 3372244 Contact Us For Availability

View on Model

22

Seal WPL 302704 Contact Us For Availability

View on Model

23

Dishwasher Nozzle Cap WPL 3367910 Contact Us For Availability

View on Model

23

Dishwasher Sump Cap Cover WPL 3376845 Contact Us For Availability

View on Model

23

Cover Timer WPL 3371514 Contact Us For Availability

View on Model

24

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

View on Model

24

Bearing WPL 719576 Contact Us For Availability

View on Model

24

Dishwasher Motor Start Relay WPL 3369447 Contact Us For Availability

View on Model

25

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $69.16

View on Model

25

Base Pump WPL 3376157 Contact Us For Availability

View on Model

26

Dishwasher Sump Mounting Support WPL 3367197 Contact Us For Availability

View on Model

27

8268826 Whirlpool Dishwasher Cup Holder Backorder WPL 8268826 $14.02

View on Model

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

View on Model

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $21.08

View on Model

28

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $7.72

View on Model

28

Pump Motor WPL 3376765 Contact Us For Availability

View on Model

29

Screw WPL 3369331 Contact Us For Availability

View on Model

30

Retainer WPL 3368629 Contact Us For Availability

View on Model

30

Pump Seal WPL 675505 Contact Us For Availability

View on Model

31

Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability

View on Model

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

View on Model

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $62.78

View on Model

33

Dishwasher Self Threading Nut, 1/8-in WPL 717488 Contact Us For Availability

View on Model

34

Dishwasher Drain Hose Cap WPL 3371748 Contact Us For Availability

View on Model

35

Dishwasher Toe Panel WPL 3369614 Contact Us For Availability

View on Model

35

Stud WPL 3374757 Contact Us For Availability

View on Model

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.92

View on Model

36

Weight WPL 3378202 Contact Us For Availability

View on Model

37

Thermostat WPL 3378083 Contact Us For Availability

View on Model

38

Seal WPL 3376723 Contact Us For Availability

View on Model

39

Retainer WPL 3376358 Contact Us For Availability

View on Model

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82

View on Model

43

Dishwasher Toe Panel WPL 3370868 Contact Us For Availability

View on Model

45

Dishwasher Toe Panel Extension WPL 3374728 Contact Us For Availability

View on Model

48

Dishwasher Heating Element Support Bracket WPL 3379740 Contact Us For Availability

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $21.98

View on Model

NI

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $26.24

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

View on Model

NI

W10840471 Whirlpool Dishwasher Touch Up Backorder WPL W10840471 $25.17

View on Model

NI

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $24.99

View on Model

NI

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.06

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Dishwasher Door Spring Kit, 2-pack WPL 4318050 Contact Us For Availability

View on Model

NI

Pnl16051w WPL 4317925 Contact Us For Availability

View on Model

NI

Pnl Al WPL 4317929 Contact Us For Availability

View on Model

NI

Tip-tines-bl WPL 675677 Contact Us For Availability

View on Model

NI

Paint 1qt WPL 799340 Contact Us For Availability

View on Model

NI

Paint WPL 978883 Contact Us For Availability

View on Model
