Model Whirlpool 5VET3DTKLQ00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPW10190943 Whirlpool Refrigerator Icemaker Backorder WPL WPW10190943 $270.09

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI15477A4 WPL ARI15477A4 Contact Us For Availability

WPL ARI15478A6 WPL ARI15478A6 Contact Us For Availability

WPL ARI15479A9 WPL ARI15479A9 Contact Us For Availability

WPL ARI15480A2 WPL ARI15480A2 Contact Us For Availability

1

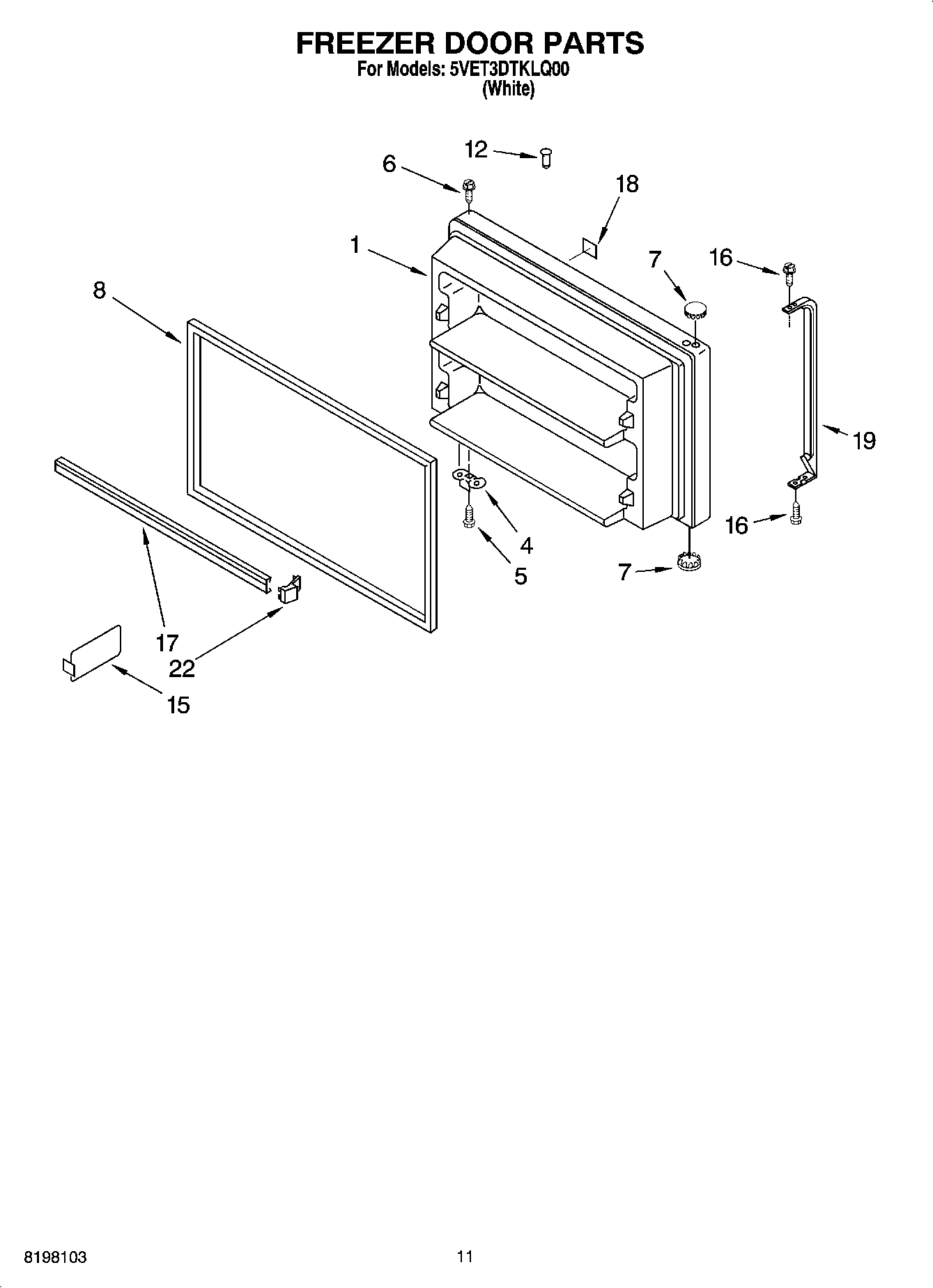

Freezer Door (Includes 8& 12) WPL 2183862 Contact Us For Availability

1

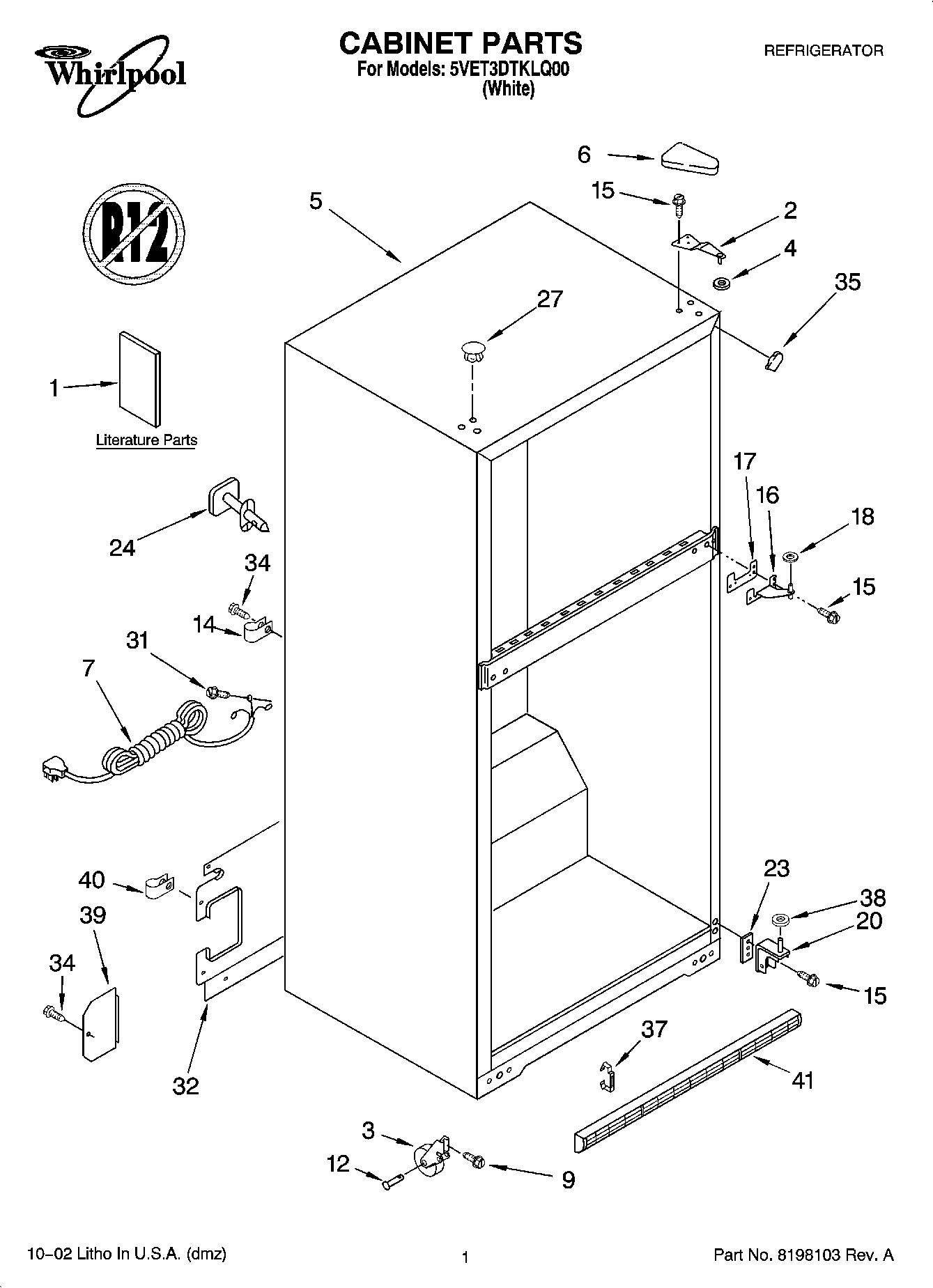

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

2

WP2182381 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2182381 $74.83

3

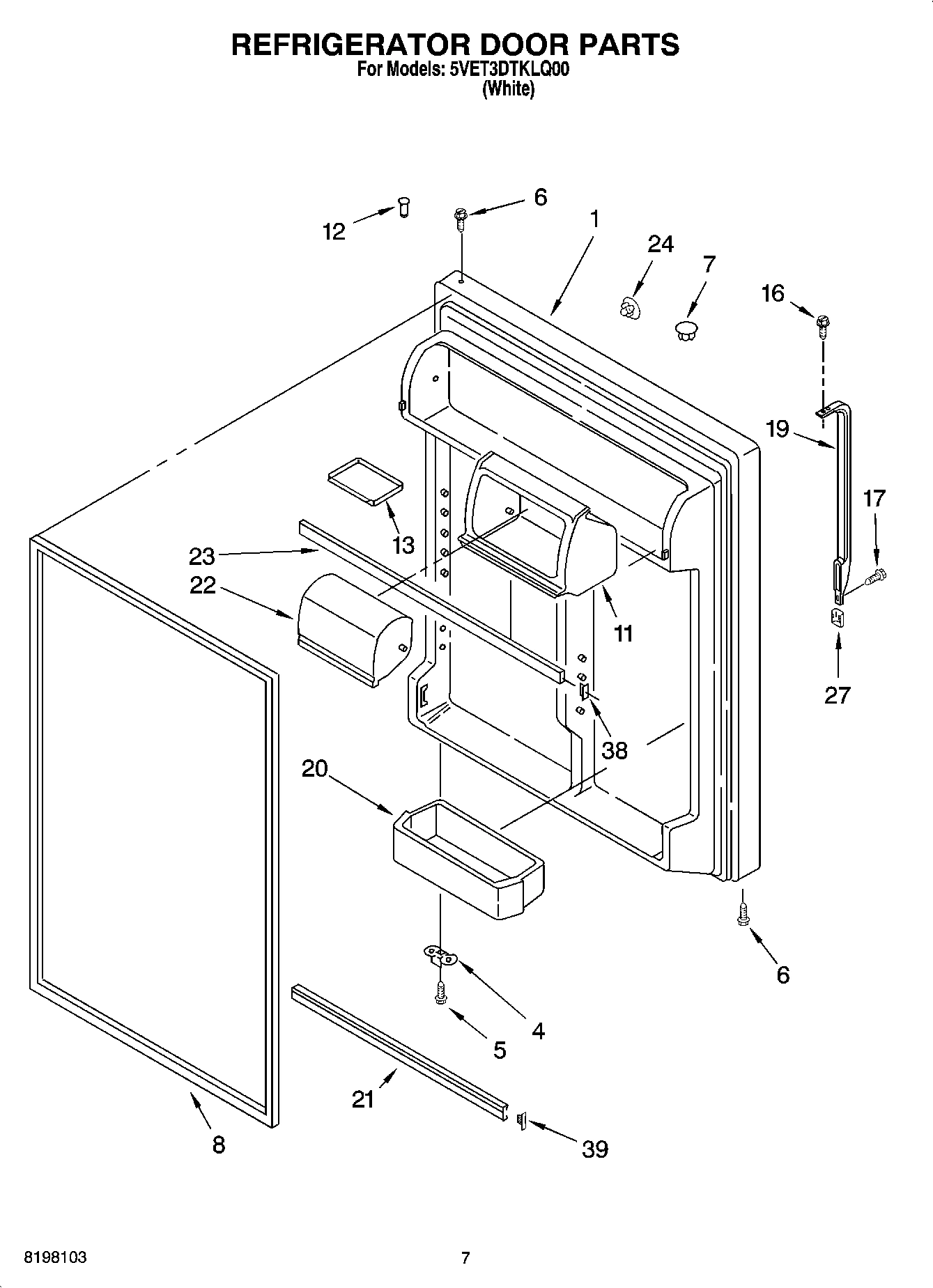

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

Heater, Defrost WPL 2166872 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

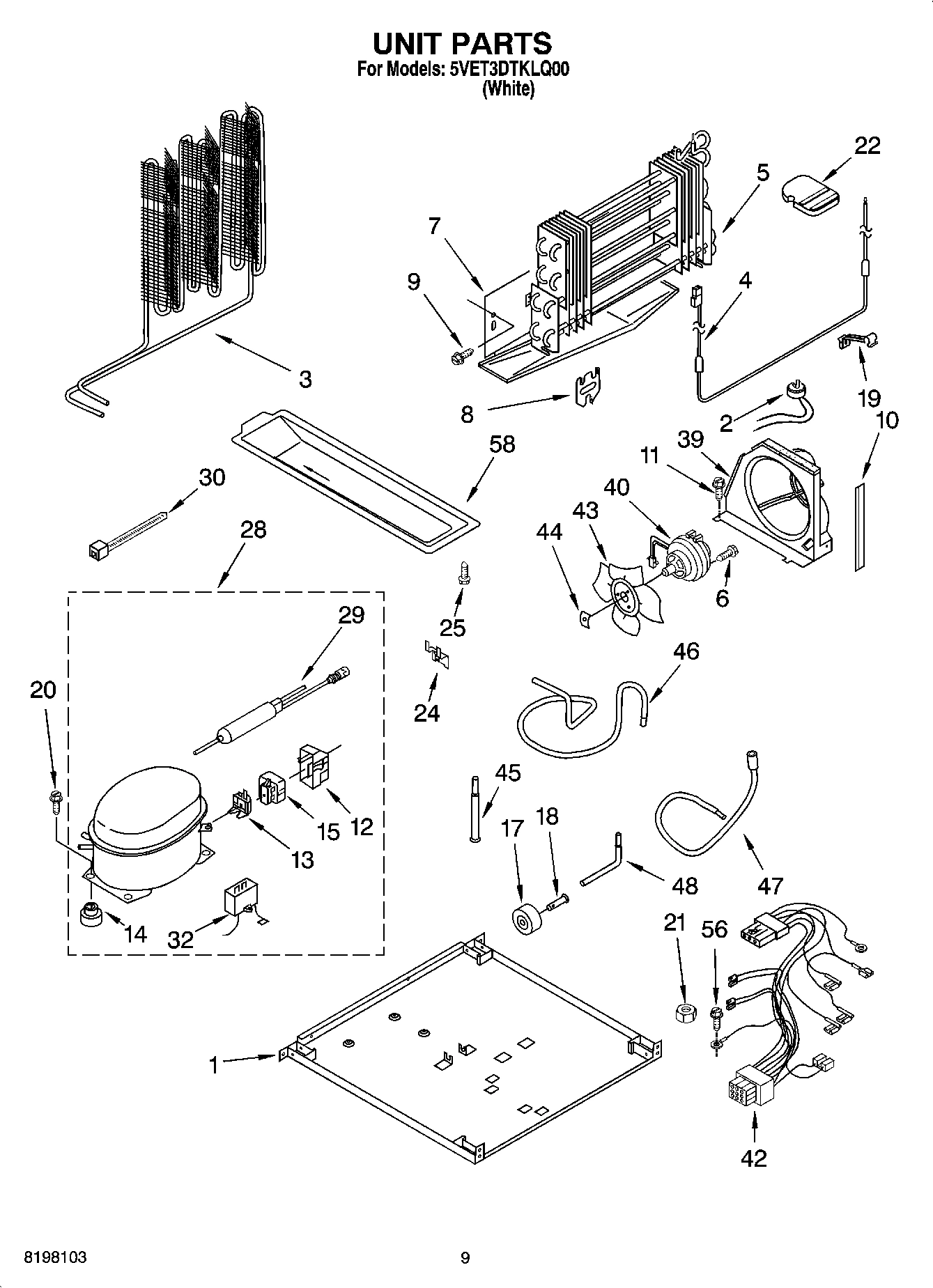

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

Drain Pan WPL 2172620 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $226.99

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

11

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $200.95

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

12

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

13

2169410 Whirlpool Refrigerator Overload Backorder WPL 2169410 $66.17

14

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

15

Divider, Door Shelf WPL 1123293 Contact Us For Availability

15

Start-Device Combination (Start Relay and Ove WPL 2204308 Contact Us For Availability

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.52

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $4.99

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

18

Nameplate WPL 2195063 Contact Us For Availability

19

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $163.78

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

Clip, Heater WPL 2182338 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI15474A1 Contact Us For Availability

22

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

22

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

22

Support Block WPL 2201185 Contact Us For Availability

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

24

Clip WPL 2166683 Contact Us For Availability

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

28

Compressor (Includes Items 12,13,14,29 & 32) WPL 2187203 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

31

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $92.12

32

Slide, Crisper WPL 2176222 Contact Us For Availability

32

Capacitor (Production) WPL 2210329 Contact Us For Availability

33

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

34

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

34

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

38

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

39

Air Baffle WPL 2188262 Contact Us For Availability

40

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $223.83

42

Wire Assembly, Unit WPL 2187410 Contact Us For Availability

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $62.23

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $70.20

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI15475A4 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI15476A5 Contact Us For Availability
