Model Whirlpool 4YED25PWAW00 REFRIGERATOR – Common Parts & Diagrams

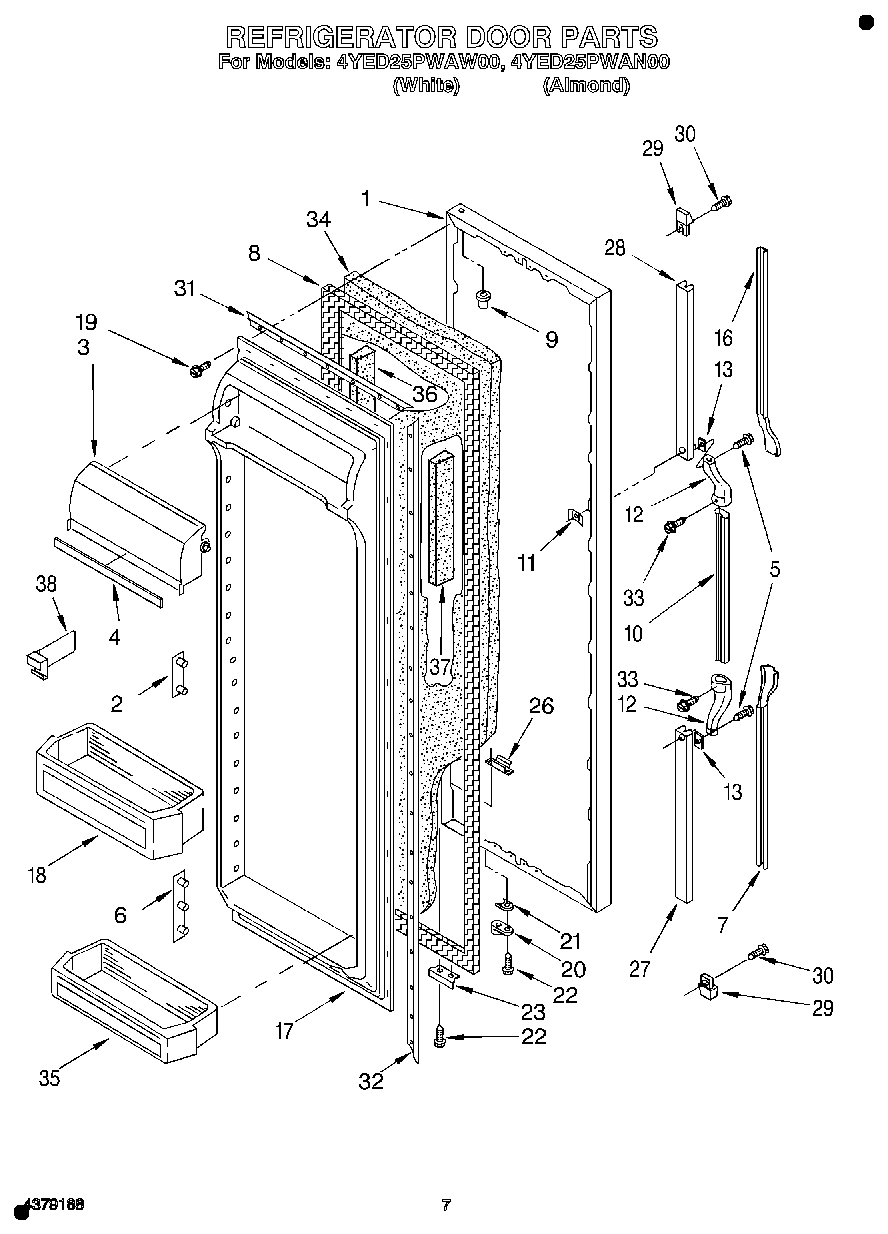

06 - REFRIGERATOR DOOR

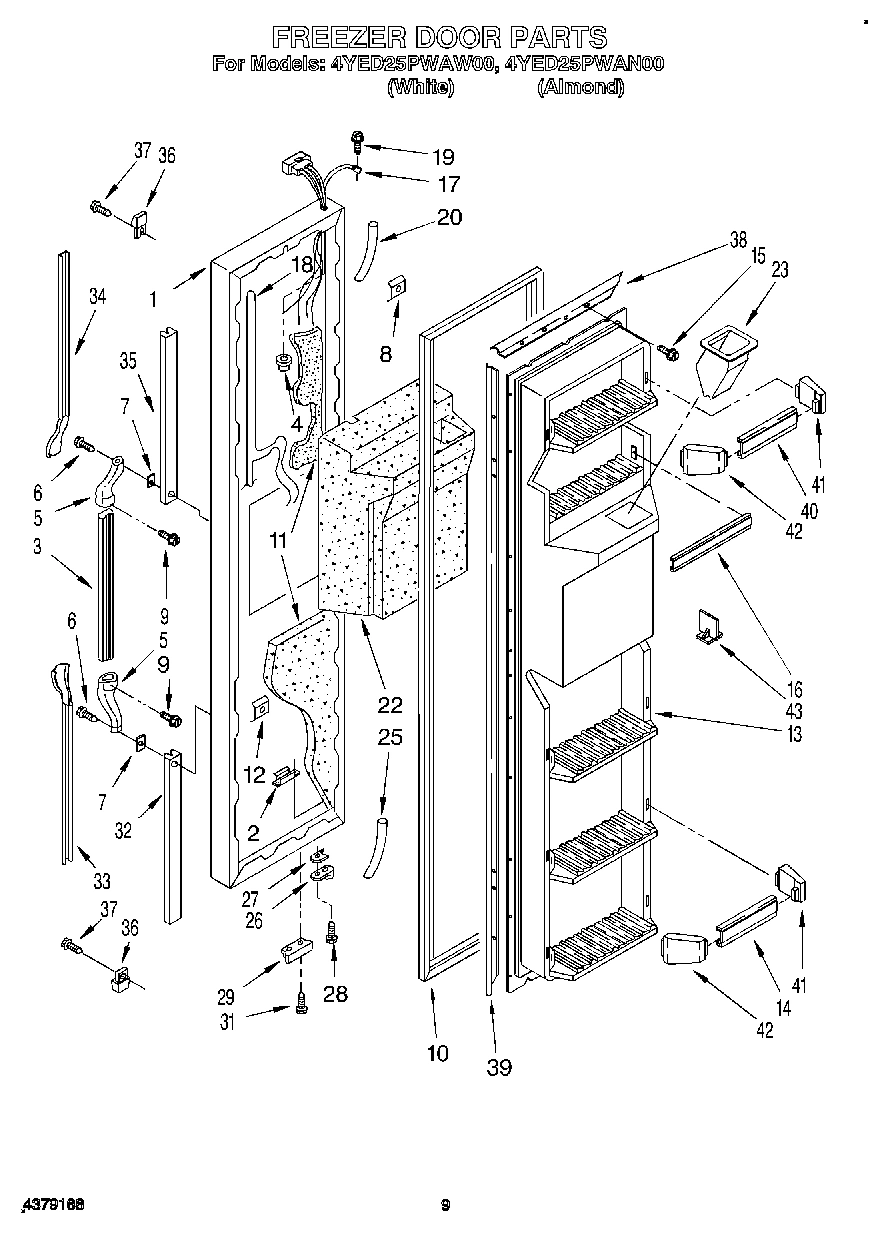

07 - FREEZER DOOR

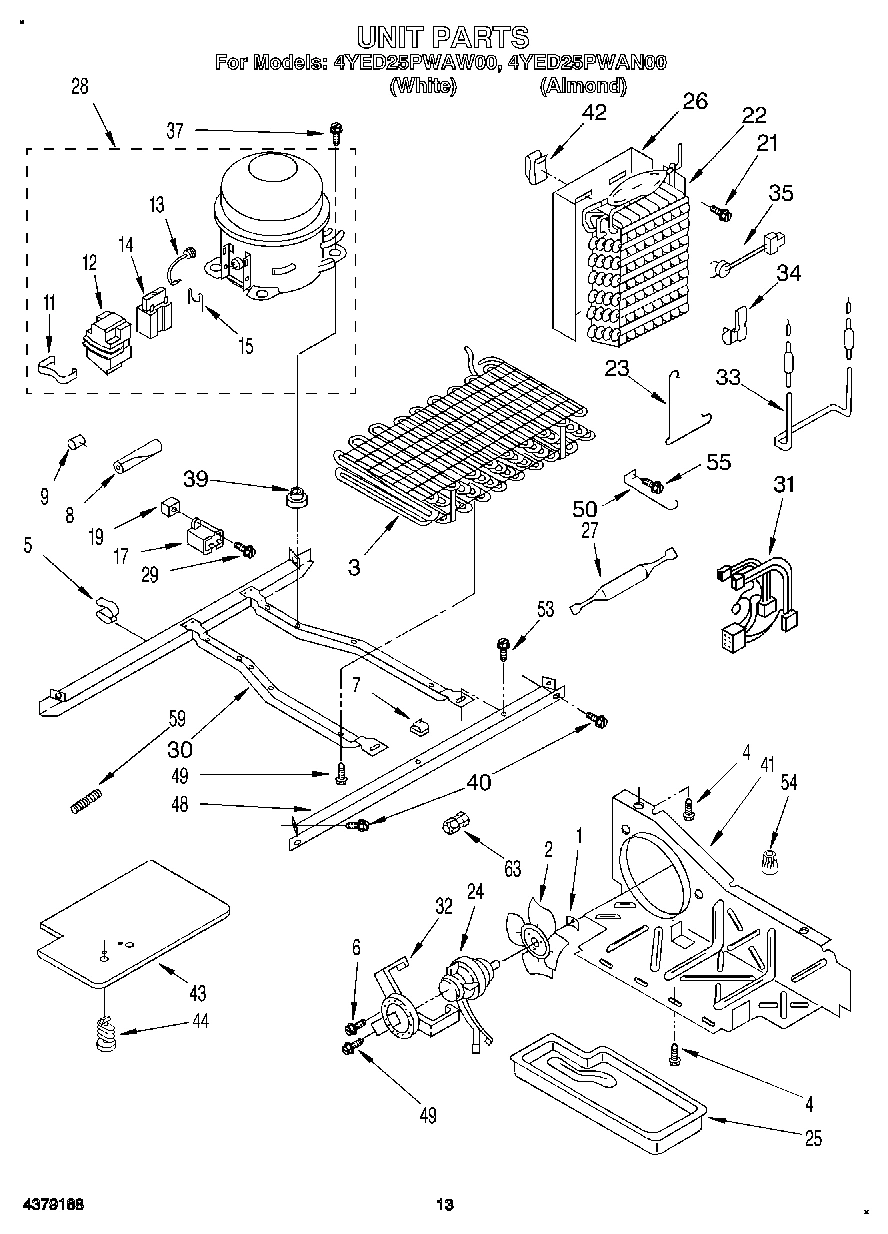

09 - UNIT

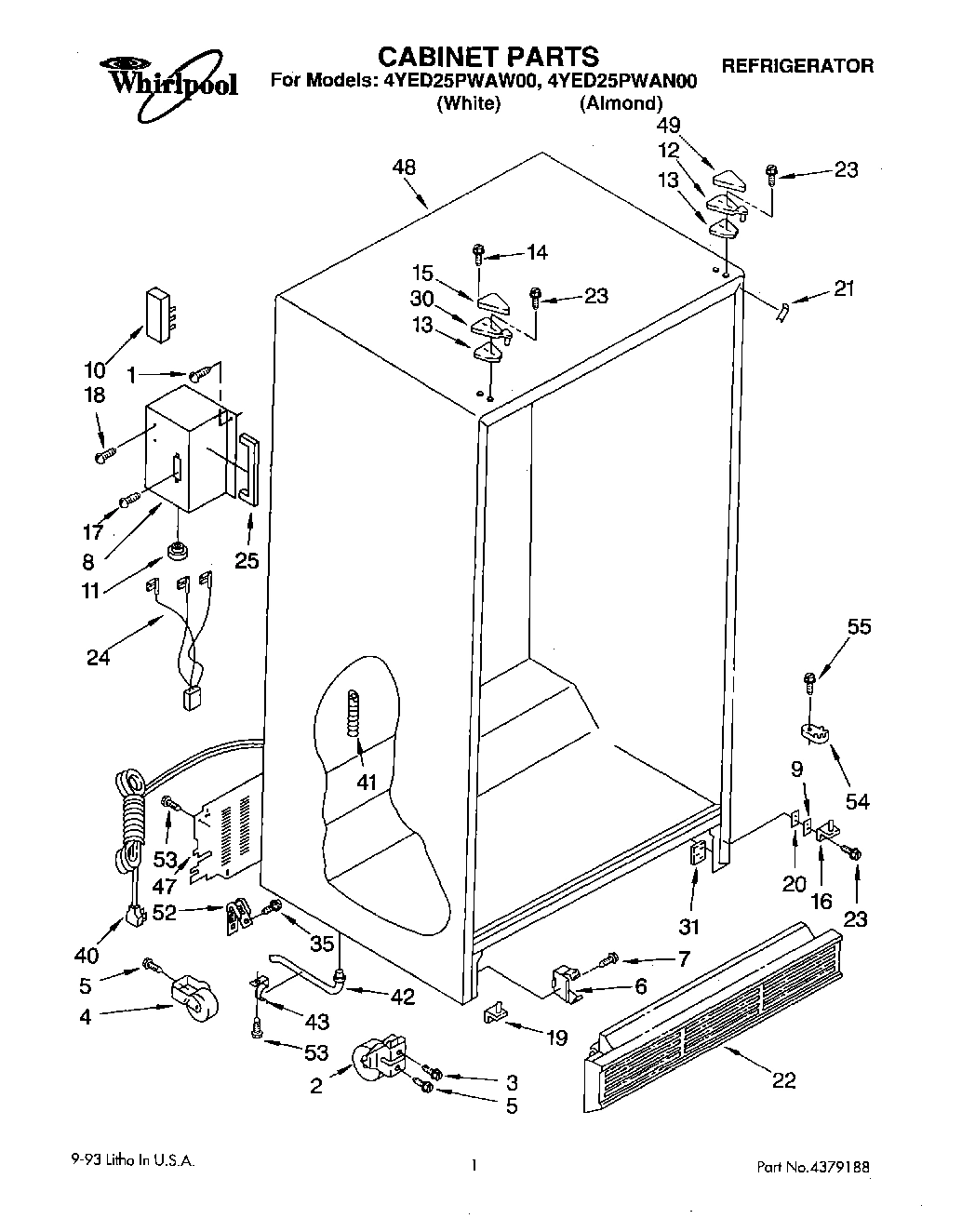

01 - CABINET

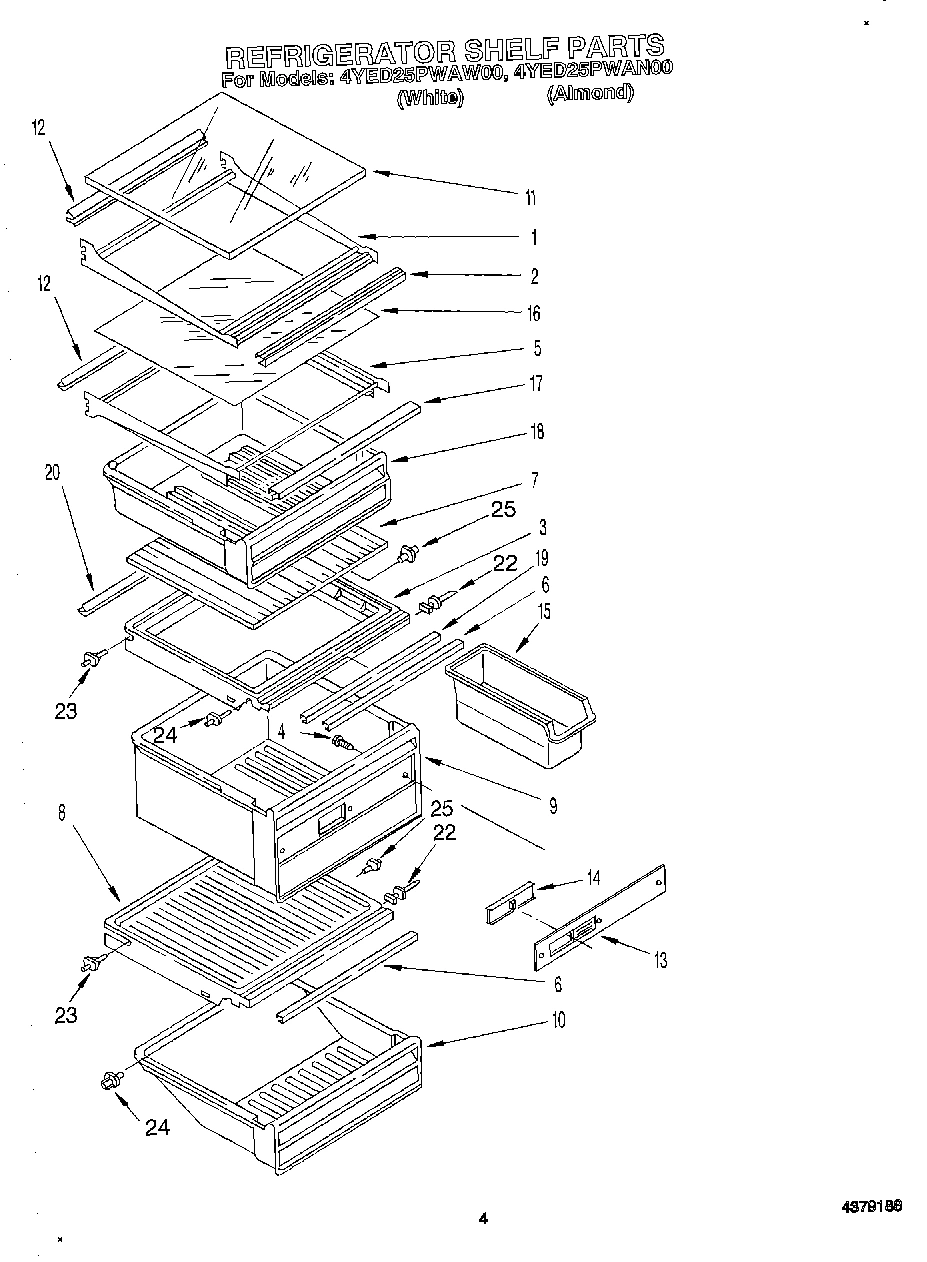

03 - REFRIGERATOR SHELF

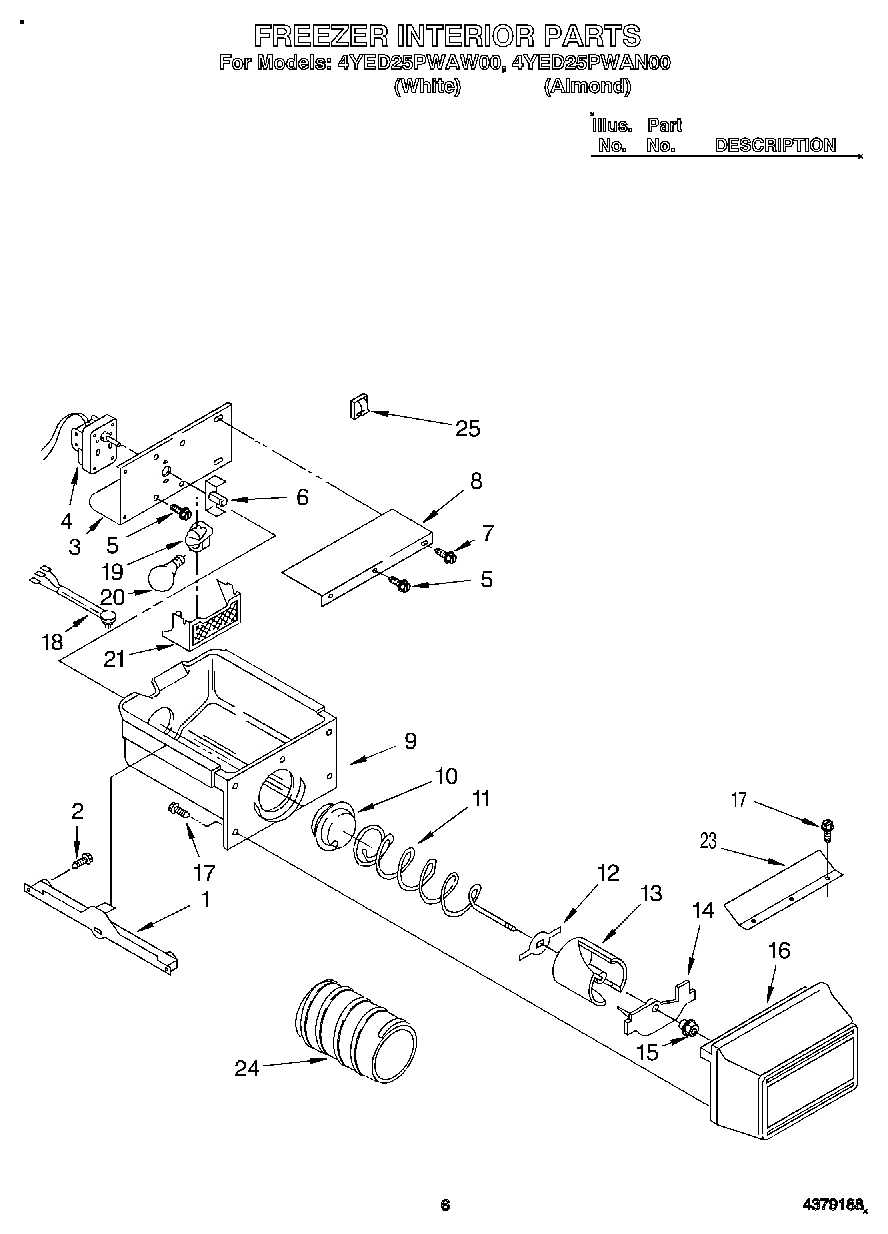

05 - FREEZER INTERIOR

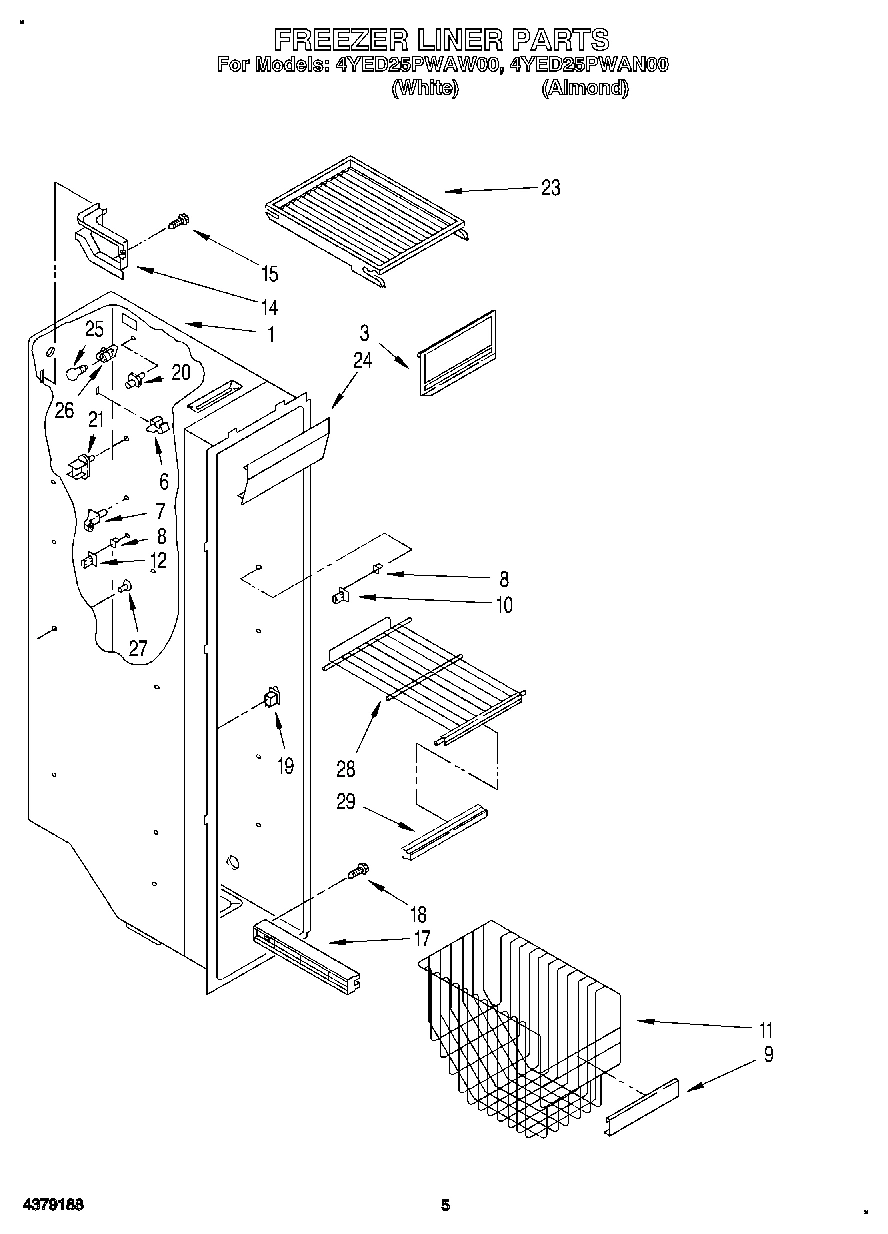

04 - FREEZER LINER

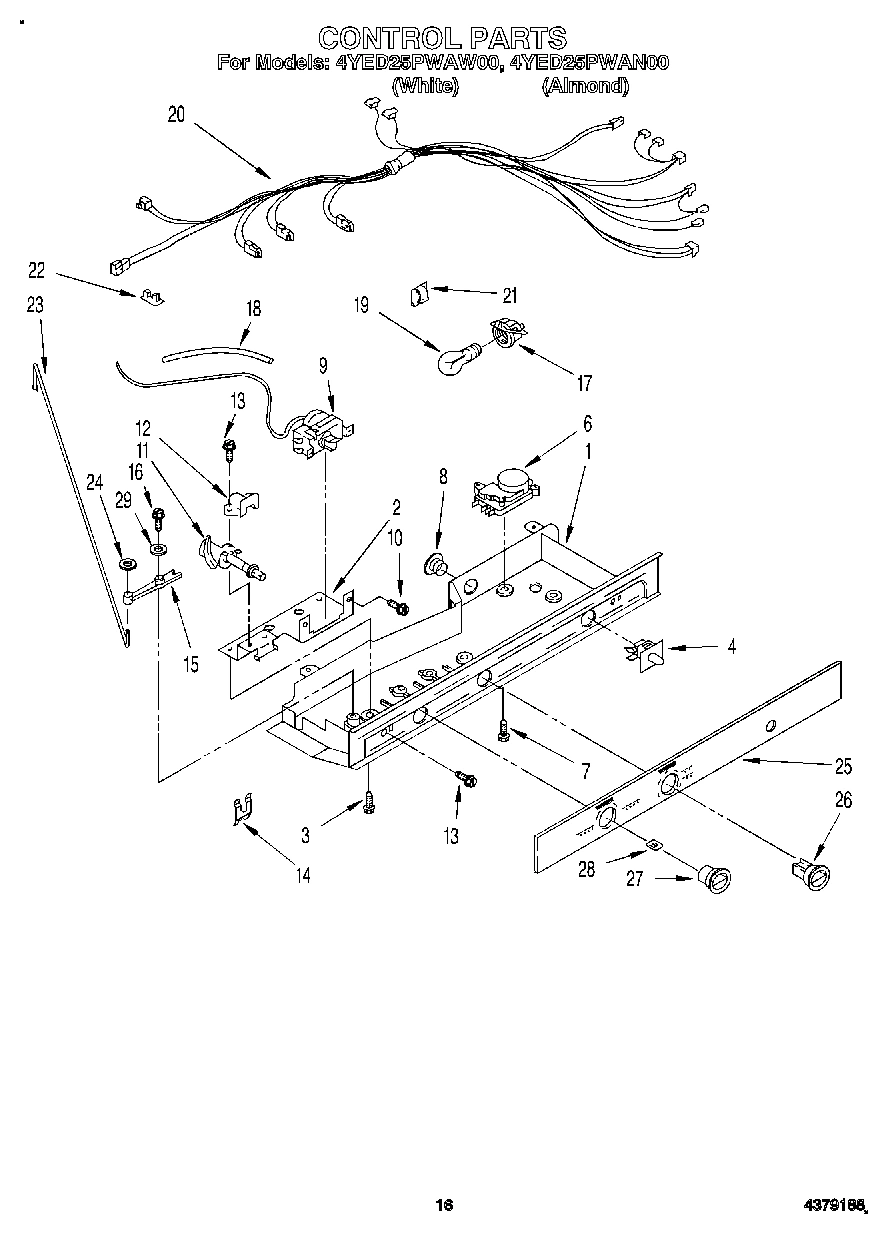

11 - CONTROL

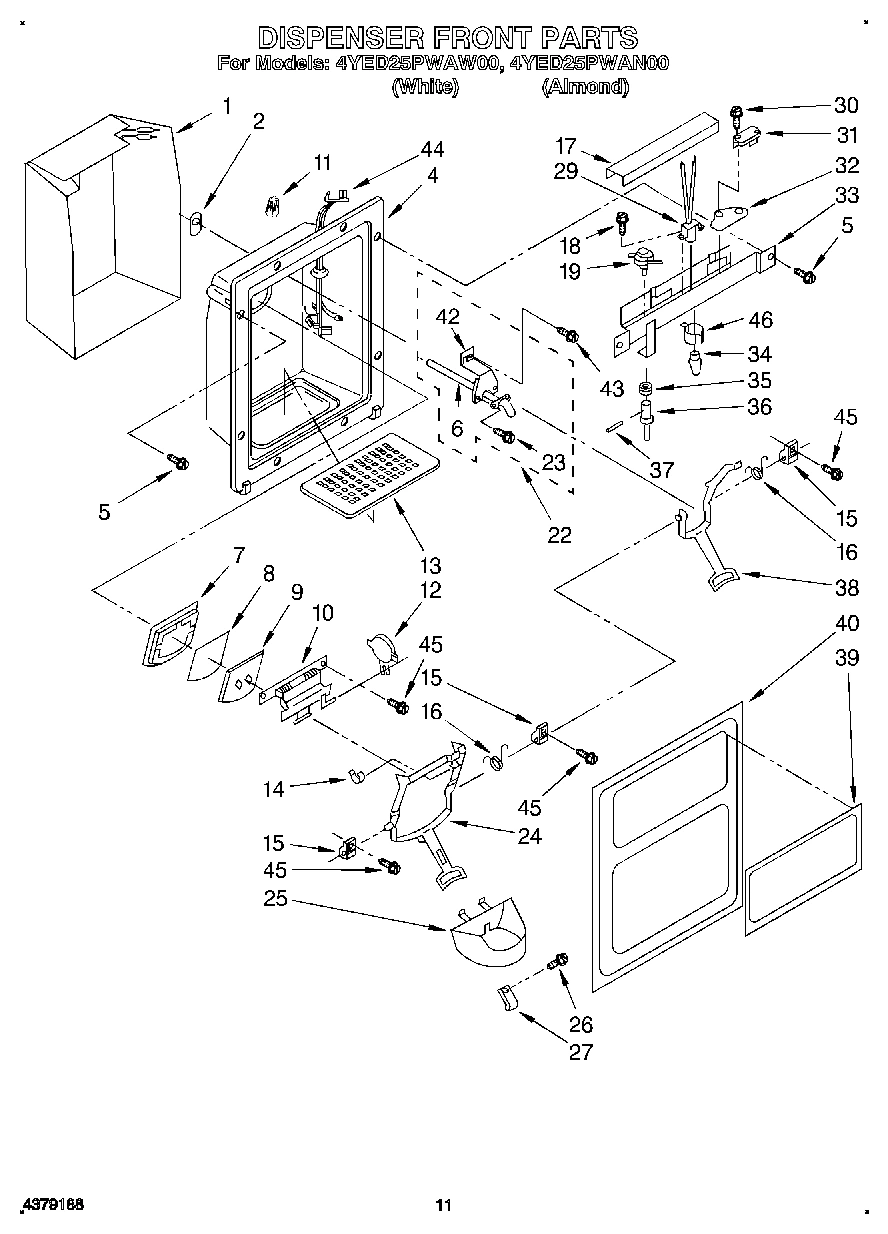

08 - DISPENSER FRONT
10 - AIR FLOW

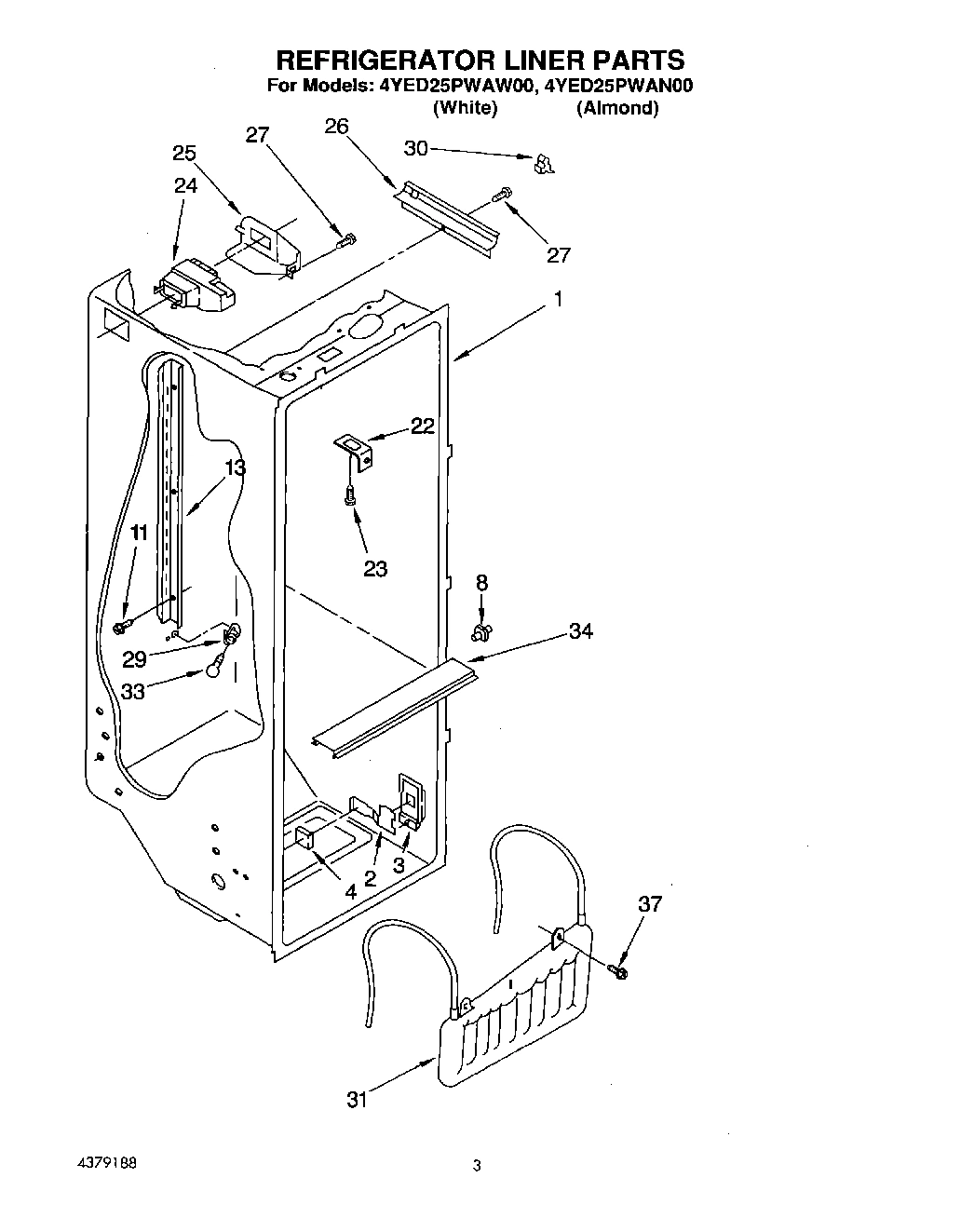

02 - REFRIGERATOR LINER

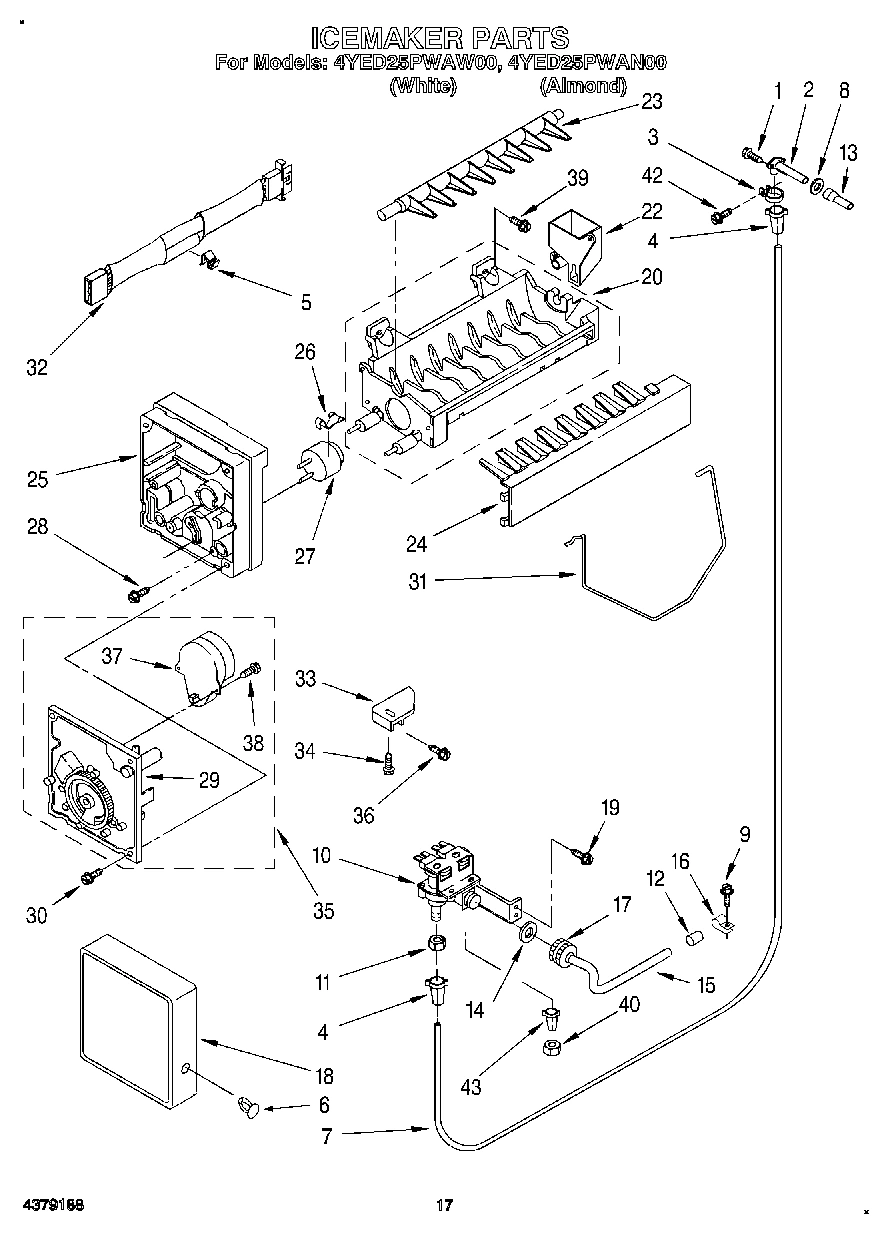

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 4YED25PWAW00 REFRIGERATOR
WPL LIT2167105 WPL LIT2167105 Contact Us For Availability
WPL LIT2167244 WPL LIT2167244 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1118413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140859A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140858A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Trim, Shelf WPL 1114302 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Door, Ice Compartment WPL 2155373 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Screw (3) WPL 489226 Contact Us For Availability
4
Motor WPL 2167014 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Pan Shelf & Slide Assembly WPL 2148122 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI140860A Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Cover, Terminal Block WPL 2158579 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
support stud (8) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan, Crisper WPL 2167180 Contact Us For Availability
9
Trim, Basket WPL 2148314 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Pan, Meat WPL 2167181 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Glass, Shelf WPL 2148237 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Reflector, Shelf WPL 1114306 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Front, Crisper Pan WPL 2158950 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Slide WPL 1116718 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Glass, Shelf WPL 2148300 Contact Us For Availability
16
Front Cover WPL 2148312 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Trim, Shelf WPL 2148301 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side) WPL 1126355 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
18
Snack Bin WPL 2158957 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 No Longer Available
23
Clamp WPL 2161324 Contact Us For Availability
23
Deflector, Ice Container WPL 1119043 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon Control WPL 2167184 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
28
Shelf (Large 2) WPL 1116956 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, Shelf (3) WPL 1120547 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Motor Module WPL 628358 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover WPL 2158952 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2158967 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
46
Shroud, Bracket WPL 1129333 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI140857A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
