Model Whirlpool 4KSRS27QDA01 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR SHELF

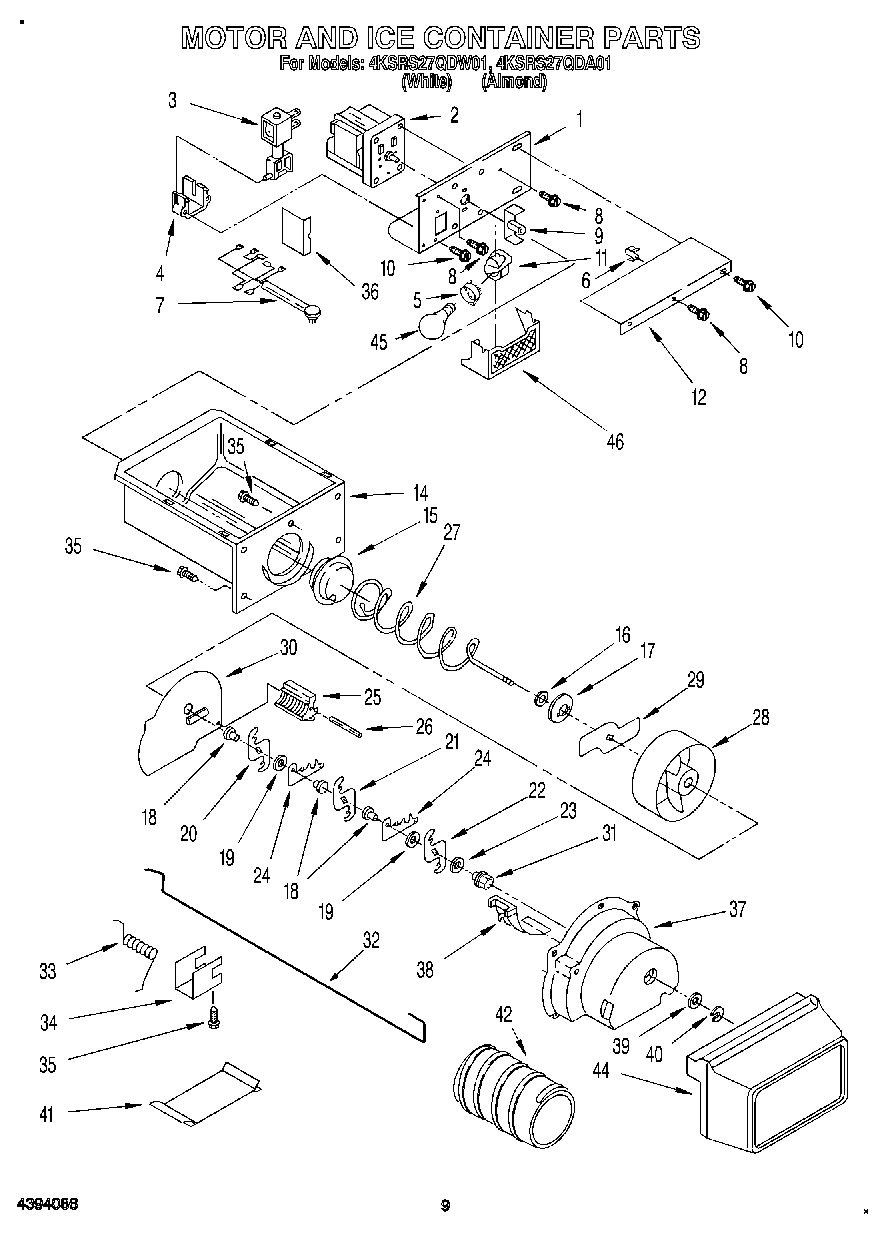

06 - MOTOR AND ICE CONTAINER

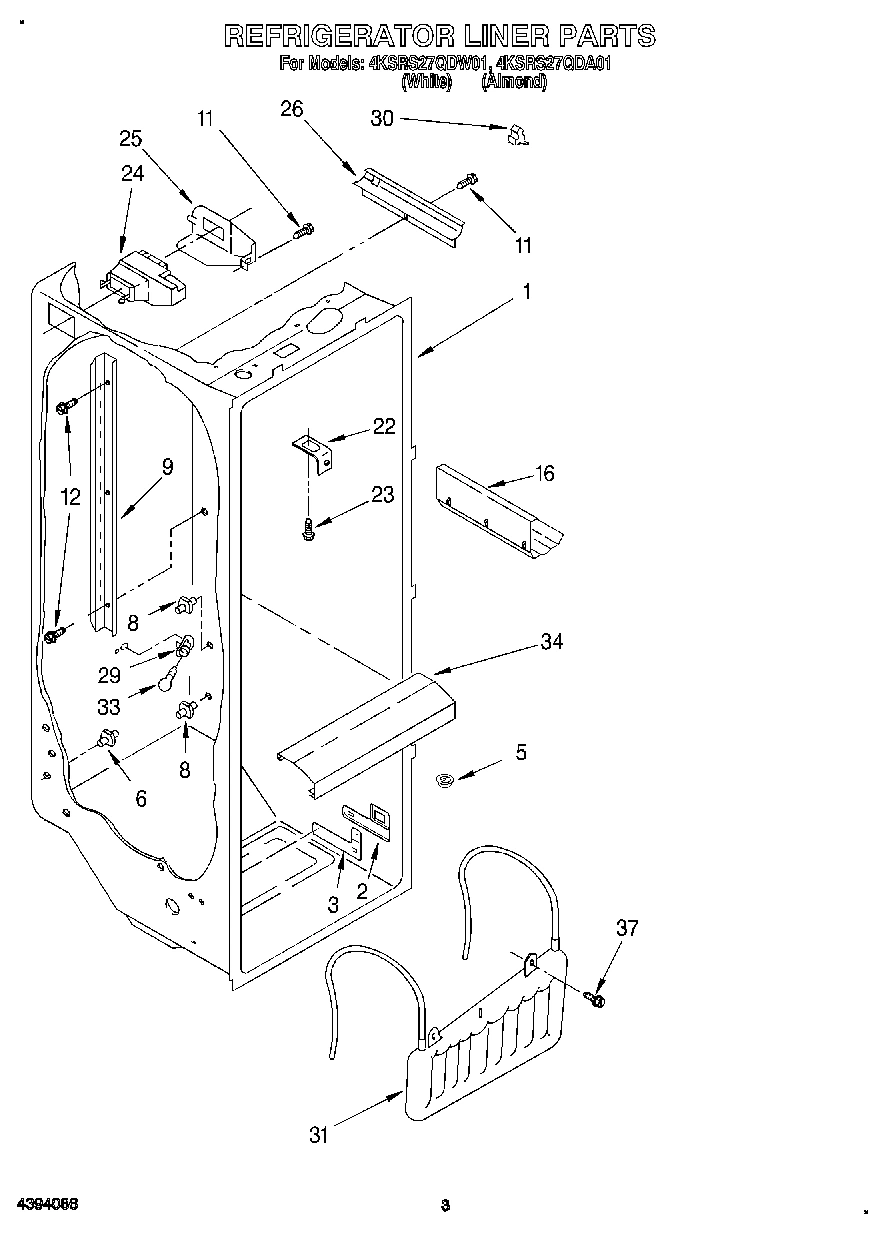

02 - REFRIGERATOR LINER

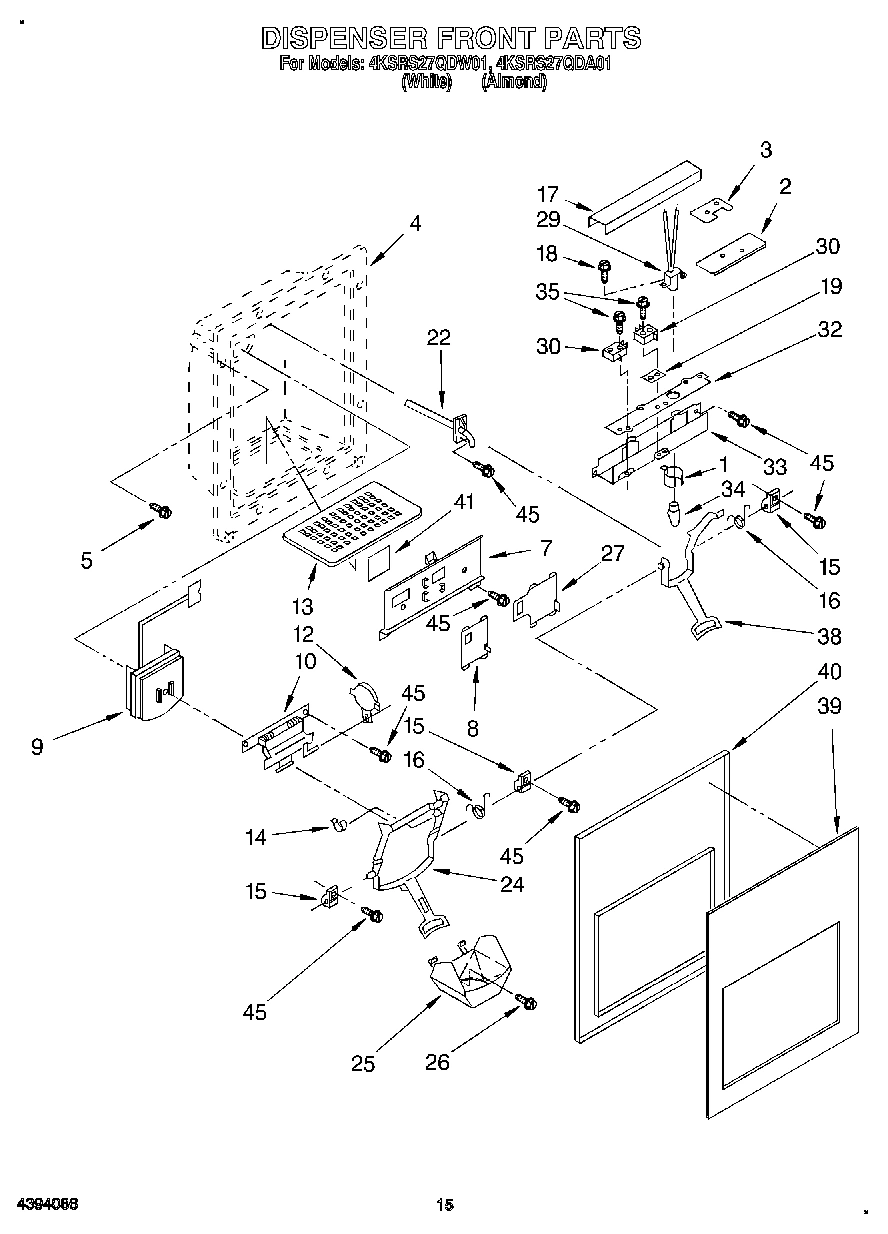

09 - DISPENSER FRONT

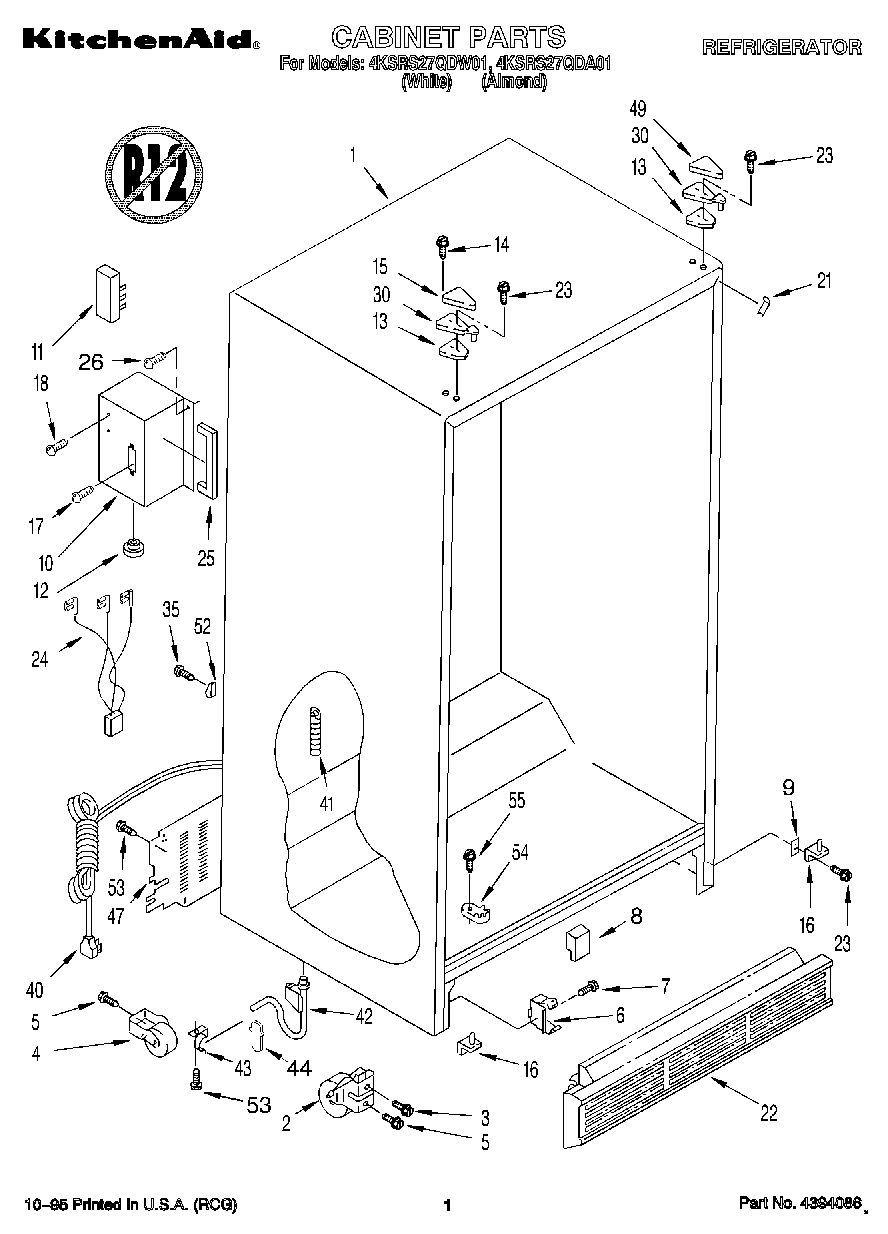

01 - CABINET
12 - AIR FLOW, LIT/OPTIONAL

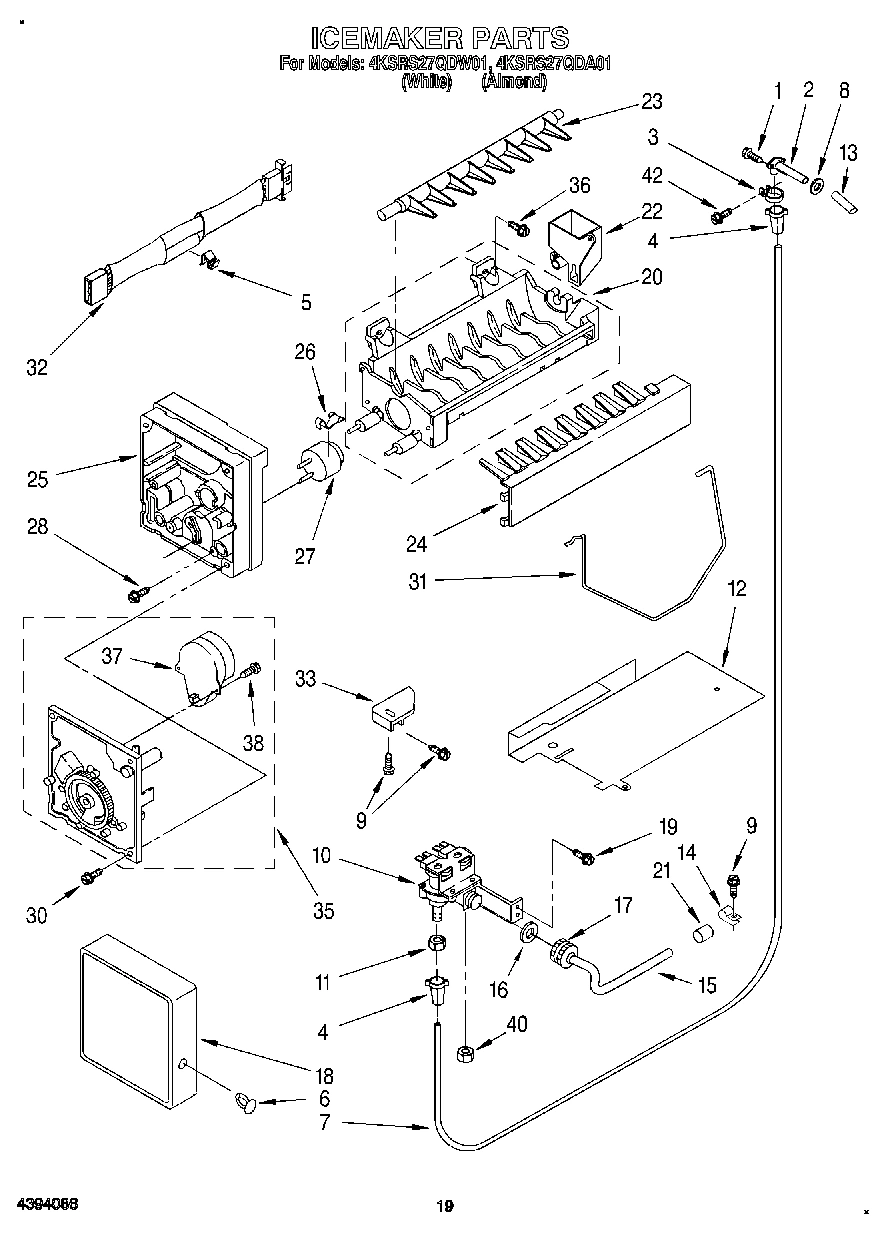

11 - ICEMAKER

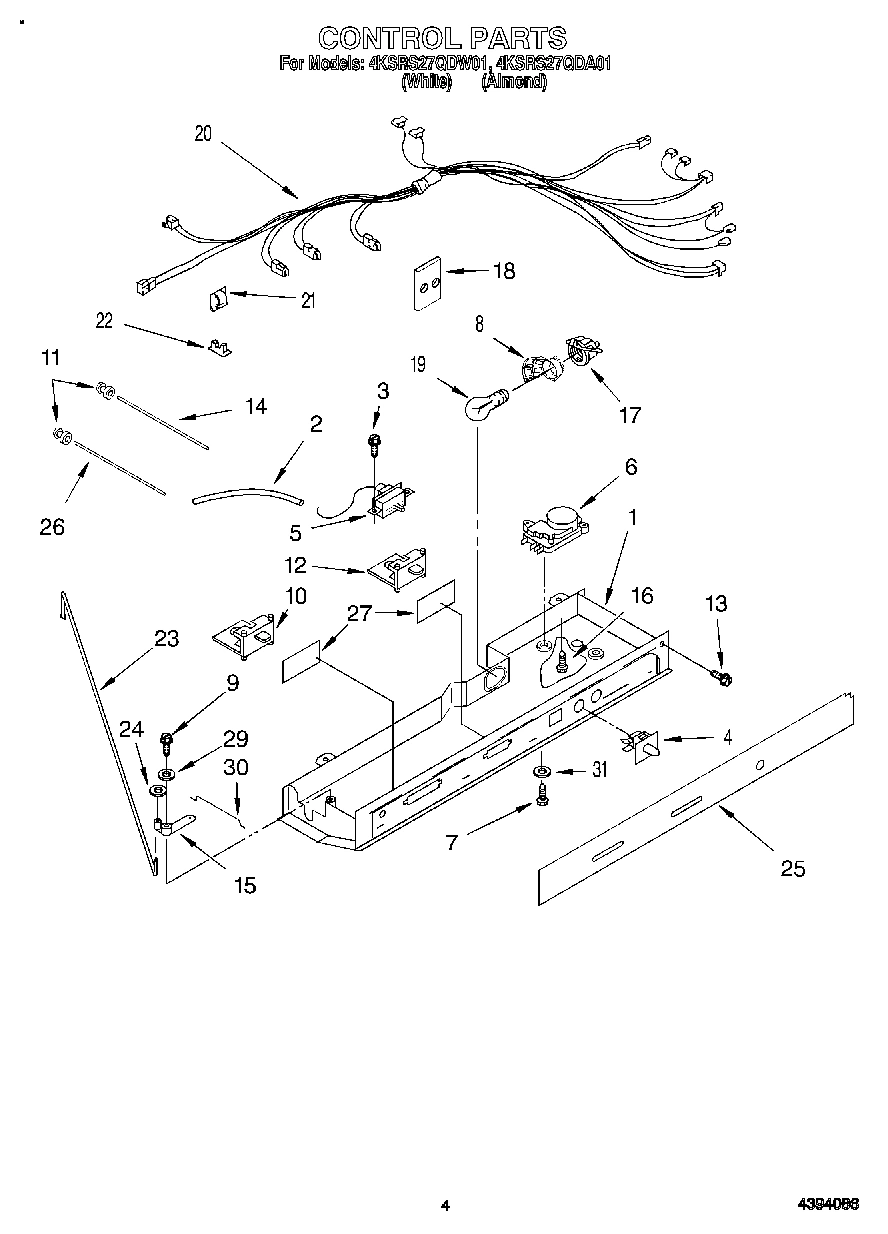

03 - CONTROL

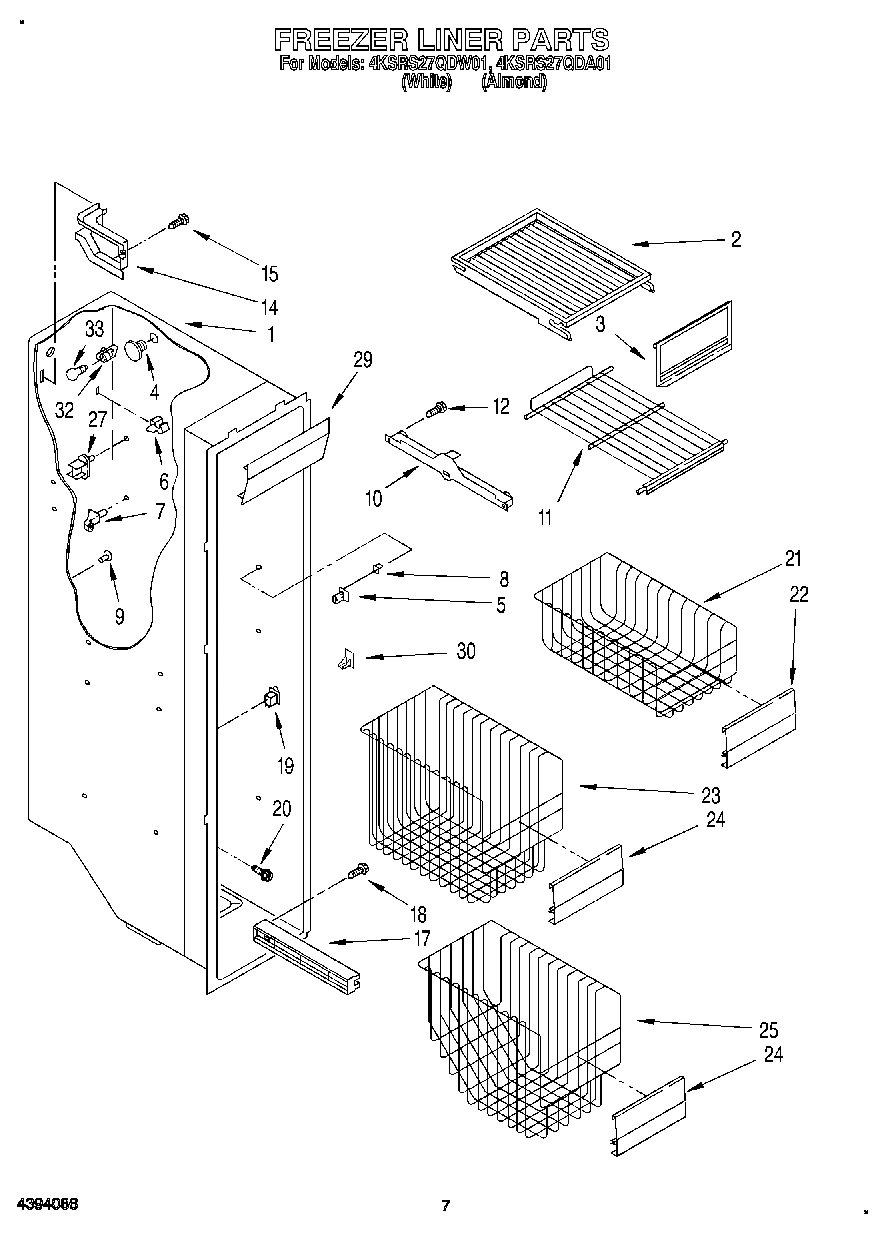

05 - FREEZER LINER

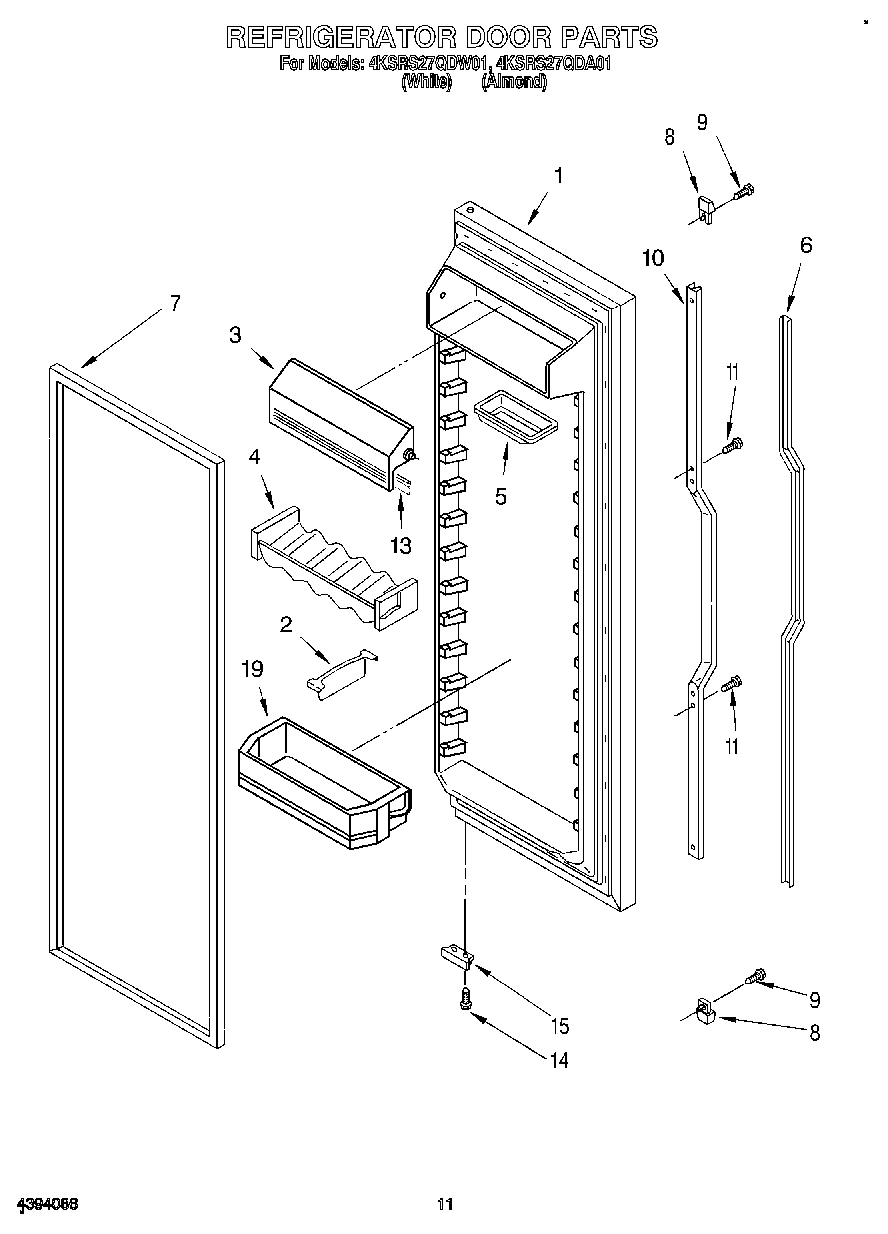

07 - REFRIGERATOR DOOR

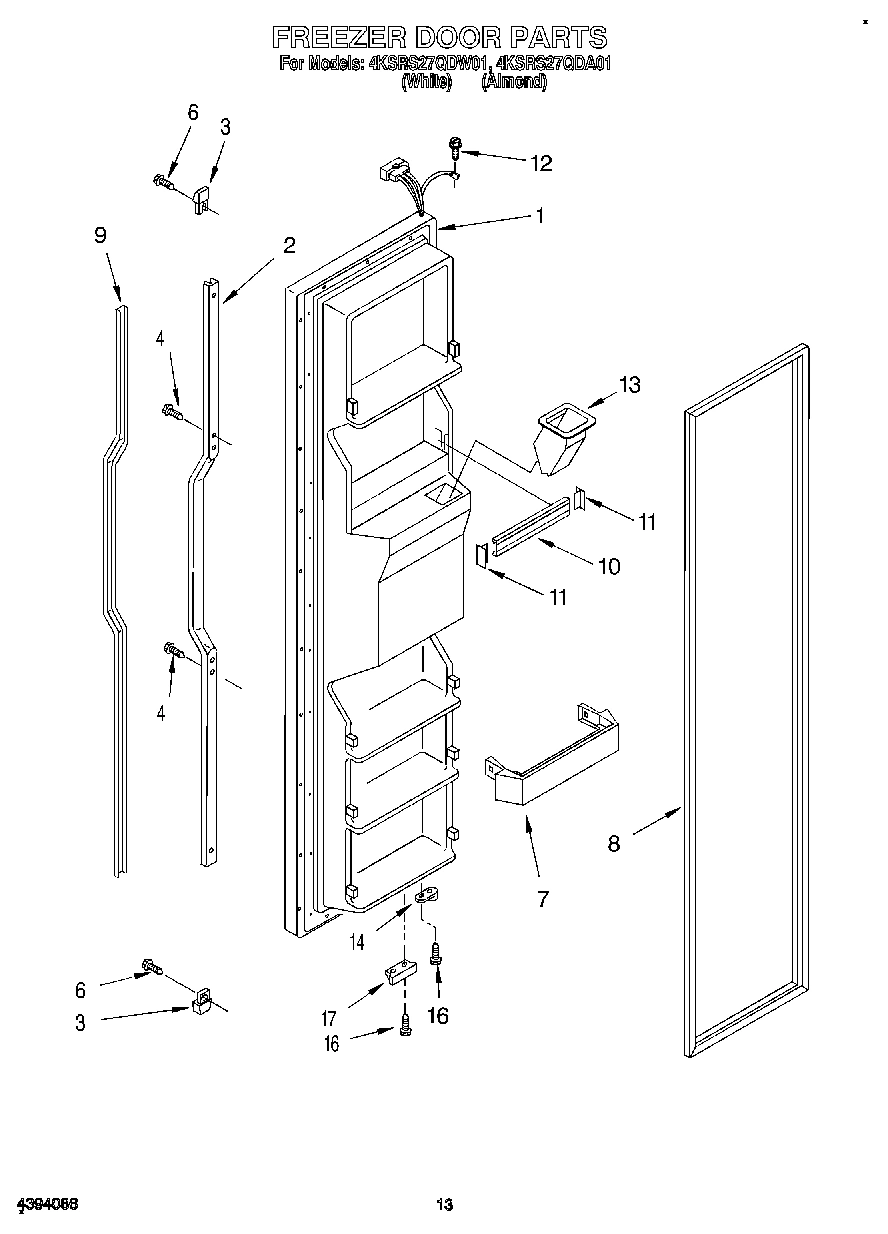

08 - FREEZER DOOR

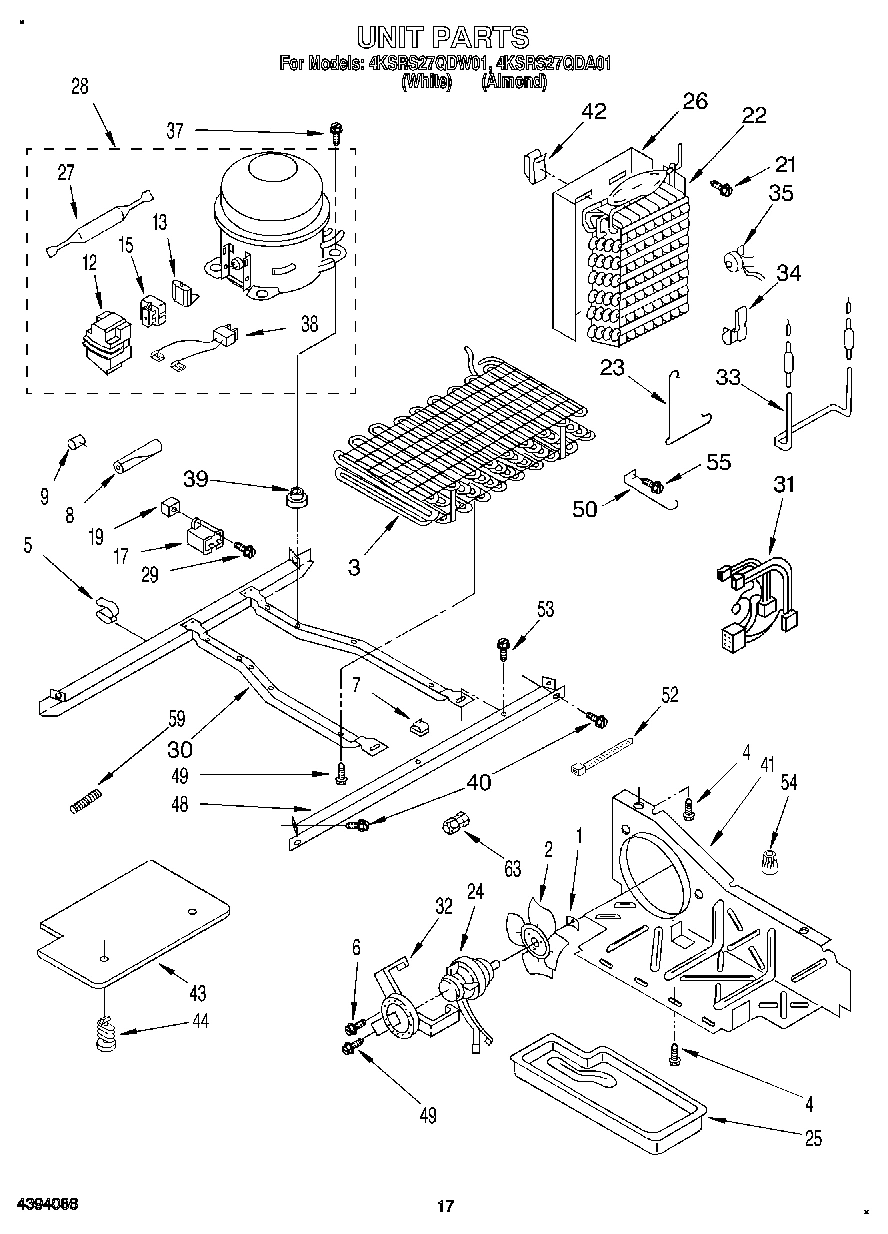

10 - UNIT
Common parts from model Whirlpool 4KSRS27QDA01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175118 WPL LIT2175118 Contact Us For Availability
WPL LIT2176801 WPL LIT2176801 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Control Box WPL 2181737 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14394A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14396A1 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2177184 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2177185 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179952 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179953 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Retainer, Insert WPL 2173824 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
End Cap (2) WPL 2173826 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Chute, Ice WPL 2156145 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Tube Clamp WPL 510716 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Tube, Inlet WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Washer WPL 628337 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Shelf Bin (4) WPL 2171062 Contact Us For Availability
19
Black Acrylic Panel Kit WPL 4210348 Contact Us For Availability
19
Almond Acrylic Panel Kit WPL 4211147 Contact Us For Availability
19
White Acrylic Panel Kit WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Woodgrain Handle Inserts WPL 4318340 Contact Us For Availability
19
Black Grille Kit WPL 4318417 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2175095 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
Enamel, Almon WPL 978883 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Wire Assembly, Terminal Box WPL 2165297 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Front, Basket WPL 2175094 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175063 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Screw WPL 488474 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2175513 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Washer WPL 486632 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (White) WPL 2175025 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2175161 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2175159 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2175160 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2171942 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
