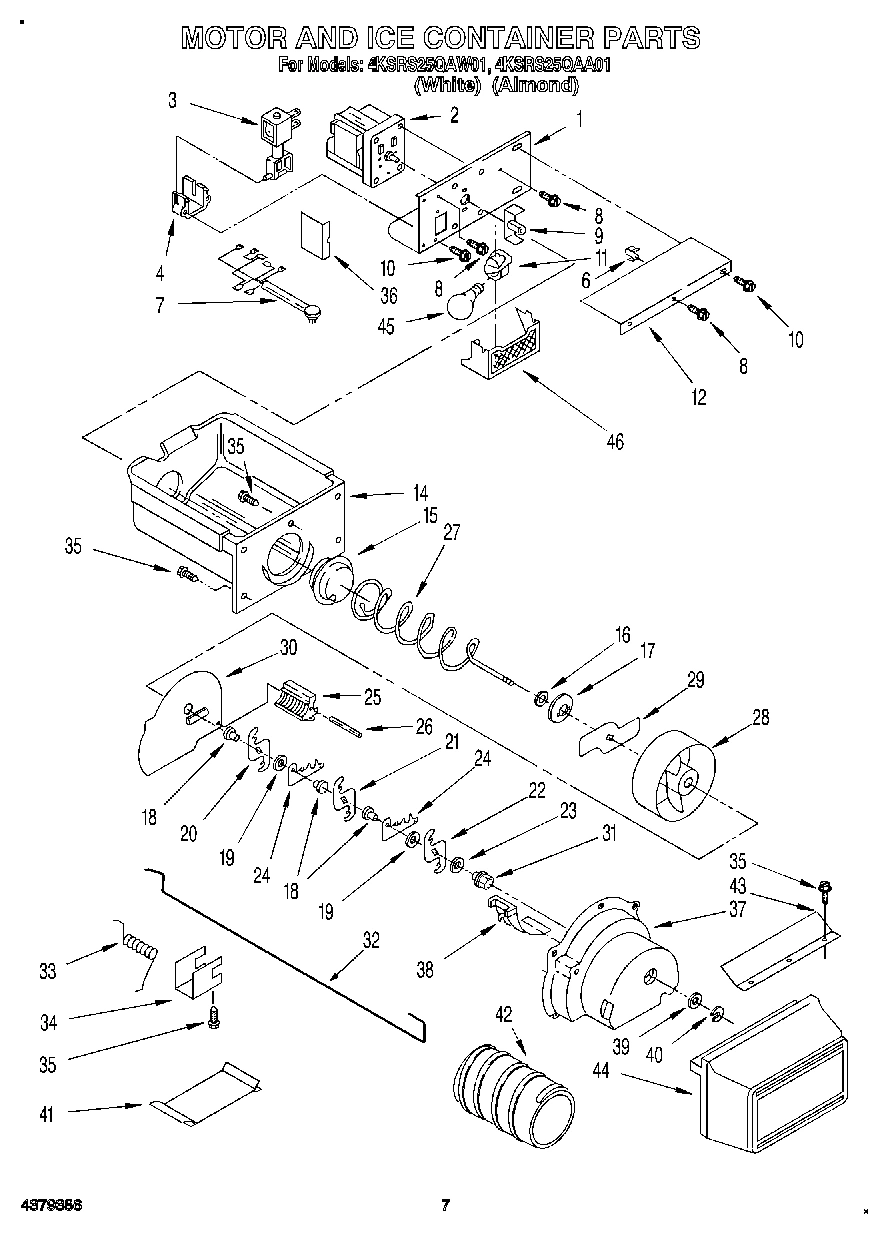

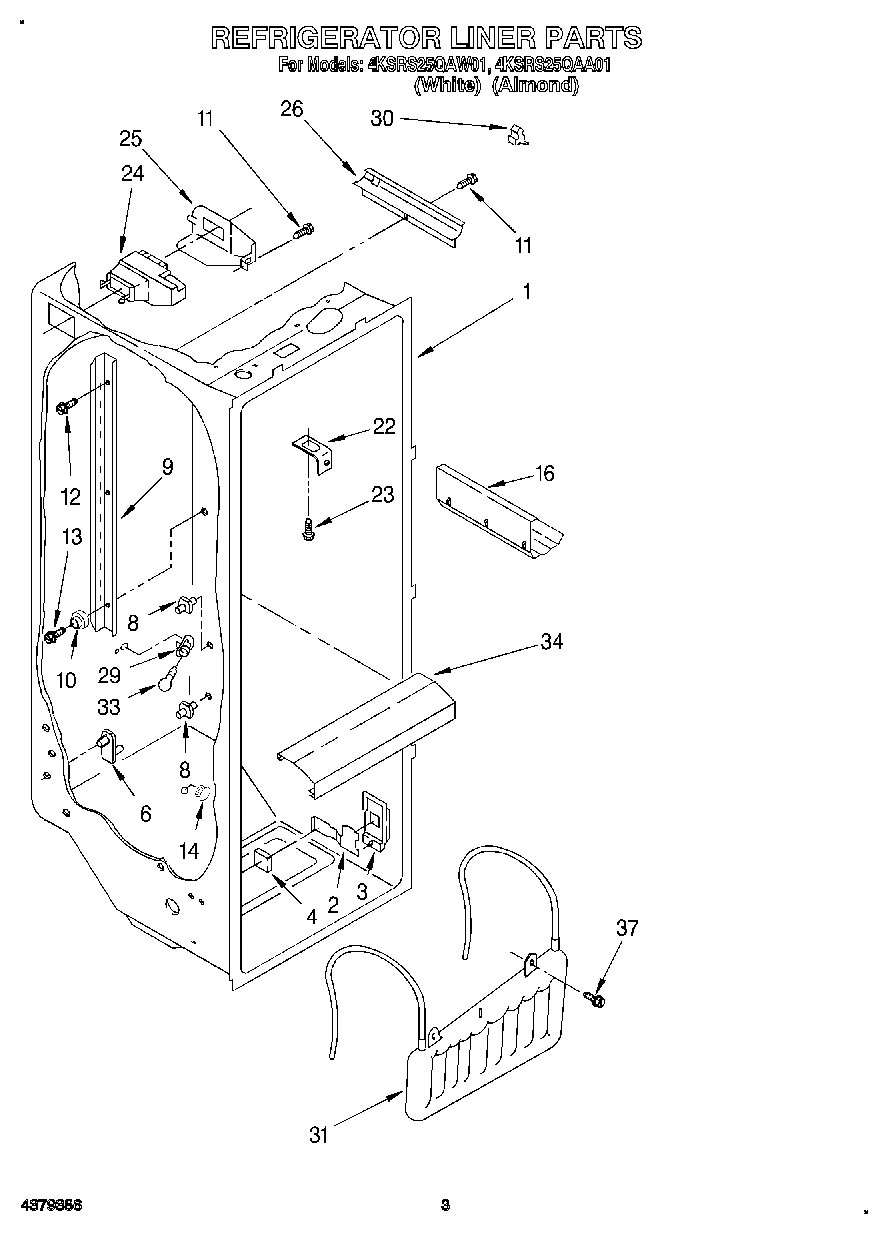

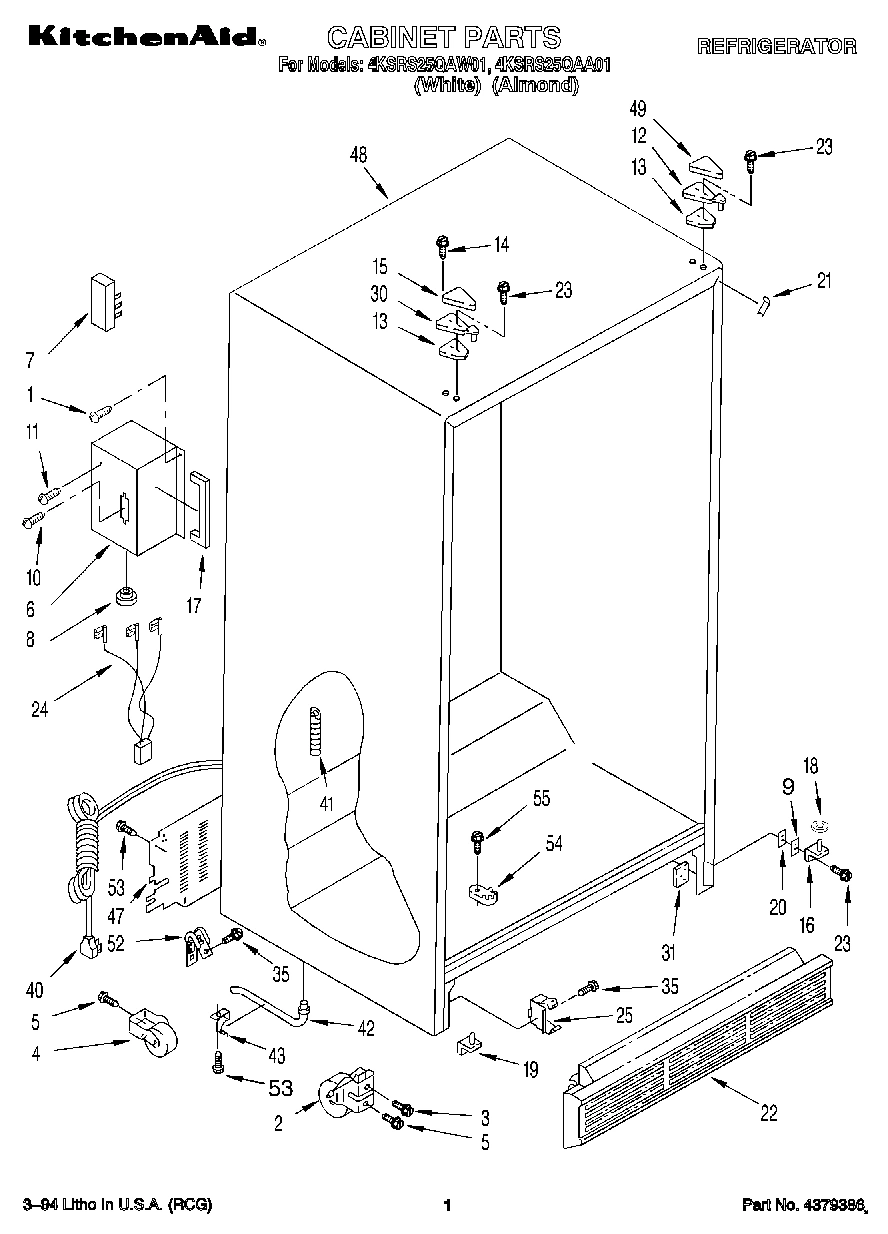

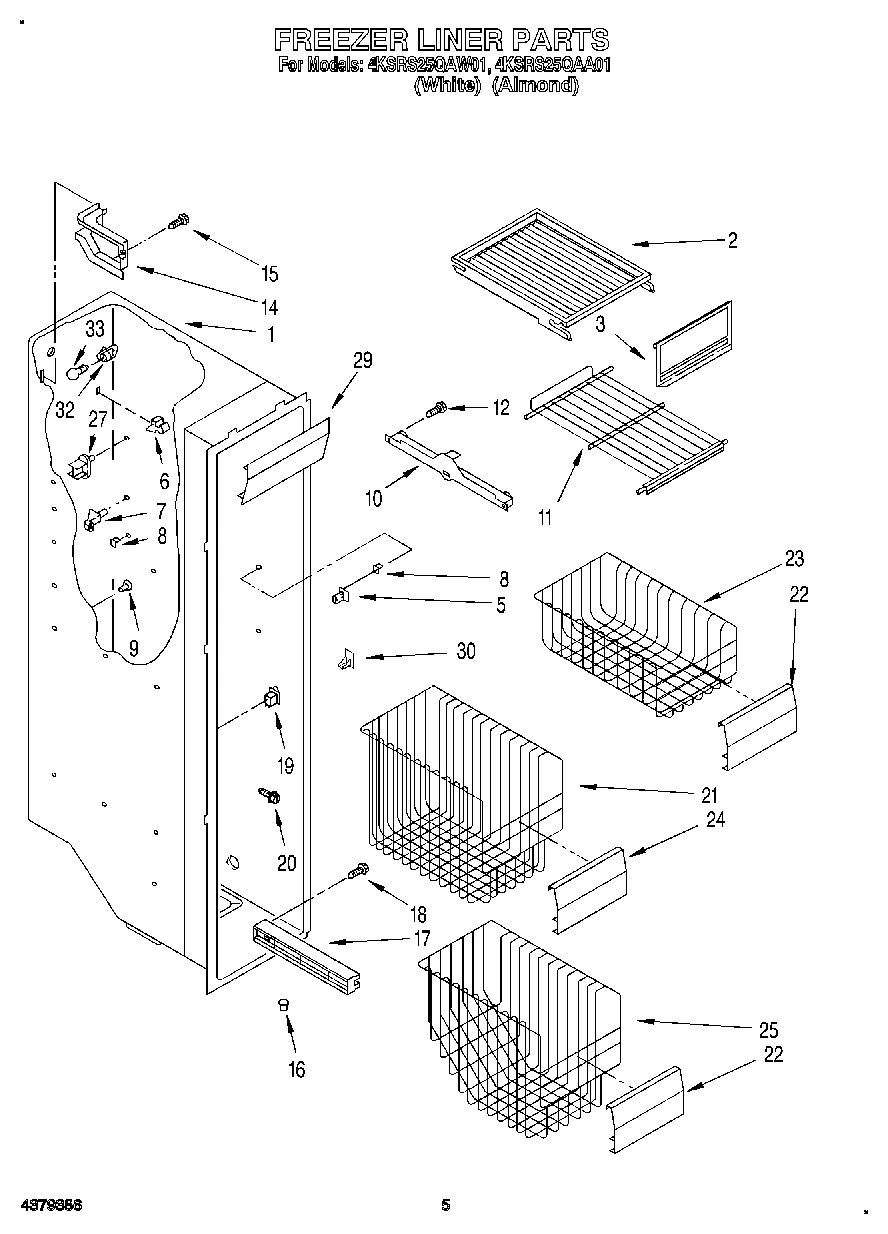

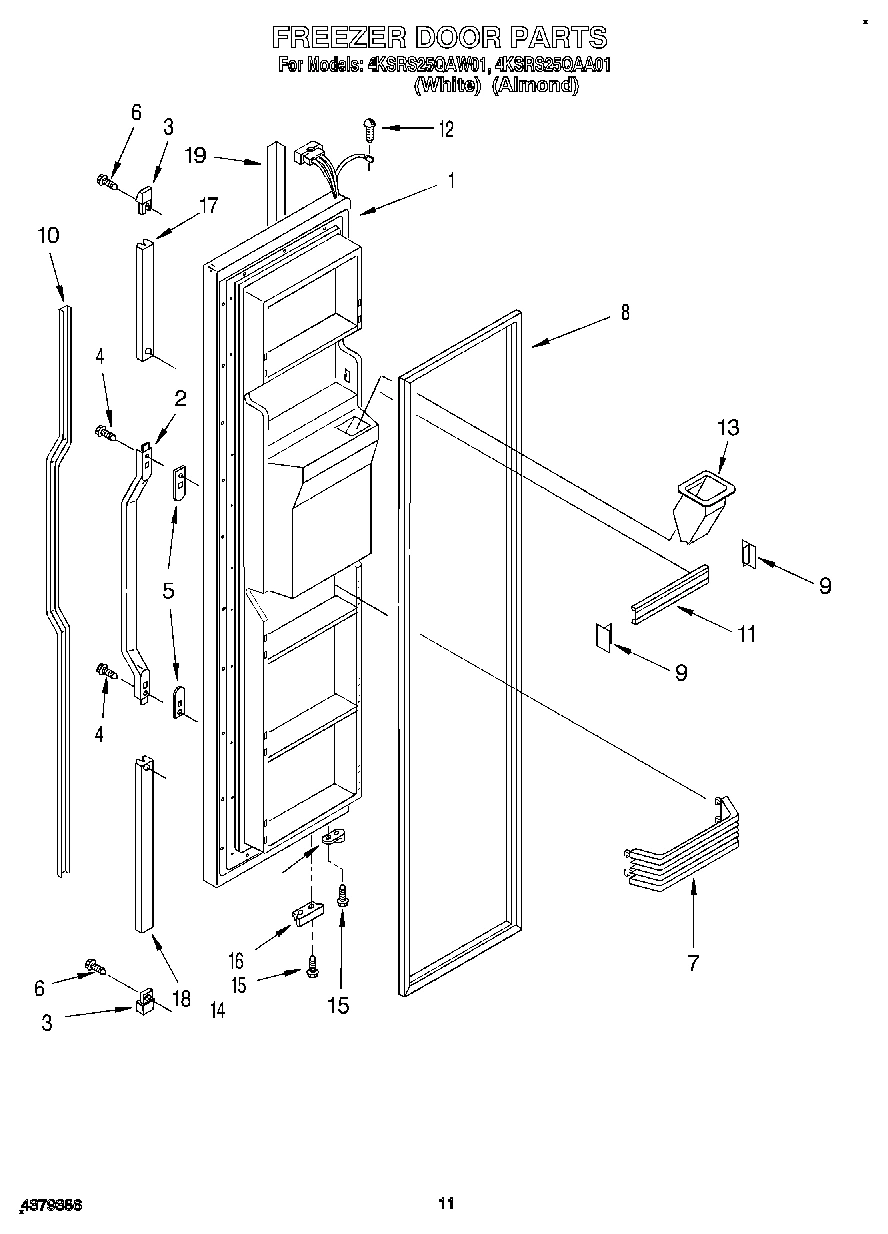

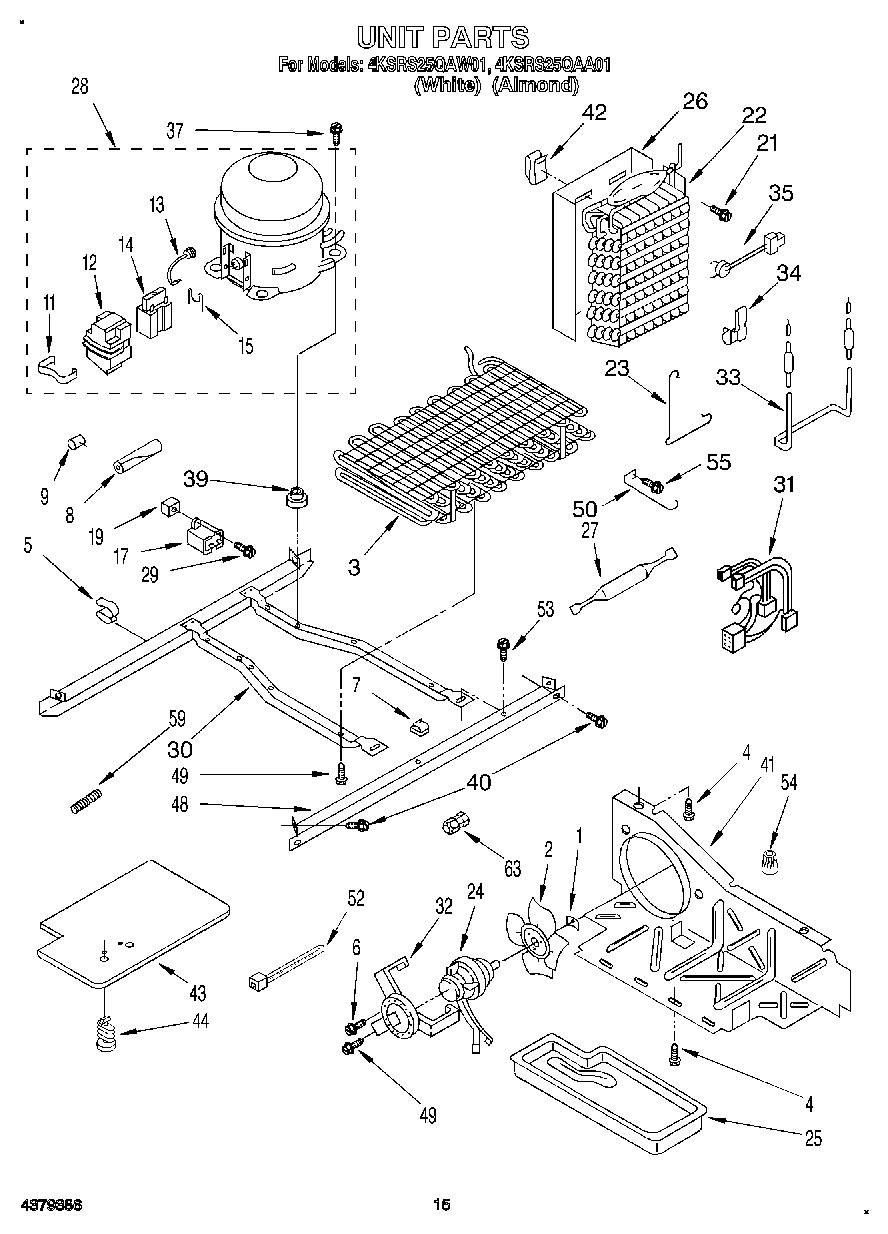

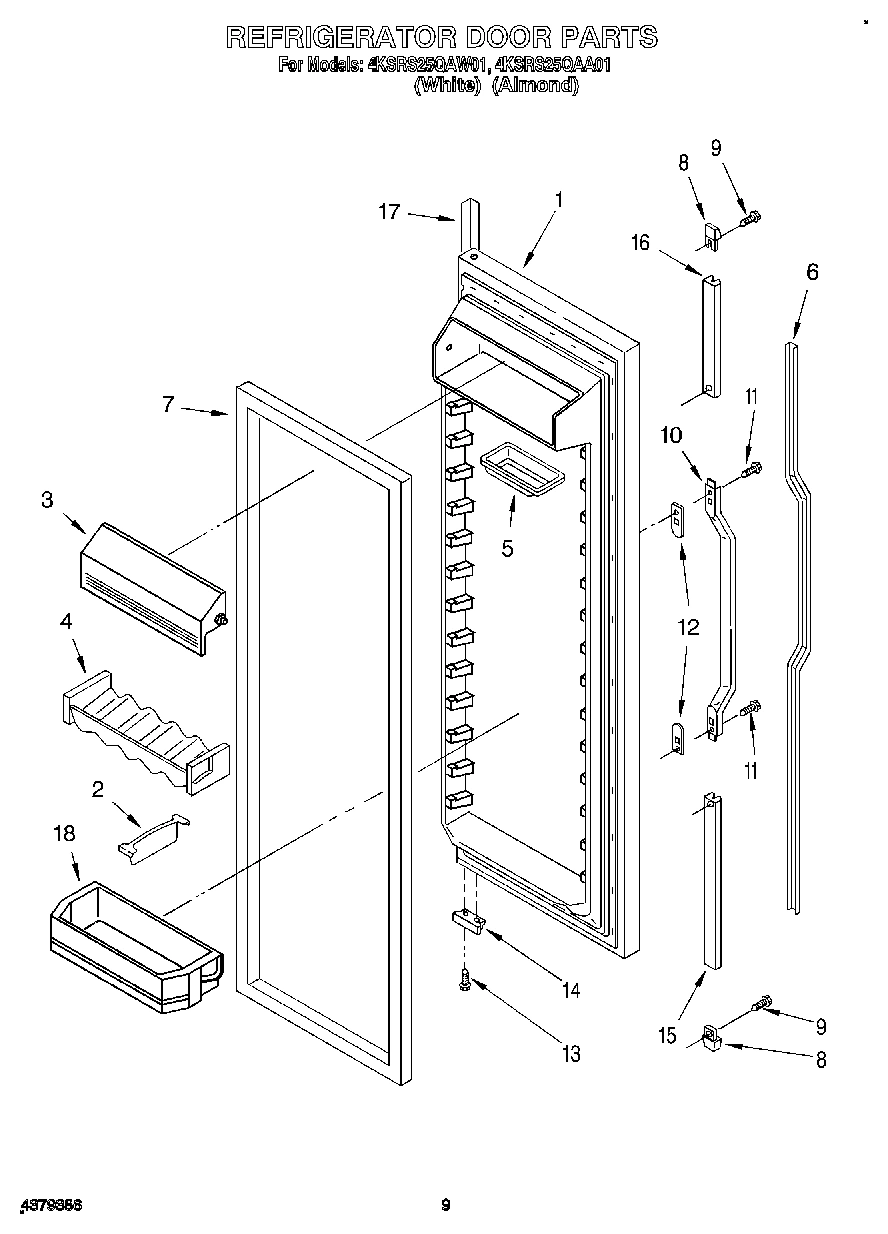

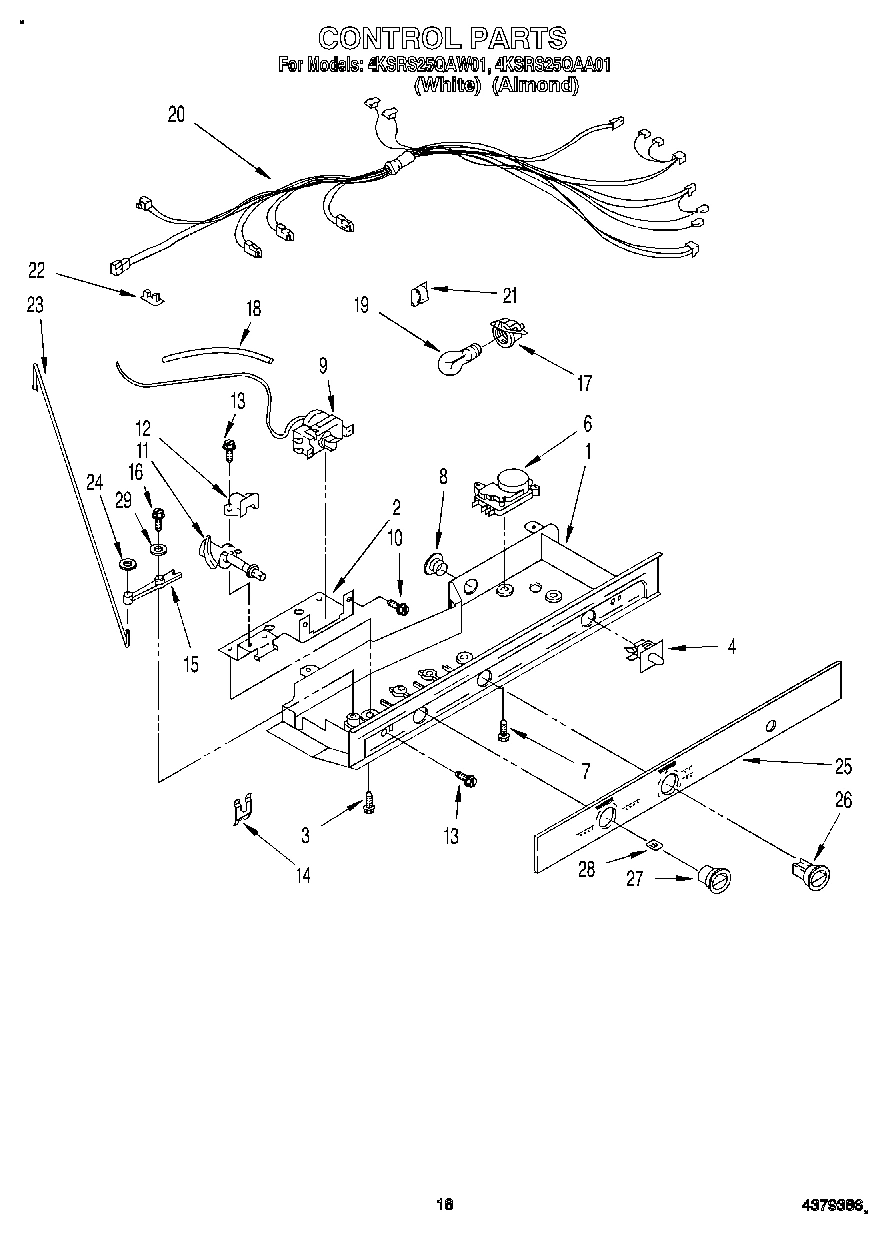

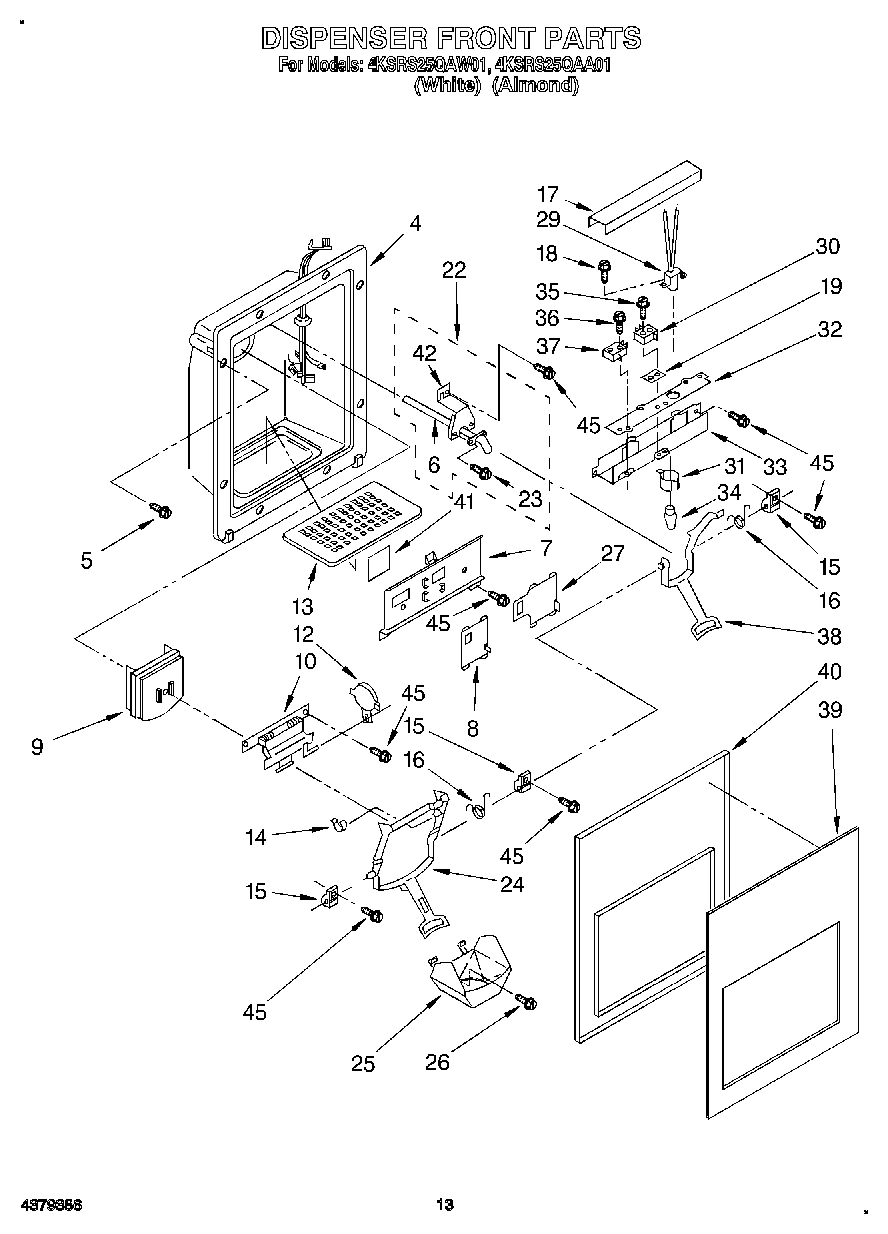

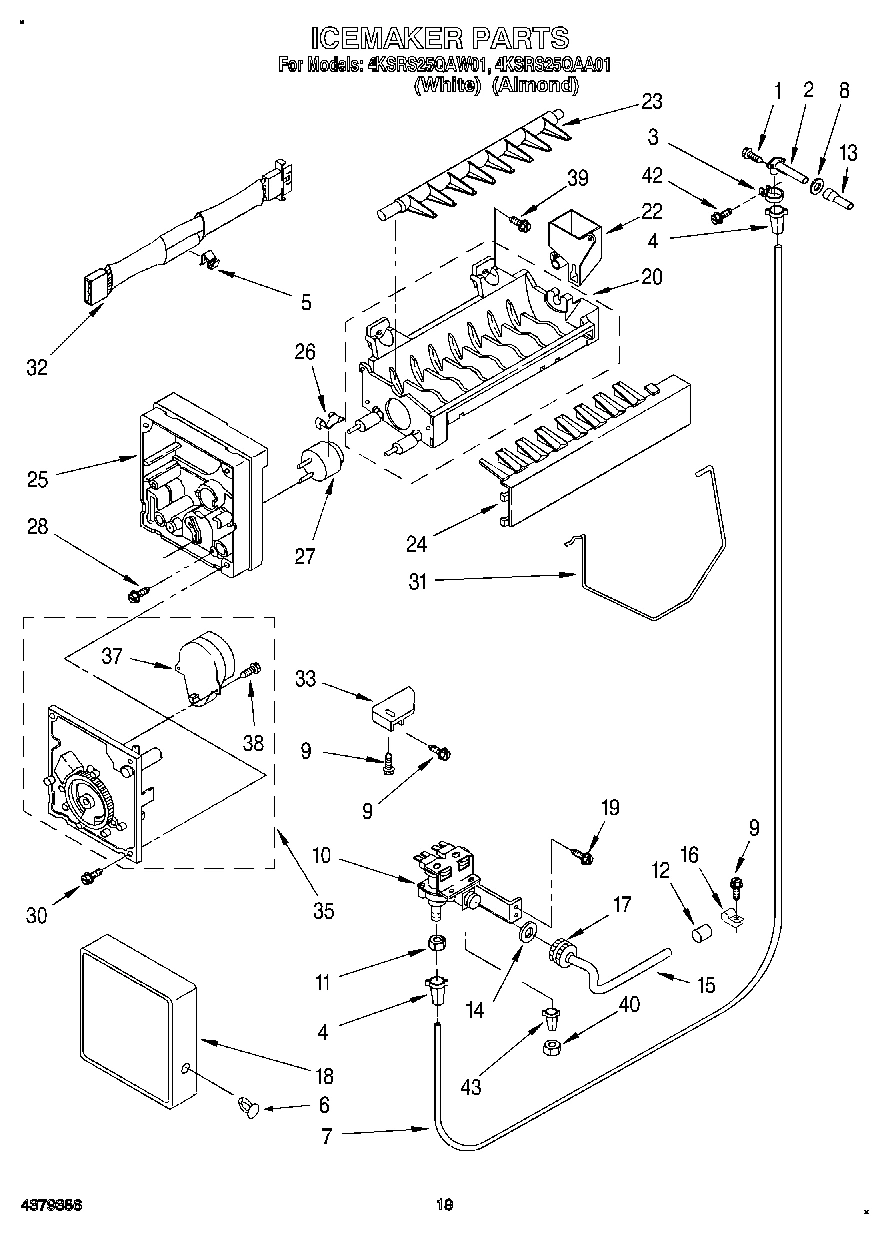

Model Whirlpool 4KSRS25QAA01 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2167323 WPL LIT2167323 Contact Us For Availability

WPL LIT2167460 WPL LIT2167460 Contact Us For Availability

WPL LIT628371 WPL LIT628371 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

1

Liner (Not A Serviceable Part) WPL ARI14297A6 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI14298A9 Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2159404 Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Almond) WPL 2159405 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2167430 Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2167431 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability

2

Shelf, Top Compartment WPL 2167276 Contact Us For Availability

2

Load Lock (4) WPL 1117999 Contact Us For Availability

2

Handle Assembly WPL 1107215 Contact Us For Availability

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Door, Ice Compartment WPL 2167277 Contact Us For Availability

3

Door, Compartment WPL 2167317 Contact Us For Availability

3

End Cap (2) WPL 1107341 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2164504 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

4

Housing, Dispenser (Not a Serviceable Part) WPL ARI14299A5 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Holder, Beverage WPL 1125981 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Stud, R.S. Front WPL 946356 Contact Us For Availability

5

Butter, Tray WPL 1125936 Contact Us For Availability

5

Spacer, Handle WPL 1107651 Contact Us For Availability

5

Air Duct Freezer WPL 2155575 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $127.71

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

6

Tube, Water (See Item No.22) WPL ARI14300A5 Contact Us For Availability

6

Stud, Pan Cover WPL 1125675 Contact Us For Availability

6

Screw WPL 489075 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

Frame, Slides (White) WPL 2152717 Contact Us For Availability

7

Frame, Slides (Almond) WPL 2152718 Contact Us For Availability

7

Fan Motor WPL 2154986 Contact Us For Availability

7

Shelf Bin (4) WPL 2156016 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $15.69

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability

8

Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability

8

Support, Stud (2) WPL 946355 Contact Us For Availability

9

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

Ladder, Shelf (2) WPL 1116794 Contact Us For Availability

9

Grommet (2) WPL 1110779 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Door Mechanism Assembly WPL 2157650 Contact Us For Availability

Stud, Shelf (2) WPL 658944 Contact Us For Availability

Insert, Handle (White) WPL 1117948 Contact Us For Availability

Insert, Handle (Almond) WPL 1117949 Contact Us For Availability

Valve, Solenoid WPL 2167100 Contact Us For Availability

Grommet, Fan (2) WPL 2155589 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Shelf WPL 2155683 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

Trim, Door Shelf WPL 2157603 Contact Us For Availability

Strap WPL 2154721 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $140.19

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability

Cover WPL 2154722 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Grille, Overflow (White) WPL 1126120 Contact Us For Availability

Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability

Screw (2) WPL 487559 Contact Us For Availability

Tube, Water Inlet WPL 2155247 Contact Us For Availability

Chute, Ice WPL 2156146 Contact Us For Availability

Overload WPL 2154719 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $11.99

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Washer WPL 628337 Contact Us For Availability

Relay WPL 2154720 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Tube, Inlet Valve WPL 627860 Contact Us For Availability

Overload Spring WPL 943320 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $54.59

Spring, Lever (2) WPL 983696 Contact Us For Availability

Rack, Wine & Egg WPL 1125913 Contact Us For Availability

Drain Fitting WPL 2155556 Contact Us For Availability

Bracket, Door Stop WPL 2155332 Contact Us For Availability

Clamp WPL 510716 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Shield, Wiring WPL 2147165 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability

Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability

Retainer, Insert WPL 1107243 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

Cover, Evaporator WPL 2155612 Contact Us For Availability

Capacitor WPL 2154717 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Retainer, Insert WPL 1117952 Contact Us For Availability

Shelf Bin (4) WPL 1125555 Contact Us For Availability

Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability

Almond Handle Inserts WPL 4211147 Contact Us For Availability

White WPL 4211148 Contact Us For Availability

Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability

Handle Inserts (Black) WPL 4318339 Contact Us For Availability

Woodgrain WPL 4318340 Contact Us For Availability

Black Grille Kit WPL 4318417 Contact Us For Availability

Cover WPL 628329 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

Spacer WPL 625834 Contact Us For Availability

Trim, Door WPL 1119062 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

Control Box Harness WPL 2149186 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

21

Basket, Middle WPL 2155685 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Front, Basket WPL 2167281 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Evaporator WPL 2164519 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Basket, Upper WPL 2152093 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $223.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

Fastener, Push-On WPL 489285 Contact Us For Availability

Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability

Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability

Front, Basket WPL 2167279 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Guide, Ice (White) WPL 1124730 Contact Us For Availability

Guide, Ice (Almond) WPL 1126026 Contact Us For Availability

Basket, Lower WPL 2152102 Contact Us For Availability

Escutcheon, Control Box WPL 2167184 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Screw WPL 488892 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Slide, Light Switch (White) WPL 2152726 Contact Us For Availability

Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability

Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

Knob, Retainer WPL 837444 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

Lamp Holder WPL 2147131 Contact Us For Availability

29

Light Lens WPL 1115389 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Stud, R.S. Rear WPL 1106982 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

Shroud, Bracket WPL 1129333 Contact Us For Availability

Unit, Harness WPL 2167065 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

Bracket, Control WPL 2147163 Contact Us For Availability

Heater, Defrost WPL 2162214 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

Bulb, Light WPL 989331 Contact Us For Availability

Light Lens WPL 1125586 Contact Us For Availability

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

35

Screw (2) WPL 488361 Contact Us For Availability

36

Screw, WPL 489155 Contact Us For Availability

37

814037 Whirlpool Microwave Switch Backorder WPL 814037 $60.25

37

Screw (2) WPL 488280 Contact Us For Availability

37

Screw WPL 489387 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability

Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

Insert, Cover (White) WPL 2167292 Contact Us For Availability

Insert, Cover (Almond) WPL 2167293 Contact Us For Availability

Grommet (4) WPL 2162067 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

Cover, Housing (Includes Item 39) (White) WPL 2167290 Contact Us For Availability

Cover, Housing (Includes Item 39) (Almond) WPL 2167291 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

Heat Shield, Frame WPL 2147172 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

Bracket, Water WPL 987049 Contact Us For Availability

Clip, Heat Shield WPL 2155547 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Insert WPL 1129177 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, B WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Unit Cover, Bottom WPL 2161363 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

47

Cover, Unit WPL 2167191 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

48

Cabinet (Not A Serviceable Part) WPL ARI14296A5 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $27.86

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

54

Wire Connector WPL 227991 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

59

Spring-Tube WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
