Model Maytag 4GNTW4600YQ1 WASHER – Common Parts & Diagrams

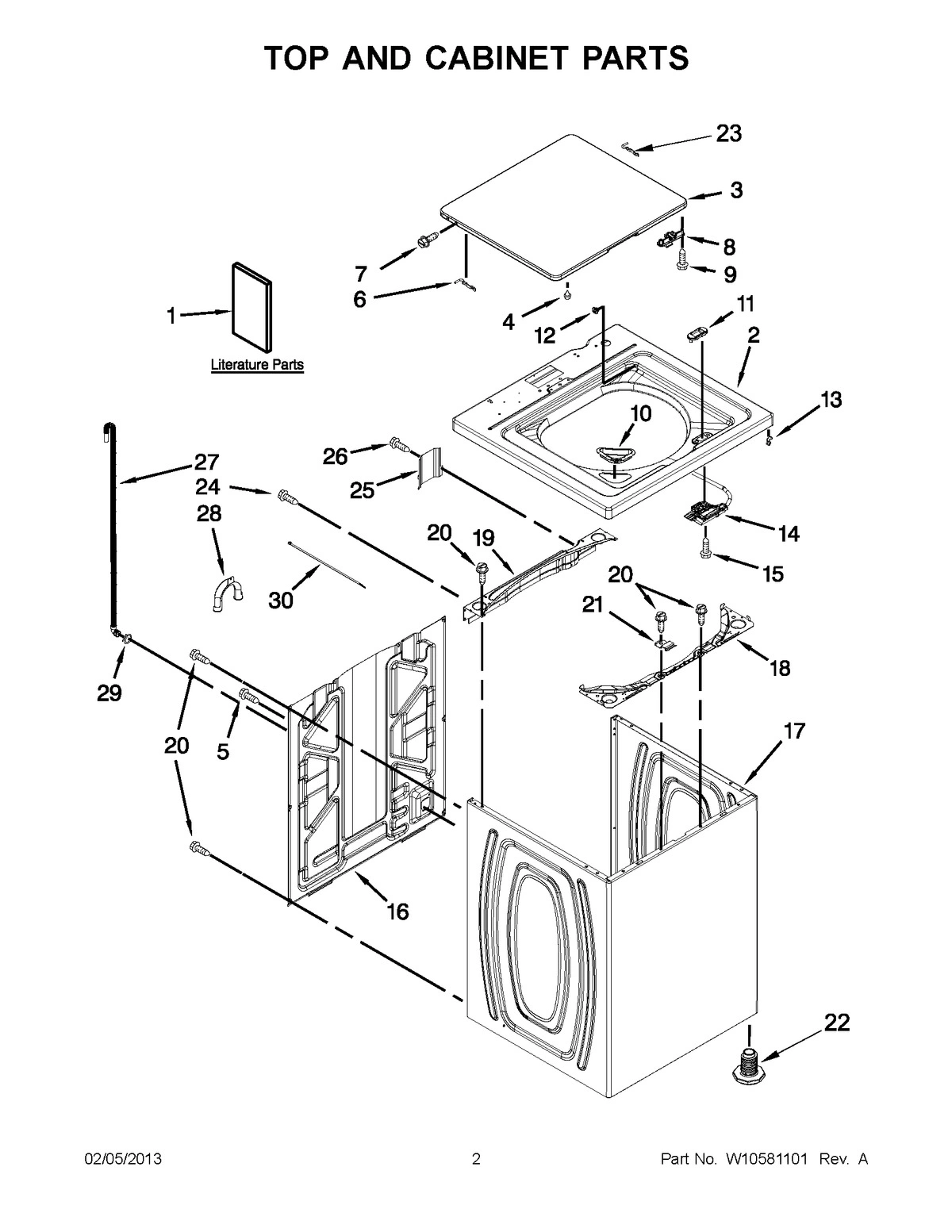

01 - TOP AND CABINET PARTS

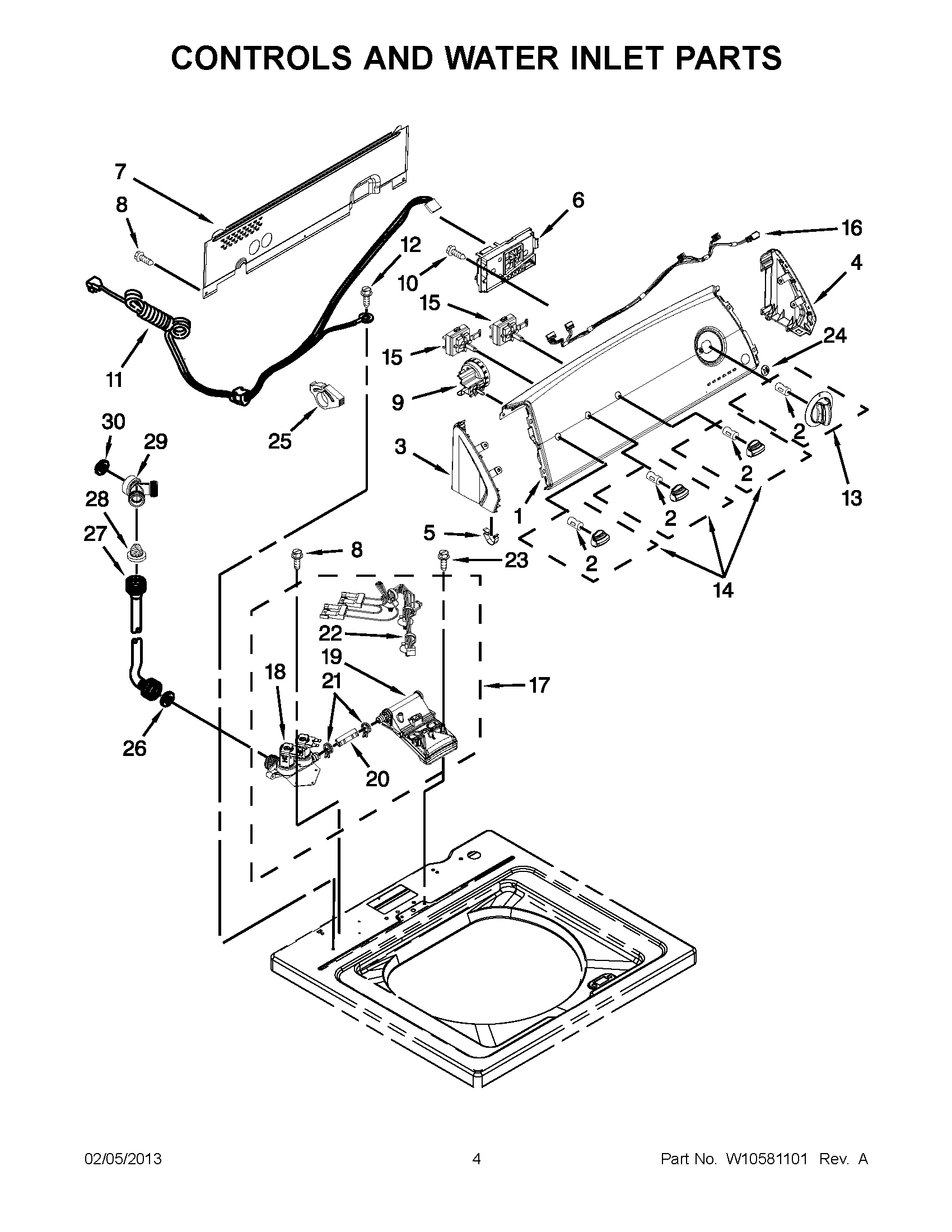

02 - CONTROLS AND WATER INLET PARTS
03 - BASKET AND TUB PARTS

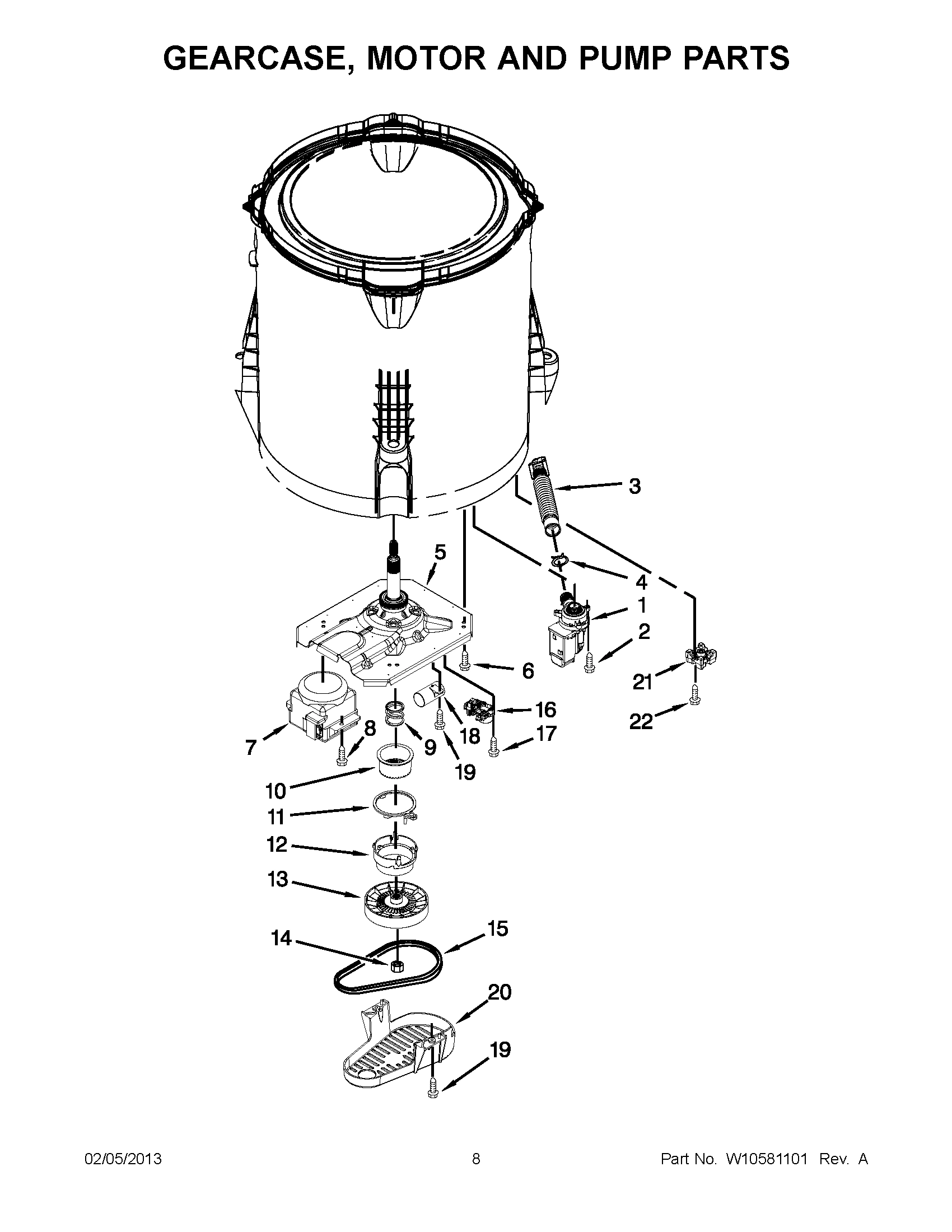

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GNTW4600YQ1 WASHER
1
MAY W10482986 MAY W10482986 Contact Us For Availability
1
MAY W10549312 MAY W10549312 Contact Us For Availability
1
MAY W10549313 MAY W10549313 Contact Us For Availability
1
CONSOLE MAY W10449049 Contact Us For Availability
1
MAY 8575076 MAY 8575076 Contact Us For Availability
1
MAY W10297344 MAY W10297344 Contact Us For Availability
2
TOP (WHITE) MAY W10251299 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID & BUMPER ASSEMBLY (WHITE) MAY W10251302 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10251358 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10251355 Contact Us For Availability
4
SCREW & WASHER MAY W10003790 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY W10473144 MAY W10473144 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6

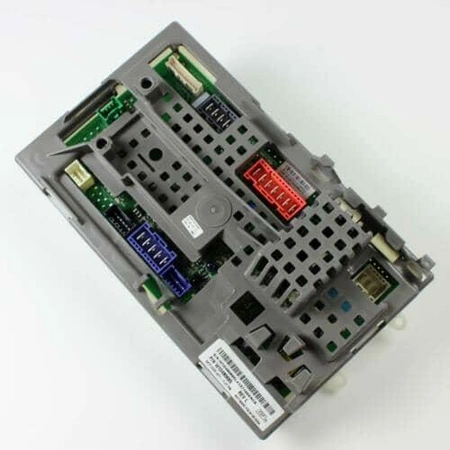

MAY W10480685 MAY W10480685 Contact Us For Availability
6
MAY 3951744 MAY 3951744 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10420985 MAY W10420985 Contact Us For Availability
7
MAY 3951682 MAY 3951682 Contact Us For Availability
7
MAY W10249626 MAY W10249626 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
Dog, Agitator Clutch MAY 3366877 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10268912 MAY W10268912 Contact Us For Availability
9
BEARING, CAM MAY 3952374 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10006382 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MOVER, CLOTHES MAY 3363003 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10422755 MAY W10422755 Contact Us For Availability
11
Spacer, Thrust MAY 3951608 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY 3951632 MAY 3951632 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
KNOB, TIMER (GREY) MAY W10317457 Contact Us For Availability
13
MAY W10215107 MAY W10215107 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
LOCK, LID MAY W10294102 Contact Us For Availability
14
KNOB, CONTROL (GREY) MAY W10317458 Contact Us For Availability
14
MAY 21366 MAY 21366 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
15
MAY W10358261 MAY W10358261 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10291174 MAY W10291174 Contact Us For Availability
16
MAY 389140 MAY 389140 Contact Us For Availability
16
MAY W10249623 MAY W10249623 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10337066 MAY W10337066 Contact Us For Availability
17
MAY W10339098 MAY W10339098 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10336726 MAY W10336726 Contact Us For Availability
18
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
18
MAY W10349182 MAY W10349182 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10441423 MAY W10441423 Contact Us For Availability
19
MAY W10006371 MAY W10006371 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10238347 MAY W10238347 Contact Us For Availability
20
MAY W10215093 MAY W10215093 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10117298 MAY W10117298 Contact Us For Availability
21
Screw MAY 8533928 Contact Us For Availability
21
MAY W10238318 MAY W10238318 Contact Us For Availability
22
MAY W10397994 MAY W10397994 Contact Us For Availability
22
MAY W10344775 MAY W10344775 Contact Us For Availability
22
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10257088 Contact Us For Availability
22
SCREW MAY W10238319 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
23
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10405423 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
MAY W10251309 MAY W10251309 Contact Us For Availability
24
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
25
MAY W10215139 MAY W10215139 Contact Us For Availability
25
CLAMP, HOSE MAY W10348582 Contact Us For Availability
25
HARNESS, LOWER MAY W10422641 Contact Us For Availability
26
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
26
MAY W10297436 MAY W10297436 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
27
MAY W10194210 MAY W10194210 Contact Us For Availability
27
MAY W10194211 MAY W10194211 Contact Us For Availability
27
CLAMP, CABLE MAY W10005430 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
28
MAY 353362 MAY 353362 Contact Us For Availability
28
SCREW MAY 8533943 Contact Us For Availability
29
MAY 356138 MAY 356138 Contact Us For Availability
29
MAY W10269488 MAY W10269488 Contact Us For Availability
29
MAY W10298887 MAY W10298887 Contact Us For Availability
30
TIE, CABLE MAY W10339879 Contact Us For Availability
30
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
30
MAY W10429200 MAY W10429200 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4` DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
AC MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
