Model Whirlpool 4ED20ZKXDN00 REFRIGERATOR – Common Parts & Diagrams
03 - FREEZER LINER

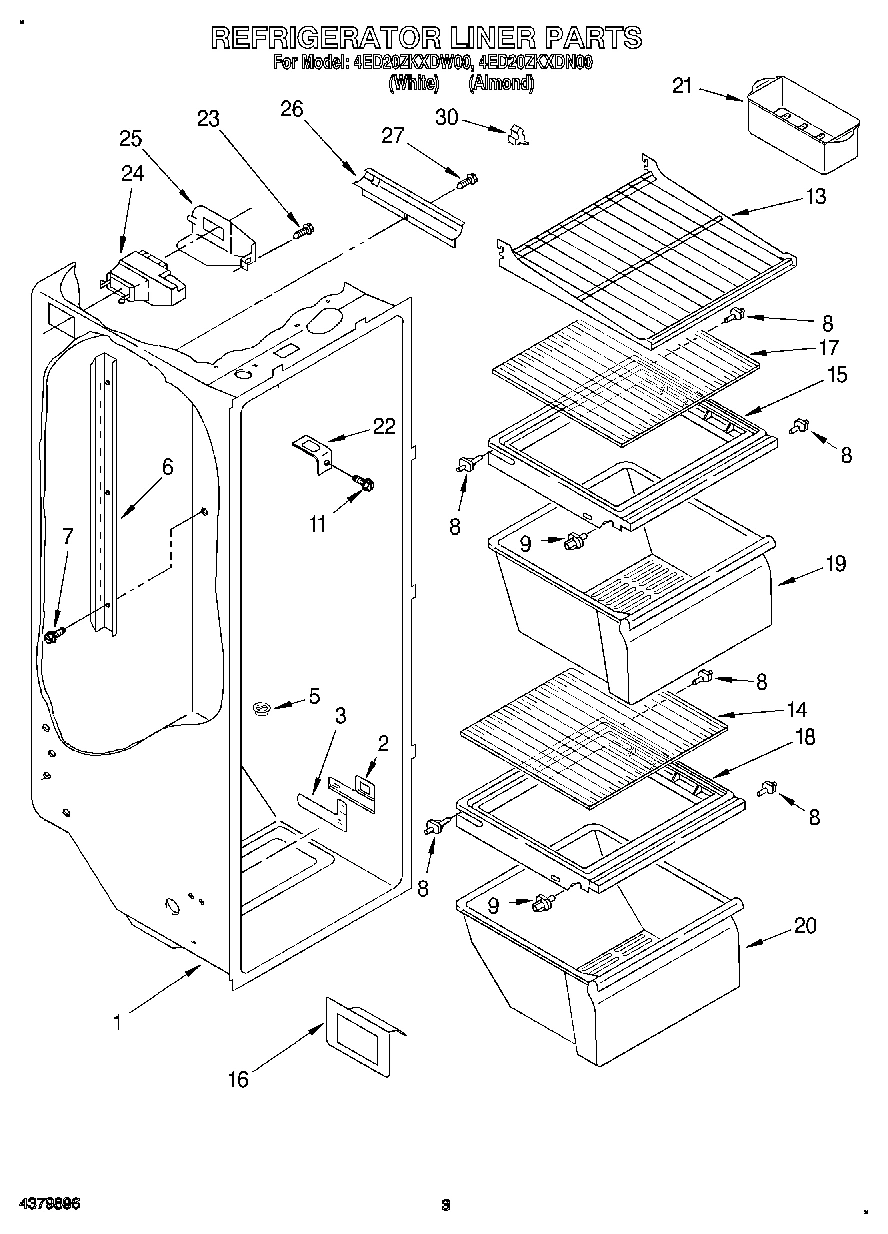

02 - REFRIGERATOR LINER

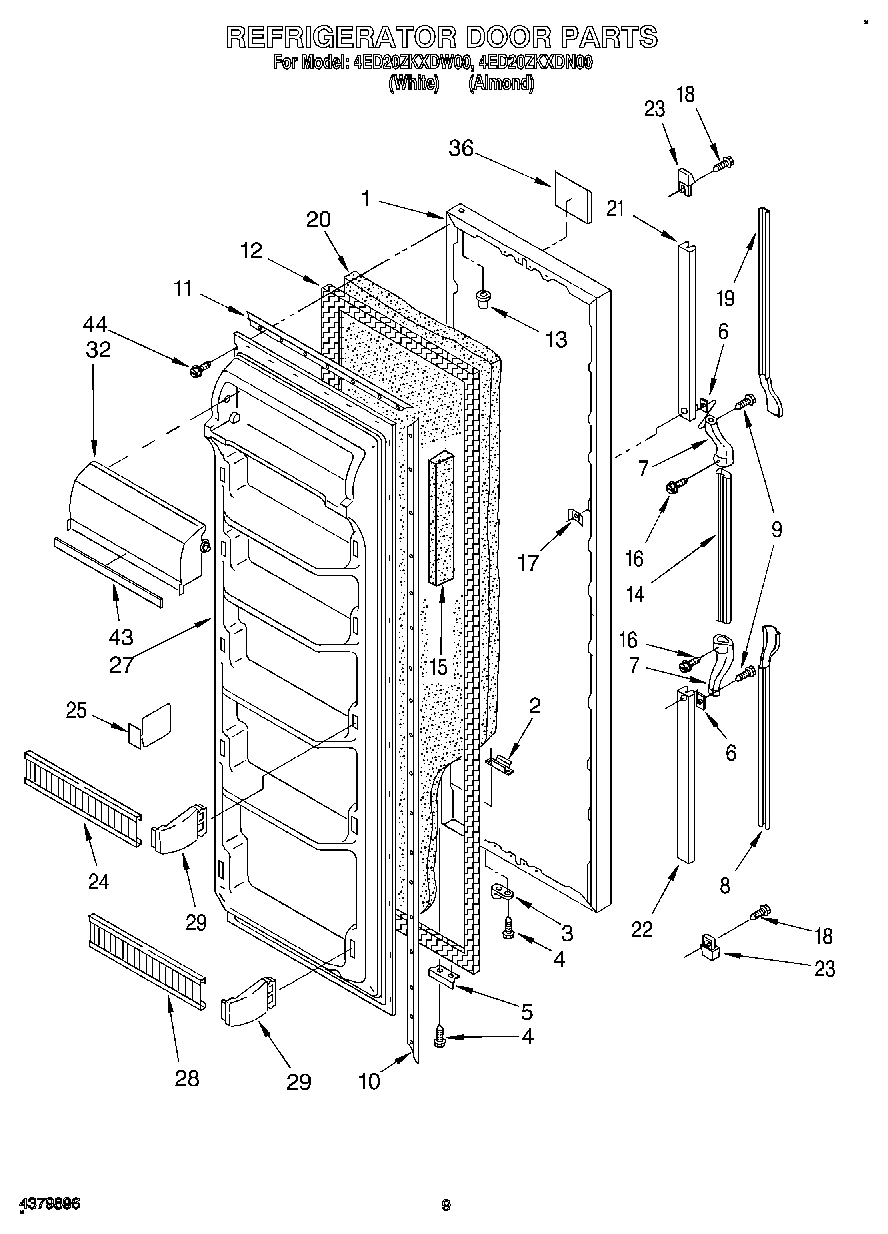

06 - REFRIGERATOR DOOR

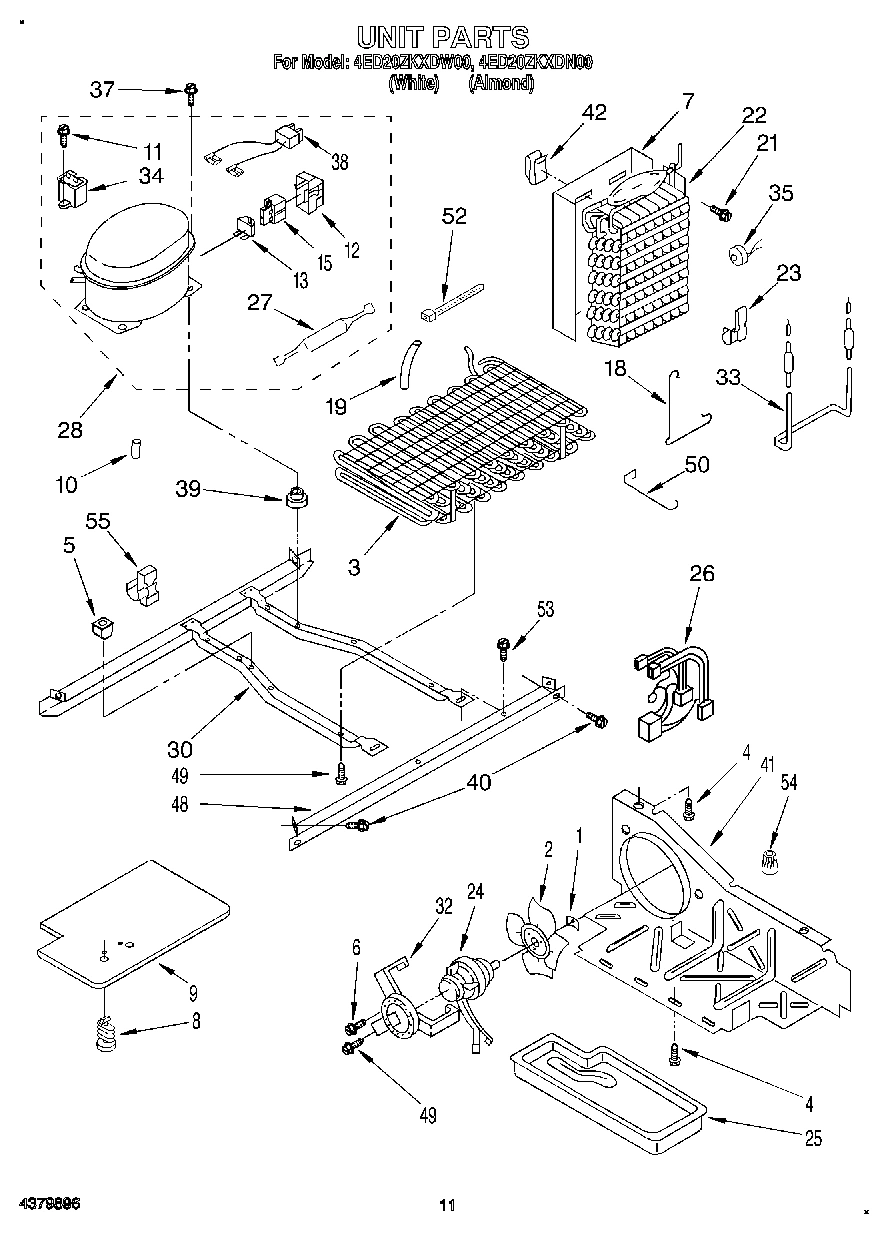

07 - UNIT

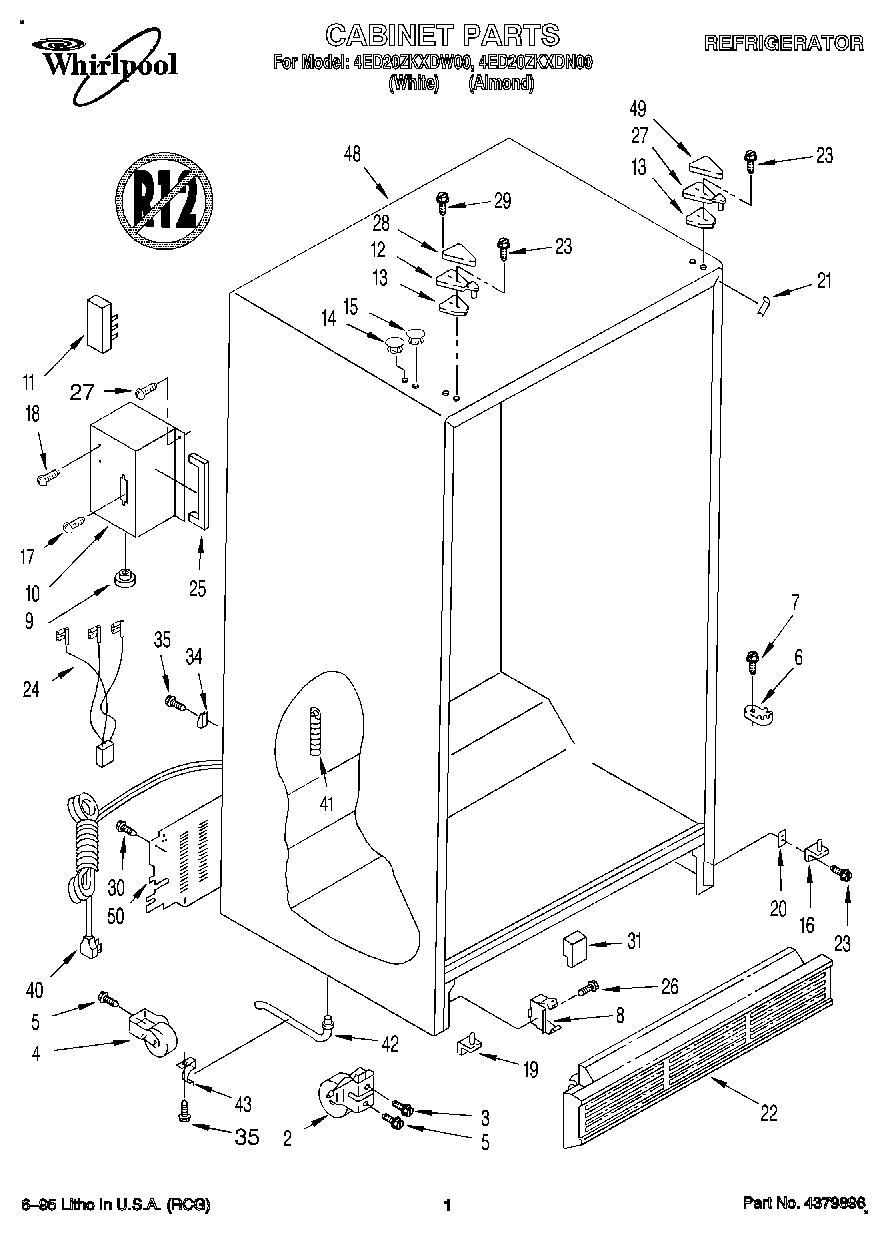

01 - CABINET

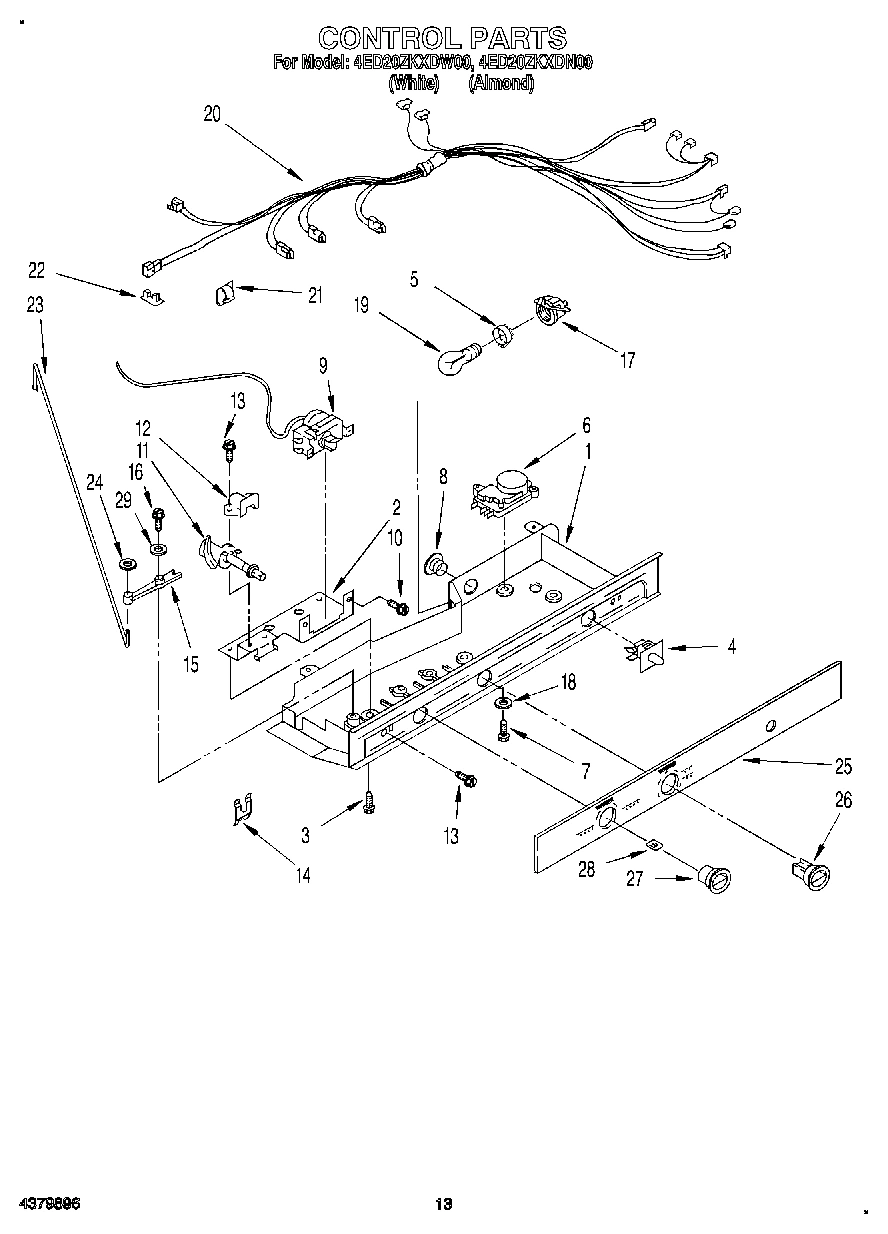

08 - CONTROL, LIT/OPTIONAL

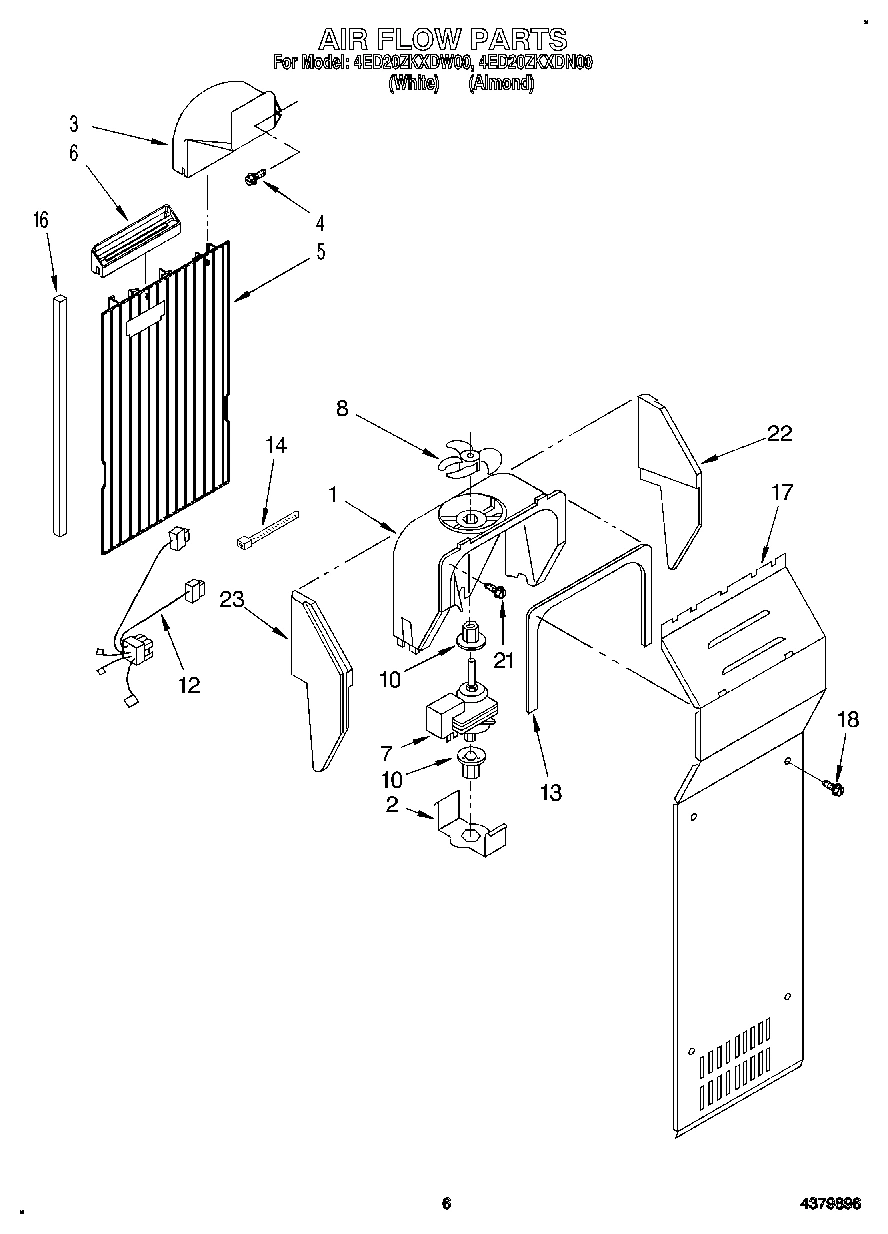

04 - AIR FLOW

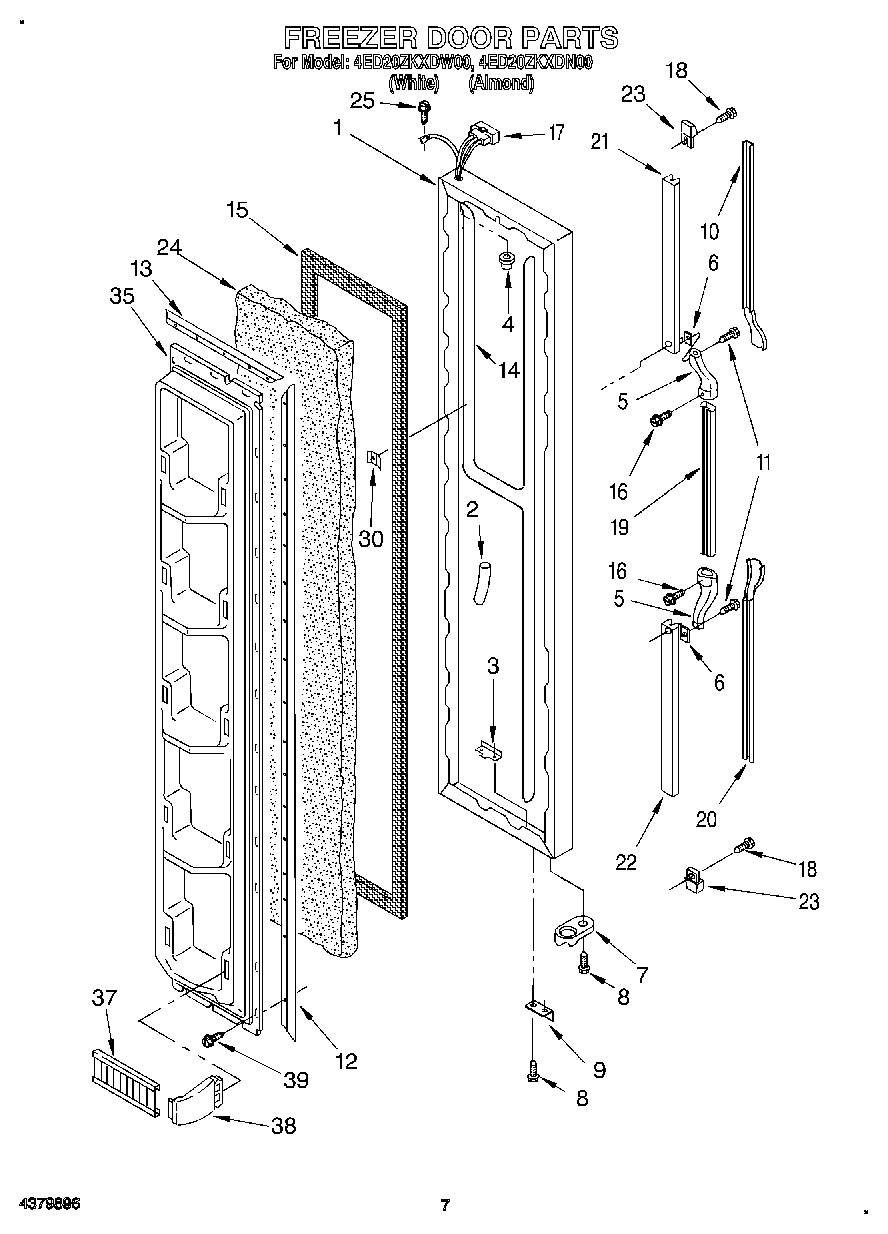

05 - FREEZER DOOR
Common parts from model Whirlpool 4ED20ZKXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170416 WPL LIT2170416 Contact Us For Availability
WPL LIT2175221 WPL LIT2175221 Contact Us For Availability
1
Control Box WPL 2166841 Contact Us For Availability
1
Freezer Door Panel (Also Order No.24) (White) WPL 4362049 Contact Us For Availability
1
Freezer Door Panel (Also Order No.24) (Almond WPL 4362050 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Tube, Door Wiring WPL 1119059 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Tap, Plate WPL 2155335 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
9
Bushing WPL 1129449 Contact Us For Availability
9
Bracket, Door Stop WPL 2155332 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Insert, Top (White) WPL 1119367 Contact Us For Availability
10
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2176138 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Heater, Door WPL 2165272 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Connector WPL 2154491 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
18
Washer WPL 486632 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Handle, Center (White) WPL 1124713 Contact Us For Availability
19
Handle, Center (Almond) WPL 943079 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
20
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
21
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Screw WPL 489284 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Insert, Air Baffle WPL 2176796 Contact Us For Availability
32
Door, Compartment WPL 2174901 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate (Almond) WPL 2165147 Contact Us For Availability
36
Nameplate (White) WPL 2165148 Contact Us For Availability
37
Trim, Door Shelf WPL 2170585 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI13402A5 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Cover, Unit WPL 2160521 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
