Model Whirlpool 4ED20ZKIFN01 REFRIGERATOR – Common Parts & Diagrams
07 - UNIT

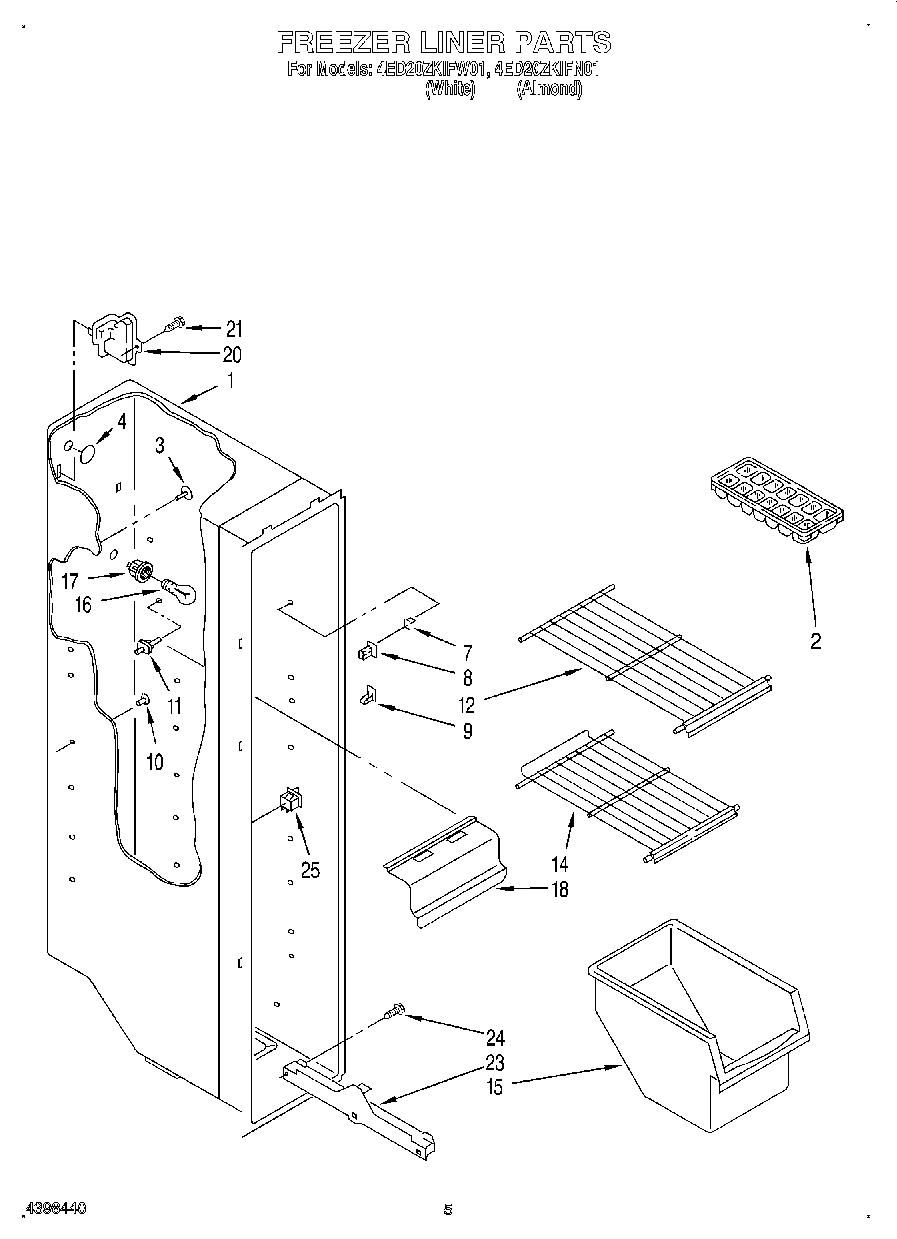

03 - FREEZER LINER

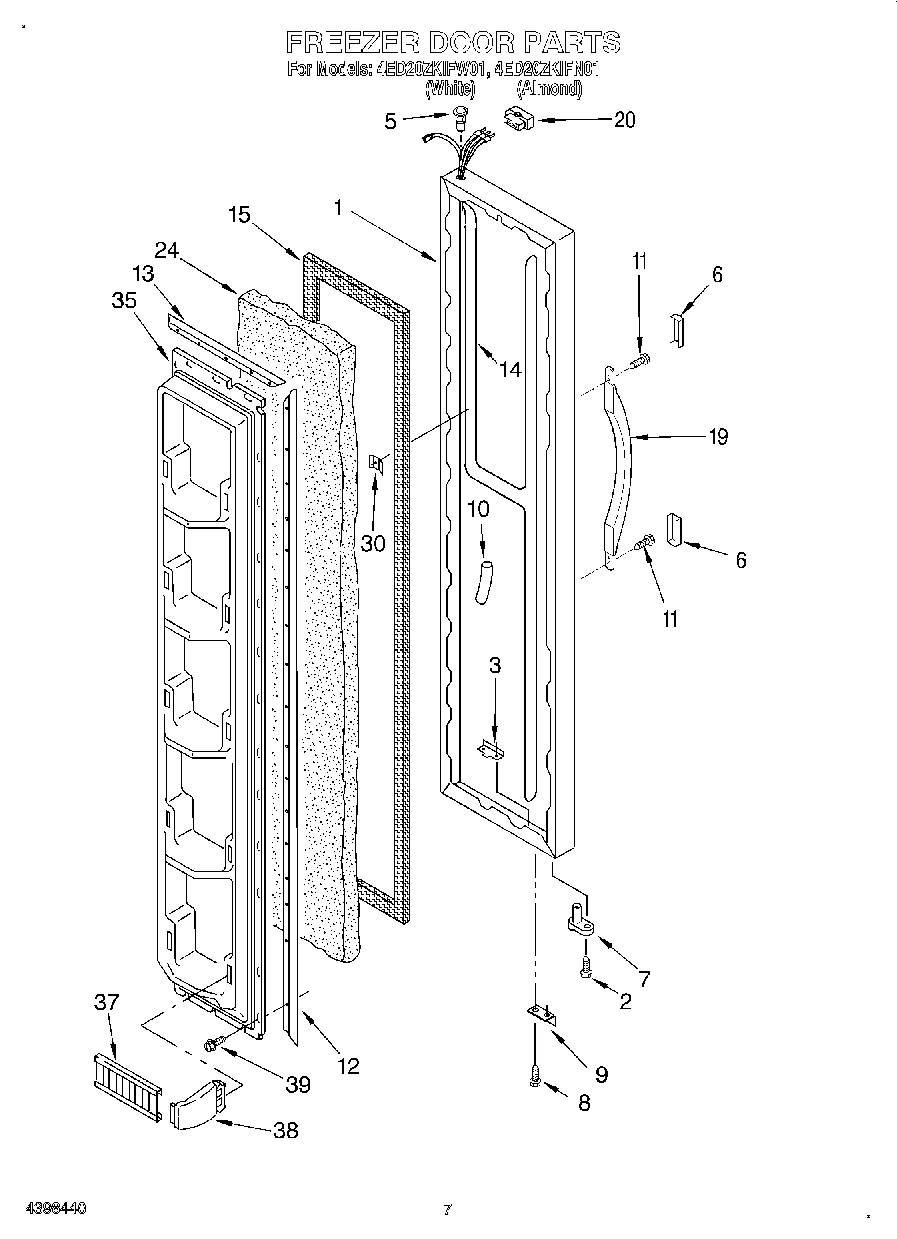

05 - FREEZER DOOR

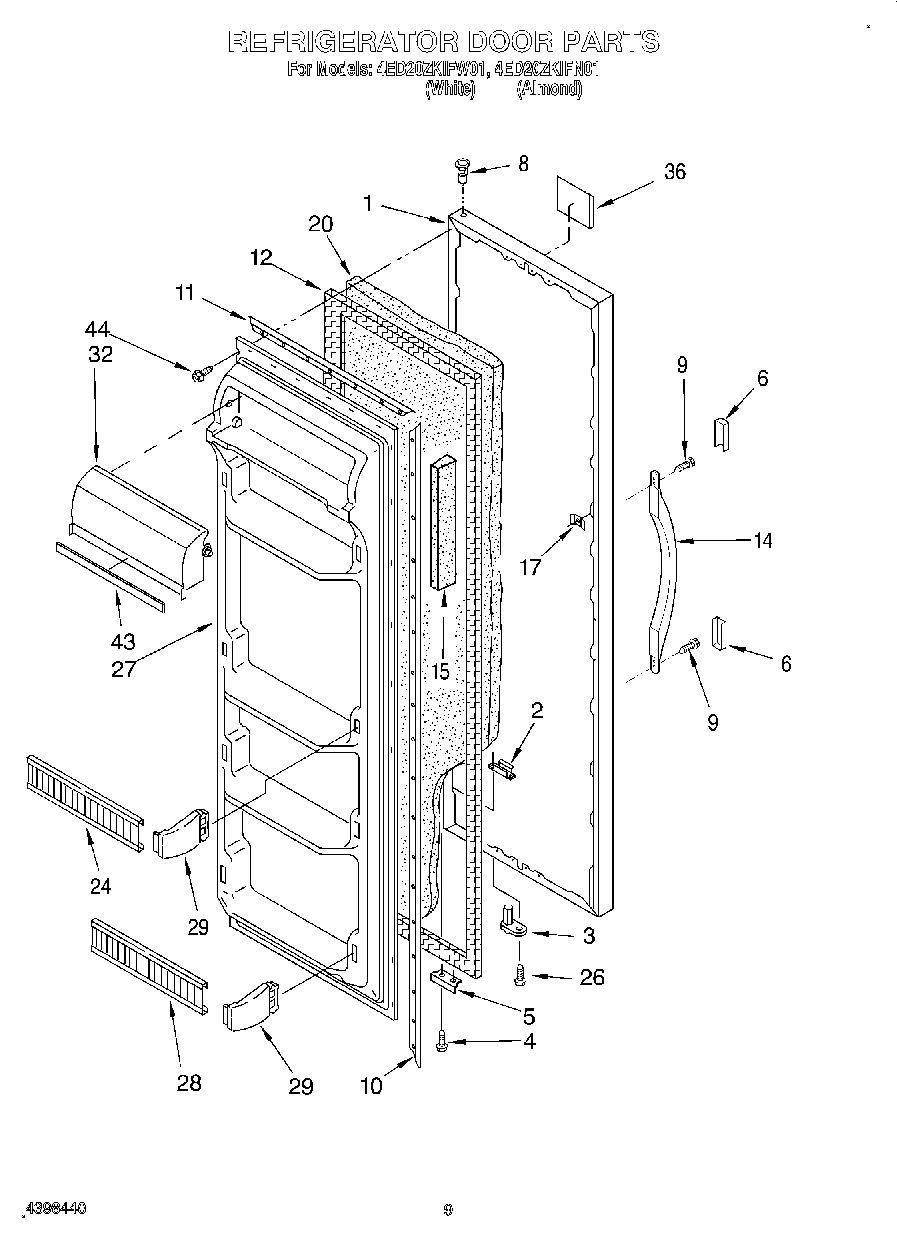

06 - REFRIGERATOR DOOR

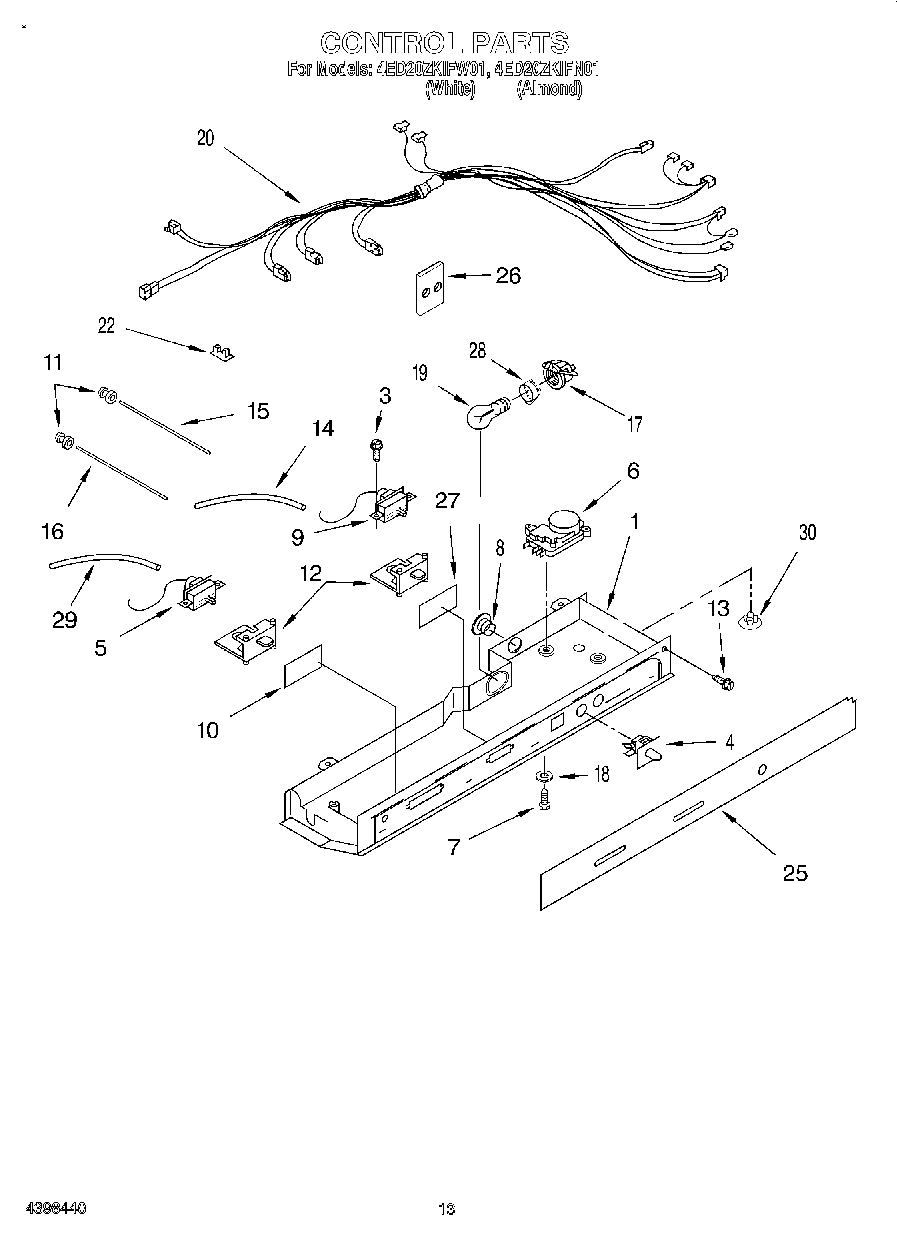

08 - CONTROL, LIT/OPTIONAL

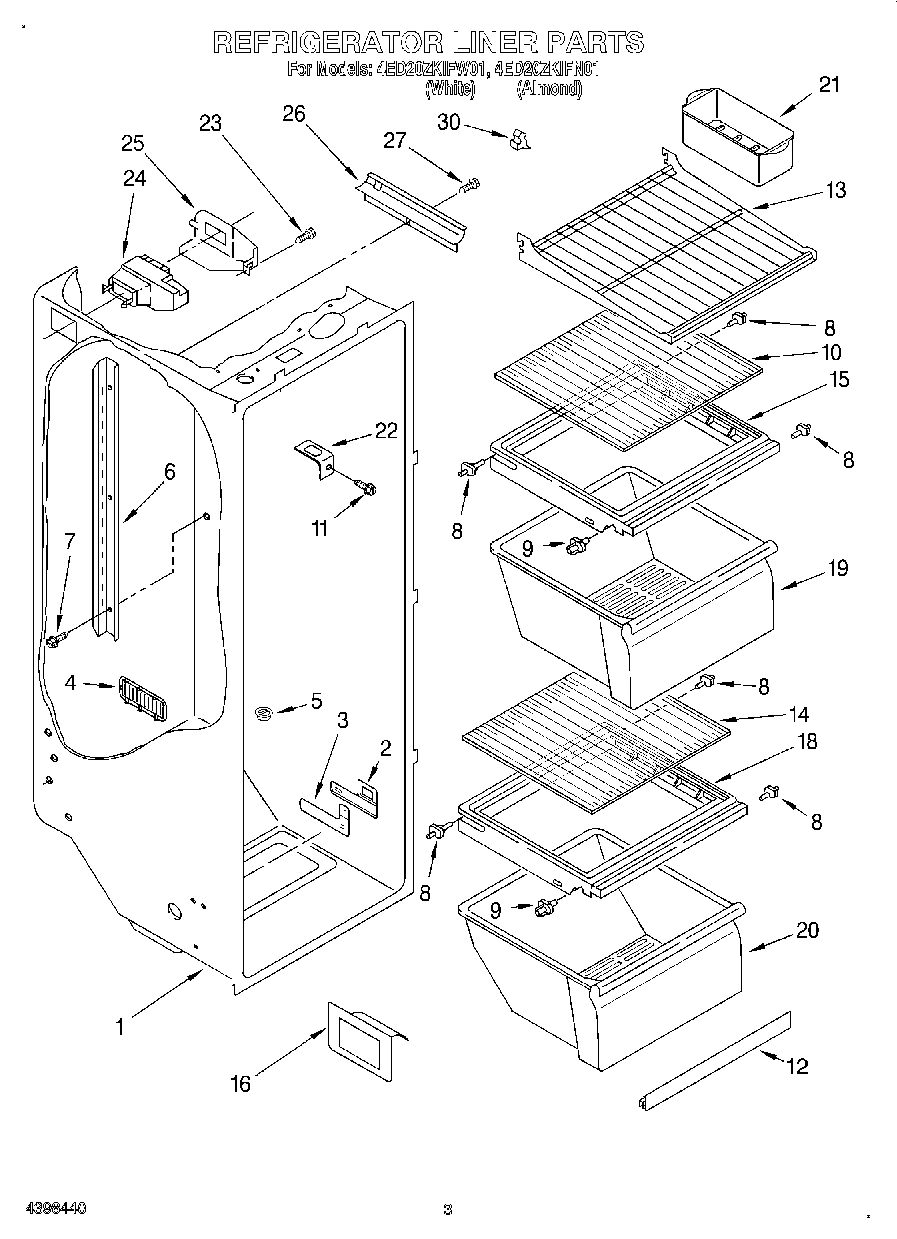

02 - REFRIGERATOR LINER
04 - AIR FLOW

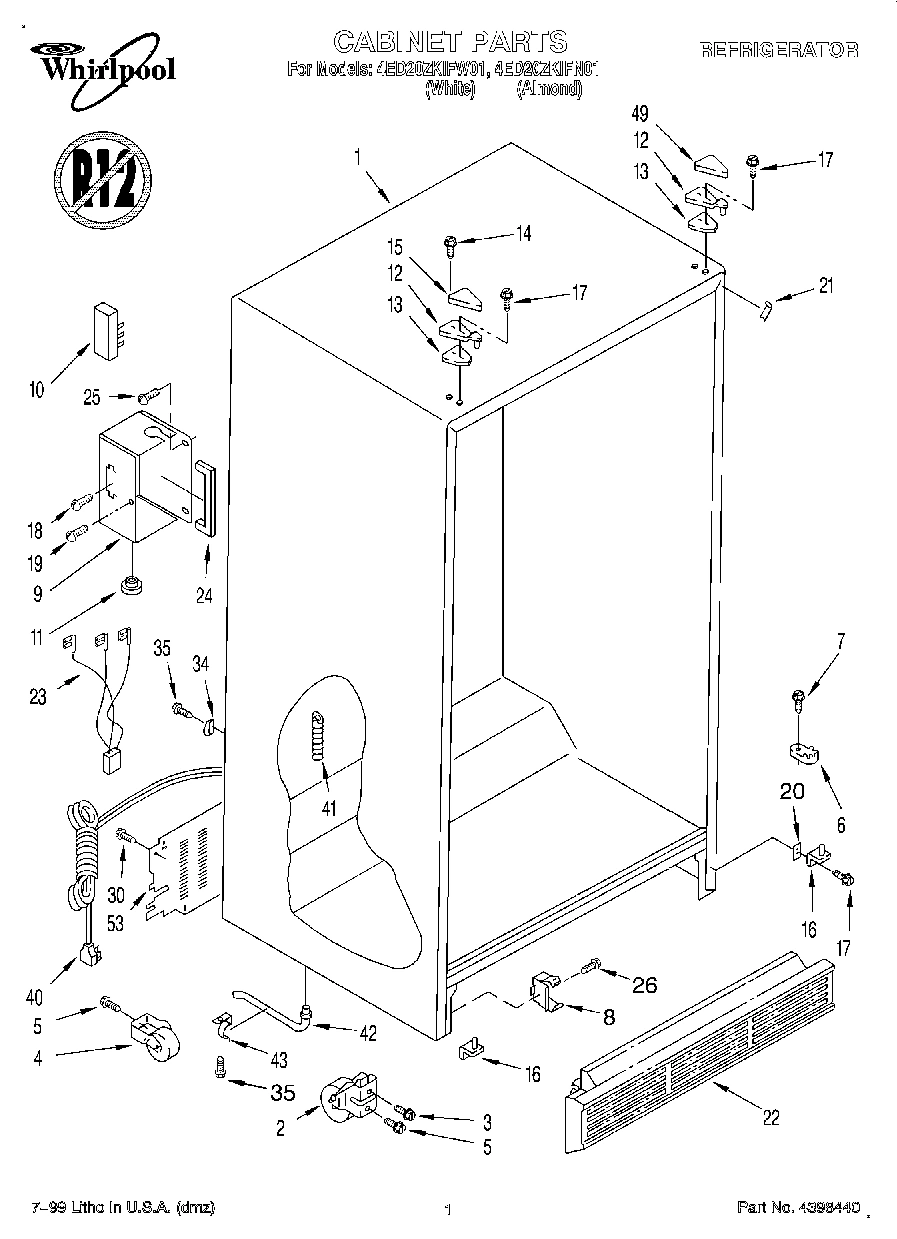

01 - CABINET
Common parts from model Whirlpool 4ED20ZKIFN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186926 WPL LIT2186926 Contact Us For Availability
WPL LIT2187141 WPL LIT2187141 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13388A8 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13387A8 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
5
Air Duct Freezer WPL 2203592 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Enclosure, Terminal Block WPL 2188194 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2186799 Contact Us For Availability
13
Shelf, Cantilever WPL 2163617 Contact Us For Availability
13
Shim, Hinge (2) WPL 2196048 Contact Us For Availability
14
Handle, Center (White) WPL 2186649W Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Light Bar (RC) WPL 2179920 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
16
Light Bar (FC) WPL 2179921 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Washer WPL 486632 Contact Us For Availability
20
Foam Insulation WPL 876029 Contact Us For Availability
20
Control Box Harness WPL 2186803 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (Almond) WPL 2198469N Contact Us For Availability
22
Grille (White) WPL 2198469W Contact Us For Availability
23
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
30
Hole Plug WPL 2166844 Contact Us For Availability
30
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
30
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
30
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
37
Trim, Door Shelf WPL 2195921 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
53
Cover, Unit WPL 2204422 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
