Model Whirlpool 4ED20ZKIFN00 REFRIGERATOR – Common Parts & Diagrams

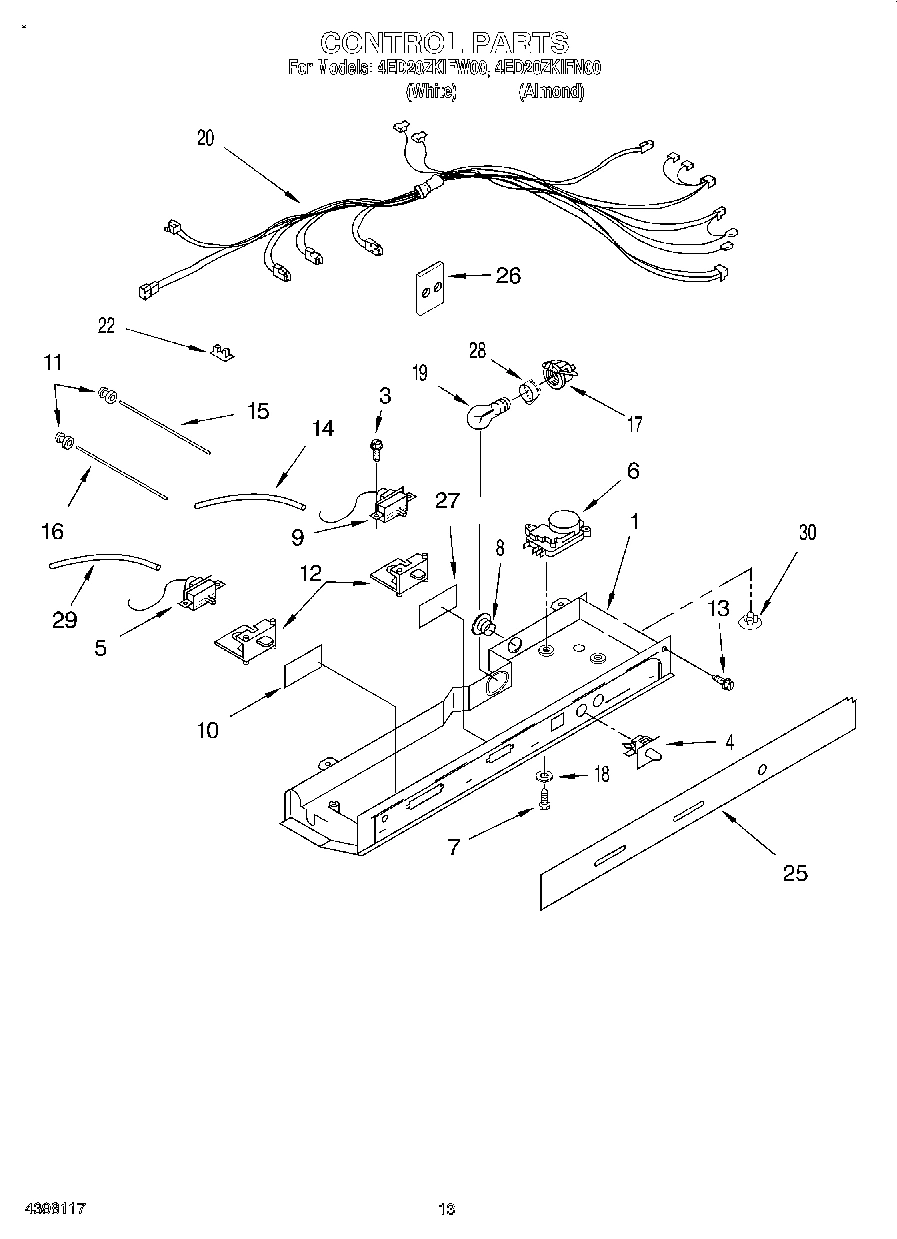

08 - CONTROL, LIT/OPTIONAL

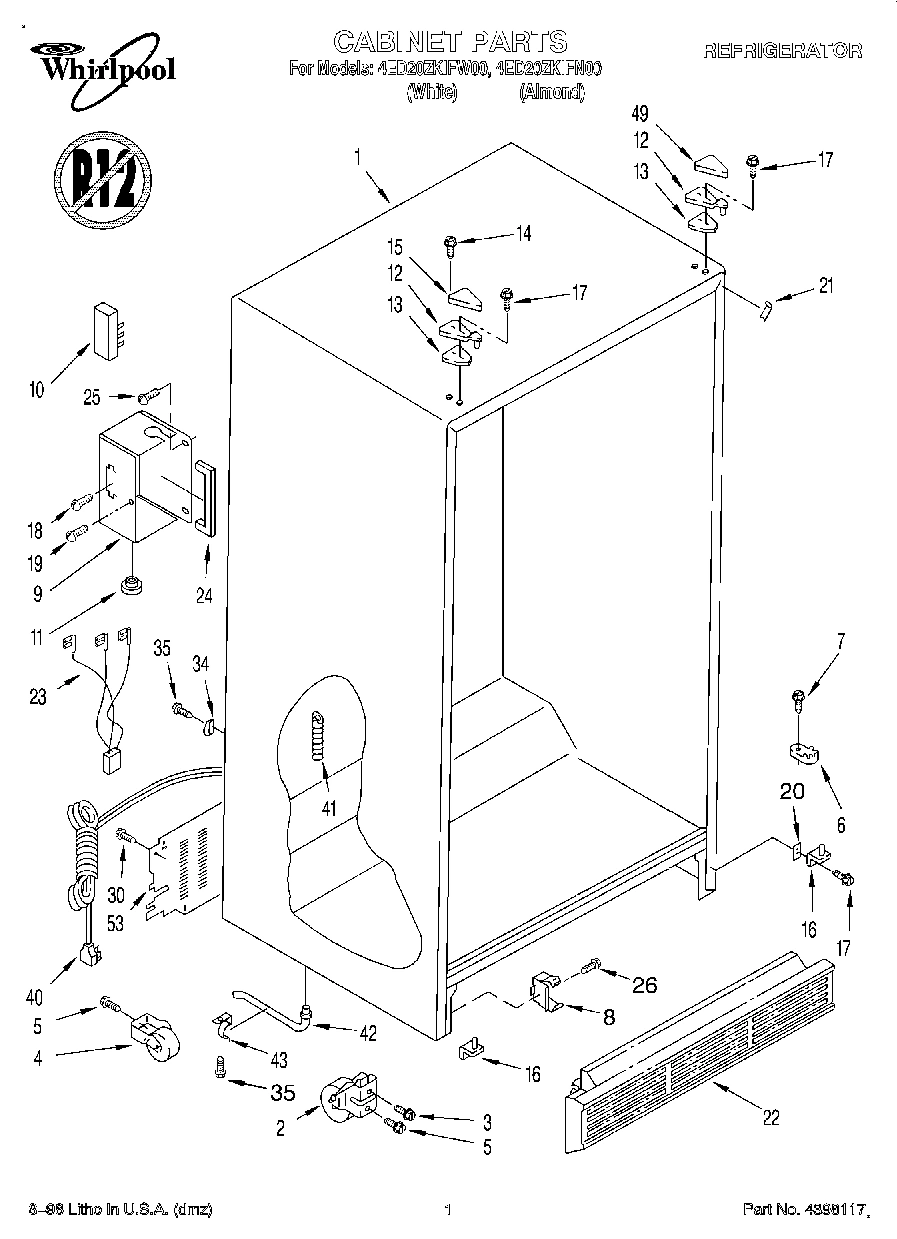

01 - CABINET
04 - AIR FLOW

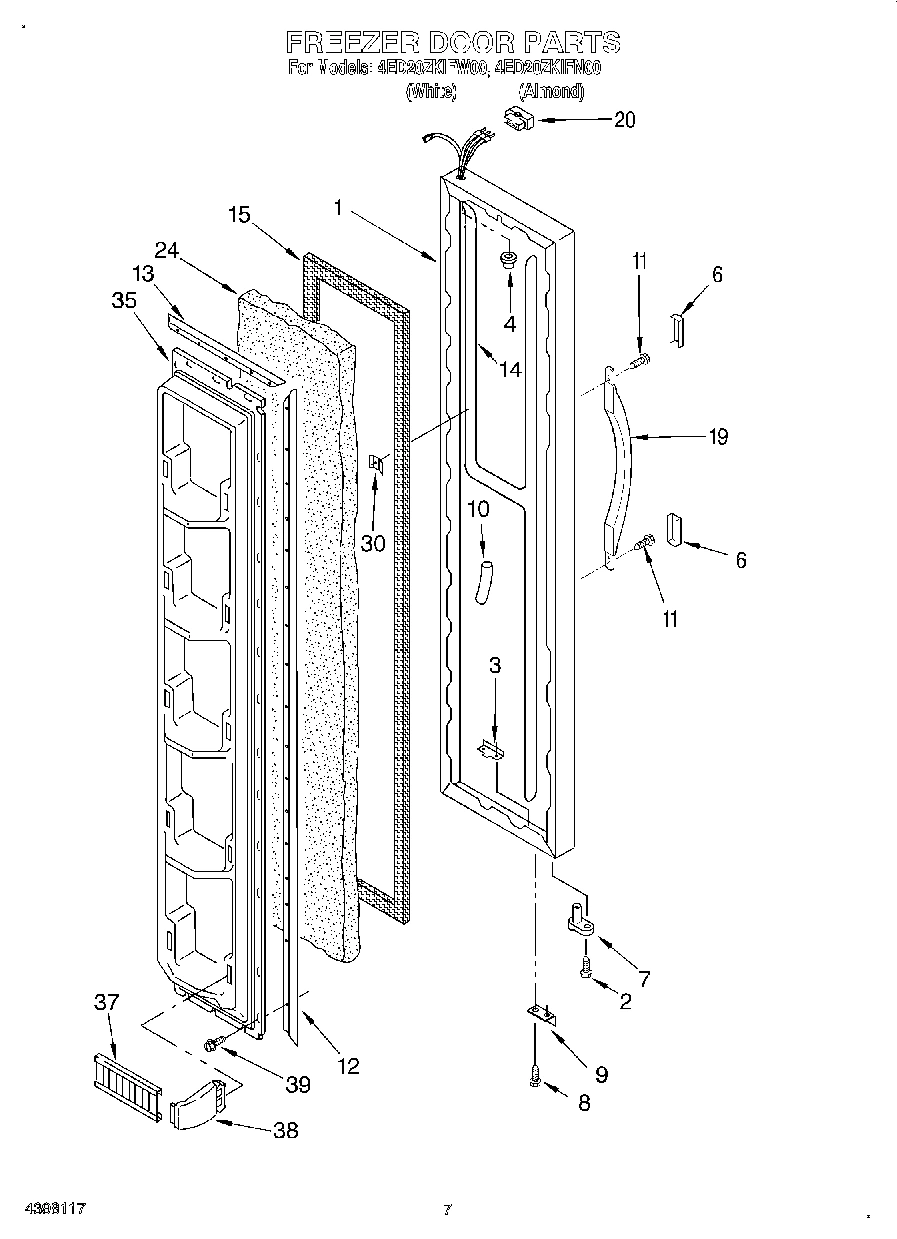

05 - FREEZER DOOR

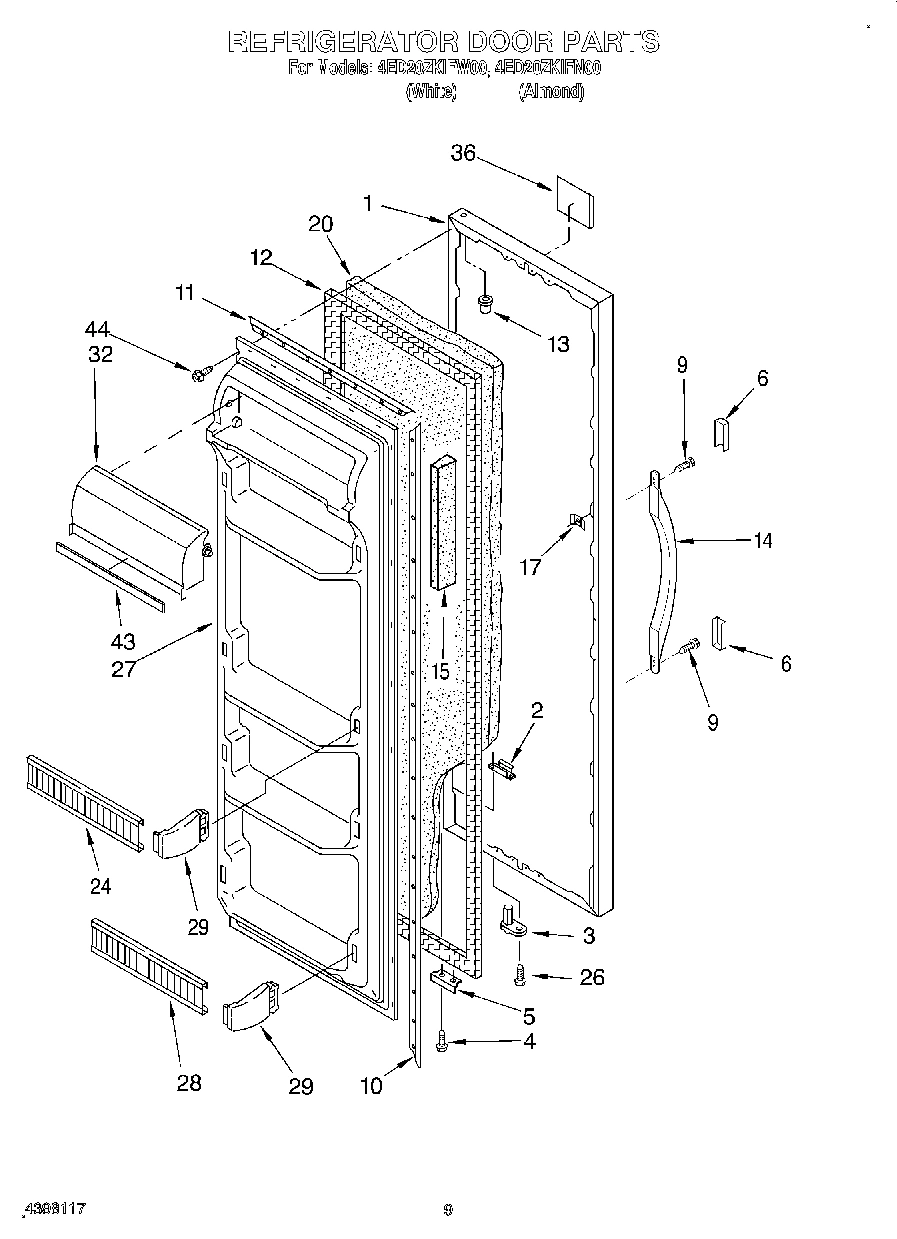

06 - REFRIGERATOR DOOR

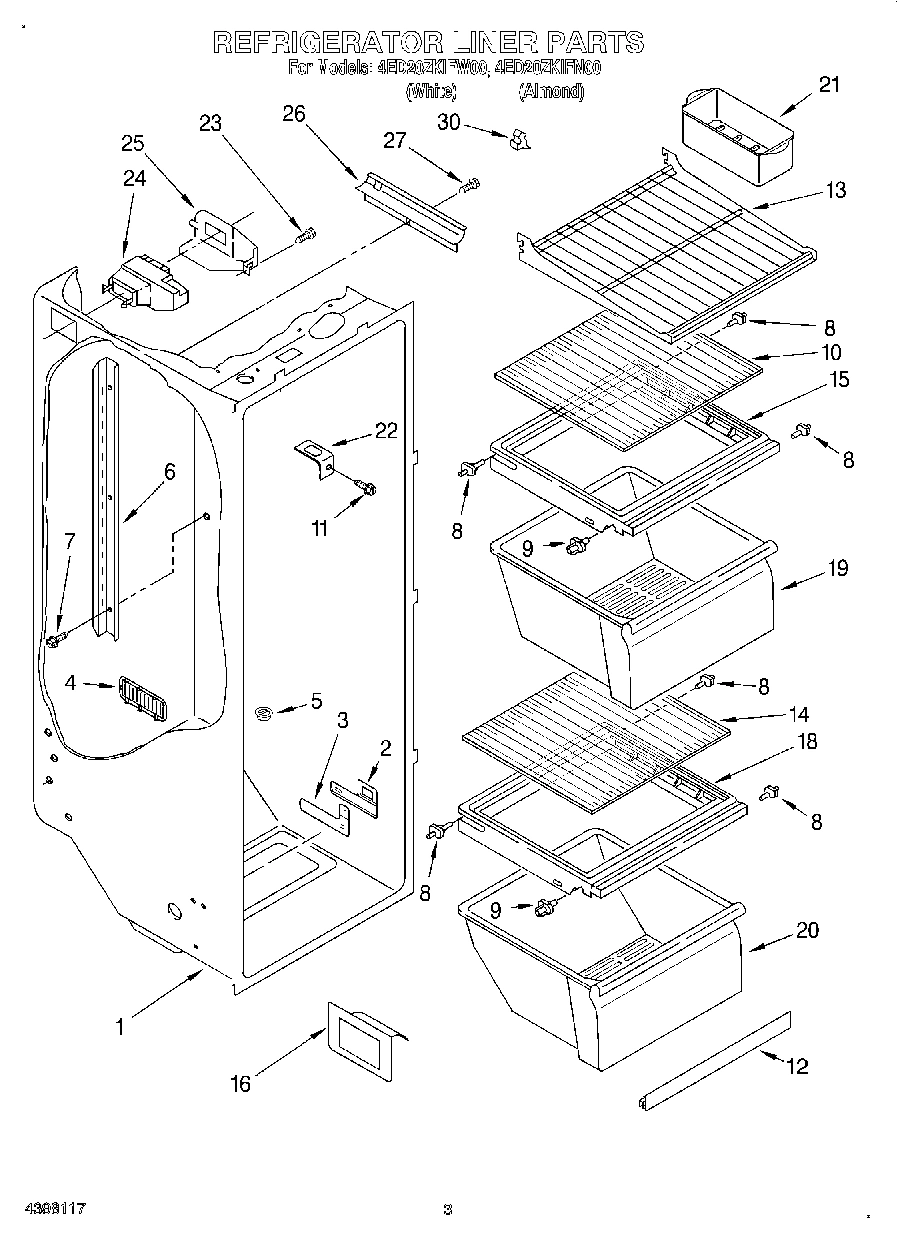

02 - REFRIGERATOR LINER

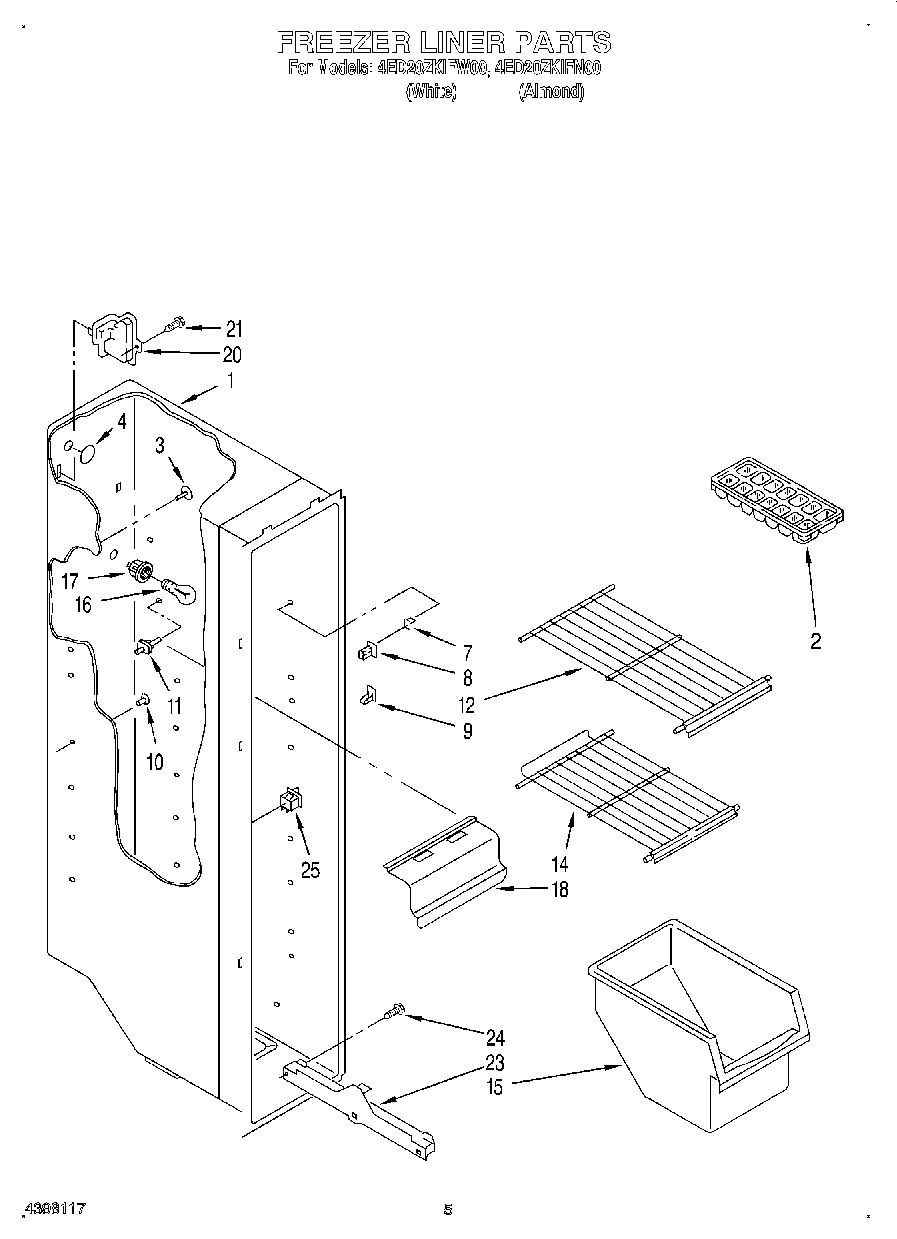

03 - FREEZER LINER

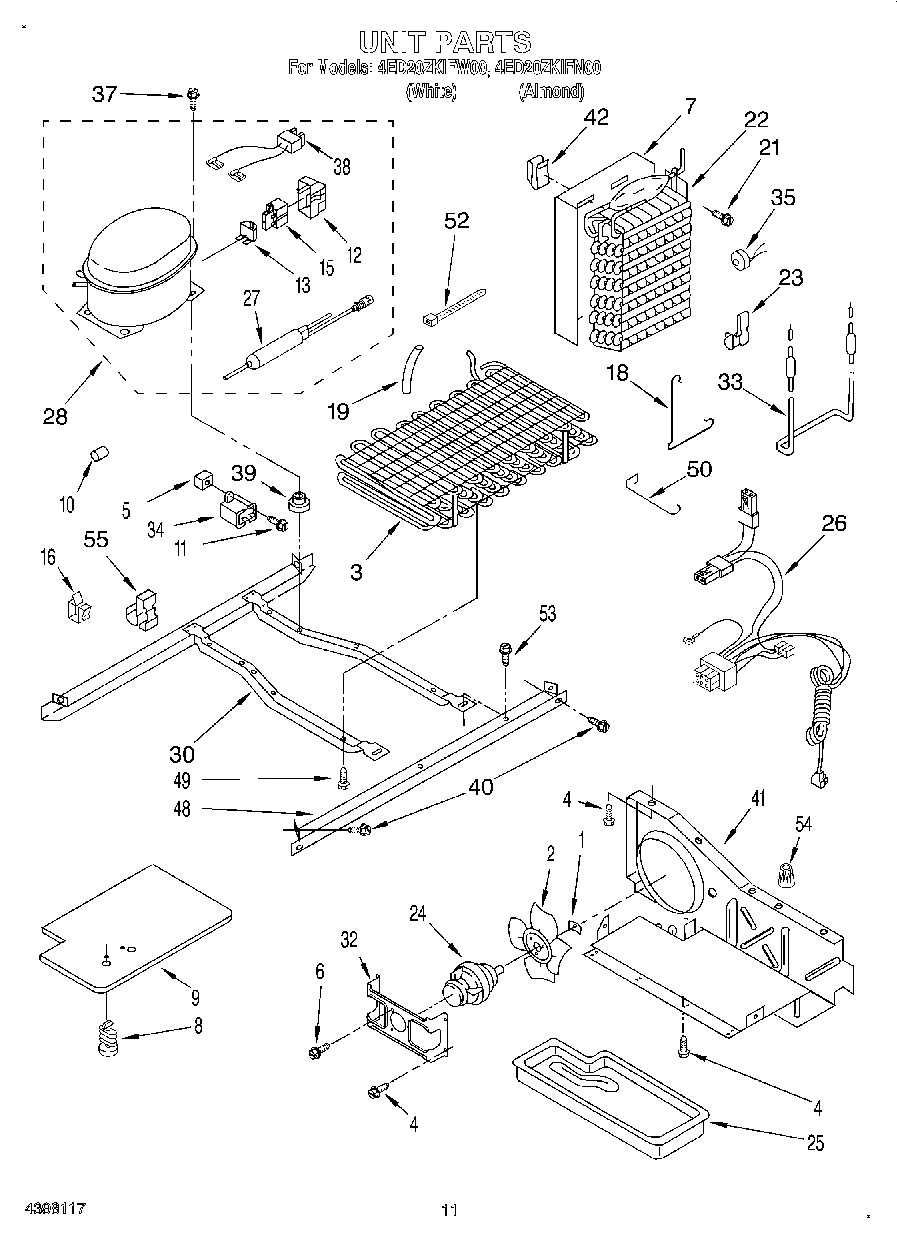

07 - UNIT
Common parts from model Whirlpool 4ED20ZKIFN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13385A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13386A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Icemaker, Hole Seal WPL 1129056 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
13
Shelf, Cantilever WPL 2163617 Contact Us For Availability
14
Handle, Center (White) WPL 2186649W Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Light Bar (RC) WPL 2179920 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
20
Meat Pan WPL 2174118 Contact Us For Availability
20
Cover, Wiring WPL 2155571 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Harness, Intermediate WPL 2195106 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 2196137 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2182190 Contact Us For Availability
30
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
36
Nameplate (White) WPL 2175383 Contact Us For Availability
36
Nameplate (Almond) WPL 2175384 Contact Us For Availability
37
Trim, Door Shelf WPL 2195921 Contact Us For Availability
41
Air Baffle WPL 2196158 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Door Compartment WPL 2188148 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
