Model Whirlpool 3XARG458GD00 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER

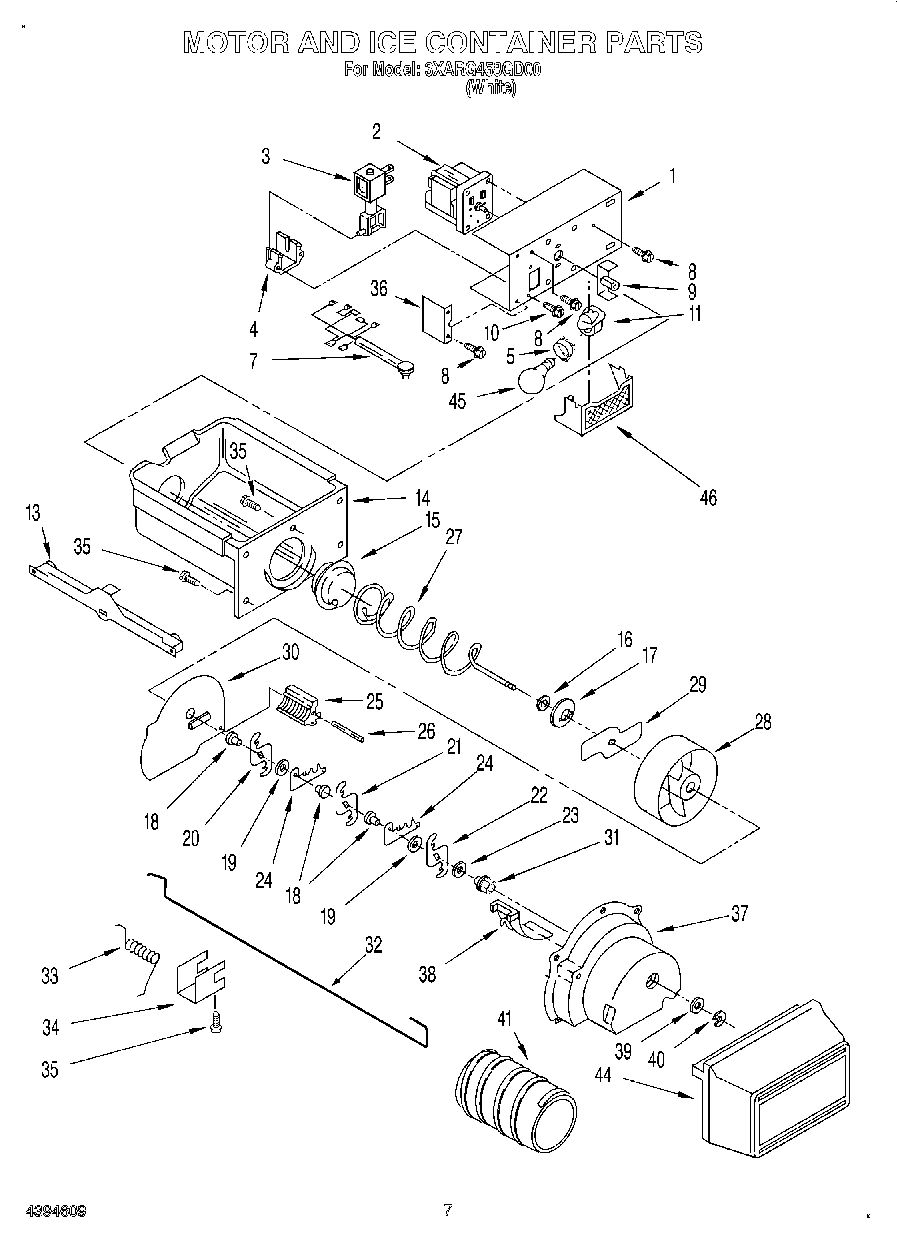

04 - MOTOR AND ICE CONTAINER

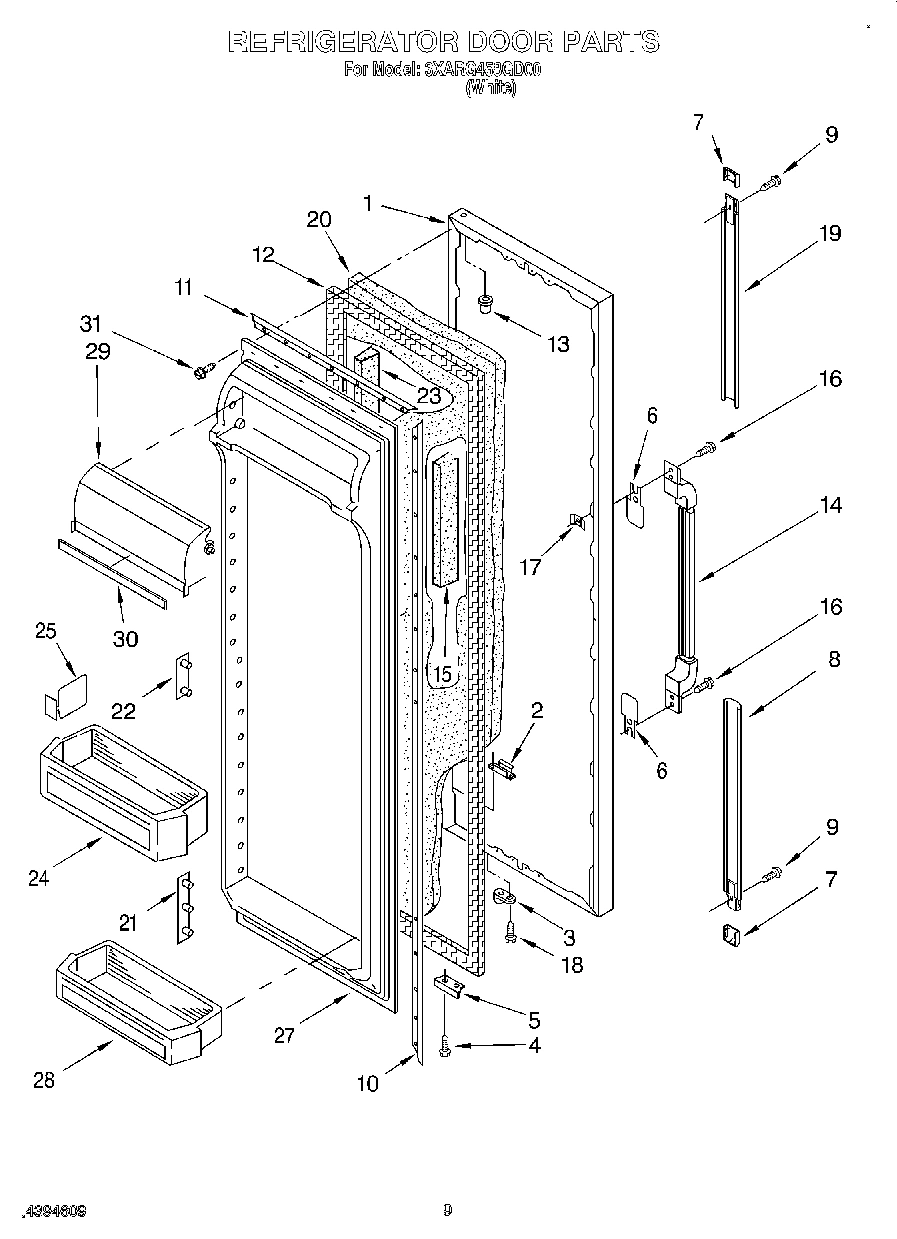

05 - REFRIGERATOR DOOR

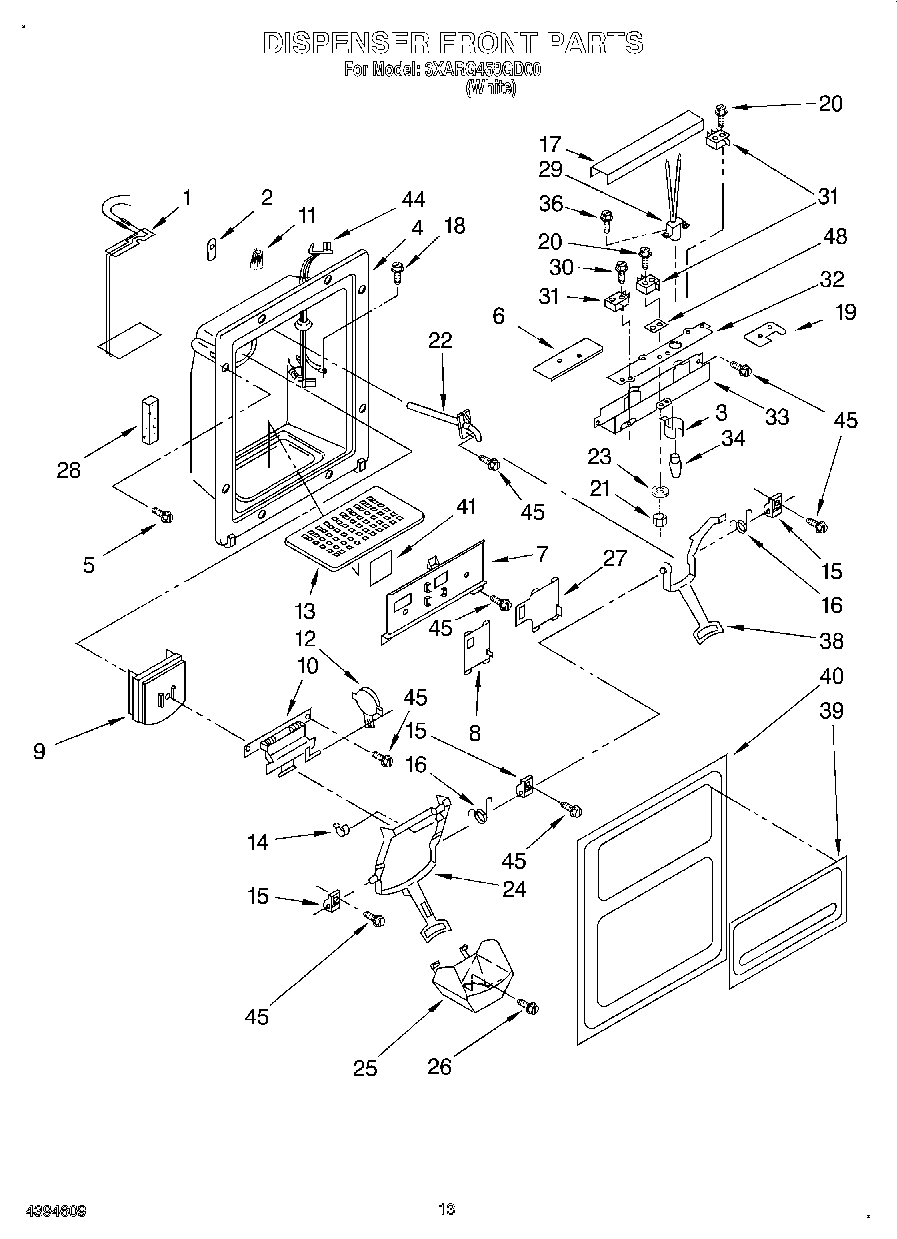

07 - DISPENSER FRONT

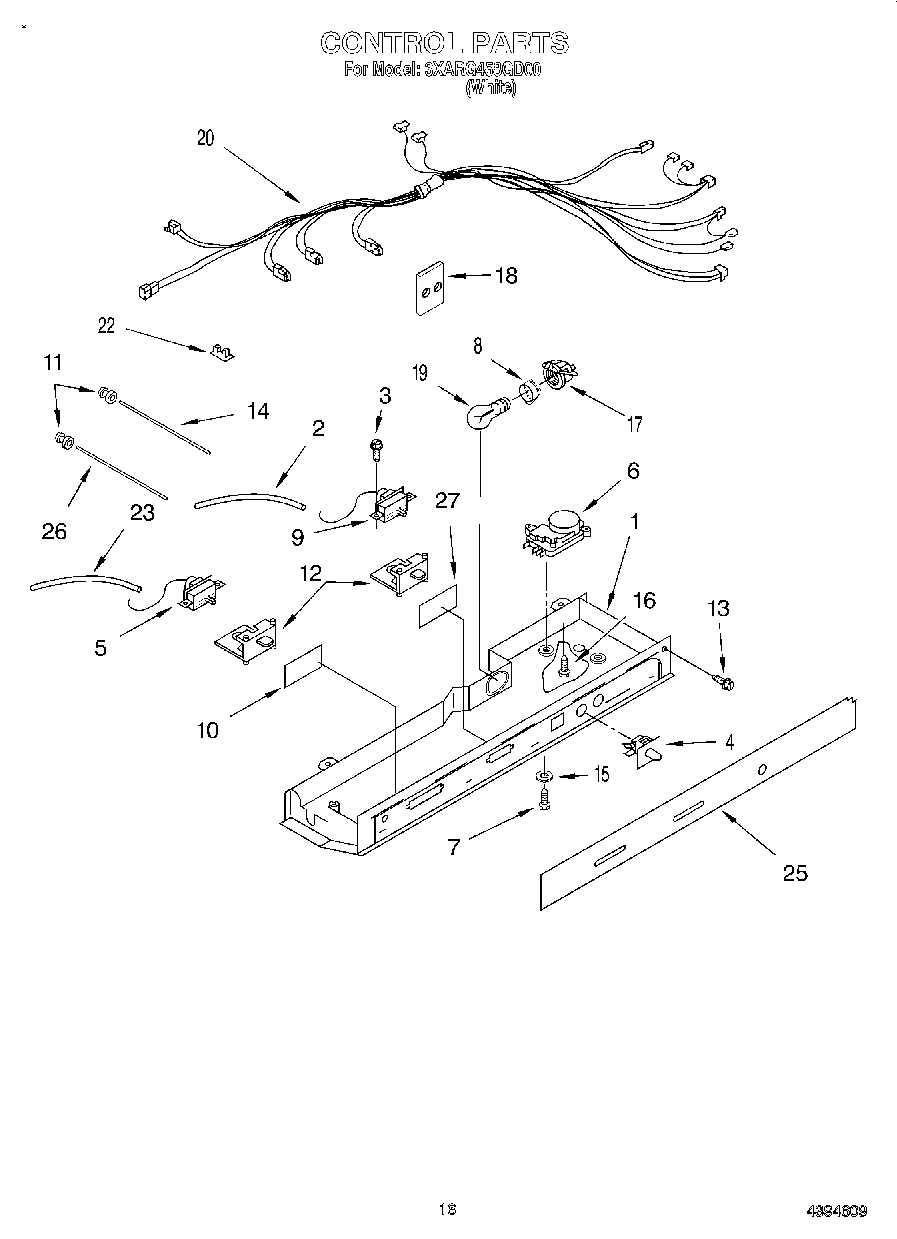

09 - CONTROL

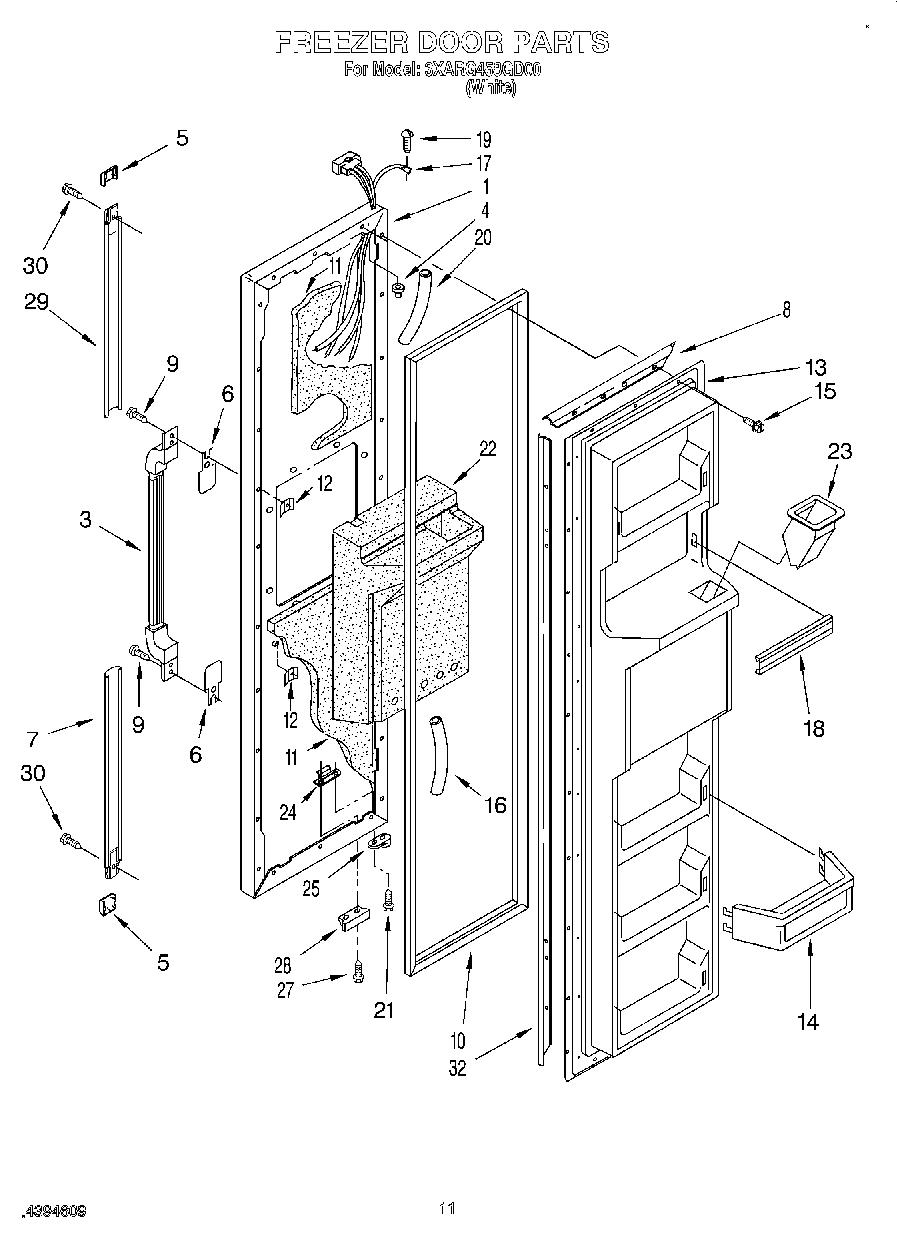

06 - FREEZER DOOR

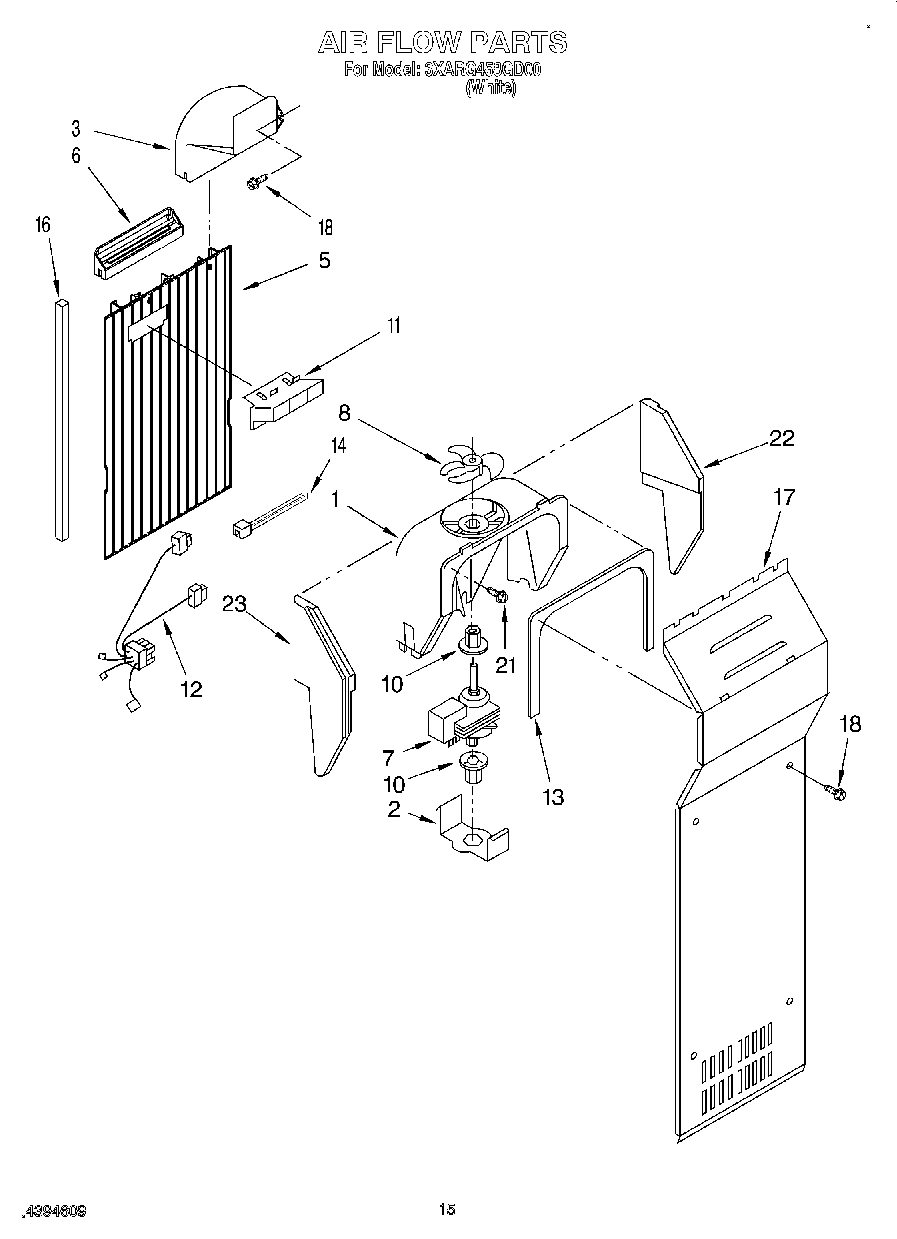

08 - AIR FLOW

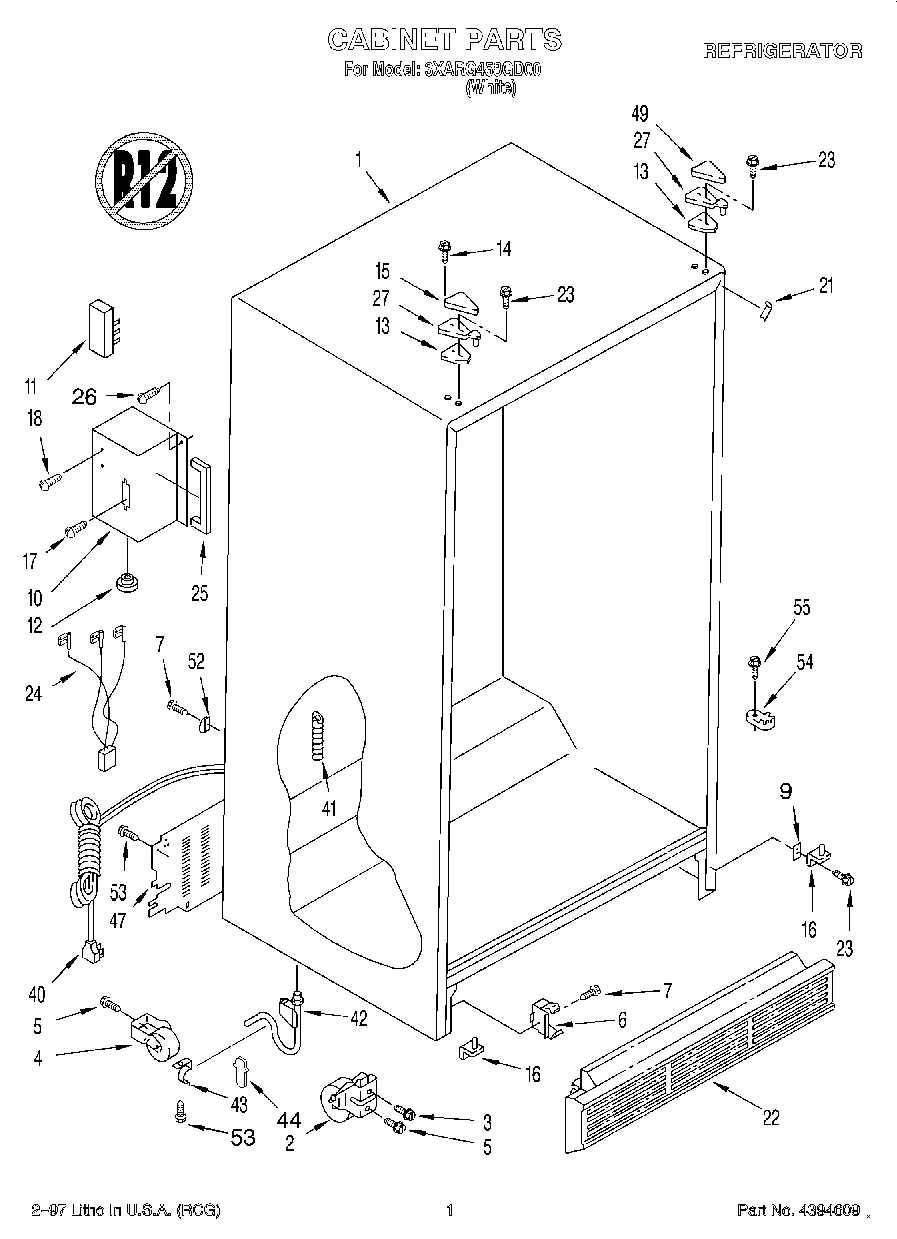

01 - CABINET

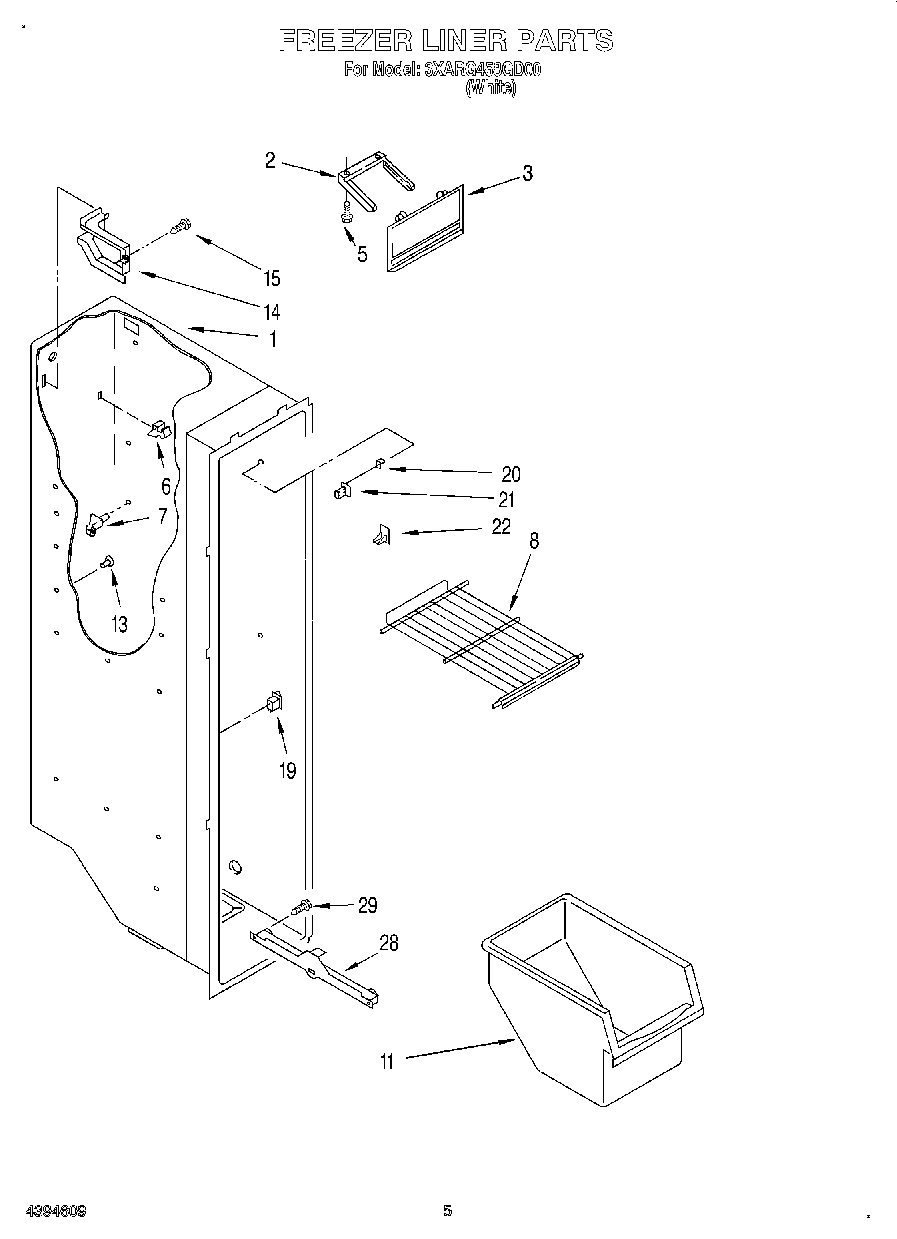

03 - FREEZER LINER

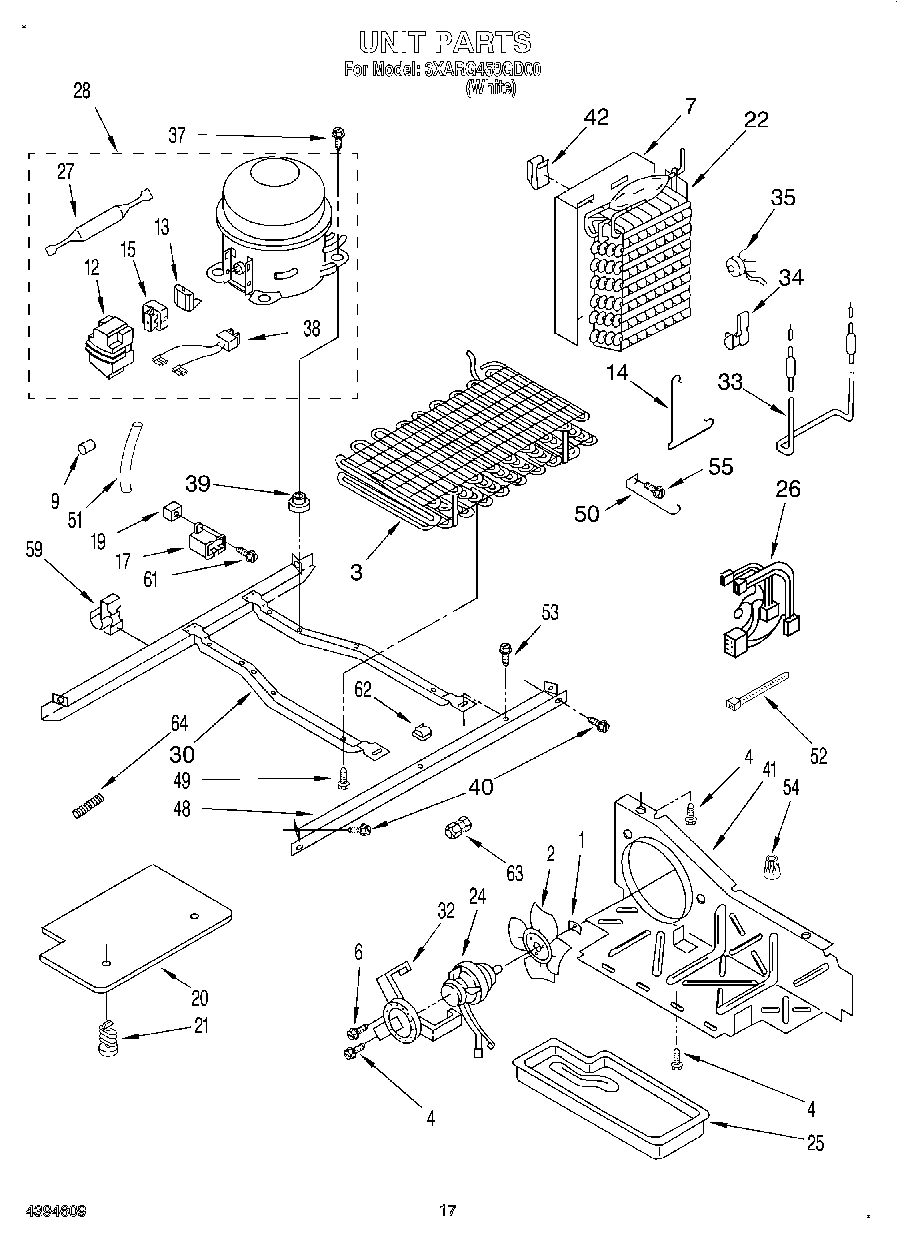

10 - UNIT

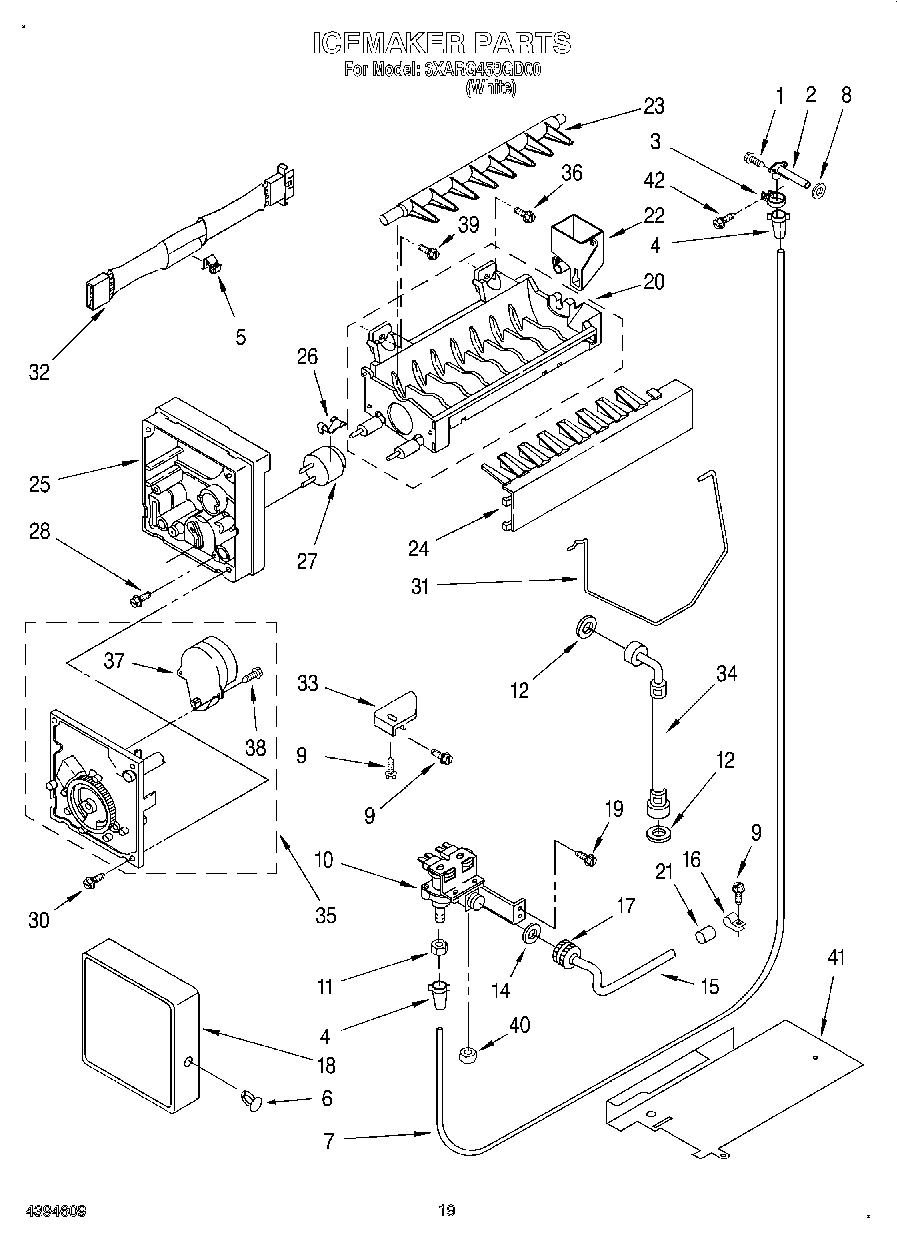

11 - ICE MAKER, LIT/OPTIONAL
Common parts from model Whirlpool 3XARG458GD00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2183762 WPL LIT2183762 Contact Us For Availability
WPL LIT2183768 WPL LIT2183768 Contact Us For Availability
WPL LIT2189736 WPL LIT2189736 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115235 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12690A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12692A8 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle WPL 2194697 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
End Cap WPL 2174006 Contact Us For Availability
6
Shim WPL 2179399 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Extension, Bottom WPL 2174282 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Encloser, Terminal Block WPL 2158579 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2189564 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
12
Washer (2) WPL 1129722 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2189738 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Harness, Door WPL 2167055 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2183734 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Unit, Harness WPL 2167065 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
Extension, Top WPL 2174276 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
European Water Connection Tube WPL 1129723 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177149 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
Ice Crusher Mechanism Assembly WPL 2169939 Contact Us For Availability
42
Ice Container Assembly WPL 2196013 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
