Model Whirlpool 3VET23DKFN01 REFRIGERATOR – Common Parts & Diagrams

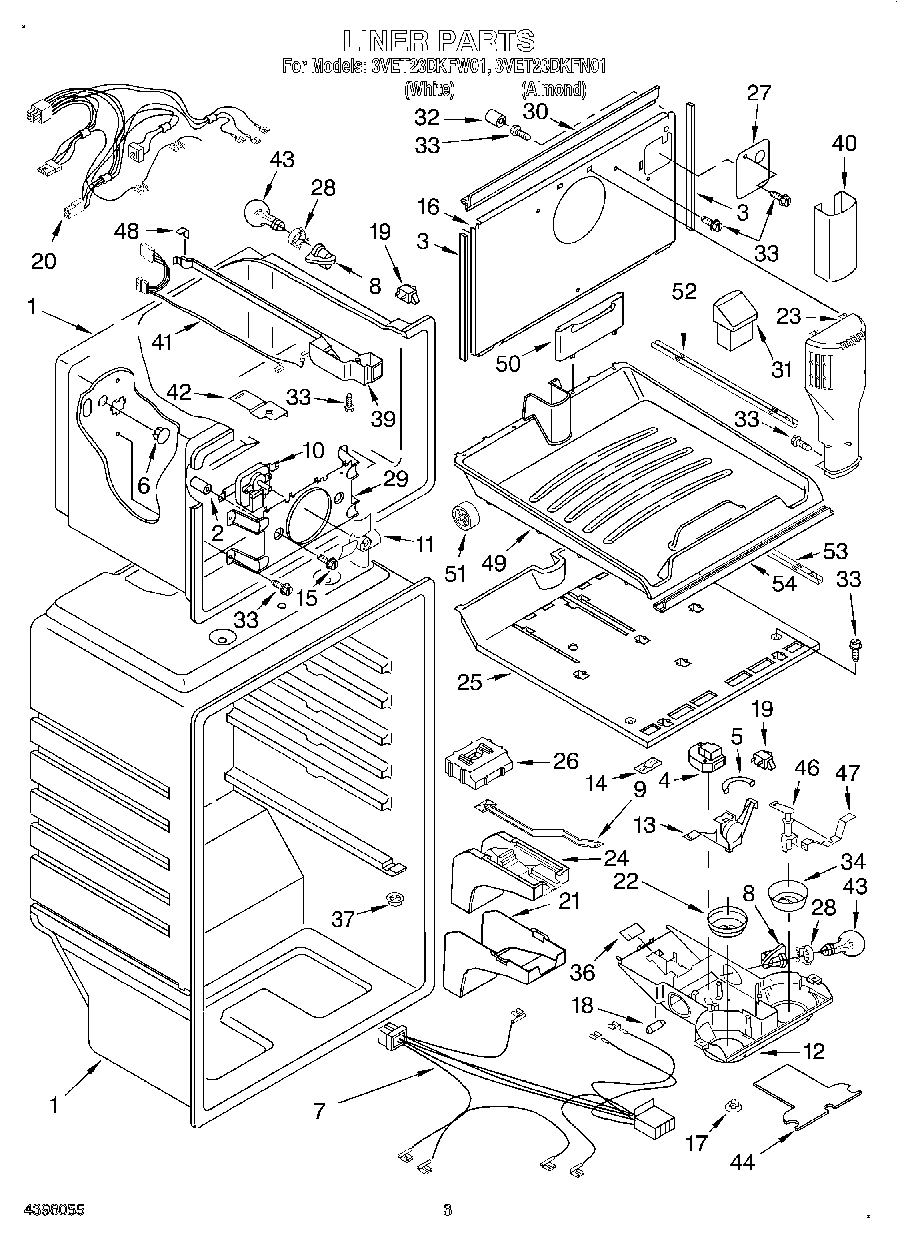

02 - LINER

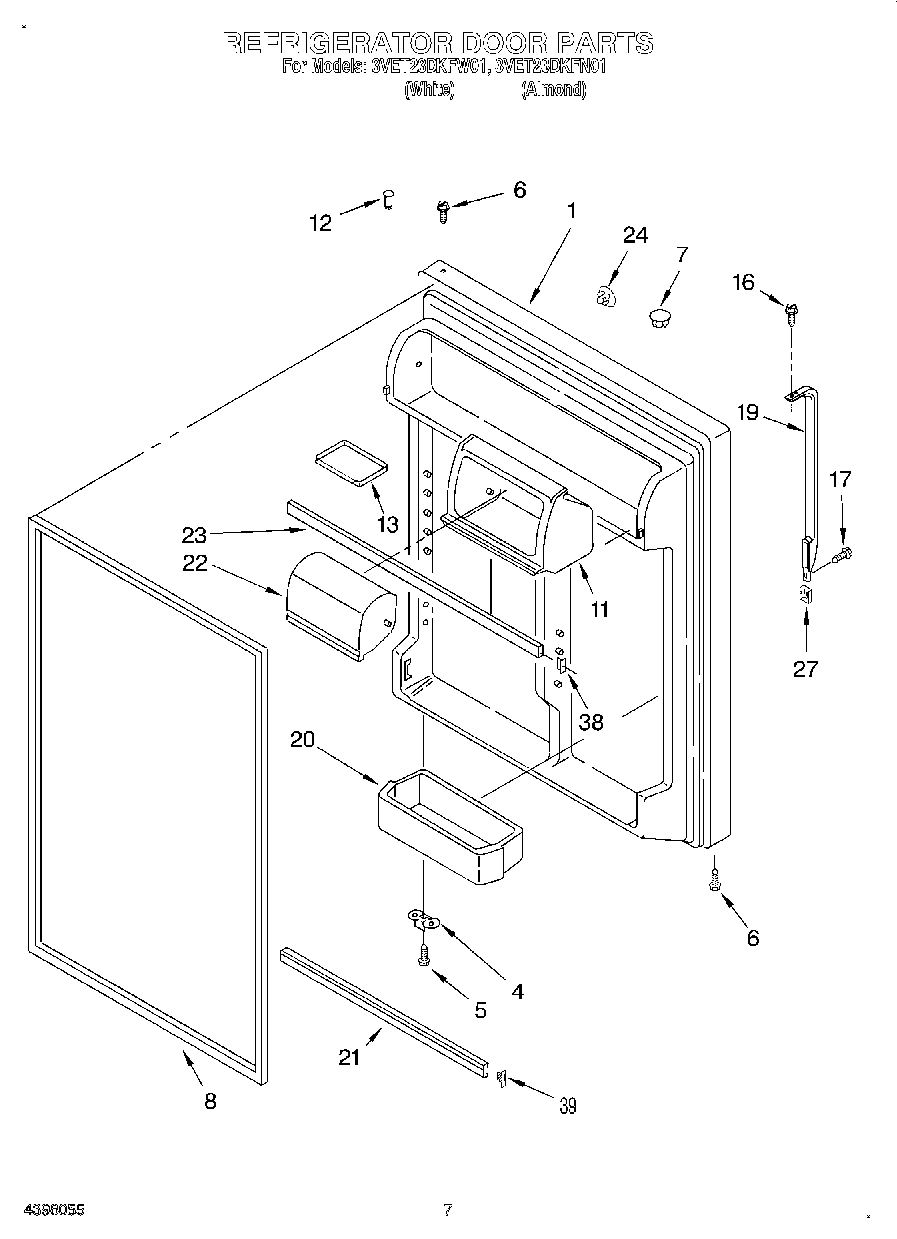

04 - REFRIGERATOR DOOR

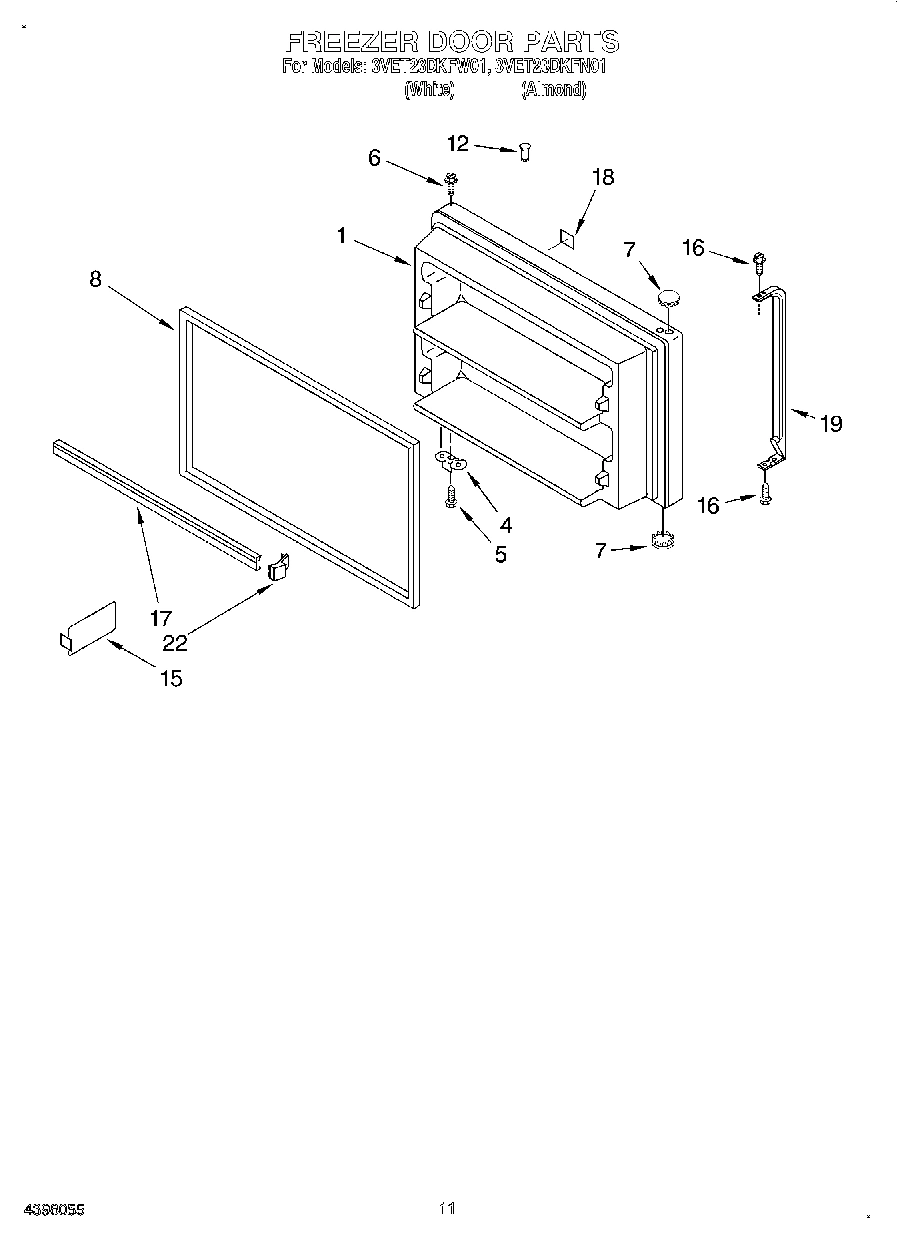

06 - FREEZER DOOR, LIT/OPTIONAL

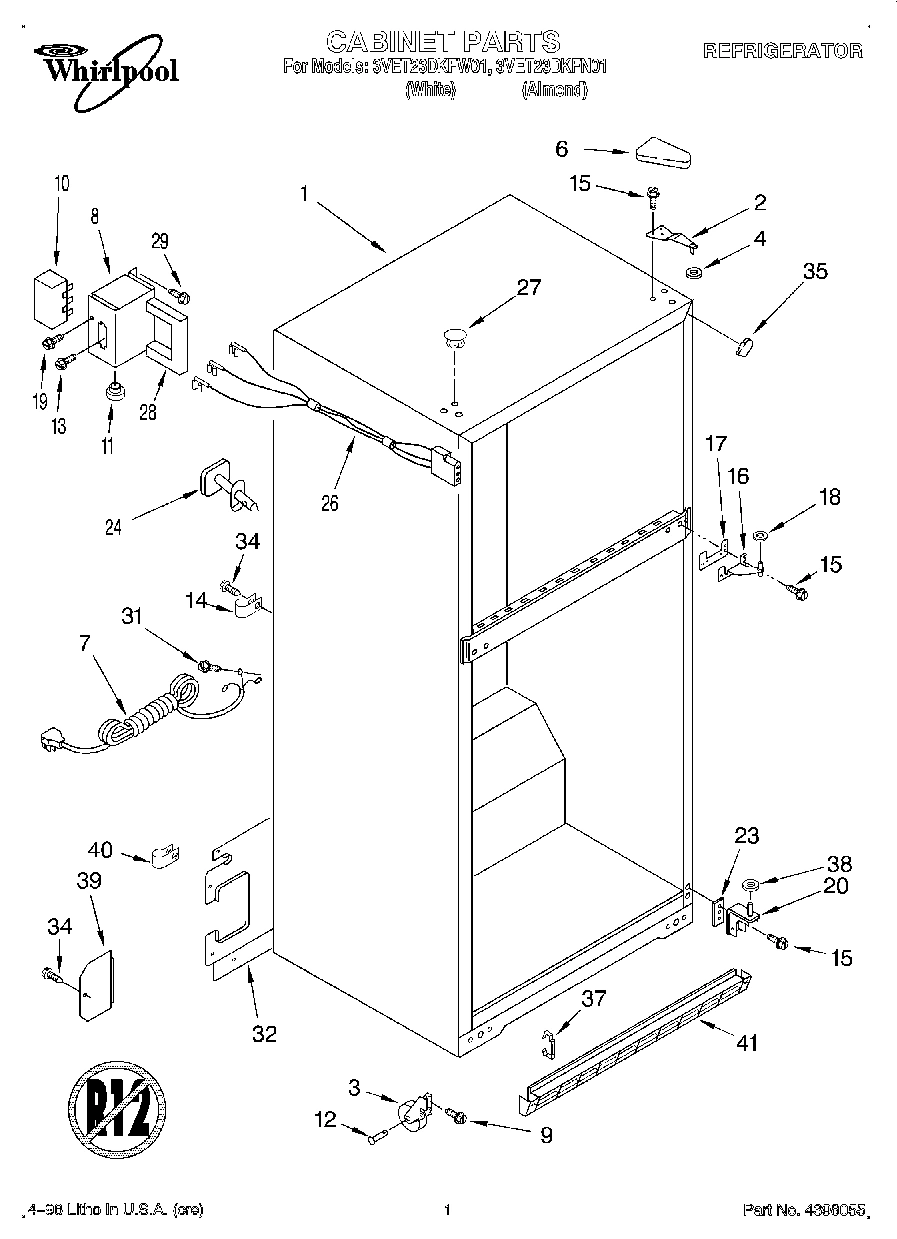

01 - CABINET

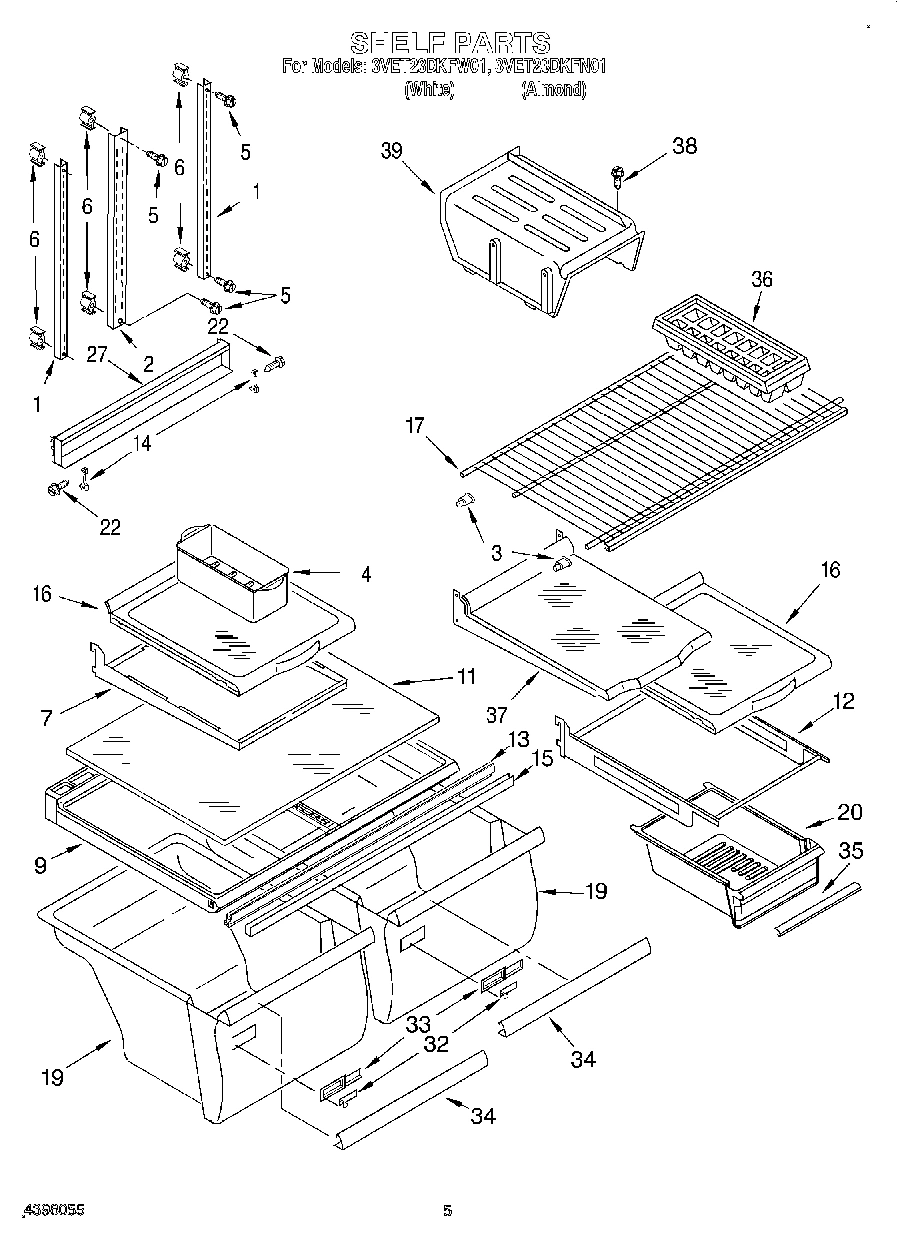

03 - SHELF

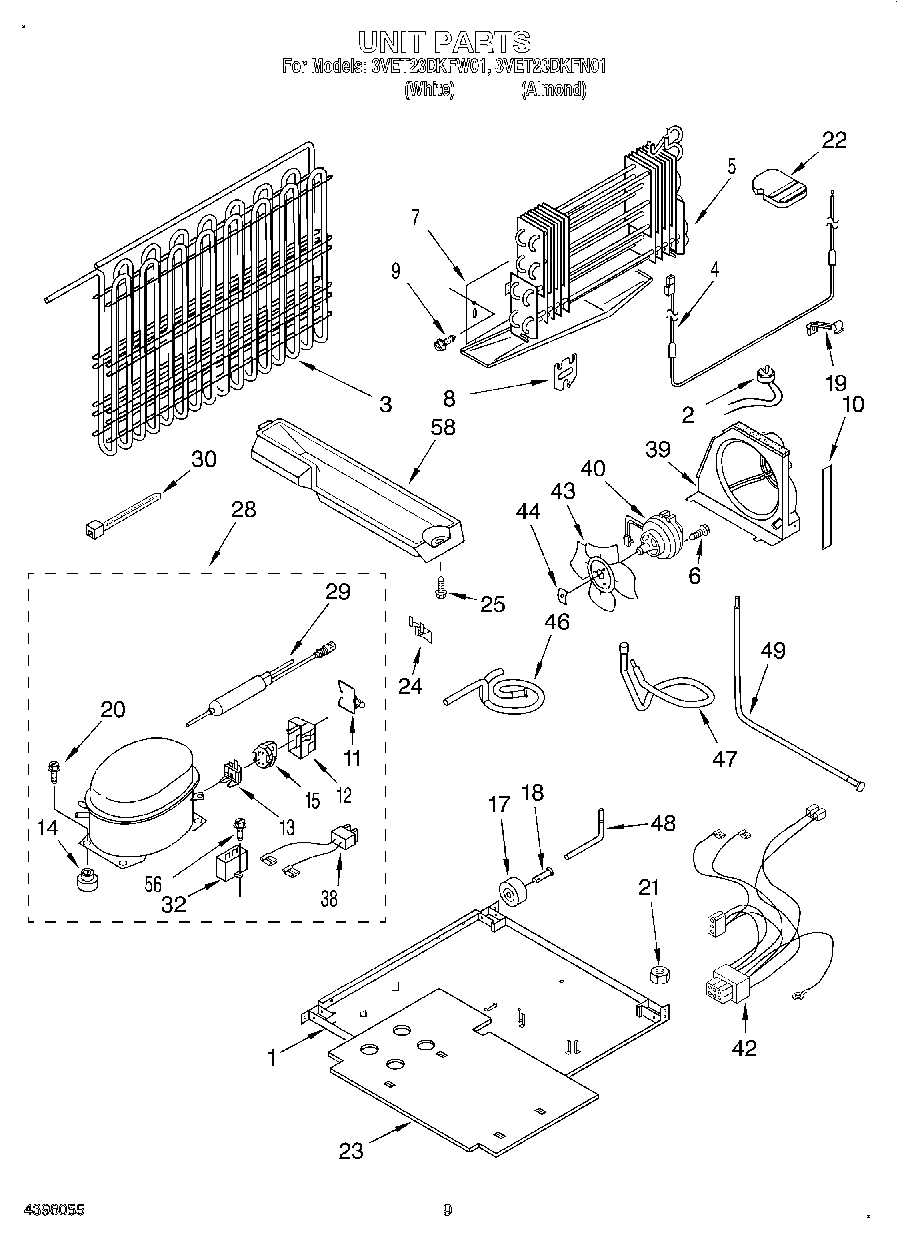

05 - UNIT
Common parts from model Whirlpool 3VET23DKFN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12643A3 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188167 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Heater, Defrost WPL 2166872 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
6
Screw Support WPL 2189314 Contact Us For Availability
6
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
7
Service Cord WPL 1129332 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2188194 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Screw WPL 2174650 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Clamp WPL 489435 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172684 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Relay (See Overload) WPL ARI12646A7 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (Almond) WPL 2193350N Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI12647A6 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12644A6 Contact Us For Availability
24
Clip WPL 2166683 Contact Us For Availability
25
Screw WPL 489462 Contact Us For Availability
26
Wire Assembly WPL 2199068 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176241 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket WPL 2167227 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2169447 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
32
Cover, Unit WPL 2188172 Contact Us For Availability
35
Corner Filler (Almond) WPL 2201015 Contact Us For Availability
35
Trim, Meat Pan WPL 2176357 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Shelf Assembly, Spillguard WPL 2195349 Contact Us For Availability
39
Cover, Water Valve WPL 2166251 Contact Us For Availability
39
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Grille (White) WPL 2201006 Contact Us For Availability
41
Grille (Almond) WPL 2201007 Contact Us For Availability
42
Wire Assy. Unit WPL 2195489 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2176379 Contact Us For Availability
100
FeaturePak (Includes 4,12, 14,16,20,22,27, 37 WPL 2199049 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
