Model Whirlpool 3VET16GKFN01 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2176934 WPL LIT2176934 Contact Us For Availability

WPL LIT2197115 WPL LIT2197115 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

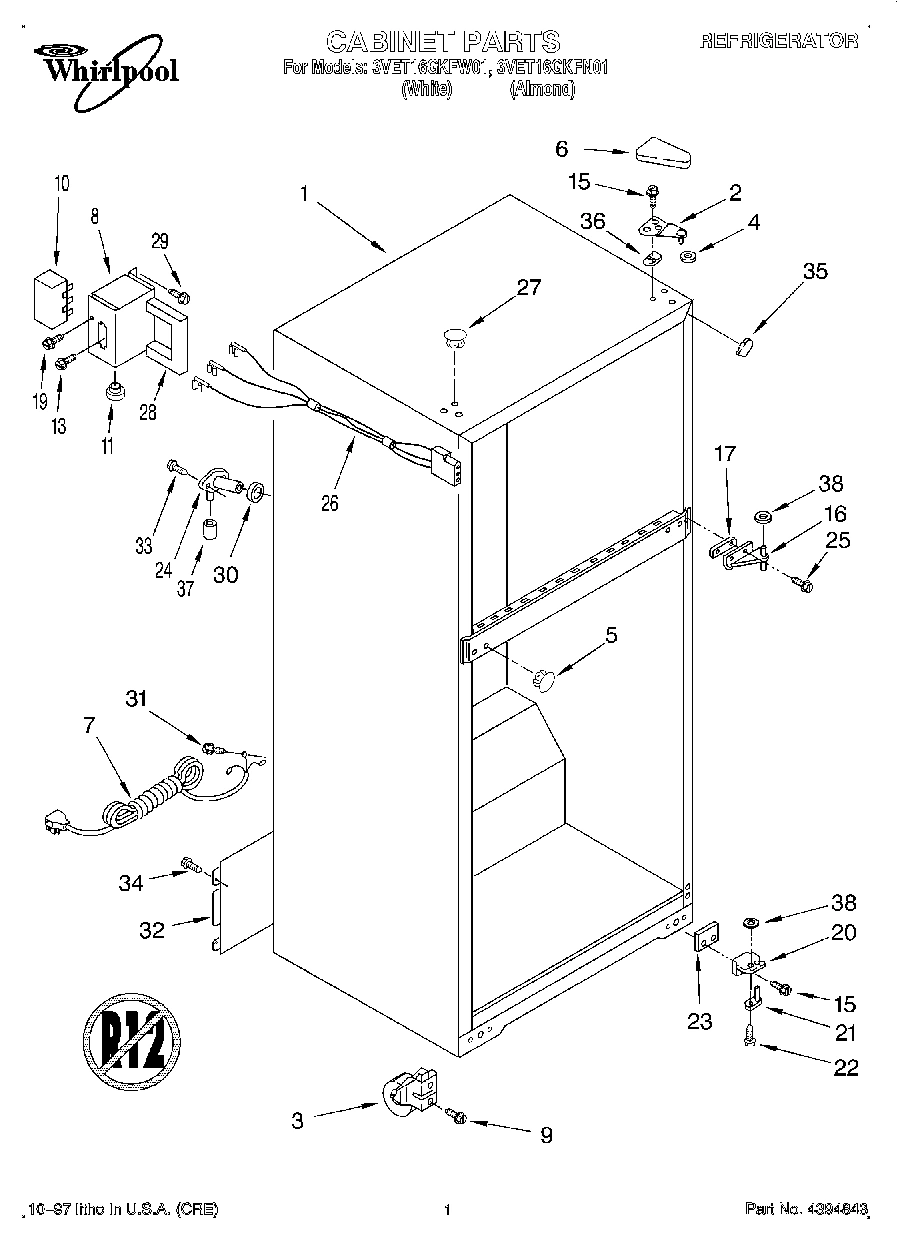

1

Cabinet (Not A Serviceable Part) WPL ARI12489A9 Contact Us For Availability

1

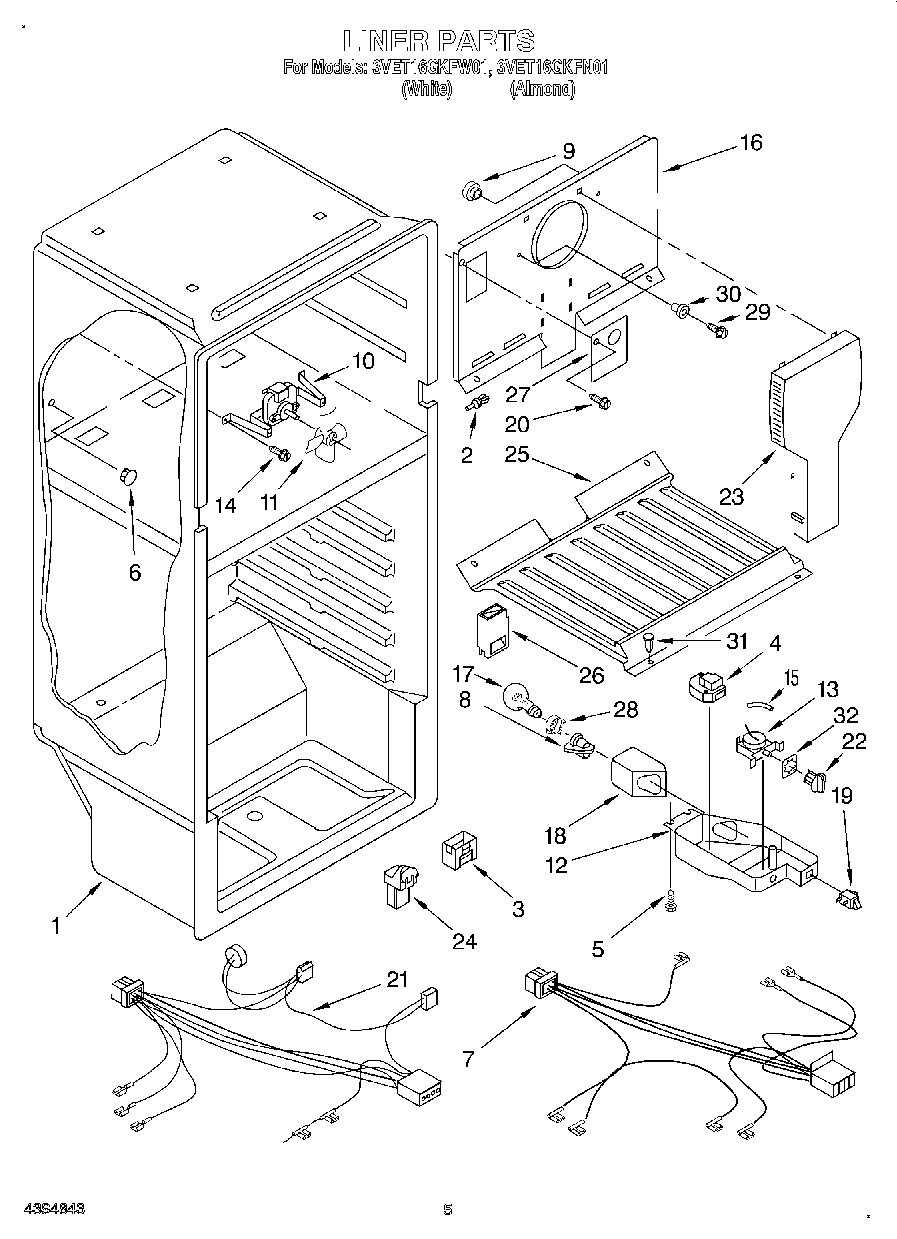

Liner (Not A Serviceable Part) WPL ARI12490A2 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.67

2

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $77.96

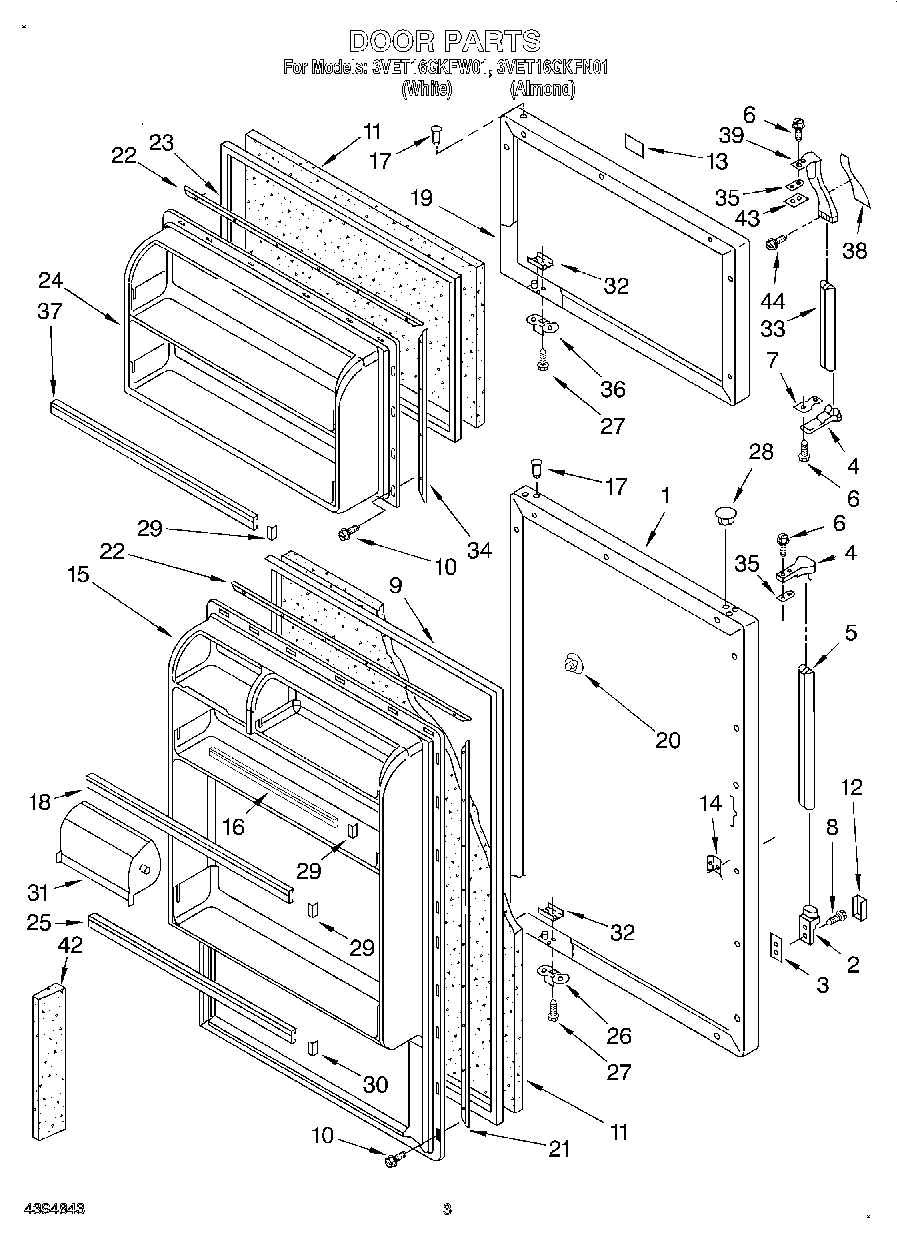

3

WP9791659 Whirlpool Glass Shelf In Stock WPL WP9791659 $194.68

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

3

Roller-Front WPL 9790461 Contact Us For Availability

4

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $127.71

4

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

4

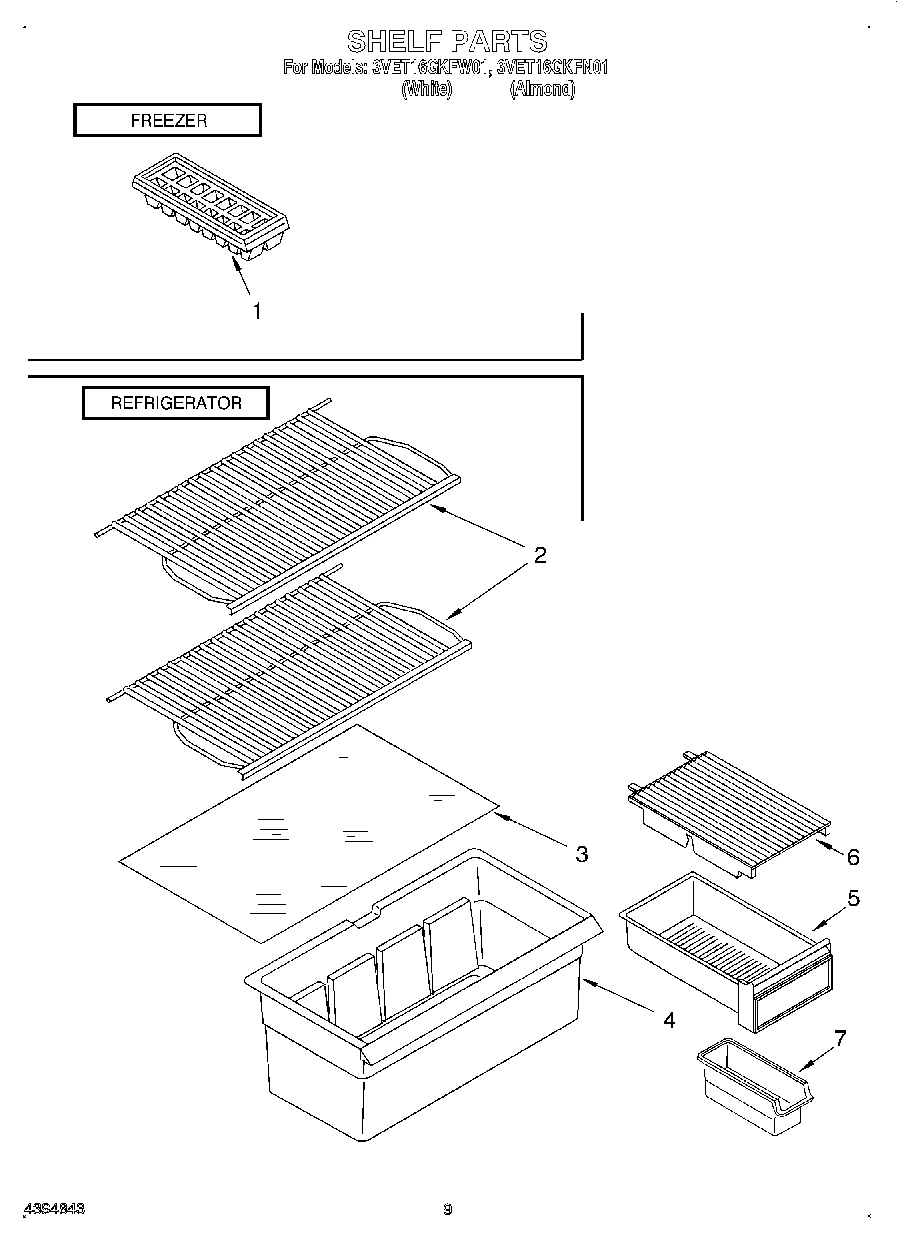

Pan, Crisper WPL 9790377 Contact Us For Availability

5

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

5

Pan, Meat WPL 2183273 Contact Us For Availability

5

Hole Plug WPL 1129062 Contact Us For Availability

6

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

6

Cover, Pan WPL 9790379 Contact Us For Availability

6

Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability

7

2176927 Whirlpool Refrigerator Wire Harness Backorder WPL 2176927 $97.87

7

Shim WPL 943187 Contact Us For Availability

7

Service Cord WPL 1129332 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

8

Enclosure, Term. WPL 2158579 Contact Us For Availability

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $6.93

9

Screw WPL 9791768 Contact Us For Availability

9

Grommet WPL 531933 Contact Us For Availability

10

Terminal Block WPL 1129346 Contact Us For Availability

10

Fan Motor & Bracket Assy. WPL 2167354 Contact Us For Availability

11

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

11

Bushing WPL 1129449 Contact Us For Availability

11

Fan Blade WPL 2169141 Contact Us For Availability

12

2215213 Whirlpool Refrigerator Control Box Backorder WPL 2215213 $74.00

13

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

13

WPW10567140 Whirlpool Refrigerator Thermostat In Stock WPL WPW10567140 $72.99

14

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

15

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

WP2166037 Whirlpool Refrigerator Door Hinge In Stock WPL WP2166037 $60.99

16

Cover-Evaporator WPL 9790382 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $45.56

17

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

17

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

18

W11034434 Whirlpool Refrigerator Light Lens Backorder WPL W11034434 $74.10

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

20

WP2325482 Whirlpool Bottom Hinge Backorder WPL WP2325482 $52.53

20

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

21

Hinge-Pin Bott. WPL 9791682 Contact Us For Availability

21

Wiring, Freezer WPL 2192097 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $17.67

22

Screw WPL 488714 Contact Us For Availability

23

WP2201567 Whirlpool Hinge Shim Backorder WPL WP2201567 $4.82

23

Air Tower WPL 2174502 Contact Us For Availability

24

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

24

Hood & Foil Assembly WPL 2166082 Contact Us For Availability

25

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

25

Freezer Floor WPL 2174798 Contact Us For Availability

26

Wire Assembly WPL 2174913 Contact Us For Availability

26

Air Diffuser WPL 2197030 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

Installation Kit WPL 482801 Contact Us For Availability

Gasket WPL 2167227 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $7.99

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

Sleeve WPL 2166010 Contact Us For Availability

31

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

RETAINER Backorder WPL 2165773 $5.57

2213762 Whirlpool Refrigerator Unit Cover Backorder WPL 2213762 $214.97

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 9791757 WPL 9791757 Contact Us For Availability

33

NLA:SCREW Backorder WPL WPW10141645 $4.82

34

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

34

Retainer, Gasket WPL 1122553 Contact Us For Availability

W10859322 Whirlpool Refrigerator Filler Backorder WPL W10859322 $4.82

Spacer WPL 943188 Contact Us For Availability

Clip, Tube WPL 1105406 Contact Us For Availability

Corner Filler (Almond) WPL 2166004 Contact Us For Availability

36

Shim WPL 1123517 Contact Us For Availability

37

WP2163629 Whirlpool Refrigerator Door Trim In Stock WPL WP2163629 $32.57

37

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

WIRE Backorder WPL 2174998 $52.93

38

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

39

Handle End, WPL 944163 Contact Us For Availability

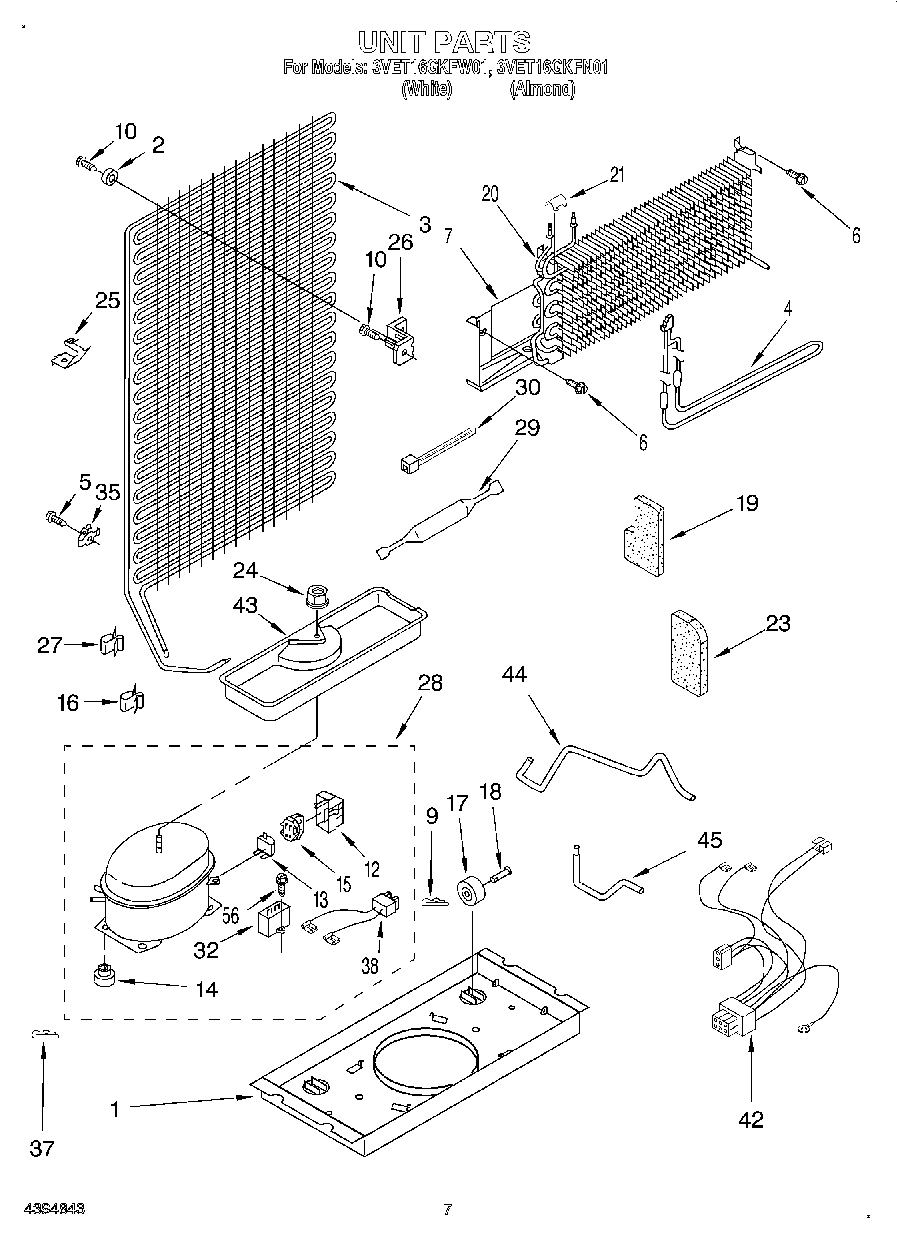

42

Wire Assy. Unit WPL 2167479 Contact Us For Availability

43

Evaporator Tray WPL 1101002 Contact Us For Availability

44

Tube, Discharge WPL 2174791 Contact Us For Availability

45

W11661102 Whirlpool Tube Backorder WPL W11661102 $18.64

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
