Model Whirlpool 3RAWZ481EML2 ELECTRIC DRYER – Common Parts & Diagrams
02 - CABINET PARTS

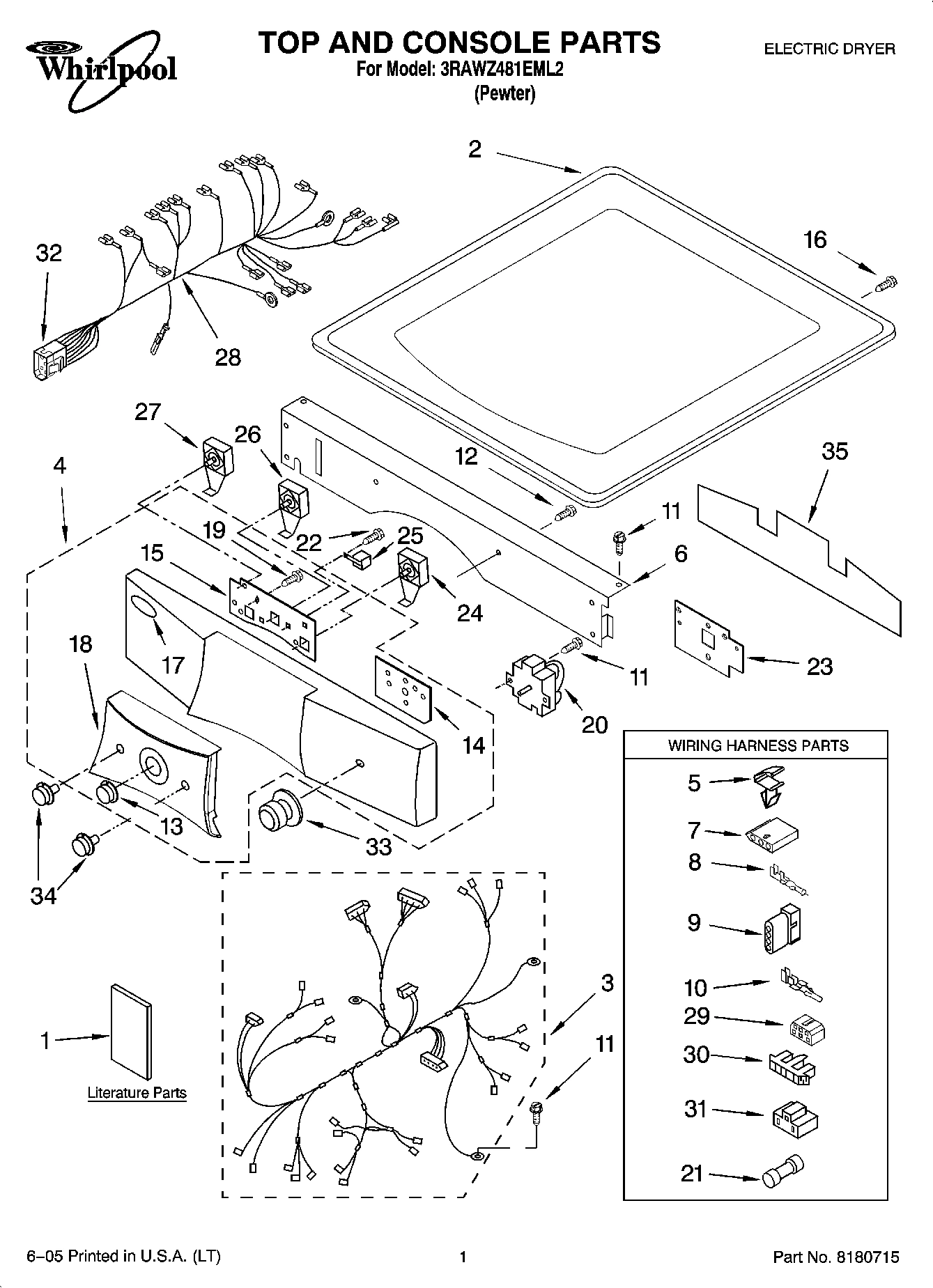

01 - TOP AND CONSOLE PARTS

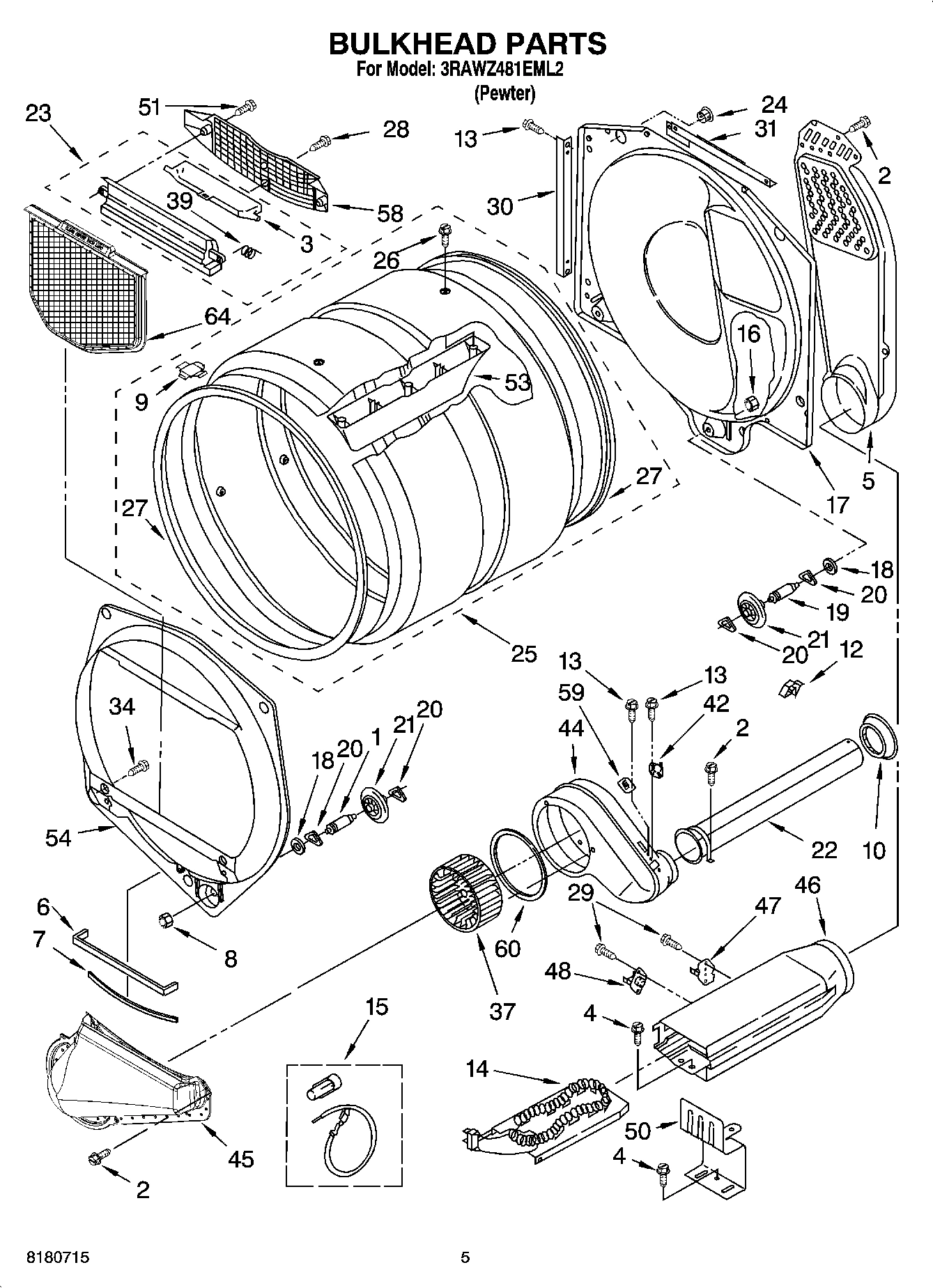

03 - BULKHEAD PARTS

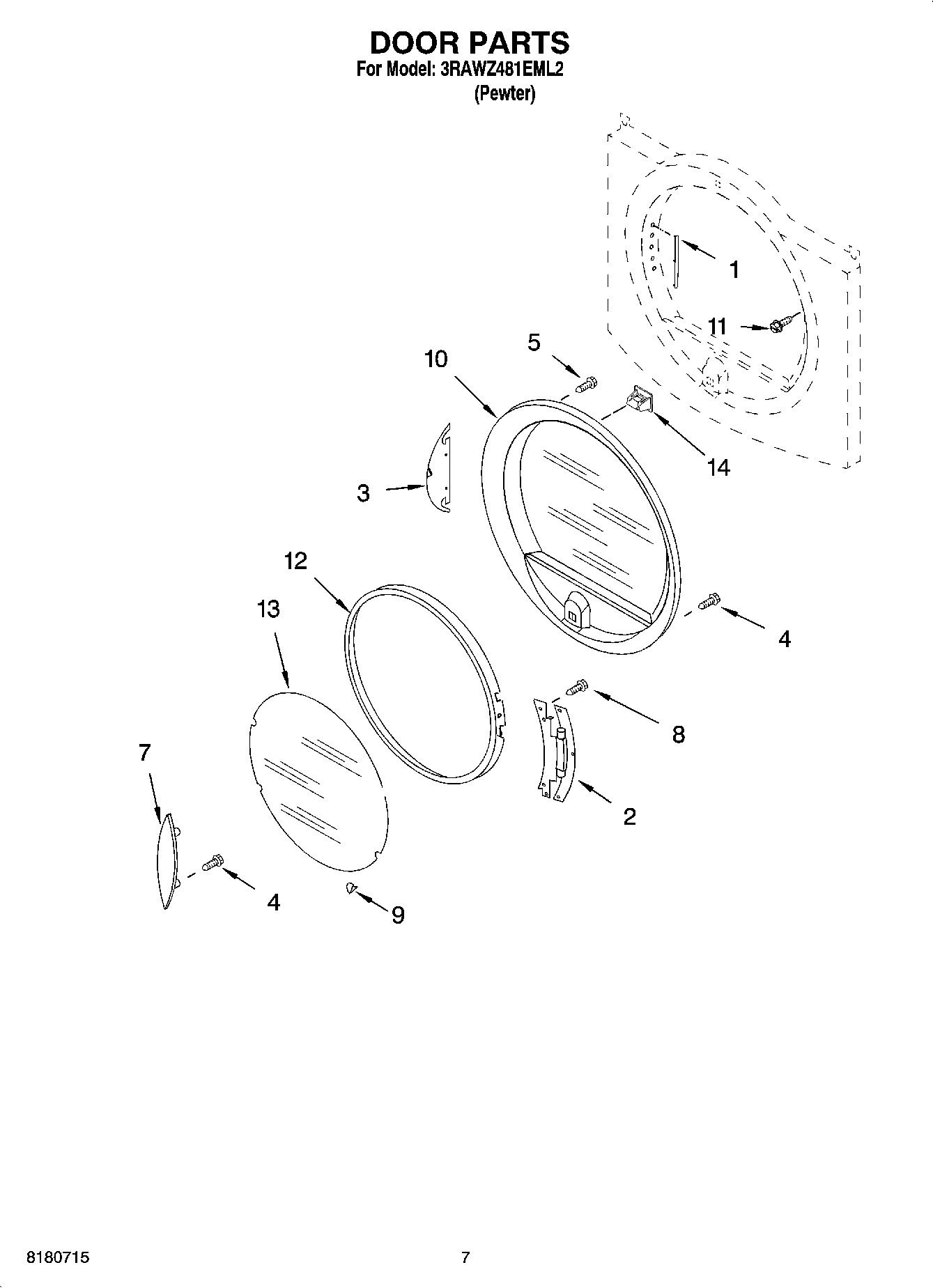

04 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool 3RAWZ481EML2 ELECTRIC DRYER
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) WPL 4396175 Contact Us For Availability
Kit, Hold Down WPL 8529894 Contact Us For Availability
ACCESSORY PARTS WPL ARI12255A7 Contact Us For Availability
1
Plug, Strip WPL 8563855 Contact Us For Availability
2
Door Hinge Assembly WPL 8565678 Contact Us For Availability
3
Harness, Main WPL 8543289 Contact Us For Availability
3
Cover, Door Hinge WPL 3980214 Contact Us For Availability
4
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
4
Panel, Console (Includes Illus. 13, 14 15, 17 WPL 3979740 Contact Us For Availability
5
Screw, 10-32 x 3/8 WPL 342043 Contact Us For Availability
6
Bracket, Console WPL 3980123 Contact Us For Availability
7
Handle, Door WPL 8559752 Contact Us For Availability
8
Screw, 1/4-20 x 1/2 WPL 3400224 Contact Us For Availability
9
Plug, Door Handle (2) WPL 8519374 Contact Us For Availability
10
Door Assembly (Inner) (Includes Illus. 14) WPL 8557500 Contact Us For Availability
12
Door, Outer WPL 3980213 Contact Us For Availability
13
Button, Push-To-Start WPL 3980121 Contact Us For Availability
13
WINDOW WPL 8545879 Contact Us For Availability
14
Bracket, Timer WPL 3979738 Contact Us For Availability
15
Bracket, Switch Mounting WPL 3979743 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability
16
Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability
17
Medallion WPL 8543319 Contact Us For Availability
18
Console, Center WPL 3956540 Contact Us For Availability
19
Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability
20
Timer WPL 3980205 Contact Us For Availability
22
Ramp, Door WPL 8529053 Contact Us For Availability
23
Dry Rack Support WPL 8521961 Contact Us For Availability
23
Spacer Plate (Timer) WPL 3980421 Contact Us For Availability
25
Complete Drum Assembly WPL 8543082 Contact Us For Availability
28
Harness, Console WPL 8543291 Contact Us For Availability
29
Connector 6-Circuit WPL 3347243 Contact Us For Availability
30
Connector, Timer WPL 3397269 Contact Us For Availability
30
Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability
32
Connector WPL 692997 Contact Us For Availability
33
Knob, Timer Assembly WPL 3980218 Contact Us For Availability
34
Knob, Control (2) WPL 3980129 Contact Us For Availability
35
Shield, Drip WPL 3980339 Contact Us For Availability
53
Baffle, Drum WPL 697693 Contact Us For Availability
54
Bulkhead, Front WPL 8519245 Contact Us For Availability
× ![]()
