Model Whirlpool 3ET22DKXDN01 REFRIGERATOR – Common Parts & Diagrams

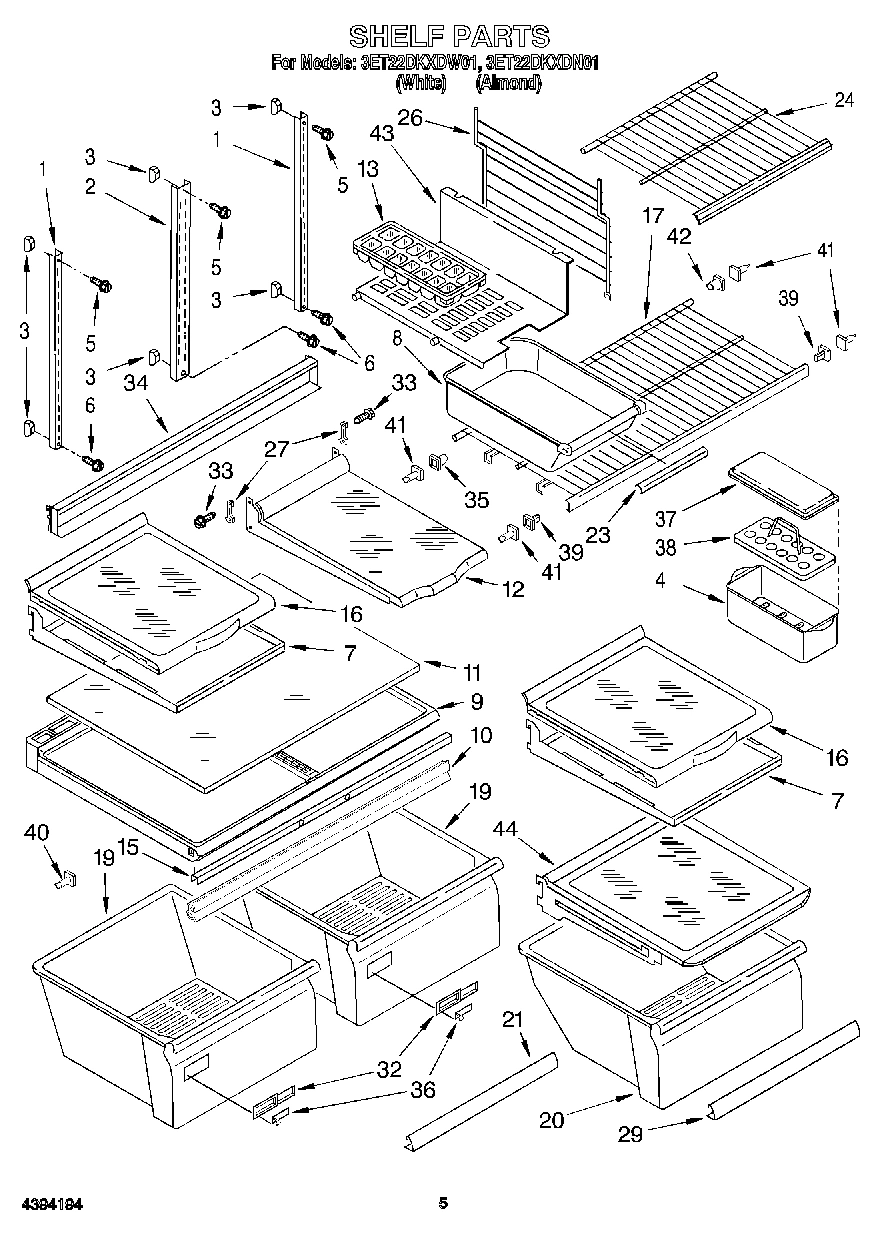

04 - SHELF

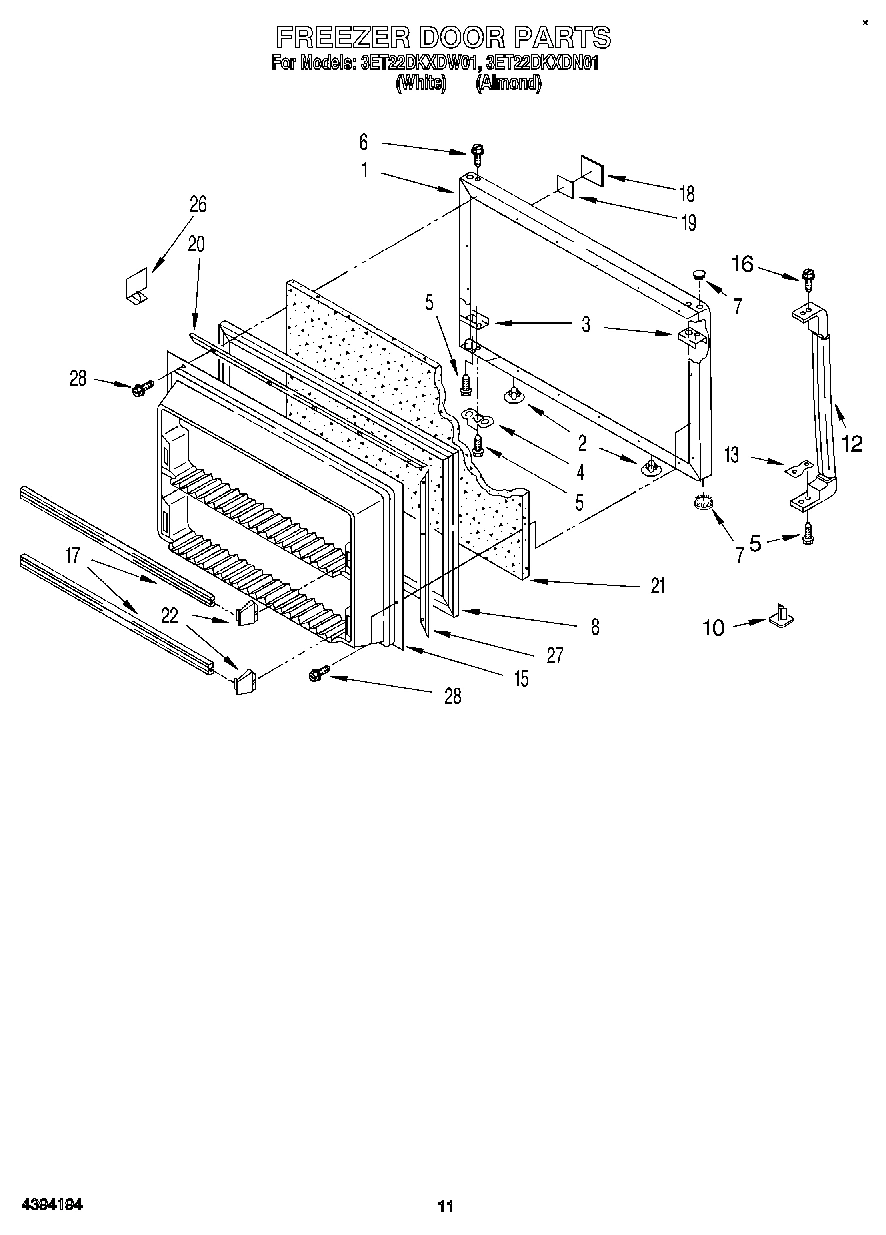

07 - FREEZER DOOR, LIT/OPTIONAL

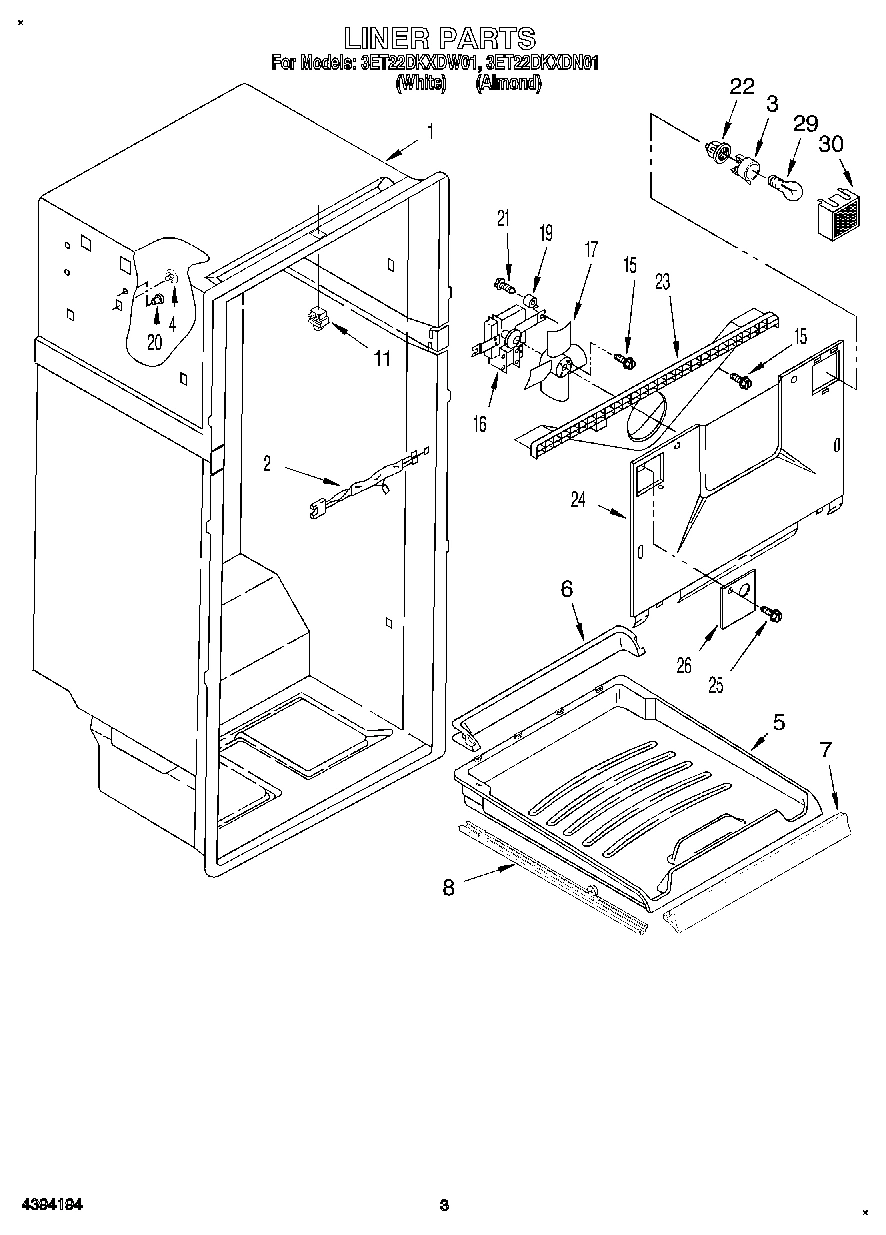

02 - LINER

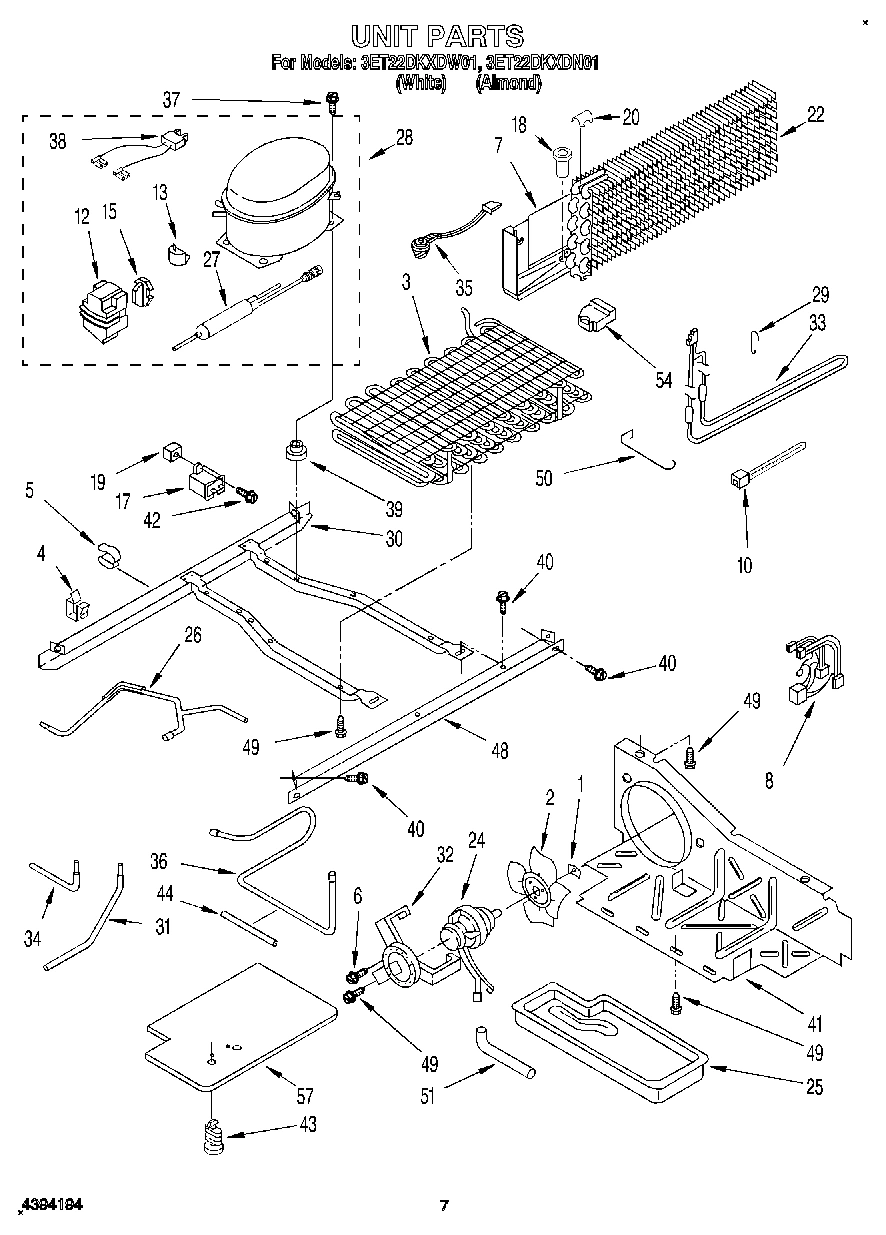

05 - UNIT

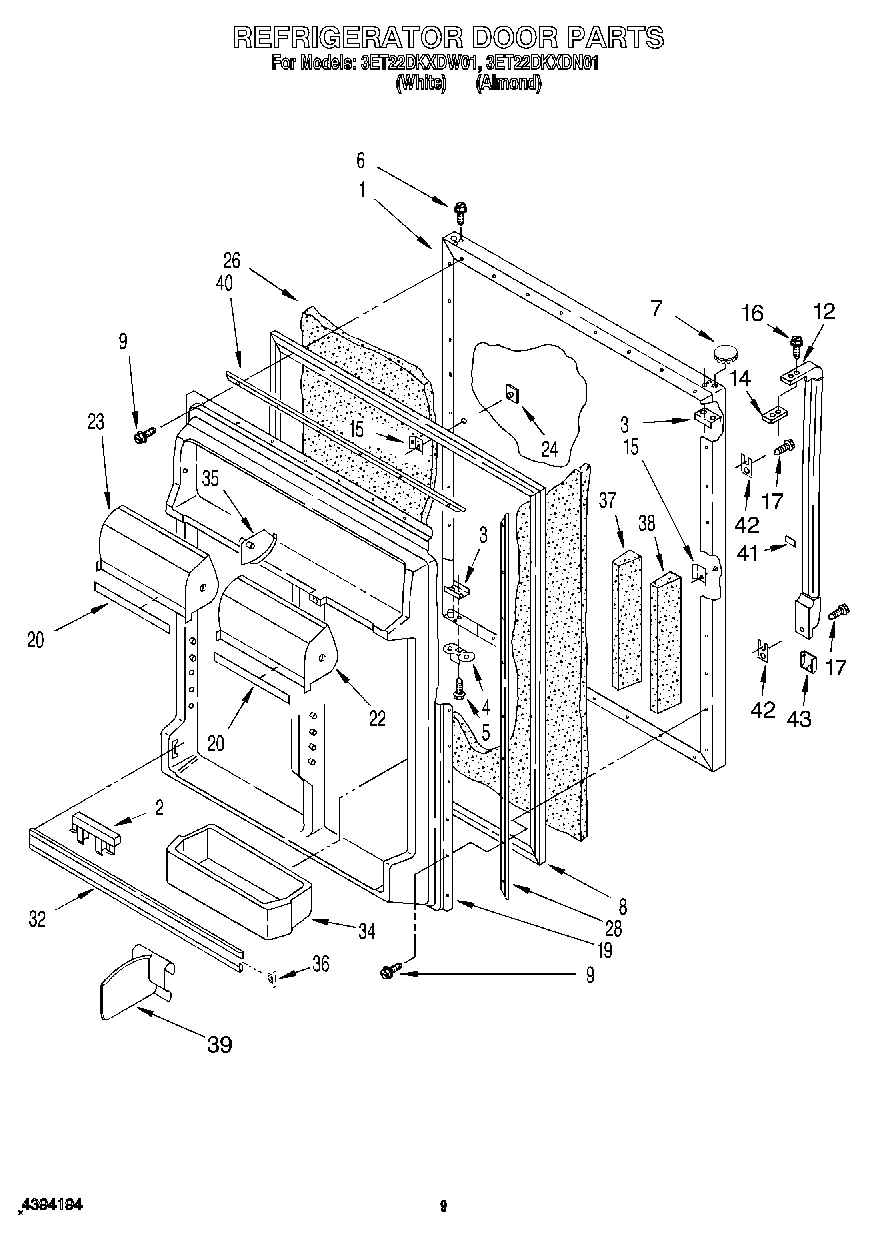

06 - REFRIGERATOR DOOR

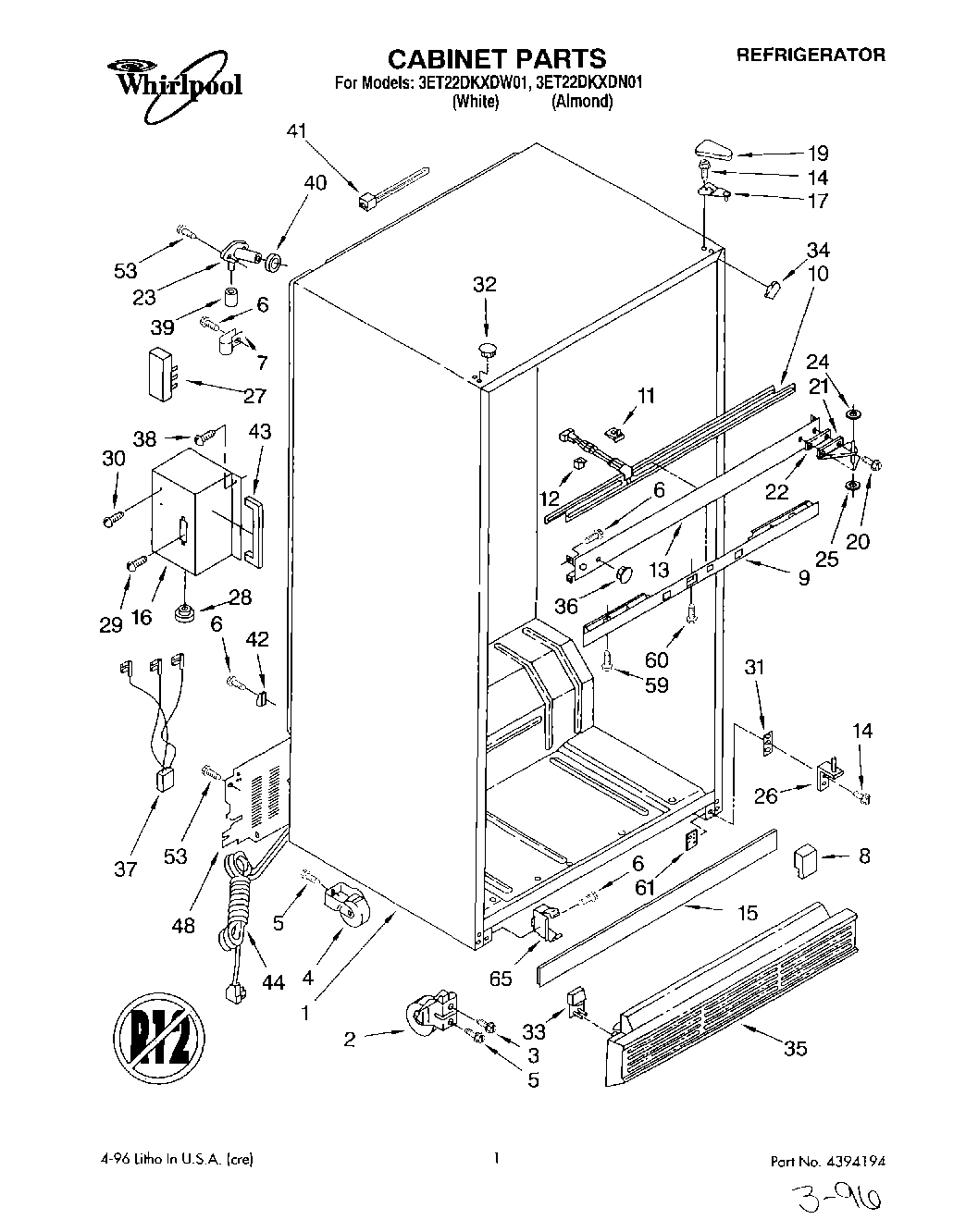

01 - CABINET

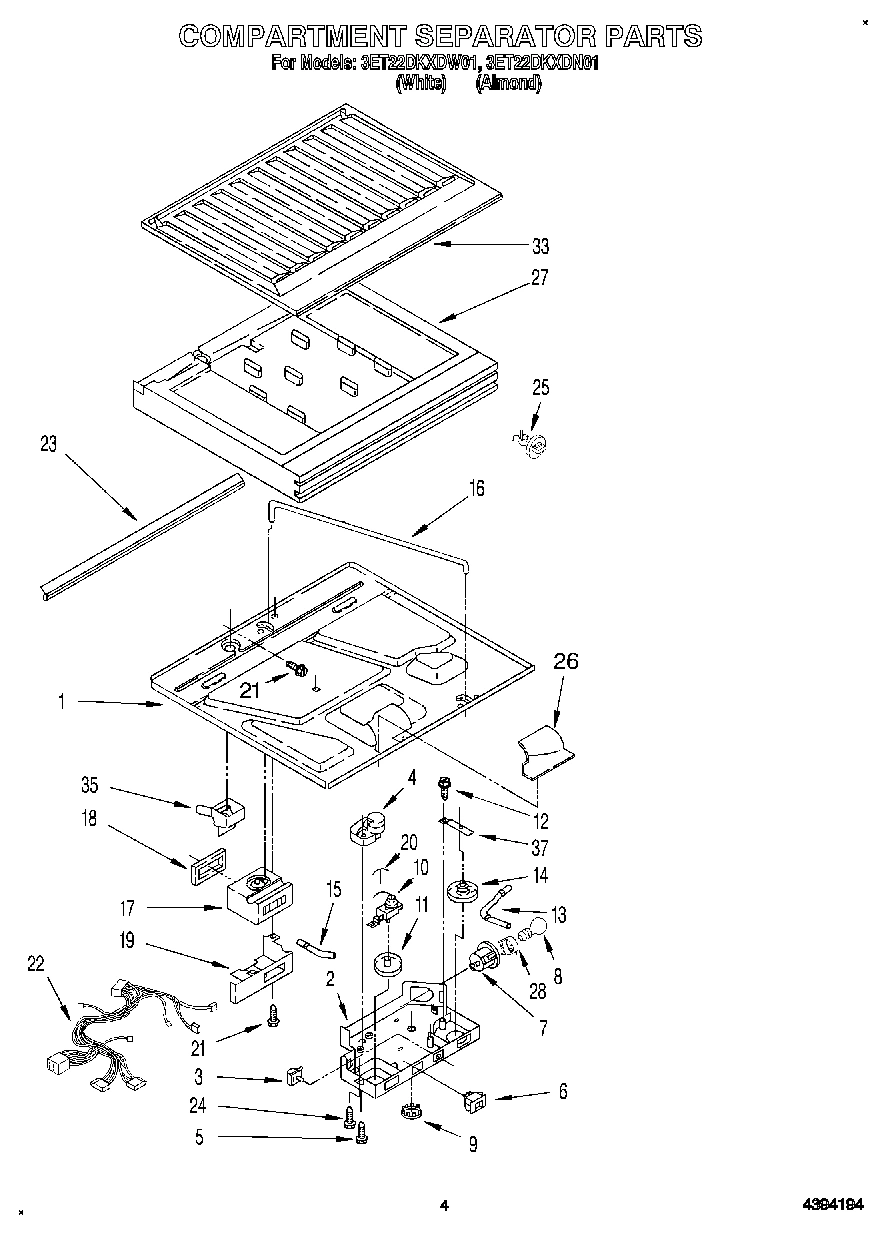

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool 3ET22DKXDN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12127A2 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12126A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174810 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Box, Control WPL 2174824 Contact Us For Availability
3
Condenser WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Floor, Pull-Out Freezer WPL 2174376 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Fence, Freezer Floor WPL 2174378 Contact Us For Availability
7
Trim, Freezer Floor WPL 2174323 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Track, Freezer Floor (2) WPL 2174370 Contact Us For Availability
8
Unit Harness WPL 2175239 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Control, Front Cover WPL 2166843 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2182423 Contact Us For Availability
12
Handle, Door (White) WPL 2174003 Contact Us For Availability
12
Handle, Door (Almond) WPL 2174004 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Light, Bar WPL 2160639 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
15
Deck Rail Cover WPL 2172708 Contact Us For Availability
15
Light, Bar WPL 2160638 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2175237 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Evaporator Cover WPL 2174325 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Terminal Block WPL 1129346 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
WPL 799344 WPL 799344 Contact Us For Availability
28
Door Reversal Instructions WPL 2172761 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Shroud, Light WPL 2167012 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Bushing WPL 1129449 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Screw WPL 489346 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 2177228 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Heater, Defrost WPL 2158987 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174367 Contact Us For Availability
34
Bin, Door Shelf (4) WPL 2179604 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
37
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Divider, Bin WPL 2171284 Contact Us For Availability
40
Shelf Stud (2) WPL 1106612 Contact Us For Availability
40
Retainer, Gasket WPL 1122552 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Shim, Handle WPL 2179398 Contact Us For Availability
42
Shim, Handle WPL 2183124 Contact Us For Availability
43
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
43
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
43
Gasket WPL 2167227 Contact Us For Availability
44
Service Cord WPL 1129332 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2189681 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support, Evap. (Right Side) WPL 2174769 Contact Us For Availability
54
Support, Evap. (Left Side) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
