Model Whirlpool 3ED22DQXAW00 REFRIGERATOR – Common Parts & Diagrams

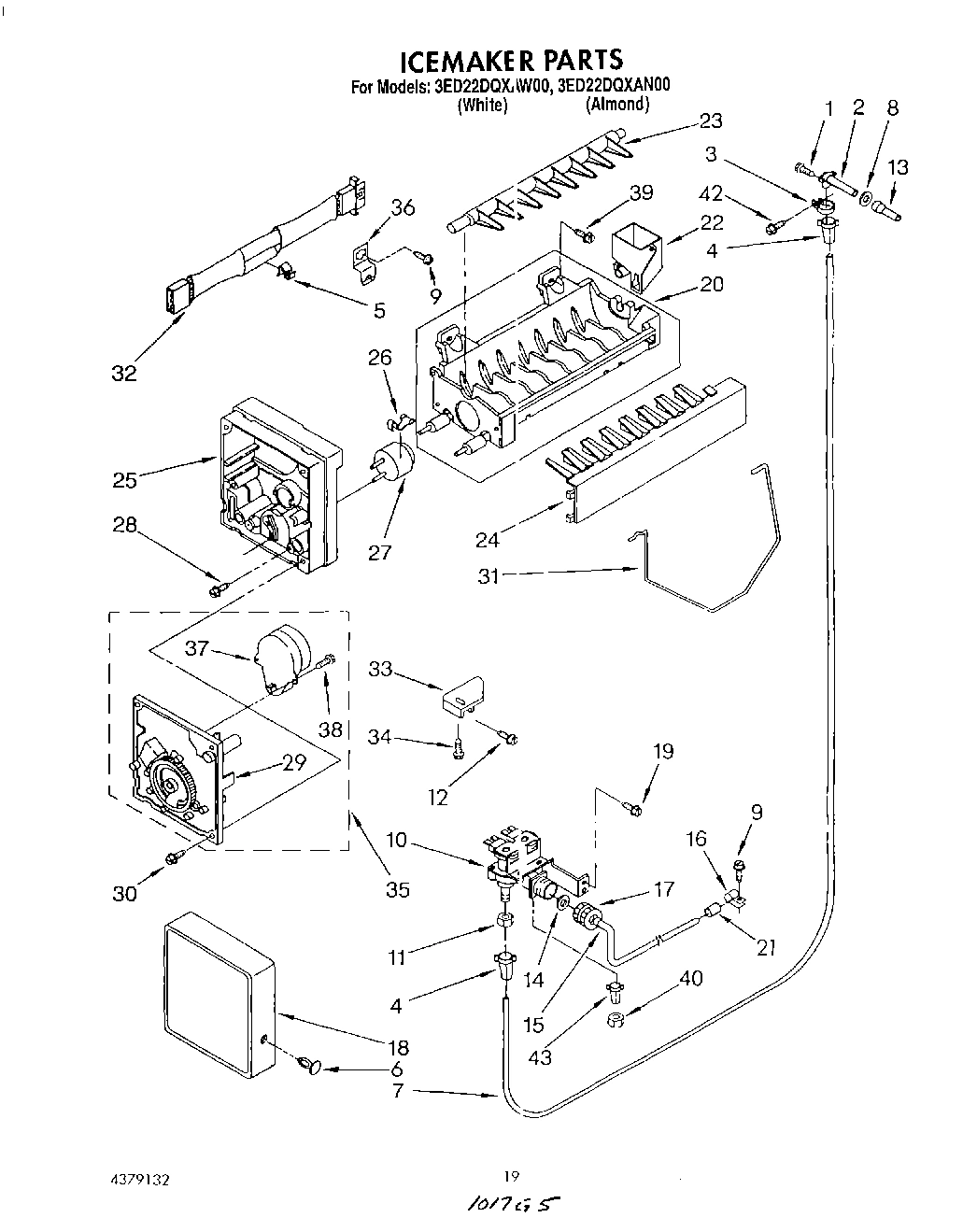

12 - ICEMAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
03 - REFRIGERATOR SHELF
10 - AIR FLOW
09 - UNIT
11 - CONTROL
01 - CABINET
08 - DISPENSER FRONT
04 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool 3ED22DQXAW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI11752A3 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Ice Compartment WPL 2149091 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Cover, Meat Pan WPL 1124812 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shelf Bin (3) WPL 2149085 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Cover, Terminal Block WPL 2158579 Contact Us For Availability
9
Trim, Basket WPL 2149088 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
12
Trim, Shelf WPL 2149090 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Front, Crisper Pan WPL 1124825 Contact Us For Availability
13
Overload (Includes Relay) WPL 2158785 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Trim, Door Shelf WPL 2149084 Contact Us For Availability
14
Slide, Humidity Control WPL 1124819 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Hinge, Top WPL 1123510 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Housing WPL 1124820 Contact Us For Availability
15
Relay (See Overload) WPL ARI11753A8 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2149083 Contact Us For Availability
16
Front, Crisper Pan WPL 1124817 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Harness, Door WPL 2167055 Contact Us For Availability
17
Pan, Crisper WPL 1114690 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Wiring Protector WPL 939143 Contact Us For Availability
18
Egg Container, Top WPL 1107388 Contact Us For Availability
19
Egg Container, Bottom WPL 1107384 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Shelf Stud WPL 1115290 No Longer Available
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (Almond) WPL 1125668 Contact Us For Availability
22
Grille (White) WPL 2147467 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489346 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Heater, Door WPL 2165376 Contact Us For Availability
24
Meat Pan WPL 1114691 Contact Us For Availability
24
Fan, Motor WPL 2154976 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Front, Meat Pan WPL 1124814 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Harness, Intermediate WPL 2167065 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, & WPL 2154723 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Insert, Handle (White) WPL 1119367 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Screw (2) WPL 489360 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2150318 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162690 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (White) WPL 2150314 Contact Us For Availability
40
Front Cover, Housing (Almond (Includes Item 3 WPL 2162701 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
WPL 1129333 WPL 1129333 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI11750A7 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Screw WPL 489284 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
