Model Whirlpool 110.77405100 Gas Dryer (Kenmore 11077405100) – Common Parts & Diagrams
BULKHEAD ASSEMBLY

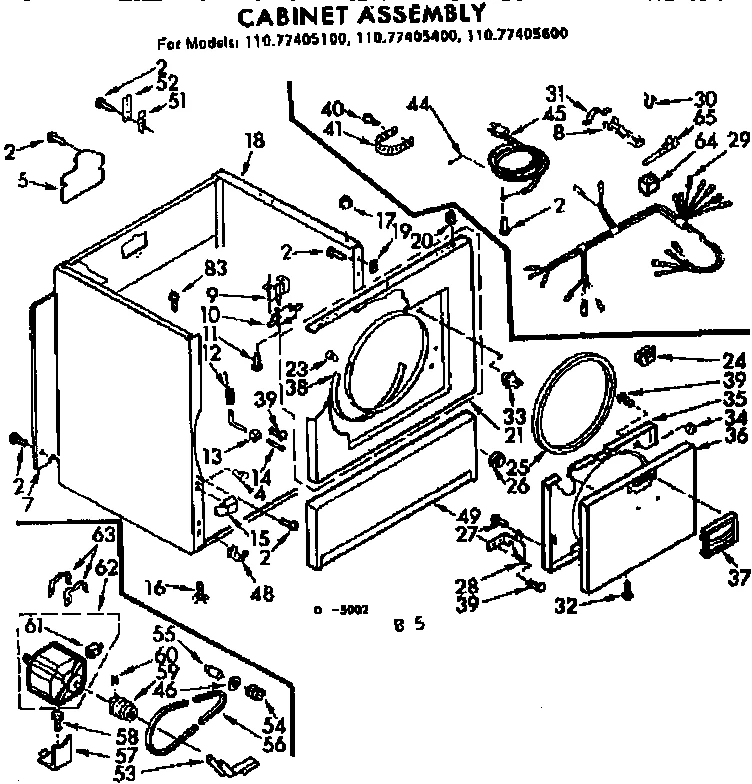

CABINET ASSEMBLY

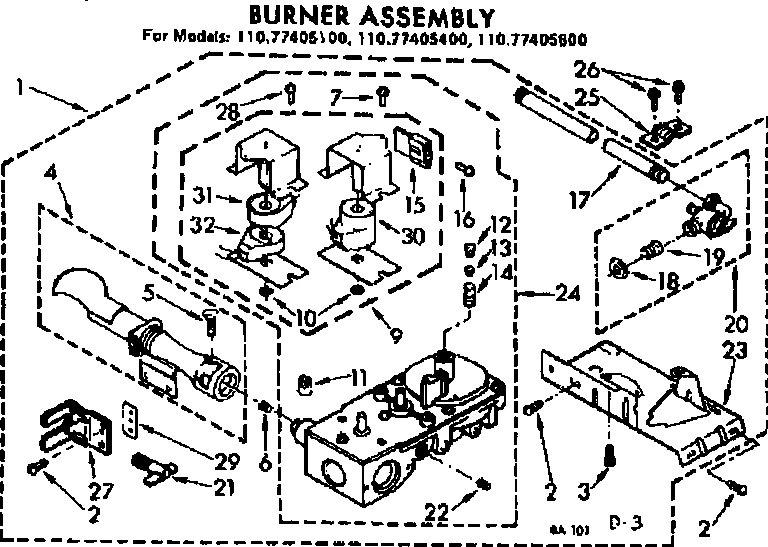

BURNER ASSEMBLY

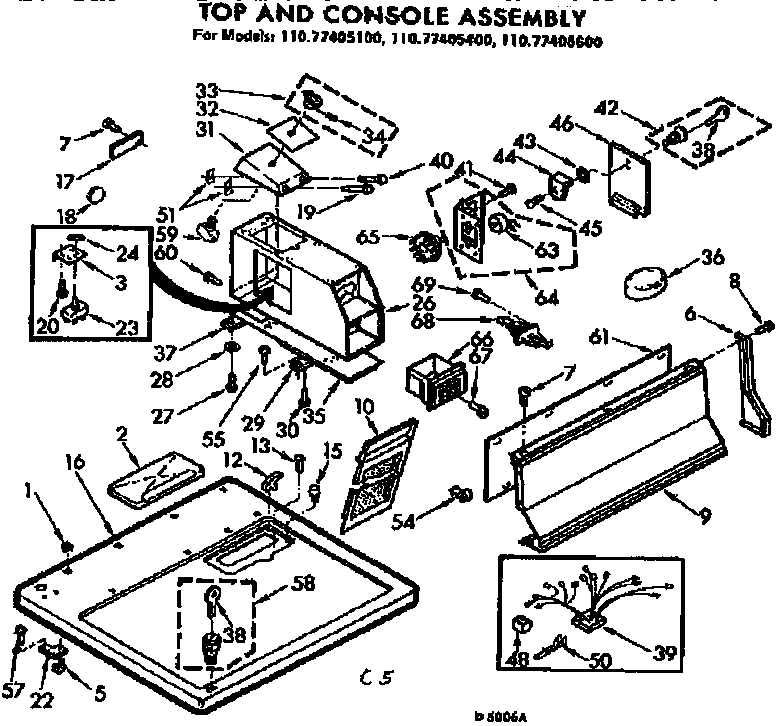

TOP AND CONSOLE ASSEMBLY
All Parts
Common parts from model Whirlpool 110.77405100 Gas Dryer (Kenmore 11077405100)
1
Snap-in Nut WPL 98219 Contact Us For Availability
1A
Burner WPL 349621 Contact Us For Availability
1B
Burner WPL 349834 Contact Us For Availability
2A
Cover (White) WPL 346915 Contact Us For Availability
2B
Cover WPL 346916 Contact Us For Availability
2C
Cover (Gold) WPL 346917 Contact Us For Availability
3
Bracket WPL 357026 Contact Us For Availability
4
Brnr/shttr WPL 297536 Contact Us For Availability
5
Screw WPL 98611 Contact Us For Availability
6
Cap WPL 349635 Contact Us For Availability
6B
Burner Orifice WPL 15775 Contact Us For Availability
6C
Burner Orifice WPL 15419 Contact Us For Availability
8
Terminal WPL 98707 Contact Us For Availability
9
Billboard WPL 370786 Contact Us For Availability
9A
Coil WPL 347357 Contact Us For Availability
9B
Coil WPL 342886 Contact Us For Availability
10
O-Ring WPL 296302 Contact Us For Availability
11
Connector WPL 340140 Contact Us For Availability
12
Leak Limiter WPL 338868 Contact Us For Availability
13
Screw WPL 99996 Contact Us For Availability
13
Screw WPL 128060 Contact Us For Availability
13A
Door Cable Guide WPL 337182 Contact Us For Availability
13B
Guide WPL 337183 Contact Us For Availability
14
Spring WPL 339226 Contact Us For Availability
15
Washer Terminal Connector WPL 353424 Contact Us For Availability
15
Clip WPL 342601 Contact Us For Availability
15
Bumper WPL 297535 Contact Us For Availability
16
Tap Screw WPL 98824 Contact Us For Availability
16A
Top (White) WPL 349374 Contact Us For Availability
16B
Top WPL 349375 Contact Us For Availability
16C
Top WPL 349376 Contact Us For Availability
17
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
17
Gas Pipe WPL 233273 Contact Us For Availability
17
Strap WPL 352496 Contact Us For Availability
18
Nut Union WPL 233076 Contact Us For Availability
18
Button WPL 352439 Contact Us For Availability
18A
Cabinet (White) WPL 343623 Contact Us For Availability
18B
Cabinet WPL 345265 Contact Us For Availability
18C
Cabinet WPL 347241 Contact Us For Availability
19
Light WPL 370905 Contact Us For Availability
20
Valve WPL 345106 Contact Us For Availability
21A
Panel (White) WPL 343509 Contact Us For Availability
21B
Panel WPL 345275 Contact Us For Availability
21C
Panel (Gold) WPL 347244 Contact Us For Availability
22
Plate WPL 343369 Contact Us For Availability
23
Base WPL 338455 Contact Us For Availability
23
Switch WPL 349271 Contact Us For Availability
24
Nut WPL 353335 Contact Us For Availability
24A
Gas Valve WPL 347257 Contact Us For Availability
24B
Valve WPL 349830 Contact Us For Availability
26A
Case (White) WPL 349325 Contact Us For Availability
26B
Box WPL 349326 Contact Us For Availability
26C
Box (Gold) WPL 349327 Contact Us For Availability
27
Bolt WPL 356599 Contact Us For Availability
28
Screw WPL 340182 Contact Us For Availability
28
Lock Washer WPL 138485 Contact Us For Availability
28B
Door Hinge WPL 238456 Contact Us For Availability
29
Harness WPL 349949 Contact Us For Availability
29
Insulator WPL 340609 Contact Us For Availability
29
Housng Strap WPL 83701 Contact Us For Availability
30
Clip WPL 231979 Contact Us For Availability
30
Coil WPL 348376 Contact Us For Availability
30
Screw WPL 90057 Contact Us For Availability
31
Coil WPL 348375 Contact Us For Availability
31
Cover WPL 371124 Contact Us For Availability
32
Screw WPL 9425761 Contact Us For Availability
32
Coil WPL 348374 Contact Us For Availability
32
Insert WPL 370963 Contact Us For Availability
33
Knob WPL 362647 Contact Us For Availability
34
Panel Spacer WPL 299745 Contact Us For Availability
35
Cushion WPL 349735 Contact Us For Availability
35A
Door (White) WPL 346395 Contact Us For Availability
35B
Door WPL 346397 Contact Us For Availability
35C
Door (Gold) WPL 346398 Contact Us For Availability
36
Funnel WPL 355446 Contact Us For Availability
36A
Door (White) WPL 348737 Contact Us For Availability
36B
Door WPL 348738 Contact Us For Availability
36C
Door (Gold) WPL 348740 Contact Us For Availability
37
Plate WPL 351562 Contact Us For Availability
37C
Handle (Gold) WPL 348724 Contact Us For Availability
38
Lock Key WPL 354770 Contact Us For Availability
39
Harness WPL 349953 Contact Us For Availability
40
Screw WPL 132848 Contact Us For Availability
40
Light WPL 370906 Contact Us For Availability
41
Ground Strap WPL 22965 Contact Us For Availability
42
Lock WPL 354731 Contact Us For Availability
43
Nut WPL 354287 Contact Us For Availability
44
Ground Wire WPL 364089 Contact Us For Availability
44
Lock Cam WPL 354286 Contact Us For Availability
45
Screw WPL 354285 Contact Us For Availability
46
Washer WPL 345323 Contact Us For Availability
46A
Door (White) WPL 360054 Contact Us For Availability
46B
Door WPL 361207 Contact Us For Availability
46C
Door (Gold) WPL 365187 Contact Us For Availability
48
Receptacle WPL 353425 Contact Us For Availability
49A
Toe Panel (White) WPL 237035 Contact Us For Availability
49B
Panel WPL 345266 Contact Us For Availability
49C
Panel (Gold) WPL 347247 Contact Us For Availability
51
Nut WPL 357237 Contact Us For Availability
52
Strap WPL 345211 Contact Us For Availability
54
Clip WPL 353769 Contact Us For Availability
55
Screw WPL 98048 Contact Us For Availability
57
Motor Base WPL 337094 Contact Us For Availability
58
Lock WPL 364849 Contact Us For Availability
59
Switch WPL 370908 Contact Us For Availability
60
Screw WPL 90193 Contact Us For Availability
61
Panel WPL 357005 Contact Us For Availability
61A
Motor Switch WPL 298699 Contact Us For Availability
83
Screw WPL 343826 Contact Us For Availability
NI
(338471) (ALT.) WPL N/P Contact Us For Availability
NI
Wiring Instruction WPL 230082 Contact Us For Availability
NI
Wire Adapter WPL 299663 Contact Us For Availability
NI
Wire Adapter WPL 299669 Contact Us For Availability
NI
Installation Instructions WPL 340704 Contact Us For Availability
NI
Instructions WPL 685283 Contact Us For Availability
NI
Adapter Plug WPL 92925 Contact Us For Availability
NI
Parts List WPL LIT685007 Contact Us For Availability
× ![]()
