Whirlpool 110.76491600 Electric Dryer (Kenmore 11076491600) Parts List

1

Cover WPL 343630 Contact Us For Availability

View on Model

1

Tap WPL 339625 Contact Us For Availability

View on Model

2

Tubing WPL 339893 Contact Us For Availability

View on Model

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

5

Panel WPL 348365 Contact Us For Availability

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

6

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $27.66

View on Model

7

Reflector WPL 348618 Contact Us For Availability

View on Model

7A

Cabinet (White) WPL 349192 Contact Us For Availability

View on Model

7B

Cabinet WPL 349193 Contact Us For Availability

View on Model

7C

Cabinet WPL 349194 Contact Us For Availability

View on Model

7D

Cabinet WPL 349195 Contact Us For Availability

View on Model

8

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

9

Ballast WPL 346772 Contact Us For Availability

View on Model

9A

Ballast WPL 685591 Contact Us For Availability

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $4.82

View on Model

10

Screw WPL 98106 Contact Us For Availability

View on Model

11

Switch WPL 361858 Contact Us For Availability

View on Model

11

Ground Wire WPL 340025 Contact Us For Availability

View on Model

12

18849 Whirlpool Pad Backorder WPL 18849 $13.10

View on Model

12

Bracket WPL 352720 Contact Us For Availability

View on Model

13

Rack WPL 685428 Contact Us For Availability

View on Model

14A

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

View on Model

15

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

View on Model

15

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

View on Model

17

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

View on Model

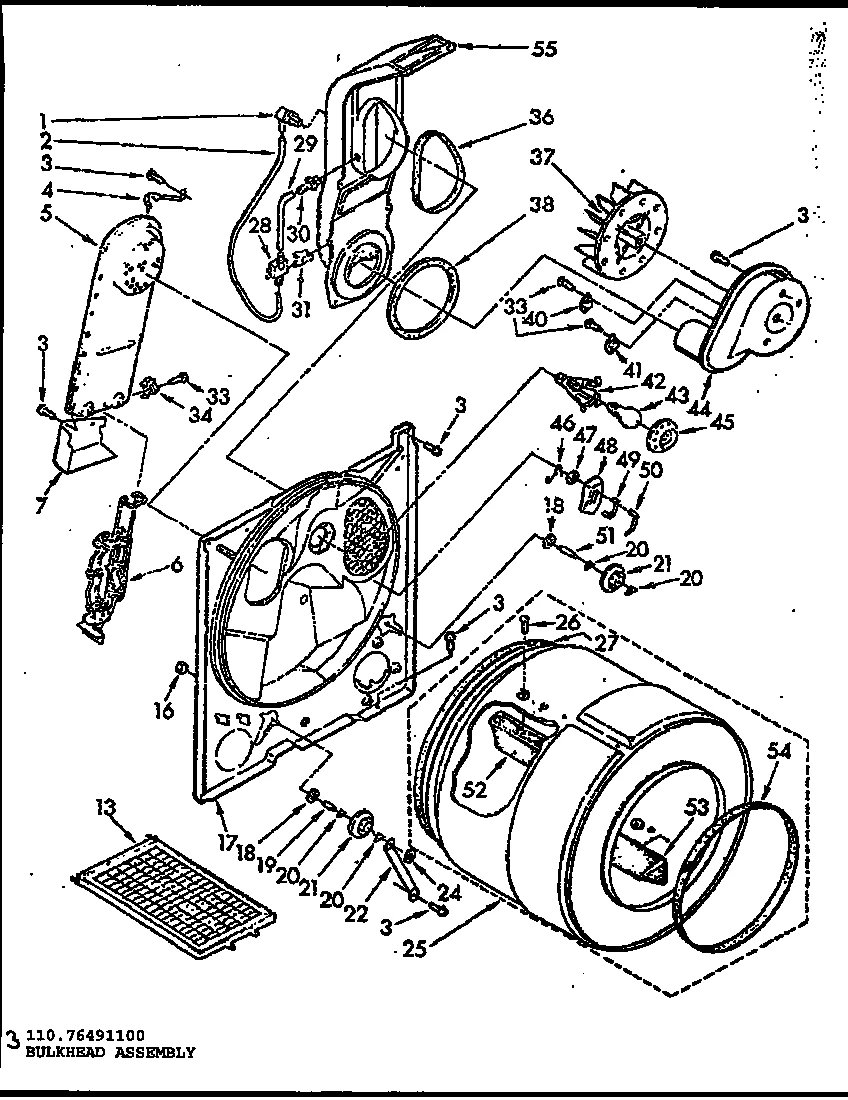

17

Bulkhead WPL 685817 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

View on Model

19

Clip WPL 342601 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

20

Socket WPL 80041 Contact Us For Availability

View on Model

20

Clip WPL 341776 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

21

Switch WPL 342366 Contact Us For Availability

View on Model

21

Hinge-r.h. WPL 237759 Contact Us For Availability

View on Model

21A

Hinge-l.h. WPL 237760 Contact Us For Availability

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

View on Model

22

Switch WPL 347496 Contact Us For Availability

View on Model

22

Door Spring WPL 237979 Contact Us For Availability

View on Model

23

Buzzer WPL 349457 Contact Us For Availability

View on Model

23

Harness WPL 686516 Contact Us For Availability

View on Model

24

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

25

Drum WPL 347875 Contact Us For Availability

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

View on Model

26

Stud WPL 685196 Contact Us For Availability

View on Model

26A

Motor Switch WPL 298699 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $36.85

View on Model

27

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

View on Model

27B

Motor WPL 338742 Contact Us For Availability

View on Model

28

Nut WPL 273505 Contact Us For Availability

View on Model

28

Screw WPL 90193 Contact Us For Availability

View on Model

28

Switch WPL 339524 Contact Us For Availability

View on Model

28A

Set Screw WPL 98166 Contact Us For Availability

View on Model

29

Barrier WPL 342930 Contact Us For Availability

View on Model

29

Pulley WPL 348946 Contact Us For Availability

View on Model

29

Tubing WPL 339892 Contact Us For Availability

View on Model

29A

Pulley WPL 348980 Contact Us For Availability

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

30

Tap WPL 339624 Contact Us For Availability

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

31

Clip WPL 353769 Contact Us For Availability

View on Model

31

Clip WPL 339745 Contact Us For Availability

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $80.94

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

33

Barrier WPL 352721 Contact Us For Availability

View on Model

34

279054 Whirlpool Dryer High Limit Thermostat Backorder WPL 279054 $98.57

View on Model

34

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

34

Barrier WPL 352944 Contact Us For Availability

View on Model

35

Control WPL 349312 Contact Us For Availability

View on Model

35

Washer WPL 345323 Contact Us For Availability

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

36

Bracket WPL 349240 Contact Us For Availability

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

37

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

38

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $101.73

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

39

Relay WPL 349787 Contact Us For Availability

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

40

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

View on Model

41

Socket WPL 343519 Contact Us For Availability

View on Model

41A

Socket WPL 361856 Contact Us For Availability

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

42

Light Socket WPL 341167 Contact Us For Availability

View on Model

42A

Escutcheon (White) WPL 349293 Contact Us For Availability

View on Model

42B

Escutcheon WPL 349294 Contact Us For Availability

View on Model

42C

Escutcheon WPL 349295 Contact Us For Availability

View on Model

42D

Escutcheon (Gold) WPL 349296 Contact Us For Availability

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

43

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

View on Model

43

Insert WPL 349299 Contact Us For Availability

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

View on Model

44

Light WPL 349343 Contact Us For Availability

View on Model

44

Housing WPL 348495 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

View on Model

45

Knob WPL 349281 Contact Us For Availability

View on Model

45

Lens WPL 341165 Contact Us For Availability

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

View on Model

46

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

View on Model

46

Compression Ring WPL 90015 Contact Us For Availability

View on Model

47

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23

View on Model

47

Door WPL 349329 Contact Us For Availability

View on Model

47A

Door (White) WPL 346370 Contact Us For Availability

View on Model

47B

Door WPL 346371 Contact Us For Availability

View on Model

47C

Door WPL 346372 Contact Us For Availability

View on Model

47D

Door (Gold) WPL 346373 Contact Us For Availability

View on Model

48

279366 Whirlpool Sensor Kit In Stock WPL 279366 $57.37

View on Model

48

Screw WPL 9425761 Contact Us For Availability

View on Model

49

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

View on Model

49

Spring WPL 353177 Contact Us For Availability

View on Model

49A

Door (White) WPL 348728 Contact Us For Availability

View on Model

49B

Door WPL 686434 Contact Us For Availability

View on Model

49C

Door WPL 686435 Contact Us For Availability

View on Model

49D

Door (Gold) WPL 686436 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

50

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

View on Model

50

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

51

Plug WPL 352747 Contact Us For Availability

View on Model

51A

Panel (White) WPL 239133 Contact Us For Availability

View on Model

51B

Panel WPL 279182 Contact Us For Availability

View on Model

51C

Panel WPL 279183 Contact Us For Availability

View on Model

51D

Panel (Gold) WPL 279184 Contact Us For Availability

View on Model

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

52

Insert WPL 349298 Contact Us For Availability

View on Model

52

Baffle WPL 347892 Contact Us For Availability

View on Model

53

Insert WPL 349297 Contact Us For Availability

View on Model

53

Screw WPL 98519 Contact Us For Availability

View on Model

53

Baffle WPL 348868 Contact Us For Availability

View on Model

54

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $52.32

View on Model

54

Screw WPL 342043 Contact Us For Availability

View on Model

54A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $39.87

View on Model

54B

Screen WPL 348853 Contact Us For Availability

View on Model

54C

Screen WPL 348852 Contact Us For Availability

View on Model

55

Screw WPL 128060 Contact Us For Availability

View on Model

55

Lint Chute WPL 349242 Contact Us For Availability

View on Model

56

Washer WPL 237446 Contact Us For Availability

View on Model

56A

Toe Panel (White) WPL 237035 Contact Us For Availability

View on Model

56B

Panel WPL 686400 Contact Us For Availability

View on Model

56C

Panel WPL 345266 Contact Us For Availability

View on Model

56D

Panel (Gold) WPL 347247 Contact Us For Availability

View on Model

57

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $82.97

View on Model

59

Connector WPL 347698 Contact Us For Availability

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

View on Model

60B

Handle WPL 348723 Contact Us For Availability

View on Model

60D

Handle (Gold) WPL 348724 Contact Us For Availability

View on Model

61

98460 Whirlpool Nut Backorder WPL 98460 $8.89

View on Model

61

Terminal WPL 347654 Contact Us For Availability

View on Model

62

Connector WPL 347699 Contact Us For Availability

View on Model

NI

W10851673 Whirlpool Transformer Backorder WPL W10851673 $309.80

View on Model

NI

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

NI

Screw WPL 132848 Contact Us For Availability

View on Model

NI

Ground Strap WPL 22965 Contact Us For Availability

View on Model

NI

Wiring Harness WPL 345449 Contact Us For Availability

View on Model

NI

Ground Wire WPL 364089 Contact Us For Availability

View on Model

NI

Instructions WPL LIT339896 Contact Us For Availability

View on Model

NI

Installation Instructions WPL LIT340704 Contact Us For Availability

View on Model

NI

Ownr Suppl WPL LIT342112 Contact Us For Availability

View on Model

NI

Label WPL LIT345485 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT347149 Contact Us For Availability

View on Model

NI

Label WPL LIT349203 Contact Us For Availability

View on Model

NI

Instructions WPL LIT349664 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT686736 Contact Us For Availability

View on Model

Model Whirlpool 110.76491600 Electric Dryer (Kenmore 11076491600) – Common Parts & Diagrams

Common parts from model Whirlpool 110.76491600 Electric Dryer (Kenmore 11076491600)

Search result for :

Help

Customer Service

Company

Model Whirlpool 110.76491600 Electric Dryer (Kenmore 11076491600) – Common Parts & Diagrams

Common parts from model Whirlpool 110.76491600 Electric Dryer (Kenmore 11076491600)

Search result for :

Be the First to Know

Help

Customer Service

Company
