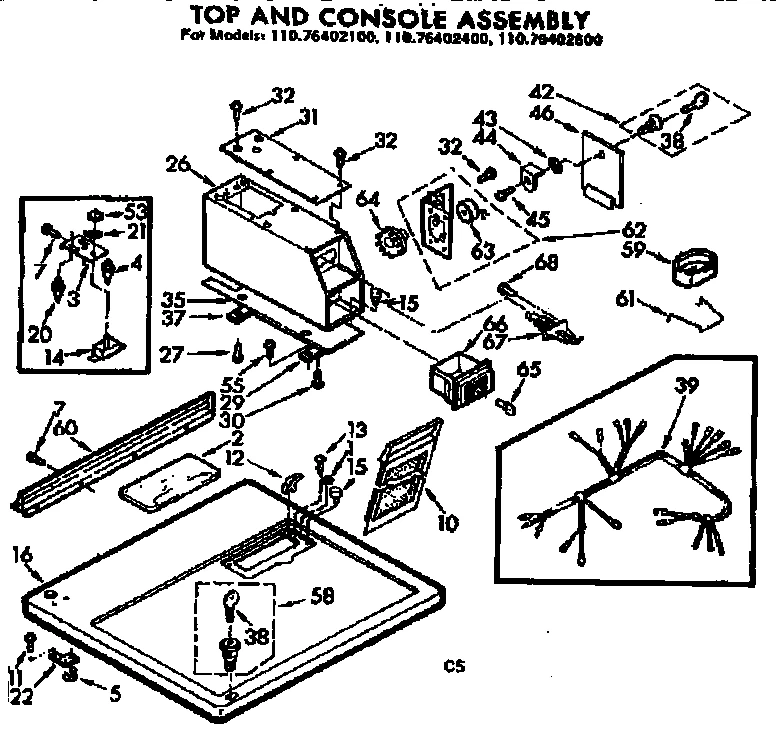

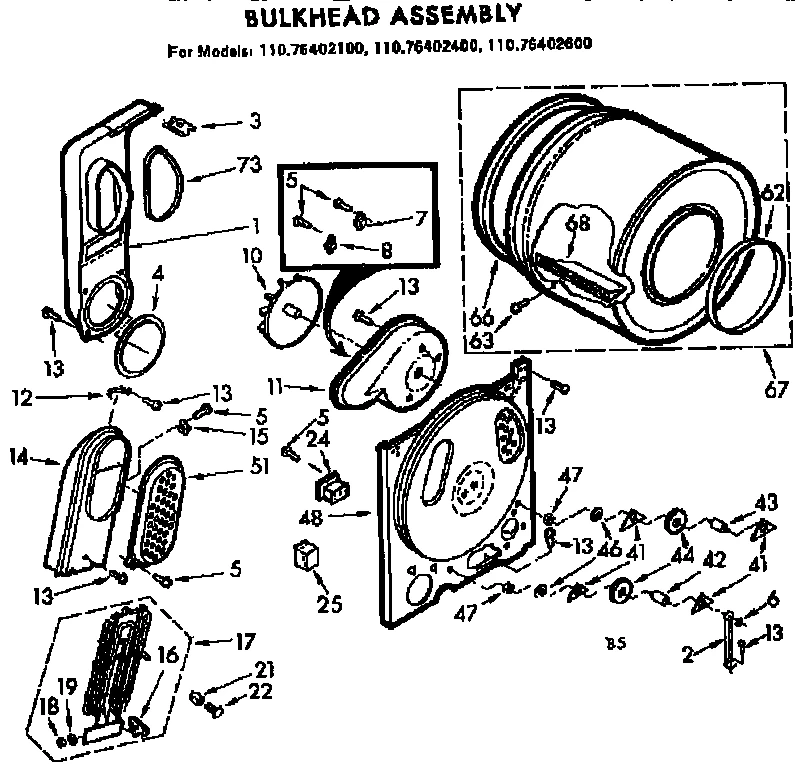

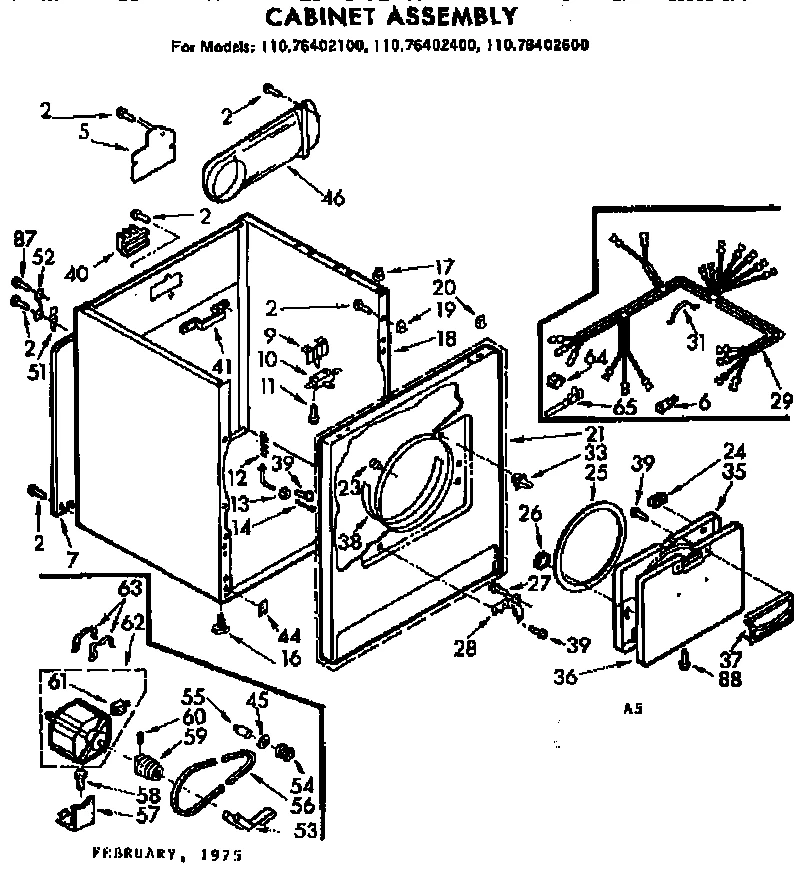

Whirlpool 110.76402100 Electric Dryer (Kenmore 11076402100) Parts List

1

279505 Whirlpool Chute Backorder WPL 279505 $210.92

View on Model

2

Bracket WPL 348945 Contact Us For Availability

View on Model

3

Clip WPL 338177 Contact Us For Availability

View on Model

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

5

Cover WPL 343630 Contact Us For Availability

View on Model

5

Screw WPL STD610805 Contact Us For Availability

View on Model

6

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

6

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

6A

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

View on Model

7

Panel WPL 346368 Contact Us For Availability

View on Model

7

Thermostat WPL 341681 Contact Us For Availability

View on Model

8

Dryer Operating Thermostat WPL 279044 Contact Us For Availability

View on Model

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

View on Model

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

11

Housing WPL 341671 Contact Us For Availability

View on Model

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

12

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.82

View on Model

13

Screw WPL STD611005 Contact Us For Availability

View on Model

13A

Door Cable Guide WPL 337182 Contact Us For Availability

View on Model

13B

Guide WPL 337183 Contact Us For Availability

View on Model

14

Heater Box WPL 345117 Contact Us For Availability

View on Model

15

279054 Whirlpool Dryer High Limit Thermostat Backorder WPL 279054 $98.57

View on Model

16

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

View on Model

16

Terminal Block WPL 236153 Contact Us For Availability

View on Model

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $27.66

View on Model

17

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

View on Model

18

Nut WPL STD541110 Contact Us For Availability

View on Model

18A

Cabinet (White) WPL 343623 Contact Us For Availability

View on Model

18B

Cabinet WPL 343632 Contact Us For Availability

View on Model

18C

Cabinet (Gold) WPL 343634 Contact Us For Availability

View on Model

19

W11089212 Whirlpool Washer Backorder WPL W11089212 $5.95

View on Model

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

21

Hex Nut WPL 90825 Contact Us For Availability

View on Model

21

Clamp WPL 345240 Contact Us For Availability

View on Model

21A

Panel (White) WPL 343499 Contact Us For Availability

View on Model

21B

Panel WPL 345274 Contact Us For Availability

View on Model

21C

Panel (Gold) WPL 347243 Contact Us For Availability

View on Model

22

Plate WPL 343369 Contact Us For Availability

View on Model

22

Screw WPL 338184 Contact Us For Availability

View on Model

23

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

24

Relay WPL 340274 Contact Us For Availability

View on Model

25

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

View on Model

25

Shield WPL 347021 Contact Us For Availability

View on Model

26

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

View on Model

26A

Case (White) WPL 686224 Contact Us For Availability

View on Model

27

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.16

View on Model

27

Bolt WPL 356599 Contact Us For Availability

View on Model

28A

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

View on Model

28B

Door Hinge WPL 238456 Contact Us For Availability

View on Model

29

Button WPL 87701 Contact Us For Availability

View on Model

29

Harness WPL 349951 Contact Us For Availability

View on Model

30

Screw WPL 90057 Contact Us For Availability

View on Model

31

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

31

Plate WPL 685176 Contact Us For Availability

View on Model

32

339805 Whirlpool Screw Backorder WPL 339805 $8.89

View on Model

33

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

35

Cushion WPL 349735 Contact Us For Availability

View on Model

35A

Door (White) WPL 346395 Contact Us For Availability

View on Model

35B

Door WPL 346397 Contact Us For Availability

View on Model

35C

Door (Gold) WPL 346398 Contact Us For Availability

View on Model

36A

Door (White) WPL 348737 Contact Us For Availability

View on Model

36B

Door WPL 348738 Contact Us For Availability

View on Model

36C

Door (Gold) WPL 348740 Contact Us For Availability

View on Model

37

Plate WPL 351562 Contact Us For Availability

View on Model

37A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

View on Model

37C

Handle (Gold) WPL 348724 Contact Us For Availability

View on Model

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

View on Model

38

Lock Key WPL 354770 Contact Us For Availability

View on Model

39

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

View on Model

39

Harness WPL 349952 Contact Us For Availability

View on Model

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

View on Model

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

42

Lock WPL 354731 Contact Us For Availability

View on Model

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

43

Nut WPL 354287 Contact Us For Availability

View on Model

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

44

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

View on Model

44

Lock Cam WPL 354286 Contact Us For Availability

View on Model

45

Screw WPL 354285 Contact Us For Availability

View on Model

45

Washer WPL 345323 Contact Us For Availability

View on Model

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

46

Deflector WPL 347146 Contact Us For Availability

View on Model

46A

Door (White) WPL 360054 Contact Us For Availability

View on Model

46B

Door WPL 361207 Contact Us For Availability

View on Model

46C

Door (Gold) WPL 365187 Contact Us For Availability

View on Model

47

Nut WPL STD541437 Contact Us For Availability

View on Model

48

Bulkhead WPL 279134 Contact Us For Availability

View on Model

51

345335 Whirlpool Cover Backorder WPL 345335 $75.27

View on Model

51

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $4.82

View on Model

52

Ground Wire WPL 340025 Contact Us For Availability

View on Model

53

Knurled Nut WPL 98616 Contact Us For Availability

View on Model

55

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

55

Screw WPL 98048 Contact Us For Availability

View on Model

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

57

Motor Base WPL 337094 Contact Us For Availability

View on Model

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

58

Lock WPL 364849 Contact Us For Availability

View on Model

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $77.10

View on Model

59

Funnel WPL 355446 Contact Us For Availability

View on Model

60

Trim Rail WPL 349955 Contact Us For Availability

View on Model

60

Screw WPL 90193 Contact Us For Availability

View on Model

61

Guide WPL 357025 Contact Us For Availability

View on Model

61A

Motor Switch WPL 298699 Contact Us For Availability

View on Model

61B

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

62

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $180.66

View on Model

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

View on Model

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

View on Model

63

Motor WPL 345418 Contact Us For Availability

View on Model

64

Plug WPL 352458 Contact Us For Availability

View on Model

64A

WP339855 Whirlpool Cam Backorder WPL WP339855 $4.82

View on Model

64B

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

View on Model

64C

WP339853 Whirlpool Cam Backorder WPL WP339853 $4.82

View on Model

65

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

View on Model

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $35.48

View on Model

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

View on Model

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $104.82

View on Model

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

87

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

88

Screw WPL 9425761 Contact Us For Availability

View on Model
