Model Whirlpool 110.74891210 Washer (Kenmore 11074891210) – Common Parts &amp; Diagrams

1

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

1

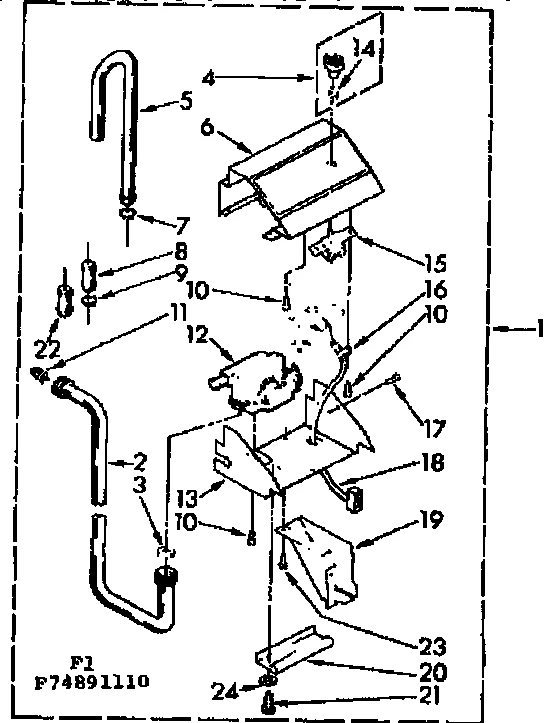

Conversion Kit WPL 358683 Contact Us For Availability

1

Plug WPL 94611 Contact Us For Availability

1

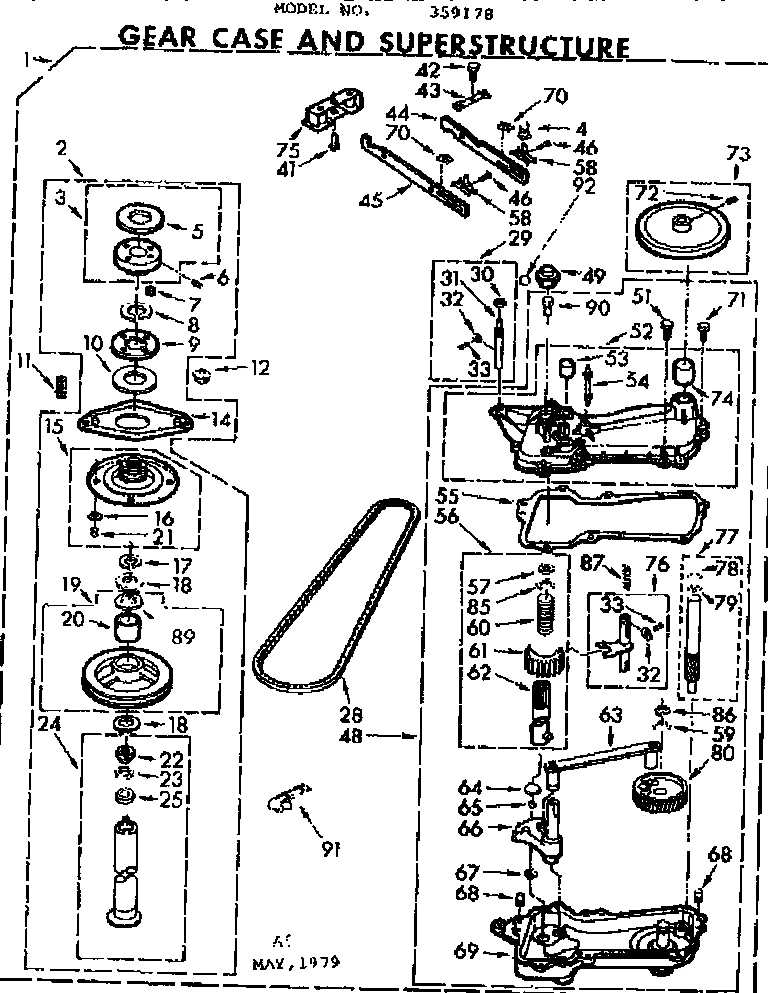

Gear Case WPL 359178 Contact Us For Availability

2

Harness WPL 358622 Contact Us For Availability

2

Collar Kit WPL 675164 Contact Us For Availability

2

Base Plate WPL 359179 Contact Us For Availability

2

Drive Basket WPL 359175 Contact Us For Availability

2A

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

3

Sleeve WPL 96175 Contact Us For Availability

3

Coupler WPL 358219 Contact Us For Availability

3

Gasket WPL 17235 Contact Us For Availability

3

Brake Drum WPL 350508 Contact Us For Availability

4

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

4

Spring WPL 96266 Contact Us For Availability

4

Knob WPL 366515 Contact Us For Availability

4

Spring WPL 356137 Contact Us For Availability

4

Spring WPL 358354 Contact Us For Availability

5

Terminal WPL 352088 Contact Us For Availability

5

Hook WPL 357326 Contact Us For Availability

5

Shaft WPL 366856 Contact Us For Availability

5

Lining WPL 354253 Contact Us For Availability

6

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

6

Housing WPL 358676 Contact Us For Availability

6

Pulley WPL 366855 Contact Us For Availability

6

Screw WPL 358931 Contact Us For Availability

7

Washer WPL 356133 Contact Us For Availability

7

Spring WPL 356152 Contact Us For Availability

8

Tube WPL 357327 Contact Us For Availability

8

Clip WPL 356327 Contact Us For Availability

8

Housing WPL 356263 Contact Us For Availability

8

Ring WPL 356087 Contact Us For Availability

8

Ring WPL 16049 Contact Us For Availability

9

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

9

Harness WPL 358100 Contact Us For Availability

9

Pin WPL 356262 Contact Us For Availability

9

Ring WPL 356088 Contact Us For Availability

9

Drum WPL 97664 Contact Us For Availability

10

Connector WPL 94612 Contact Us For Availability

10

Barrier WPL 353885 Contact Us For Availability

10

Lining WPL 356396 Contact Us For Availability

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $5.95

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

Screw WPL 356154 Contact Us For Availability

Spring WPL 17261 Contact Us For Availability

11A

Lid (White) WPL 375982 Contact Us For Availability

11B

Lid (Almond) WPL 375990 Contact Us For Availability

11C

Lid WPL 375991 Contact Us For Availability

11D

Lid WPL 375992 Contact Us For Availability

11E

Lid WPL 375993 Contact Us For Availability

Pump WPL 358258 Contact Us For Availability

Lever WPL 355538 Contact Us For Availability

Valve WPL 363425 Contact Us For Availability

Lock Washer WPL 90918 Contact Us For Availability

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $32.38

Rod WPL 96264 Contact Us For Availability

Enclosure WPL 358673 Contact Us For Availability

Wire WPL 368715 Contact Us For Availability

14

Bearng Blck WPL 87290 Contact Us For Availability

14

Base WPL 359250 Contact Us For Availability

14

Brake Yoke WPL 92903 Contact Us For Availability

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $32.46

Wick Oil WPL 96265 Contact Us For Availability

Switch WPL 361117 Contact Us For Availability

Plate WPL 357716 Contact Us For Availability

15A

Top (White) WPL 375514 Contact Us For Availability

15B

Top (Almond) WPL 377951 Contact Us For Availability

15C

Top WPL 377952 Contact Us For Availability

15D

Top WPL 377953 Contact Us For Availability

15E

Top (Gold) WPL 377954 Contact Us For Availability

16

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

16

Clamp WPL 357894 Contact Us For Availability

16

Lining WPL 356405 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer Seal WPL 351830 Contact Us For Availability

Inlet Hose WPL 356314 Contact Us For Availability

Harness WPL 357668 Contact Us For Availability

Washer Timer WPL 358604 Contact Us For Availability

Screw WPL 98520 Contact Us For Availability

Washer WPL 353320 Contact Us For Availability

19

Enclosure WPL 358674 Contact Us For Availability

19

Switch WPL 367610 Contact Us For Availability

19

Pulley WPL 366948 Contact Us For Availability

Bracket WPL 358675 Contact Us For Availability

Motor WPL 365941 Contact Us For Availability

Bracket WPL 357174 Contact Us For Availability

Nut WPL 98023 Contact Us For Availability

Bearing WPL 16033 Contact Us For Availability

WP21365 Whirlpool Washer Backorder WPL WP21365 $7.12

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Screw WPL 273470 Contact Us For Availability

Hose Guide WPL 356390 Contact Us For Availability

Eyelet WPL 98281 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $58.38

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

Tube WPL 358027 Contact Us For Availability

Actuator WPL 357347 Contact Us For Availability

Rod WPL 356389 Contact Us For Availability

Grommet WPL 356322 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

Screw WPL 157712 Contact Us For Availability

Pulley WPL 356939 Contact Us For Availability

24

18849 Whirlpool Pad Backorder WPL 18849 $13.10

24

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

24

Tube WPL 357965 Contact Us For Availability

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

Hinge WPL 356606 Contact Us For Availability

Motor WPL 357287 Contact Us For Availability

Spacer WPL 356937 Contact Us For Availability

26

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

27

Screw WPL 425583 Contact Us For Availability

28

Washer Drive Belt WPL 356402 Contact Us For Availability

28

(338471) (ALT.) WPL N/P Contact Us For Availability

28

Knob WPL 352798 Contact Us For Availability

28A

Cabinet (White) WPL 379672 Contact Us For Availability

28A

Sprg-#1-rear WPL 367011 Contact Us For Availability

28B

Cabinet (Almond) WPL 379673 Contact Us For Availability

28B

Sprg-#3-frnt WPL 367012 Contact Us For Availability

28C

Cabinet WPL 379674 Contact Us For Availability

28C

Sprg-#2-left WPL 367013 Contact Us For Availability

28D

Cabinet WPL 379675 Contact Us For Availability

28E

Cabinet (Gold) WPL 379676 Contact Us For Availability

29

Screw WPL 9426223 Contact Us For Availability

29

Socket WPL 717588 Contact Us For Availability

29

Clutch Shaft WPL 76220 Contact Us For Availability

30

Dial WPL 358620 Contact Us For Availability

30

Spacer WPL 357043 Contact Us For Availability

30

Nut WPL 90715 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Shield WPL 357901 Contact Us For Availability

Sleeve WPL 356638 Contact Us For Availability

Shaft WPL 18930 Contact Us For Availability

32

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

32

Clip WPL 354555 Contact Us For Availability

32

Roller WPL 92119 Contact Us For Availability

33

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

33

Pin WPL 90532 Contact Us For Availability

34

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

35

Cord WPL 357500 Contact Us For Availability

36

Stud Clip WPL 98149 Contact Us For Availability

37

Pump Pulley WPL 356926 Contact Us For Availability

37

Housing WPL 357664 Contact Us For Availability

38

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

38

Panel WPL 358621 Contact Us For Availability

39

Inlet Hose WPL 356313 Contact Us For Availability

39

Wire WPL 370950 Contact Us For Availability

40

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

41

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

41

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

41

Tap End Scr WPL 16135 Contact Us For Availability

42

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

42

Spring WPL 356887 Contact Us For Availability

42

Bolt WPL 98001 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Inlet Valve WPL 367184 Contact Us For Availability

Bearing WPL 356993 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Clamp WPL 357171 Contact Us For Availability

Bearing WPL 354195 Contact Us For Availability

Bar Cam WPL 18642 Contact Us For Availability

45

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

45

Hose WPL 358204 Contact Us For Availability

45

Cam Bar WPL 354838 Contact Us For Availability

46

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

46

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

46

Rivet WPL 354959 Contact Us For Availability

47

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

47A

Motor Switch WPL 362738 Contact Us For Availability

47B

Switch WPL 362086 Contact Us For Availability

48

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

48

Bracket WPL 357504 Contact Us For Availability

48

Case WPL 357176 Contact Us For Availability

49

Hose Clamp WPL 356982 Contact Us For Availability

49

Bearing WPL 358586 Contact Us For Availability

50A

Pad WPL 356916 Contact Us For Availability

50B

Pad WPL 356917 Contact Us For Availability

51

Lock WPL 356422 Contact Us For Availability

51

Bolt WPL 356599 Contact Us For Availability

52

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

52

Cover WPL 367552 Contact Us For Availability

53

Bearing WPL 96853 Contact Us For Availability

54

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

54

Support WPL 356445 Contact Us For Availability

55

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

55

Washer Knob WPL 358602 Contact Us For Availability

55

Water Hose WPL 356397 Contact Us For Availability

56

Compression Ring WPL 90015 Contact Us For Availability

56

Clamp WPL 272855 Contact Us For Availability

56

Shaft WPL 362642 Contact Us For Availability

57

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

57

Rivet WPL 356388 Contact Us For Availability

57

Shaft Seal WPL 92814 Contact Us For Availability

58

Bumper WPL 91605 Contact Us For Availability

58

Plunger WPL 84866 Contact Us For Availability

59

Washer WPL 359399 Contact Us For Availability

59

Washer WPL 95083 Contact Us For Availability

60

Spring WPL 92815 Contact Us For Availability

61

Bracket WPL 356499 Contact Us For Availability

61

Gear WPL 355469 Contact Us For Availability

62

Shaft WPL 362098 Contact Us For Availability

63

Relief WPL 357499 Contact Us For Availability

63

Cnnctng Rod WPL 76577 Contact Us For Availability

64

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

65

Clip WPL 356288 Contact Us For Availability

66

Gr Sec/shaft WPL 75073 Contact Us For Availability

67

Clip WPL 356387 Contact Us For Availability

67

Ring WPL 52083 Contact Us For Availability

68

Cover WPL 357662 Contact Us For Availability

68

Pin WPL 5018 Contact Us For Availability

69

Gear Case WPL 362906 Contact Us For Availability

70

Cam Bar Guide WPL 95462 Contact Us For Availability

71

Screw WPL 356512 Contact Us For Availability

72

Screw WPL 355345 Contact Us For Availability

73

Pulley WPL 356155 Contact Us For Availability

74

Bearing WPL 17250 Contact Us For Availability

75

Wig Way Ay WPL 365998 Contact Us For Availability

76

Fork Gear WPL 80398 Contact Us For Availability

77

Drive Pinion WPL 84467 Contact Us For Availability

78

Washer WPL 16024 Contact Us For Availability

79

Ring WPL 90094 Contact Us For Availability

80

Drive Gear WPL 353397 Contact Us For Availability

85

Shield WPL 94276 Contact Us For Availability

86

Ring WPL 95082 Contact Us For Availability

87

Spring WPL 16015 Contact Us For Availability

89

Retainer WPL 354319 Contact Us For Availability

90

Screw WPL 355613 Contact Us For Availability

91

Bracket WPL 357172 Contact Us For Availability

92

Ball WPL 358585 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Label WPL LIT358623 Contact Us For Availability

Owner's Manual WPL LIT358671 Contact Us For Availability

Installation Instructions WPL LIT375046 Contact Us For Availability

Checklist WPL LIT378159 Contact Us For Availability

Operating Instructions WPL LIT378502 Contact Us For Availability

Parts List WPL LIT379658 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
