Model Whirlpool 110.73490130 Washer (Kenmore 11073490130) – Common Parts & Diagrams
GEARCASE/TRANSMISSION
All Parts

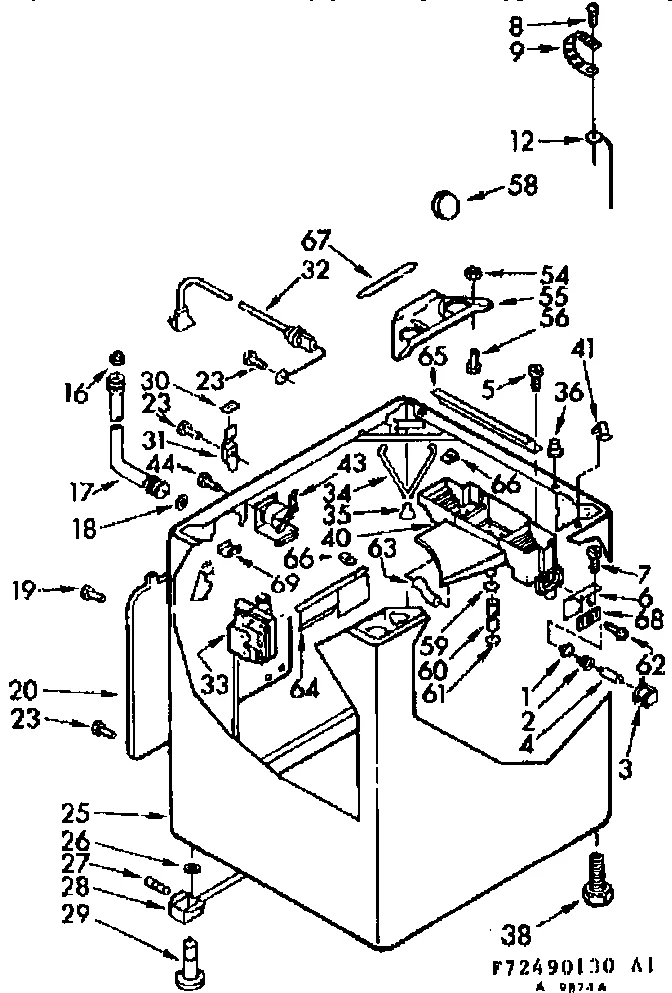

CABINET PARTS

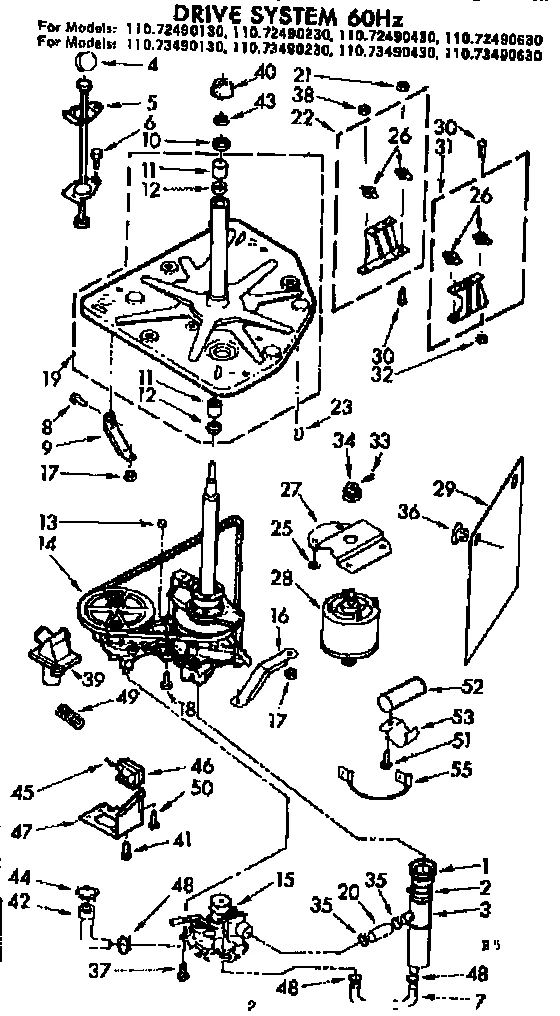

DRIVE SYSTEM 60 HZ

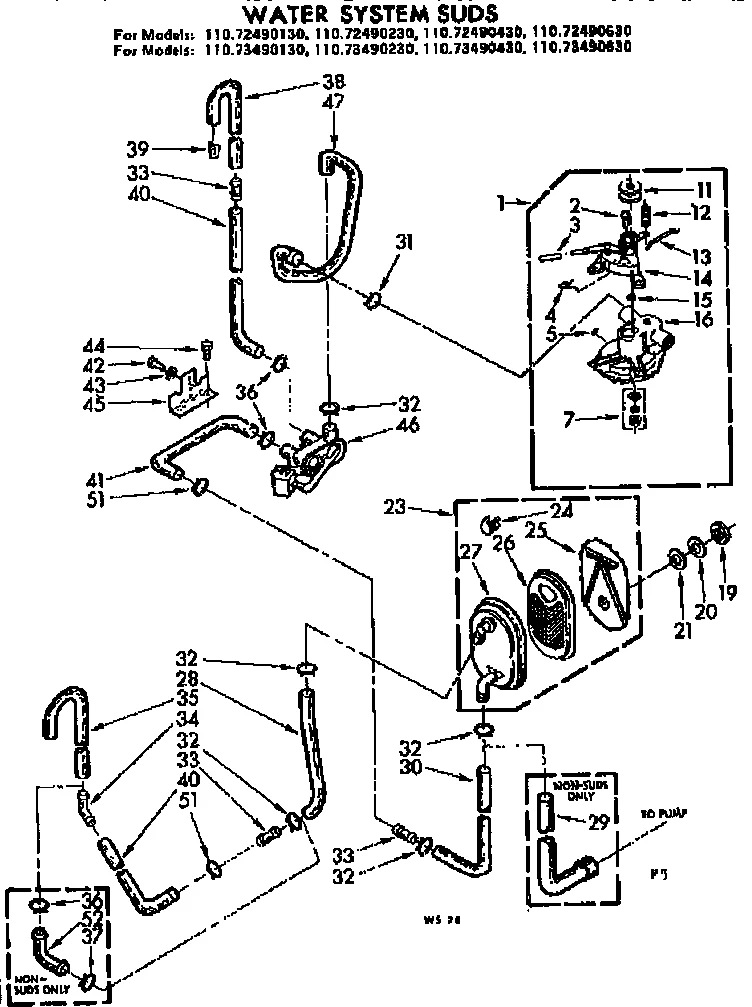

WATER SYSTEM SUDS

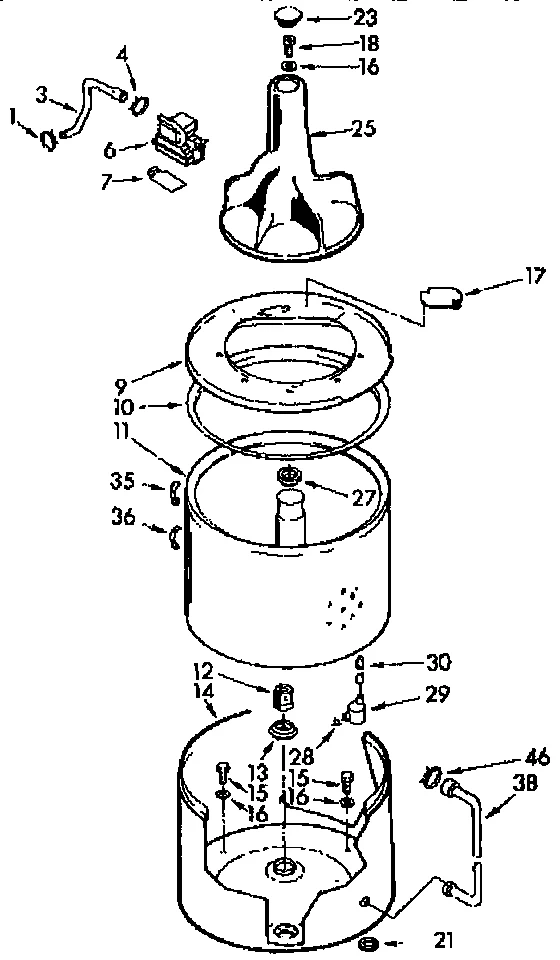

TUB AND BASKET ASM

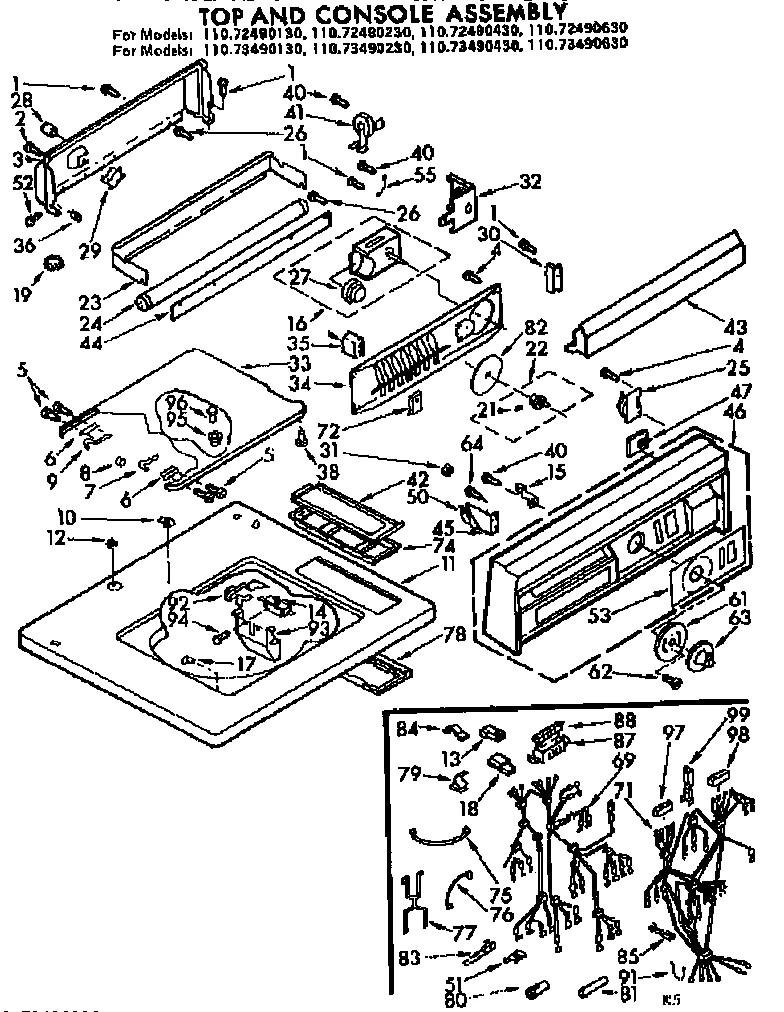

TOP AND CONSOLE ASSEMBLY

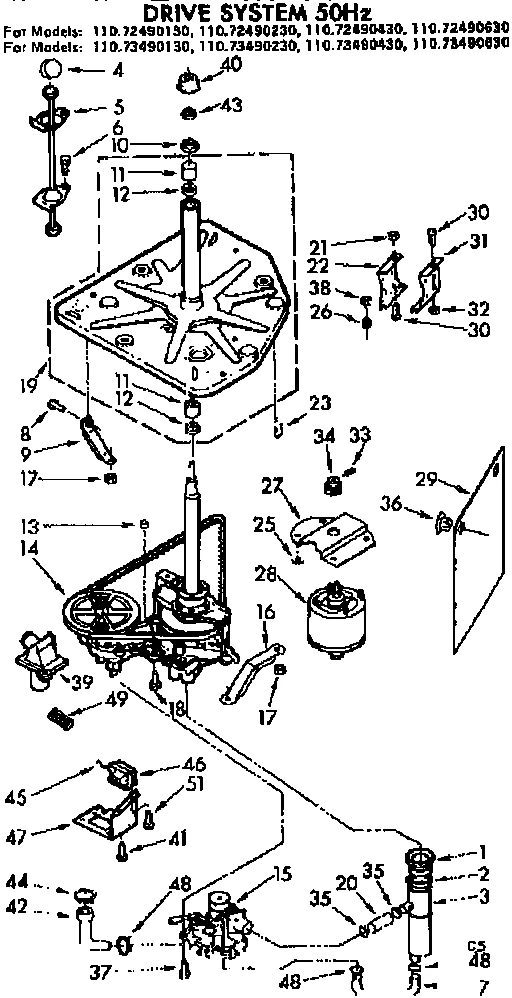

DRIVE SYSTEM 50 HZ
Common parts from model Whirlpool 110.73490130 Washer (Kenmore 11073490130)
1
Diaphragm WPL 288183 Contact Us For Availability
1
Washer Outer Tub Grommet WPL 96386 Contact Us For Availability
2
Spring WPL 355103 Contact Us For Availability
2
Clamp WPL 9421321 Contact Us For Availability
3
Manifold WPL 366305 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Hose WPL 356349 Contact Us For Availability
3A
Solenoid WPL 365324 Contact Us For Availability
3A
Cover (White) WPL 352572 Contact Us For Availability
3B
Solenoid WPL 366105 Contact Us For Availability
3B
Cover WPL 352573 Contact Us For Availability
3C
Cover WPL 352574 Contact Us For Availability
3D
Cover (Gold) WPL 342946 Contact Us For Availability
4
Armature WPL 355109 Contact Us For Availability
4
Ball WPL 91073 Contact Us For Availability
4
Spring WPL 96266 Contact Us For Availability
5
Rod WPL 87270 Contact Us For Availability
5
Retainer Clip WPL 96262 Contact Us For Availability
6
Screw WPL 98048 Contact Us For Availability
6
Water Inlet WPL 355583 Contact Us For Availability
6A
Bracket WPL 355026 Contact Us For Availability
6B
Bracket WPL 355027 Contact Us For Availability
7
Hose WPL 355699 Contact Us For Availability
7
Seal WPL 87394 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
7
Washer Lid Hinge WPL 91367 Contact Us For Availability
8
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
8
Screw WPL 132848 Contact Us For Availability
9
Ground Strap WPL 22965 Contact Us For Availability
9
Brace WPL 353301 Contact Us For Availability
9
Ring WPL 356038 Contact Us For Availability
10
Washer Seal WPL 356584 Contact Us For Availability
10
Console Clip WPL 92129 Contact Us For Availability
11
(338471) (ALT.) WPL N/P Contact Us For Availability
11
Pump Pulley WPL 96245 Contact Us For Availability
11
Basket WPL 370864 Contact Us For Availability
11A
Top (White) WPL 365768 Contact Us For Availability
11B
Bearing WPL 354195 Contact Us For Availability
11B
Top WPL 365775 Contact Us For Availability
11C
Top WPL 365776 Contact Us For Availability
11D
Top WPL 365777 Contact Us For Availability
12
Ground Wire WPL 364089 Contact Us For Availability
12
Seal WPL 54209 Contact Us For Availability
12
Lever WPL 355538 Contact Us For Availability
12
Snap-in Nut WPL 98219 Contact Us For Availability
13
Spacer WPL 16062 Contact Us For Availability
13
Rod WPL 96264 Contact Us For Availability
13
Receptacle WPL 717252 Contact Us For Availability
14
Gear Case WPL 367593 Contact Us For Availability
14
Bearng Blck WPL 87290 Contact Us For Availability
14
Tub WPL 370869 Contact Us For Availability
15
Pump WPL 362192 Contact Us For Availability
15
Wick Oil WPL 96265 Contact Us For Availability
15
Screw WPL 356973 Contact Us For Availability
15
Spring WPL 353177 Contact Us For Availability
16
Body (Black) WPL 352977 Contact Us For Availability
16A
Brace WPL 351500 Contact Us For Availability
16A
Timer WPL 371096 Contact Us For Availability
16B
Brace WPL 351499 Contact Us For Availability
16B
Timer WPL 371097 Contact Us For Availability
17
Nut WPL 96101 Contact Us For Availability
17
Washer Snubber Plate WPL 355852 Contact Us For Availability
18
Hex Screw WPL 90877 Contact Us For Availability
19
Base WPL 366664 Contact Us For Availability
19
Nut WPL 92229 Contact Us For Availability
19
Plug WPL 352747 Contact Us For Availability
20
Hose WPL 96251 Contact Us For Availability
20
Washer WPL 92232 Contact Us For Availability
20A
Panel WPL 85279 Contact Us For Availability
20B
Panel WPL 357335 Contact Us For Availability
21
Washer WPL 92235 Contact Us For Availability
21
Gasket WPL 17235 Contact Us For Availability
21
Screw WPL 98654 Contact Us For Availability
22
Bracket WPL 362131 Contact Us For Availability
22
Extension WPL 360088 Contact Us For Availability
22
Bracket WPL 85286 Contact Us For Availability
23
Washer Lint Filter WPL 368772 Contact Us For Availability
23
Cap WPL 370165 Contact Us For Availability
23
Barrier WPL 352721 Contact Us For Availability
25
Washer WPL 92217 Contact Us For Availability
25
Filter WPL 356643 Contact Us For Availability
25
Agitator WPL 369645 Contact Us For Availability
25
Switch WPL 370079 Contact Us For Availability
25A
Cabinet (White) WPL 367815 Contact Us For Availability
25B
Cabinet WPL 367816 Contact Us For Availability
25C
Cabinet WPL 367817 Contact Us For Availability
25D
Cabinet WPL 367818 Contact Us For Availability
26
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
26
Washer WPL 98411 Contact Us For Availability
26
Grommet WPL 352955 Contact Us For Availability
26
Diagram WPL 356644 Contact Us For Availability
26
Screw WPL 155178 Contact Us For Availability
27
Shield WPL 356217 Contact Us For Availability
27
Filter Body WPL 368771 Contact Us For Availability
27A
Motor WPL 357104 Contact Us For Availability
27B
Motor WPL 357105 Contact Us For Availability
28
Lev Link Asy WPL 75587 Contact Us For Availability
28
Drive Motor WPL 370654 Contact Us For Availability
28
Hose WPL 357018 Contact Us For Availability
28
Starter WPL 92751 Contact Us For Availability
28
Motor WPL 82052 Contact Us For Availability
29
Foot WPL 95879 Contact Us For Availability
29
Shield WPL 356246 Contact Us For Availability
29
Hose WPL 356645 Contact Us For Availability
29
Air Dome WPL 360804 Contact Us For Availability
29
Socket WPL 80041 Contact Us For Availability
30
Bolt WPL 98537 Contact Us For Availability
30
Hose WPL 357052 Contact Us For Availability
30
Ballast WPL 346772 Contact Us For Availability
30A
Ballast WPL 348481 Contact Us For Availability
31
Bracket WPL 362130 Contact Us For Availability
31
Nut WPL 98788 Contact Us For Availability
31
Bracket WPL 93549 Contact Us For Availability
31A
Hinge WPL 92657 Contact Us For Availability
31B
Hinge WPL 18775 Contact Us For Availability
32
Nut WPL 95721 Contact Us For Availability
32
Clamp WPL 353096 Contact Us For Availability
32
Shield WPL 357041 Contact Us For Availability
32A
Power Cord WPL 92667 Contact Us For Availability
32B
Power Cord WPL 83742 Contact Us For Availability
33
Pin WPL 90532 Contact Us For Availability
33
Valve WPL 363425 Contact Us For Availability
33
Screw WPL 355344 Contact Us For Availability
33
Connector WPL 357334 Contact Us For Availability
33A
Lid (White) WPL 367880 Contact Us For Availability
33B
Lid WPL 367881 Contact Us For Availability
33C
Lid WPL 367882 Contact Us For Availability
33D
Lid WPL 367883 Contact Us For Availability
34
Spring WPL 355853 Contact Us For Availability
34
Pulley WPL 96247 Contact Us For Availability
34
Connector WPL 96756 Contact Us For Availability
34
Mechanism WPL 363002 Contact Us For Availability
34
Pulley WPL 356432 Contact Us For Availability
35
Pad WPL 363635 Contact Us For Availability
35
Clip WPL 356701 Contact Us For Availability
35
Switch WPL 88238 Contact Us For Availability
36
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
36
Clip WPL 356288 Contact Us For Availability
36
Clip WPL 356700 Contact Us For Availability
36
Clip WPL 353769 Contact Us For Availability
38
Nut Washer WPL 354376 Contact Us For Availability
38
Discharge Hose WPL 91273 Contact Us For Availability
38
Hose WPL 357006 Contact Us For Availability
38
Nut WPL 98023 Contact Us For Availability
39
Valve Body WPL 366671 Contact Us For Availability
39
Strainer WPL 352833 Contact Us For Availability
40
Reservoir WPL 364425 Contact Us For Availability
40
Shield WPL 355842 Contact Us For Availability
40A
Reservoir WPL 365323 Contact Us For Availability
40C
Cup WPL 358958 Contact Us For Availability
41
Tap End Scr WPL 16135 Contact Us For Availability
41
Screw WPL 96141 Contact Us For Availability
41
Hose WPL 97784 Contact Us For Availability
41A
Socket WPL 365883 Contact Us For Availability
41B
Socket WPL 361856 Contact Us For Availability
42
Bolt WPL 98001 Contact Us For Availability
42
Hose WPL 96731 Contact Us For Availability
42A
Lid (White) WPL 355032 Contact Us For Availability
42B
Lid WPL 355225 Contact Us For Availability
42C
Lid WPL 355226 Contact Us For Availability
42D
Lid WPL 355227 Contact Us For Availability
43
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
43
Relay WPL 365956 Contact Us For Availability
43
Retainer WPL 356899 Contact Us For Availability
43
Lock Washer WPL 121637 Contact Us For Availability
43
Door WPL 349329 Contact Us For Availability
44
Bar Cam WPL 18642 Contact Us For Availability
44
Screw WPL 98853 Contact Us For Availability
44
Barrier WPL 352944 Contact Us For Availability
45
Cam Bar WPL 354838 Contact Us For Availability
45
Link WPL 353584 Contact Us For Availability
45
Bracket WPL 97788 Contact Us For Availability
45
Bracket WPL 352720 Contact Us For Availability
46
Rivet WPL 354959 Contact Us For Availability
46
Washer Drain Pump Solenoid WPL 362832 Contact Us For Availability
46
Valve WPL 360168 Contact Us For Availability
46A
Escutcheon WPL 371437 Contact Us For Availability
46B
Escutcheon WPL 371441 Contact Us For Availability
46C
Escutcheon WPL 371438 Contact Us For Availability
46D
Escutcheon WPL 371442 Contact Us For Availability
46E
Escutcheon WPL 371439 Contact Us For Availability
46F
Escutcheon WPL 371443 Contact Us For Availability
46G
Escutcheon WPL 371440 Contact Us For Availability
46H
Escutcheon WPL 371444 Contact Us For Availability
47
Bracket WPL 353587 Contact Us For Availability
47
Hose WPL 97786 Contact Us For Availability
47
Knob WPL 370268 Contact Us For Availability
48
Gear Case WPL 362901 Contact Us For Availability
49
Bearing WPL 358586 Contact Us For Availability
49
Spring WPL 353586 Contact Us For Availability
50
Ring WPL 352430 Contact Us For Availability
50
Switch WPL 361858 Contact Us For Availability
51
Screw WPL 120741 Contact Us For Availability
51
Ring WPL 352151 Contact Us For Availability
52
Washer Drain Hose Connector WPL 95440 Contact Us For Availability
52
Gr Cse Cover WPL 87889 Contact Us For Availability
53
Bearing WPL 96853 Contact Us For Availability
53A
Insert WPL 371433 Contact Us For Availability
53B
Insert WPL 371434 Contact Us For Availability
54
Support Yoke WPL 93850 Contact Us For Availability
55
Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability
55
Cover WPL 352143 Contact Us For Availability
55
Wire WPL 370950 Contact Us For Availability
56
Shaft WPL 362642 Contact Us For Availability
56A
Bolt WPL 126358 Contact Us For Availability
56B
Carriage Bolt WPL 126211 Contact Us For Availability
56C
Bolt WPL 353770 Contact Us For Availability
57
Shaft Seal WPL 92814 Contact Us For Availability
58
Plunger WPL 84866 Contact Us For Availability
59
Washer WPL 95083 Contact Us For Availability
60
Spring WPL 92815 Contact Us For Availability
60
Hose WPL 357007 Contact Us For Availability
61
Drive Gear WPL 17553 Contact Us For Availability
61
Skirt WPL 356914 Contact Us For Availability
62
Shaft WPL 362098 Contact Us For Availability
62
Screw WPL 356357 Contact Us For Availability
62
Screw WPL 155028 Contact Us For Availability
63
Cnnctng Rod WPL 76577 Contact Us For Availability
63
Hose WPL 355029 Contact Us For Availability
63
Knob WPL 351951 Contact Us For Availability
64
Barrier WPL 355843 Contact Us For Availability
64
Screw WPL 98106 Contact Us For Availability
65
Barrier WPL 355856 Contact Us For Availability
66
Gr Sec/shaft WPL 75073 Contact Us For Availability
66
Clip WPL 355928 Contact Us For Availability
67
Ring WPL 52083 Contact Us For Availability
67
Pad WPL 352434 Contact Us For Availability
68
Pin WPL 5018 Contact Us For Availability
68
Mounting Plate WPL 356356 Contact Us For Availability
69
Gear Case WPL 362906 Contact Us For Availability
69
Bracket WPL 355999 Contact Us For Availability
69
Harness WPL 370561 Contact Us For Availability
70
Cam Bar Guide WPL 95462 Contact Us For Availability
71
Harness WPL 371100 Contact Us For Availability
72
Screw WPL 355345 Contact Us For Availability
72A
Push Button WPL 370353 Contact Us For Availability
72B
Push Button WPL 370354 Contact Us For Availability
72C
Push Button WPL 370355 Contact Us For Availability
72D
Push Button WPL 370356 Contact Us For Availability
72E
Push Button WPL 370357 Contact Us For Availability
72F
Push Button WPL 370358 Contact Us For Availability
72G
Push Button WPL 370359 Contact Us For Availability
72H
Push Button WPL 370360 Contact Us For Availability
72I
Push Button WPL 370361 Contact Us For Availability
72J
Push Button WPL 370362 Contact Us For Availability
72K
Push Button WPL 370363 Contact Us For Availability
72L
Push Button WPL 370364 Contact Us For Availability
72M
Push Button WPL 370365 Contact Us For Availability
72N
Push Button WPL 370366 Contact Us For Availability
73
Pulley WPL 96248 Contact Us For Availability
74
Bearing WPL 17250 Contact Us For Availability
74A
Bezel (White) WPL 355033 Contact Us For Availability
74B
Bezel WPL 355222 Contact Us For Availability
74C
Bezel WPL 355223 Contact Us For Availability
74D
Bezel WPL 355224 Contact Us For Availability
75
Wig Way Ay WPL 365998 Contact Us For Availability
75
Harness WPL 357151 Contact Us For Availability
76
Fork Gear WPL 80398 Contact Us For Availability
76
Jumper Wire WPL 362827 Contact Us For Availability
77
Drive Pinion WPL 84467 Contact Us For Availability
77
Harness WPL 357158 Contact Us For Availability
78
Washer WPL 16024 Contact Us For Availability
78
Gasket WPL 355030 Contact Us For Availability
79
Ring WPL 90094 Contact Us For Availability
79
Clip WPL 351482 Contact Us For Availability
80
Drive Gear WPL 353397 Contact Us For Availability
80
Plug WPL 351297 Contact Us For Availability
81
Receptacle WPL 351296 Contact Us For Availability
82
Disk Stop WPL 370370 Contact Us For Availability
85
Shield WPL 94276 Contact Us For Availability
86
Ring WPL 95082 Contact Us For Availability
87
Spring WPL 16015 Contact Us For Availability
87
Plug WPL 96894 Contact Us For Availability
88
Washer WPL 52073 Contact Us For Availability
88
Cap WPL 96895 Contact Us For Availability
90
Screw WPL 355613 Contact Us For Availability
91
Ball WPL 358585 Contact Us For Availability
91
Clip WPL 357469 Contact Us For Availability
92
Actuator WPL 370959 Contact Us For Availability
94
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
96
Strike WPL 357141 Contact Us For Availability
97
Block (White) WPL 352090 Contact Us For Availability
99
Terminal WPL 352088 Contact Us For Availability
NI
Instructions WPL 346365 Contact Us For Availability
NI
Instruction Book WPL 352853 Contact Us For Availability
NI
Ldry Guide WPL 355979 Contact Us For Availability
NI
Instructions WPL 368205 Contact Us For Availability
NI
Label WPL 368521 Contact Us For Availability
NI
Instructions WPL 369703 Contact Us For Availability
NI
Bag WPL 369747 Contact Us For Availability
NI
Bag WPL 369761 Contact Us For Availability
NI
Bracket WPL 85502 Contact Us For Availability
NI
Adapter Plug WPL 92925 Contact Us For Availability
NI
Trans Shield WPL 94291 Contact Us For Availability
NI
Transformer WPL 94368 Contact Us For Availability
NI
Parts List WPL LIT371960 Contact Us For Availability
× ![]()
Login and Registration Form
