Model Whirlpool 110.72481610 Washer (Kenmore 11072481610) – Common Parts &amp; Diagrams

1

90984 Whirlpool Nut Backorder WPL 90984 $8.39

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Panel WPL 356713 Contact Us For Availability

2A

Cover WPL 353230 Contact Us For Availability

2B

Cover WPL 352143 Contact Us For Availability

3

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

3

Hose WPL 356349 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3A

Bolt WPL 126358 Contact Us For Availability

3B

Carriage Bolt WPL 126211 Contact Us For Availability

3C

Bolt WPL 353770 Contact Us For Availability

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

Ball WPL 91073 Contact Us For Availability

4

Clip WPL 356701 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $8.89

5

Rod WPL 87270 Contact Us For Availability

5

Inlet WPL 366072 Contact Us For Availability

5

Retainer Clip WPL 96262 Contact Us For Availability

6

Screw WPL 98048 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6A

Timer WPL 373933 Contact Us For Availability

6B

Timer WPL 373997 Contact Us For Availability

7

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

7

Clip WPL 356700 Contact Us For Availability

7

Seal WPL 87394 Contact Us For Availability

7A

Washer Motor WPL 362681 Contact Us For Availability

7B

Motor WPL 365941 Contact Us For Availability

8

Brace WPL 353301 Contact Us For Availability

8

Screw WPL 132848 Contact Us For Availability

8

Ring WPL 355846 Contact Us For Availability

8A

Lid (White) WPL 371378 Contact Us For Availability

8B

Lid WPL 371379 Contact Us For Availability

8C

Lid WPL 371380 Contact Us For Availability

8D

Lid (Gold) WPL 371381 Contact Us For Availability

9

Strike WPL 357141 Contact Us For Availability

9

Ground Strap WPL 22965 Contact Us For Availability

9

Washer Seal WPL 356584 Contact Us For Availability

10

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

10

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

10

Basket WPL 369315 Contact Us For Availability

11

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $14.98

11

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

11

Pump Pulley WPL 96245 Contact Us For Availability

11A

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

11B

Bearing WPL 354195 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Seal WPL 54209 Contact Us For Availability

Ground Wire WPL 364089 Contact Us For Availability

Lever WPL 355538 Contact Us For Availability

Spacer WPL 92429 Contact Us For Availability

Washer Lid Hinge WPL 91367 Contact Us For Availability

Tub WPL 361983 Contact Us For Availability

Rod WPL 96264 Contact Us For Availability

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

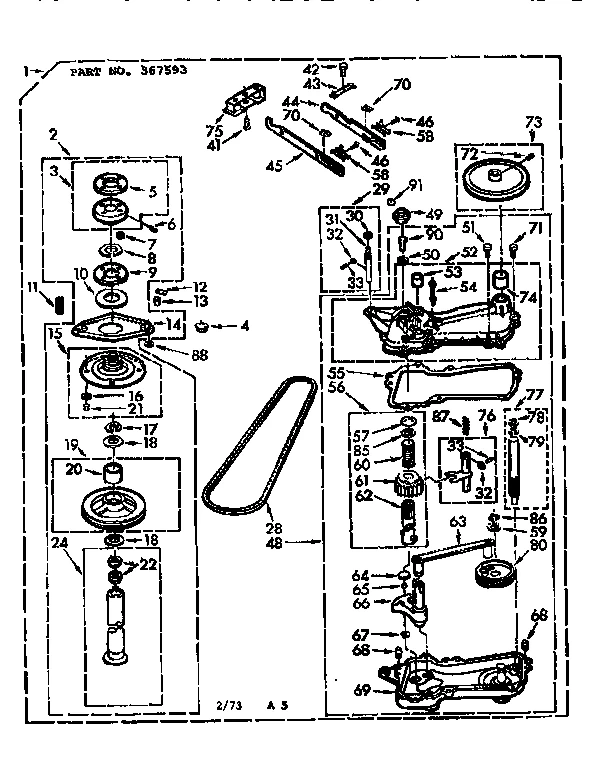

Gear Case WPL 367593 Contact Us For Availability

Screw WPL 356973 Contact Us For Availability

Bearng Blck WPL 87290 Contact Us For Availability

15

Extension WPL 356765 Contact Us For Availability

15

Wick Oil WPL 96265 Contact Us For Availability

15A

Top (White) WPL 369079 Contact Us For Availability

15B

Top WPL 369080 Contact Us For Availability

15C

Top WPL 369081 Contact Us For Availability

15D

Top WPL 369082 Contact Us For Availability

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $6.47

386011 Whirlpool Screw Backorder WPL 386011 $32.38

Actuator WPL 370959 Contact Us For Availability

Cap WPL 356129 Contact Us For Availability

17

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $13.89

17

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

17

Agitator WPL 369492 Contact Us For Availability

17A

Brace WPL 351500 Contact Us For Availability

17B

Brace WPL 351499 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

Nut WPL 96101 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $16.64

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $41.25

Hex Screw WPL 90877 Contact Us For Availability

Nut WPL 92229 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Washer Seal WPL 351830 Contact Us For Availability

Base WPL 366664 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

Washer WPL 92232 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Gasket WPL 17235 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

Washer WPL 92235 Contact Us For Availability

22

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

22

Screw WPL 356866 Contact Us For Availability

22

Washer Outer Tub Grommet WPL 96386 Contact Us For Availability

23

Bracket WPL 362131 Contact Us For Availability

23

Clamp WPL 9421321 Contact Us For Availability

23

Washer Lint Filter WPL 368772 Contact Us For Availability

24

16515 Whirlpool Clip Backorder WPL 16515 $12.46

24

Switch WPL 96965 Contact Us For Availability

24

Manifold WPL 84091 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Nut Washer WPL 354376 Contact Us For Availability

Switch WPL 366582 Contact Us For Availability

Filter WPL 356643 Contact Us For Availability

25A

Cabinet (White) WPL 374978 Contact Us For Availability

25B

Cabinet WPL 374979 Contact Us For Availability

25C

Cabinet WPL 374980 Contact Us For Availability

25D

Cabinet (Gold) WPL 374981 Contact Us For Availability

Washer WPL 92217 Contact Us For Availability

Screw WPL 355326 Contact Us For Availability

Washer WPL 98411 Contact Us For Availability

Diagram WPL 356644 Contact Us For Availability

27

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

27

Grommet WPL 352955 Contact Us For Availability

27

Filter Body WPL 368771 Contact Us For Availability

27A

Cap WPL 357437 Contact Us For Availability

27B

Cap WPL 357436 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

Shield WPL 357589 Contact Us For Availability

Lev Link Asy WPL 75587 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

Hose WPL 357018 Contact Us For Availability

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $63.26

Drive Motor WPL 370654 Contact Us For Availability

Foot WPL 95879 Contact Us For Availability

Nut WPL 357732 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $13.10

Nut WPL 90715 Contact Us For Availability

Shield WPL 357395 Contact Us For Availability

Bracket WPL 369054 Contact Us For Availability

Shaft WPL 18930 Contact Us For Availability

Bolt WPL 98537 Contact Us For Availability

Screw, Nibbed WPL 339607 Contact Us For Availability

Hose WPL 352169 Contact Us For Availability

31A

Hinge WPL 92657 Contact Us For Availability

31B

Hinge WPL 18775 Contact Us For Availability

Roller WPL 92119 Contact Us For Availability

Bracket WPL 362130 Contact Us For Availability

Panel WPL 374746 Contact Us For Availability

Power Cord WPL 92667 Contact Us For Availability

Clamp WPL 353096 Contact Us For Availability

Pin WPL 90532 Contact Us For Availability

Nut WPL 95721 Contact Us For Availability

Knob WPL 369153 Contact Us For Availability

Valve WPL 363425 Contact Us For Availability

Connector WPL 357334 Contact Us For Availability

34

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

34

Screw WPL 355345 Contact Us For Availability

34

Compression Ring WPL 90015 Contact Us For Availability

34A

Spring WPL 355853 Contact Us For Availability

34B

Spring WPL 357977 Contact Us For Availability

35

Washer Timer Knob WPL 355519 Contact Us For Availability

35

Pulley WPL 96247 Contact Us For Availability

35A

Pad WPL 363635 Contact Us For Availability

35B

Pad WPL 357976 Contact Us For Availability

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

Dial WPL 365559 Contact Us For Availability

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

Hose WPL 96251 Contact Us For Availability

37

Pad WPL 352434 Contact Us For Availability

37

Clip WPL 354555 Contact Us For Availability

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

39

Terminal WPL 352088 Contact Us For Availability

39

Cover WPL 355006 Contact Us For Availability

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $60.82

Harness WPL 358154 Contact Us For Availability

Cup WPL 355007 Contact Us For Availability

Hose WPL 357593 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

Tap End Scr WPL 16135 Contact Us For Availability

Connector WPL 94612 Contact Us For Availability

Stud WPL 369516 Contact Us For Availability

WP21365 Whirlpool Washer Backorder WPL WP21365 $7.12

Bolt WPL 98001 Contact Us For Availability

Tap Screw WPL 90723 Contact Us For Availability

Plug WPL 94611 Contact Us For Availability

43

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

43

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

43

Wire WPL 370950 Contact Us For Availability

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

44

Bar Cam WPL 18642 Contact Us For Availability

44

Belt WPL 352967 Contact Us For Availability

45

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

45

Cam Bar WPL 354838 Contact Us For Availability

45

Harness WPL 357998 Contact Us For Availability

46

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

46

Rivet WPL 354959 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

48

Gear Case WPL 362901 Contact Us For Availability

48

Clip WPL 98084 Contact Us For Availability

48

Hose WPL 356645 Contact Us For Availability

49

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

49

Bearing WPL 358586 Contact Us For Availability

49A

Bezel (White) WPL 355823 Contact Us For Availability

49B

Bezel WPL 355996 Contact Us For Availability

49C

Bezel WPL 355997 Contact Us For Availability

49D

Bezel (Gold) WPL 355998 Contact Us For Availability

50

Ring WPL 352430 Contact Us For Availability

50

Clip WPL 357469 Contact Us For Availability

51

Screw WPL 120741 Contact Us For Availability

51

Clip WPL 351482 Contact Us For Availability

52

Gr Cse Cover WPL 87889 Contact Us For Availability

52

Tray WPL 352827 Contact Us For Availability

53

Bearing WPL 96853 Contact Us For Availability

54

Support Yoke WPL 93850 Contact Us For Availability

55

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

56

Shaft WPL 362642 Contact Us For Availability

57

Shaft Seal WPL 92814 Contact Us For Availability

58

Plunger WPL 84866 Contact Us For Availability

59

Washer WPL 95083 Contact Us For Availability

60

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.27

60

Spring WPL 92815 Contact Us For Availability

61

Drive Gear WPL 17553 Contact Us For Availability

61

Ring WPL 357695 Contact Us For Availability

62

Shaft WPL 362098 Contact Us For Availability

63

Cnnctng Rod WPL 76577 Contact Us For Availability

64

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

66

Gr Sec/shaft WPL 75073 Contact Us For Availability

67

Ring WPL 52083 Contact Us For Availability

68

Pin WPL 5018 Contact Us For Availability

69

Gear Case WPL 362906 Contact Us For Availability

70

Cam Bar Guide WPL 95462 Contact Us For Availability

73

Pulley WPL 96248 Contact Us For Availability

74

Bearing WPL 17250 Contact Us For Availability

75

Wig Way Ay WPL 365998 Contact Us For Availability

76

Fork Gear WPL 80398 Contact Us For Availability

77

Drive Pinion WPL 84467 Contact Us For Availability

78

Washer WPL 16024 Contact Us For Availability

79

Ring WPL 90094 Contact Us For Availability

80

Drive Gear WPL 353397 Contact Us For Availability

85

Shield WPL 94276 Contact Us For Availability

86

Ring WPL 95082 Contact Us For Availability

87

Spring WPL 16015 Contact Us For Availability

88

Washer WPL 52073 Contact Us For Availability

90

Screw WPL 355613 Contact Us For Availability

91

Ball WPL 358585 Contact Us For Availability

Bag WPL 369761 Contact Us For Availability

Bracket WPL 85502 Contact Us For Availability

Trans Shield WPL 94291 Contact Us For Availability

Transformer WPL 94368 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Label WPL LIT369387 Contact Us For Availability

Installation Instructions WPL LIT373021 Contact Us For Availability

Operating Instructions WPL LIT373035 Contact Us For Availability

Parts List WPL LIT374908 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
