Model Whirlpool 110.72408260 Electric Washer (Kenmore 11072408260) – Common Parts & Diagrams
BRAKE AND CLUTCH

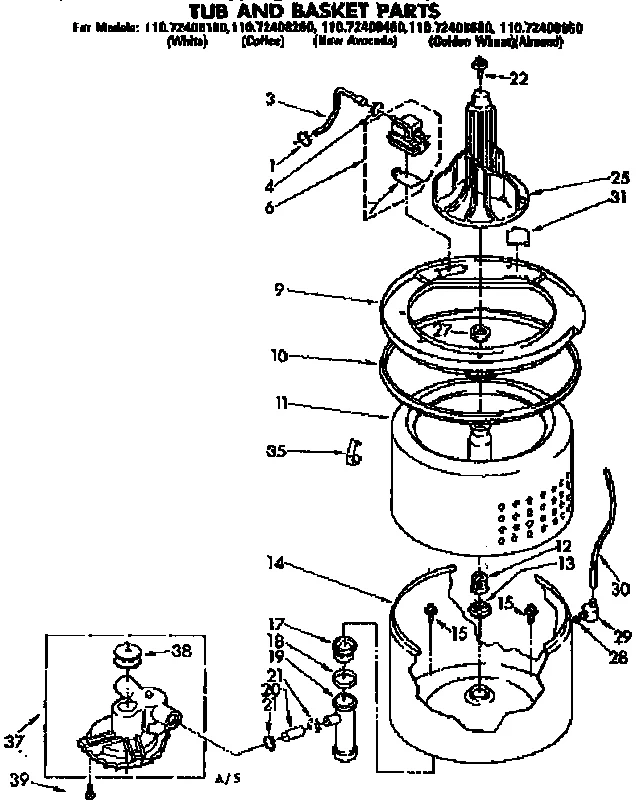

TUB AND BASKET PARTS

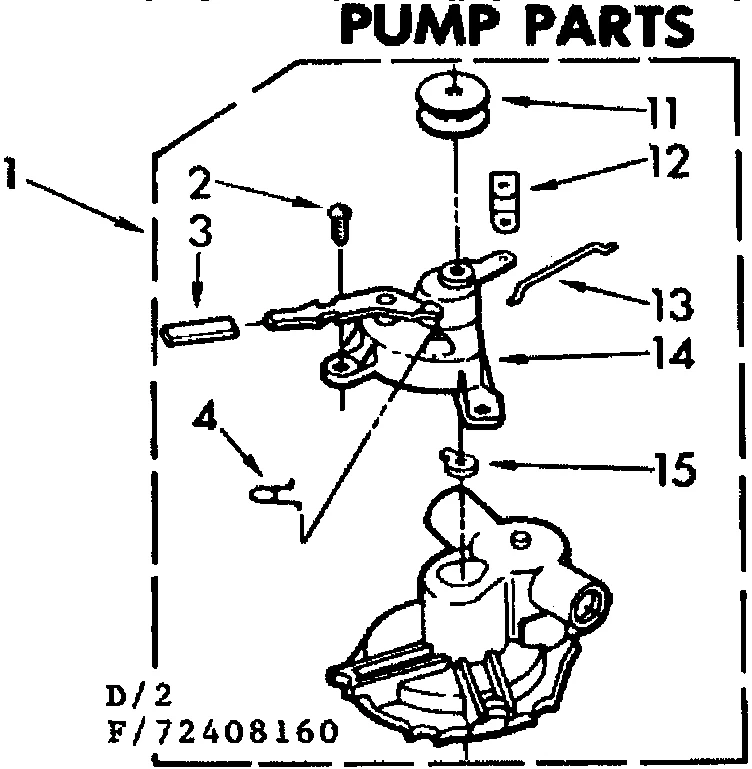

PUMP PARTS

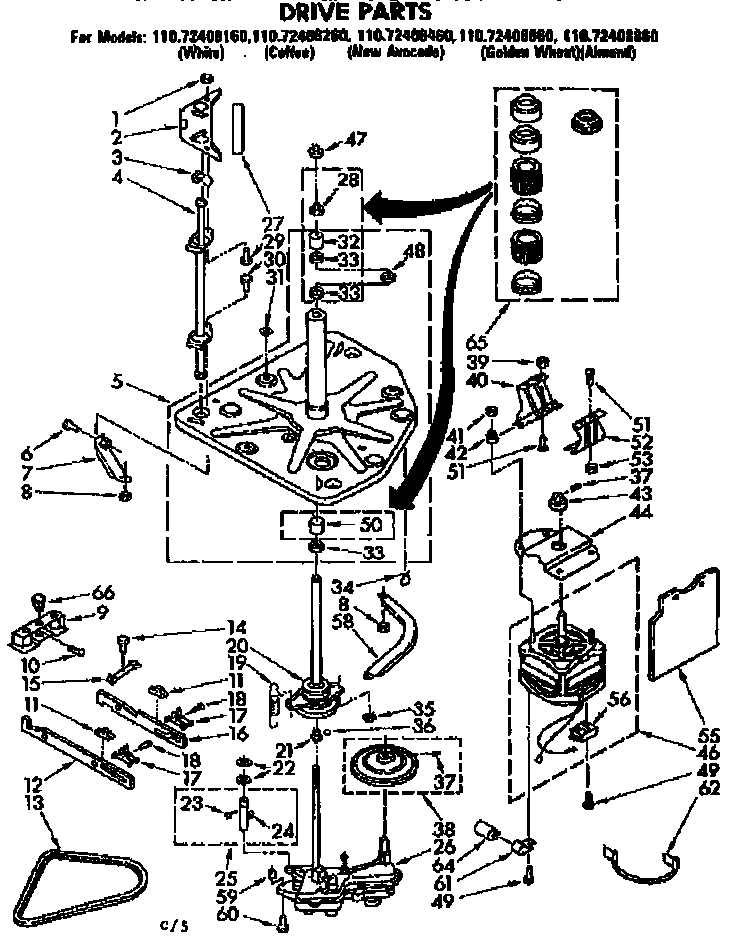

DRIVE PARTS
All Parts

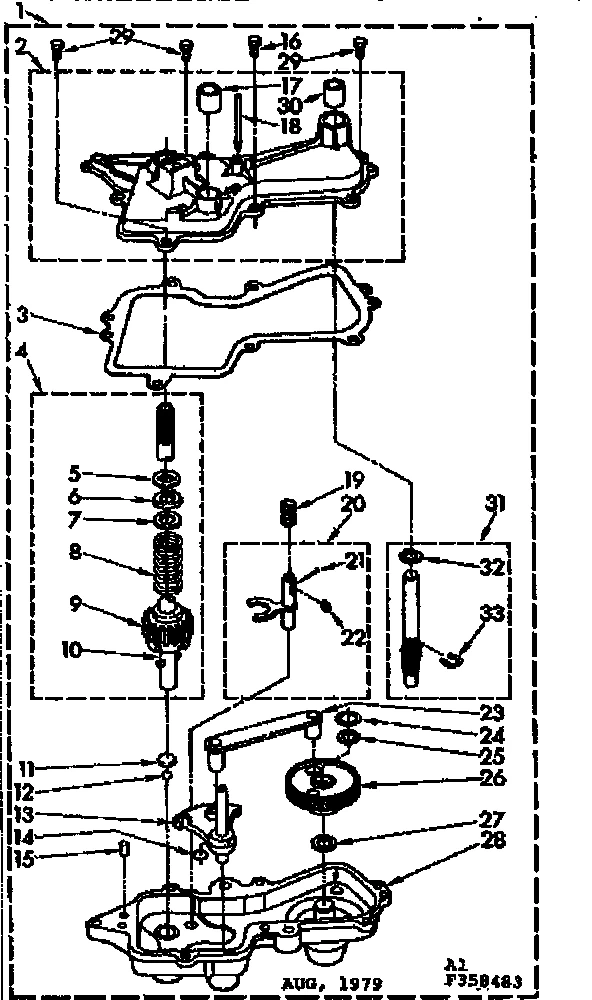

GEARCASE/TRANSMISSION

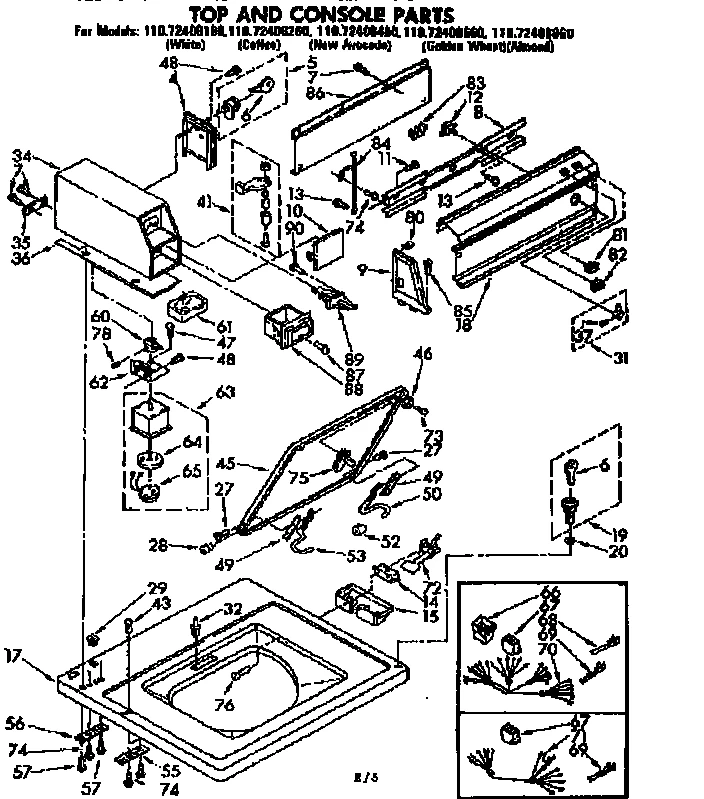

TOP AND CONSOLE PARTS

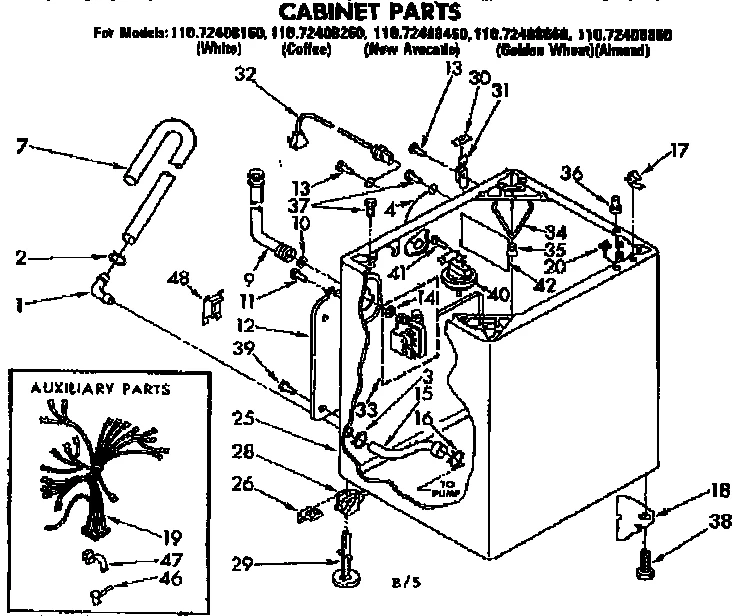

CABINET PARTS

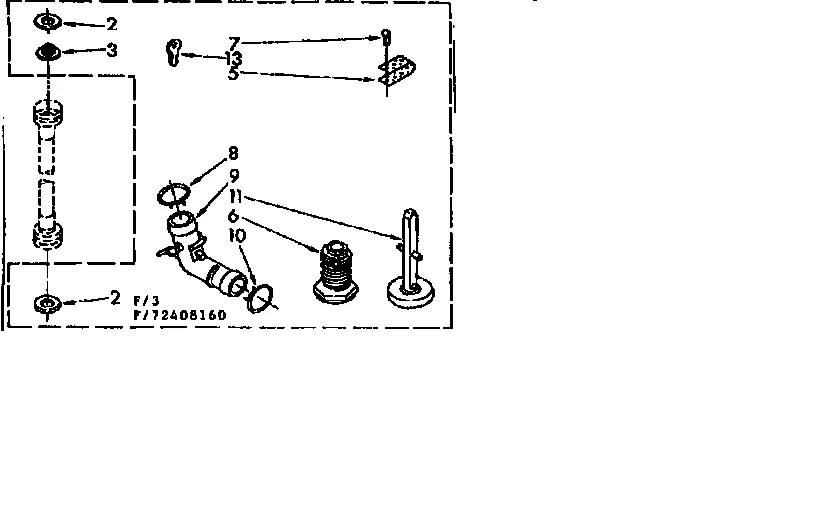

MISCELLANEOUS PARTS
All Parts
Common parts from model Whirlpool 110.72408260 Electric Washer (Kenmore 11072408260)
1
Case WPL 358483 Contact Us For Availability
1
Replacement Part WPL 379915 Contact Us For Availability
2
Cover WPL 367552 Contact Us For Availability
3
Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability
4
NLA Parts WPL 82584 Contact Us For Availability
4
Shaft WPL 362642 Contact Us For Availability
4
Ground Wire WPL 364089 Contact Us For Availability
4A
Door (White) WPL 358239 Contact Us For Availability
4B
Door (Almond) WPL 689732 Contact Us For Availability
4C
Coffee WPL 693230 Contact Us For Availability
4D
Door WPL 689680 Contact Us For Availability
4E
Door WPL 689681 Contact Us For Availability
5
Base Plate WPL 359430 Contact Us For Availability
5
Ring WPL 352430 Contact Us For Availability
5
Ground Strap WPL 22965 Contact Us For Availability
6
Shaft Seal WPL 92814 Contact Us For Availability
7
Brace WPL 353301 Contact Us For Availability
7
Shield WPL 94276 Contact Us For Availability
7
Screw WPL 132848 Contact Us For Availability
8
Nut WPL 96101 Contact Us For Availability
8
Spring WPL 92815 Contact Us For Availability
8
Bracket WPL 358329 Contact Us For Availability
9
Washer Drain Hose Connector WPL 95440 Contact Us For Availability
9
Washer Wigwag Solenoid WPL 359997 Contact Us For Availability
9
Gear WPL 355469 Contact Us For Availability
9
Cap WPL 358268 Contact Us For Availability
9A
Cap WPL 358267 Contact Us For Availability
10
Tap End Scr WPL 16135 Contact Us For Availability
10
Shaft WPL 362098 Contact Us For Availability
10
Plate WPL 358973 Contact Us For Availability
11
Cam Bar Guide WPL 95462 Contact Us For Availability
11
Screw WPL 355326 Contact Us For Availability
12
Washer Drive Block WPL 96384 Contact Us For Availability
12
Cam Bar WPL 354838 Contact Us For Availability
12
Switch WPL 359286 Contact Us For Availability
12
Panel WPL 85279 Contact Us For Availability
13
Gr Sec/shaft WPL 75073 Contact Us For Availability
14
Bolt WPL 98001 Contact Us For Availability
14
Ring WPL 52083 Contact Us For Availability
15
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
15
Pin WPL 5018 Contact Us For Availability
15
Pump Hose WPL 21114 Contact Us For Availability
16
Bar Cam WPL 18642 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Bearing WPL 96853 Contact Us For Availability
17A
Top (White) WPL 385249 Contact Us For Availability
17B
Top (Almond) WPL 385250 Contact Us For Availability
17C
Coffee WPL 385251 Contact Us For Availability
17D
New Avocado WPL 385252 Contact Us For Availability
17E
Top WPL 385253 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Support WPL 356445 Contact Us For Availability
18
Panel WPL 359406 Contact Us For Availability
18
Gusset WPL 356459 Contact Us For Availability
19
Commercial Dryer Top Panel Lock WPL 358290 Contact Us For Availability
19
Spring WPL 17261 Contact Us For Availability
19
Spring WPL 16015 Contact Us For Availability
19
Harness WPL 358342 Contact Us For Availability
20
Drive WPL 358364 Contact Us For Availability
20
Fork Gear WPL 80398 Contact Us For Availability
20
Washer WPL 98400 Contact Us For Availability
21
Bearing WPL 358586 Contact Us For Availability
21
Pin WPL 90532 Contact Us For Availability
22
Roller WPL 92119 Contact Us For Availability
23
Cnnctng Rod WPL 76577 Contact Us For Availability
24
Ring WPL 95082 Contact Us For Availability
25
Shaft WPL 359460 Contact Us For Availability
25
(338471) (ALT.) WPL N/P Contact Us For Availability
25
Washer WPL 95083 Contact Us For Availability
25A
Cabinet (White) WPL 384793 Contact Us For Availability
25B
Cabinet (Almond) WPL 384794 Contact Us For Availability
25C
Cabinet WPL 384795 Contact Us For Availability
25D
Cabinet WPL 384796 Contact Us For Availability
25E
Cabinet WPL 384797 Contact Us For Availability
26
Drive Gear WPL 353397 Contact Us For Availability
27
Pad WPL 352434 Contact Us For Availability
27
Washer WPL 363362 Contact Us For Availability
28
Washer Seal WPL 351830 Contact Us For Availability
28
Gear Case WPL 362906 Contact Us For Availability
28
Link WPL 359059 Contact Us For Availability
29
Bolt WPL 126358 Contact Us For Availability
29
Screw WPL 356512 Contact Us For Availability
29A
Carriage Bolt WPL 126211 Contact Us For Availability
29B
Bolt WPL 353770 Contact Us For Availability
29C
Bolt WPL 354730 Contact Us For Availability
30
Bearing WPL 354513 Contact Us For Availability
31
Laundry Appliance Timer Knob WPL 359575 Contact Us For Availability
31
Gasket WPL 17235 Contact Us For Availability
31
Drive Pinion WPL 84467 Contact Us For Availability
31
Hinge WPL 92657 Contact Us For Availability
31A
Hinge WPL 18775 Contact Us For Availability
32
Washer WPL 16024 Contact Us For Availability
32
Rivet WPL 354239 Contact Us For Availability
32
Cord WPL 354837 Contact Us For Availability
33
Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability
33
Ring WPL 90094 Contact Us For Availability
34
Spring WPL 357977 Contact Us For Availability
34D
New Avocado WPL 385956 Contact Us For Availability
34E
Case WPL 385957 Contact Us For Availability
35
Washer Snubber Pad WPL 358336 Contact Us For Availability
35
Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability
35
Strap WPL 357856 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
36
Cushion (White) WPL 358264 Contact Us For Availability
36
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
37
Screw WPL 355345 Contact Us For Availability
38
Washer Transmission Pulley WPL 360840 Contact Us For Availability
40
Bracket WPL 85286 Contact Us For Availability
40
Switch WPL 359361 Contact Us For Availability
41
Nut WPL 98023 Contact Us For Availability
41
Extension Slide WPL 358309 Contact Us For Availability
42
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
42
Barrier WPL 353885 Contact Us For Availability
43
Screw WPL 98048 Contact Us For Availability
43
Motor Pulley WPL 92216 Contact Us For Availability
44
Shield WPL 356217 Contact Us For Availability
45A
Lid (White) WPL 373833 Contact Us For Availability
45B
Lid (Almond) WPL 375998 Contact Us For Availability
45C
Coffee WPL 375999 Contact Us For Availability
45D
Lid WPL 358932 Contact Us For Availability
45E
Lid WPL 358933 Contact Us For Availability
46
Lid Bumper WPL 356908 Contact Us For Availability
46
Motor WPL 660604 Contact Us For Availability
47
Seal WPL 359190 Contact Us For Availability
48
Spacer WPL 358804 Contact Us For Availability
48
Plug WPL 354179 Contact Us For Availability
50
Bearing WPL 354195 Contact Us For Availability
51
Bolt WPL 98537 Contact Us For Availability
52
Bracket WPL 93549 Contact Us For Availability
52
Bumper WPL 91605 Contact Us For Availability
53
Nut WPL 95721 Contact Us For Availability
53
Hinge WPL 95531 Contact Us For Availability
55
Shield WPL 357571 Contact Us For Availability
55
Housng Strap WPL 83701 Contact Us For Availability
56
Motor Switch WPL 362738 Contact Us For Availability
56
Plate WPL 351562 Contact Us For Availability
56A
Switch WPL 359642 Contact Us For Availability
57
Bolt WPL 356599 Contact Us For Availability
58
Brace WPL 351500 Contact Us For Availability
58A
Brace WPL 351499 Contact Us For Availability
59
Spacer WPL 16062 Contact Us For Availability
60
Hex Screw WPL 90877 Contact Us For Availability
60
Clutch WPL 365173 Contact Us For Availability
62
Wire WPL 370950 Contact Us For Availability
62
Bracket WPL 359306 Contact Us For Availability
63
Timer WPL 359256 Contact Us For Availability
64
Escapement WPL 369257 Contact Us For Availability
65
Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability
65
Motor WPL 372178 Contact Us For Availability
66
Cap WPL 94697 Contact Us For Availability
67
Plug WPL 94696 Contact Us For Availability
70
Harness WPL 359287 Contact Us For Availability
71
Harness WPL 359289 Contact Us For Availability
72
Actuator WPL 370959 Contact Us For Availability
74
Screw WPL 90057 Contact Us For Availability
76
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
78
Screw WPL 98654 Contact Us For Availability
80
Clip WPL 98084 Contact Us For Availability
81
Light WPL 360398 Contact Us For Availability
82
Light WPL 360402 Contact Us For Availability
84
Wire WPL 357535 Contact Us For Availability
85
Screw WPL 358225 Contact Us For Availability
86
Panel WPL 356712 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Paint Cf WPL 261887 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Agitator Cap WPL 285155 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72108 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Label WPL LIT380084 Contact Us For Availability
NI
Installation Instructions WPL LIT381344 Contact Us For Availability
NI
Parts List WPL LIT382908 Contact Us For Availability
NI
Service Manual WPL LIT821462 Contact Us For Availability
× ![]()
