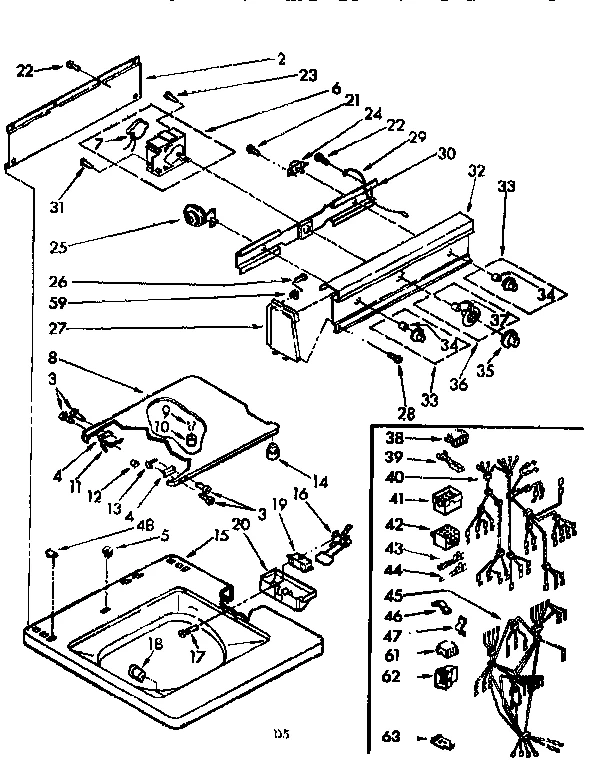

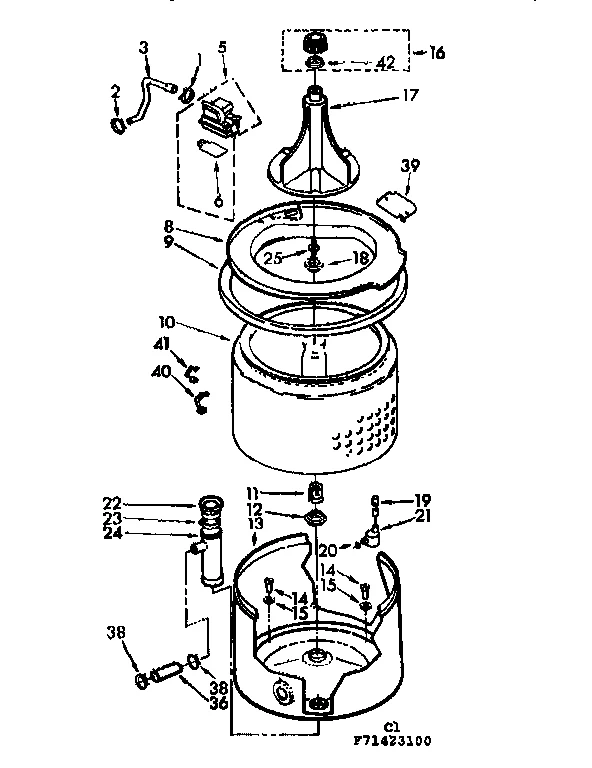

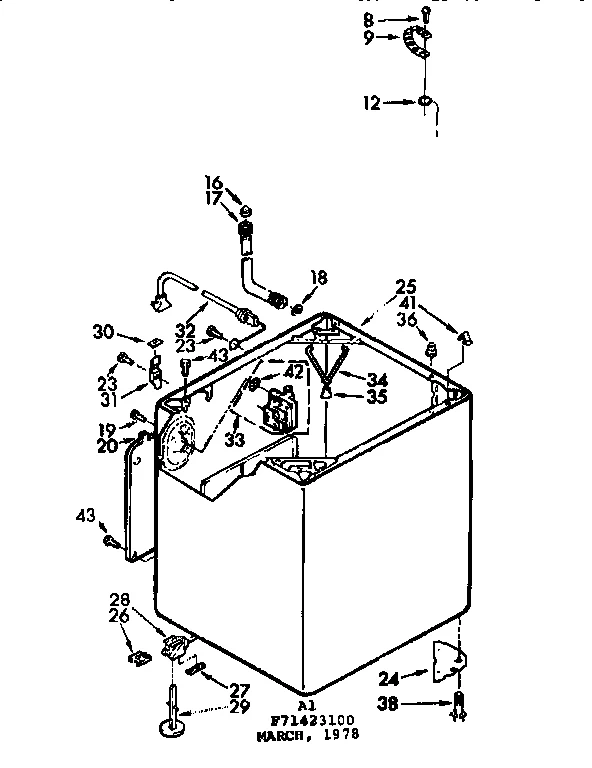

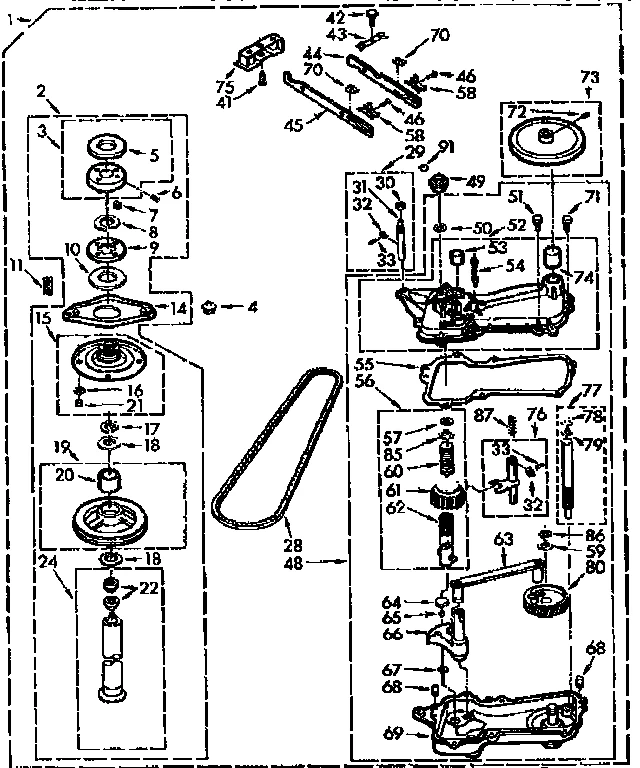

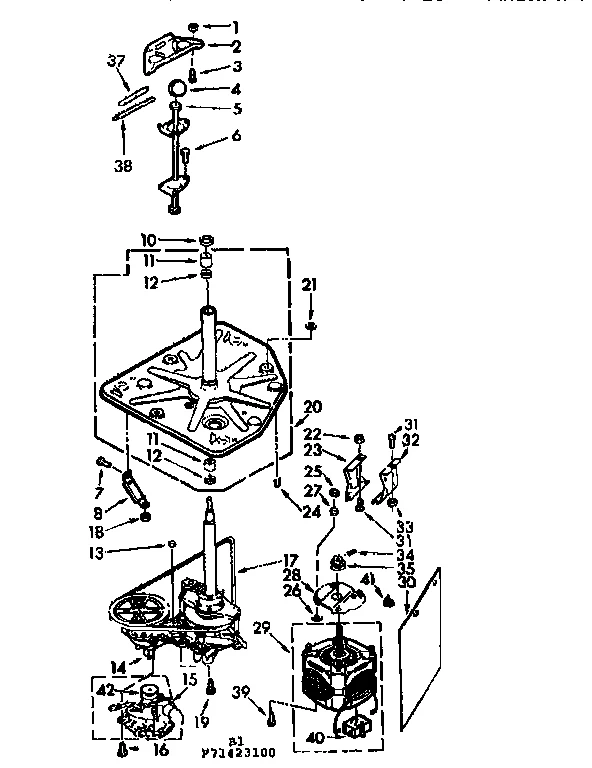

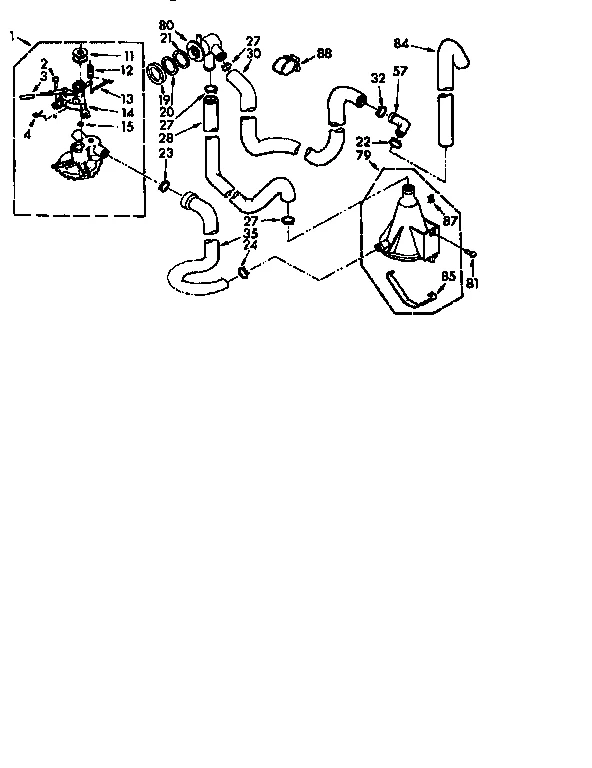

Model Whirlpool 110.71423100 Washer (Kenmore 11071423100) – Common Parts &amp; Diagrams

1

90984 Whirlpool Nut Backorder WPL 90984 $8.39

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Panel WPL 357942 Contact Us For Availability

2A

Basic Cover WPL 94114 Contact Us For Availability

2B

Cover WPL 352143 Contact Us For Availability

2C

Cover WPL 356434 Contact Us For Availability

3

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

3

Sleeve WPL 96175 Contact Us For Availability

3A

Bolt WPL 126358 Contact Us For Availability

3B

Carriage Bolt WPL 126211 Contact Us For Availability

3C

Bolt WPL 353770 Contact Us For Availability

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

Ball WPL 91073 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $8.89

5

NLA Parts WPL 82584 Contact Us For Availability

6

Screw WPL 98048 Contact Us For Availability

6A

Timer WPL 378961 Contact Us For Availability

6B

Timer WPL 378958 Contact Us For Availability

7

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

7A

Washer Motor WPL 362681 Contact Us For Availability

7B

Motor WPL 365941 Contact Us For Availability

8

Screw WPL 132848 Contact Us For Availability

8

Brace WPL 356581 Contact Us For Availability

8A

Lid (White) WPL 371378 Contact Us For Availability

8B

Lid (Almond) WPL 371385 Contact Us For Availability

8C

Lid WPL 371386 Contact Us For Availability

8D

Lid WPL 371387 Contact Us For Availability

8E

Lid WPL 371388 Contact Us For Availability

9

Ground Strap WPL 22965 Contact Us For Availability

9

Strike WPL 354252 Contact Us For Availability

10

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

10

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

11

Washer Drive Block WPL 96384 Contact Us For Availability

11

Pump Pulley WPL 16113 Contact Us For Availability

11

Washer Lid Hinge WPL 91367 Contact Us For Availability

11A

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

11B

Bearing WPL 354195 Contact Us For Availability

12

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

12

Ground Wire WPL 364089 Contact Us For Availability

12

Lever WPL 355538 Contact Us For Availability

12A

Seal WPL 54209 Contact Us For Availability

12B

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

13

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

13

Spacer WPL 92429 Contact Us For Availability

13

Rod WPL 96264 Contact Us For Availability

14

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

14

Case WPL 358487 Contact Us For Availability

14

Bearng Blck WPL 87290 Contact Us For Availability

15

WP21365 Whirlpool Washer Backorder WPL WP21365 $7.12

15

Wick Oil WPL 96265 Contact Us For Availability

15A

Top (White) WPL 372448 Contact Us For Availability

15B

Top (Almond) WPL 377472 Contact Us For Availability

15C

Top WPL 377473 Contact Us For Availability

15D

Top WPL 377474 Contact Us For Availability

15E

Top WPL 377475 Contact Us For Availability

16

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $5.95

16

386011 Whirlpool Screw Backorder WPL 386011 $32.38

16

Actuator WPL 370959 Contact Us For Availability

17

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

17

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

Nut WPL 96101 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

Hex Screw WPL 90877 Contact Us For Availability

Nut WPL 92229 Contact Us For Availability

Washer Seal WPL 351830 Contact Us For Availability

Bearing WPL 16033 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

Base Pl WPL 76526 Contact Us For Availability

Washer WPL 92232 Contact Us For Availability

Shield WPL 354958 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

Eyelet WPL 98281 Contact Us For Availability

Gasket WPL 17235 Contact Us For Availability

Washer WPL 92235 Contact Us For Availability

22

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

22

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

23

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

23

Bracket WPL 85286 Contact Us For Availability

23

Screw WPL 356866 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

Spin Tube WPL 366658 Contact Us For Availability

Gusset WPL 356459 Contact Us For Availability

Clamp WPL 353096 Contact Us For Availability

Switch WPL 358934 Contact Us For Availability

25

Nut WPL 98023 Contact Us For Availability

25

Switch WPL 358954 Contact Us For Availability

25A

Cabinet (White) WPL 375724 Contact Us For Availability

25B

Cabinet (Almond) WPL 375725 Contact Us For Availability

25C

Cabinet WPL 375726 Contact Us For Availability

25D

Cabinet WPL 375727 Contact Us For Availability

25E

Cabinet WPL 375728 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

26

Washer WPL 92217 Contact Us For Availability

26

Screw WPL 355326 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

27

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

27A

End Cap WPL 372135 Contact Us For Availability

27B

End Cap WPL 372128 Contact Us For Availability

WP358652 Whirlpool Link Backorder WPL WP358652 $58.19

WP95405 Whirlpool Belt In Stock WPL WP95405 $35.33

Shield WPL 356217 Contact Us For Availability

Hose WPL 352772 Contact Us For Availability

Screw WPL 358225 Contact Us For Availability

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $63.26

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

Clutch Shaft WPL 76220 Contact Us For Availability

Motor WPL 358589 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $13.10

Nut WPL 90715 Contact Us For Availability

Shield WPL 356214 Contact Us For Availability

Hose WPL 96067 Contact Us For Availability

Bracket WPL 369055 Contact Us For Availability

31

Shaft WPL 18930 Contact Us For Availability

31

Bolt WPL 98537 Contact Us For Availability

31

Screw, Nibbed WPL 339607 Contact Us For Availability

31A

Hinge WPL 92657 Contact Us For Availability

31B

Hinge WPL 18775 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

Roller WPL 92119 Contact Us For Availability

Power Cord WPL 92667 Contact Us For Availability

Bracket WPL 93549 Contact Us For Availability

Panel WPL 373982 Contact Us For Availability

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

Pin WPL 90532 Contact Us For Availability

Nut WPL 95721 Contact Us For Availability

Knob WPL 369153 Contact Us For Availability

34

Screw WPL 355345 Contact Us For Availability

34

Spring WPL 357974 Contact Us For Availability

34

Compression Ring WPL 90015 Contact Us For Availability

Washer Timer Knob WPL 355519 Contact Us For Availability

Washer Snubber Pad WPL 358336 Contact Us For Availability

Pulley WPL 357514 Contact Us For Availability

Hose WPL 351394 Contact Us For Availability

36

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

36

Dial WPL 365559 Contact Us For Availability

37

Pad WPL 352434 Contact Us For Availability

37

Clip WPL 354555 Contact Us For Availability

38

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Gusset Shield WPL 54656 Contact Us For Availability

39

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

39

Terminal WPL 352088 Contact Us For Availability

40

Harness WPL 358153 Contact Us For Availability

40A

Switch WPL 88993 Contact Us For Availability

40B

Switch WPL 363274 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

Tap End Scr WPL 16135 Contact Us For Availability

Clip WPL 356288 Contact Us For Availability

Cap WPL 94697 Contact Us For Availability

42

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

42

Bolt WPL 98001 Contact Us For Availability

42

Plug WPL 94696 Contact Us For Availability

43

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

44

Bar Cam WPL 18642 Contact Us For Availability

45

Cam Bar WPL 354838 Contact Us For Availability

45

Harness WPL 358152 Contact Us For Availability

46

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

46

Rivet WPL 354959 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

48

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

48

Case WPL 358483 Contact Us For Availability

49

Bearing WPL 358586 Contact Us For Availability

50

Ring WPL 352430 Contact Us For Availability

51

Bolt WPL 356599 Contact Us For Availability

52

Cover WPL 367552 Contact Us For Availability

53

Bearing WPL 96853 Contact Us For Availability

54

Support WPL 356445 Contact Us For Availability

55

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

56

Shaft WPL 362642 Contact Us For Availability

57

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

57

Shaft Seal WPL 92814 Contact Us For Availability

58

Plunger WPL 84866 Contact Us For Availability

59

Washer WPL 95083 Contact Us For Availability

59

Clip WPL 688982 Contact Us For Availability

60

Spring WPL 92815 Contact Us For Availability

61

Gear WPL 355469 Contact Us For Availability

61

Plug WPL 94611 Contact Us For Availability

62

Shaft WPL 362098 Contact Us For Availability

62

Connector WPL 94612 Contact Us For Availability

63

Cnnctng Rod WPL 76577 Contact Us For Availability

63

Ring WPL 357695 Contact Us For Availability

64

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

66

Gr Sec/shaft WPL 75073 Contact Us For Availability

67

Ring WPL 52083 Contact Us For Availability

68

Pin WPL 5018 Contact Us For Availability

69

Gear Case WPL 362906 Contact Us For Availability

70

Cam Bar Guide WPL 95462 Contact Us For Availability

71

Screw WPL 356512 Contact Us For Availability

73

Washer Transmission Pulley WPL 360840 Contact Us For Availability

74

Bearing WPL 17250 Contact Us For Availability

75

Wig Way Ay WPL 365998 Contact Us For Availability

76

Fork Gear WPL 80398 Contact Us For Availability

77

Drive Pinion WPL 84467 Contact Us For Availability

78

Washer WPL 16024 Contact Us For Availability

79

Ring WPL 90094 Contact Us For Availability

79

Filter WPL 360367 Contact Us For Availability

80

Drive Gear WPL 353397 Contact Us For Availability

80

Check Valve WPL 84984 Contact Us For Availability

81

Screw-lckwsr WPL 98005 Contact Us For Availability

84

Washer Drain Hose WPL 96865 Contact Us For Availability

85

Shield WPL 94276 Contact Us For Availability

85

Retainer WPL 351977 Contact Us For Availability

86

Ring WPL 95082 Contact Us For Availability

87

Spring WPL 16015 Contact Us For Availability

87

Clip WPL 351395 Contact Us For Availability

88

Clip WPL 96062 Contact Us For Availability

91

Ball WPL 358585 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Parts Kit WPL 375962 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Installation Instructions WPL LIT375045 Contact Us For Availability

Label WPL LIT375228 Contact Us For Availability

Operating Instructions WPL LIT378013 Contact Us For Availability

Parts List WPL LIT378225 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
