Model Whirlpool 110.45962403 Automatic Washer – Common Parts &amp; Diagrams

1

WP8181694 Whirlpool Washer Inlet Valve In Stock WPL WP8181694 $49.08

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $54.52

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $103.99

2

Hose, Inlet Valve To Dispenser WPL 8182683 Contact Us For Availability

3

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $36.58

3

User Interface WPL 8182995 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $13.89

4

Grid, Ventilation WPL 8181745 Contact Us For Availability

4

Button Set, Cycle — White Model WPL 8182234 Contact Us For Availability

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

5

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $101.66

5

Pipe, Ventilation WPL 8181744 Contact Us For Availability

5

Button Set, Program — White Model WPL 8181815 Contact Us For Availability

5

Button Set, Program — Graphite Model WPL 8181816 Contact Us For Availability

6

WP8182210 Whirlpool Clamp In Stock WPL WP8182210 $21.95

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $30.21

6

Foot, Leveling WPL 8181636 Contact Us For Availability

6

Button Set, Cancel — Graphite Model WPL 8181817 Contact Us For Availability

6

Button Set, Cancel — White Model WPL 8181681 Contact Us For Availability

6

Clamp WPL 8181746 Contact Us For Availability

7

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $80.03

7

WP8182634 Whirlpool Latch Assembly In Stock WPL WP8182634 $76.09

7

Nozzle, Inlet WPL 8183010 Contact Us For Availability

8

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

8

Damper, Rubber WPL 8181786 Contact Us For Availability

9

WP8181651 Whirlpool Door Strike In Stock WPL WP8181651 $12.94

9

O−Ring WPL 8183036 Contact Us For Availability

9

Counterweight, Rear WPL 8181913 Contact Us For Availability

10

280187 Whirlpool Washer Electronic Water Drai In Stock WPL 280187 $138.95

10

Gasket, Tub WPL 8181673 Contact Us For Availability

11

Cam, Actuator WPL 8181726 Contact Us For Availability

11

Basket WPL 8182232 Contact Us For Availability

11

Damper, Rubber WPL 8181787 Contact Us For Availability

12

WP8182233 Whirlpool Baffle Assembly In Stock WPL WP8182233 $43.85

12

Lever, Water Distribution WPL 8181725 Contact Us For Availability

12

Screw WPL 8181780 Contact Us For Availability

13

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $4.82

13

WPW10665207 Whirlpool Washer Switch Backorder WPL WPW10665207 $133.75

13

Seal, Filter Cap WPL 8181736 Contact Us For Availability

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $13.32

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $4.82

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $112.85

Airtrap WPL 8181731 Contact Us For Availability

Cap, Filter WPL 8181735 Contact Us For Availability

15

WPW10008880 Whirlpool Counterweight Assembly Backorder WPL WPW10008880 $134.45

15

Microcomputer, Machine Control — For Model WPL 8182685 Contact Us For Availability

15

Spring, Lever WPL 8181727 Contact Us For Availability

16

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $39.30

16

Motor WPL 8182793 Contact Us For Availability

16

Connection, Lever WPL 8181724 Contact Us For Availability

Screw WPL 8181785 Contact Us For Availability

Harness, Wiring WPL 8182212 Contact Us For Availability

Dispenser WPL 8183032 Contact Us For Availability

Bolt WPL 8181647 Contact Us For Availability

Harness, Motor WPL 8181782 Contact Us For Availability

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $65.80

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $33.65

Bolt, Motor WPL 8181761 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $13.52

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $18.07

WP8181794 Whirlpool Dispenser Hose In Stock WPL WP8181794 $18.68

Connector, Hose Outlet WPL 8181738 Contact Us For Availability

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $33.06

Door Frame Asm — White Model WPL 8182231 Contact Us For Availability

Door Frame Asm — Graphite Model WPL 8182246 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8181675 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8181824 Contact Us For Availability

21

W10772607 Whirlpool Outer Tub Backorder WPL W10772607 $274.08

21

WP8181720 Whirlpool Drawer Assembly Backorder WPL WP8181720 $81.24

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $4.82

22

Container, Detergent WPL 8181722 Contact Us For Availability

23

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $55.34

23

Hinge, Door WPL 8181642 Contact Us For Availability

23

Siphon, Bleach/Softener WPL 8182665 Contact Us For Availability

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $8.61

24

Separator WPL 8182131 Contact Us For Availability

25

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

25

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $232.20

25

Hook, Drawer WPL 8181721 Contact Us For Availability

26

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $28.17

26

Cap WPL 8182123 Contact Us For Availability

27

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $4.99

27

Harness, Wiring WPL 8182682 Contact Us For Availability

27

Screw Following Parts Not Illustrated WPL 8182214 Contact Us For Availability

28

Cover, Pre−Wash WPL 8181898 Contact Us For Availability

29

Medallion WPL 9744397 Contact Us For Availability

30

8182201 Whirlpool Screw Backorder WPL 8182201 $8.89

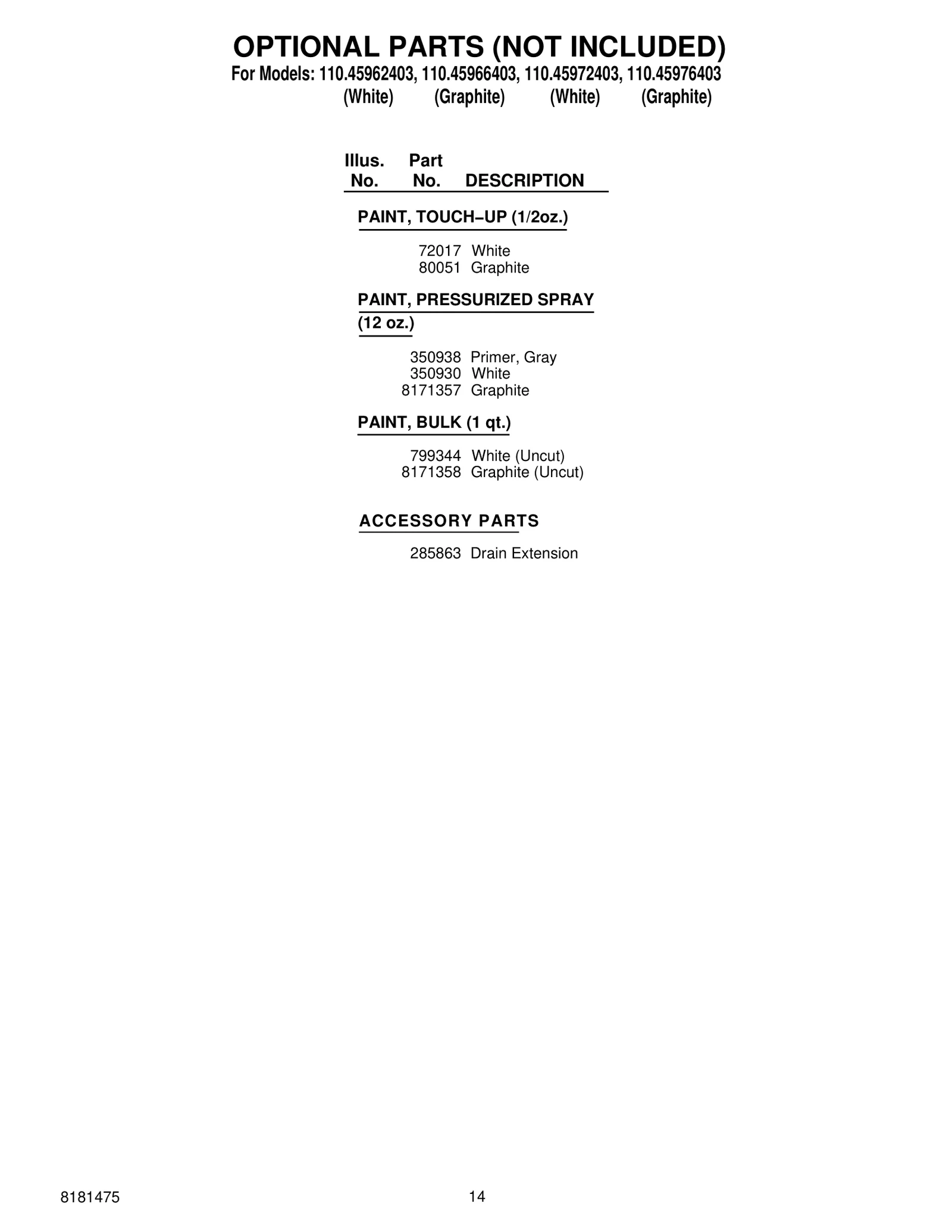

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

Graphite WPL 80051 Contact Us For Availability

OPT-3

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-5

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

OPT-6

White (Uncut) WPL 799344 Contact Us For Availability

OPT-7

Graphite (Uncut) WPL 8171358 Contact Us For Availability

OPT-8

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96
