Model Samsung RF30HBEDBSR/AA-03 Refrigerator – Common Parts &amp; Diagrams

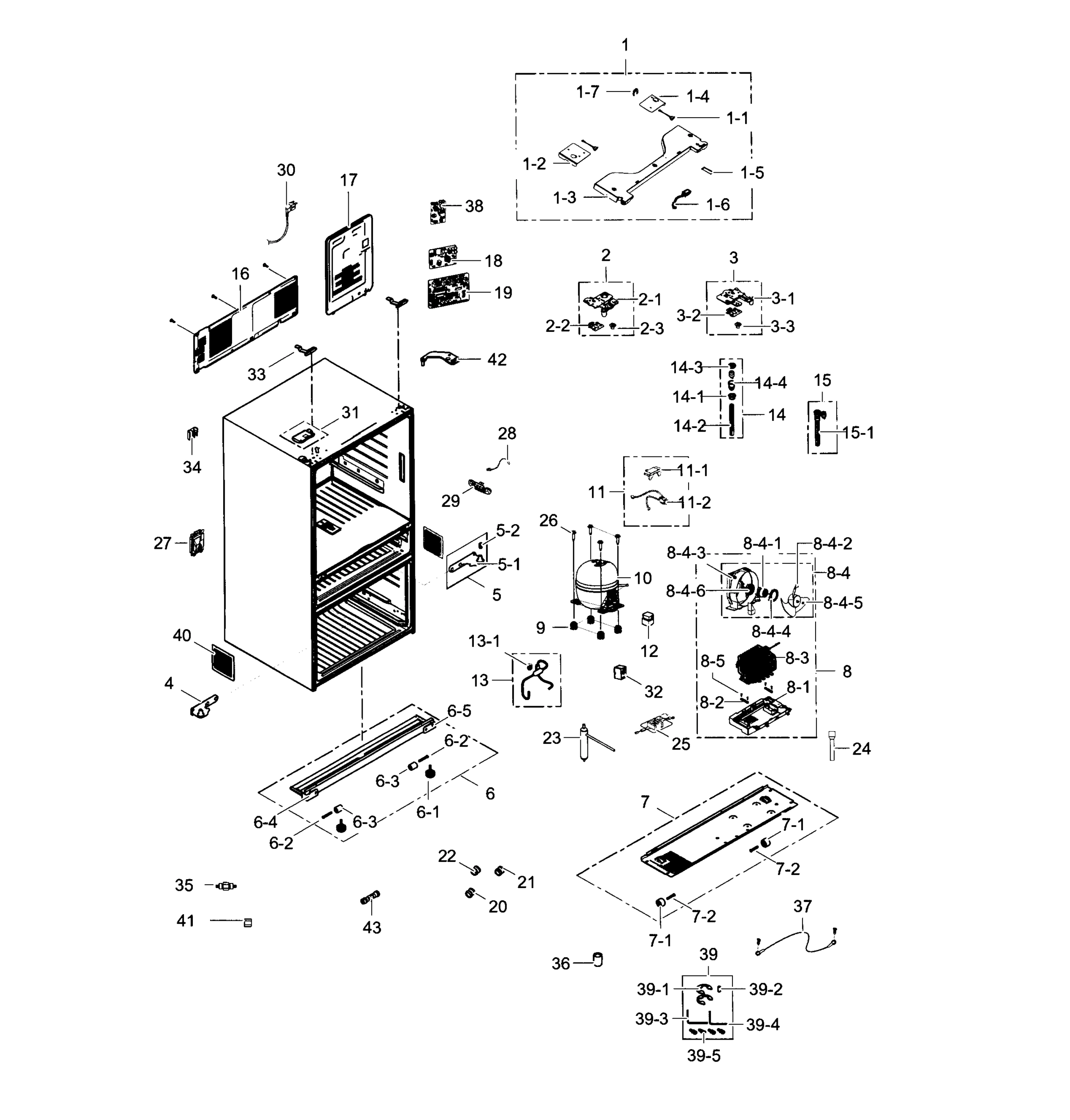

1

DA97-12522S Samsung Refrigerator Gasket Assem Backorder SMG DA97-12522S $155.80

1

DA97-14978A Samsung Assembly Refrigerator Top Backorder SMG DA97-14978A $194.47

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-1

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $155.87

1-1

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $54.38

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

DA61-09950A Samsung Refrigerator Middle Door Backorder SMG DA61-09950A $2.59

DA97-12522Q Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522Q $139.63

1-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

1-4

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

1-4

DA97-14992A Samsung Refrigerator Auto Close A Backorder SMG DA97-14992A $31.86

1-5

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $130.16

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-6

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.72

1-7

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

1-8

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $30.78

1-19

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $25.00

1-21

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.85

1-22

DA64-04526A Samsung Refrigerator Inlay NLA In Stock SMG DA64-04526A $119.68

1-41

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.69

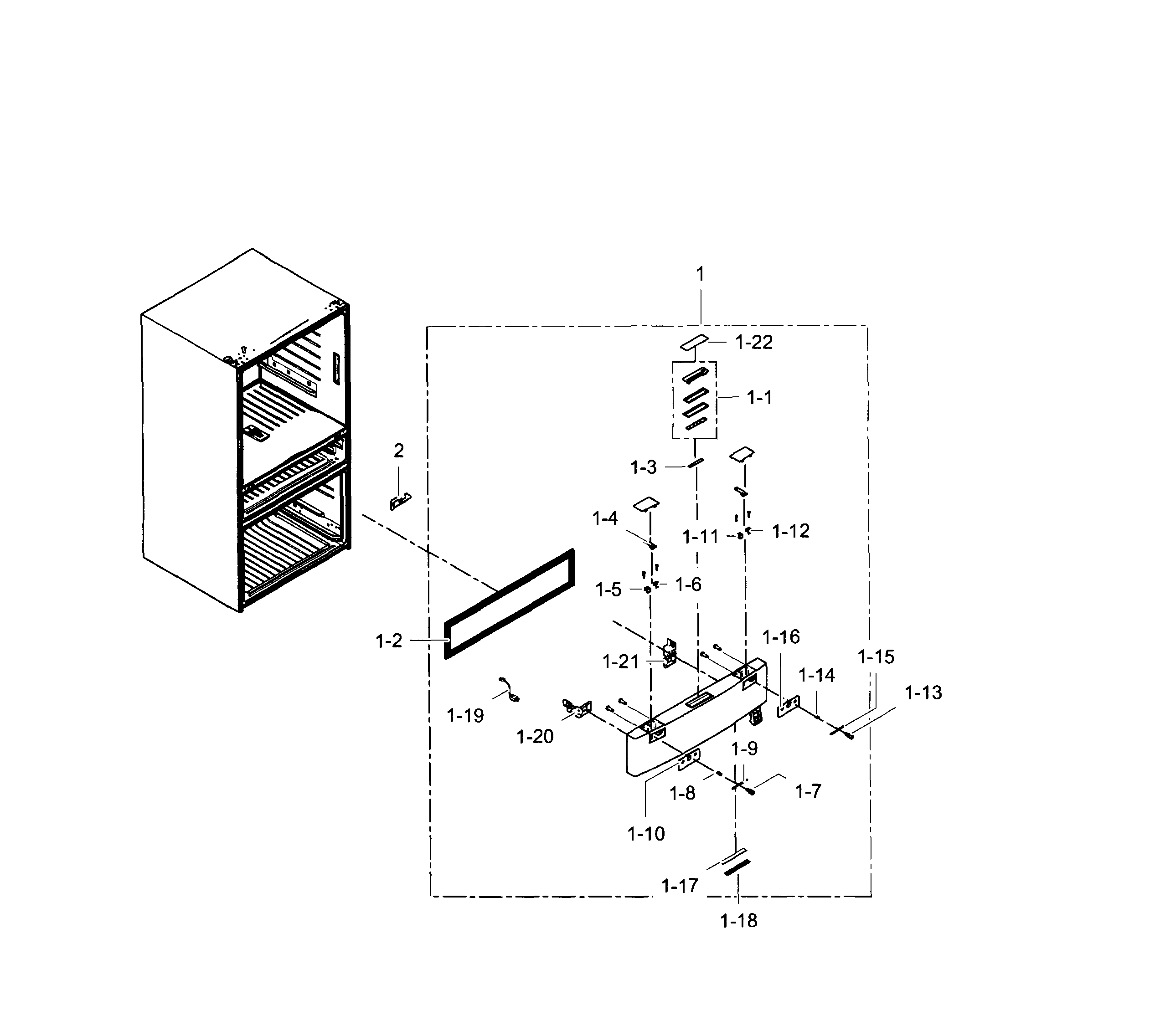

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $3.89

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.56

2

DA91-04290A Samsung Refrigerator Freezer Door Backorder SMG DA91-04290A $292.81

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $195.94

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

2

DA97-13015C Samsung Refrigerator Gray Door Ga In Stock SMG DA97-13015C $128.60

2-1

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.87

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $5.93

2-7

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

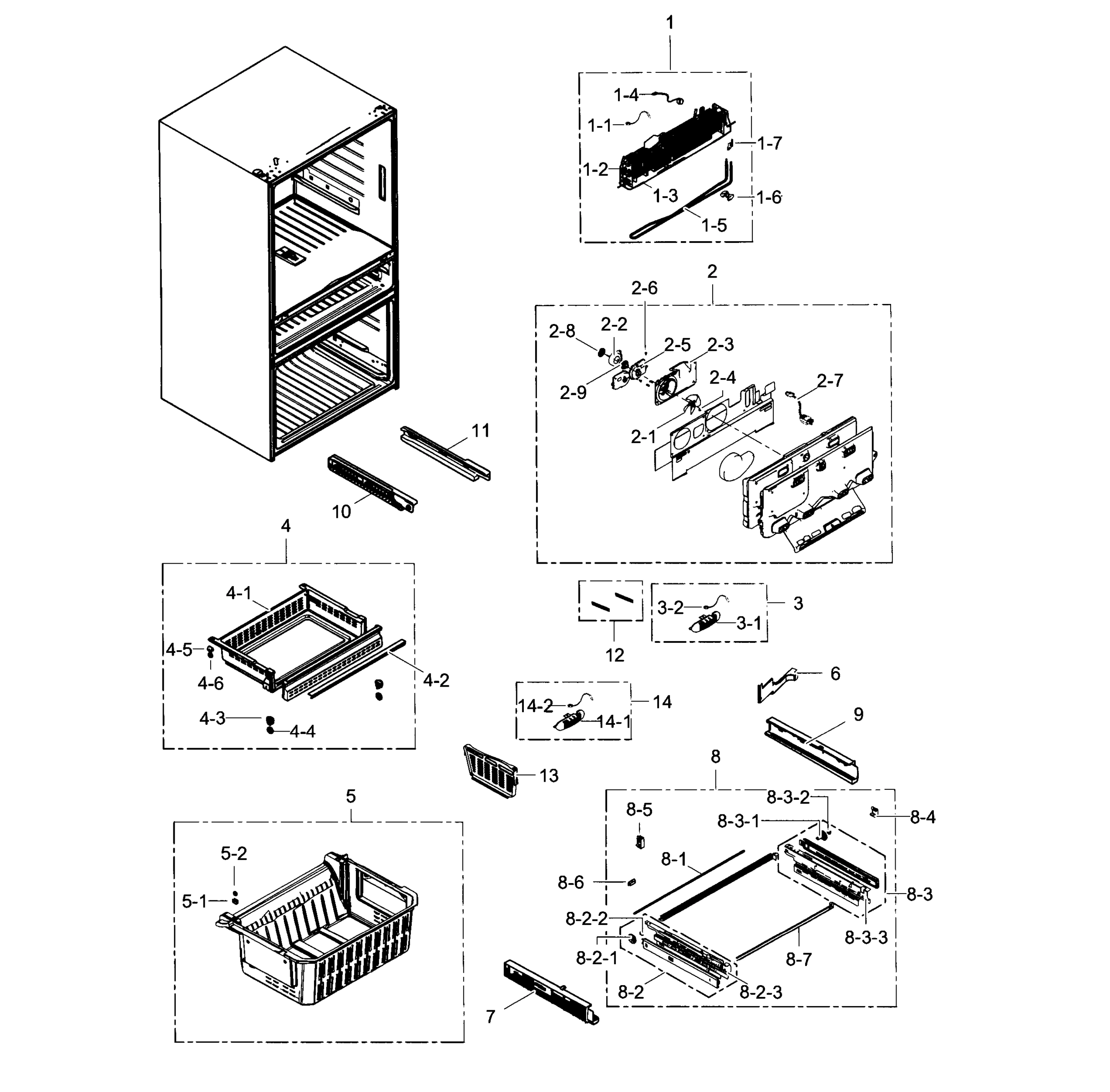

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

3

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

3

DA97-12712C Samsung Refrigerator Freezer Door In Stock SMG DA97-12712C $162.83

3

DA97-14976A Samsung Refrigerator Upper Right Backorder SMG DA97-14976A $70.66

3

DA97-15014A Samsung Refrigerator Door Handle Backorder SMG DA97-15014A $287.89

3-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $18.60

3-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $75.36

3-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $40.17

3-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

3-3

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $20.57

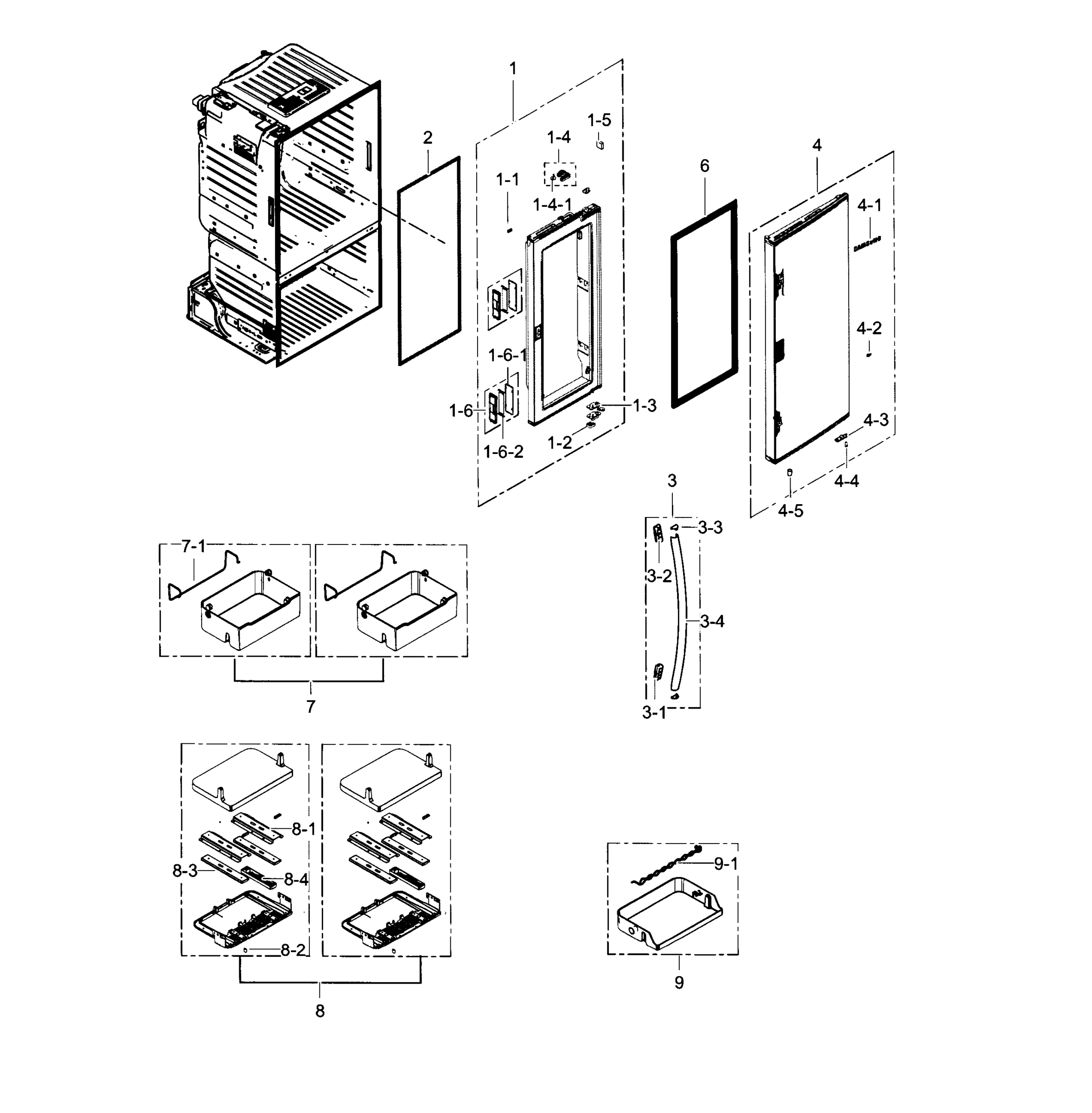

4

DA91-04200A Samsung Refrigerator Outer Door A Backorder SMG DA91-04200A $371.80

4

DA97-12684D Samsung Refrigerator French Door In Stock SMG DA97-12684D $188.37

4-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

4-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $6.05

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

4-3

DA61-09951A Samsung Refrigerator Low Door Sto Backorder SMG DA61-09951A $109.80

4-4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.93

4-5

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.69

4-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

4-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

4-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

4-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

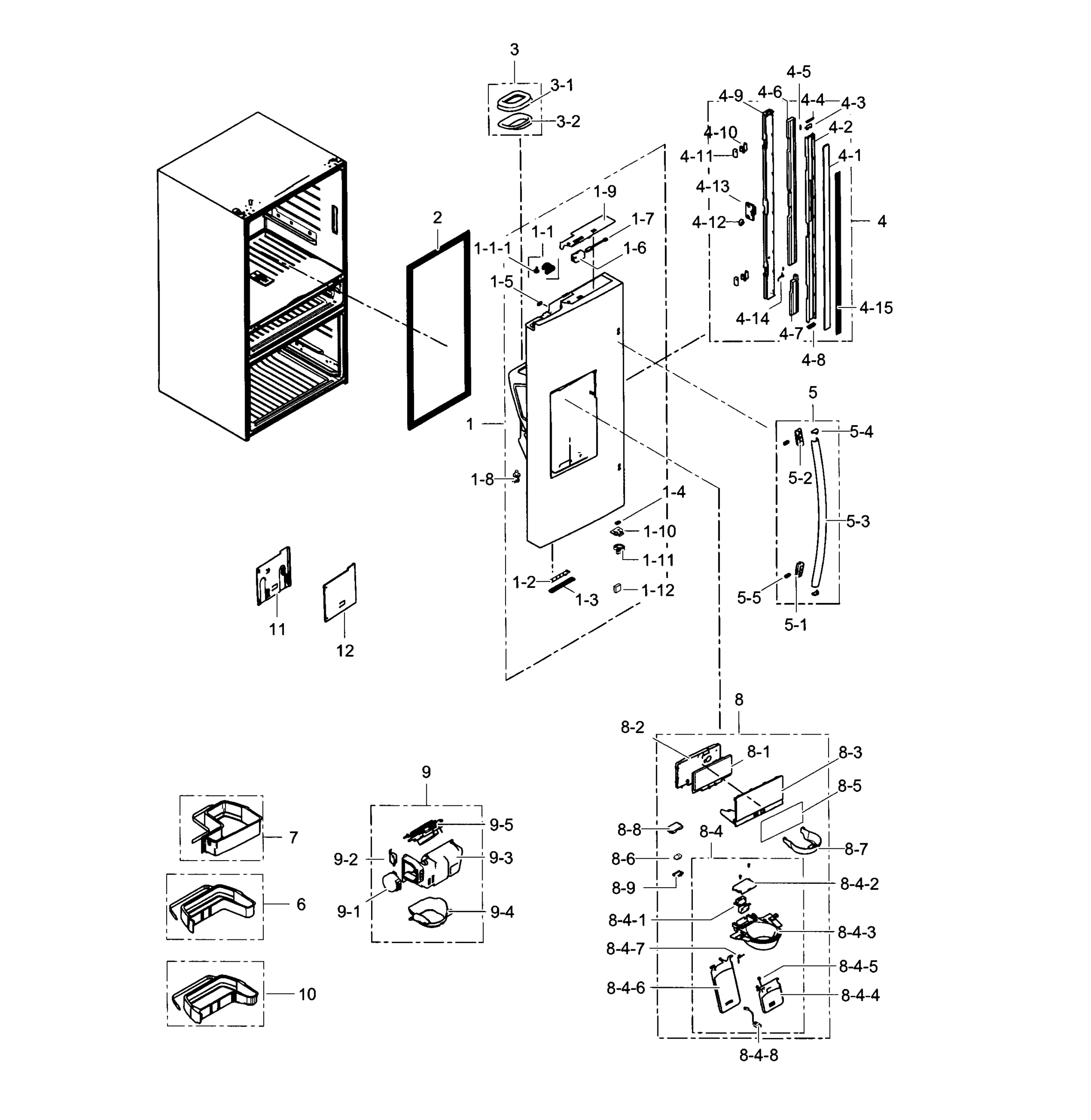

5

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $100.06

5

DA97-13821A Samsung Refrigerator Low Tray Ass Backorder SMG DA97-13821A $118.30

5

DA97-14977A Samsung Refrigerator Right Hand M Backorder SMG DA97-14977A $188.89

5

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

5-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $11.88

5-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

5-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $29.15

5-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.04

5-5

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

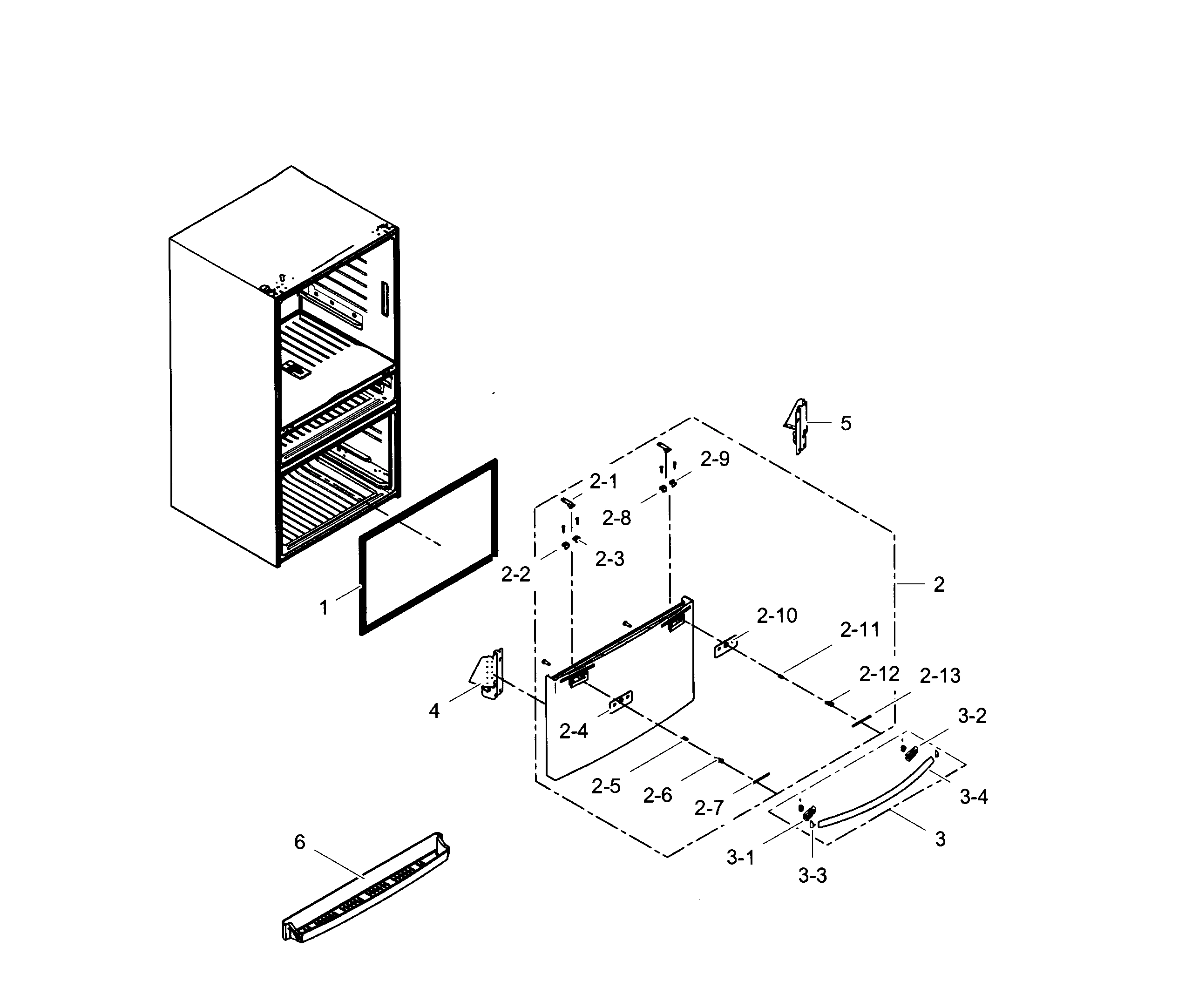

6

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

6

DA63-07512A Samsung Refrigerator Freezer Guar Backorder SMG DA63-07512A $70.22

6

DA97-13915E Samsung Refrigerator Assembly Gas Backorder SMG DA97-13915E $113.72

6-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.55

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

6-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $4.33

6-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $4.33

7

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $45.65

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $129.83

7

DA97-14996A Samsung Refrigerator Lower Right Backorder SMG DA97-14996A $141.95

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

7-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.97

8

DA97-12861B Samsung Refrigerator Low Hanger In Stock SMG DA97-12861B $265.45

8

DA97-13809B Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809B $331.70

8-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $35.07

8-1

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $65.08

8-1

DA92-00451B Samsung Refrigerator LED Display In Stock SMG DA92-00451B $225.77

8-2

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.88

8-3

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

8-6

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

8-6

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $7.55

8-41

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $15.67

8-41

Refrigerator condenser fan motor SMG DA31-00305C Contact Us For Availability

8-42

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

8-43

DA61-08427A Samsung Refrigerator Motor Circui Backorder SMG DA61-08427A $23.22

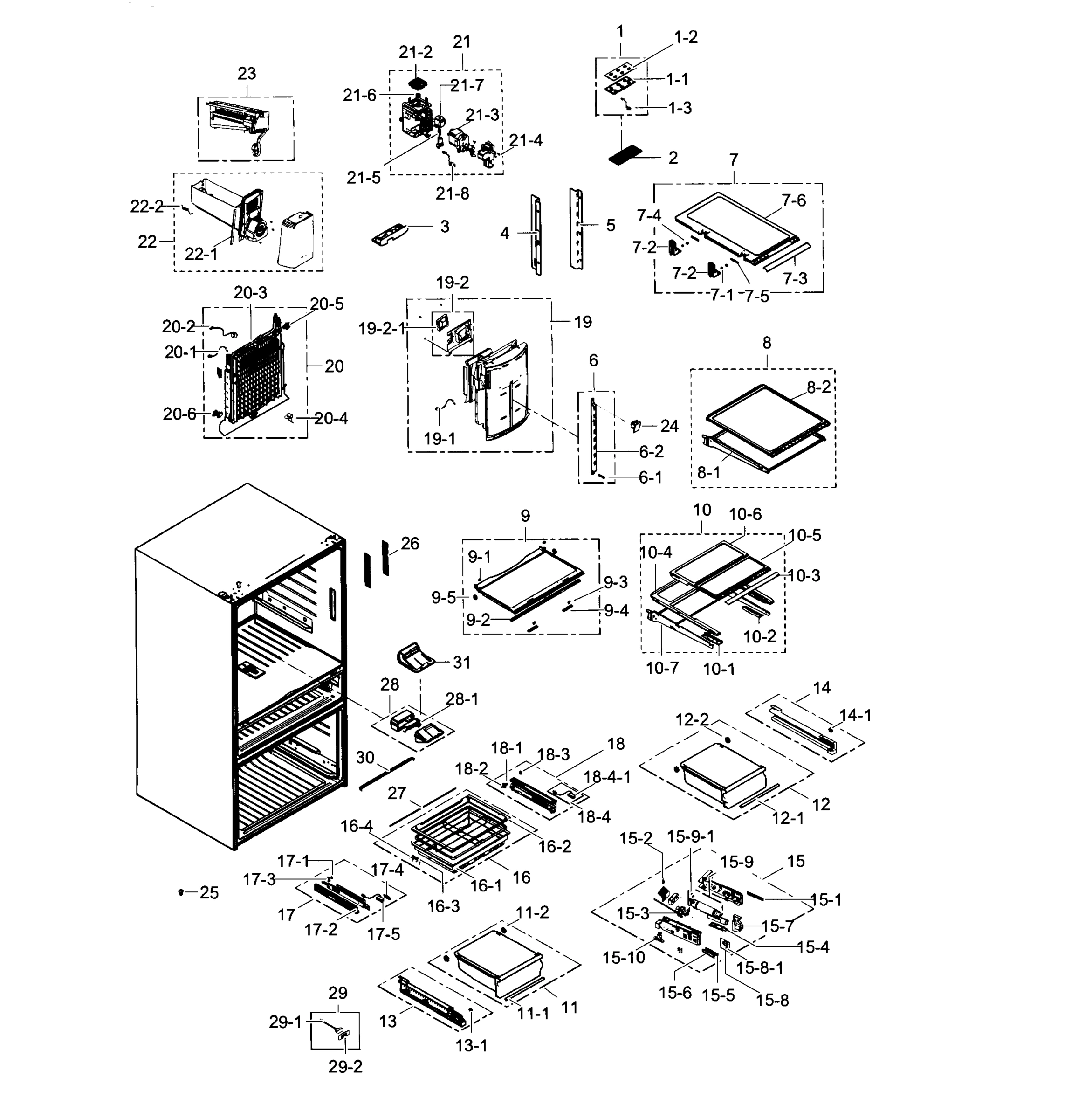

9

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $45.65

9

DA97-12688A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12688A $250.98

9

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $164.88

9-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

9-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

9-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.47

9-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $53.52

10

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $219.01

10

DA97-13835A Samsung Refrigerator Folder Shelf Backorder SMG DA97-13835A $260.09

10

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $358.01

11

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $231.73

11

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $64.60

11

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $176.61

11-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

11-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $24.25

12

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

12

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

12

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $165.72

13

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $96.65

13

DA97-11292B Samsung Refrigerator Vegetable Ra Backorder SMG DA97-11292B $41.32

14

DA97-11291B Samsung Refrigerator Right Slide Backorder SMG DA97-11291B $51.82

15

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

15

DA97-13850A Samsung Refrigerator Filter Tank In Stock SMG DA97-13850A $269.10

15-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.33

15-2

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

15-3

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $180.05

15-8

DA97-08006J Samsung Refrigerator Case Filter Backorder SMG DA97-08006J $113.72

15-9

DA97-11283G Samsung Refrigerator Water Tank A Backorder SMG DA97-11283G $138.78

16

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $287.30

17

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

17-3

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

18

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $268.68

18

Refrigerator crisper drawer slide rail SMG DA97-13780A Contact Us For Availability

18-2

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

18-4

DA96-00640A Samsung Refrigerator Wire Harness In Stock SMG DA96-00640A $182.72

19

DA92-00484D Samsung Refrigerator Main PCB Ass In Stock SMG DA92-00484D $322.89

19

DA97-13757A Samsung Refrigerator Evaporator C In Stock SMG DA97-13757A $177.67

19-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $12.62

19-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $107.97

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

20

DA96-00842A Samsung Refrigerator Evaporator A Backorder SMG DA96-00842A $250.61

20-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

20-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $168.83

20-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

20-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

20-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

21-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

21-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

21-8

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $104.21

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $217.61

22-1

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

22-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

23

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

24

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $2.59

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.38

25

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

27

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

28

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $248.35

28-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $187.44

30

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

31

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.25

33

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

35

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

38

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $146.34

39-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

41

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

43

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

1510

DA62-04258A Samsung Refrigerator Water Valve Backorder SMG DA62-04258A $165.69

1921

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $135.90

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $34.35

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.69

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.16

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.79

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $32.40

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $13.11

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $20.52
