Samsung RF28HFEDTSG/AA-00 Refrigerator Parts List

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $270.42

View on Model

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $62.50

View on Model

1-1

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

View on Model

1-2

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $129.15

View on Model

1-2

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $25.15

View on Model

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

View on Model

1-3

DA64-04477D Samsung Refrigerator Table Top Backorder SMG DA64-04477D $93.77

View on Model

1-4

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

View on Model

1-4

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

View on Model

1-4

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

View on Model

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

View on Model

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

View on Model

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $160.31

View on Model

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

View on Model

1-7

DA34-00066B Samsung Refrigerator Interlock Do Backorder SMG DA34-00066B $24.61

View on Model

1-7

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

View on Model

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

View on Model

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

View on Model

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

View on Model

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

View on Model

2

DA97-08541A Samsung Refrigerator Evaporator C Backorder SMG DA97-08541A $342.37

View on Model

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

View on Model

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

View on Model

2-1

DA96-01177A Samsung Refrigerator Fan Motor Backorder SMG DA96-01177A $220.36

View on Model

2-1-1

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $81.41

View on Model

2-1-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

View on Model

2-1-4

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

View on Model

2-1-5

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

View on Model

2-1-8

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

View on Model

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

View on Model

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

View on Model

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

View on Model

3

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $85.97

View on Model

3

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

View on Model

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $88.64

View on Model

3

DA97-13805B Samsung Refrigerator Bin Assembly Backorder SMG DA97-13805B $190.80

View on Model

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

View on Model

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

View on Model

4

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

View on Model

4

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $114.02

View on Model

4-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $4.02

View on Model

4-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $70.47

View on Model

4-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $68.26

View on Model

4-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

View on Model

4-2-1

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

View on Model

4-2-2

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

View on Model

4-2-3

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

View on Model

4-2-4

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

View on Model

4-2-5

DA66-00579B Samsung Refrigerator Handle Cap S In Stock SMG DA66-00579B $7.82

View on Model

4-5

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

View on Model

4-6

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $25.49

View on Model

5

DA61-08318B Samsung Refrigerator Left Middle Backorder SMG DA61-08318B $144.77

View on Model

5

DA97-12522K Samsung Refrigerator Black Door G Backorder SMG DA97-12522K $136.82

View on Model

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $148.84

View on Model

5

DA97-14383A Samsung Refrigerator Lower Hanger Backorder SMG DA97-14383A $292.00

View on Model

5-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

View on Model

5-1

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

View on Model

5-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

View on Model

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.35

View on Model

5-3

DA97-12712D Samsung Refrigerator Black Freeze Backorder SMG DA97-12712D $175.96

View on Model

5-3

DA97-13661A Samsung Low Left Rail Assembly Backorder SMG DA97-13661A $211.10

View on Model

5-3-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

View on Model

5-3-4

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $6.47

View on Model

5-3-5

Refrigerator Freezer Basket Slide Rail Assemb SMG DA61-09087A Contact Us For Availability

View on Model

5-4

DA97-12714E Samsung Refrigerator Right Door H Backorder SMG DA97-12714E $176.79

View on Model

5-4

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $171.86

View on Model

5-4-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $7.82

View on Model

5-4-4

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $216.59

View on Model

5-5

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.60

View on Model

5-5

DA97-08117B Samsung Refrigerator Ice Route Co Backorder SMG DA97-08117B $75.17

View on Model

5-5

Refrigerator door handle assembly, left SMG DA97-12715F Contact Us For Availability

View on Model

5-6

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

View on Model

5-7

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.90

View on Model

6

DA97-12624B Samsung Refrigerator Flipper Asse Backorder SMG DA97-12624B $169.88

View on Model

6

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $85.31

View on Model

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

View on Model

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $10.06

View on Model

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.85

View on Model

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $17.32

View on Model

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $183.82

View on Model

7

DA97-14318A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-14318A $196.07

View on Model

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $153.32

View on Model

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

View on Model

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

View on Model

8

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $107.54

View on Model

8

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $129.98

View on Model

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

View on Model

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

View on Model

9

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $156.36

View on Model

9

DA97-10634B Samsung Refrigerator Shelf Slide Backorder SMG DA97-10634B $151.60

View on Model

9

DA97-13809G Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809G $318.45

View on Model

9

DA97-15978B Samsung Refrigerator Drain Tray A Backorder SMG DA97-15978B $241.62

View on Model

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

View on Model

9-2-1

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

View on Model

9-3

Refrigerator Dispenser Lever SMG DA97-12628H Contact Us For Availability

View on Model

9-3-1

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

View on Model

9-5

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $194.28

View on Model

9-6-2

DA92-00597A Samsung Refrigerator LED Display Backorder SMG DA92-00597A $314.88

View on Model

10

Samsung Refrigerator Crisper Drawer Cover Ass SMG DA97-08511B No Longer Available

View on Model

10-3

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

View on Model

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

View on Model

11

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $92.28

View on Model

11

NC1MV90ALP/ASH Samsung Refrigerator Compresso Backorder SMG NC1MV90ALP/ASH $306.74

View on Model

12

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $25.10

View on Model

12

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $197.34

View on Model

12

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $194.28

View on Model

12-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

View on Model

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

View on Model

13-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $125.94

View on Model

13-3

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $21.83

View on Model

13-5

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $42.61

View on Model

13-6

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.11

View on Model

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $149.06

View on Model

15

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

View on Model

15

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $42.61

View on Model

16

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $209.90

View on Model

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.25

View on Model

16-2

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $101.97

View on Model

17

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $55.84

View on Model

18

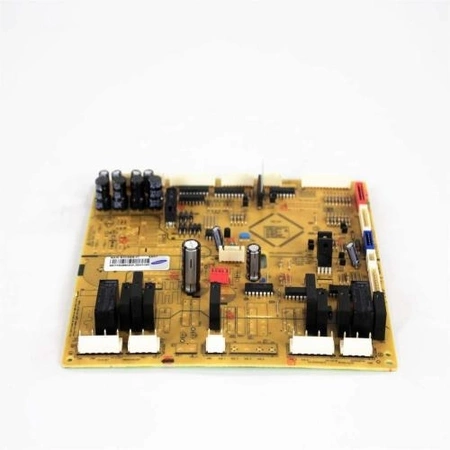

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

View on Model

19

DA92-00593L Samsung Refrigerator Dual Ice & W Backorder SMG DA92-00593L $89.22

View on Model

19

Refrigerator Drawer Cover SMG DA97-06327A Contact Us For Availability

View on Model

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

View on Model

20

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $176.14

View on Model

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

View on Model

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

View on Model

21-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

View on Model

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

View on Model

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

View on Model

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.72

View on Model

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

View on Model

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

View on Model

22

DA97-12608B Samsung Refrigerator Evaporator F Backorder SMG DA97-12608B $239.32

View on Model

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

View on Model

22-4-2

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

View on Model

23

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $138.60

View on Model

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $267.70

View on Model

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

View on Model

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

View on Model

23-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $112.69

View on Model

23-6

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

View on Model

24

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $182.51

View on Model

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

View on Model

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

View on Model

24-4

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.48

View on Model

25

DA27-00043D Samsung Refrigerator Coil Filter Backorder SMG DA27-00043D $107.32

View on Model

25-1

DA67-02014B Samsung Refrigerator Insert Fix S Backorder SMG DA67-02014B $95.62

View on Model

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $7.99

View on Model

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

View on Model

27-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

View on Model

28

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

View on Model

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

View on Model

29

DA97-11540C Samsung Refrigerator Pantry Case Backorder SMG DA97-11540C $262.49

View on Model

29-1

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $134.51

View on Model

29-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $63.38

View on Model

29-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.10

View on Model

30

DA32-10109B Samsung Refrigerator Temperature Backorder SMG DA32-10109B $30.32

View on Model

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

View on Model

31

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $320.98

View on Model

33

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

View on Model

36

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

View on Model

37

DA92-00483N Samsung Refrigerator Inverter Ass Backorder SMG DA92-00483N $239.45

View on Model

38

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

View on Model

39

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

View on Model

40

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.14

View on Model

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

View on Model

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

View on Model

48

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $227.32

View on Model

49

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $227.57

View on Model

50

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

View on Model

55

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $92.52

View on Model

Model Samsung RF28HFEDTSG/AA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF28HFEDTSG/AA-00 Refrigerator

Search result for :

Help

Customer Service

Company

Model Samsung RF28HFEDTSG/AA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF28HFEDTSG/AA-00 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
