Model Samsung RF263TEAESG/AA-04 Refrigerator – Common Parts &amp; Diagrams

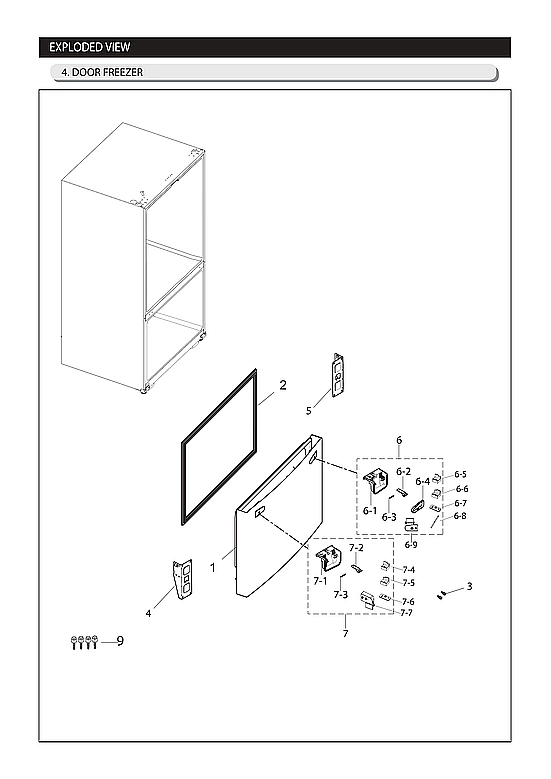

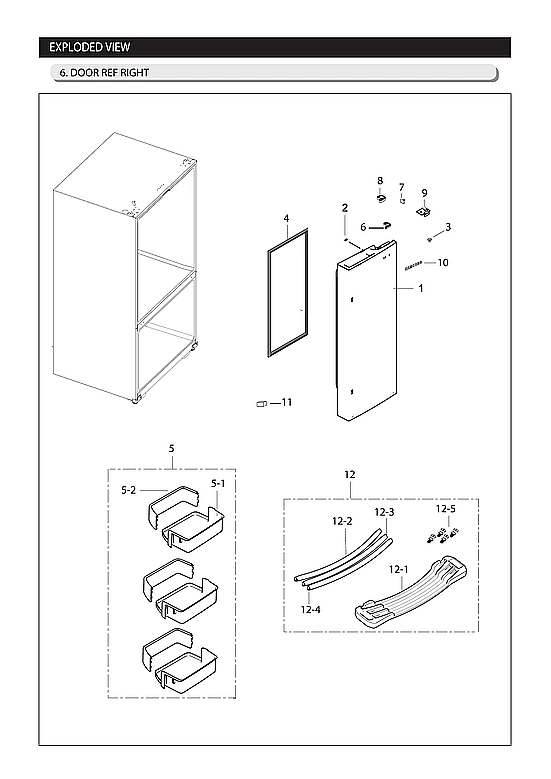

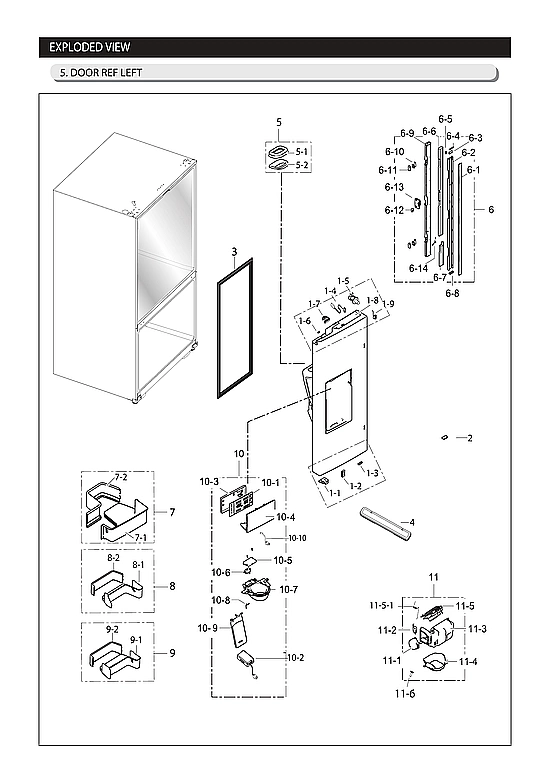

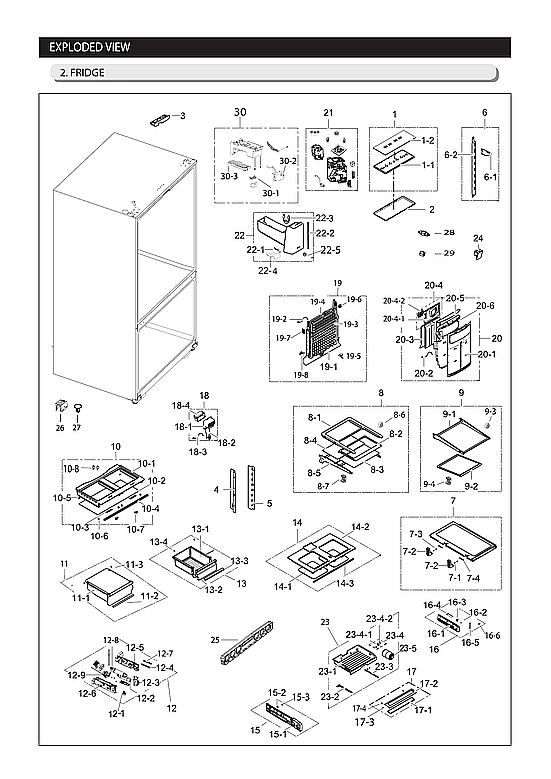

1

DA91-03908M Samsung Refrigerator Door Foam As Backorder SMG DA91-03908M $372.05

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $279.00

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $258.43

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $69.80

1-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $30.23

1-2

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $146.51

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

1-2

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

1-4

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

1-5

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $23.02

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $2.59

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $84.79

2

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $16.83

2

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $6.05

2

DA63-06541E Samsung Refrigerator Door Gasket In Stock SMG DA63-06541E $163.46

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

2

Refrigerator evaporator cover SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.93

2-5

DA96-00959D Samsung Refrigerator 12V DC Fan M Backorder SMG DA96-00959D $191.89

2-5-1

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $14.04

2-5-3

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

2-5-4

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

2-5-5

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

2-5-8

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $78.65

2-5-9

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $11.88

3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $71.20

3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $3.89

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

3-6

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

3-7

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $37.59

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

4

DA63-06542B Samsung Refrigerator Rh/FF Door S In Stock SMG DA63-06542B $148.35

4

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $42.76

5

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $53.34

5

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $81.46

5

DA61-07771C Samsung Refrigerator Left Middle Backorder SMG DA61-07771C $154.31

5

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

5

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $144.30

5-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $40.85

5-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

6

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $93.64

6

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

6

DA97-12659C Samsung Refrigerator Right Middle Backorder SMG DA97-12659C $154.47

6

DA97-12683B Samsung Refrigerator Flipper Asse In Stock SMG DA97-12683B $181.38

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $91.50

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $9.72

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.93

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $16.21

7

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $202.42

7

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $158.13

7

Refrigerator folding shelf assembly SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $149.02

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

7-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $209.51

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

7-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $7.55

8

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.69

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $168.95

8

Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability

8

Refrigerator glass shelf SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

8-2

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

8-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $6.47

9

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $31.23

9

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $151.09

9

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $164.39

9

Refrigerator condenser coil and fan motor ass SMG DA97-05043L Contact Us For Availability

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $186.43

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $7.77

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $184.08

DA97-12675S Samsung Refrigerator Dispenser Co Backorder SMG DA97-12675S $402.81

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $232.57

10-1

DA92-00368A Samsung Refrigerator Assembly Pri Backorder SMG DA92-00368A $215.89

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $10.26

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.47

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

10-6

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

10-8

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $4.87

10-10

DA96-01223B Samsung Refrigerator Display Wire Backorder SMG DA96-01223B $50.02

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $219.01

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $219.99

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $256.76

MSV172AL2J/SM3 Samsung Refrigerator Compresso In Stock SMG MSV172AL2J/SM3 $370.29

11-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $19.57

11-5

DA97-08117B Samsung Refrigerator Ice Route Co Backorder SMG DA97-08117B $72.64

11-5-1

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.79

11-6

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11-7

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $20.52

12

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $231.73

12

DA97-12662A Samsung Refrigerator Filter Tank Backorder SMG DA97-12662A $317.75

12-2

DA97-12712D Samsung Refrigerator Black Freeze In Stock SMG DA97-12712D $160.20

12-3

DA97-12714E Samsung Refrigerator Right Door H Backorder SMG DA97-12714E $179.87

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

12-4

Refrigerator door handle assembly, left SMG DA97-12715F Contact Us For Availability

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $43.25

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $185.09

13

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $299.23

14

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

14

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $244.04

15

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

15

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $146.37

15

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $65.85

16

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

16

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

16-3

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $50.45

17

DA92-00768D Samsung Refrigerator Inverter PCB In Stock SMG DA92-00768D $270.57

17

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $179.49

17

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

18

DA92-00384K Samsung Refrigerator Main PCB Ass In Stock SMG DA92-00384K $78.23

18

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $181.12

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $183.59

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $277.34

19-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $51.41

19-2

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

19-4

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $111.97

19-5

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

19-7

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

19-8

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $33.35

20-4-2

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $135.90

21

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $217.61

22-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

22-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

22-5

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.33

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $156.14

23-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

25

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $34.10

26

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $37.63

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

27

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.69

28

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

29

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

30

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $204.54

30-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

30-2

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $215.89

30-3

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

31

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.55

32

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $21.66

34

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $95.28

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $24.62

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.69

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.16

DA61-06014B Samsung Refrigerator Handle Assem Backorder SMG DA61-06014B $6.47

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.79

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $4.87

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $7.55
