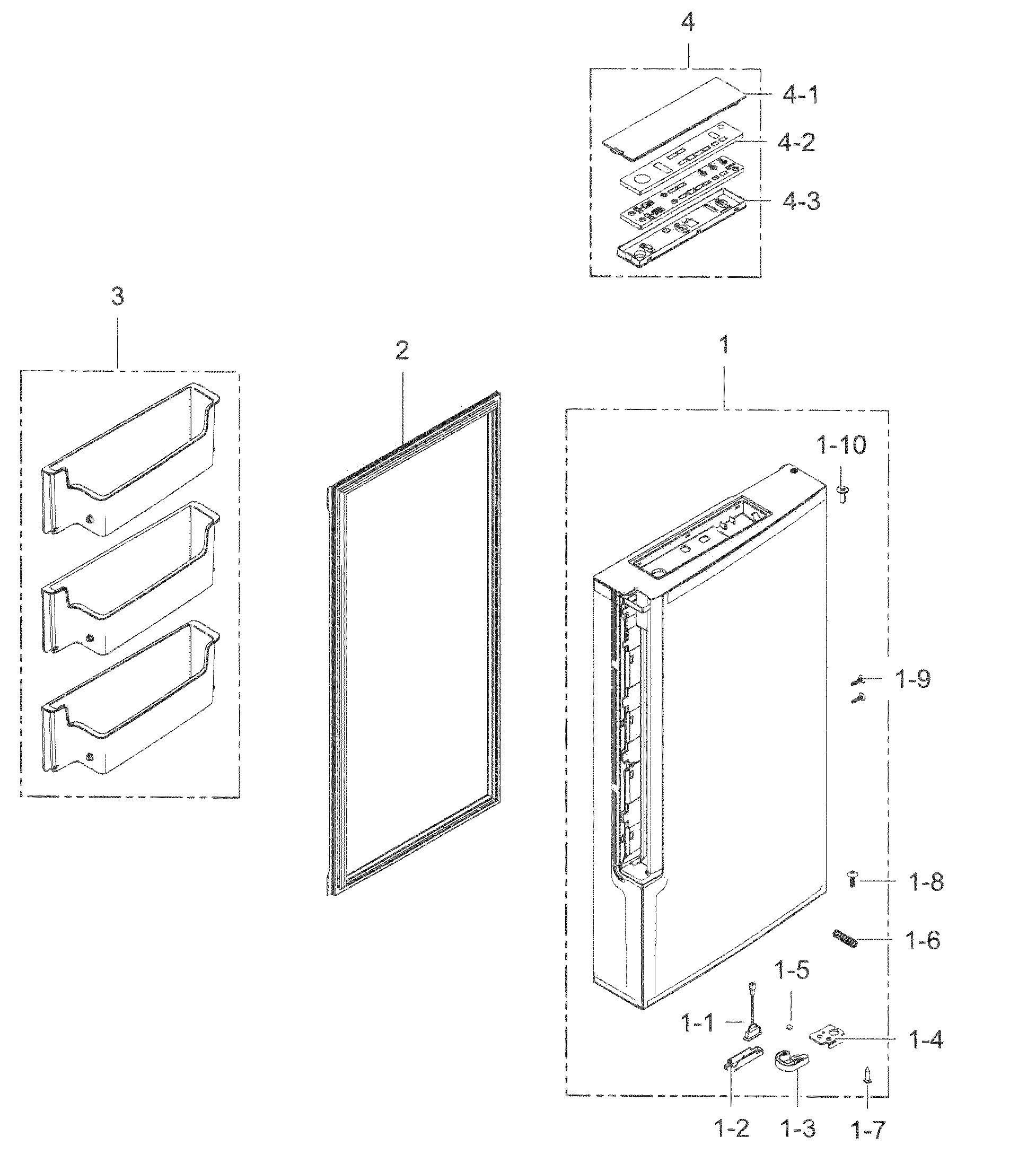

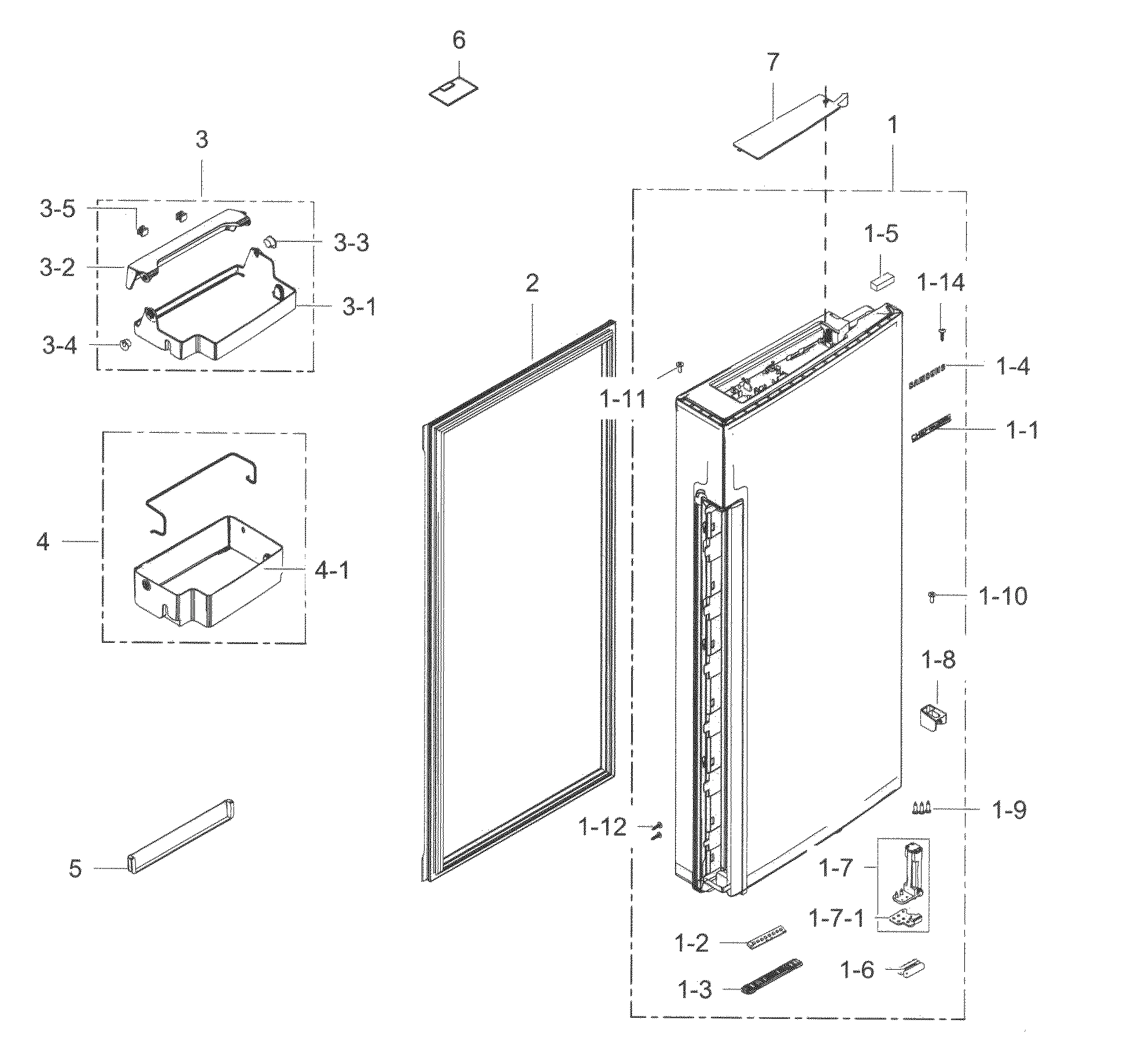

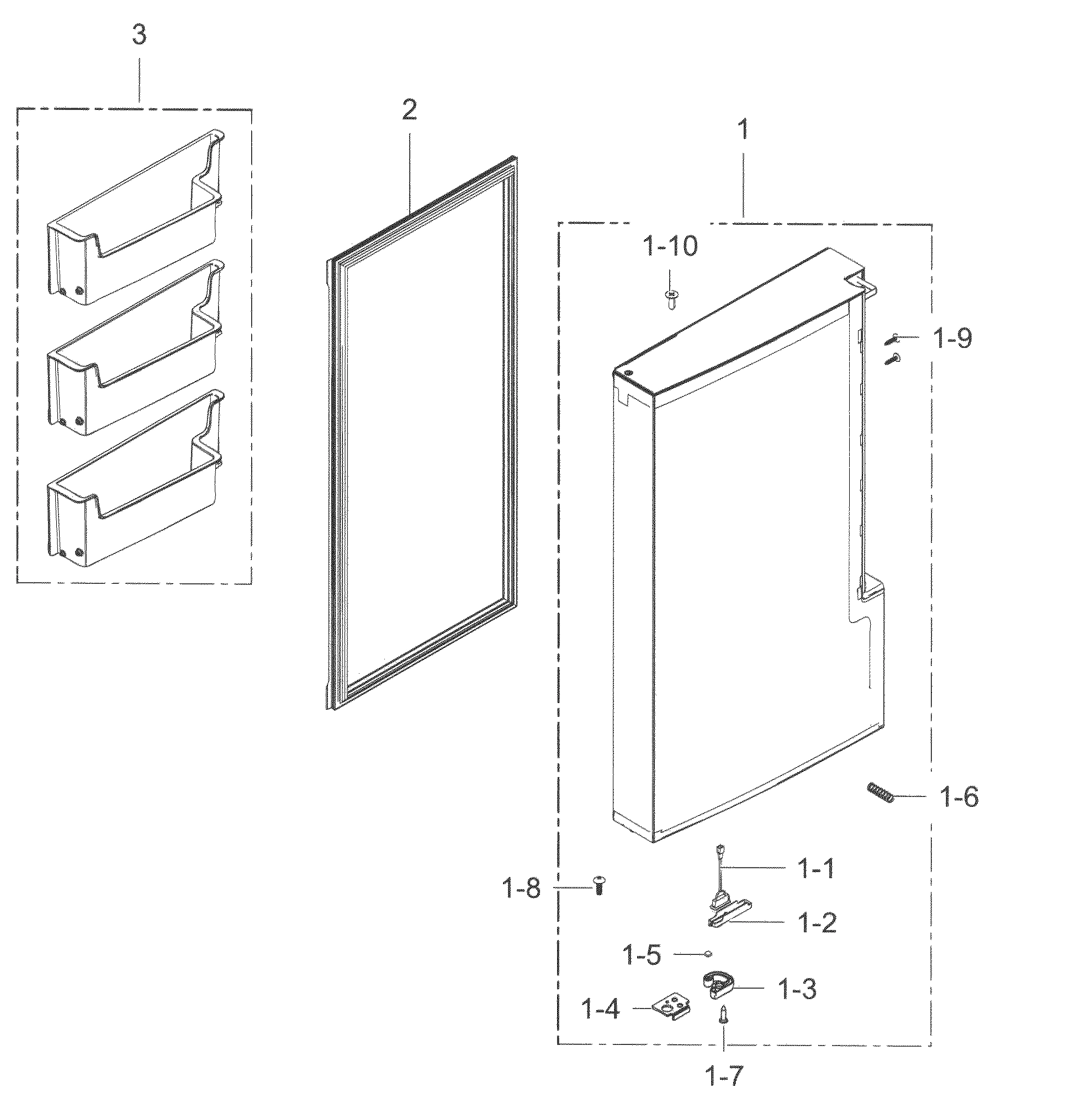

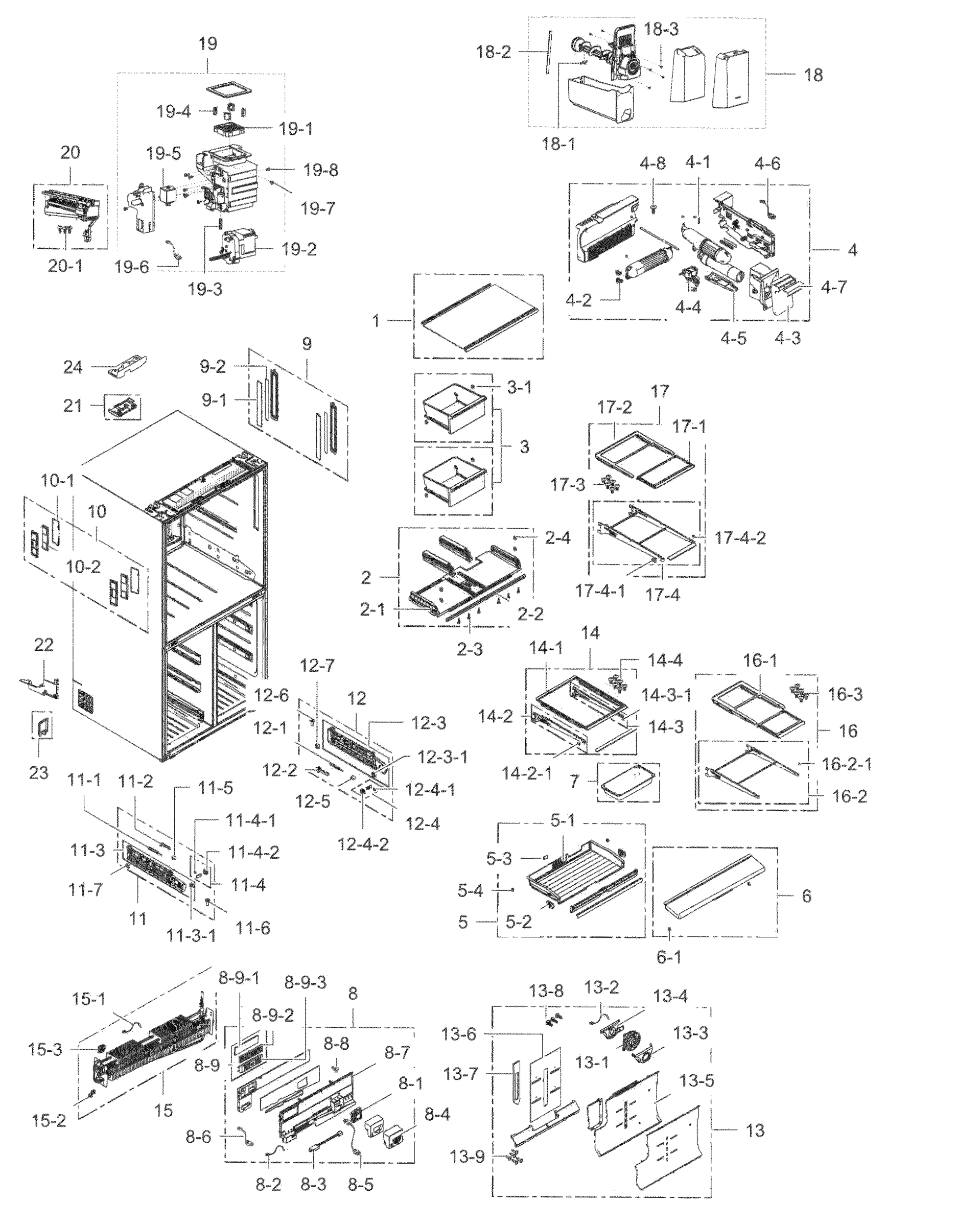

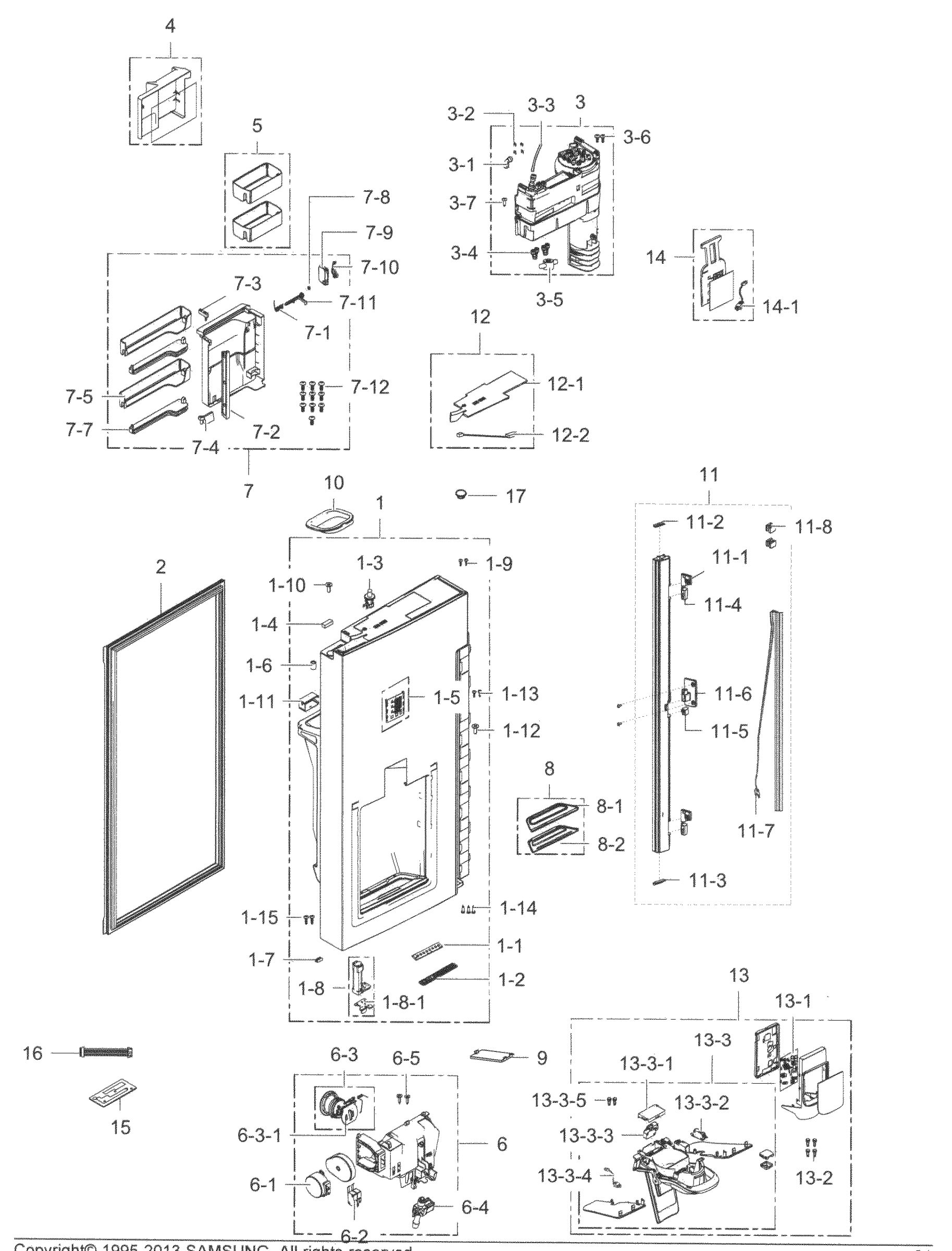

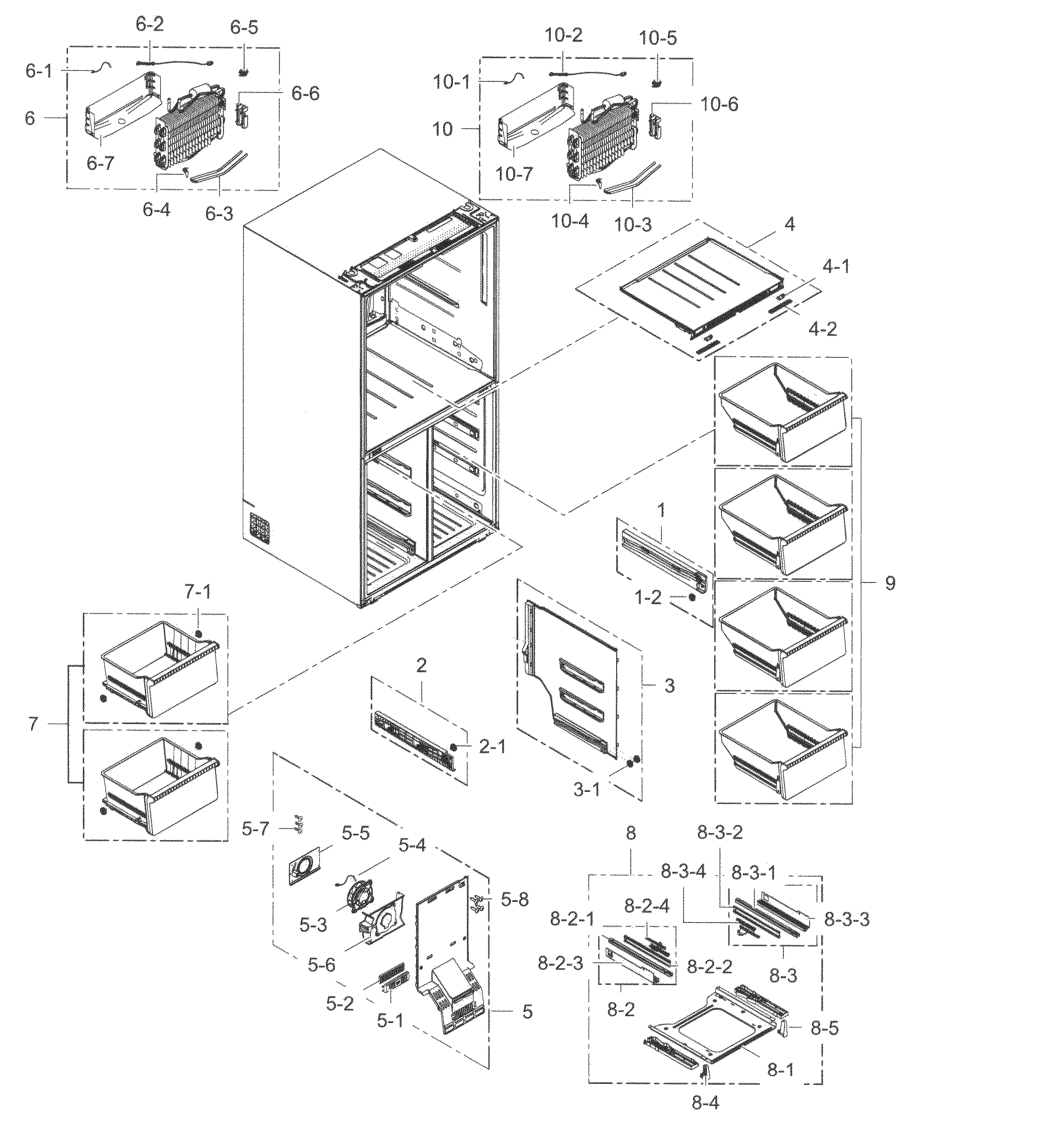

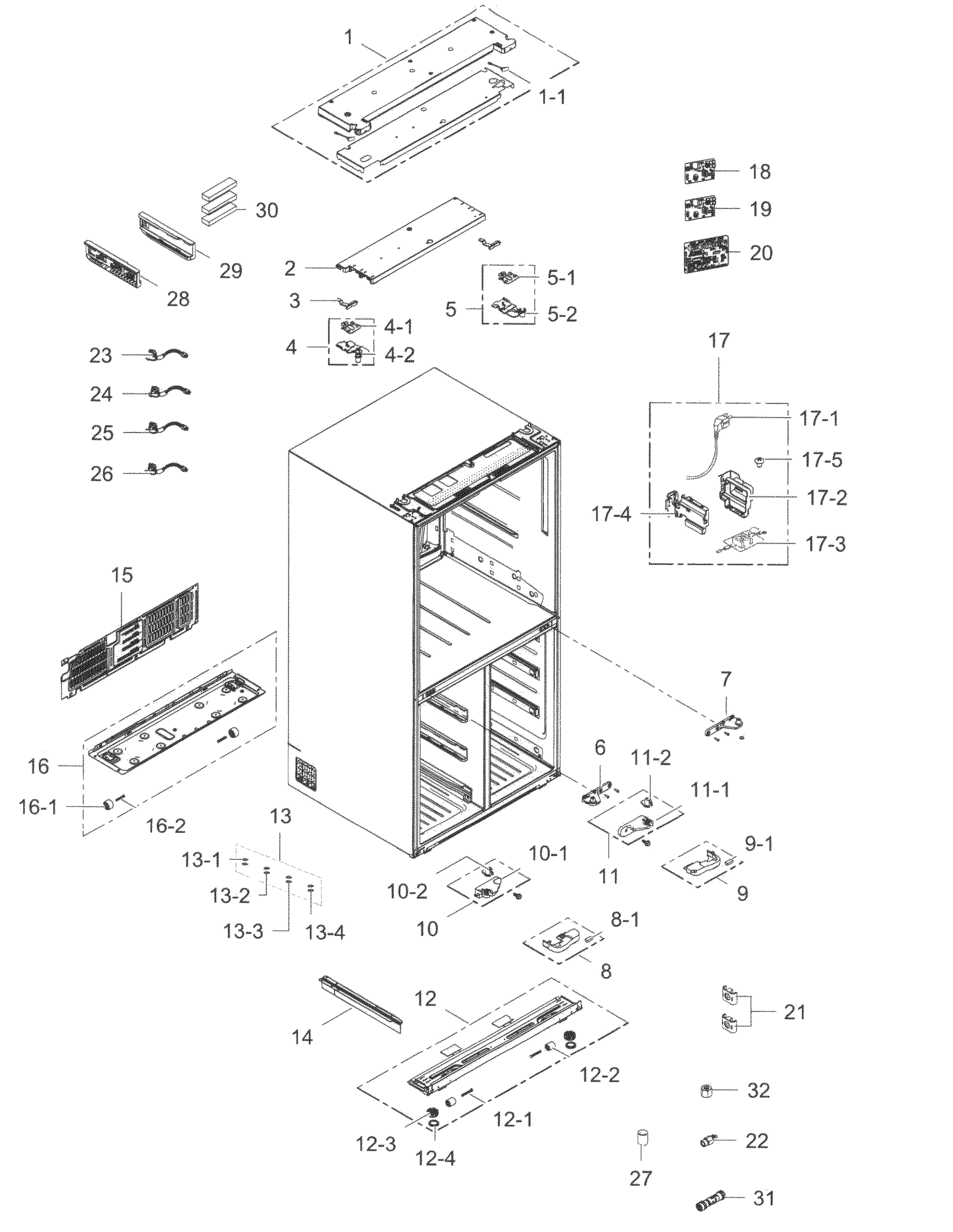

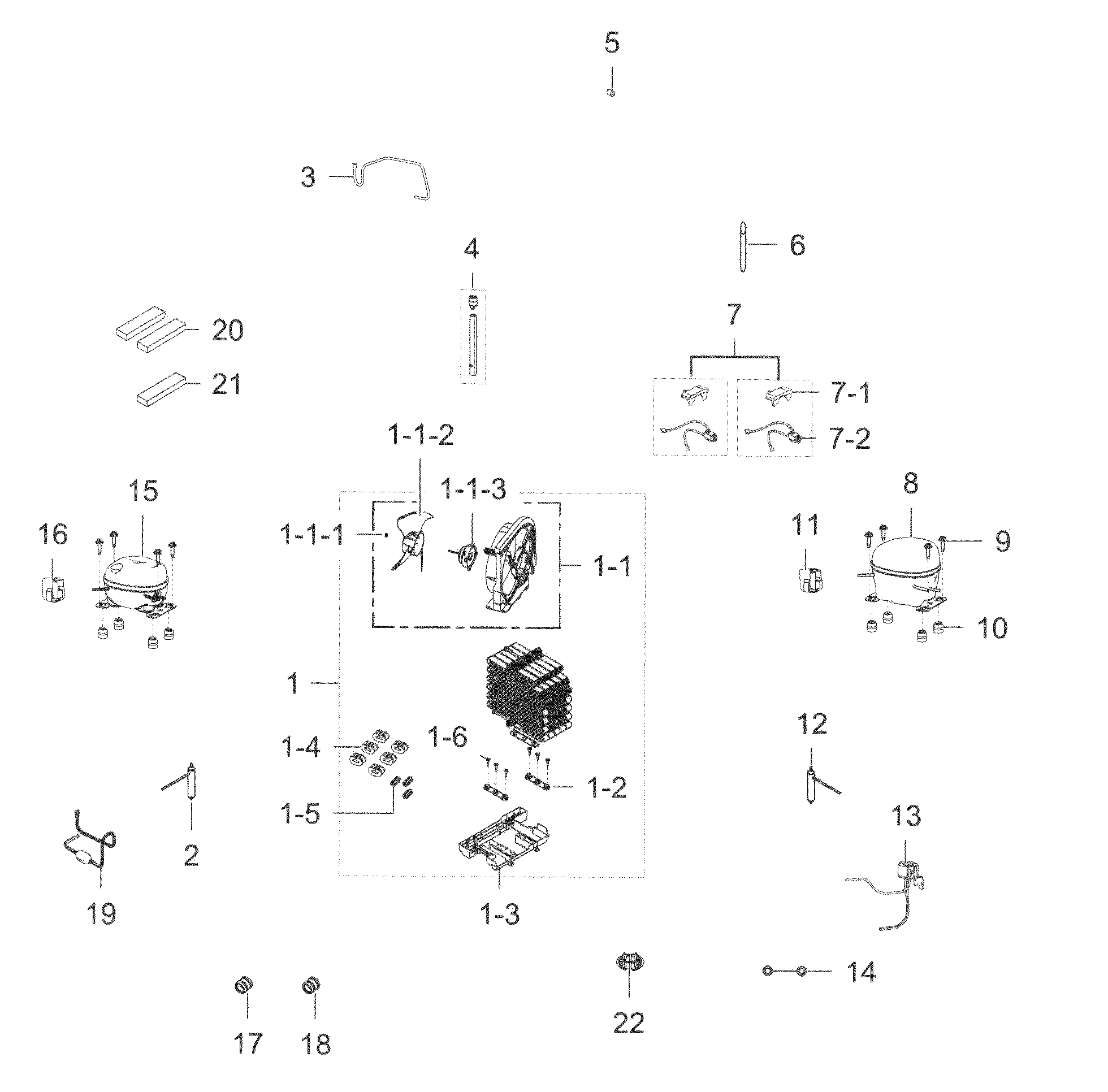

Model Samsung RF24J9960S4/AA-03 Refrigerator – Common Parts &amp; Diagrams

1

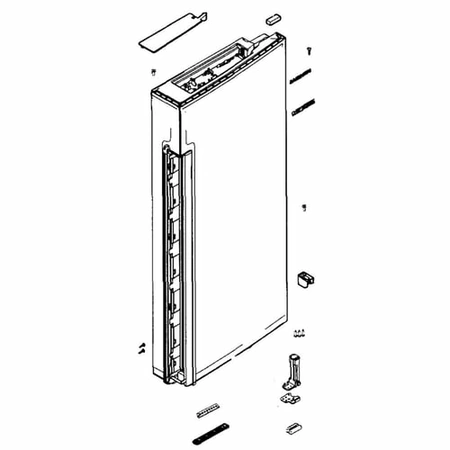

DA91-04393A Samsung Refrigerator Right Door F Backorder SMG DA91-04393A $438.02

1

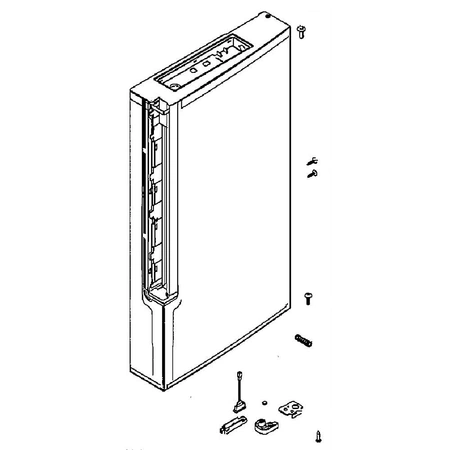

DA91-04394A Samsung Refrigerator Right Door F Backorder SMG DA91-04394A $453.90

1

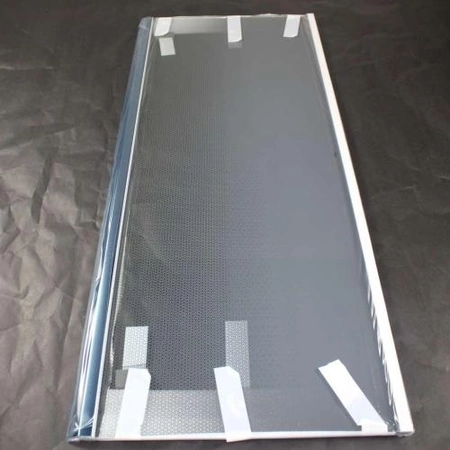

DA97-15886A Samsung Refrigerator Cover Assemb Backorder SMG DA97-15886A $211.24

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-1

DA64-04752A Samsung Inlay Backorder SMG DA64-04752A $44.68

1-1

DA97-15765B Samsung Refrigerator Motor Suppor Backorder SMG DA97-15765B $126.97

1-3

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $24.11

1-3

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

1-4

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-7

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

1-7

DA97-14536A Samsung Refrigerator Right Hinge Backorder SMG DA97-14536A $109.77

1-8

DA97-14535A Samsung Refrigerator Left Hinge A Backorder SMG DA97-14535A $111.25

1-8

Refrigerator Guide SMG DA61-10666A Contact Us For Availability

1-9

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.18

1-11

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

1-12

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-12

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

1-13

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $193.33

1-14

6002-001515 Samsung Tapping Screw Backorder SMG 6002-001515 $1.18

1-71

DA61-09735A Samsung Refrigerator Right Door S Backorder SMG DA61-09735A $15.67

2

DA97-15248C Samsung Refrigerator Gray Gasket Backorder SMG DA97-15248C $116.59

2

DA97-15249A Samsung Refrigerator Gray Gasket Backorder SMG DA97-15249A $124.72

2

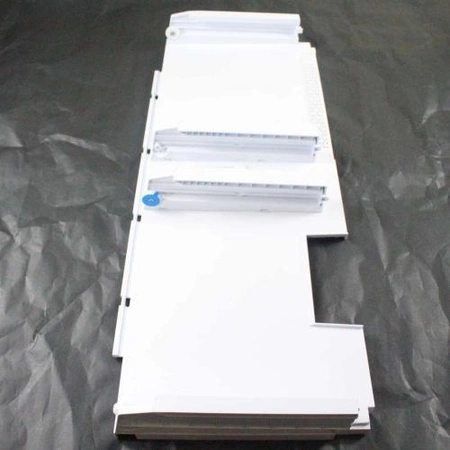

DA97-15881A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-15881A $172.07

2-1

Refrigerator Shelf SMG DA67-04080A Contact Us For Availability

2-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

2-4

DA97-15998A Samsung Refrigerator Roller Assem Backorder SMG DA97-15998A $9.18

3

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

3

DA97-14483A Samsung Refrigerator Right Guard Backorder SMG DA97-14483A $98.85

3

DA97-15882A Samsung Refrigerator Left Vegetab Backorder SMG DA97-15882A $170.02

3

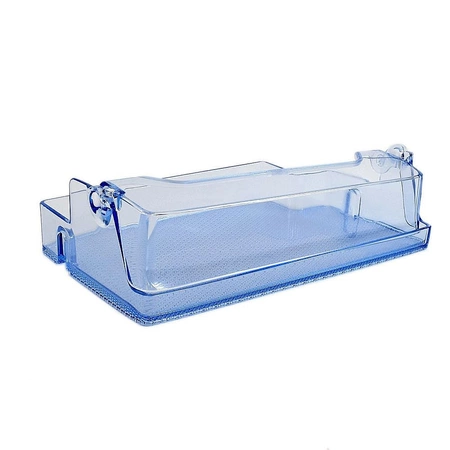

DA97-15912A Samsung Refrigerator Dairy Guard Backorder SMG DA97-15912A $131.18

3

Refrigerator Carbonated Water Dispenser Assem SMG DA97-14605A Contact Us For Availability

3-1

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

3-1

Refrigerator Guard SMG DA63-08211A Contact Us For Availability

3-2

Refrigerator Cover SMG DA63-08221A Contact Us For Availability

3-3

DA67-02920A Samsung Refrigerator Dairy Hinge Backorder SMG DA67-02920A $2.79

3-4

DA67-02921A Samsung Dairy Hinge Cap Backorder SMG DA67-02921A $3.74

3-5

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $2.14

4

DA97-04049M Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049M $17.32

4

DA97-14531A Samsung Refrigerator Left Up Hing Backorder SMG DA97-14531A $64.55

4

DA97-14768A Samsung Refrigerator Control Cove Backorder SMG DA97-14768A $215.29

4

DA97-15879A Samsung Refrigerator Case Water F Backorder SMG DA97-15879A $299.13

4

DA97-15911A Samsung Refrigerator Right Guard Backorder SMG DA97-15911A $162.14

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

Refrigerator cover SMG DA63-07798A Contact Us For Availability

Refrigerator Guard SMG DA63-08212A Contact Us For Availability

4-2

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

4-2

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

4-2

DA92-00614A Samsung Refrigerator Module Assem Backorder SMG DA92-00614A $255.73

4-3

Refrigerator cover SMG DA63-07799A Contact Us For Availability

4-3

Refrigerator Case SMG DA61-10647A Contact Us For Availability

4-4

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

4-5

DA63-05407A Samsung Refrigerator Water Filter Backorder SMG DA63-05407A $17.04

4-6

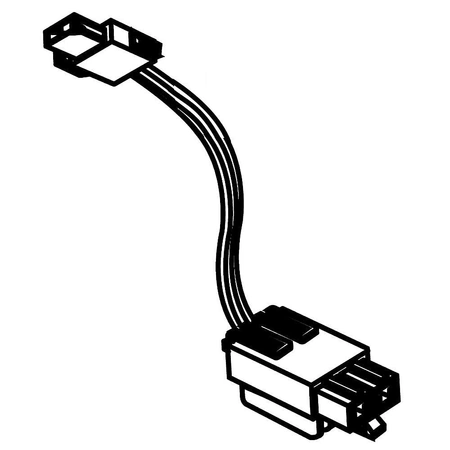

DA96-01077A Samsung Refrigerator Wire Harness Backorder SMG DA96-01077A $41.76

4-7

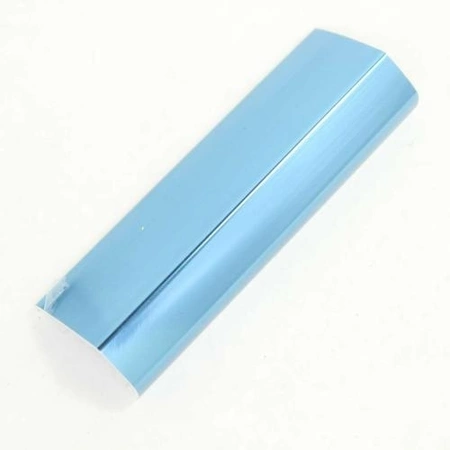

DA64-04692A Samsung Refrigerator Trim Basket Backorder SMG DA64-04692A $20.40

4-8

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.18

5

DA63-07782A Samsung Refrigerator Middle Door Backorder SMG DA63-07782A $30.88

5

DA97-14695A Samsung Refrigerator Door Shelf A Backorder SMG DA97-14695A $55.27

5

DA97-15880A Samsung Refrigerator Assembly Cas Backorder SMG DA97-15880A $221.73

5-1

Refrigerator Case SMG DA61-10649A Contact Us For Availability

5-2

Refrigerator Grommet SMG DA63-07934A Contact Us For Availability

5-3

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $148.01

5-3

DA66-00580A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00580A $2.23

5-4

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $13.61

6

4709-002251 Samsung Refrigerator Wi-Fi Module Backorder SMG 4709-002251 $186.31

6

DA61-09754A Samsung Refrigerator Middle Hinge Backorder SMG DA61-09754A $93.20

6

DA97-14505A Samsung Refrigerator Ice Route As Backorder SMG DA97-14505A $228.13

6

DA97-15887A Samsung Refrigerator Cover Slide Backorder SMG DA97-15887A $170.42

6-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

6-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

6-1

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

6-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

6-2

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $25.76

6-3

DA47-00318K Samsung Refrigerator 120V Metal S Backorder SMG DA47-00318K $128.78

6-3

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

6-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

6-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

6-31

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

7

DA63-07754A Samsung Refrigerator Door Cap Cov Backorder SMG DA63-07754A $18.10

7

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $74.01

7

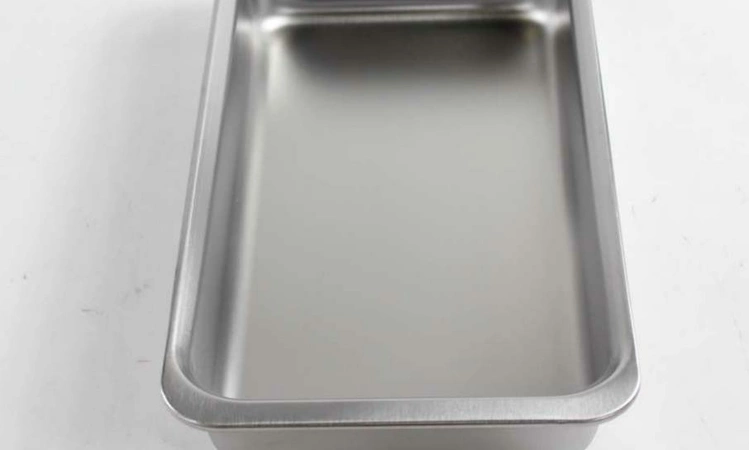

DA97-14794A Samsung Assembly CASE SUB;H920G Backorder SMG DA97-14794A $179.92

7

DA97-15891A Samsung Refrigerator Assembly Cas Backorder SMG DA97-15891A $197.19

7-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

7-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $41.20

7-5

DA63-08210A Samsung Refrigerator Guard Middle Backorder SMG DA63-08210A $86.08

8

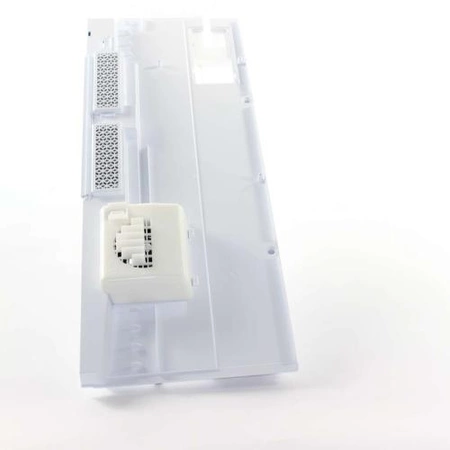

DA97-14501E Samsung Refrigerator Evaporator C Backorder SMG DA97-14501E $255.05

8

DA97-14537A Samsung Refrigerator Front Leg Co Backorder SMG DA97-14537A $19.00

8

DA97-15024A Samsung Refrigerator Dispenser Tr Backorder SMG DA97-15024A $136.98

8

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

8-1

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

8-1

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

8-2

DA32-00006E Samsung Refrigerator Temperature In Stock SMG DA32-00006E $103.45

8-3

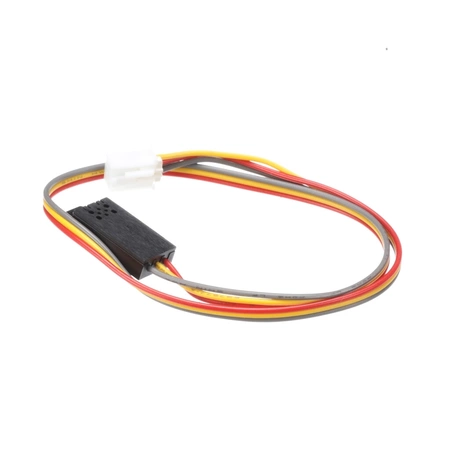

DA32-00034D Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034D $99.73

8-4

Refrigerator Cover SMG DA63-08216A Contact Us For Availability

8-5

DA96-01078A Samsung Motor Wire Harness Assemb Backorder SMG DA96-01078A $25.74

8-6

Refrigerator Cover SMG DA63-07756A Contact Us For Availability

8-8

DA97-15727A Samsung Deodorizer Cover Assembly Backorder SMG DA97-15727A $113.26

8-81

DA02-00229A Samsung Refrigerator Catalyst Ass Backorder SMG DA02-00229A $77.25

8-82

DA63-08108A Samsung Deodorizer Cover Backorder SMG DA63-08108A $7.99

8-83

Refrigerator Cover SMG DA63-08107A Contact Us For Availability

9

DA97-14538A Samsung Refrigerator Cover Assemb Backorder SMG DA97-14538A $17.32

9

DA97-15890A Samsung Refrigerator Middle Case Backorder SMG DA97-15890A $180.67

9

Refrigerator Case SMG DA97-14542A Contact Us For Availability

9-1

DA63-07812A Samsung Right Side Lamp Cover Backorder SMG DA63-07812A $94.38

9-2

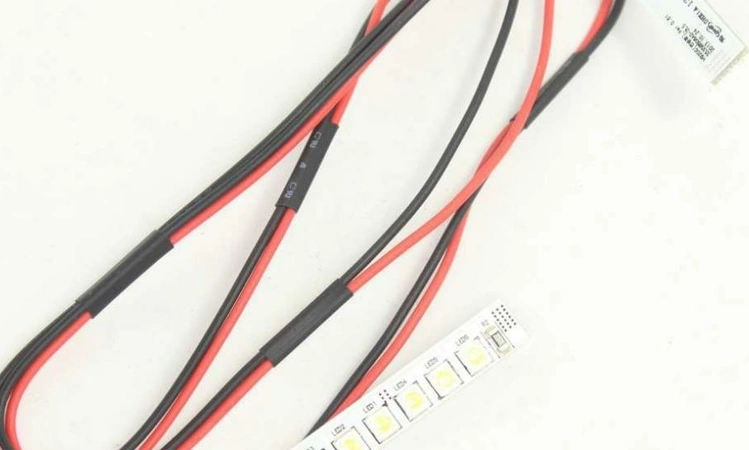

DA96-01060A Samsung LED Lamp Assembly Backorder SMG DA96-01060A $136.35

10

DA96-00987B Samsung Refrigerator Evaporator A Backorder SMG DA96-00987B $210.41

10

DA97-13431A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-13431A $69.58

10

Refrigerator Case SMG DA97-14543A Contact Us For Availability

10-1

DA63-07813A Samsung Refrigerator Left Side La Backorder SMG DA63-07813A $45.14

10-2

DA63-07231A Samsung Refrigerator Hinge Gromme Backorder SMG DA63-07231A $4.79

10-2

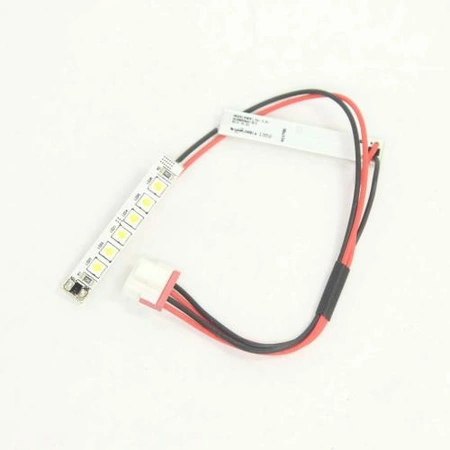

DA96-01060B Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01060B $130.85

11

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

11

Refrigerator Cover SMG DA97-15866A Contact Us For Availability

11-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

11-1

Oil Damper SMG DA61-09993B Contact Us For Availability

11-2

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

11-2

Refrigerator Damper Control SMG DA63-07932A Contact Us For Availability

11-3

Refrigerator Cover SMG DA63-08219A Contact Us For Availability

11-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

11-4

DA97-05932B Samsung Refrigerator Roller Backorder SMG DA97-05932B $18.10

11-5

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

11-5

Refrigerator Cap SMG DA67-03920A Contact Us For Availability

11-6

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11-7

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.60

12

Refrigerator Cover SMG DA97-15867A Contact Us For Availability

12-1

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

12-2

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

12-2

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

12-2

DA63-07933A Samsung Middle Damper Cover Backorder SMG DA63-07933A $3.53

12-3

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

12-3

Refrigerator Rail Cover SMG DA63-08220A Contact Us For Availability

12-4

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

DA97-08630B Samsung Refrigerator Step Valve Backorder SMG DA97-08630B $156.98

DA97-14500C Samsung Refrigerator Cover Assemb Backorder SMG DA97-14500C $328.34

DA97-14769A Samsung Refrigerator Dispenser Co Backorder SMG DA97-14769A $432.54

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

13-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

13-2

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

13-3

DA61-09711A Samsung Motor Case Backorder SMG DA61-09711A $22.35

13-3

DA97-14506A Samsung Refrigerator Dispenser Le Backorder SMG DA97-14506A $316.05

13-4

DA61-09741A Samsung Bracket Motor Assembly Backorder SMG DA61-09741A $22.35

13-5

Refrigerator Cover SMG DA63-07774A Contact Us For Availability

13-6

Refrigerator Insulation SMG DA62-04385A Contact Us For Availability

13-7

Refrigerator Insulation SMG DA62-04373A Contact Us For Availability

13-9

Amana Refrigerator Screw SMG 6002-001204 Contact Us For Availability

14

DA97-15899A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-15899A $172.51

14-1

Refrigerator Shelf SMG DA67-04081A Contact Us For Availability

14-2

Refrigerator Hanger SMG DA97-15901A Contact Us For Availability

14-3

Refrigerator Hanger SMG DA97-15900A Contact Us For Availability

15

DA96-01055A Samsung Refrigerator Evaporator A Backorder SMG DA96-01055A $198.90

15

NC1MV43AMP/E01 Samsung Refrigerator Compresso Backorder SMG NC1MV43AMP/E01 $305.15

15-1

DA32-00029R Samsung Refrigerator Temperature In Stock SMG DA32-00029R $13.29

15-2

DA61-06013B Samsung Refrigerator FIXER Wire Backorder SMG DA61-06013B $6.91

16

DA97-13195A Samsung Refrigerator Compressor C Backorder SMG DA97-13195A $141.19

16

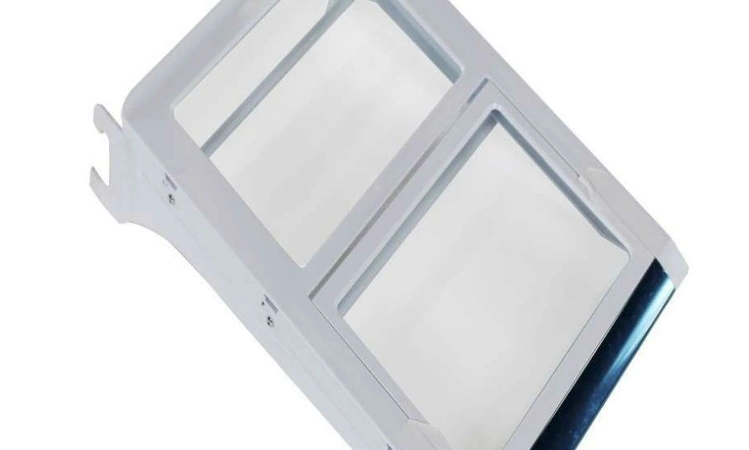

DA97-15898A Samsung Folder Shelf Assembly Backorder SMG DA97-15898A $198.56

16-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

16-1

Folding Shelf SMG DA67-04084A Contact Us For Availability

16-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

16-2

Refrigerator Hanger SMG DA97-15904A Contact Us For Availability

17

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

17

DA97-15902A Samsung Refrigerator Shelf Folder Backorder SMG DA97-15902A $195.94

17-1

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

17-1

Folding Shelf SMG DA67-04082A Contact Us For Availability

17-2

Folding Shelf SMG DA67-04085A Contact Us For Availability

17-3

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $111.70

17-4

Refrigerator Hanger SMG DA97-15903A Contact Us For Availability

17-5

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

18

DA92-00610A Samsung Refrigerator Standard Mod Backorder SMG DA92-00610A $191.49

18

DA97-14504B Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14504B $210.02

18-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

18-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

19

DA92-00615B Samsung Inverter Refrigerator Backorder SMG DA92-00615B $231.79

19

DA97-12540D Samsung Refrigerator Auger Motor Backorder SMG DA97-12540D $263.36

19-1

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

19-2

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

19-3

DA61-20140A Samsung Refrigerator Solenoid Spr Backorder SMG DA61-20140A $2.14

19-4

DA63-02513A Samsung Refrigerator Fan Grommet Backorder SMG DA63-02513A $3.74

19-5

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

19-6

DA96-00682E Samsung Refrigerator Auger Feed W Backorder SMG DA96-00682E $112.55

19-8

DA60-00001B Samsung Refrigerator Special Hex Backorder SMG DA60-00001B $1.18

20

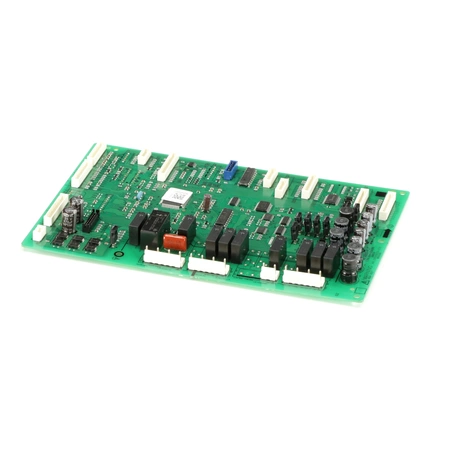

DA92-00611L Samsung Refrigerator PCB Backorder SMG DA92-00611L $201.77

20

Refrigerator Ice Maker SMG DA97-18859A No Longer Available

21

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

22

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

22

DA97-25147B Samsung Assy Cover Housing;fdr, C Backorder SMG DA97-25147B $46.24

23

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

24

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

27

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.18

31

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

32

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

1131

6021-001125 Samsung Refrigerator Hexagon Nut Backorder SMG 6021-001125 $3.74

1141

DA61-04008A Samsung Refrigerator Washer Guide Backorder SMG DA61-04008A $1.18

1142

DA66-01042A Samsung Roller Assembly Backorder SMG DA66-01042A $3.48

1333

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

1421

DA61-09550A Samsung Fixer Assembly Backorder SMG DA61-09550A $6.39

1431

DA61-09549A Samsung Fixer Assembly Backorder SMG DA61-09549A $7.99
