Model Samsung RF23HCEDBWW/AA-13 Refrigerator – Common Parts &amp; Diagrams

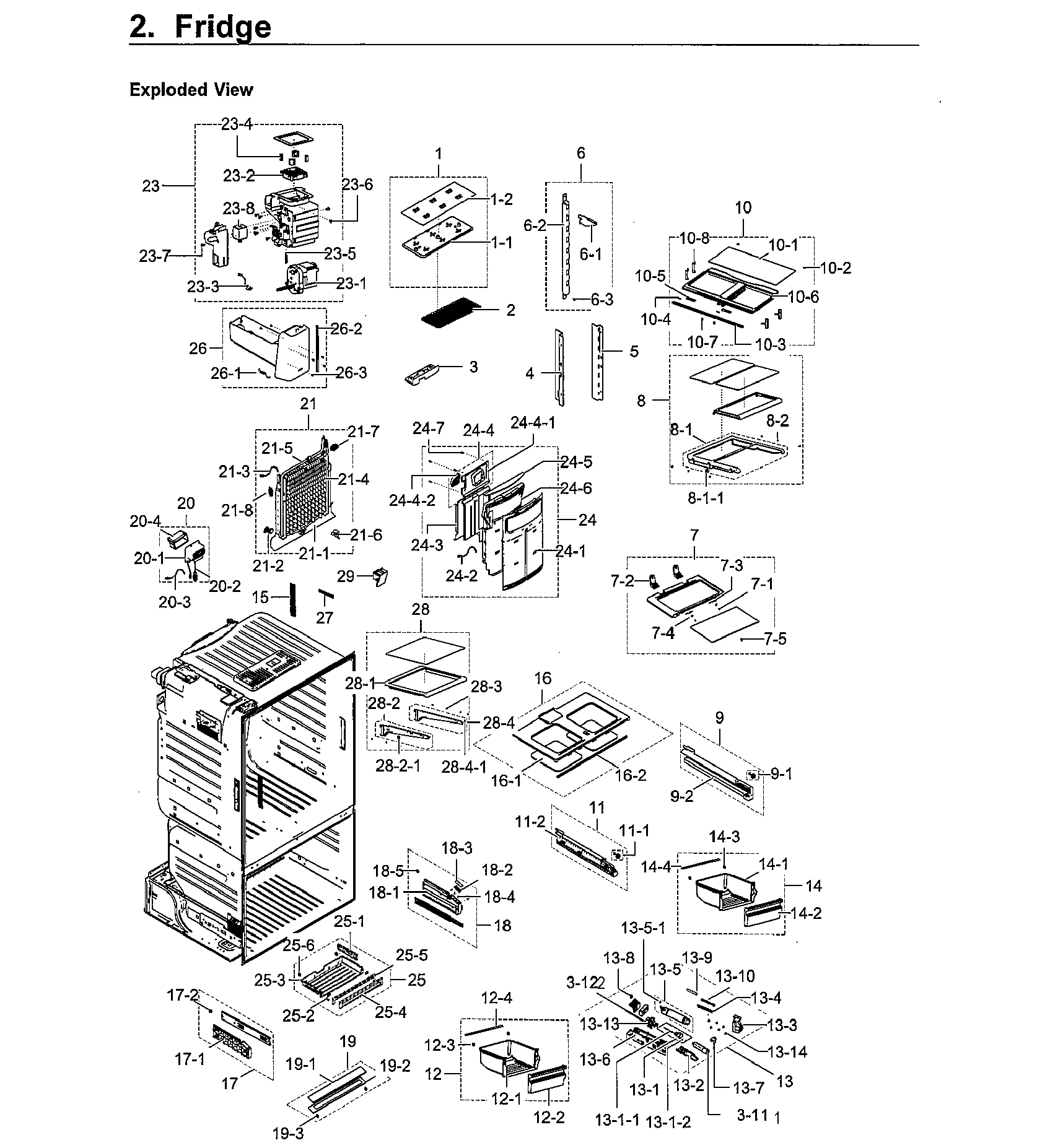

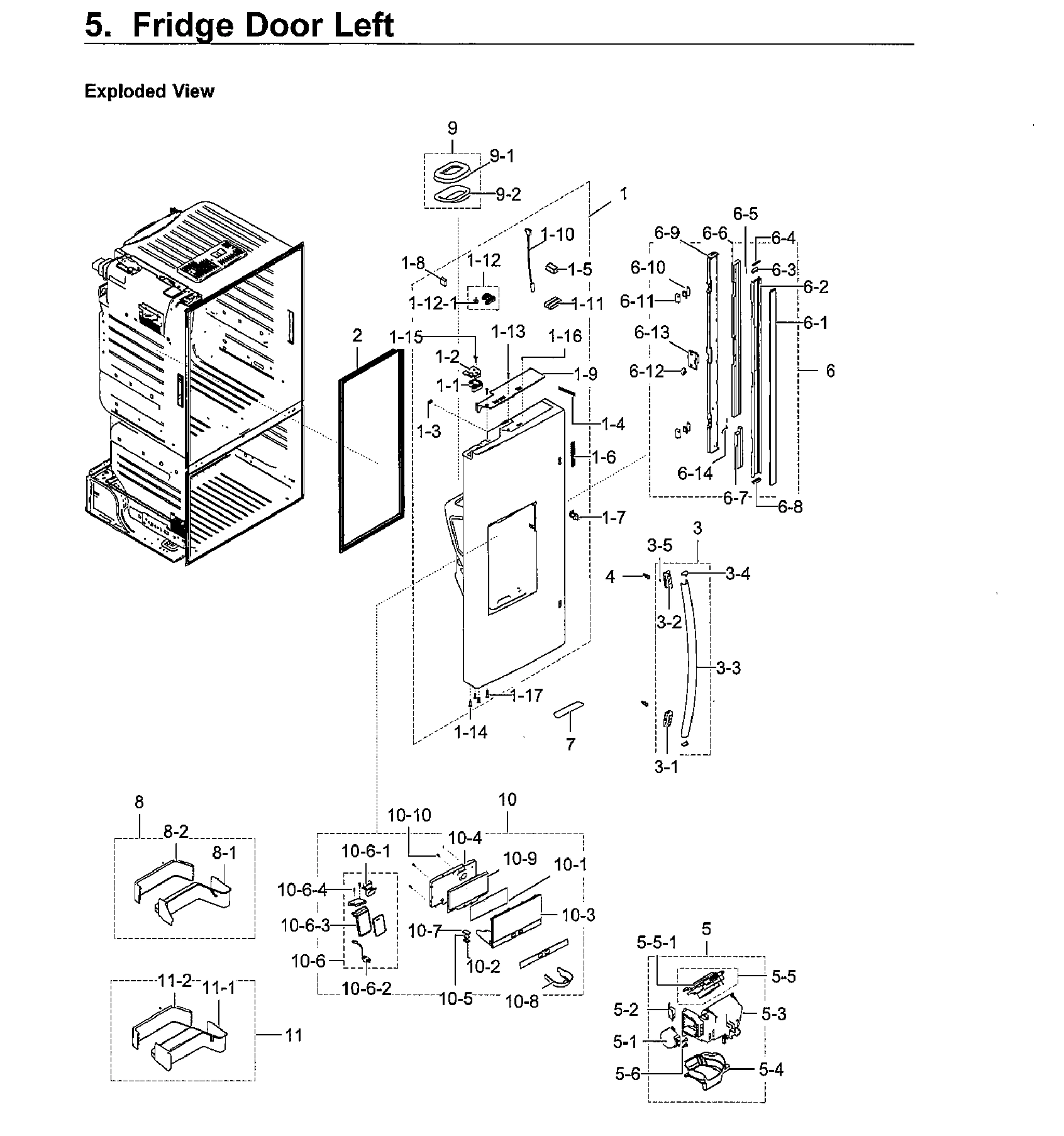

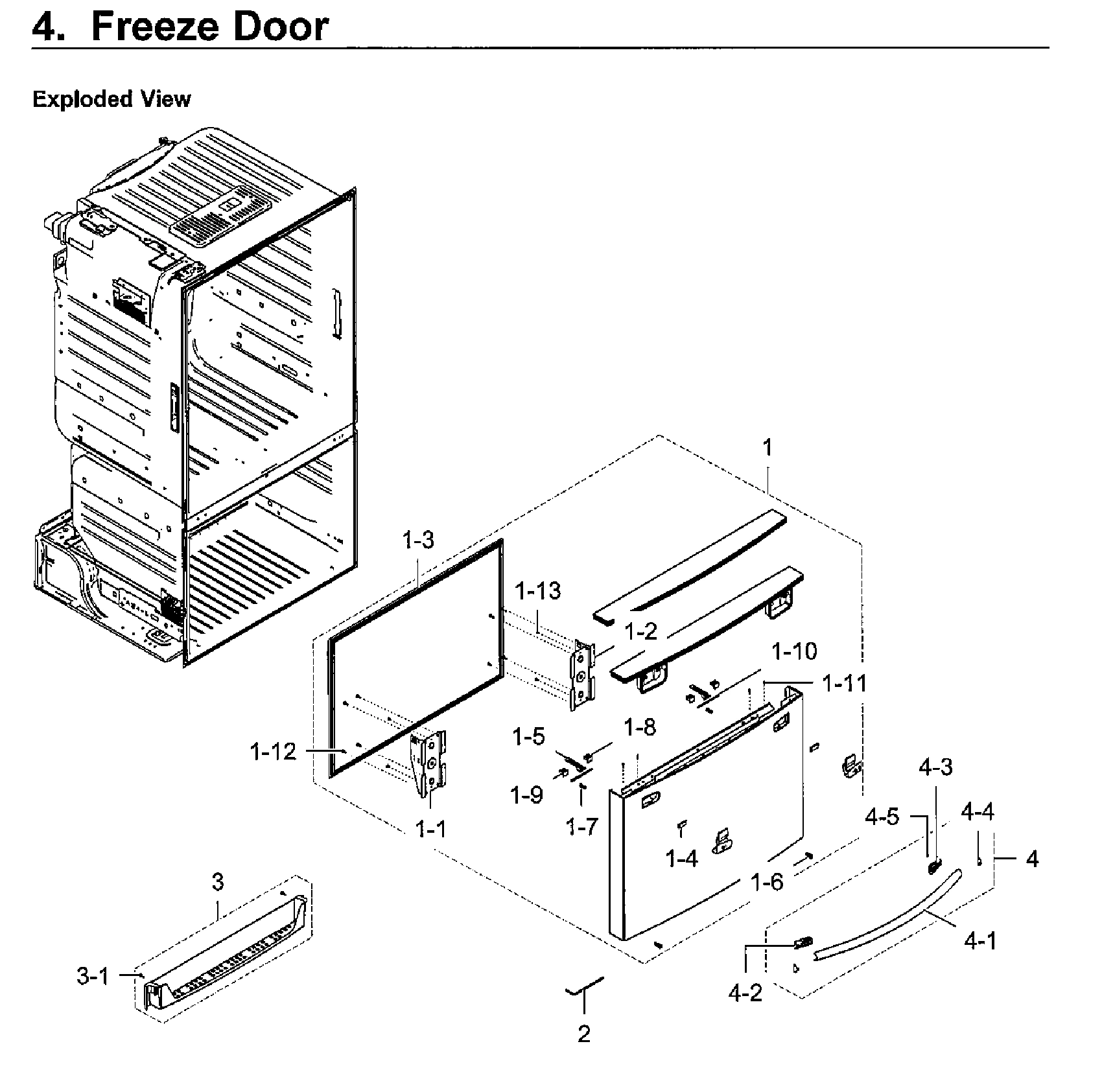

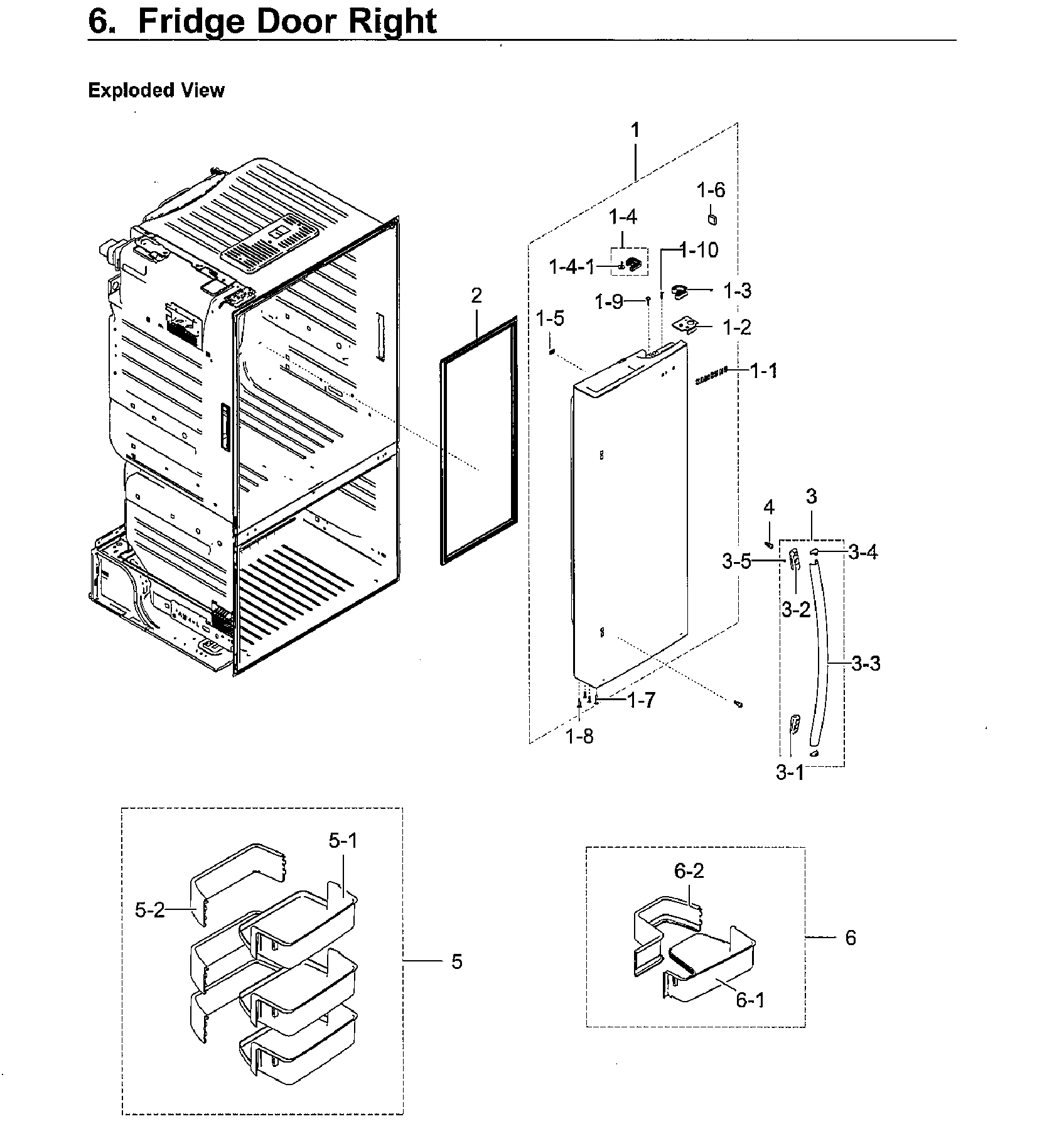

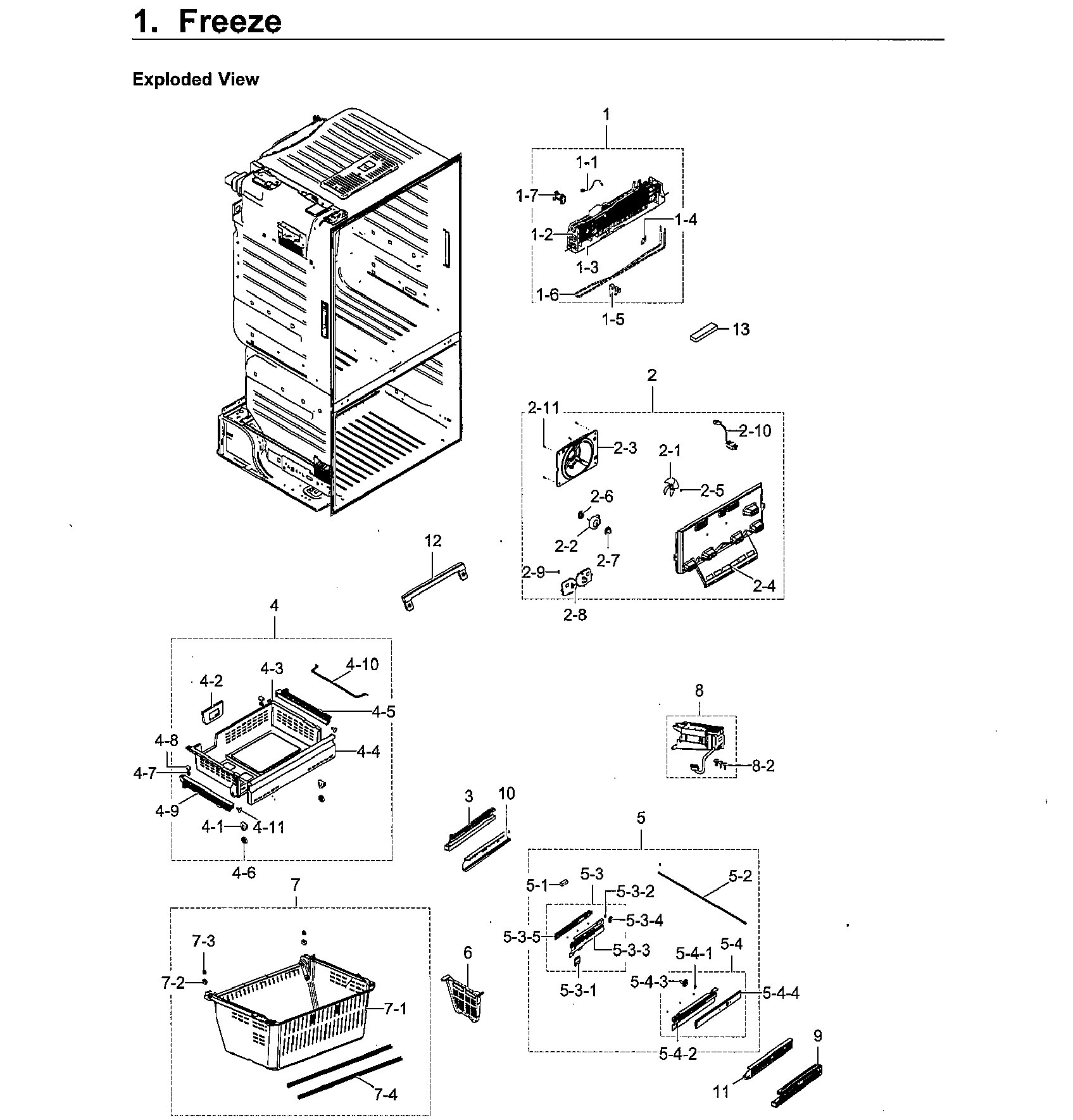

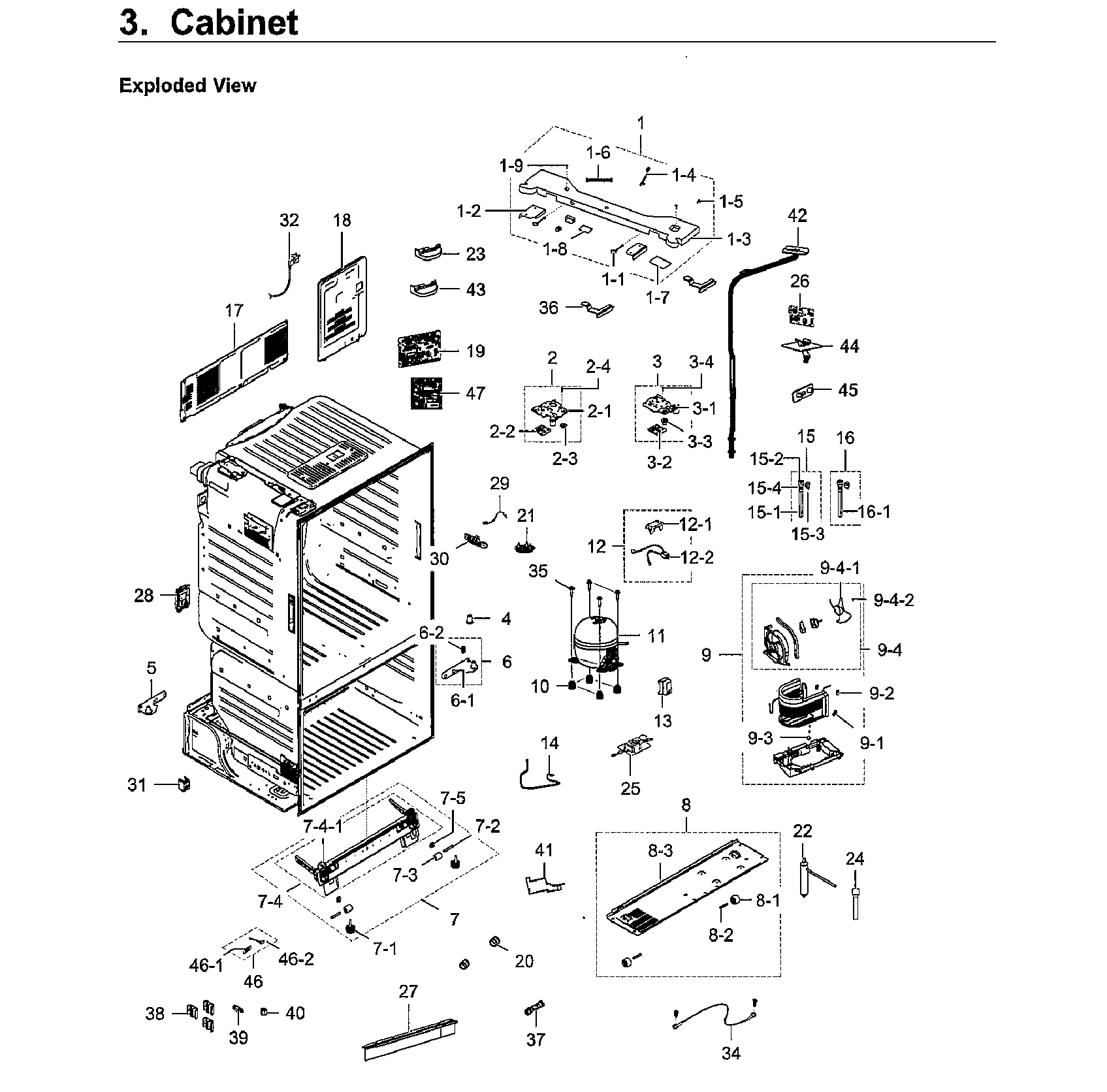

1

DA91-03809F Samsung Refrigerator Left-Hand Do Backorder SMG DA91-03809F $294.69

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $302.70

1

DA97-12606B Samsung Refrigerator Lamp Case As In Stock SMG DA97-12606B $111.95

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $29.35

1-1

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $92.17

1-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $27.87

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $134.82

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $102.60

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $32.31

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $17.41

1-3

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $5.48

1-3

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $230.30

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $16.83

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $9.45

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.48

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $19.90

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.49

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $10.46

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $144.67

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $55.11

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.18

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $33.18

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $8.95

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.50

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.18

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.00

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $87.38

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $8.56

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.98

1-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-13

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.18

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $32.74

2

DA97-08541A Samsung Refrigerator Evaporator C In Stock SMG DA97-08541A $368.90

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $73.44

2

DA97-13015E Samsung Refrigerator Door Gasket Backorder SMG DA97-13015E $140.44

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.55

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $144.67

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.48

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.49

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.97

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $19.90

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.96

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $67.16

3

DA97-12714A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12714A $141.05

3

DA97-12715A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12715A $144.67

3

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $79.71

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $10.95

3-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.00

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $26.86

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.98

3-5

Refrigerator door handle set screw SMG 6009-001526 Contact Us For Availability

4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $2.00

4

DA97-12712A Samsung Refrigerator Door Handle Backorder SMG DA97-12712A $154.87

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $8.95

4-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $11.44

4-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $28.36

4-4

DA67-02787C Samsung Refrigerator ABS Handle C Backorder SMG DA67-02787C $2.00

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.48

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $17.91

4-10

DA66-00816A Samsung Assembly Refrigerator Sha Backorder SMG DA66-00816A $28.76

4-11

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.18

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $166.99

5

DA97-14314A Samsung Refrigerator Door Shelf B Backorder SMG DA97-14314A $165.93

5-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $96.33

5-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $11.44

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $35.84

5-4

DA97-13262A Samsung Refrigerator Right Low Sl Backorder SMG DA97-13262A $150.61

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $49.30

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.28

5-34

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

5-35

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $181.75

5-43

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

5-44

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $165.96

5-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $18.92

6

DA97-12612B Samsung Assembly Refrigerator Mid Backorder SMG DA97-12612B $147.51

6

DA97-12624C Samsung Refrigerator French Assem Backorder SMG DA97-12624C $180.01

6

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $101.45

6-1

Refrigerator guard dispenser SMG DA63-07509A Contact Us For Availability

6-2

Refrigerator guard cover SMG DA63-07528A Contact Us For Availability

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $5.97

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.98

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.98

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $7.47

7

DA97-07533B Samsung Refrigerator Drawer Tray Backorder SMG DA97-07533B $152.44

7

DA97-14316A Samsung Refrigerator Folder Shelf Backorder SMG DA97-14316A $86.25

7-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.45

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.97

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $8.46

7-4

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $46.01

7-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.48

8

DA97-07557C Samsung Refrigerator Quick Space Backorder SMG DA97-07557C $153.64

8

Refrigerator ice maker SMG DA97-13718A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.96

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.48

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $62.70

9

DA97-13837A Samsung Refrigerator Right Vegeta Backorder SMG DA97-13837A $39.39

9

DA97-15978B Samsung Refrigerator Drain Tray A In Stock SMG DA97-15978B $223.26

9-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $37.62

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.94

9-4

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $188.52

9-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $24.37

10

DA97-13809H Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809H $272.08

10

DA97-14303A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-14303A $259.65

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.18

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $10.95

10-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $43.36

10-5

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $5.97

10-6

Refrigerator dispenser lever SMG DA97-12628H Contact Us For Availability

10-9

DA92-00595A Samsung Refrigerator LED Display Backorder SMG DA92-00595A $204.14

11

DA97-13838A Samsung Refrigerator Left Vegetab Backorder SMG DA97-13838A $47.80

11

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $100.51

11

NC1MV90ALP/E01 Samsung Refrigerator R-134A Co Backorder SMG NC1MV90ALP/E01 $311.80

12

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $64.60

12

DA97-13842B Samsung Refrigerator Left Vegetab Backorder SMG DA97-13842B $148.80

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $28.32

12-1

DA61-09161A Samsung Refrigerator Left Vegetab Backorder SMG DA61-09161A $108.99

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $23.95

12-2

DA63-07552A Samsung Refrigerator Left Front V Backorder SMG DA63-07552A $47.71

13

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.50

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $59.55

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.40

14

DA97-13841B Samsung Refrigerator Right Vegeta Backorder SMG DA97-13841B $154.77

16

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $28.76

16

DA97-14423A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-14423A $150.81

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.97

19

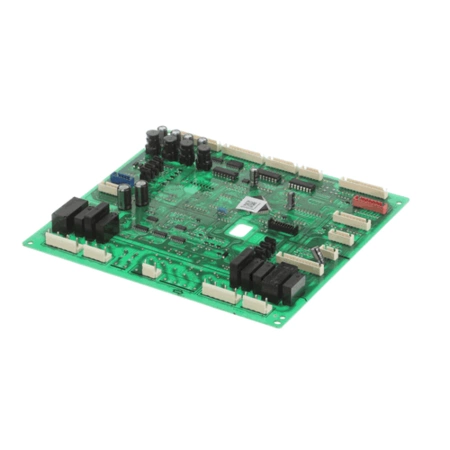

DA94-02274G Samsung Refrigerator Printed Circ Backorder SMG DA94-02274G $94.00

19

DA97-07521A Samsung Refrigerator Slide Pantry Backorder SMG DA97-07521A $162.03

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.46

20

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $128.90

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $185.67

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.38

21-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $47.35

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $5.97

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.89

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $113.58

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $9.45

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.50

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.27

23

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $279.44

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $217.14

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $89.72

23-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $116.54

24

DA97-12608A Samsung Refrigerator Evaporator C Backorder SMG DA97-12608A $199.12

24-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $12.81

24-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $133.64

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.97

25-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $56.40

25-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $40.28

26

DA92-00763B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00763B $190.21

26

DA97-14504C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14504C $191.99

26-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $5.97

26-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.98

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $25.87

28

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $20.89

29

DA32-10109B Samsung Refrigerator Temperature Backorder SMG DA32-10109B $28.32

29

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $2.56

30

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.97

32

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $67.45

36

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

37

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $41.15

39

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $21.90

40

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $7.97

41

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $16.92

46-2

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $23.38

47

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $148.29

1061

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $50.45

1121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.50

1313

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $186.70

2442

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $137.17

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.50

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.18

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.50
