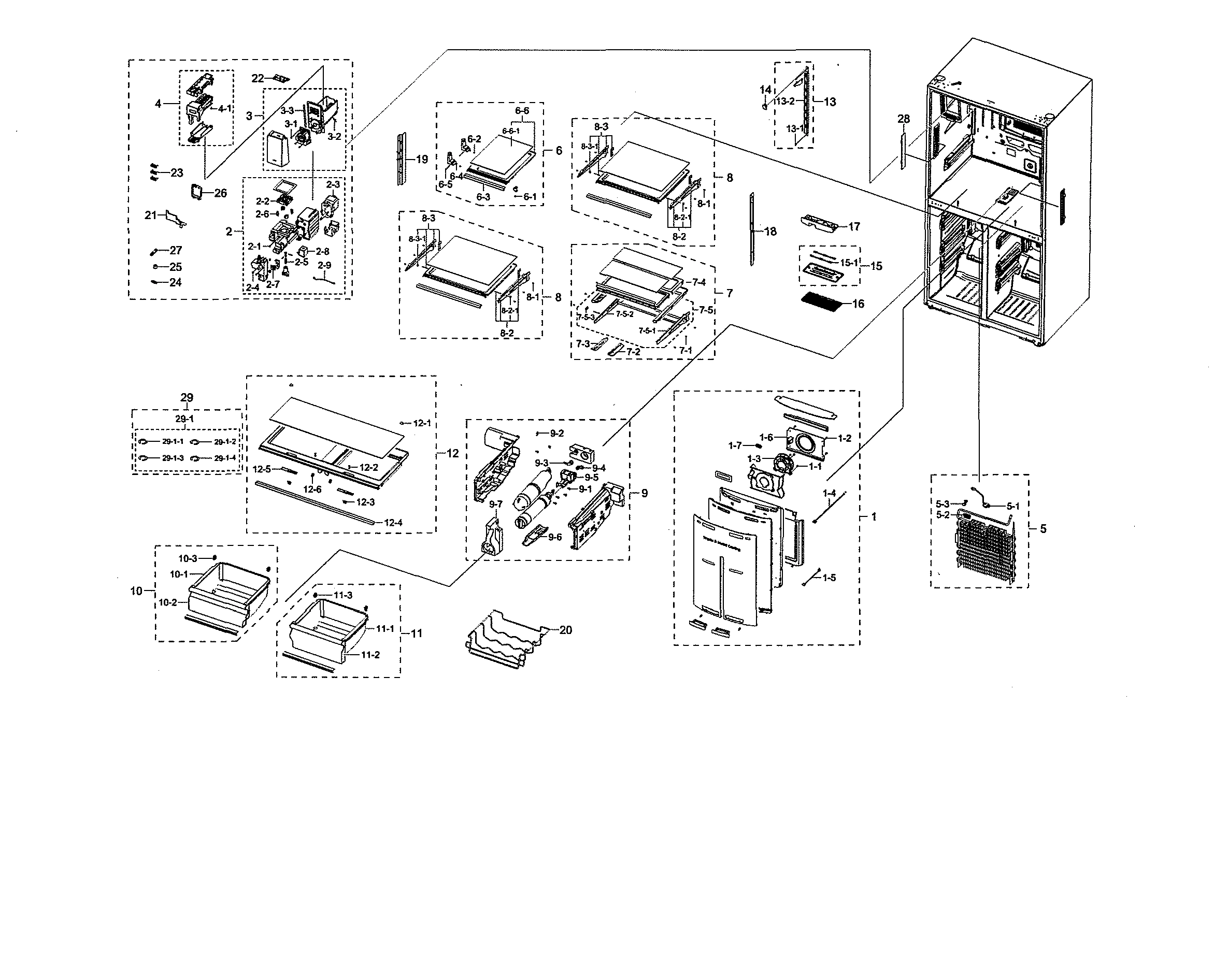

Model Samsung RF22N9781SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

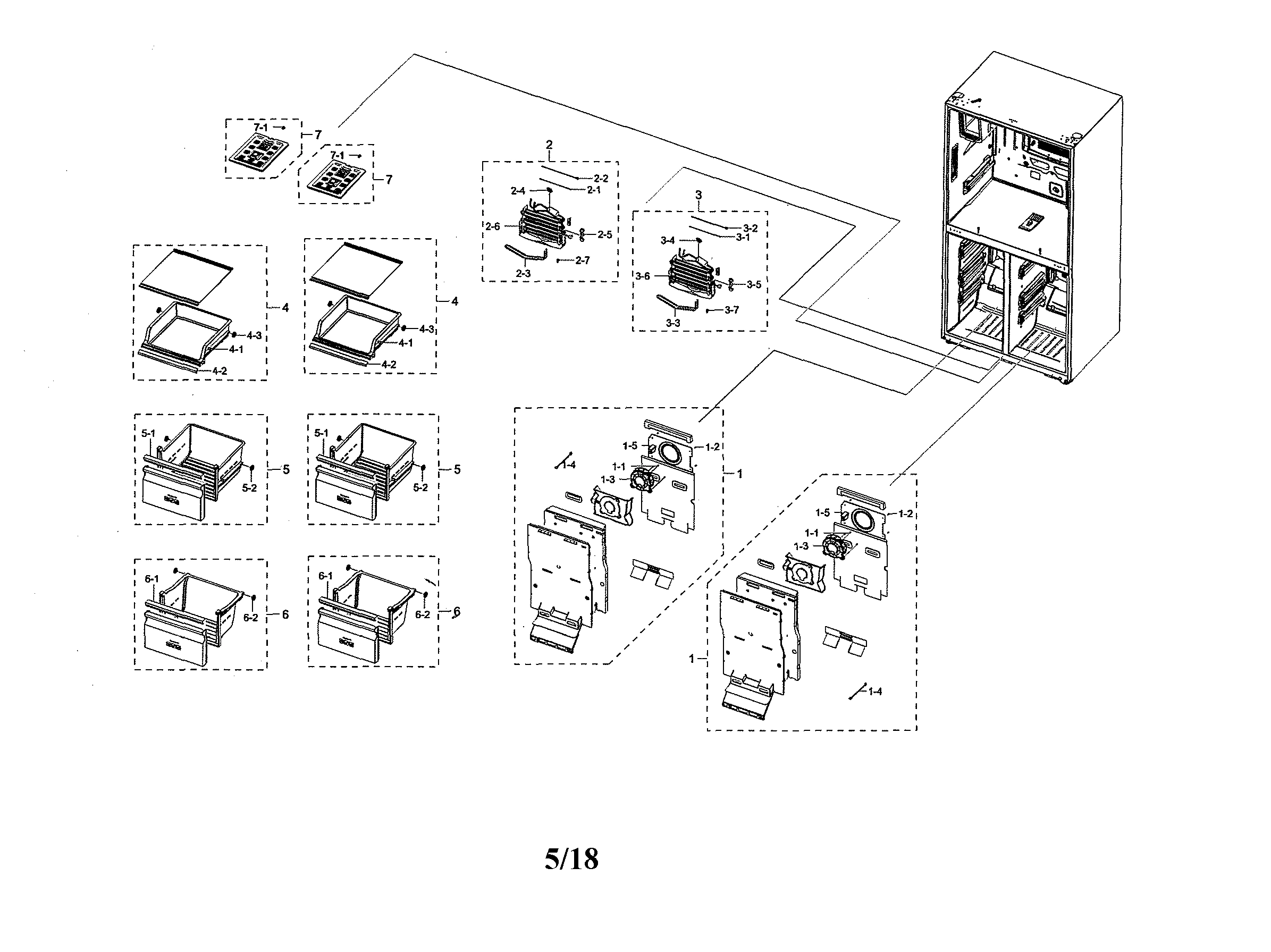

1

DA97-13001B Samsung Refrigerator Evaporator C Backorder SMG DA97-13001B $183.67

1

DA97-15409G Samsung Refrigerator Evaporator C Backorder SMG DA97-15409G $272.56

1

DA97-15978B Samsung Refrigerator Drain Tray A Backorder SMG DA97-15978B $250.09

1

Assembly door sub-fre right SMG DA93-00172C Contact Us For Availability

1

Assembly door sub-ref right SMG DA93-00169T Contact Us For Availability

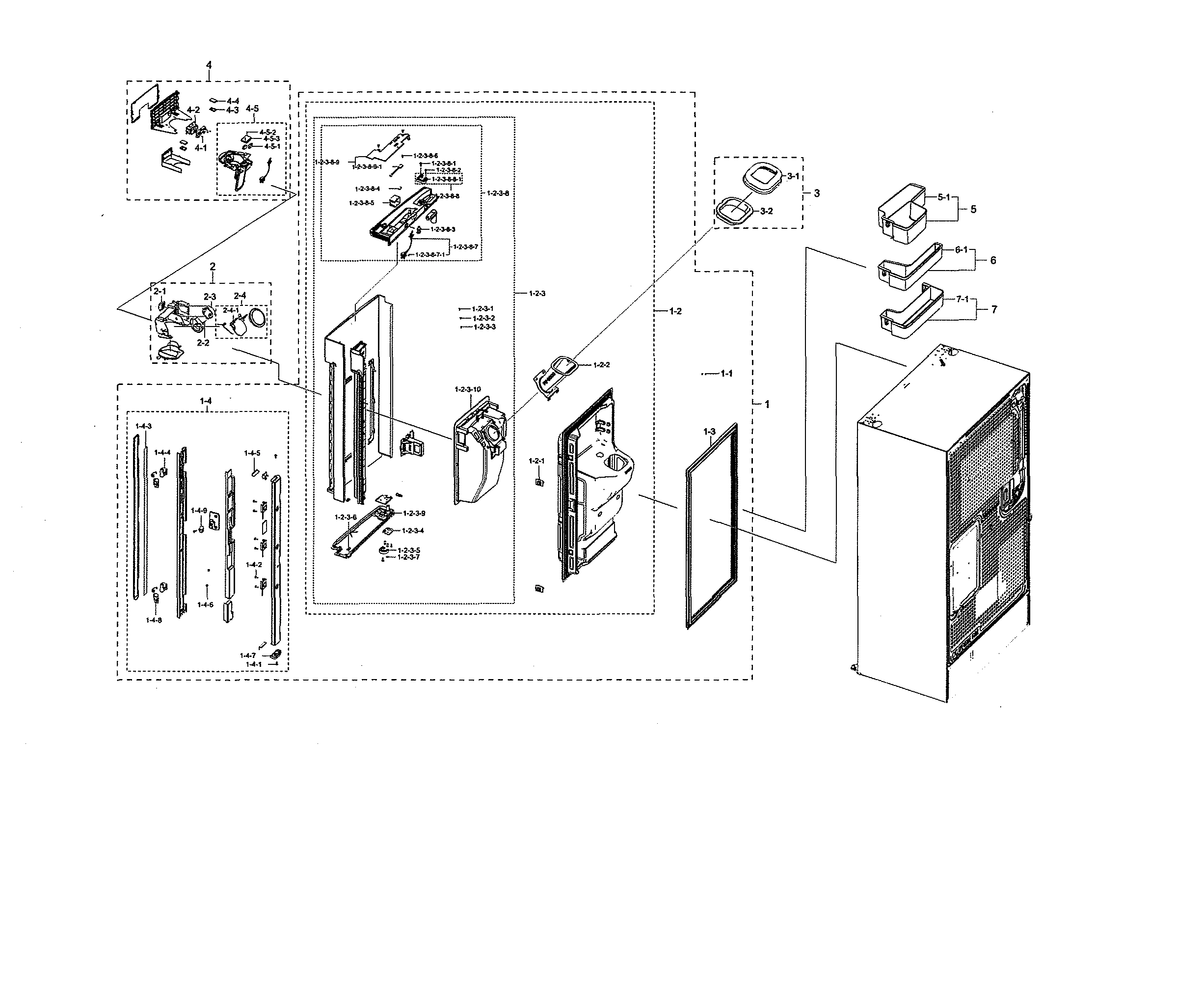

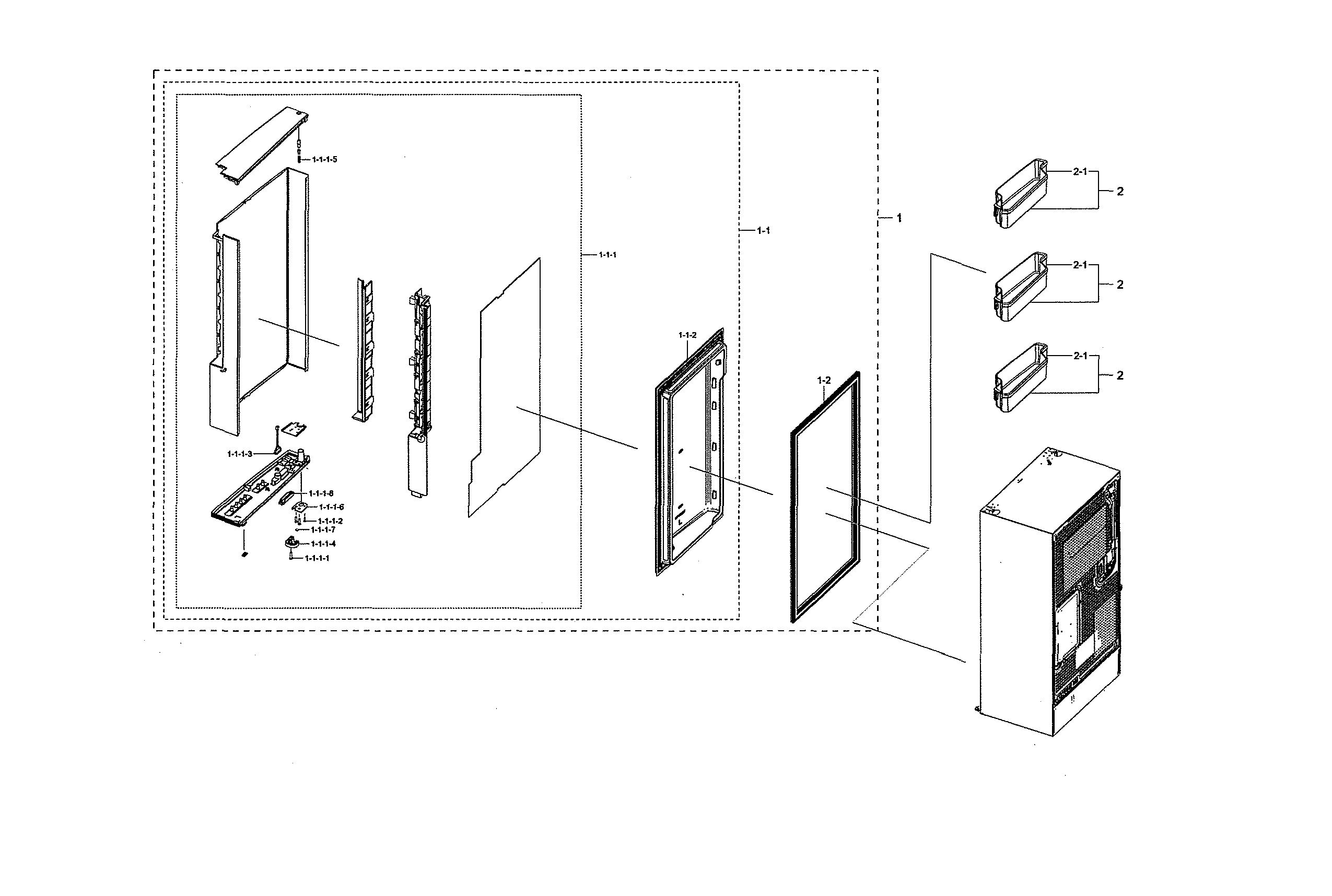

1-1

DA91-04585F Samsung Refrigerator Left Foam Do Backorder SMG DA91-04585F $339.42

1-1

DA91-04586J Samsung Refrigerator Right Door F Backorder SMG DA91-04586J $421.71

1-1-1

Assembly plate door-fre right SMG DA97-16720V Contact Us For Availability

1-1-1-3

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

1-1-1-4

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

1-1-1-5

DA61-05366A Samsung Assembly Refrigerator Han Backorder SMG DA61-05366A $1.69

1-1-1-8

DA67-02385M Samsung Refrigerator Reed Switch Backorder SMG DA67-02385M $3.24

1-1-1-9

Assembly trim handle SMG DA97-16160A Contact Us For Availability

1-1-2

Panel-fre hb SMG DA64-04924A Contact Us For Availability

1-2

DA67-03218A Samsung Refrigerator Interlock Sw Backorder SMG DA67-03218A $2.70

1-2

DA91-04584B Samsung Refrigerator Left Door Fo Backorder SMG DA91-04584B $407.19

1-2

DA97-16819A Samsung Refrigerator RF9000K Gray Backorder SMG DA97-16819A $141.99

1-2-1

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

1-2-3-4

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $39.39

1-2-3-8-3

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $30.78

1-2-3-8-5

DA63-02902B Samsung Refrigerator Housing Fixe In Stock SMG DA63-02902B $8.10

1-2-3-8-6

Cap-shaft hole (2) SMG DA67-02975C Contact Us For Availability

1-2-3-8-7

Assembly wire harness-door SMG DA96-01173A Contact Us For Availability

1-2-3-8-9

DA97-13014A Samsung Display Cover Assembly Backorder SMG DA97-13014A $82.66

1-2-3-8-71

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.69

1-2-3-8-91

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

1-2-3-9

Assembly cap door-ref low left SMG DA97-16124B Contact Us For Availability

1-2-3-10

Assembly case dispenser SMG DA97-16751A Contact Us For Availability

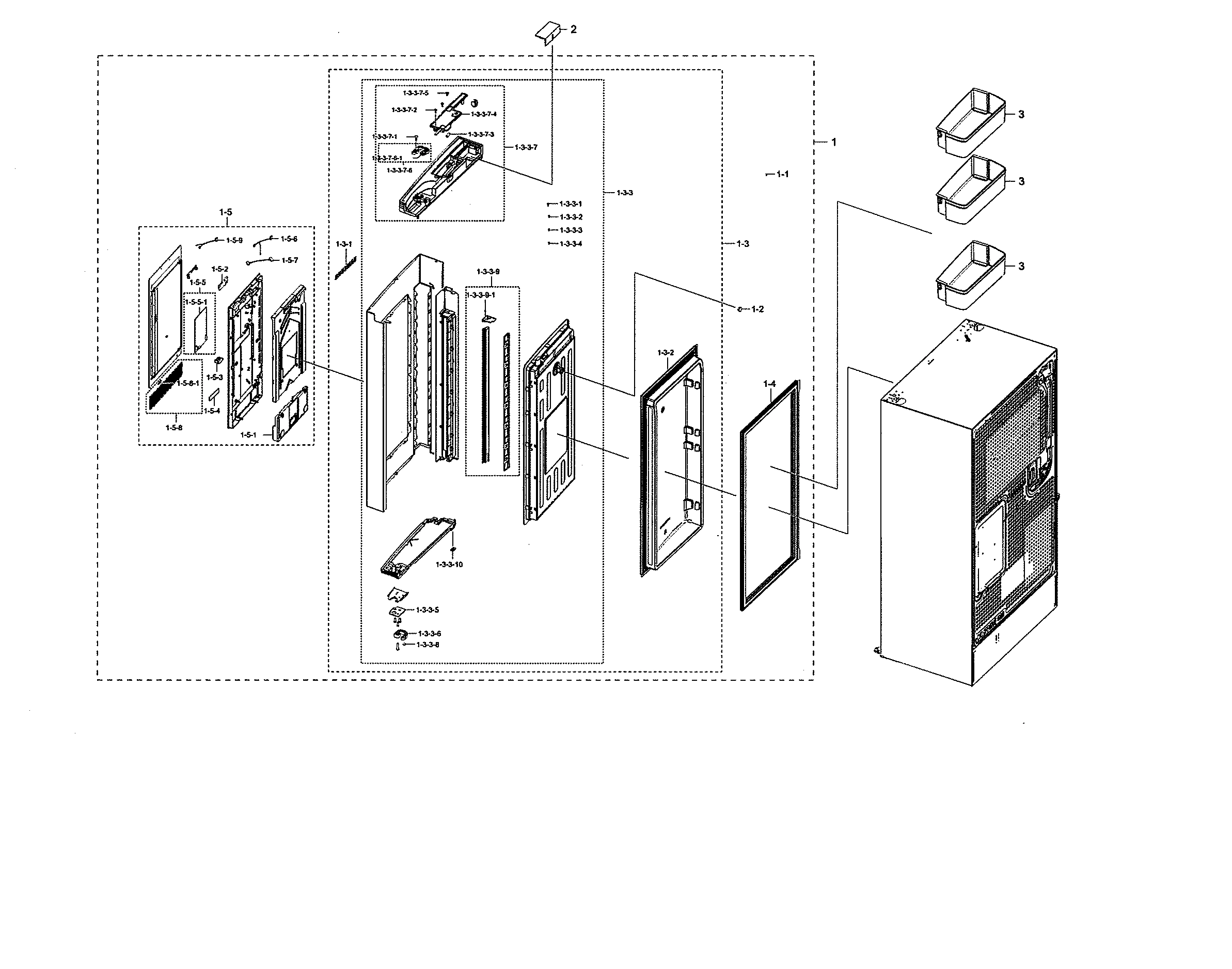

1-3

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $153.67

1-3

DA91-04575S Samsung Refrigerator Right Door F Backorder SMG DA91-04575S $431.24

1-3-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-3-2

Panel-ref right SMG DA64-05059B Contact Us For Availability

1-3-3

Assembly plate door-ref right SMG DA97-19314J Contact Us For Availability

1-3-3-1

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.69

1-3-3-3

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.69

1-3-3-5

DA61-08817A Samsung Refrigerator Door Stopper Backorder SMG DA61-08817A $22.68

1-3-3-6

DA61-10855A Samsung Refrigerator Right Door S Backorder SMG DA61-10855A $5.41

1-3-3-7

Assembly cap door-ref up right SMG DA97-19316F Contact Us For Availability

1-3-3-7-1

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.69

1-3-3-7-4

DA63-08826A Samsung COVER CAP DOOR-REF UP;ABS Backorder SMG DA63-08826A $23.76

1-3-3-7-6

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

1-3-3-7-61

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.69

1-3-3-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-3-3-9

Assembly trim handle-ref SMG DA97-16154A Contact Us For Availability

1-3-3-10

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $19.45

DA97-13837A Samsung Refrigerator Right Vegeta Backorder SMG DA97-13837A $42.76

DA97-16749A Samsung Refrigerator French Assem Backorder SMG DA97-16749A $416.53

DA97-16826B Samsung Refrigerator Gasket Assem Backorder SMG DA97-16826B $163.49

1-4-3

DA47-00245U Samsung Refrigerator Heater Cord Backorder SMG DA47-00245U $95.52

1-4-4

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

1-4-5

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.93

1-4-6

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $2.16

1-4-7

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $10.80

1-4-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

1-4-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

DA32-00034E Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034E $86.68

DA82-03084A Samsung Refrigerator Display Cove Backorder SMG DA82-03084A $1,202.18

DA97-13838A Samsung Refrigerator Left Vegetab Backorder SMG DA97-13838A $51.88

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $186.43

1-5-1

3001-002853 Samsung Refrigerator Speaker 288 Backorder SMG 3001-002853 $297.79

1-5-1-1

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

1-5-2

4709-002552 Samsung Refrigerator W-LAN Module Backorder SMG 4709-002552 $172.16

1-5-3

DA32-00080A Samsung Refrigerator PSD Sensor Backorder SMG DA32-00080A $120.85

1-5-4

DA92-00789D Samsung Refrigerator Microphone M Backorder SMG DA92-00789D $60.43

1-5-5

DA92-01065A Samsung Refrigerator Display Prin Backorder SMG DA92-01065A $376.19

1-5-5-1

Assembly pcb smd SMG DA94-04233A Contact Us For Availability

1-5-6

DA96-01253A Samsung Refrigerator Assembly Wir Backorder SMG DA96-01253A $46.12

1-5-7

DA96-01329B Samsung Refrigerator Back Assembl Backorder SMG DA96-01329B $27.39

1-5-8

DA97-19330A Samsung Refrigerator Front Cover Backorder SMG DA97-19330A $167.33

1-5-8-1

Mascot SMG DA64-05827A Contact Us For Availability

1-5-9

DA96-01329A Samsung Refrigerator Wire Harness Backorder SMG DA96-01329A $71.25

1-8-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-8-2

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $16.83

1-8-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

2

DA63-08449A Samsung Refrigerator Lock Cover Backorder SMG DA63-08449A $12.42

2

DA96-01021E Samsung Refrigerator Evaporator F Backorder SMG DA96-01021E $196.51

2

DA97-08680E Samsung Refrigerator Ice Route Ca Backorder SMG DA97-08680E $169.56

2

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $276.81

2

DA97-16184A Samsung Refrigerator Freezer Door Backorder SMG DA97-16184A $94.30

2

NC1MV90ALP/E01 Samsung Refrigerator R-134A Co Backorder SMG NC1MV90ALP/E01 $311.80

2-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $19.57

2-1

DA63-08282A Samsung Refrigerator Left Guard A Backorder SMG DA63-08282A $53.52

2-2

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $1.69

2-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

2-3

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

2-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

2-4

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $53.52

2-4-1

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $20.52

2-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

3

DA27-00043D Samsung Refrigerator Coil Filter Backorder SMG DA27-00043D $107.32

3

DA96-00987D Samsung Refrigerator EVAP RF9000K In Stock SMG DA96-00987D $236.50

3

DA97-14504C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14504C $213.49

3

DA97-16544A Samsung Refrigerator Right Guard In Stock SMG DA97-16544A $107.67

3

DA97-16627A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-16627A $94.30

3-1

Gasket-cap chute ice SMG DA63-07422A Contact Us For Availability

3-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

3-2

Cap chute ice SMG DA67-04255A Contact Us For Availability

3-3

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

4

DA97-16754A Samsung Refrigerator Dispenser Co Backorder SMG DA97-16754A $322.84

4

Refrigerator ice maker assembly SMG DA97-18859A No Longer Available

4-2

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

4-3

DA61-05687A Samsung Refrigerator Case LED Lam Backorder SMG DA61-05687A $1.69

4-4

DA63-02446A Samsung Refrigerator Epel ABS Coo Backorder SMG DA63-02446A $3.24

4-5

DA97-12628R Samsung Refrigerator Dispenser Le Backorder SMG DA97-12628R $203.92

4-5-1

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

4-5-3

DA63-05449A Samsung Refrigerator Cover-Switch Backorder SMG DA63-05449A $4.87

5

DA96-01002A Samsung Refrigerator Evaporator A In Stock SMG DA96-01002A $171.55

5

DA97-15359C Samsung Refrigerator Middle Case Backorder SMG DA97-15359C $205.39

5

DA97-15558A Samsung Refrigerator Dispenser Gu Backorder SMG DA97-15558A $113.90

5-1

DA32-10104W Samsung Refrigerator Temperature Backorder SMG DA32-10104W $35.07

5-1

DA63-08012A Samsung Refrigerator Dispenser Gu Backorder SMG DA63-08012A $161.04

6

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

6

DA97-15562A Samsung Assembly Guard Middle RF9 Backorder SMG DA97-15562A $108.01

6-1

DA63-08013A Samsung Refrigerator Middle Guard Backorder SMG DA63-08013A $143.62

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

6-4

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $15.28

6-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.79

7

DA97-15559A Samsung Refrigerator Low Guard As Backorder SMG DA97-15559A $109.32

7-1

DA63-08014A Samsung Refrigerator Lower Door G In Stock SMG DA63-08014A $122.73

8

DA97-15368B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-15368B $156.39

9

DA82-02886A Samsung Refrigerator Water Filter In Stock SMG DA82-02886A $264.77

9-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

9-4

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

9-5

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $180.05

10

DA62-04617B Samsung Refrigerator Step Valve M In Stock SMG DA62-04617B $196.12

10-1

DA61-09161A Samsung Refrigerator Left Vegetab Backorder SMG DA61-09161A $118.37

10-2

DA63-07552A Samsung Refrigerator Left Front V Backorder SMG DA63-07552A $51.82

11

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $10.26

11

DA97-13841C Samsung Refrigerator Right Vegeta Backorder SMG DA97-13841C $158.98

12

DA97-15360A Samsung Refrigerator Vegetable Co Backorder SMG DA97-15360A $198.41

12-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

12-5

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.47

15

DA97-12606B Samsung Refrigerator Lamp Case As Backorder SMG DA97-12606B $121.56

15-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $146.51

16

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.56

16

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

17

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

17

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $73.43

17-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

17-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $41.79

18-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

18-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

21

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.69

21

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $18.35

23

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.67

24

DA61-10859A Samsung Refrigerator Left Middle Backorder SMG DA61-10859A $114.08

24

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

25

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

26

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

26

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

26-3

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

26-5

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.93

27

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

27

DA97-12991A Samsung Refrigerator Upper Hinge Backorder SMG DA97-12991A $94.78

27-5

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

28

DA97-12992B Samsung Refrigerator Hinge Low Le Backorder SMG DA97-12992B $93.25

29

DA97-12993B Samsung Refrigerator Low Right Hi Backorder SMG DA97-12993B $85.46

29-1

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $22.04

29-1-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $2.16

30

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

31

DA63-07306A Samsung Refrigerator Mid Hinge Gr In Stock SMG DA63-07306A $3.53

33-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $69.80

33-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

34

DA97-14537A Samsung Refrigerator Front Leg Co In Stock SMG DA97-14537A $18.35

35

DA97-14538A Samsung Refrigerator Cover Assemb In Stock SMG DA97-14538A $19.98

36

DA92-00988C Samsung Refrigerator Inverter Pri Backorder SMG DA92-00988C $222.13

37

DA92-01064A Samsung Refrigerator Assembly Mod Backorder SMG DA92-01064A $221.68

38

DA94-03040P Samsung Refrigerator Printed Circ Backorder SMG DA94-03040P $86.19

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $34.68

DA47-00318K Samsung Refrigerator 120V Metal S Backorder SMG DA47-00318K $135.23

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $6.05

DA63-07231A Samsung Refrigerator Hinge Gromme Backorder SMG DA63-07231A $4.87

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69
