Model Samsung DV476GTHASU/A1-01 Dryer – Common Parts & Diagrams

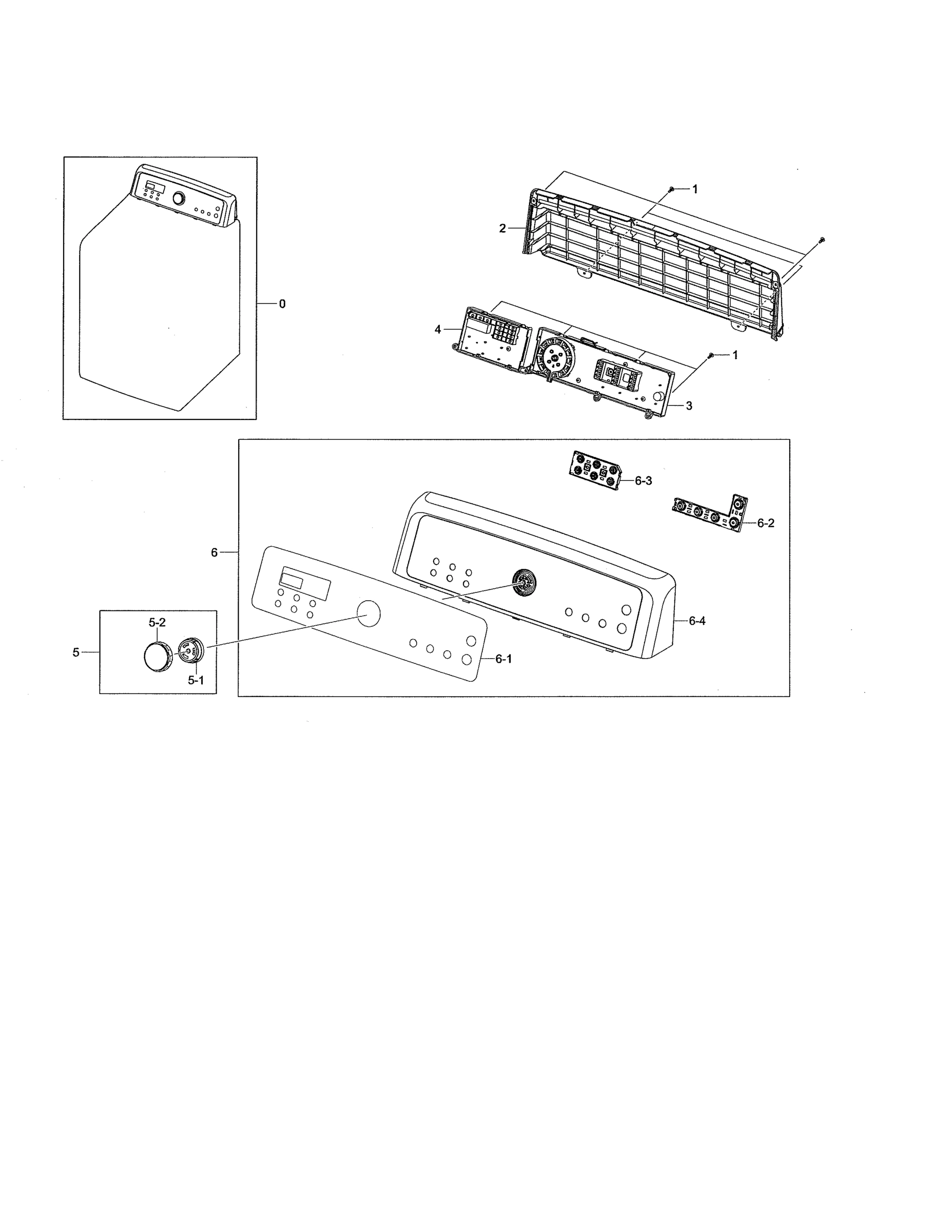

Control Panel

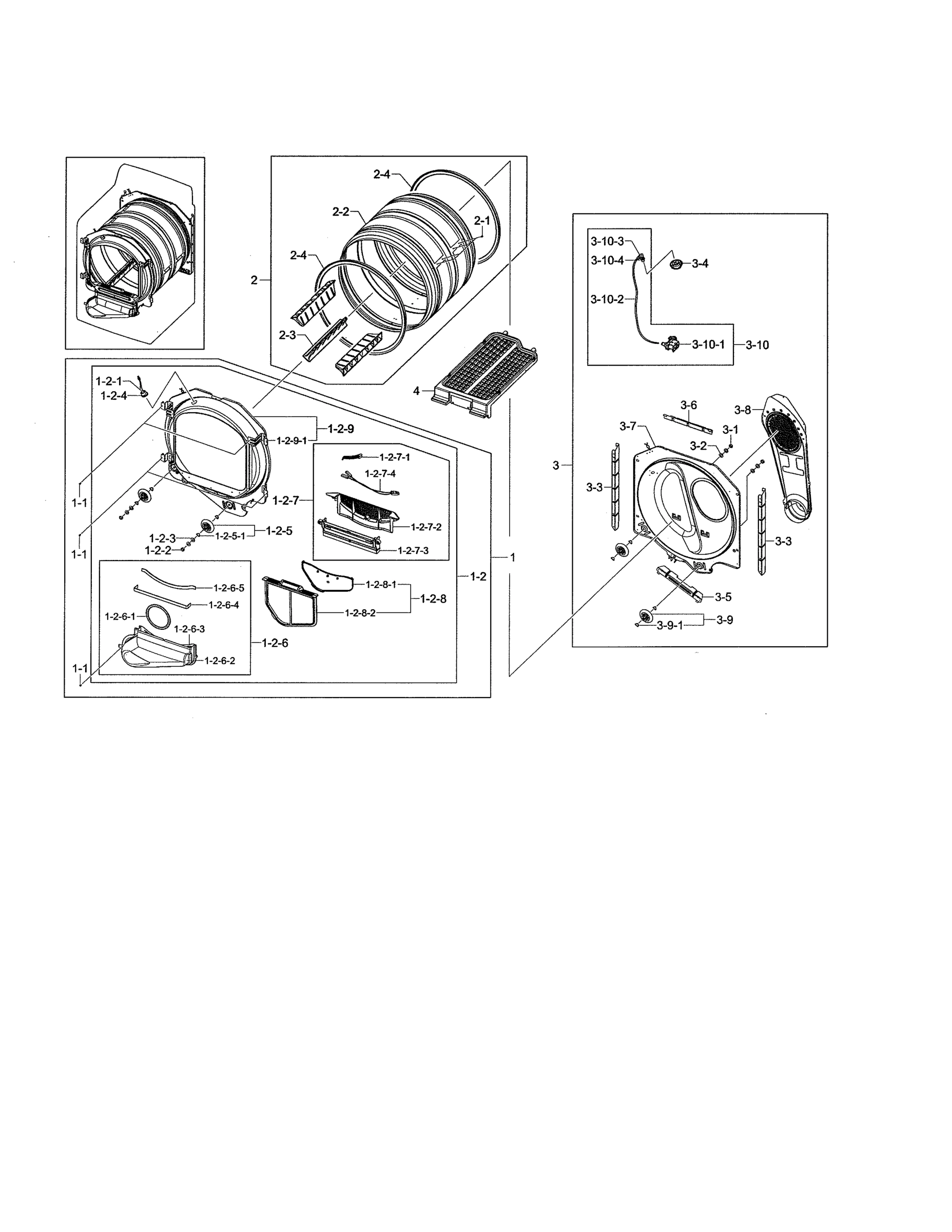

Drum

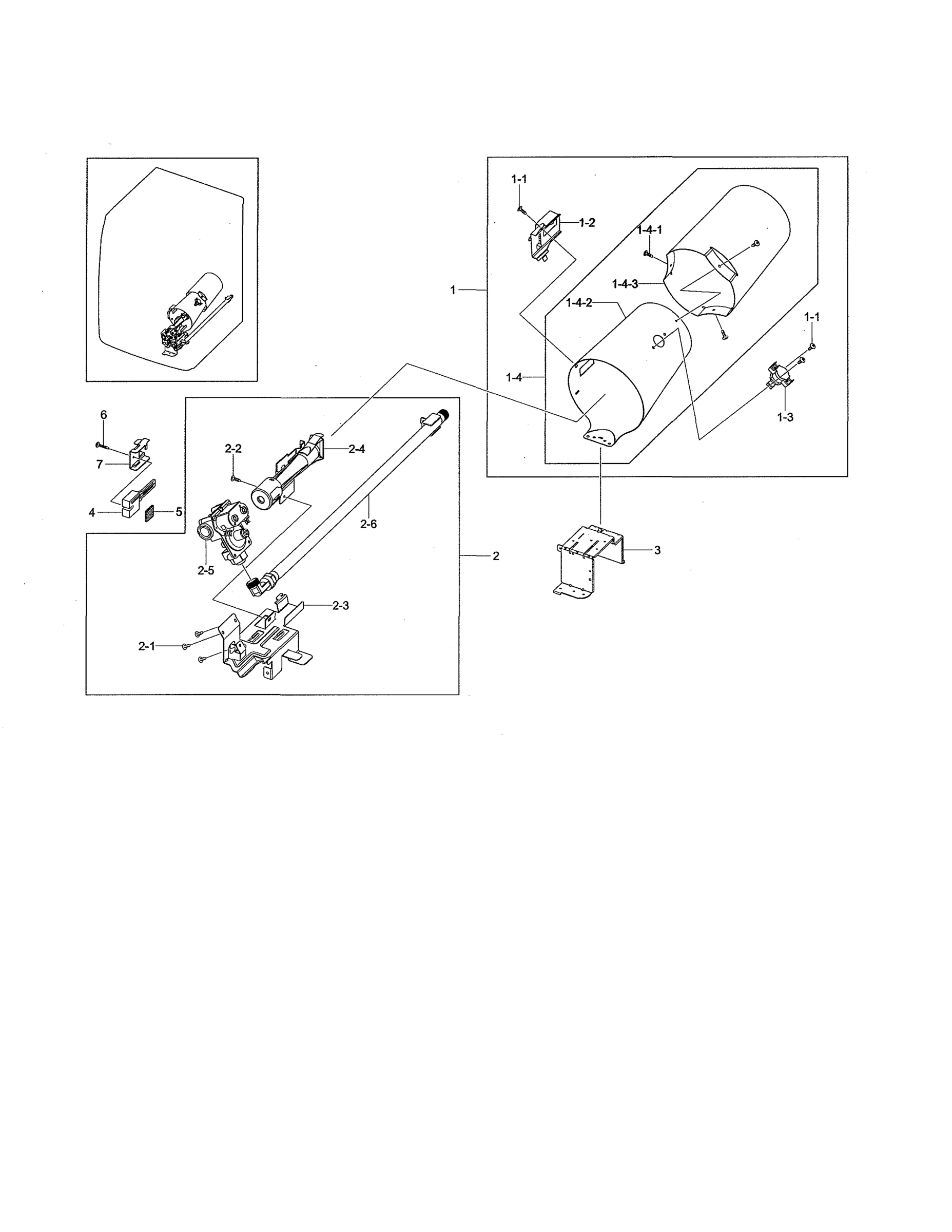

Duct & Burner

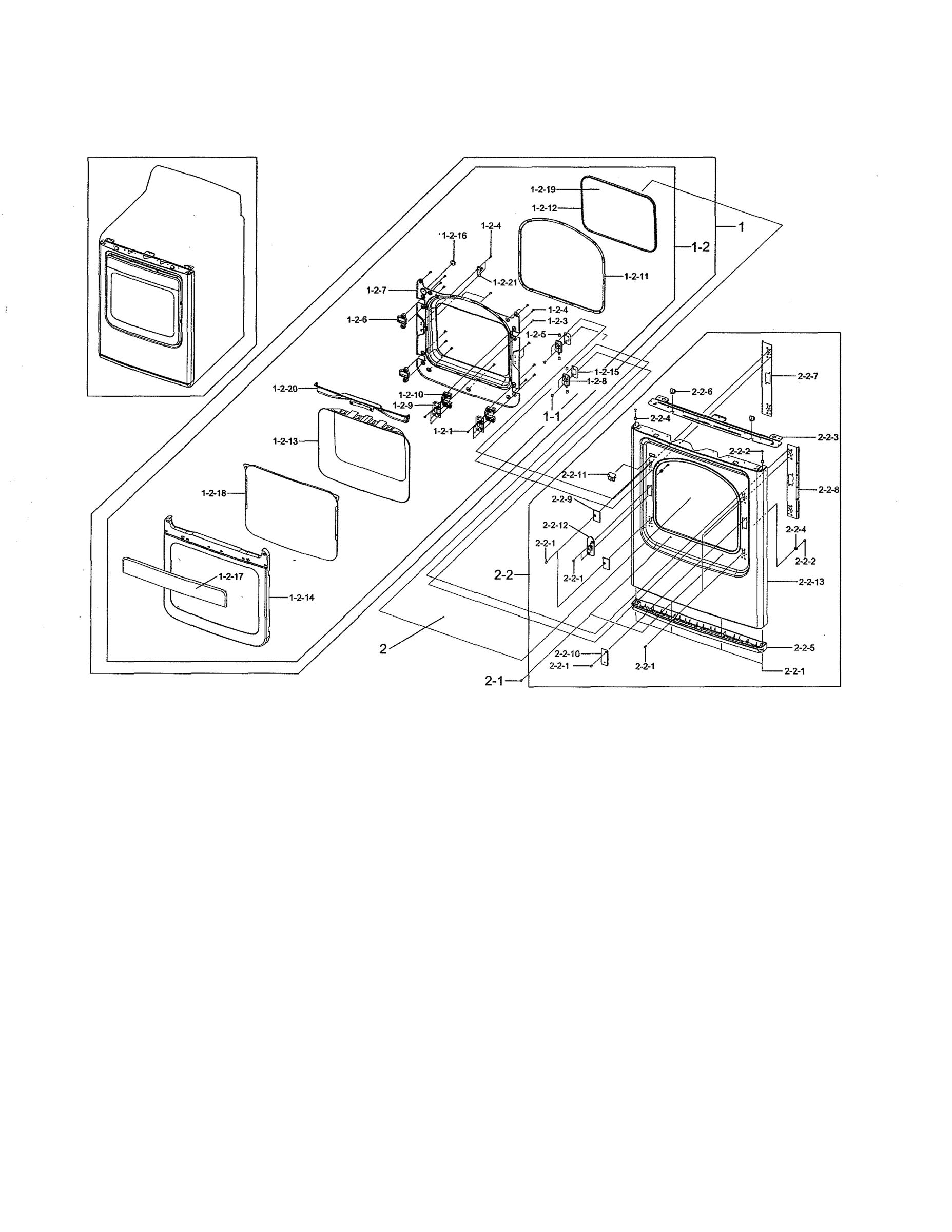

Front & Door

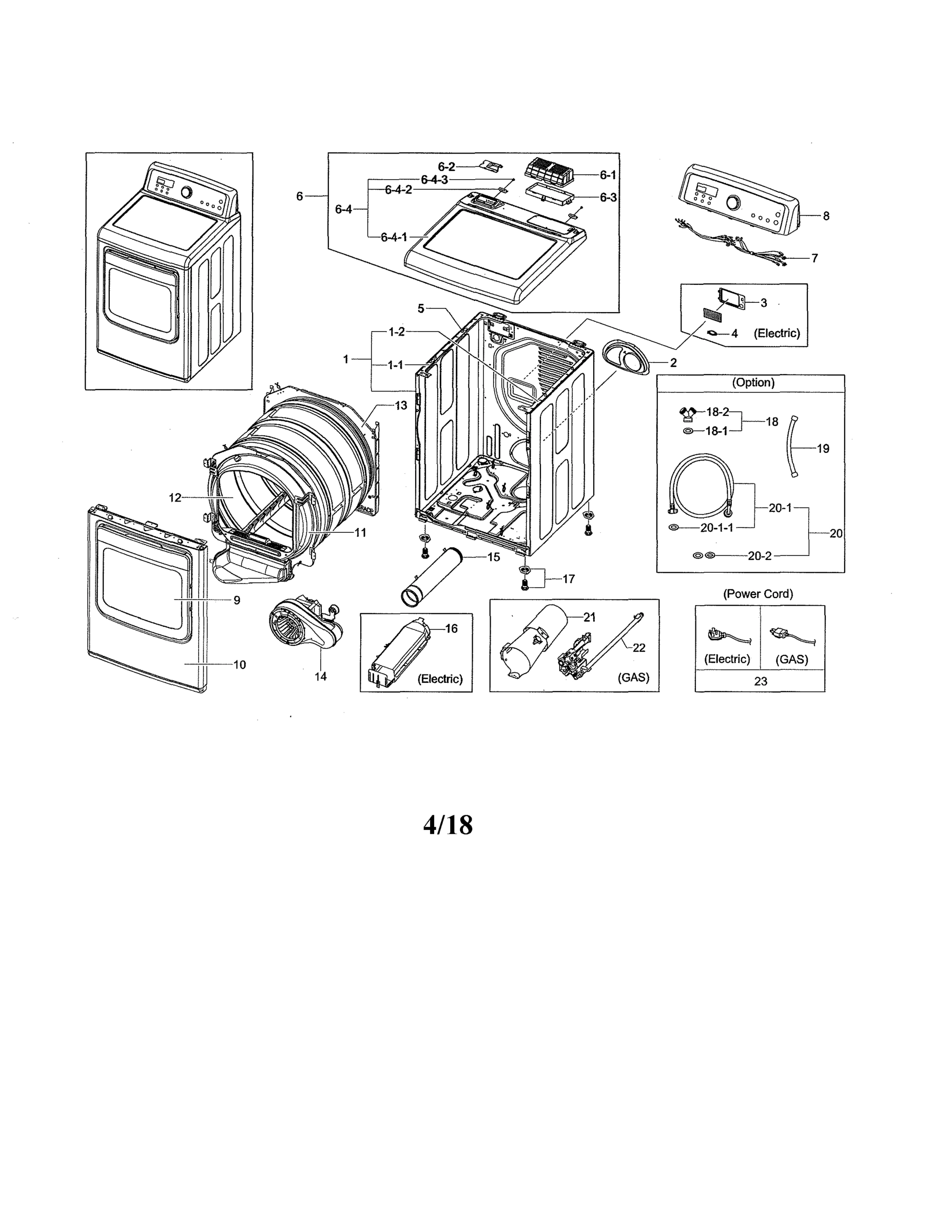

Main Parts

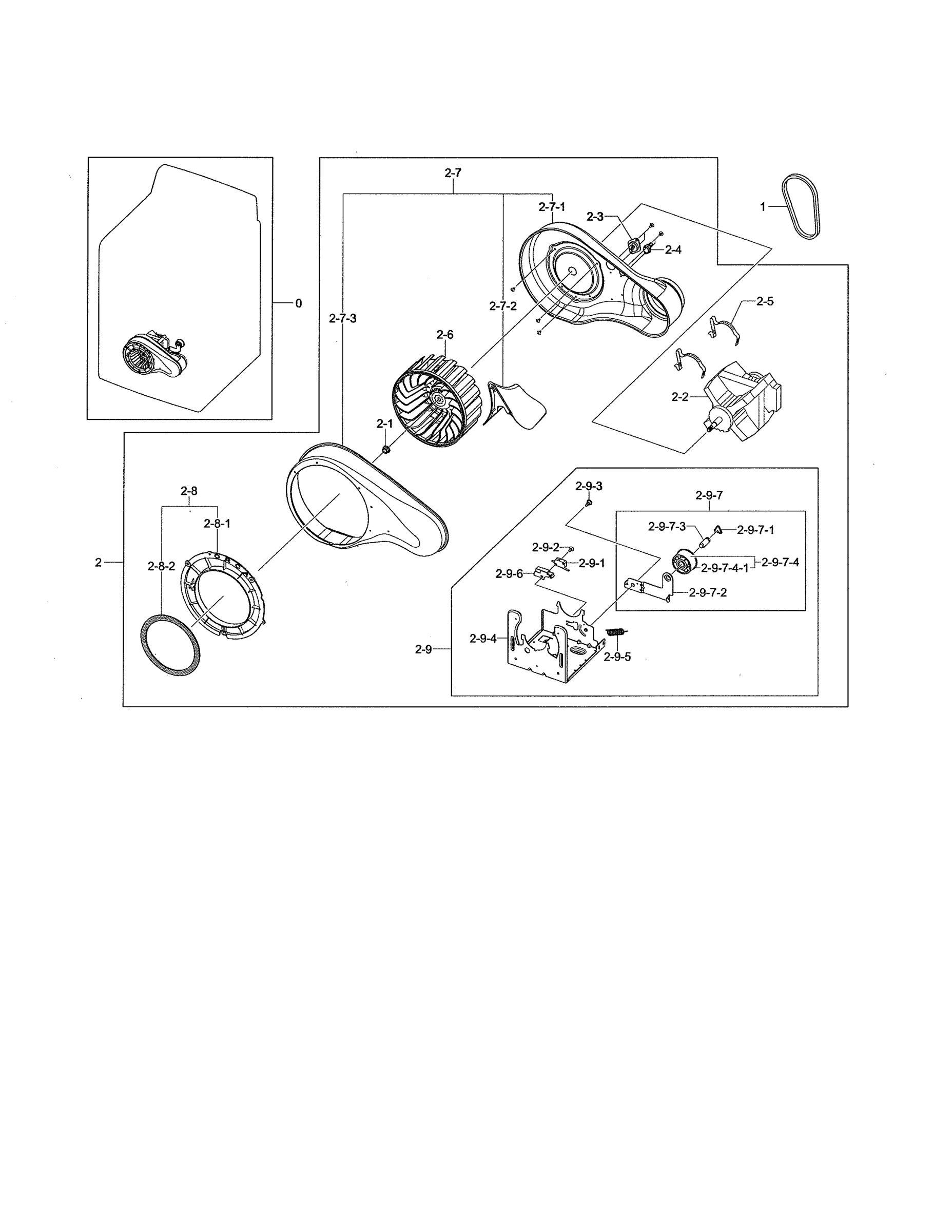

Motor Duct

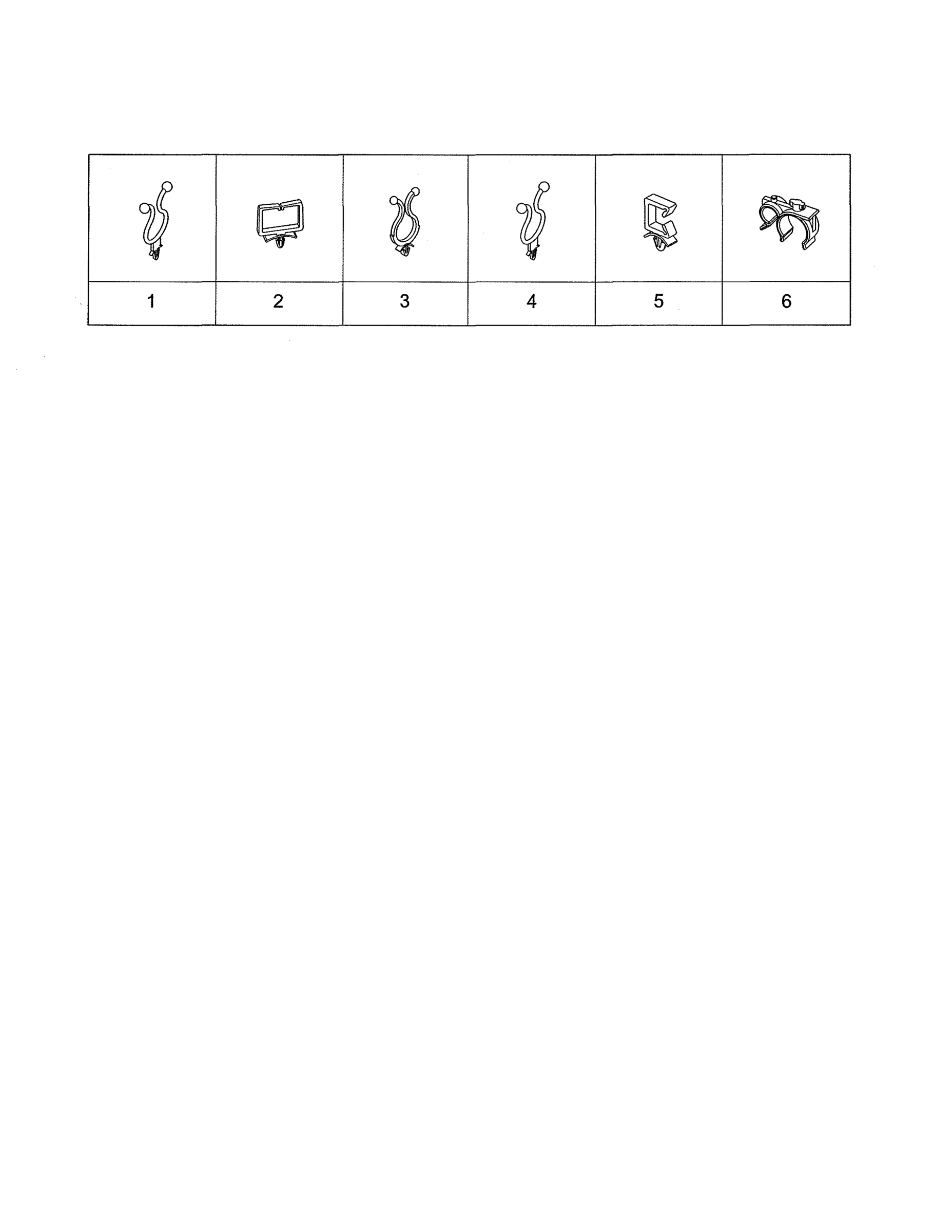

Small Parts
Common parts from model Samsung DV476GTHASU/A1-01 Dryer
0
Duct motor SMG DC90-06576A Contact Us For Availability
1
Dryer burner duct assembly SMG DC97-10720A Contact Us For Availability
1-2
Bracket SMG DC61-03047A Contact Us For Availability
1-2-7-2
Dryer lint screen cover SMG DC63-01319A Contact Us For Availability
1-2-8
Dryer lint screen SMG DC97-16742A Contact Us For Availability
2-7
dryer blower housing SMG DC93-00098C Contact Us For Availability
2-7-1
Dryer blower housing SMG DC61-02348B Contact Us For Availability
2-7-2
Fan guide SMG DC61-02641A Contact Us For Availability
2-7-3
Duct cover SMG DC63-01026A Contact Us For Availability
2-8-1
Connector SMG DC67-00586A Contact Us For Availability
2-8-2
Sponge SMG DC72-00032E Contact Us For Availability
2-9
Dryer motor bracket SMG DC96-00790C Contact Us For Availability
2-9-2
Dryer screw SMG 6002-000488 Contact Us For Availability
2-9-7-2
Bracket SMG DC61-01230B Contact Us For Availability
2-9-7-3
Idler shaft SMG DC66-00401A Contact Us For Availability
2-9-7-4
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
2-9-7-4-1
Dryer idler pulley SMG DC66-00402A Contact Us For Availability
5
Guide cover SMG DC61-03127A Contact Us For Availability
6
Cover SMG DC90-11706A Contact Us For Availability
6-3
Dryer electronic control board SMG DC92-00322E Contact Us For Availability
6-4
Dryer cover SMG DC97-16751C Contact Us For Availability
6-4-2
Cover bracket SMG DC61-03134A Contact Us For Availability
8
Panel SMG DC90-11708A Contact Us For Availability
9
Door assembly SMG DC90-09447A Contact Us For Availability
10
Frame fron SMG DC97-17017A Contact Us For Availability
11
Dryer drum front cover SMG DC97-16740B Contact Us For Availability
13
Drum SMG DC97-16789A Contact Us For Availability
18-2
Hose connector SMG DC67-00324A Contact Us For Availability
× ![]()
