Samsung DV456GWHDWR/AA-01 Dryer

0

Duct motor SMG DC90-09165A Contact Us For Availability

View on Model

1

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

View on Model

1

DC97-07602B Samsung Duct Cone Backorder SMG DC97-07602B $103.40

View on Model

1

Motor assembly SMG DC93-00101M Contact Us For Availability

View on Model

1-1

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $2.16

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $6.18

View on Model

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $139.00

View on Model

1-3

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $26.99

View on Model

1-3

dryer blower housing SMG DC93-00098C Contact Us For Availability

View on Model

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $347.98

View on Model

1-5

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.06

View on Model

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

1-7

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $29.00

View on Model

1-8

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $14.65

View on Model

1-9

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $49.76

View on Model

1-10

Dryer screw SMG 6002-000488 Contact Us For Availability

View on Model

1-11

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $22.68

View on Model

1-12

6011-004797 Samsung Bolt M5 L11 ZPC (White) S Backorder SMG 6011-004797 $4.87

View on Model

1-13

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.69

View on Model

1-14

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.70

View on Model

1-21

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

1-21

DC47-00027F Samsung Lamp Backorder SMG DC47-00027F $42.55

View on Model

1-22

DC61-03324A Samsung Glass Guide Holder Assemb Backorder SMG DC61-03324A $15.67

View on Model

1-23

DC62-00339A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00339A $85.40

View on Model

1-24

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $12.96

View on Model

1-25

DC64-02785A Samsung Door Handle Backorder SMG DC64-02785A $15.14

View on Model

1-26

Dryer door glass SMG DC64-02789A Contact Us For Availability

View on Model

1-27

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $9.27

View on Model

1-27

DC97-16741D Samsung Assembly Cover Filter In Stock SMG DC97-16741D $194.12

View on Model

1-28

Dryer lint screen SMG DC97-16742A Contact Us For Availability

View on Model

1-29

DC97-17081A Samsung Dryer Front Drum Assembly Backorder SMG DC97-17081A $202.80

View on Model

1-31

Duct cover SMG DC63-01026A Contact Us For Availability

View on Model

1-32

Fan guide SMG DC61-02641A Contact Us For Availability

View on Model

1-33

Dryer blower housing SMG DC61-02348B Contact Us For Availability

View on Model

1-92

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

1-93

Idler shaft SMG DC66-00401A Contact Us For Availability

View on Model

1-94

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $43.28

View on Model

2

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $53.52

View on Model

2-1

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $47.08

View on Model

2-3

DC66-00664A Samsung Dryer Drum Lifter Backorder SMG DC66-00664A $30.79

View on Model

2-4

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $112.89

View on Model

2-5

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $291.85

View on Model

2-6

DC99-00507B Samsung Pipe Assembly Backorder SMG DC99-00507B $187.51

View on Model

2-31

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

2-36

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $4.87

View on Model

3

DC92-01026A Samsung Dryer Assembly Printed Ci Backorder SMG DC92-01026A $339.81

View on Model

3

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $29.25

View on Model

3-1

Connector SMG DC67-00586A Contact Us For Availability

View on Model

3-2

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

3-5

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $19.44

View on Model

4

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $190.67

View on Model

4

DC97-16931B Samsung Dryer Knob Encoder Assemb In Stock SMG DC97-16931B $57.85

View on Model

5

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $2.16

View on Model

6-2

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $21.06

View on Model

6-3

DC92-01025A Samsung Dryer PCB Main Assembly In Stock SMG DC92-01025A $326.25

View on Model

6-4

Dryer top panel SMG DC97-16954A Contact Us For Availability

View on Model

6-41

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.69

View on Model

6-42

Cover bracket SMG DC61-03134A Contact Us For Availability

View on Model

6-43

Cover SMG DC63-01455A Contact Us For Availability

View on Model

6-44

Support cover SMG DC61-03403A Contact Us For Availability

View on Model

7

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $5.93

View on Model

7

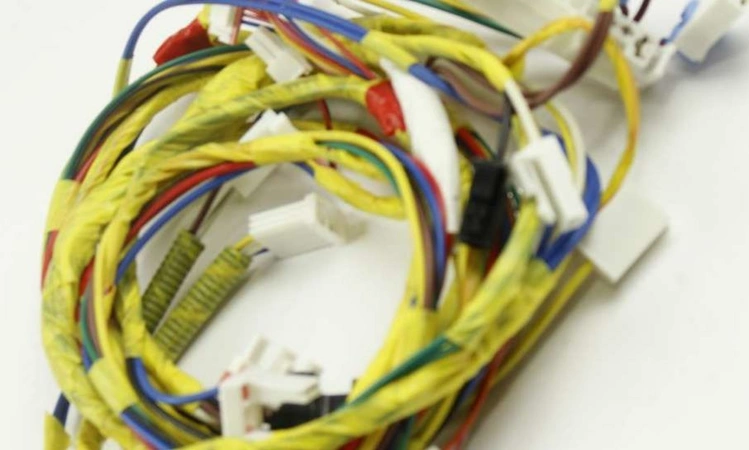

DC93-00191D Samsung Main Wire Harness Assembl Backorder SMG DC93-00191D $262.07

View on Model

8

Panel SMG DC90-09225A Contact Us For Availability

View on Model

9

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $90.14

View on Model

9

Door assembly SMG DC90-09226A Contact Us For Availability

View on Model

10

Frame SMG DC97-16964A Contact Us For Availability

View on Model

11

Drum SMG DC97-17074A Contact Us For Availability

View on Model

12

DC97-16812C Samsung Drum Wrapper Assembly Backorder SMG DC97-16812C $331.35

View on Model

13

DC97-17076B Samsung Drum Back Assembly Backorder SMG DC97-17076B $415.20

View on Model

15

DC97-07519C Samsung Assembly Exhaust Duct Backorder SMG DC97-07519C $74.19

View on Model

18

DC97-14492C Samsung Burner Assembly Backorder SMG DC97-14492C $313.91

View on Model

19

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $148.15

View on Model

211B

DC62-00344A Samsung Dryer Air Seal In Stock SMG DC62-00344A $49.28

View on Model

1210

DC67-00652A Samsung Drum Front Cap Assembly Backorder SMG DC67-00652A $10.26

View on Model

1251

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.16

View on Model

1261

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $3.79

View on Model

1271

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $13.73

View on Model

1272

Dryer lint screen cover SMG DC63-01319A Contact Us For Availability

View on Model

1274

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $12.96

View on Model

1281

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $38.69

View on Model

1282

DC61-03048A Samsung Dryer Lint Screen Filter Backorder SMG DC61-03048A $118.37

View on Model

1941

Dryer idler pulley SMG DC66-00402A No Longer Available

View on Model

2310

DC63-01456A Samsung Dryer Door Hinge Cover Backorder SMG DC63-01456A $7.55

View on Model

2313

Dryer door catch SMG DC97-16970A Contact Us For Availability

View on Model

NI

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $2.16

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.70

View on Model

NI

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $41.79

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $39.78

View on Model

Model Samsung DV456GWHDWR/AA-01 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV456GWHDWR/AA-01 Dryer
