Samsung DV400GWHDWR/AA-01 Dryer Parts List

0

Duct Motor SMG DC90-09165A Contact Us For Availability

View on Model

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $52.37

View on Model

1-1

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.69

View on Model

1-2

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $186.73

View on Model

1-3

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $17.72

View on Model

1-3

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $12.90

View on Model

1-4

DC97-07602B Samsung Duct Cone Backorder SMG DC97-07602B $103.40

View on Model

1-22

DC61-03324A Samsung Glass Guide Holder Assemb Backorder SMG DC61-03324A $15.67

View on Model

1-25

DC64-02785A Samsung Door Handle Backorder SMG DC64-02785A $15.14

View on Model

1-27

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $8.61

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $31.26

View on Model

2

Motor Assembly SMG DC93-00101M Contact Us For Availability

View on Model

2-1

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $21.24

View on Model

2-1

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $39.31

View on Model

2-2

Dryer Screw SMG 6002-000488 Contact Us For Availability

View on Model

2-3

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $3.68

View on Model

2-3

DC66-00664A Samsung Dryer Drum Lifter In Stock SMG DC66-00664A $31.87

View on Model

2-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $328.32

View on Model

2-4

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $126.54

View on Model

2-5

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $23.98

View on Model

2-5

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $257.56

View on Model

2-6

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $84.41

View on Model

2-6

DC99-00507B Samsung Pipe Assembly Backorder SMG DC99-00507B $184.29

View on Model

2-7

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

2-8

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $3.35

View on Model

2-9

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $122.92

View on Model

2-10

Kenmore Dryer Blower Housing SMG DC93-00098C Contact Us For Availability

View on Model

2-11

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $29.25

View on Model

2-31

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

2-36

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.04

View on Model

3

DC92-01026B Samsung Assembly Printed Circuit Backorder SMG DC92-01026B $252.44

View on Model

3-1

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $2.23

View on Model

3-2

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $3.35

View on Model

3-4

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $19.18

View on Model

3-8

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $49.43

View on Model

4

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $179.34

View on Model

4

DC97-16931B Samsung Dryer Knob Encoder Assemb In Stock SMG DC97-16931B $50.15

View on Model

5

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $29.82

View on Model

6

Dryer top panel SMG DC97-16954A Contact Us For Availability

View on Model

6-2

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $20.75

View on Model

6-3

DC92-01025A Samsung Dryer PCB Main Assembly In Stock SMG DC92-01025A $288.18

View on Model

7

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $6.15

View on Model

7

DC93-00191H Samsung Assembly Dryer Main Wire Backorder SMG DC93-00191H $222.29

View on Model

13

DC97-17076B Samsung Drum Back Assembly Backorder SMG DC97-17076B $404.44

View on Model

15

DC97-07519C Samsung Assembly Exhaust Duct Backorder SMG DC97-07519C $74.19

View on Model

17

DC97-14492C Samsung Burner Assembly Backorder SMG DC97-14492C $313.91

View on Model

18

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $111.81

View on Model

144

DC97-16741D Samsung Assembly Cover Filter In Stock SMG DC97-16741D $203.52

View on Model

145

Dryer Lint Screen SMG DC97-16742A Contact Us For Availability

View on Model

148

DC67-00652A Samsung Drum Front Cap Assembly Backorder SMG DC67-00652A $7.82

View on Model

641

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.69

View on Model

642

Cover bracket SMG DC61-03134A Contact Us For Availability

View on Model

643

Cover SMG DC63-01455A Contact Us For Availability

View on Model

644

Support cover SMG DC61-03403A Contact Us For Availability

View on Model

1241

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.23

View on Model

1242

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

1243

Idler Shaft SMG DC66-00401A Contact Us For Availability

View on Model

1244

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

1292

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $1.69

View on Model

1441

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $7.38

View on Model

1442

Dryer Lint Screen Cover SMG DC63-01319A Contact Us For Availability

View on Model

1444

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $14.53

View on Model

1451

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $21.51

View on Model

1452

DC61-03048A Samsung Dryer Lint Screen Filter Backorder SMG DC61-03048A $97.60

View on Model

2101

Dryer Blower Housing SMG DC61-02348B Contact Us For Availability

View on Model

2102

Fan Guide SMG DC61-02641A Contact Us For Availability

View on Model

2103

Duct Cover SMG DC63-01026A Contact Us For Availability

View on Model

2111

Connector SMG DC67-00586A Contact Us For Availability

View on Model

2112

DC62-00344A Samsung Dryer Air Seal In Stock SMG DC62-00344A $48.61

View on Model

2112

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

2121

6011-004797 Samsung Bolt M5 L11 ZPC (White) S Backorder SMG 6011-004797 $4.79

View on Model

2122

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.09

View on Model

2123

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $6.65

View on Model

2124

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $60.18

View on Model

2310

DC63-01456A Samsung Dryer Door Hinge Cover Backorder SMG DC63-01456A $7.82

View on Model

2313

Dryer Door Catch SMG DC97-16970A Contact Us For Availability

View on Model

NI

6001-002674 Samsung Machine Screw M4 × 10 Backorder SMG 6001-002674 $1.69

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

NI

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

View on Model

NI

6002-000231 Samsung Tapping Screw Backorder SMG 6002-000231 $1.18

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

NI

6002-000520 Samsung Tapping Screw Backorder SMG 6002-000520 $1.69

View on Model

NI

6003-001768 Samsung Screw Tap Type Backorder SMG 6003-001768 $1.69

View on Model

NI

6009-001476 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001476 $1.69

View on Model

NI

Dryer screw SMG 6002-000524 Contact Us For Availability

View on Model

NI

Tapping screw SMG 6002-001320 Contact Us For Availability

View on Model

NI

Screw SMG 6002-001384 Contact Us For Availability

View on Model

NI

Screw SMG 6009-001343 Contact Us For Availability

View on Model

NI

Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability

View on Model

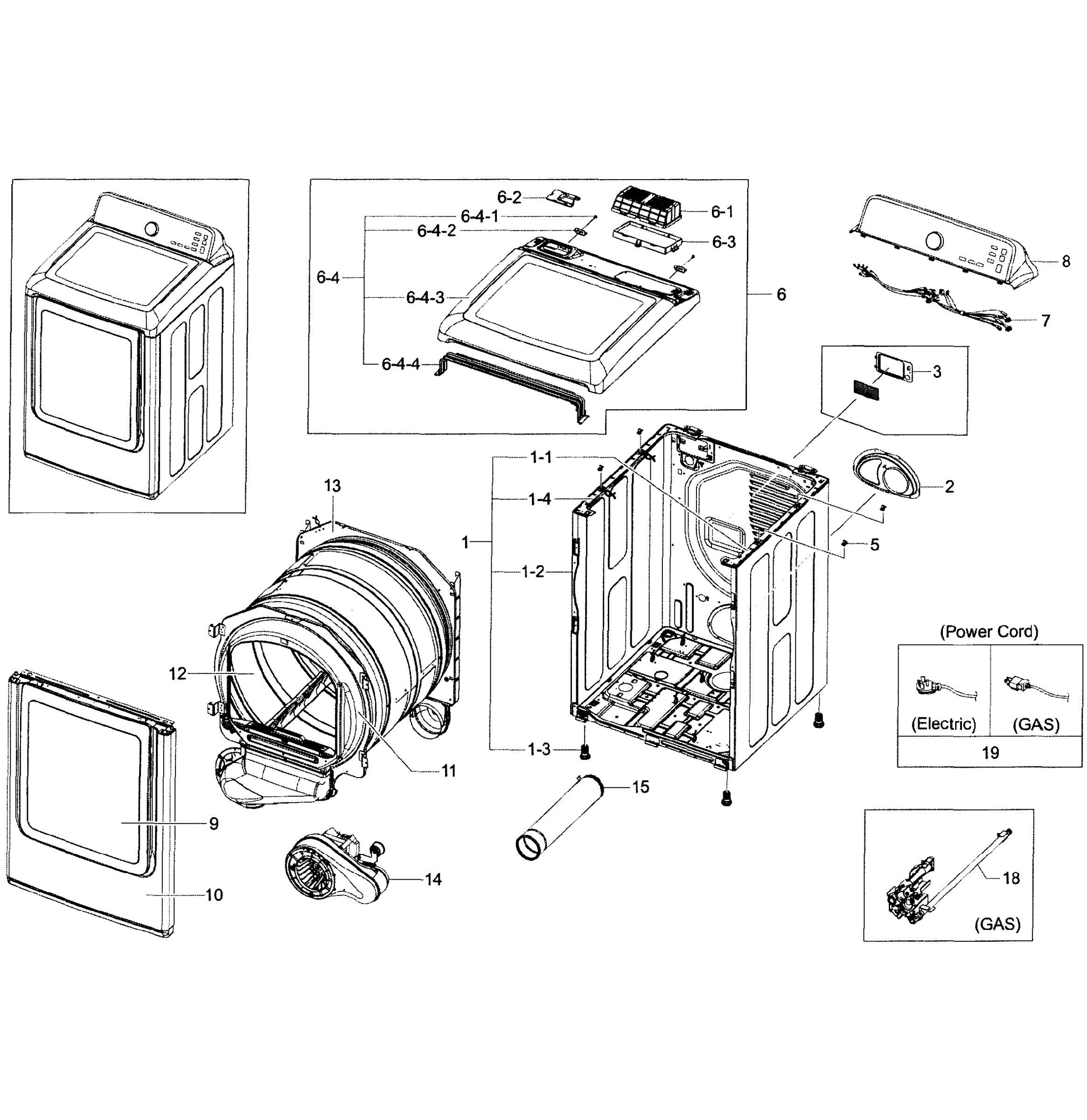

Model Samsung DV400GWHDWR/AA-01 Dryer – Common Parts & Diagrams
