Model Whirlpool YMH6140XFB2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

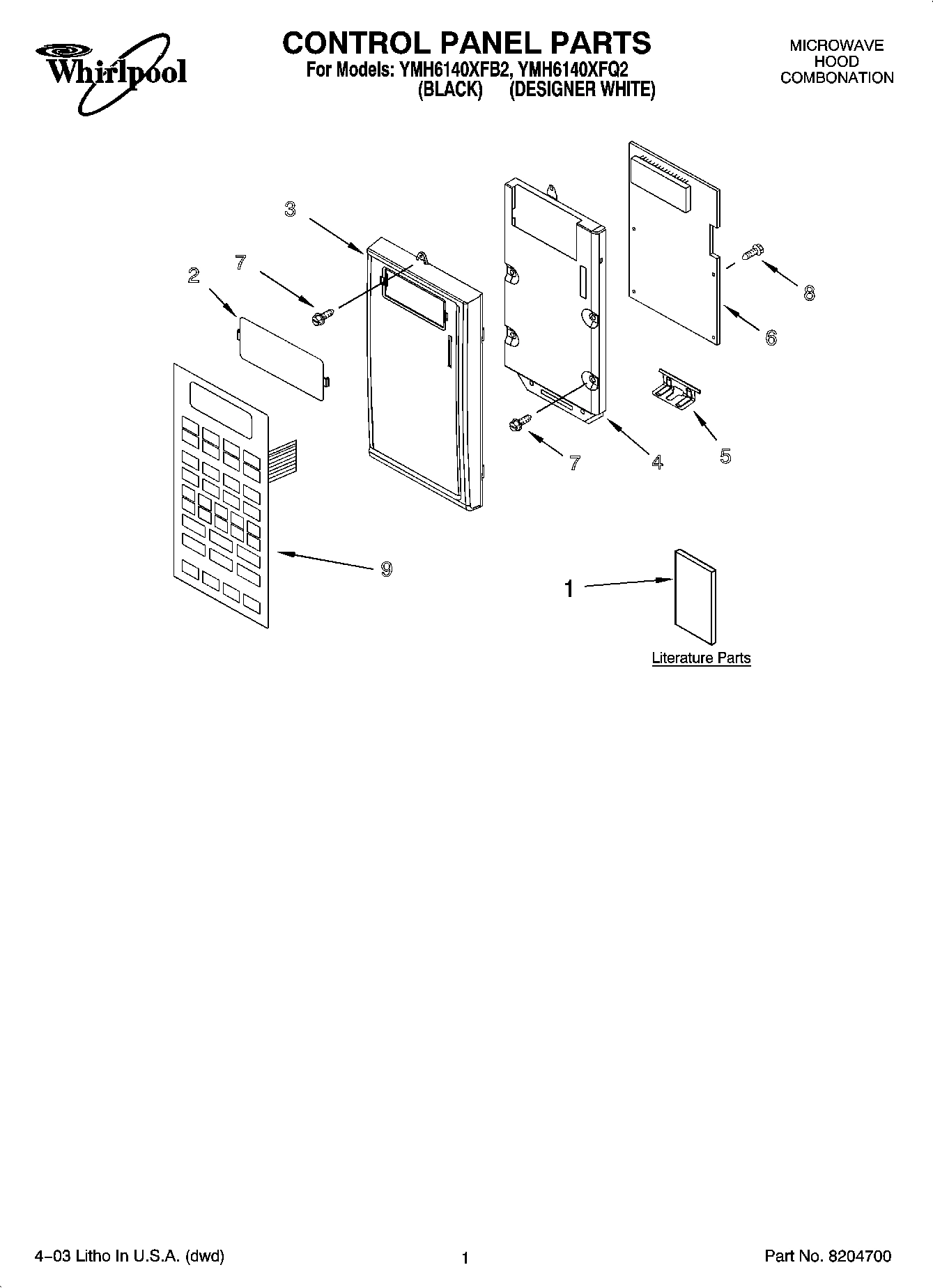

01 - CONTROL PANEL PARTS

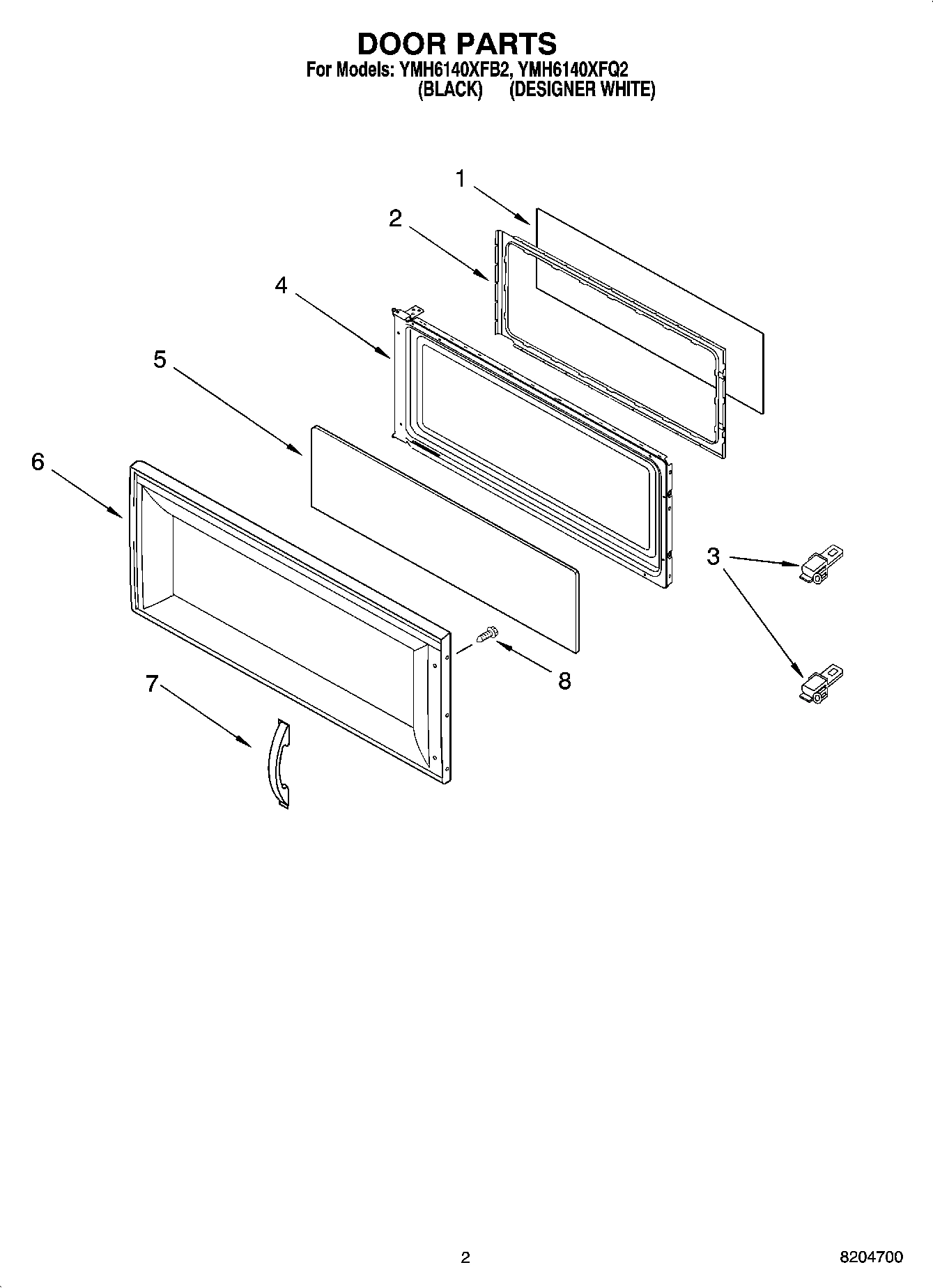

02 - DOOR PARTS

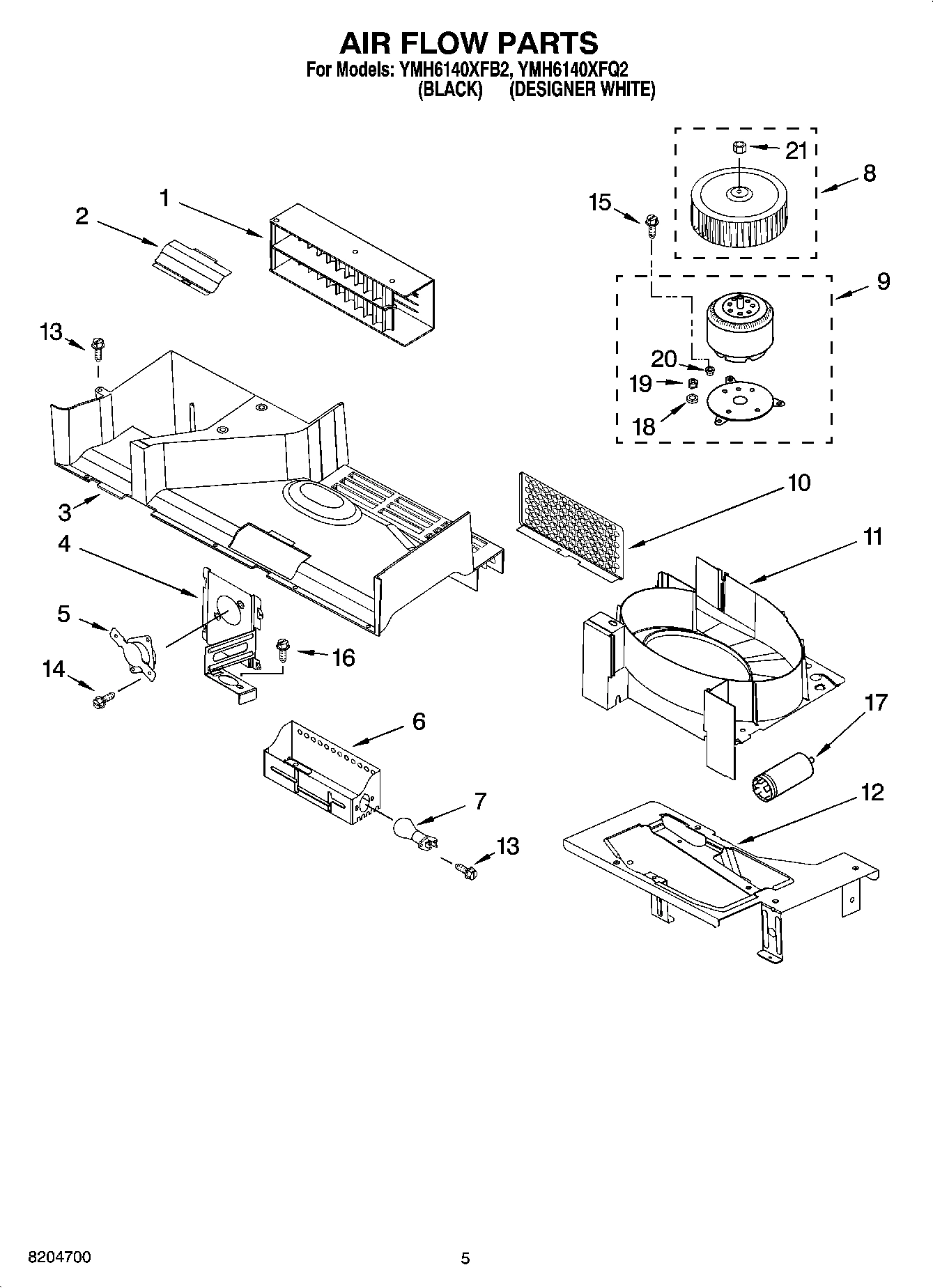

04 - AIR FLOW PARTS

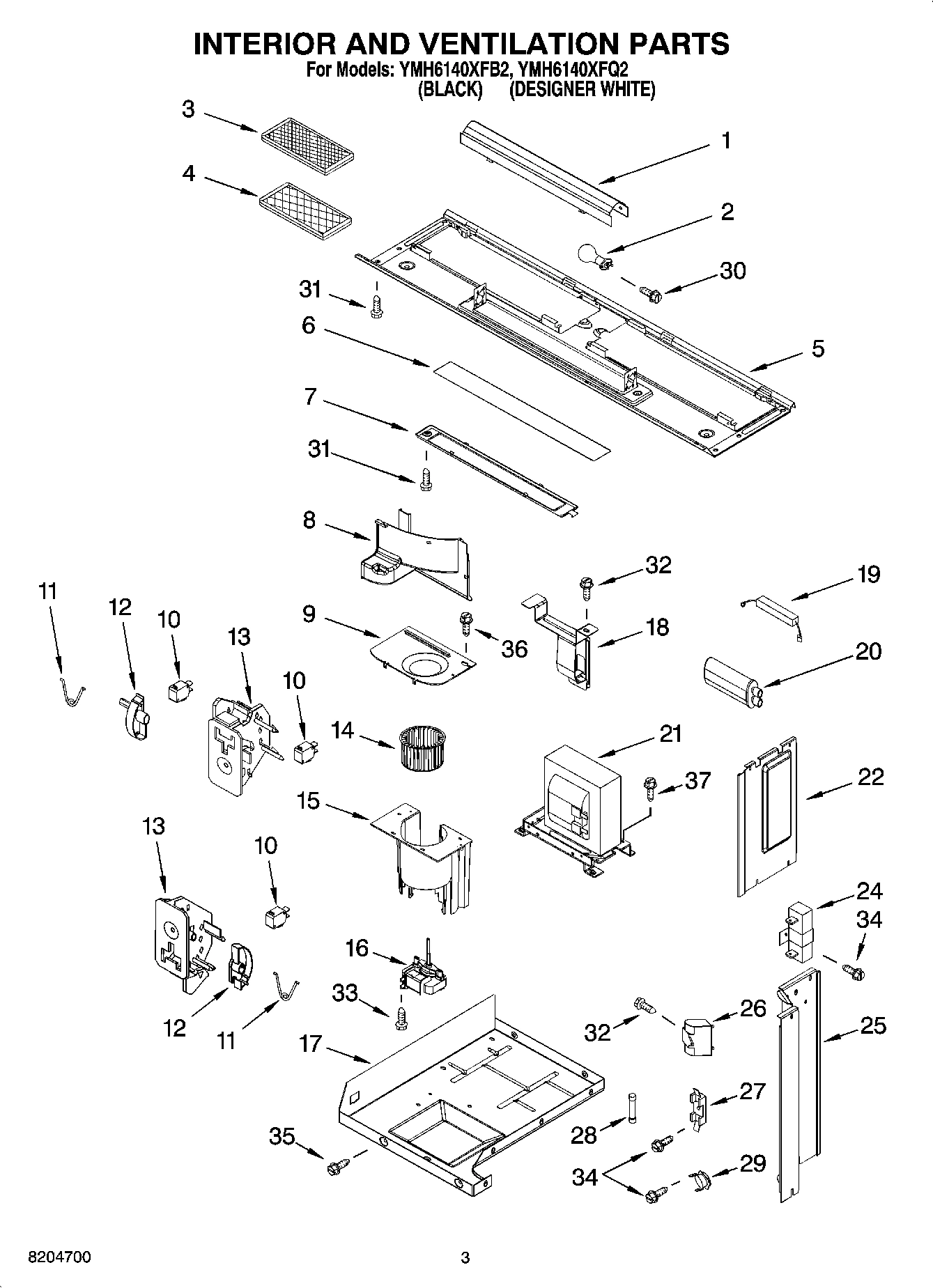

03 - INTERIOR AND VENTILATION PARTS

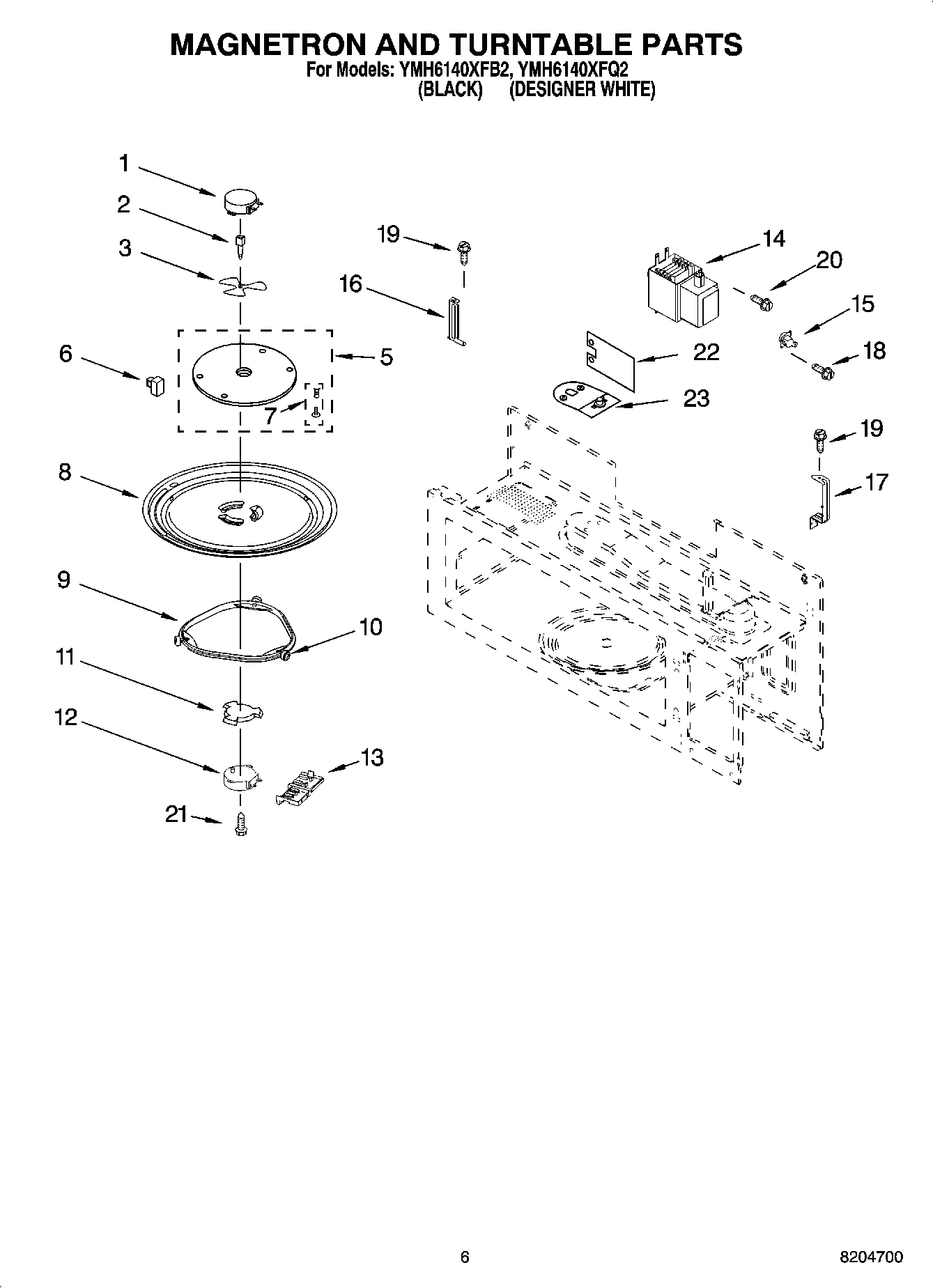

05 - MAGNETRON AND TURNTABLE PARTS

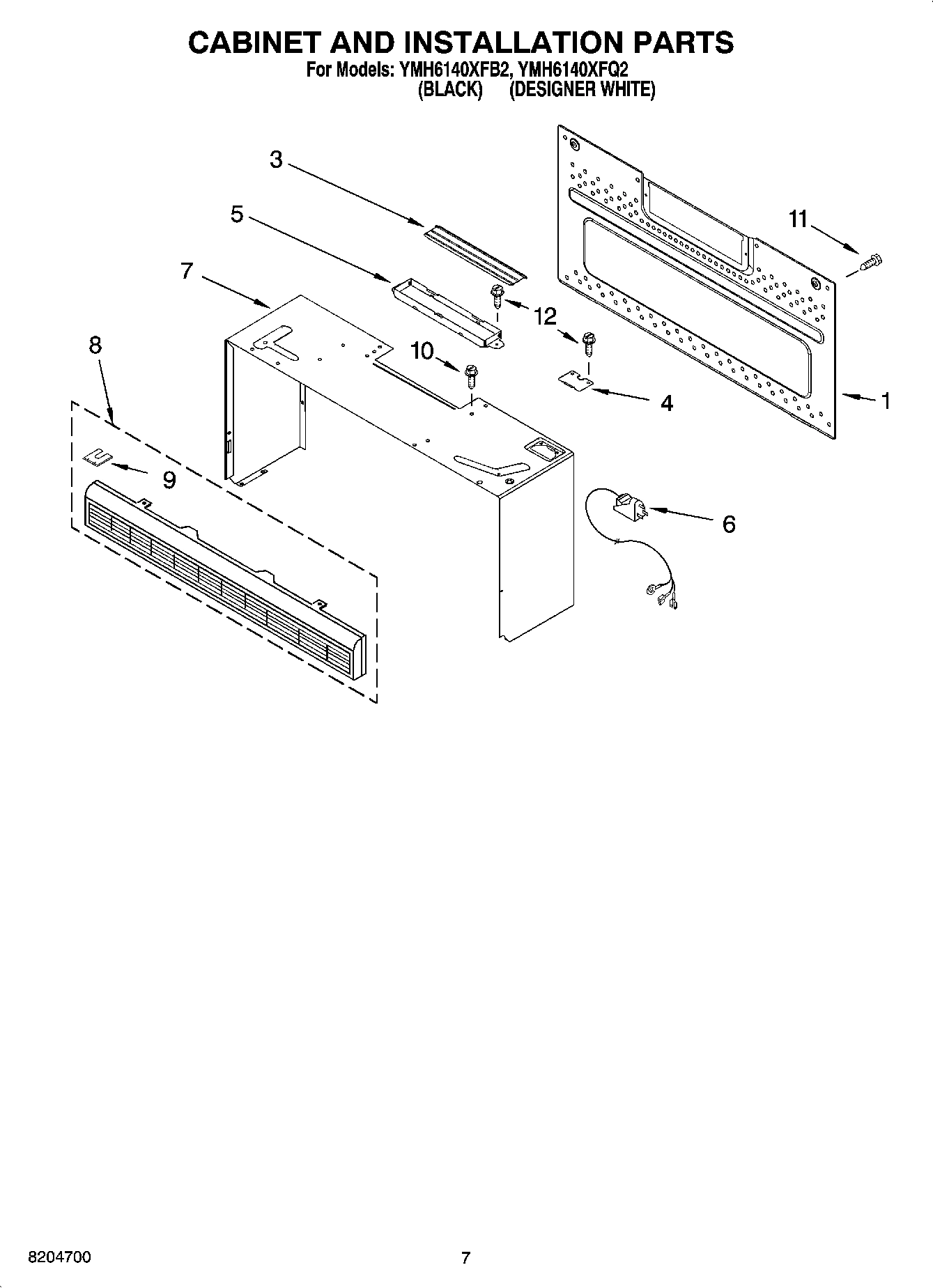

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool YMH6140XFB2 MICROWAVE HOOD COMBINATION
Filler Kit (Black) WPL 4158311 Contact Us For Availability
Filler Kit (White) WPL 4158439 Contact Us For Availability
Installation, Hardware WPL 8169659 Contact Us For Availability
Template - Wall WPL 8169765 Contact Us For Availability
Template - Upper WPL 8183734 Contact Us For Availability
Miscellaneous WPL ARI138941A Contact Us For Availability
ACCESSORY PARTS WPL ARI138942A Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
5
Glass, Outer (Black) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Bottom WPL 8185209 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
6
Cover, Hole (4) WPL 8169448 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Switch, Micro (3) WPL 8204656 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
11
Screw WPL 4393839 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138940A Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Filter WPL 4393323 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Plate, Damper WPL 4393874 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
20
Cushion, Motor WPL 8169635 Contact Us For Availability
21
Nut WPL 8184404 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
23
Thermostat/Bracket WPL 8184585 Contact Us For Availability
24
Resistor, Ceramic WPL 4393707 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat Open temp: 113 Fahrenheit Close te WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
33
Screw WPL 8169475 Contact Us For Availability
× ![]()
