Model Maytag YMES8880DS0 ELECTRIC RANGE – Common Parts & Diagrams

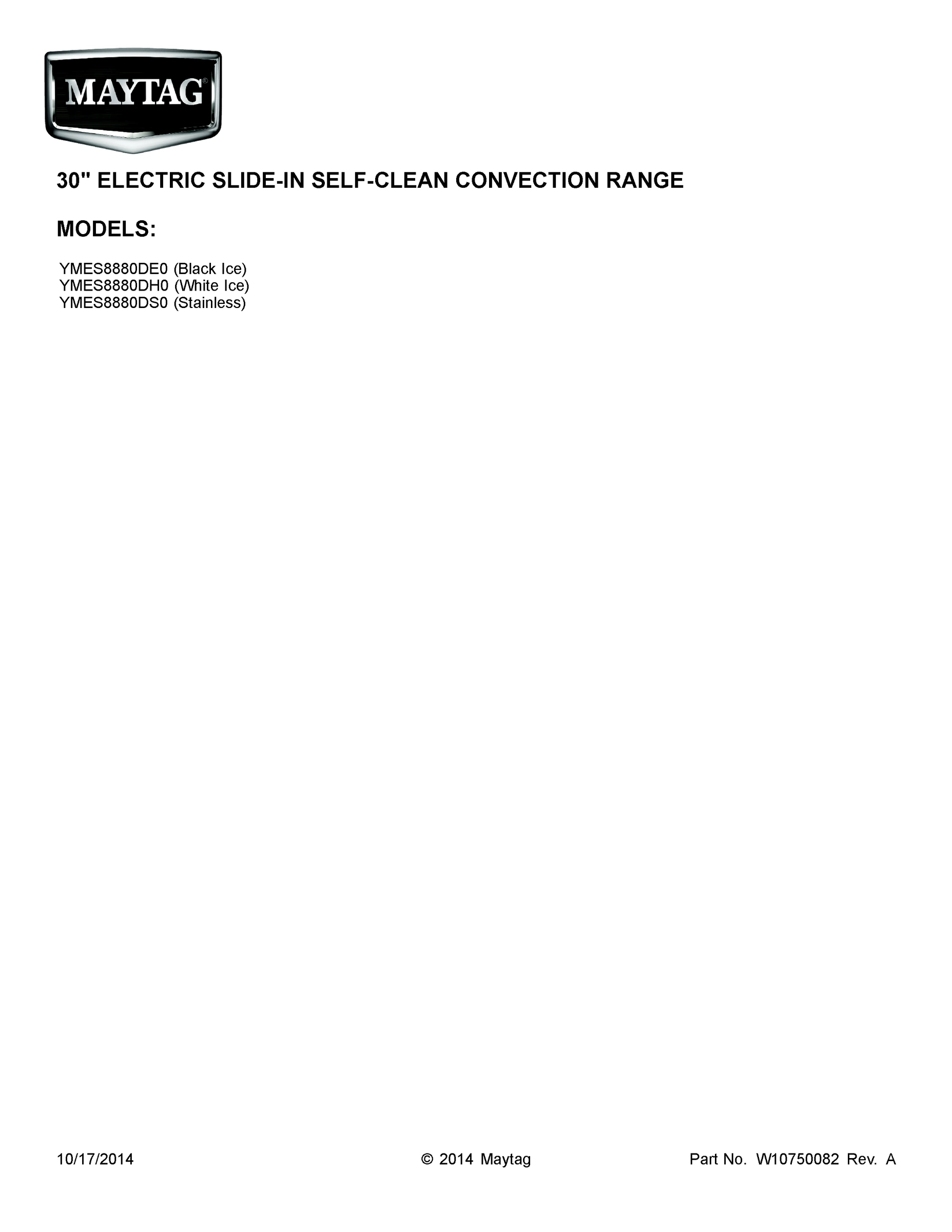

01 - COVER SHEET

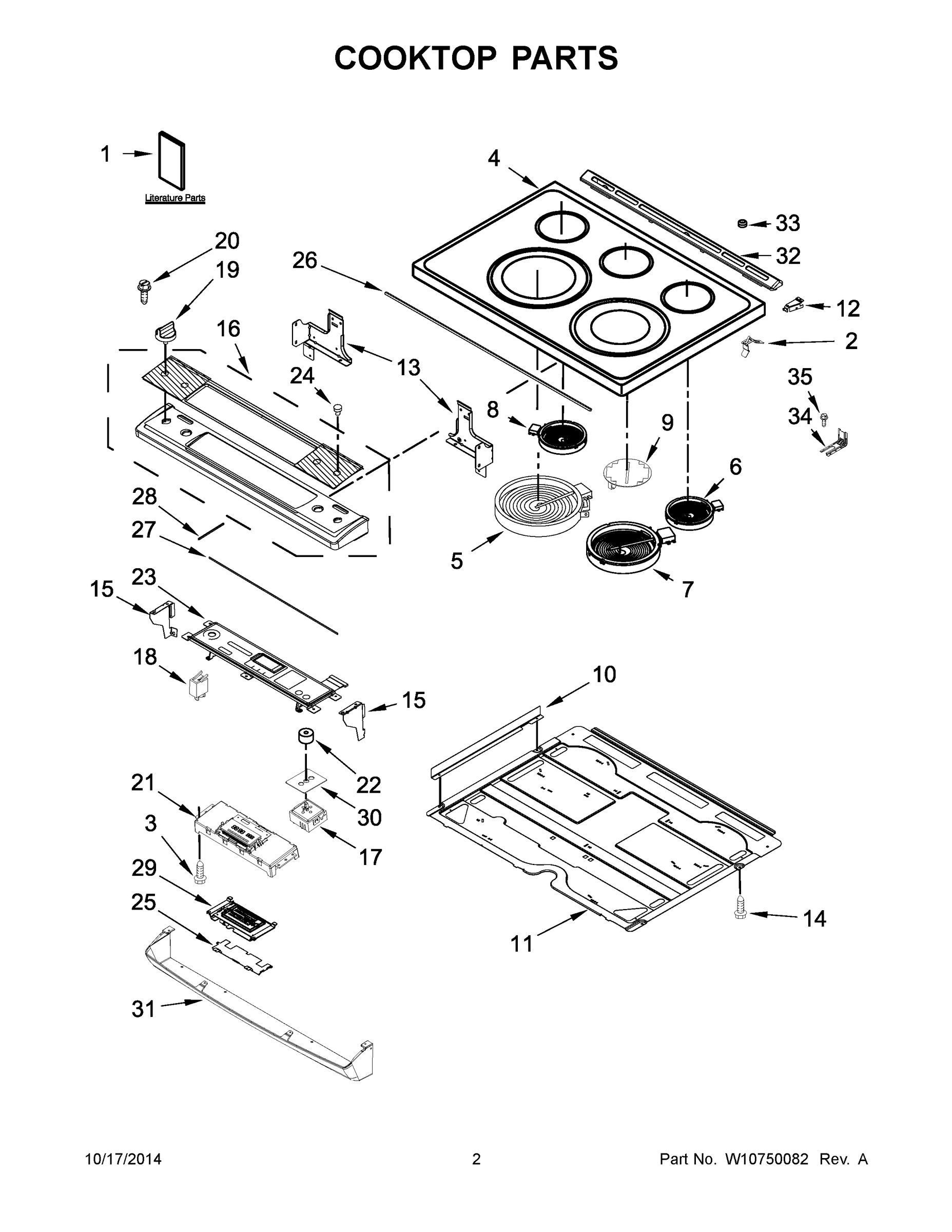

02 - COOKTOP PARTS

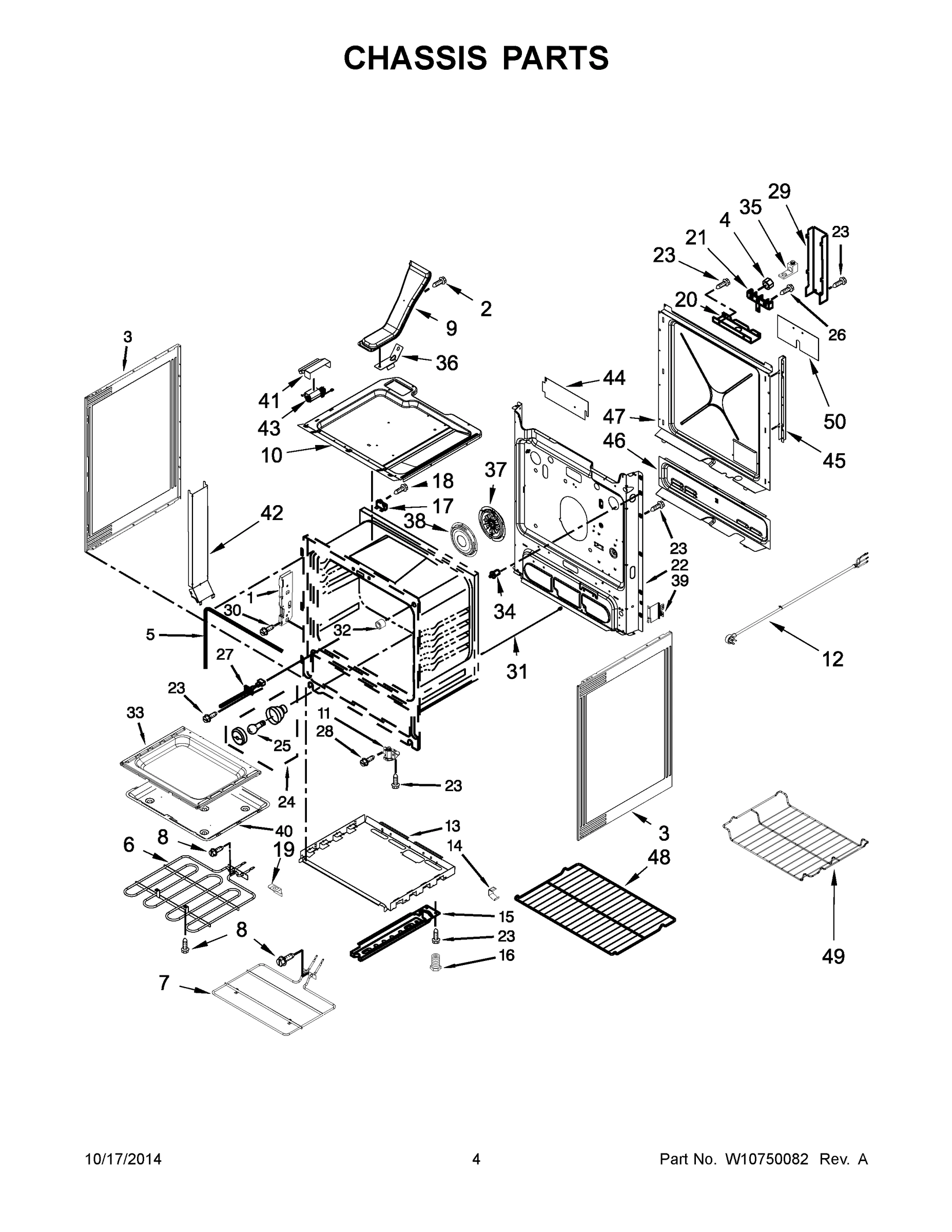

03 - CHASSIS PARTS

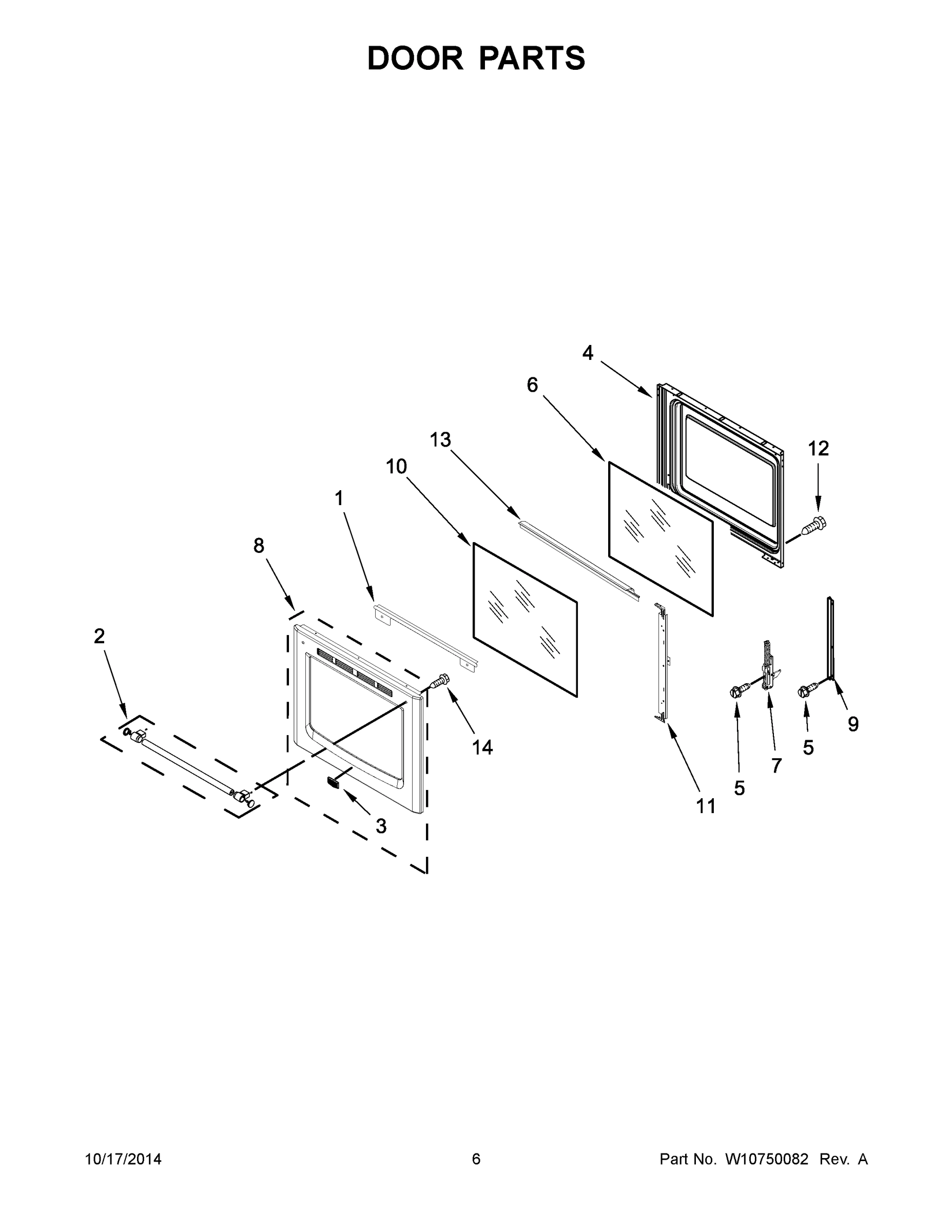

04 - DOOR PARTS

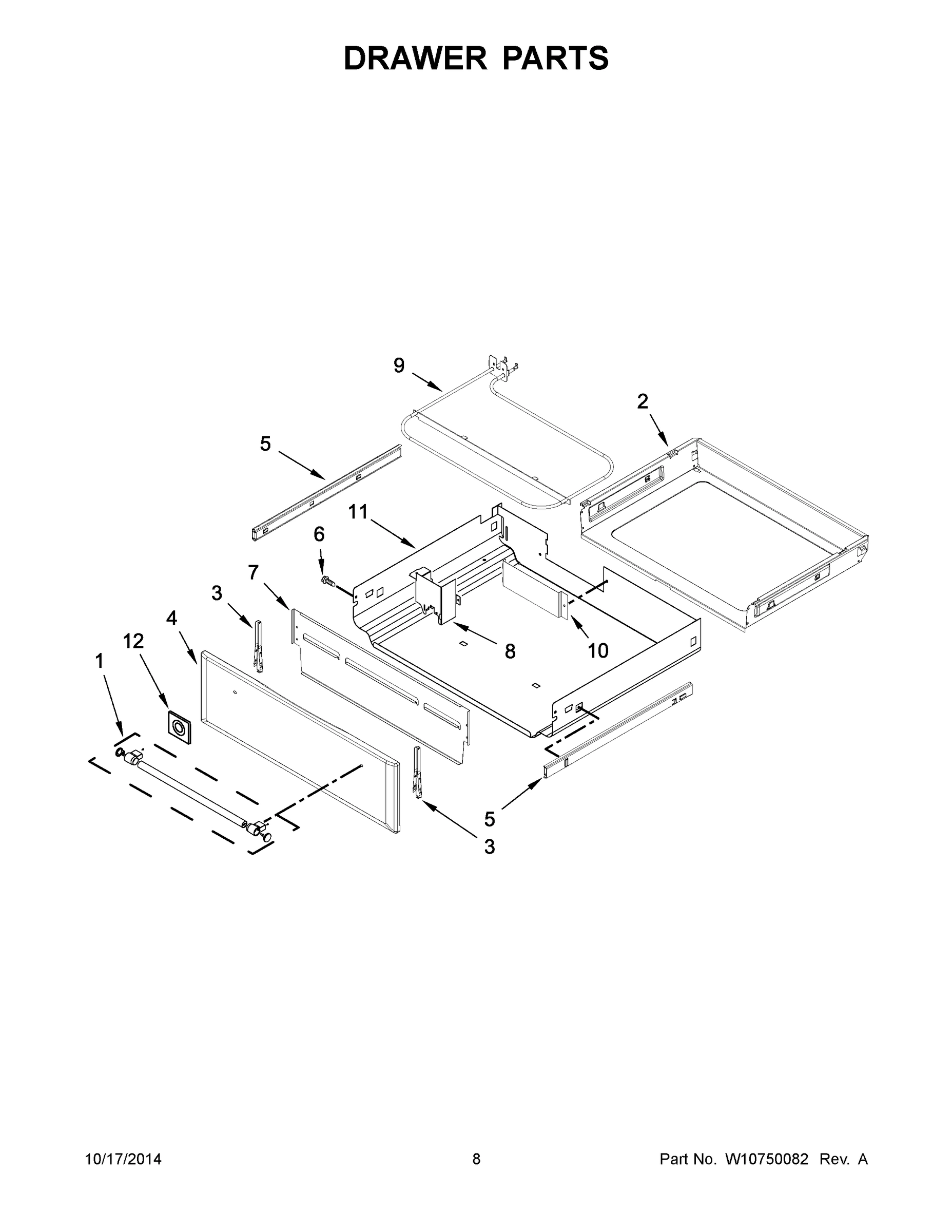

05 - DRAWER PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMES8880DS0 ELECTRIC RANGE
1
MAY W10289077 MAY W10289077 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
ASSEMBLY, HANDLE (STAINLESS) MAY W10665831 Contact Us For Availability
1A
MAY W10722063 MAY W10722063 Contact Us For Availability
1A
MAY W10330075 MAY W10330075 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10400064 MAY W10400064 Contact Us For Availability
1F
MAY W10400065 MAY W10400065 Contact Us For Availability
1G
MAY W10665232 MAY W10665232 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10663433 MAY W10663433 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10636267 MAY W10636267 Contact Us For Availability
3
MAY W10318026 MAY W10318026 Contact Us For Availability
3A
MAY W10575396 MAY W10575396 Contact Us For Availability
4
MAY W10668781 MAY W10668781 Contact Us For Availability
4
MAY W10297318 MAY W10297318 Contact Us For Availability
4
MAY W10432481 MAY W10432481 Contact Us For Availability
4A
MAY W10668780 MAY W10668780 Contact Us For Availability
5
ELEMENT (2500/1200W) (LEFT FRONT) MAY W10275049 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10327235 MAY W10327235 Contact Us For Availability
5
MAY W10441804 MAY W10441804 Contact Us For Availability
5A
MAY W10441805 MAY W10441805 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
MAY W10544952 MAY W10544952 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
MAY 8533988 MAY 8533988 Contact Us For Availability
7
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
7
MAY W10289097 MAY W10289097 Contact Us For Availability
7
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
7
MAY W10324877 MAY W10324877 Contact Us For Availability
8
MAY W10270604 MAY W10270604 Contact Us For Availability
8
MAY W10362924 MAY W10362924 Contact Us For Availability
8
ASSEMBLY, DOOR SKIN (BLACK) MAY W10655834 Contact Us For Availability
8
MAY W10634259 MAY W10634259 Contact Us For Availability
8A
ASSEMBLY, DOOR SKIN (WHITE) MAY W10655831 Contact Us For Availability
8B
ASSEMBLY, DOOR SKIN (STAINLESS) MAY W10655838 Contact Us For Availability
9
ELEMENT, WARM ZONE (CENTER REAR) MAY W10388247 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
MAY W10294852 MAY W10294852 Contact Us For Availability
9
ELEMENT, WARM MAY W10323181 Contact Us For Availability
10
MAY W10613286 MAY W10613286 Contact Us For Availability
10
MAY W10289168 MAY W10289168 Contact Us For Availability
10
MAY W10615599 MAY W10615599 Contact Us For Availability
10
MAY W10727084 MAY W10727084 Contact Us For Availability
11
MAY W10536275 MAY W10536275 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
MAY W10294851 MAY W10294851 Contact Us For Availability
11
MAY W10634260 MAY W10634260 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
CORD, POWER MAY W10233363 Contact Us For Availability
12
MAY W10031780 MAY W10031780 Contact Us For Availability
12
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MAY W10294853 MAY W10294853 Contact Us For Availability
13A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
14
SCREW MAY 3196173 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
16
MAY W10680366 MAY W10680366 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16A
MAY W10680367 MAY W10680367 Contact Us For Availability
16B
MAY W10680368 MAY W10680368 Contact Us For Availability
17
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10437092 Contact Us For Availability
17
MAY 3196548 MAY 3196548 Contact Us For Availability
17A
SWITCH, INFINITE (SINGLE) (LEFT REAR) MAY W10295048 Contact Us For Availability
17B
SWITCH, INFINITE (HYPER) (RIGHT FRONT) MAY W10437094 Contact Us For Availability
17C
SWITCH, INFINITE (SINGLE) (RIGHT REAR) MAY W10578768 Contact Us For Availability
18
MAY 8523265 MAY 8523265 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
MAY W10672074 MAY W10672074 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
20
SCREW MAY 9780274 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10658113 MAY W10658113 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10702912 MAY W10702912 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
23
MAY 3196178 MAY 3196178 Contact Us For Availability
23
MAY W10680391 MAY W10680391 Contact Us For Availability
23A
MAY W10680392 MAY W10680392 Contact Us For Availability
23B
MAY W10680393 MAY W10680393 Contact Us For Availability
24
MAY 3196068 MAY 3196068 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY W10558372 MAY W10558372 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY W10612719 MAY W10612719 Contact Us For Availability
26
MAY 3400016 MAY 3400016 Contact Us For Availability
27
MAY W10689101 MAY W10689101 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
28
MAY W10689102 MAY W10689102 Contact Us For Availability
28
MAY 3196169 MAY 3196169 Contact Us For Availability
29
MAY W10603098 MAY W10603098 Contact Us For Availability
29
MAY W10326122 MAY W10326122 Contact Us For Availability
30
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
31
PANEL, LOWER CONSOLE (BLACK) MAY W10570527 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
31A
PANEL, LOWER CONSOLE (WHITE) MAY W10570528 Contact Us For Availability
32
TRIM, VENT (BLACK) MAY W10636528 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
32A
TRIM, VENT (WHITE) MAY W10636527 Contact Us For Availability
33
MAY W10664705 MAY W10664705 Contact Us For Availability
33
MAY W10289079 MAY W10289079 Contact Us For Availability
34
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
MAY W10603623 MAY W10603623 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10617484 Contact Us For Availability
38
MAY W10346154 MAY W10346154 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10346147 MAY W10346147 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
43
MAY W10162259 MAY W10162259 Contact Us For Availability
44
MAY W10655485 MAY W10655485 Contact Us For Availability
45
MAY W10162241 MAY W10162241 Contact Us For Availability
46
MAY W10162248 MAY W10162248 Contact Us For Availability
47
MAY W10289172 MAY W10289172 Contact Us For Availability
48
MAY W10531060 MAY W10531060 Contact Us For Availability
49
MAY W10289145 MAY W10289145 Contact Us For Availability
50
MAY W10655441 MAY W10655441 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580243 MAY W10580243 Contact Us For Availability
NI
MAY W10580265 MAY W10580265 Contact Us For Availability
NI
MAY W10580298 MAY W10580298 Contact Us For Availability
NI
MAY W10580309 MAY W10580309 Contact Us For Availability
NI
MAY W10598170 MAY W10598170 Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10162240 MAY W10162240 Contact Us For Availability
NI
MAY W10289173 MAY W10289173 Contact Us For Availability
NI
MAY W10575374 MAY W10575374 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 31463A MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY W10432539 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL MAY W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (BLACK) MAY W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (WHITE) MAY W10675027 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRI MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
