Model Whirlpool YGH7145XFQ1 MICROWAVE OVEN 1.4 CU. FT. – Common Parts & Diagrams

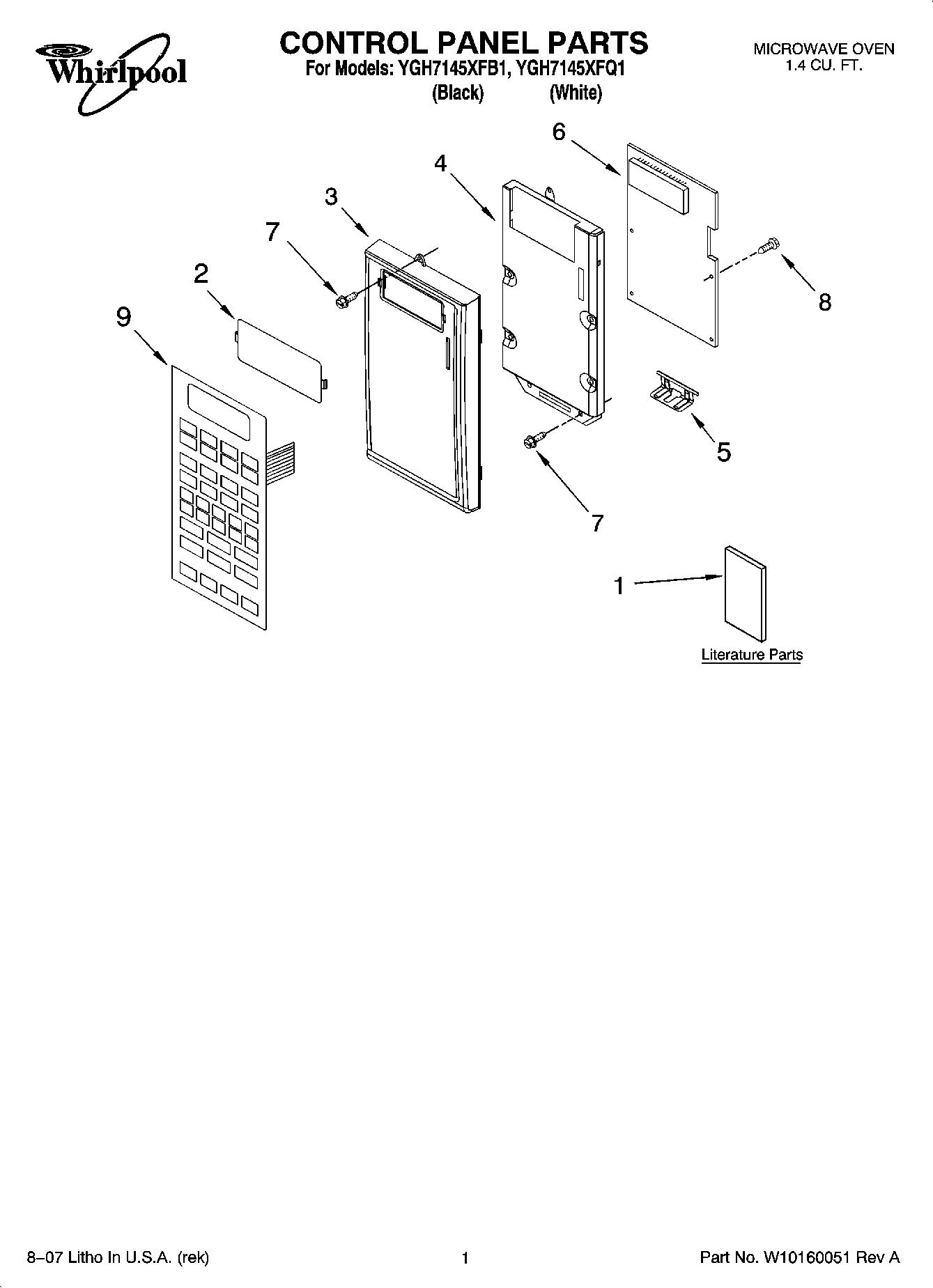

01 - CONTROL PANEL PARTS

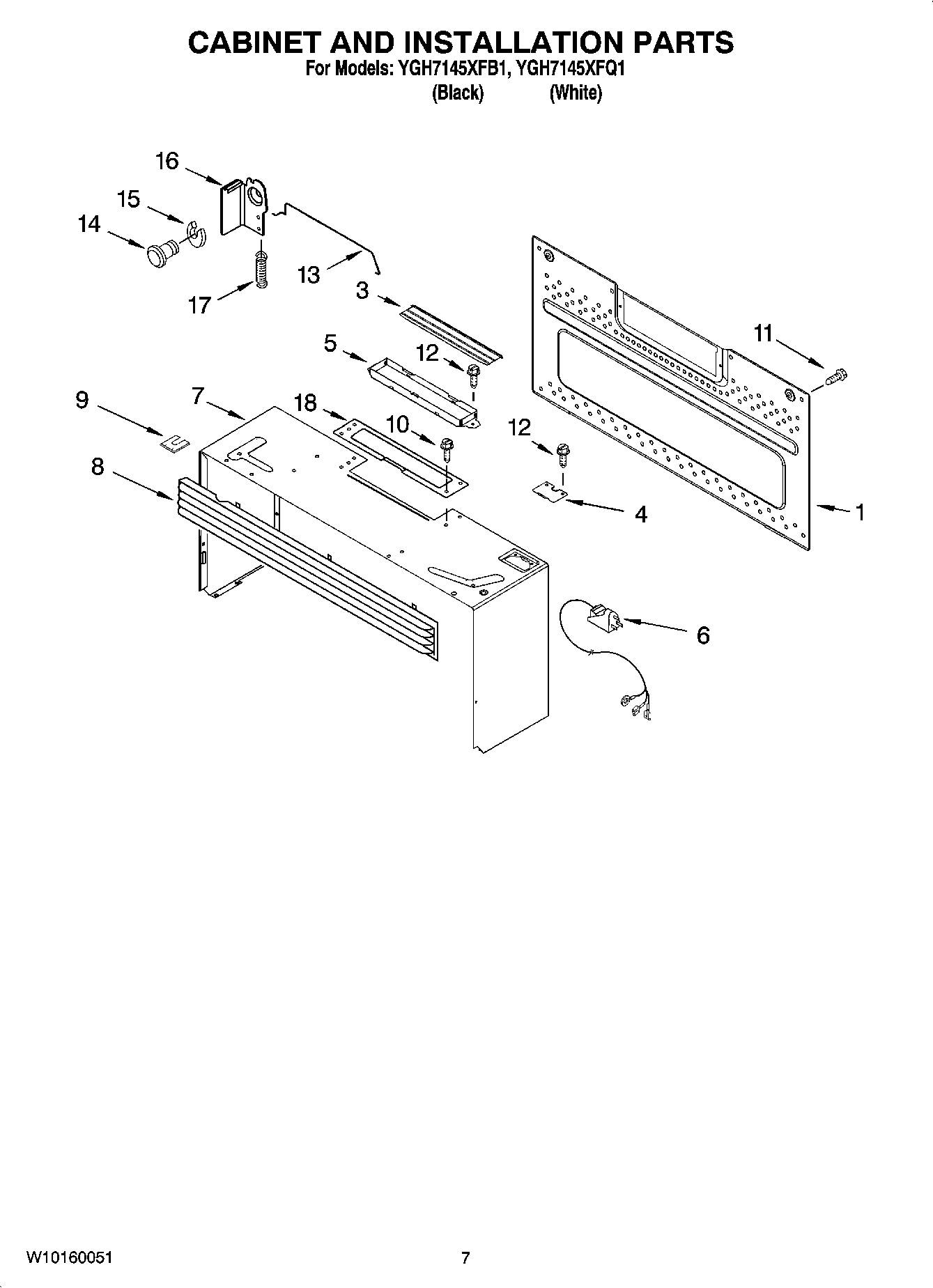

06 - CABINET AND INSTALLATION PARTS

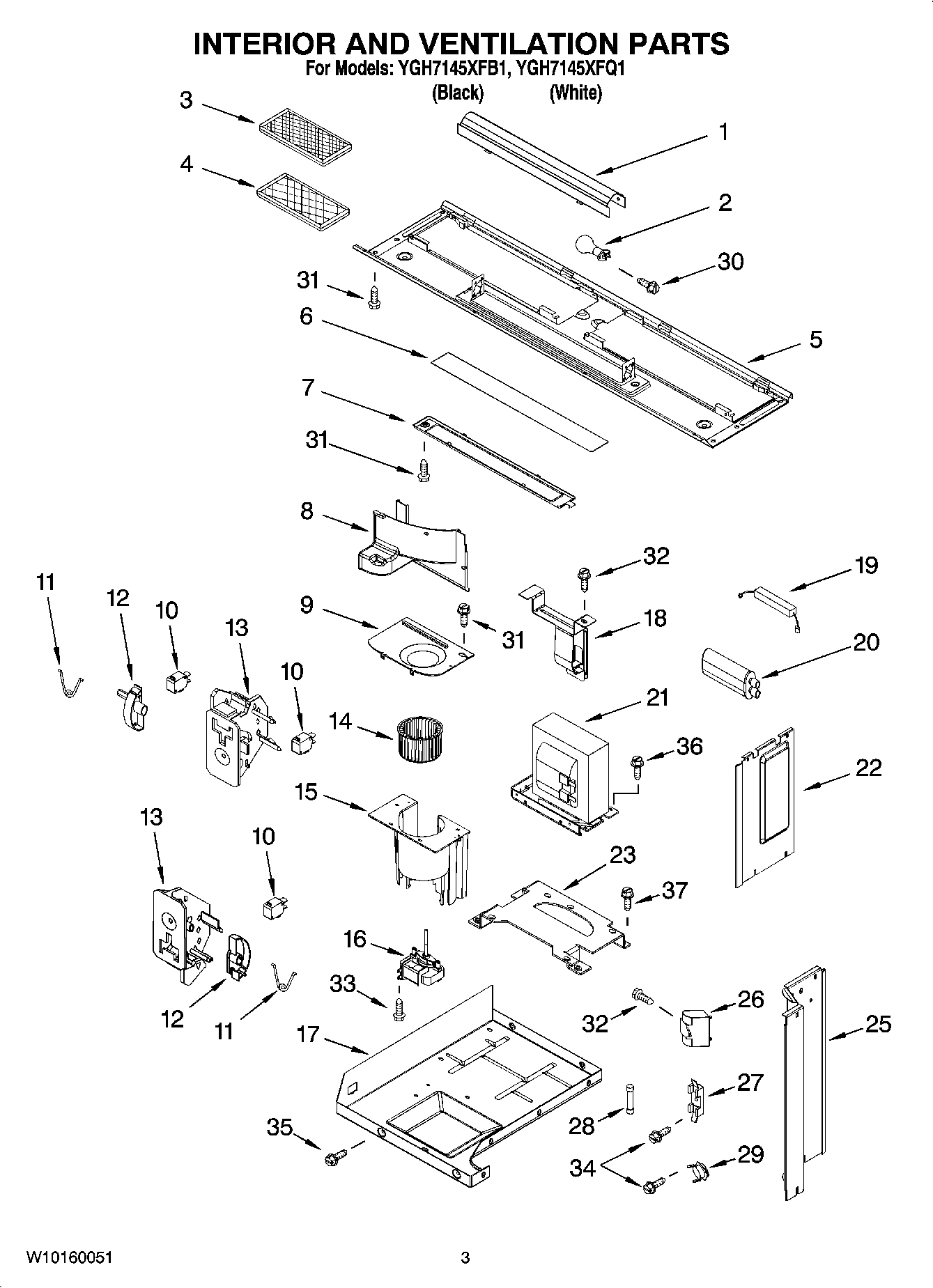

03 - INTERIOR AND VENTILATION PARTS

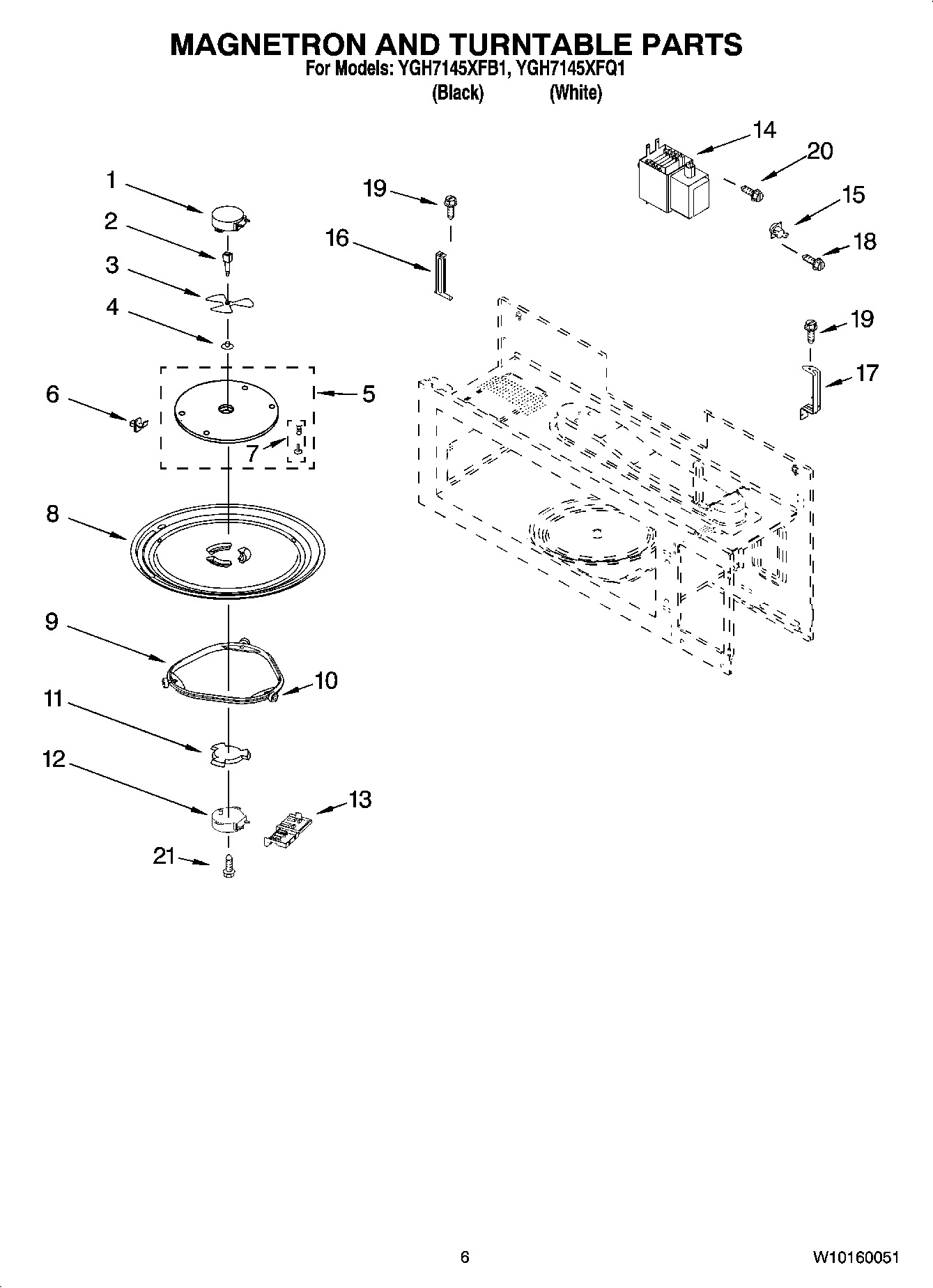

05 - MAGNETRON AND TURNTABLE PARTS

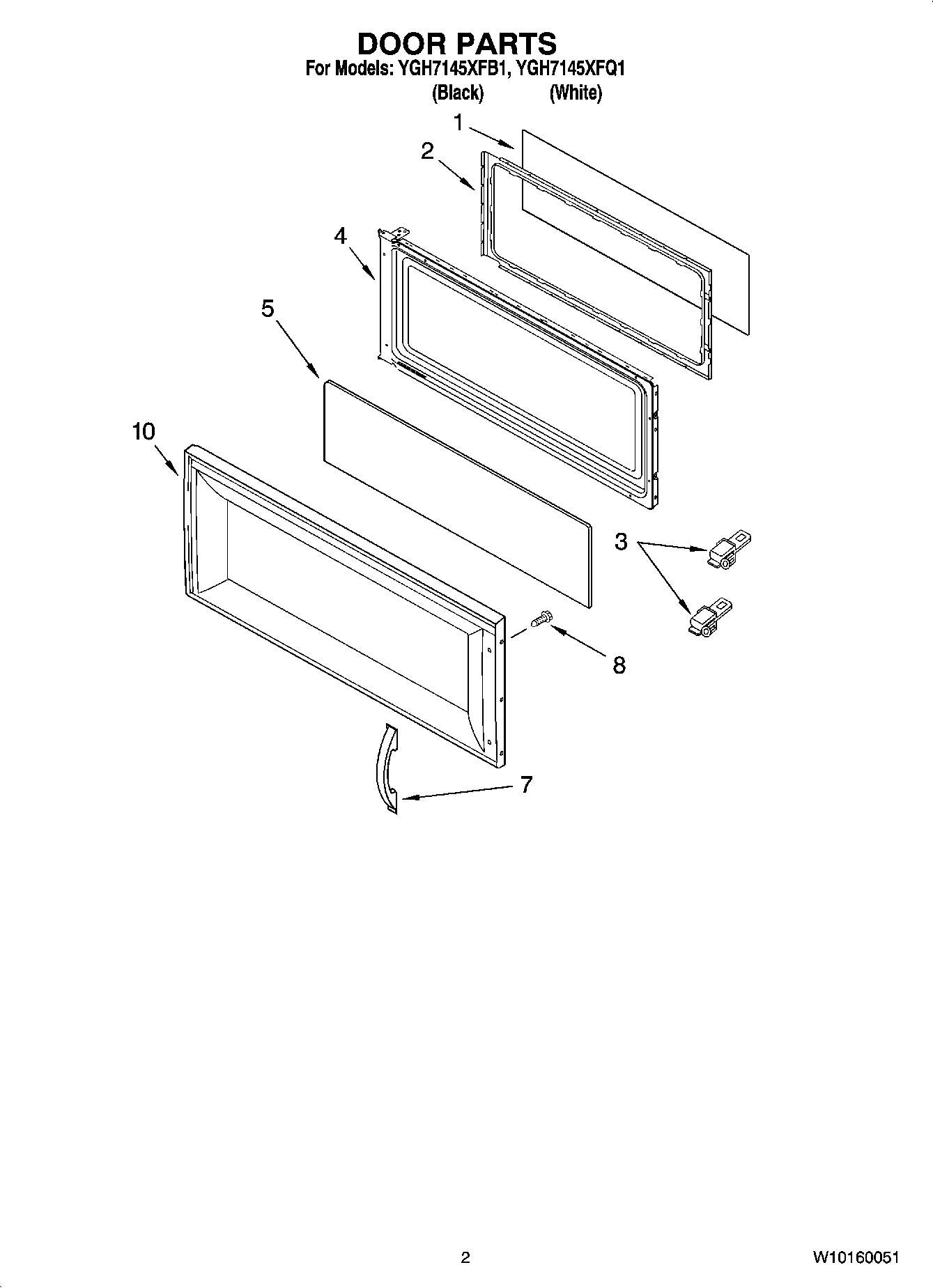

02 - DOOR PARTS

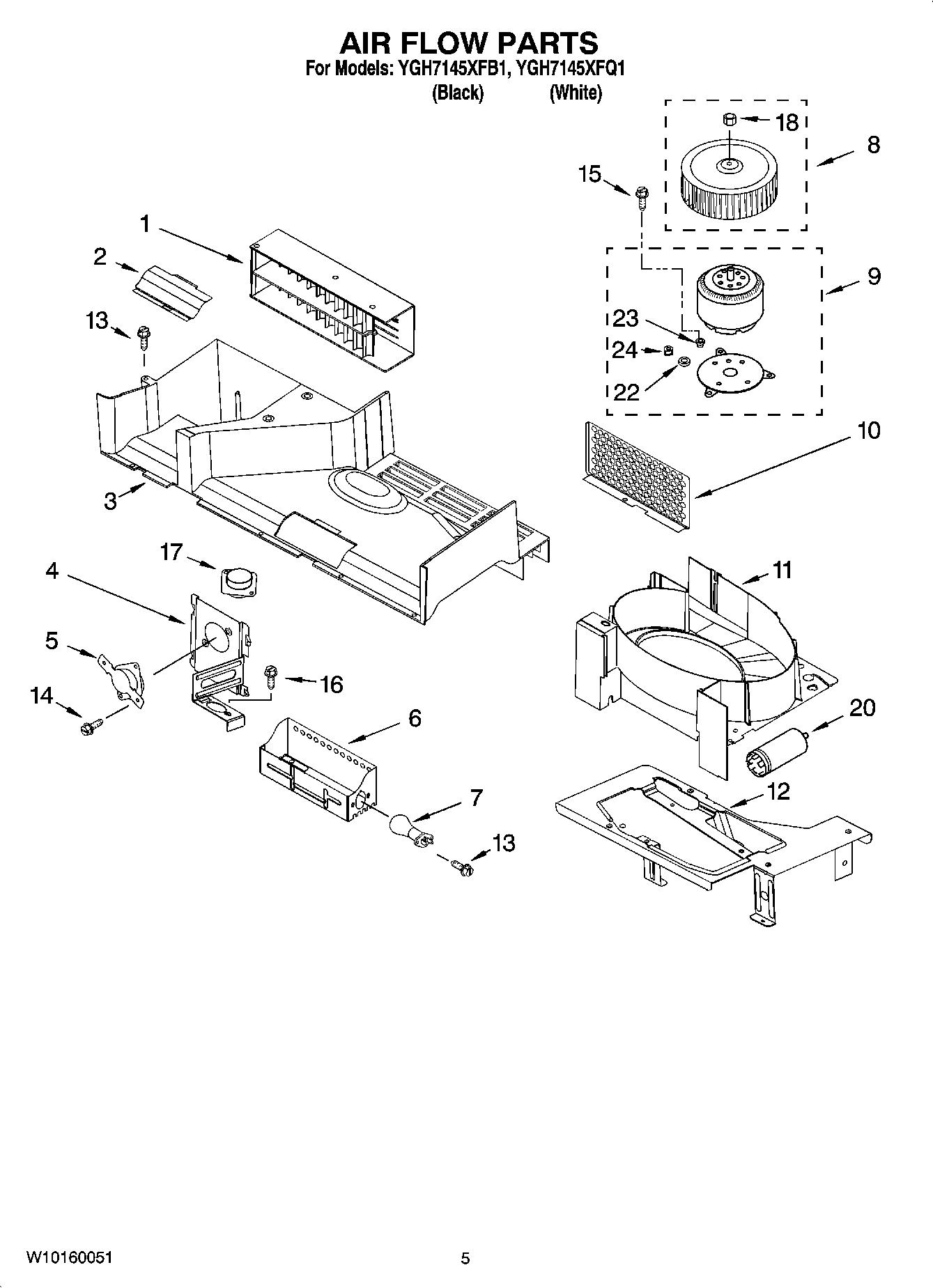

04 - AIR FLOW PARTS
Common parts from model Whirlpool YGH7145XFQ1 MICROWAVE OVEN 1.4 CU. FT.
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
5
Glass, Outer (Black) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Bottom WPL 8185209 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Glass, Outer (White) WPL 8183704 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
7
Case, Outer (Black) WPL 8169660 Contact Us For Availability
7
Case, Outer (White) WPL 8169661 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
8
Wheel, Fan WPL 4393960 Contact Us For Availability
9
Grille, Holder WPL 8184313 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
10
Frame, Outer (White) WPL 8169471 Contact Us For Availability
10
Frame, Outer (Black) WPL 8169352 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI136472A Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Thermostat Open temp: 257 Fahrenheit Close te WPL 8183698 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Screw WPL 4393828 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Nut WPL 8169633 Contact Us For Availability
20
Filter WPL 4393323 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Motor WPL 8169635 Contact Us For Availability
23
Bracket, Transformer WPL 4393706 Contact Us For Availability
24
Pipe WPL 8184129 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
