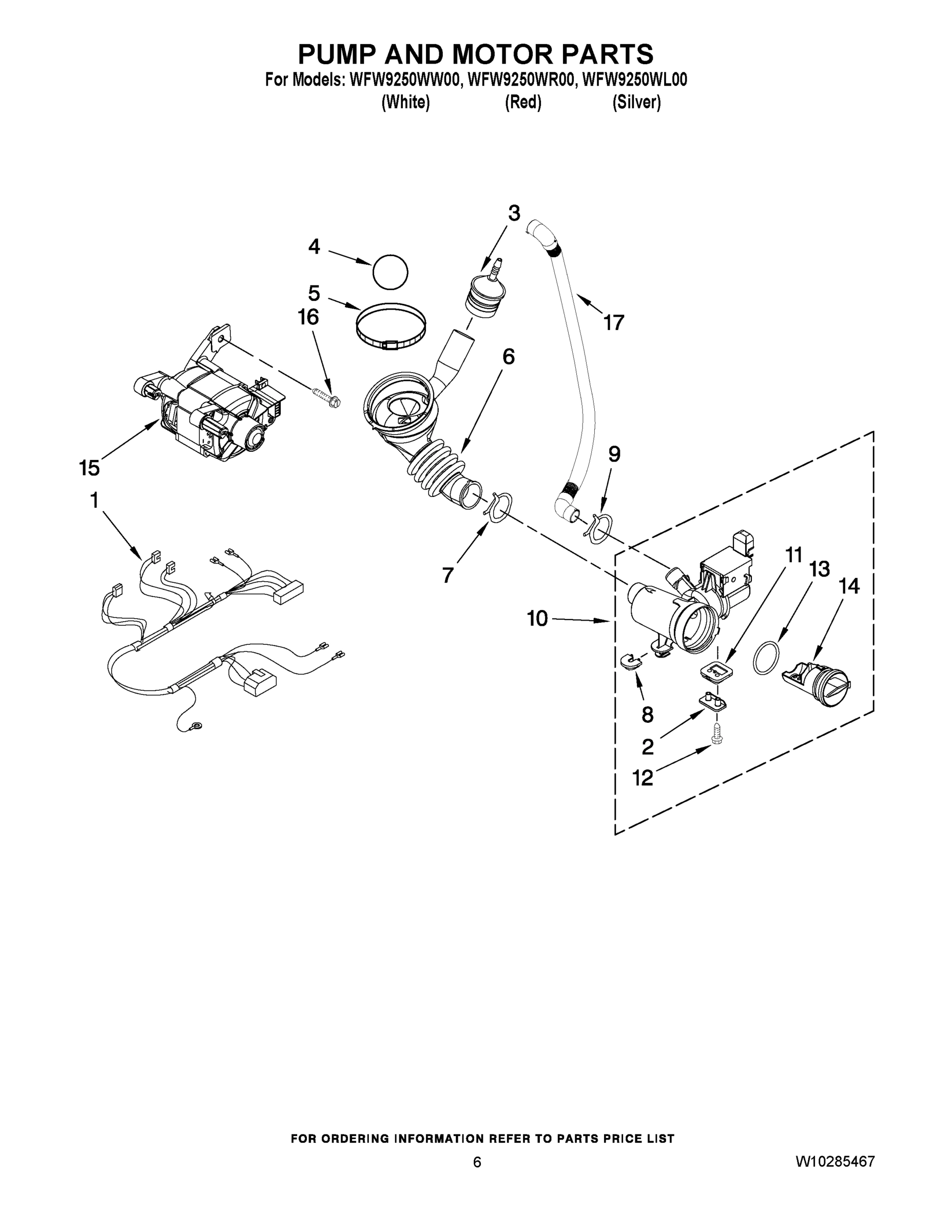

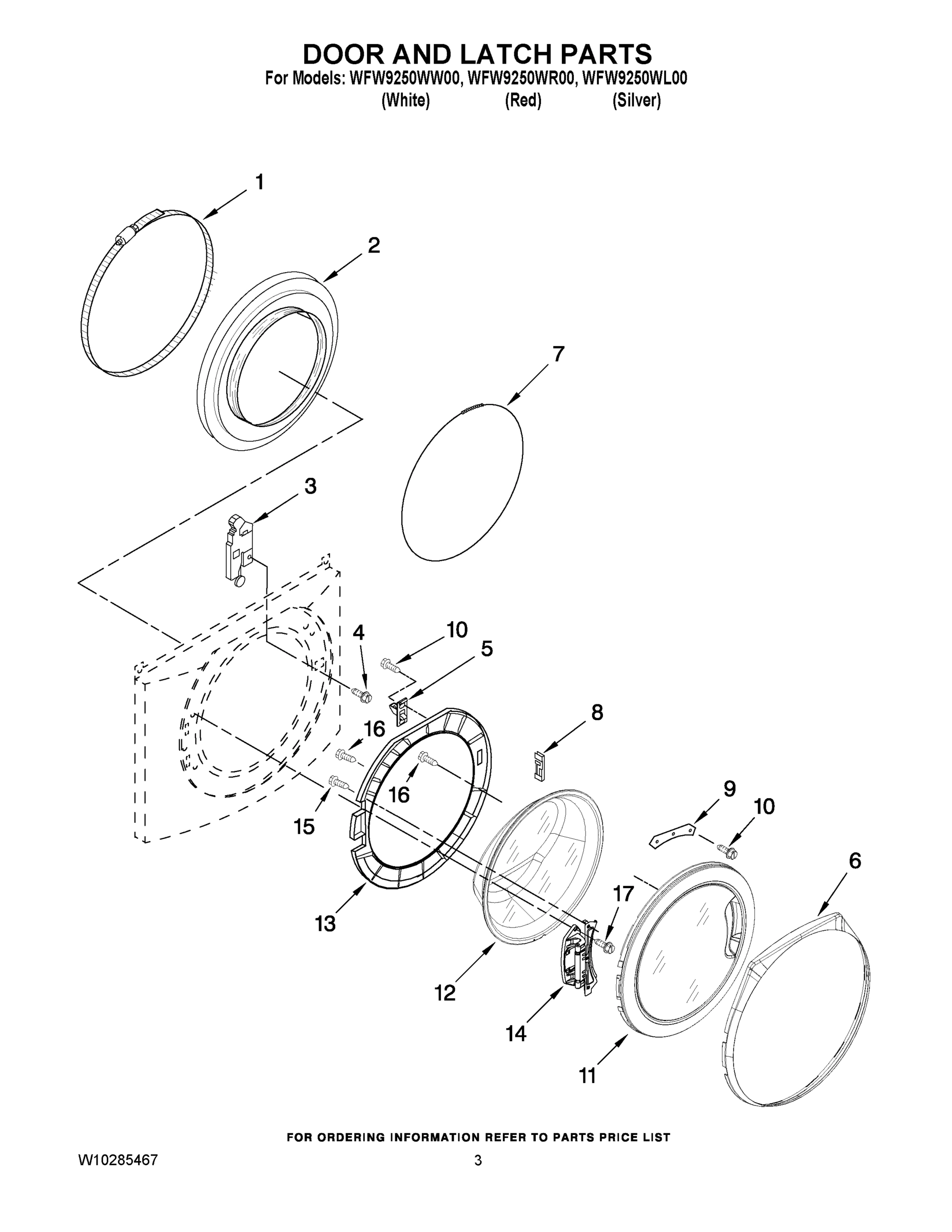

Model Whirlpool WFW9250WR00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10201879 Whirlpool Wire Harness Backorder WPL WPW10201879 $111.66

1

WPW10212596 Whirlpool Washer Inlet Valve In Stock WPL WPW10212596 $52.65

2

8540033 Whirlpool Cap Backorder WPL 8540033 $11.90

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $146.68

2

WPW10212598 Whirlpool Valve In Stock WPL WPW10212598 $47.99

2

WPW10381562 Whirlpool Front Load Washer Door In Stock WPL WPW10381562 $142.69

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

3

WP8540101 Whirlpool Washer Drive Belt In Stock WPL WP8540101 $27.99

3

WPW10253483 Whirlpool Latch In Stock WPL WPW10253483 $211.52

3

WPW10405608 Whirlpool Trap In Stock WPL WPW10405608 $4.82

4

W11028021 Whirlpool Screw Backorder WPL W11028021 $4.82

4

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $4.99

4

WPW10137456 Whirlpool Screw In Stock WPL WPW10137456 $6.99

4

BALL WPL 8540013 Contact Us For Availability

4

PANEL, FRONT (SILVER) WPL W10255251 Contact Us For Availability

5

W10142720 Whirlpool Vent Pipe Backorder WPL W10142720 $72.58

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $64.50

5

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $5.47

6

W10803052 Whirlpool Hose In Stock WPL W10803052 $7.68

6

W10862938 Whirlpool Leveling Feet In Stock WPL W10862938 $15.48

6

W11366249 Whirlpool Washer Tub to Pump Hose In Stock WPL W11366249 $18.85

6

TRIM RING, OUTER DOOR (WHITE) WPL W10209545 Contact Us For Availability

6

TRIM RING, OUTER DOOR (SILVER) WPL W10248151 Contact Us For Availability

6

TRIM RING, OUTER DOOR (RED) WPL W10248152 Contact Us For Availability

7

W11032829 Whirlpool Clamp Assembly In Stock WPL W11032829 $11.60

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $18.35

7

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

7

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

7

WP8540402 Whirlpool Washer Detergent Dispense Backorder WPL WP8540402 $107.99

8

W10034820 Whirlpool Grommet Backorder WPL W10034820 $8.46

8

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $4.82

8

WP8540399 Whirlpool Cover Assembly Backorder WPL WP8540399 $51.66

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $8.89

9

W11665946 Whirlpool Clamp Backorder WPL W11665946 $13.15

9

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

9

WP8181721 Whirlpool Retainer Backorder WPL WP8181721 $57.41

9

WPW10200747 Whirlpool Counterweight Backorder WPL WPW10200747 $111.20

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $8.89

WP8540429 Whirlpool Dispenser Assembly Backorder WPL WP8540429 $10.22

WPW10258341 Whirlpool Panel Backorder WPL WPW10258341 $213.57

HARNESS, WIRING (UPPER MAIN) (INCLUDES ITEM 3 WPL W10233003 Contact Us For Availability

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $12.99

WPW10202459 Whirlpool Basket Backorder WPL WPW10202459 $342.14

Foot, Rubber (Lock) WPL W10034830 Contact Us For Availability

FRAME, DOOR FRONT ASSEMBLY WPL W10209537 Contact Us For Availability

8533964 Whirlpool Screw Backorder WPL 8533964 $7.77

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $14.02

WP8540360 Whirlpool Baffle In Stock WPL WP8540360 $75.64

WPW10388315 Whirlpool Glass Door In Stock WPL WPW10388315 $215.99

13

WPW10399327 Whirlpool Dispenser Assembly Backorder WPL WPW10399327 $209.49

13

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $163.67

13

FRAME, DOOR BACK SUPPORT WPL W10240989 Contact Us For Availability

CORD, POWER WPL W10205499 Contact Us For Availability

HANDLE, DRAWER (WHITE) WPL W10212806 Contact Us For Availability

Hinge, Door WPL 8540416 Contact Us For Availability

HANDLE, DRAWER (SILVER) WPL W10253394 Contact Us For Availability

HANDLE, DRAWER (RED) WPL W10253396 Contact Us For Availability

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $4.99

WPW10171902 Whirlpool Motor Drive Backorder WPL WPW10171902 $296.99

WPW10223198 Whirlpool Counterweight Backorder WPL WPW10223198 $123.47

Medallion WPL W10117943 Contact Us For Availability

16

8540134 Whirlpool Screw Backorder WPL 8540134 $8.89

16

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

17

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

17

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

17

WPW10272563 Whirlpool Hose In Stock WPL WPW10272563 $16.80

18

Bracket, Heating Element WPL 8540322 Contact Us For Availability

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

23

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $44.50

23

Switch, Pressure WPL W10163980 Contact Us For Availability

24

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $22.99

25

8540479 Whirlpool Screw Backorder WPL 8540479 $5.85

25

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $4.82

28

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $20.55

37

8540644 Whirlpool Bracket Backorder WPL 8540644 $56.00

38

W10200785 Whirlpool Retainer Backorder WPL W10200785 $6.47

39

W10168547 Whirlpool Retainer Backorder WPL W10168547 $12.92

40

Bracket, Console Retainer WPL 8540669 Contact Us For Availability

41

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

42

HARNESS, WIRING (LOWER MAIN) (INCLUDES ITEM 3 WPL W10239821 Contact Us For Availability

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $39.99

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $10.53

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $10.38

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability
