Model Whirlpool TT22AKXEN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

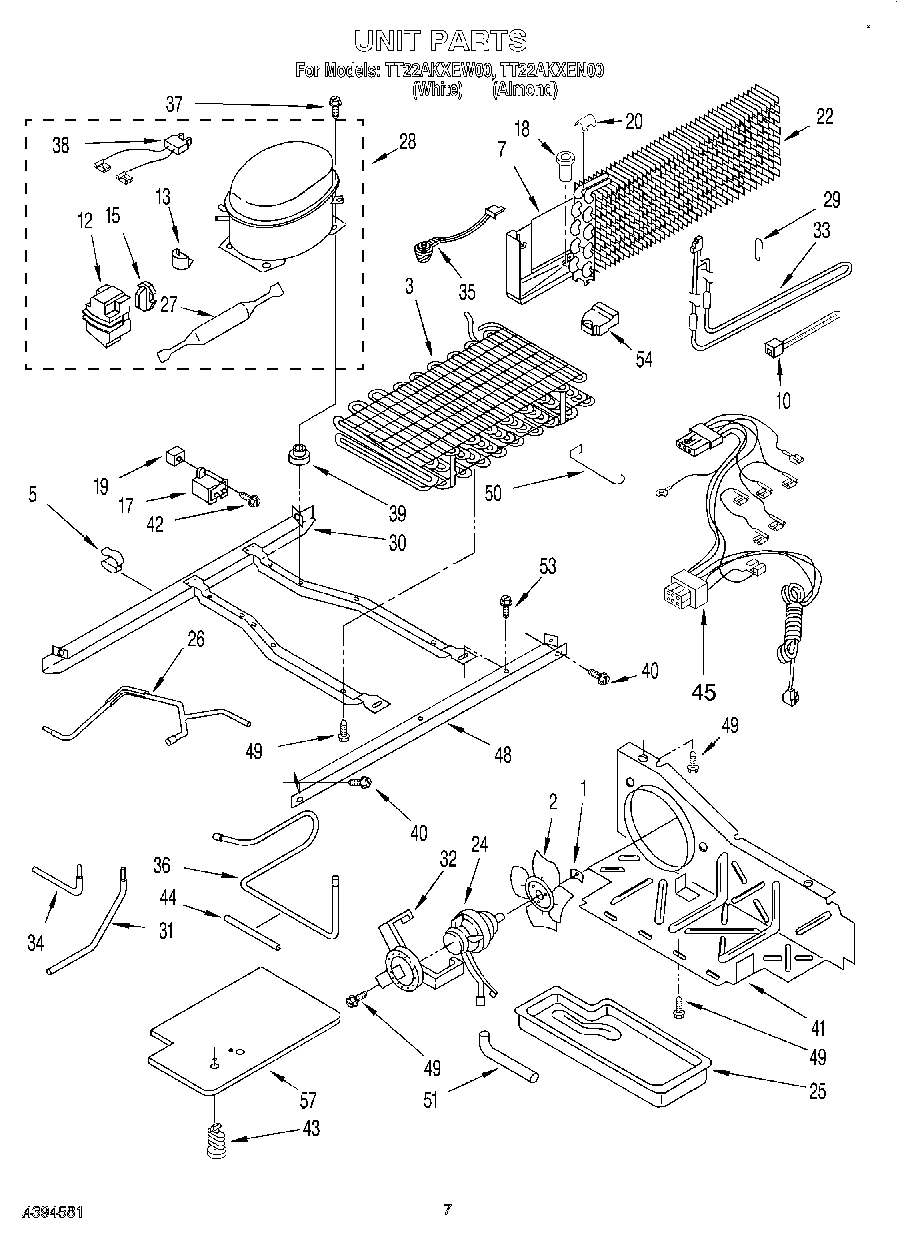

05 - UNIT

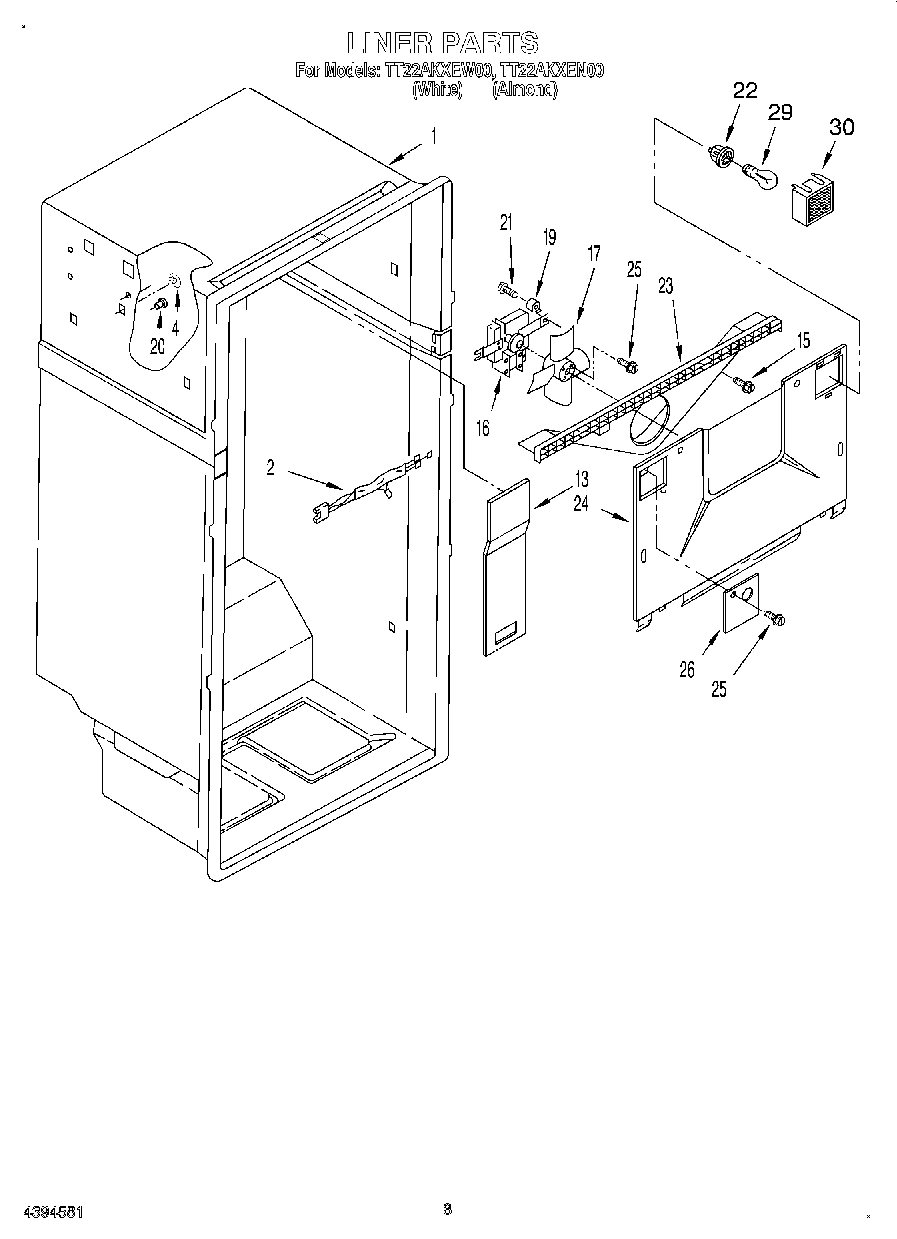

02 - LINER

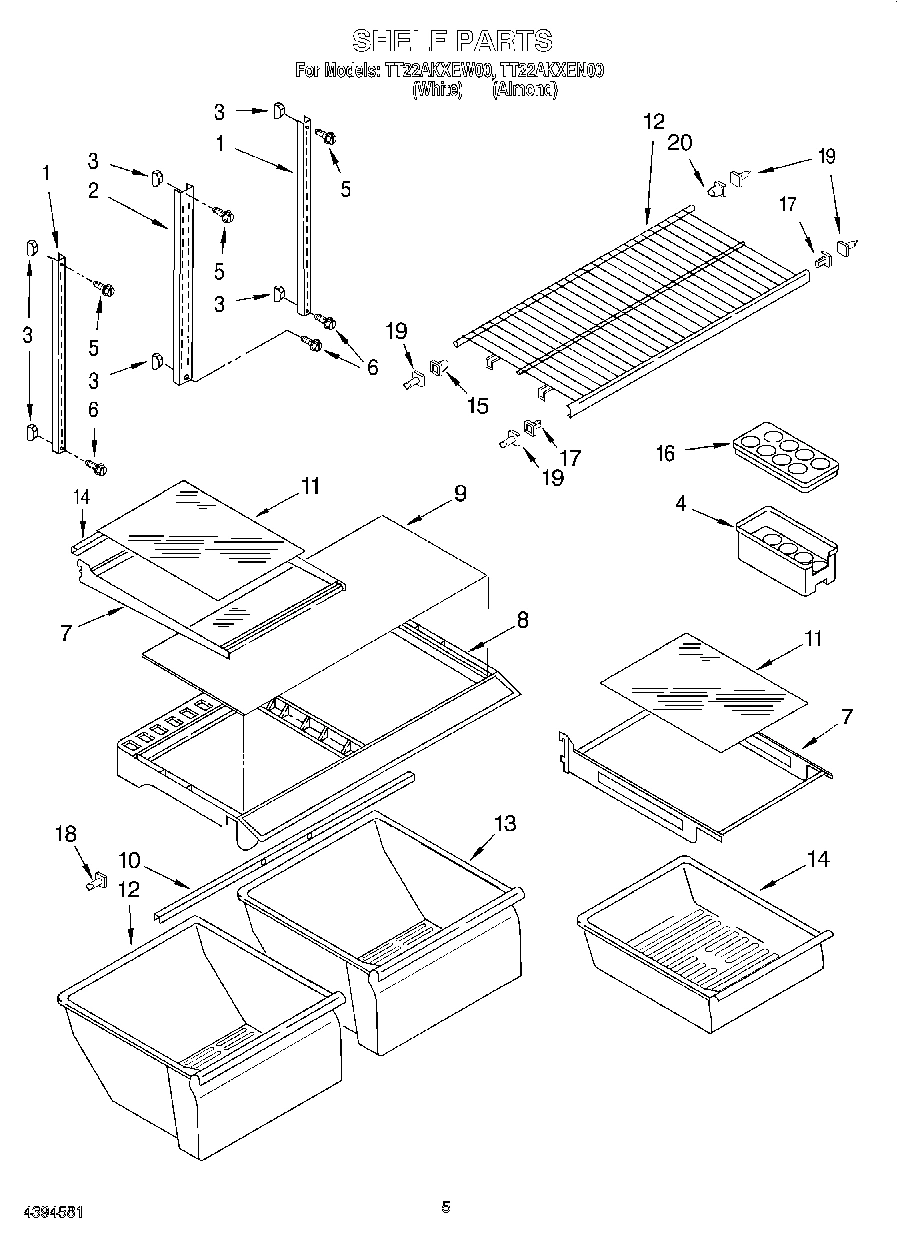

04 - SHELF

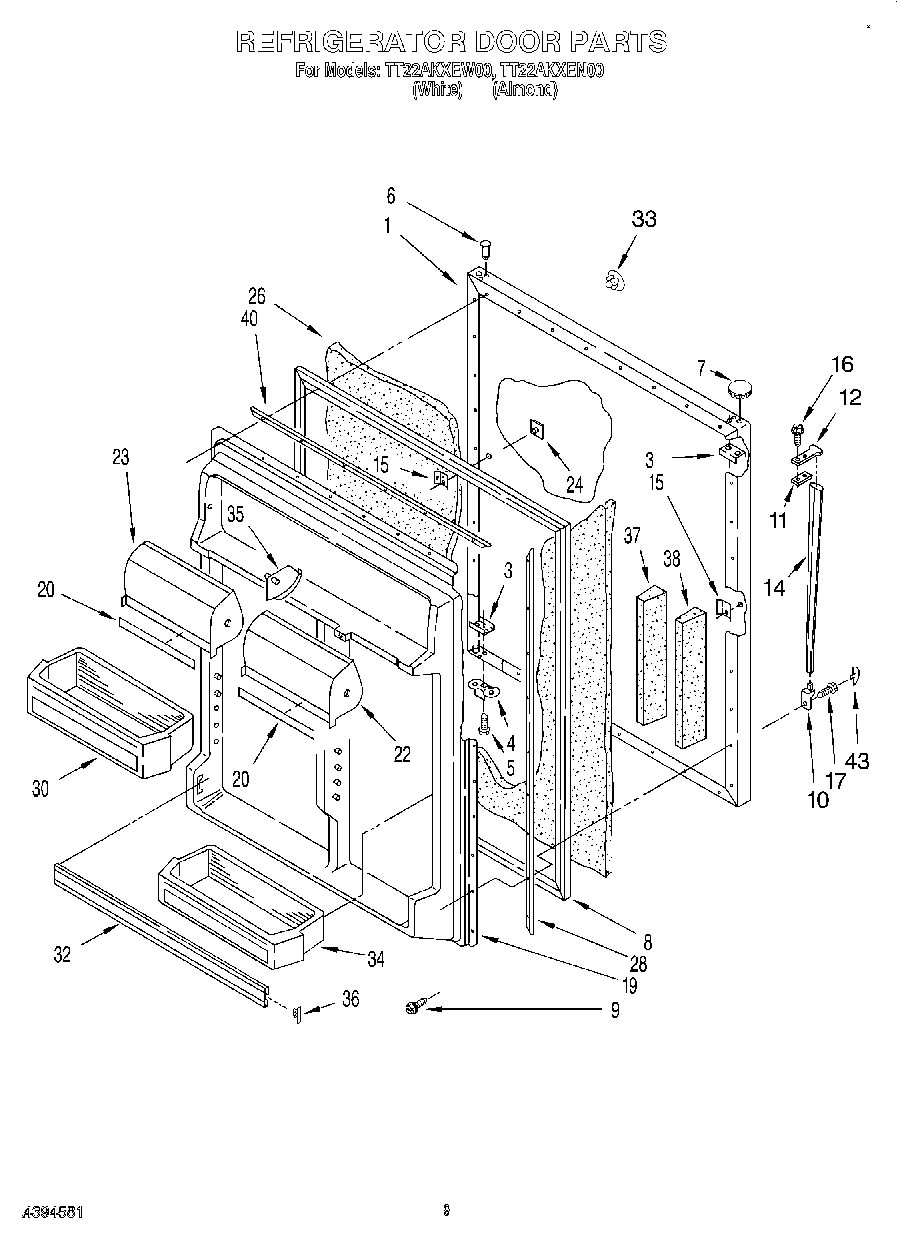

06 - REFRIGERATOR DOOR

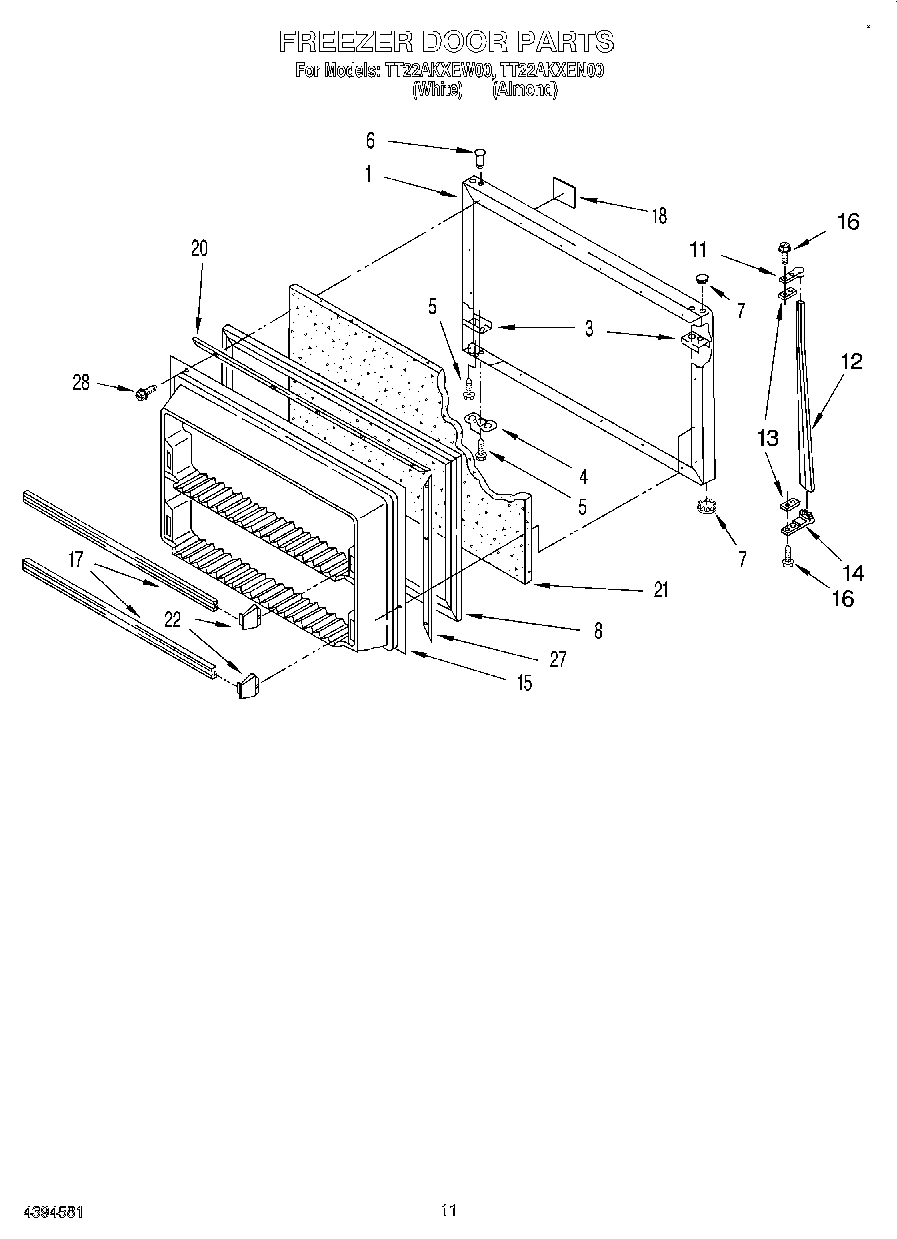

07 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool TT22AKXEN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175316 WPL LIT2175316 Contact Us For Availability
WPL LIT2177039 WPL LIT2177039 Contact Us For Availability
WPL LIT2182590 WPL LIT2182590 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI133780A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
4
Egg Container, Bottom WPL 1107384 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2173421 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Crisper Cover WPL 2174134 Contact Us For Availability
9
Glass, Crisper Cover WPL 2173438 Contact Us For Availability
11
Shelf, Glass WPL 2173420 Contact Us For Availability
12
Shelf, Freezer WPL 1125540 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Pan, Crisper WPL 2179331 Contact Us For Availability
14
Pan, Meat WPL 2179337 Contact Us For Availability
15
Relay (See Overload) WPL ARI133781A Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Egg Container, Top WPL 1107388 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Shelf Stud WPL 946356 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171403 Contact Us For Availability
18
Shelf Stud (2) WPL 1106612 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2183234 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Support, Stud WPL 946355 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
23
Spacer WPL 943188 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
24
Evaporator Cover WPL 2179450 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Washer (Black) WPL 489200 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
WPL 799344 WPL 799344 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Door Reversal Instructions WPL 2172761 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Shelf Bin, Deep (2) WPL 2192713 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 2177228 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
34
Shelf, Bin WPL 2192712 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
43
Cover, Screw (White) WPL 9791769 Contact Us For Availability
43
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
45
Wire Assy., Unit WPL 2176987 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
