Model Whirlpool TT18HAXDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR

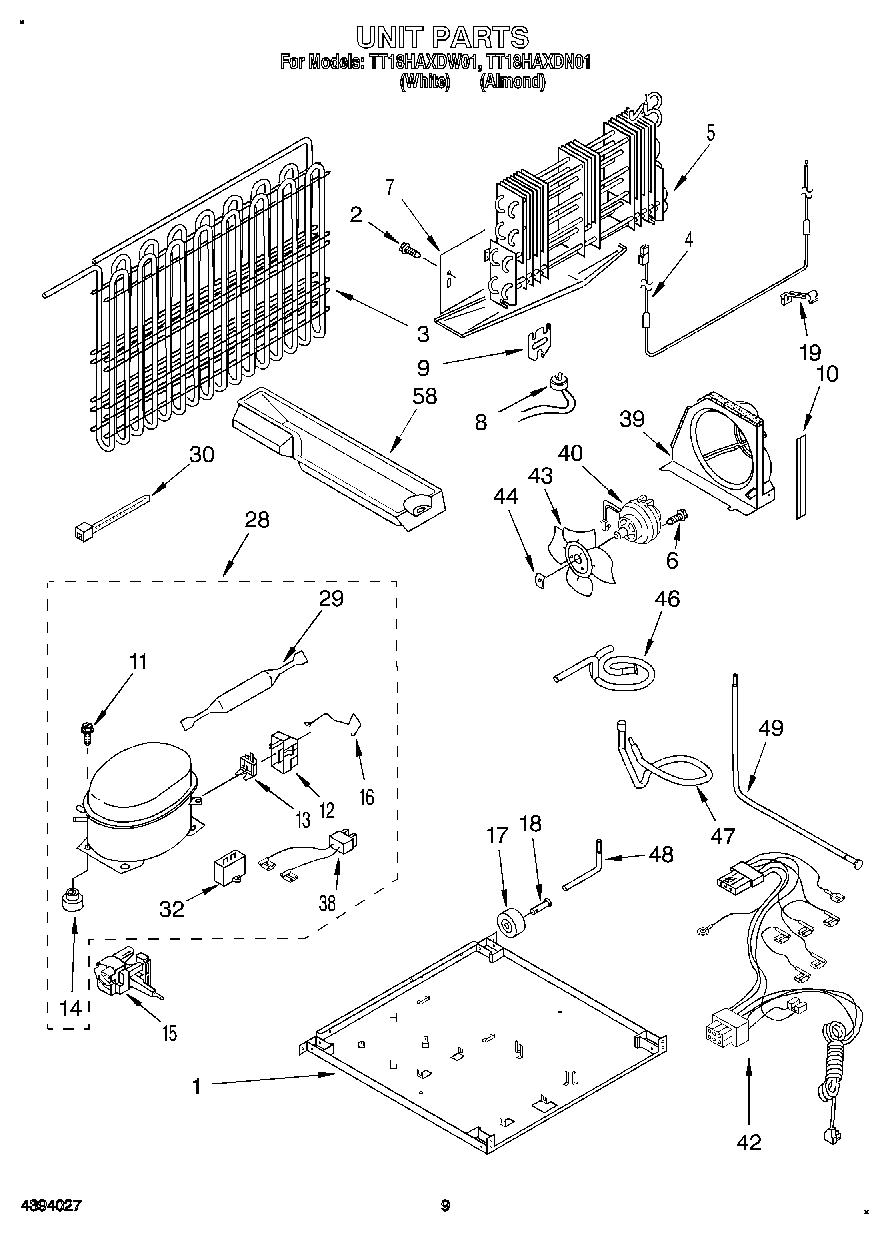

06 - UNIT, LIT/OPTIONAL

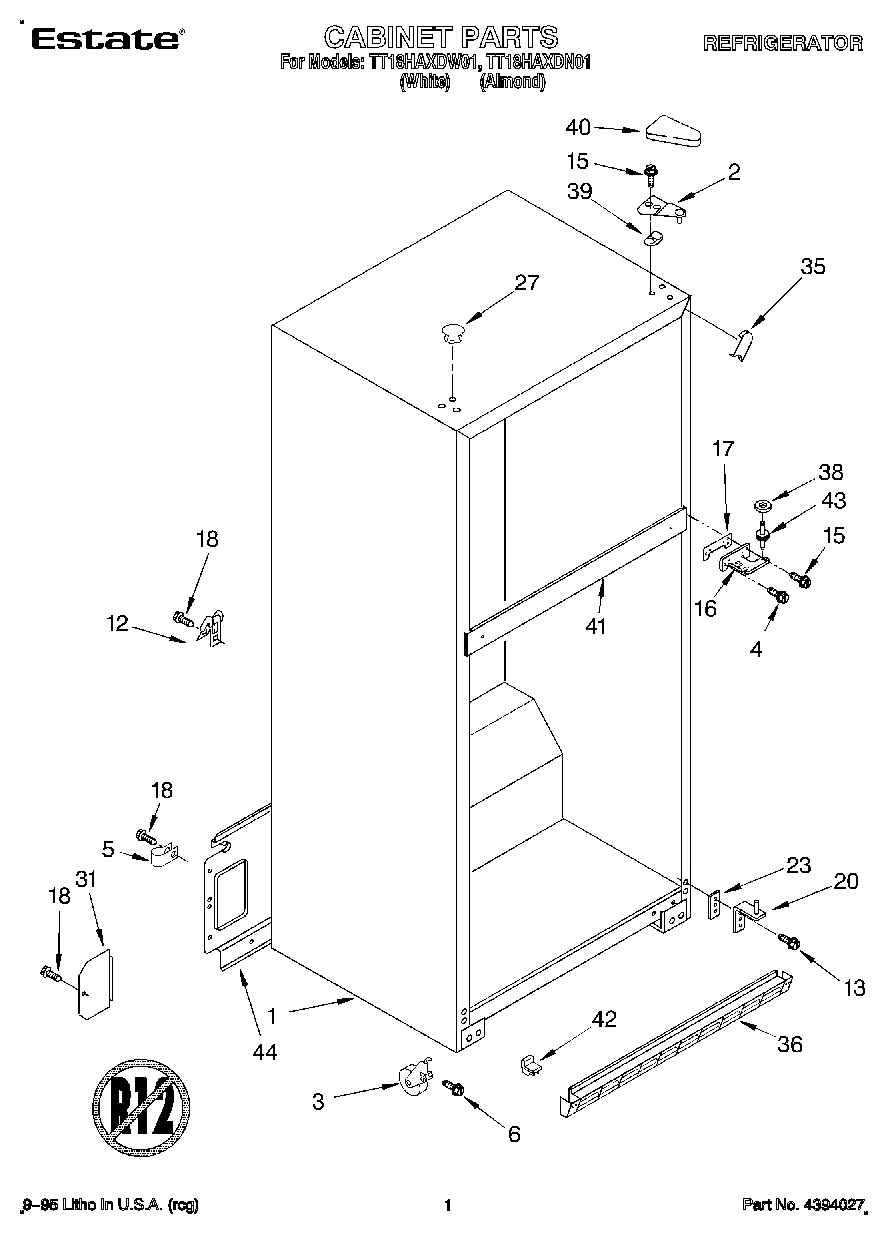

01 - CABINET

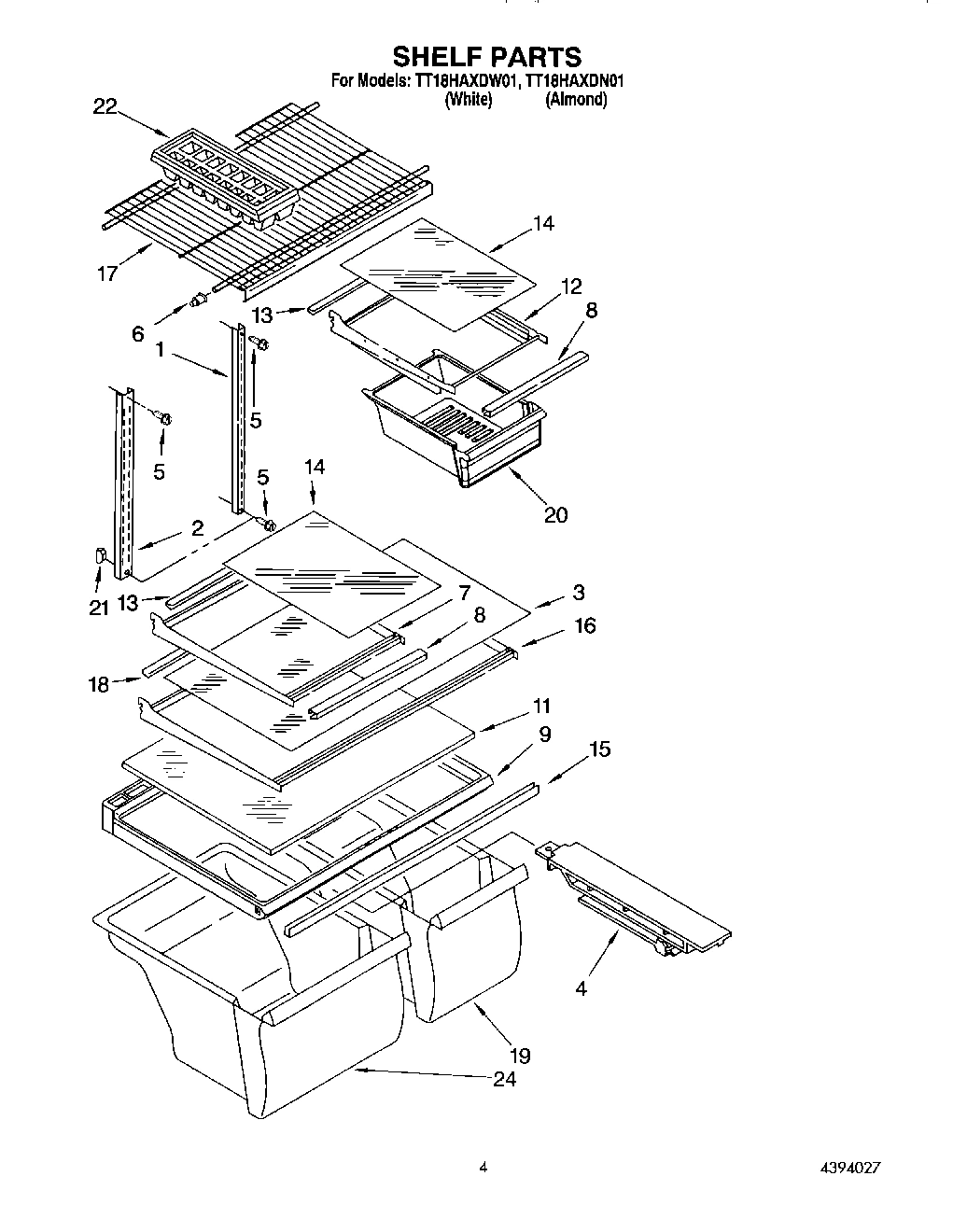

03 - SHELF

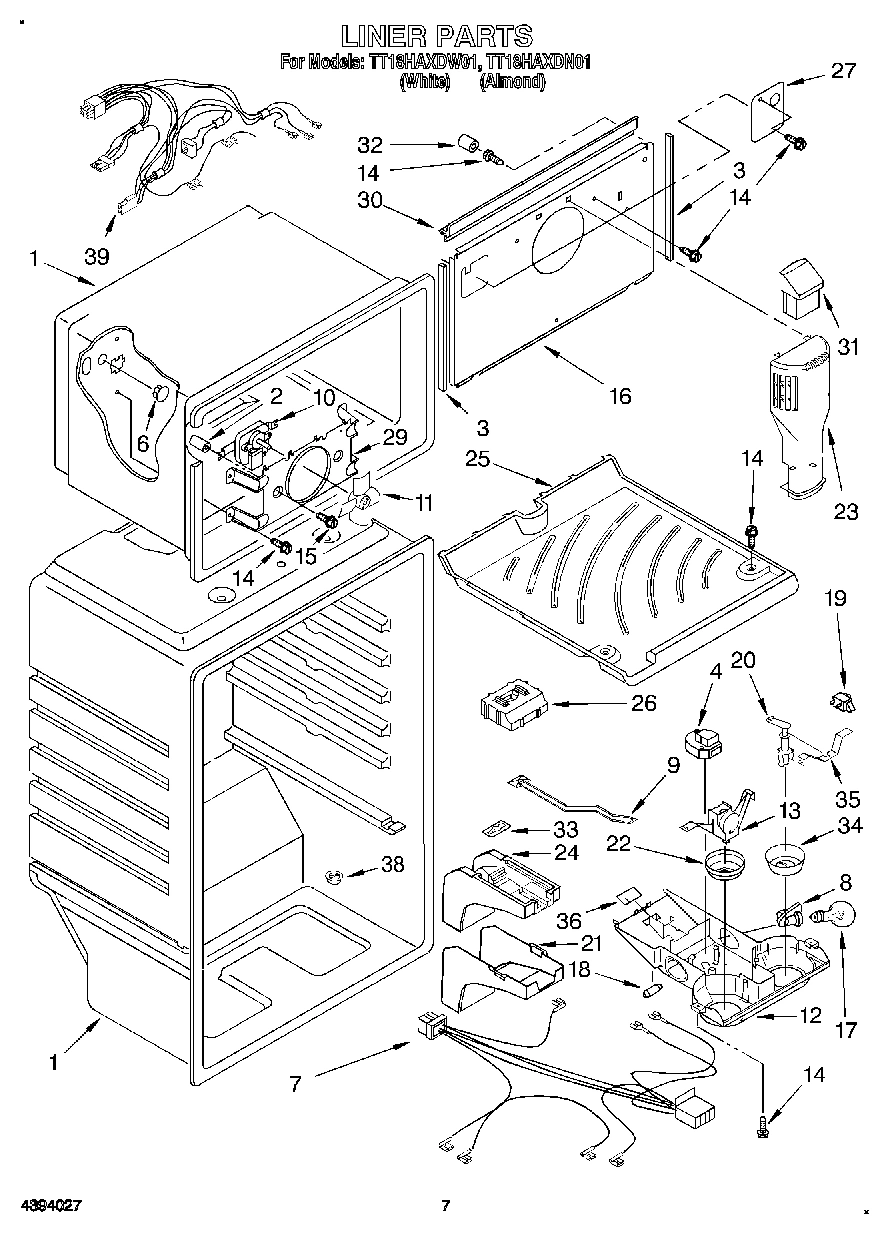

05 - LINER

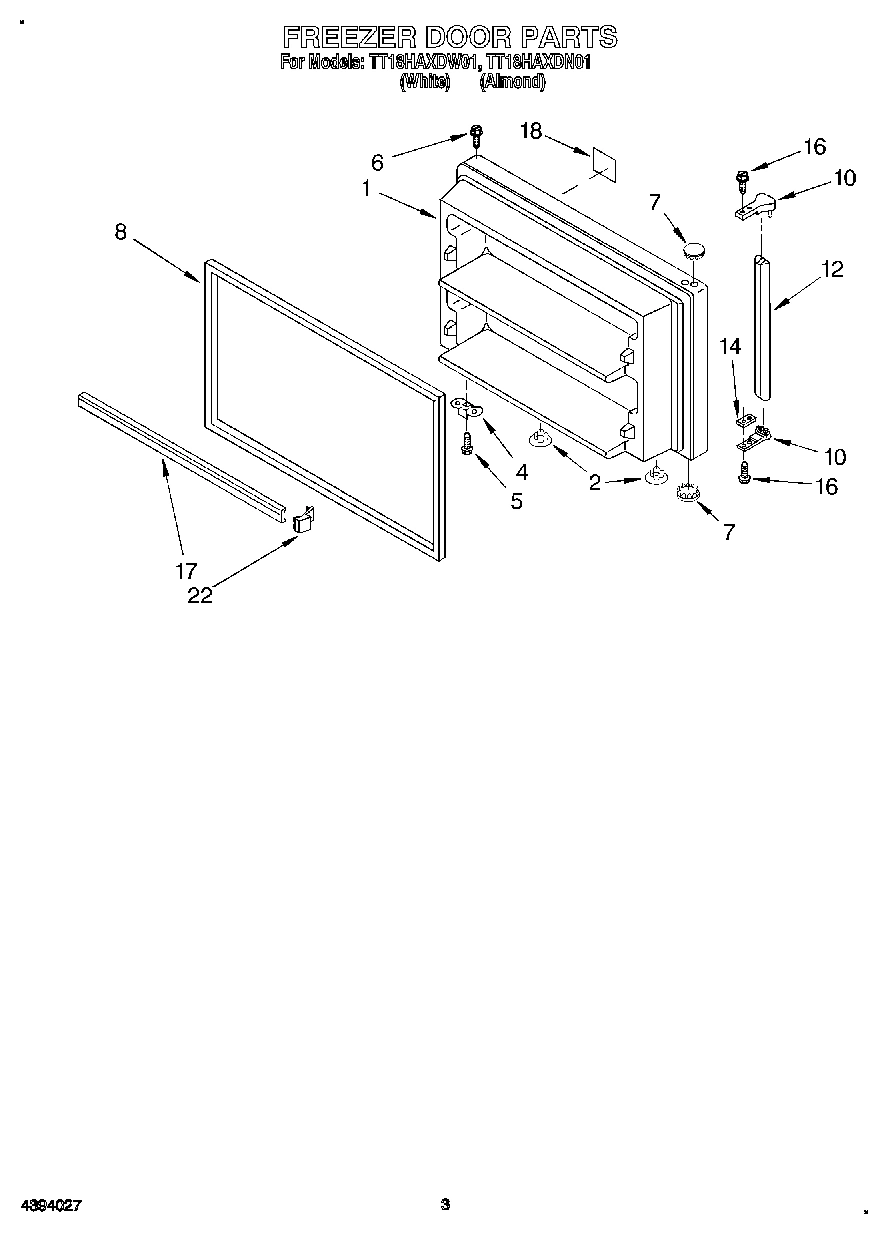

02 - FREEZER DOOR
Common parts from model Whirlpool TT18HAXDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI133260A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI133262A Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2159270 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2159271 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Glass, Full Shelf WPL 2173334 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
6
Screw WPL 2174650 Contact Us For Availability
7
Shelf, Cantilever WPL 2163859 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Handle, Center (White) WPL 2173322 Contact Us For Availability
12
Handle, Center (Almond) WPL 2173323 Contact Us For Availability
13
Screw WPL 489459 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 2173297 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2173346 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
39
Baffle, Air WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Wire Assembly, Freezer Comp. WPL 2179823 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI133261A Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Tray, Evaporator WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
WPL 542639 WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
