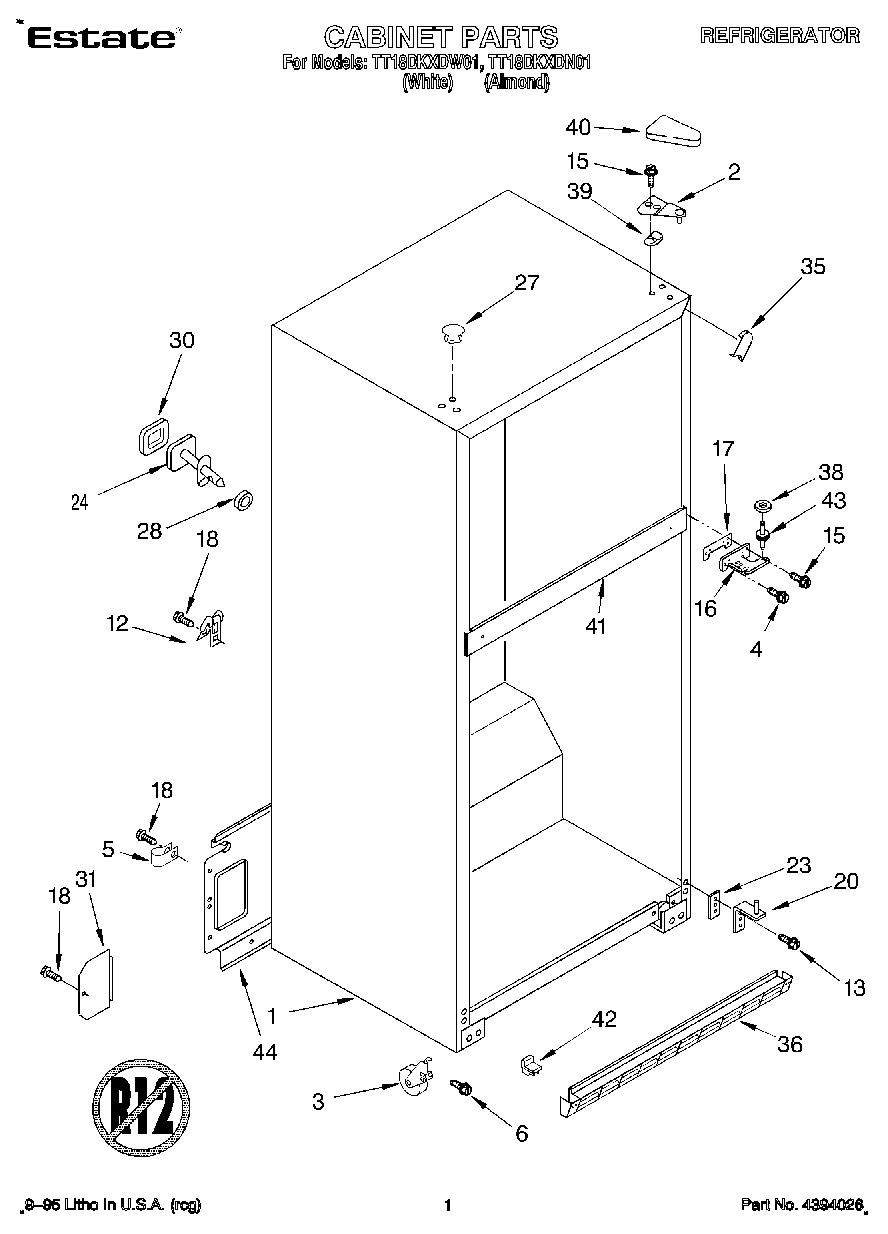

Model Whirlpool TT18DKXDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
Service & Wiring Sheet
Service & Wiring Sheet WPL LIT2172667 Contact Us For Availability
View on Model
Us
Us WPL LIT2173444 Contact Us For Availability
View on Model
WPL LIT2173488
WPL LIT2173488 WPL LIT2173488 Contact Us For Availability
View on Model
WPL LIT677969
WPL LIT677969 WPL LIT677969 Contact Us For Availability
View on Model
WPL LIT677971
WPL LIT677971 WPL LIT677971 Contact Us For Availability
View on Model

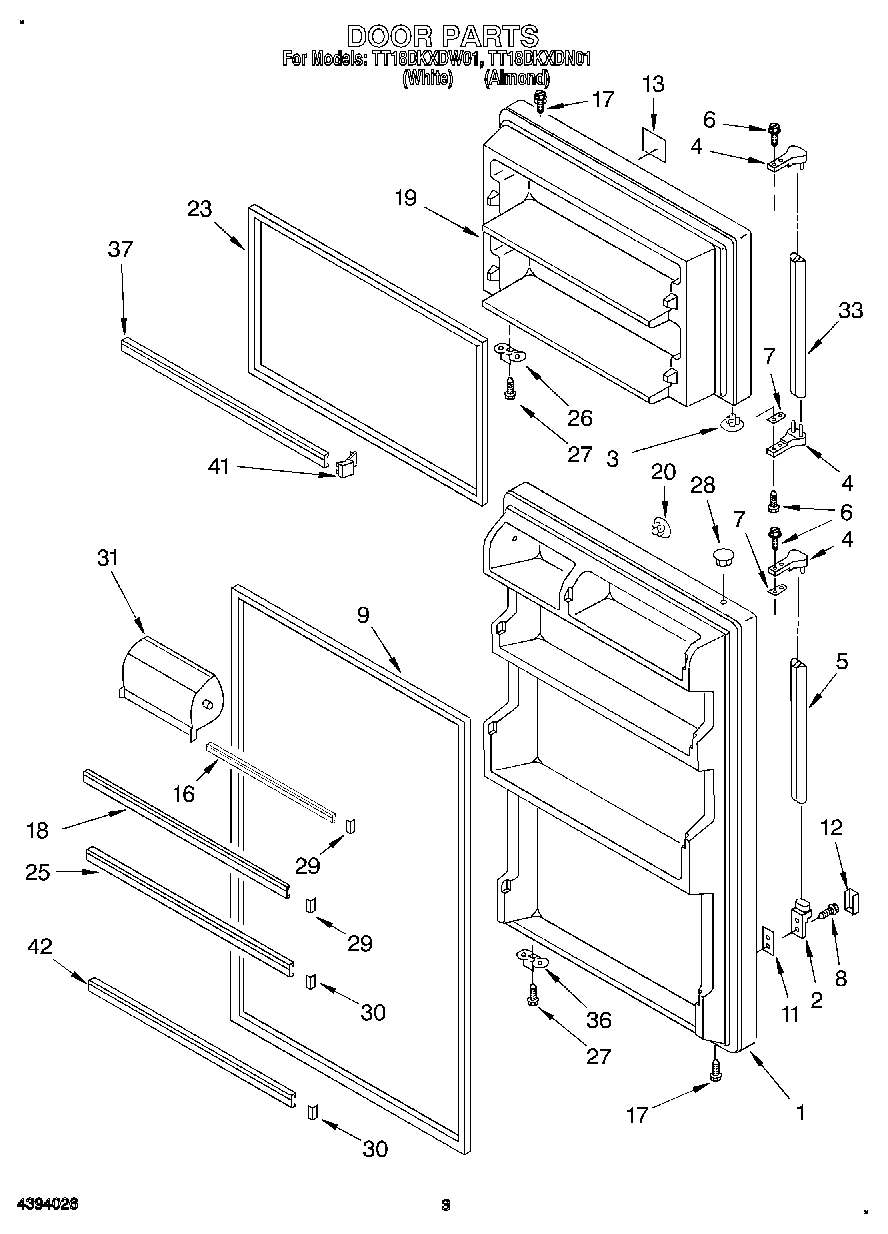

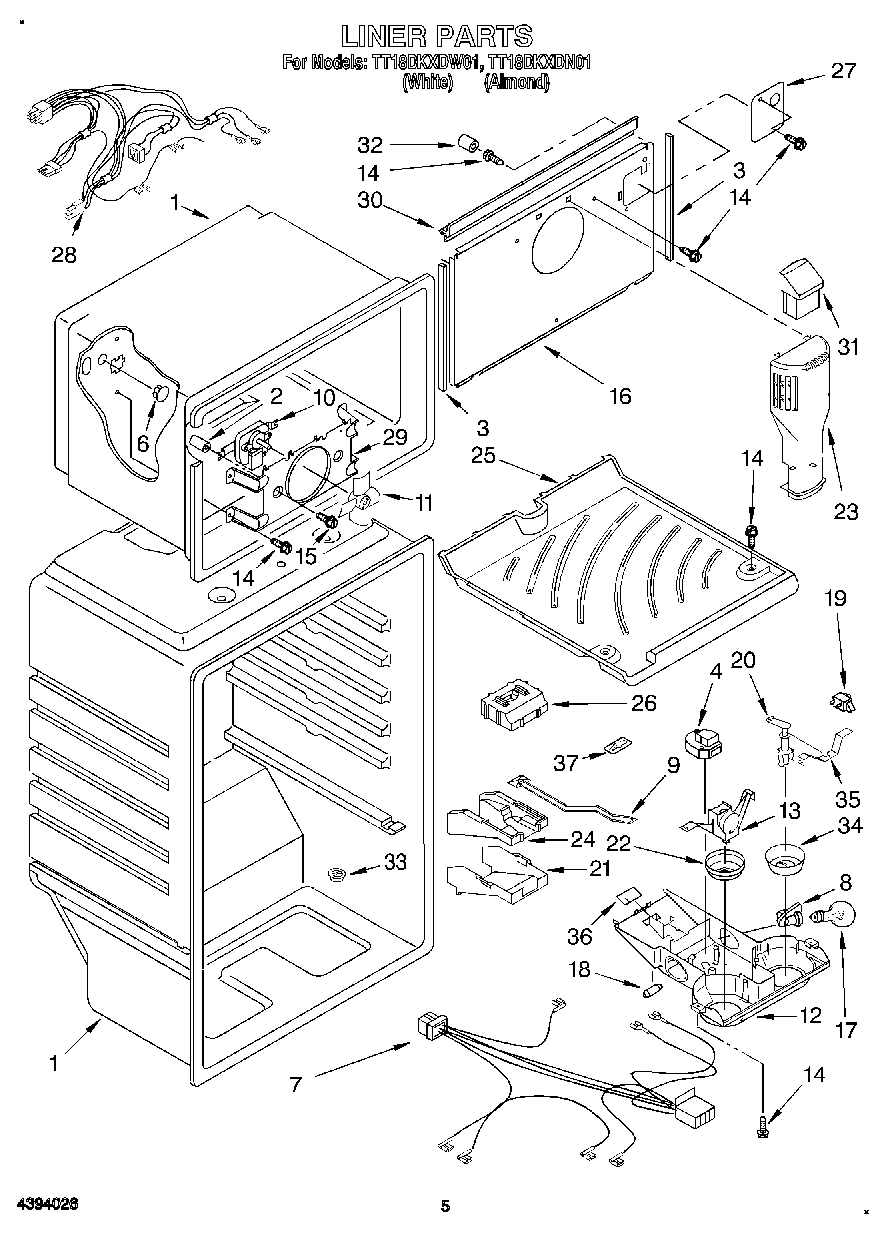

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI133149A Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.9) (White)
Refrigerator Door (Includes No.9) (White) WPL 2171269 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.9) (Almond)
Refrigerator Door (Includes No.9) (Almond) WPL 2171270 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
2

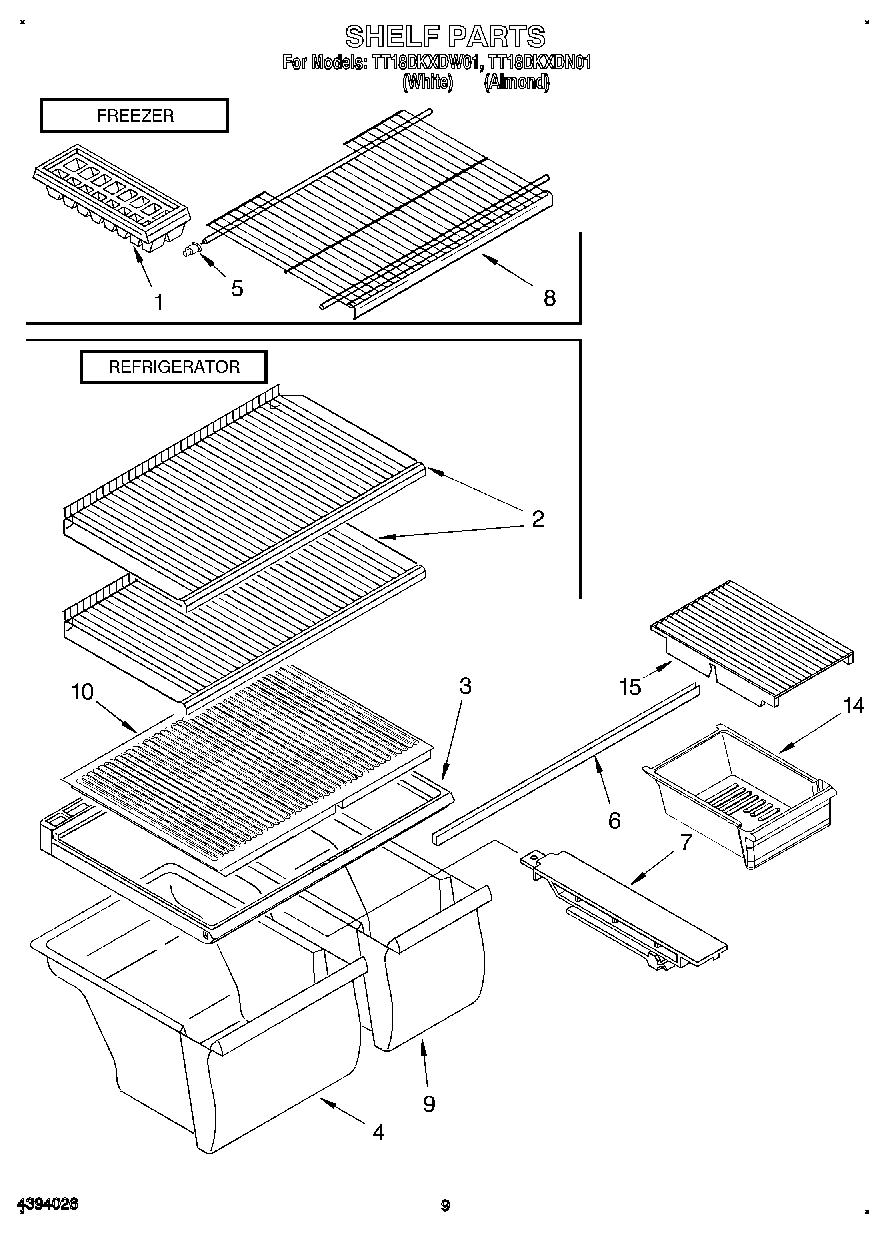

Shelf (2)
Shelf (2) WPL 2182443 Contact Us For Availability
View on Model
2
End Cap
End Cap WPL 935105 Contact Us For Availability
View on Model
3
Hole Plug (2) (White)
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
View on Model
3
Hole Plug (2) (Almond)
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
View on Model
4
End Cap, Handle (2)
End Cap, Handle (2) WPL 944157 Contact Us For Availability
View on Model
5
Handle, Center (White)
Handle, Center (White) WPL 2157109 Contact Us For Availability
View on Model
5
Handle, Center (Almond)
Handle, Center (Almond) WPL 2157110 Contact Us For Availability
View on Model
7
Spacer
Spacer WPL 943188 Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
View on Model
9
Damper, Air
Damper, Air WPL 2179858 Contact Us For Availability
View on Model
10
Insert
Insert WPL 2166149 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2176298 Contact Us For Availability
View on Model
11
Shim, Handle
Shim, Handle WPL 935076 Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2179790 Contact Us For Availability
View on Model
12
Cover, End Cap
Cover, End Cap WPL 987873 Contact Us For Availability
View on Model
13
Nameplate (Almond Model)
Nameplate (Almond Model) WPL 2173346 Contact Us For Availability
View on Model
15
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
15
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
15
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
15
Cover, Meat Pan
Cover, Meat Pan WPL 2163848 Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
15
Door Reversal Instructions
Door Reversal Instructions WPL 2172516 Contact Us For Availability
View on Model
15
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
15
KIT, PORCELAIN REPAIR (WHITE)
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
View on Model
15
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
15
Enamel, Almond (1 Qt. Uncut)
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
View on Model
16
Cover, Evaporator
Cover, Evaporator WPL 2183154 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2163802 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.23) (White)
Freezer Door (Includes No.23) (White) WPL 2159270 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.23) (Almond)
Freezer Door (Includes No.23) (Almond) WPL 2159271 Contact Us For Availability
View on Model
20
Post, Damper
Post, Damper WPL 2179859 Contact Us For Availability
View on Model
20
Hole Plug (Almond)
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
22
Knob, Thermostat
Knob, Thermostat WPL 2176296 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2172565 Contact Us For Availability
View on Model
25
Trim, Door Shelf
Trim, Door Shelf WPL 2163682 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2179877 Contact Us For Availability
View on Model
26
Bracket, Door Stop
Bracket, Door Stop WPL 2159367 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
28
Wire Assembly, Freezer
Wire Assembly, Freezer WPL 2179823 Contact Us For Availability
View on Model
28
Hole Plug (Almond)
Hole Plug (Almond) WPL 989196 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
View on Model
33
Handle, F.C. (White)
Handle, F.C. (White) WPL 2173322 Contact Us For Availability
View on Model
33
Handle, F.C. (Almond)
Handle, F.C. (Almond) WPL 2173323 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2176297 Contact Us For Availability
View on Model
35
Bracket, Damper Knob
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
View on Model
36
Grille (White)
Grille (White) WPL 2182429 Contact Us For Availability
View on Model
36
Grille (Almond)
Grille (Almond) WPL 2182430 Contact Us For Availability
View on Model
36
Bracket, Door Stop
Bracket, Door Stop WPL 2159368 Contact Us For Availability
View on Model
37
Clip
Clip WPL 2176341 Contact Us For Availability
View on Model
39
Shim
Shim WPL 1123517 Contact Us For Availability
View on Model
40
Cover, Hinge (Almond)
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI133148A Contact Us For Availability
View on Model
42
Corner Filler, Grille (White)
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
View on Model
42
Corner Filler, Grille (Almond)
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
View on Model
42
Trim, Door
Trim, Door WPL 2163683 Contact Us For Availability
View on Model
44
Cover, Unit
Cover, Unit WPL 2183158 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
