Model Whirlpool TF8700XXP0 TRASH COMPACTOR – Common Parts & Diagrams
06 - ACCESSORIES

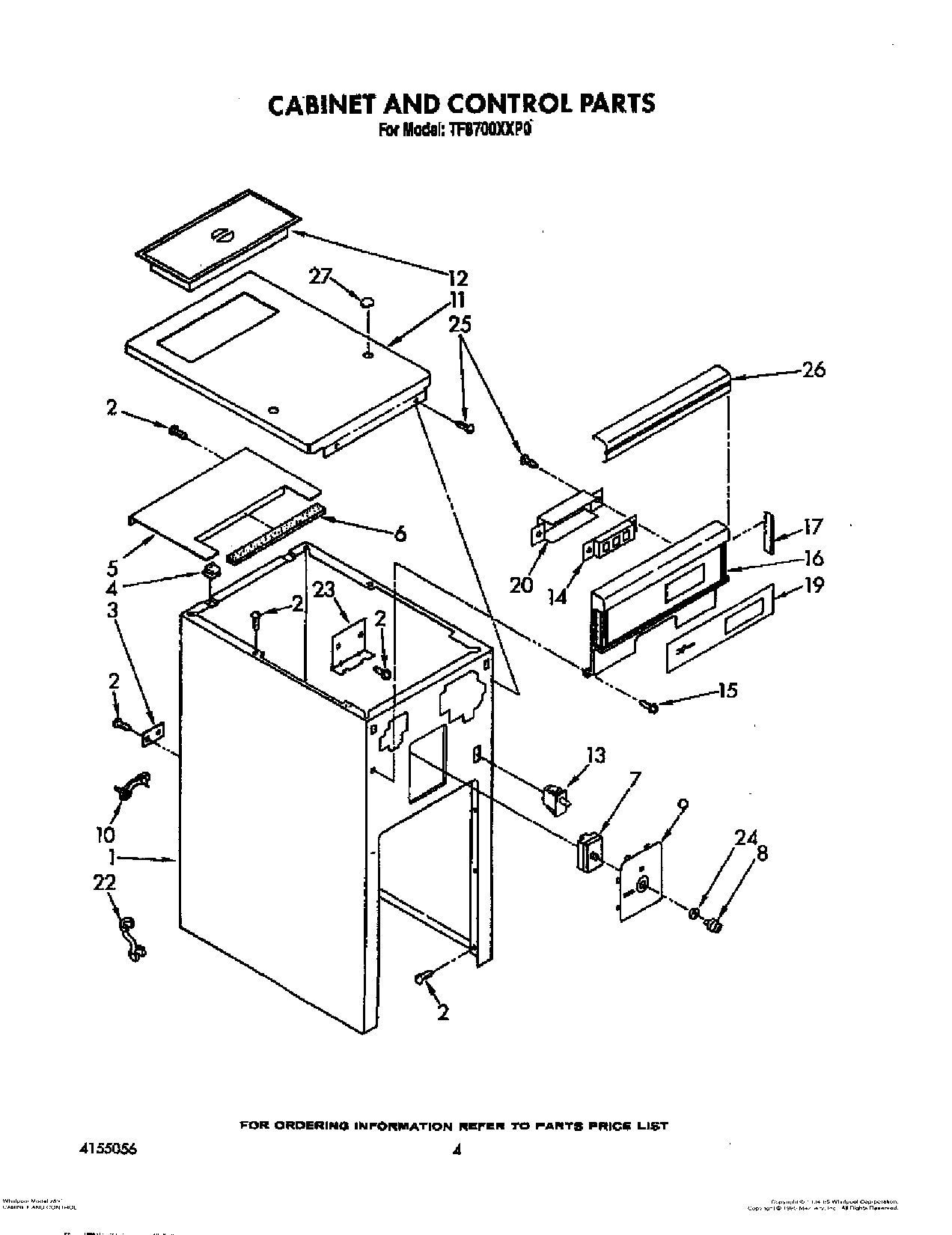

04 - CABINET AND CONTROL

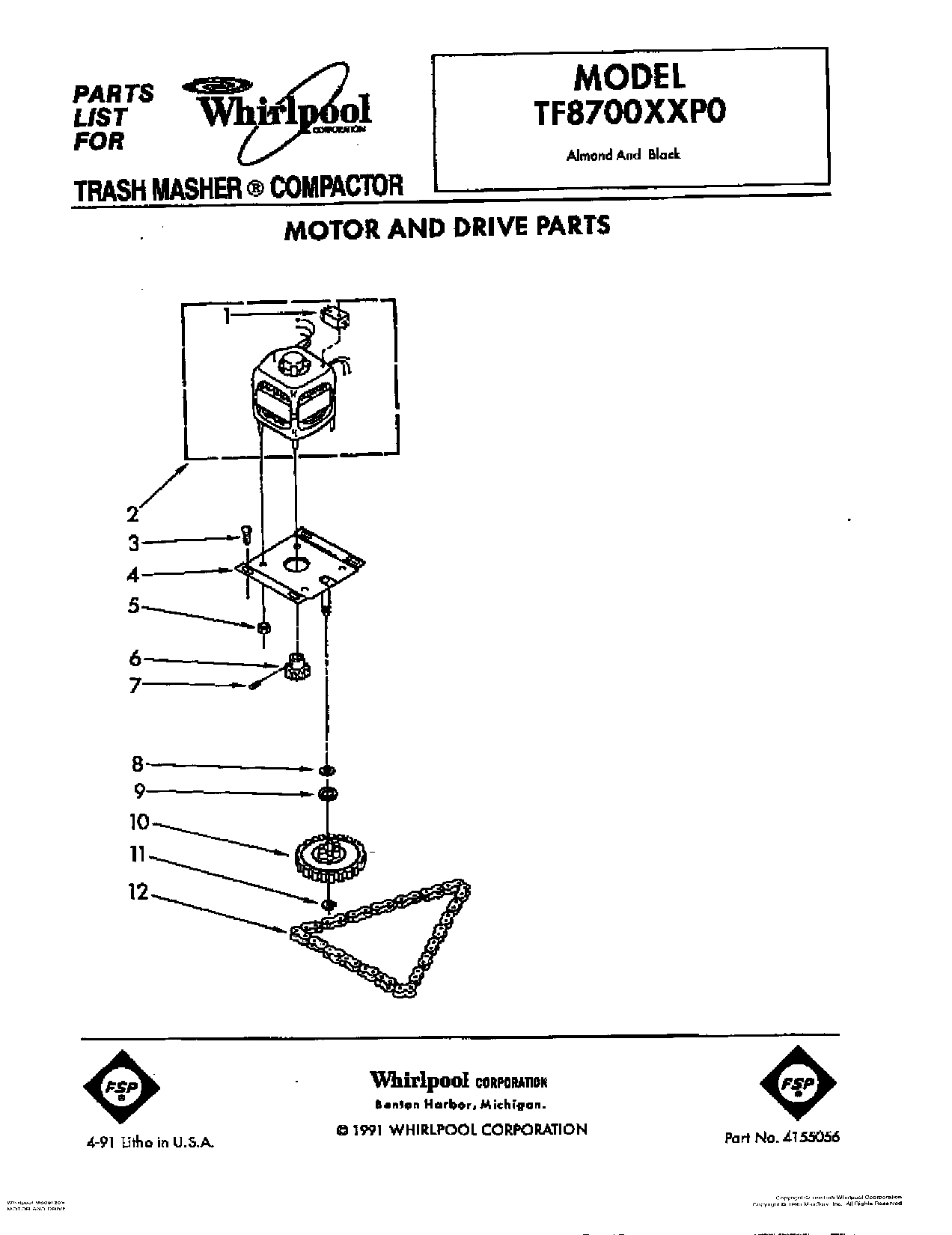

01 - MOTOR AND DRIVE, LIT/OPTIONAL

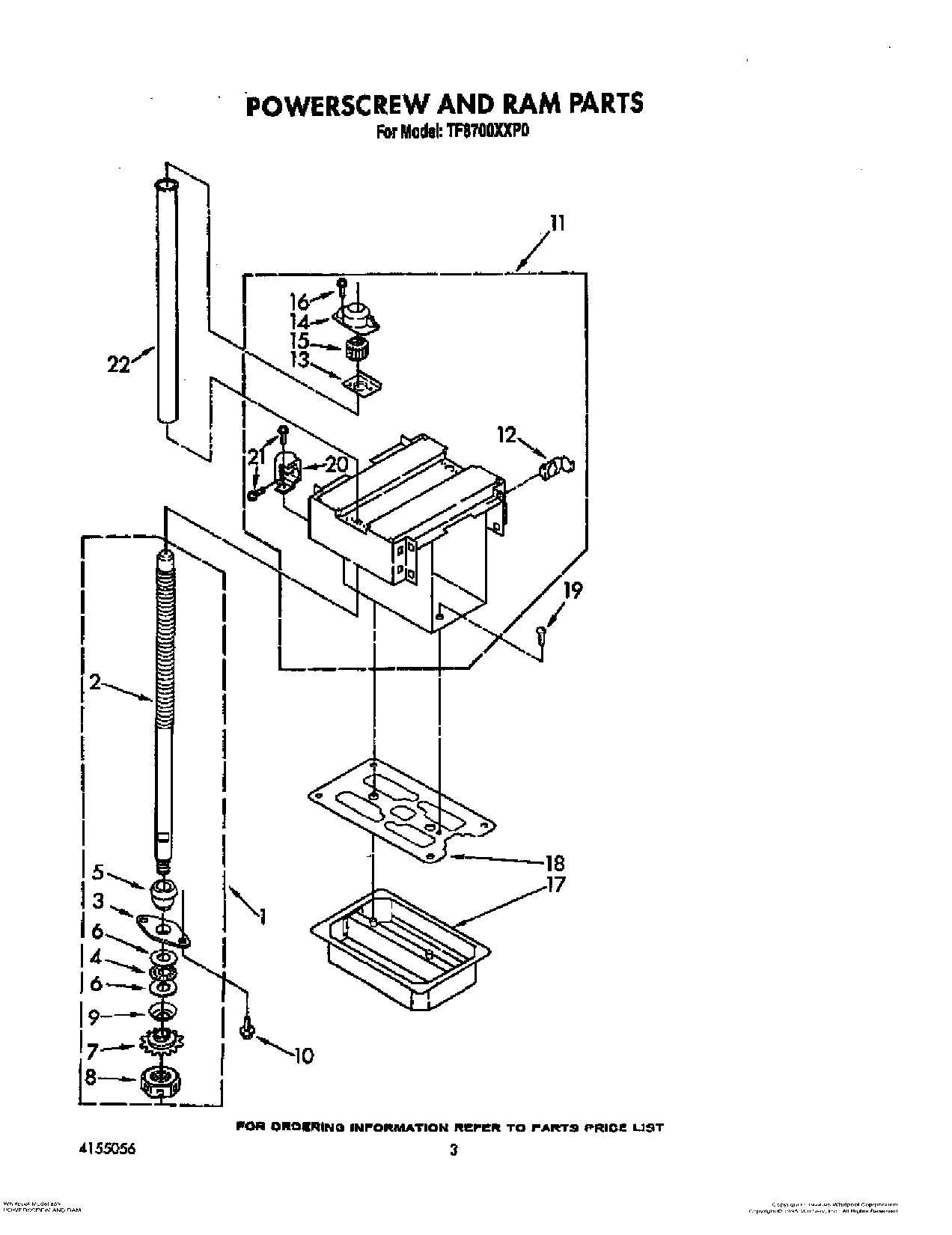

03 - POWERSCREW AND RAM

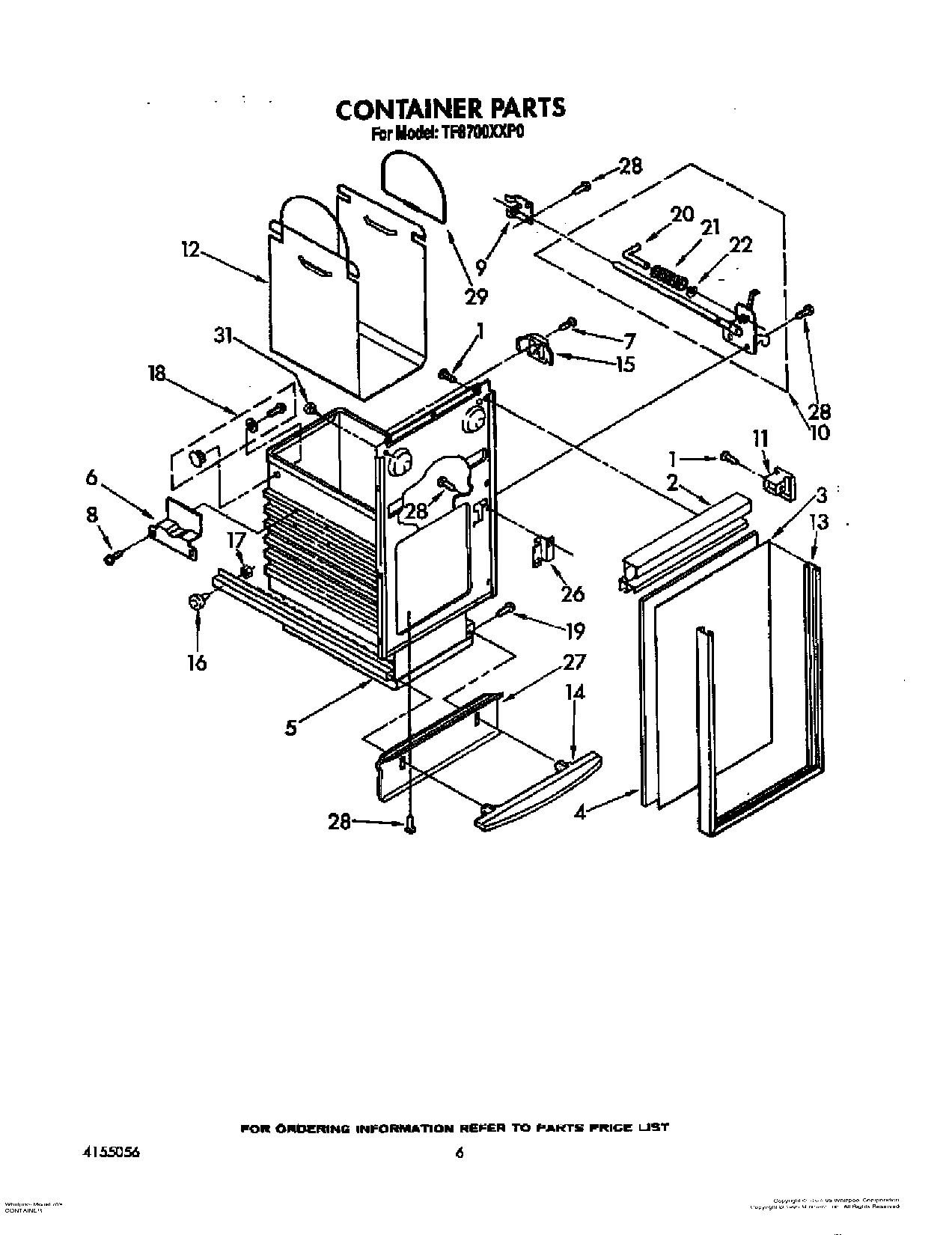

05 - CONTAINER

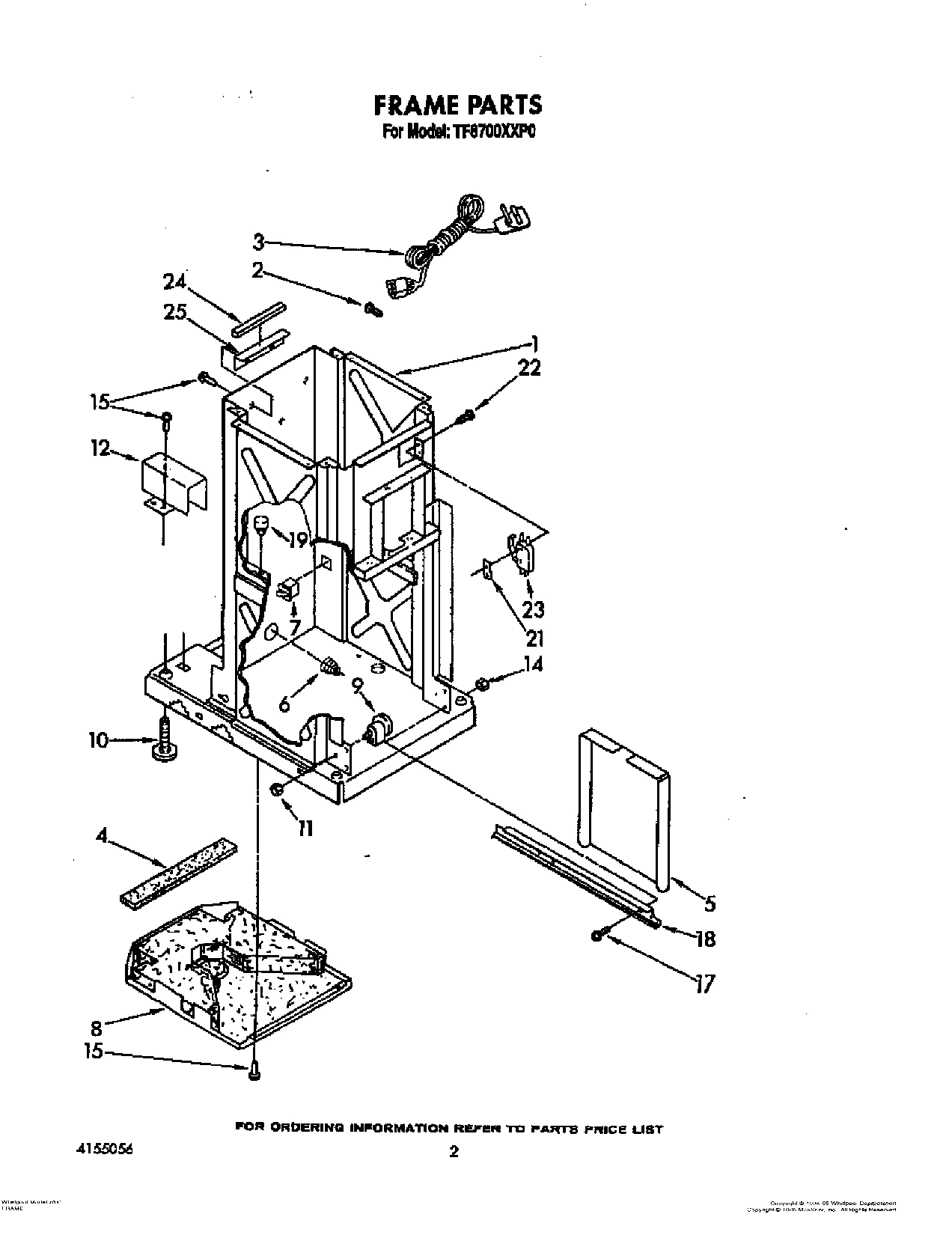

02 - FRAME
Common parts from model Whirlpool TF8700XXP0 TRASH COMPACTOR
List, Repair Parts WPL LIT4155056 Contact Us For Availability
Instructions, Installation WPL LIT4155057 Contact Us For Availability
Guide, Use and Care WPL LIT4155059 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT9870030 Contact Us For Availability
1
Screw, 8-18 x 1/2 WPL 777459 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI131303A Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI131304A Contact Us For Availability
2
Handle, Container WPL 4154608 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
3
Cord, Service WPL 937360 Contact Us For Availability
4
Spacer, Center Panel WPL 777784 Contact Us For Availability
4
Barrier, Glass WPL 776780 Contact Us For Availability
5
Container Assembly WPL 882671 Contact Us For Availability
5
Insulation, Inner Panel WPL 780412 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Screw (2) WPL 4149395 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Top, Cabinet WPL 608817 Contact Us For Availability
11
Ram Assembly WPL 608729 Contact Us For Availability
11
Cap, Handle End, L.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780189 Contact Us For Availability
12
Lid, Bag Storage WPL 780081 Contact Us For Availability
12
Harness, Wiring WPL 4155061 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Nut, 6-32 WPL 776188 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 4154909 Contact Us For Availability
17
Trim, Side WPL 4154910 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
18
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
19
Insert, Decorative WPL 4154904 Contact Us For Availability
19
Bumper, Ram (4) WPL 775643 Contact Us For Availability
20
Shield, Switch WPL 9870123 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
22
Bushing, Power Cord WPL 776119 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
23
Bracket, Protector WPL 9870125 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
26
Trim, Top WPL 4154862 Contact Us For Availability
27
Plug, Hole WPL 4152349 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
