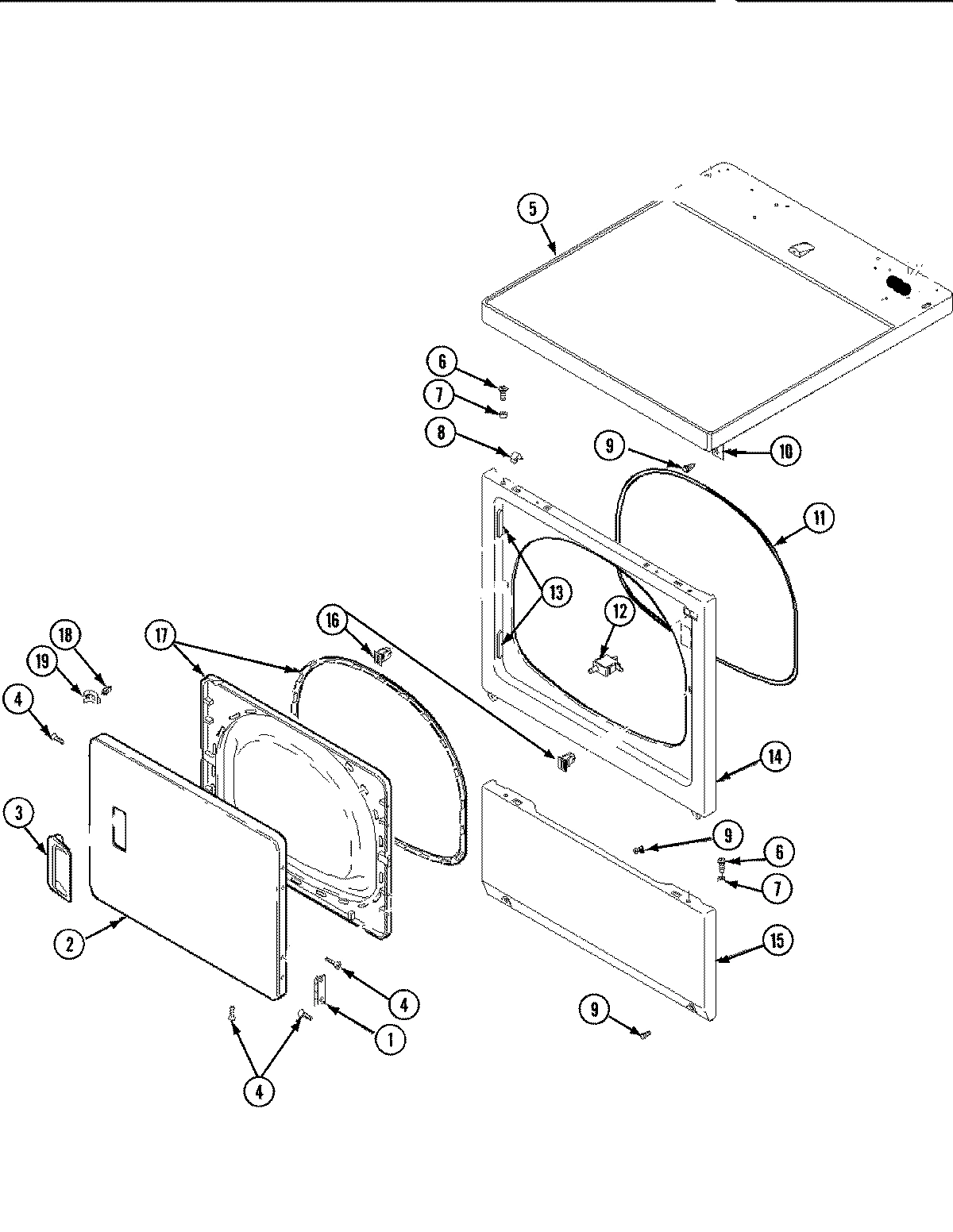

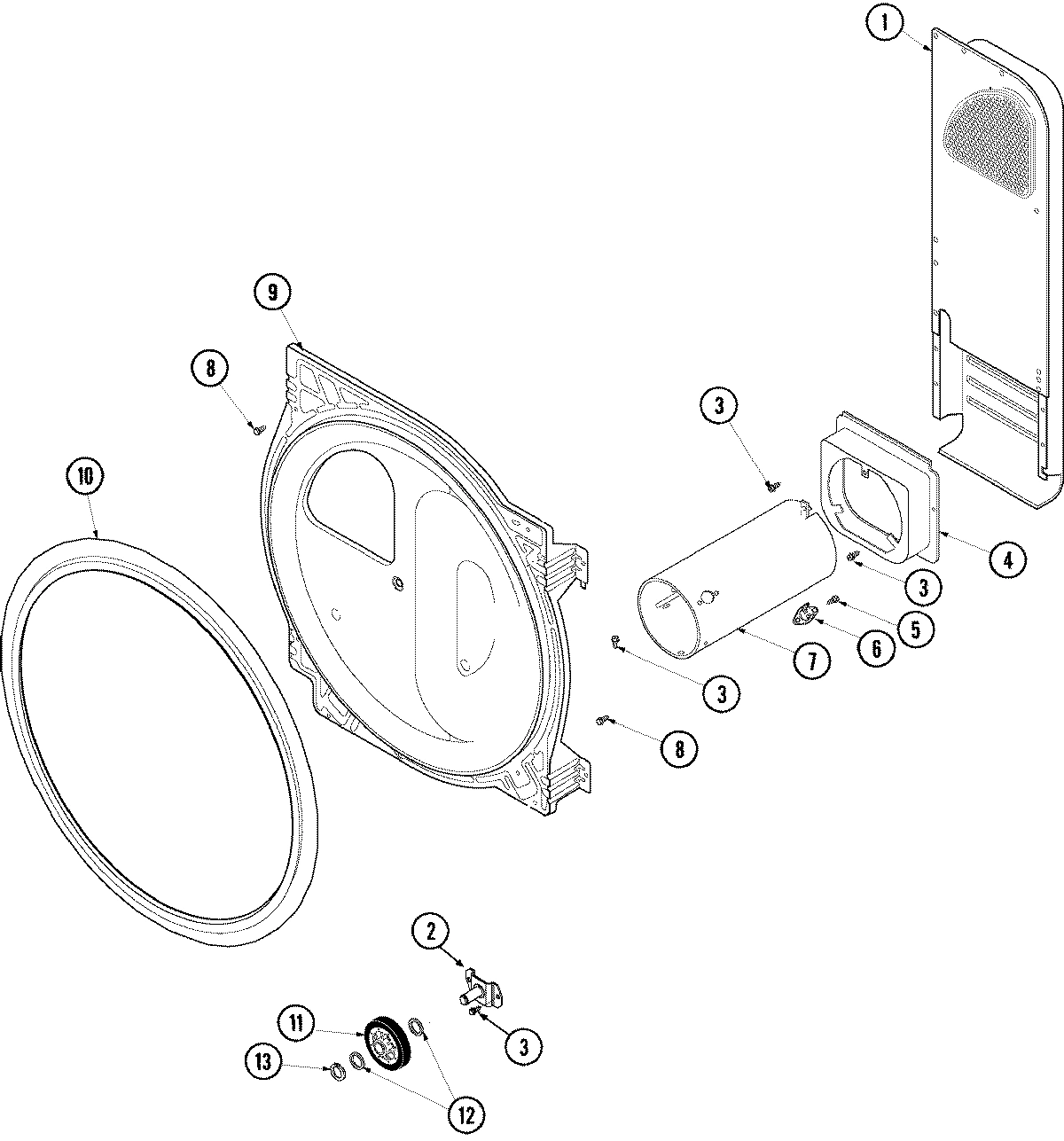

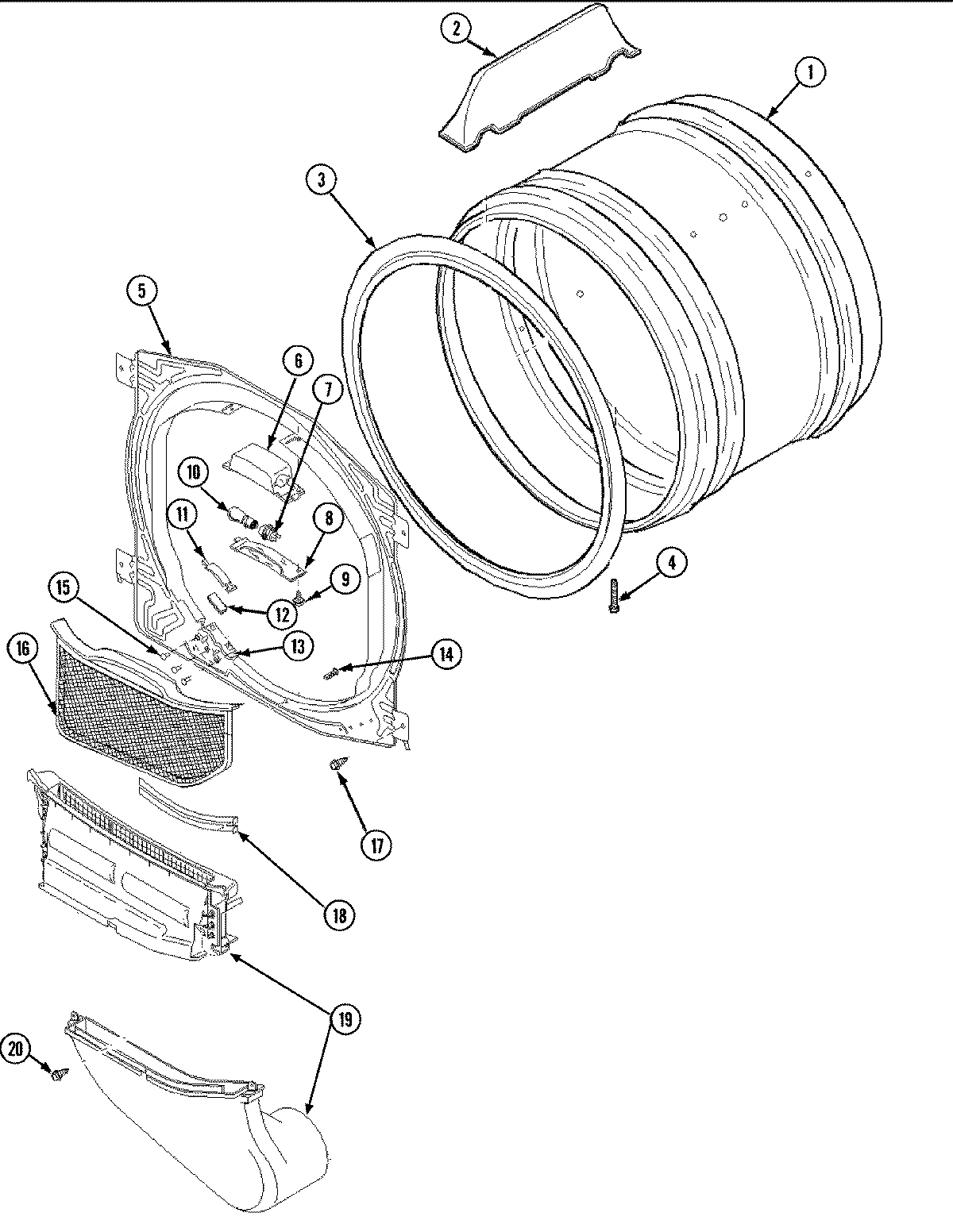

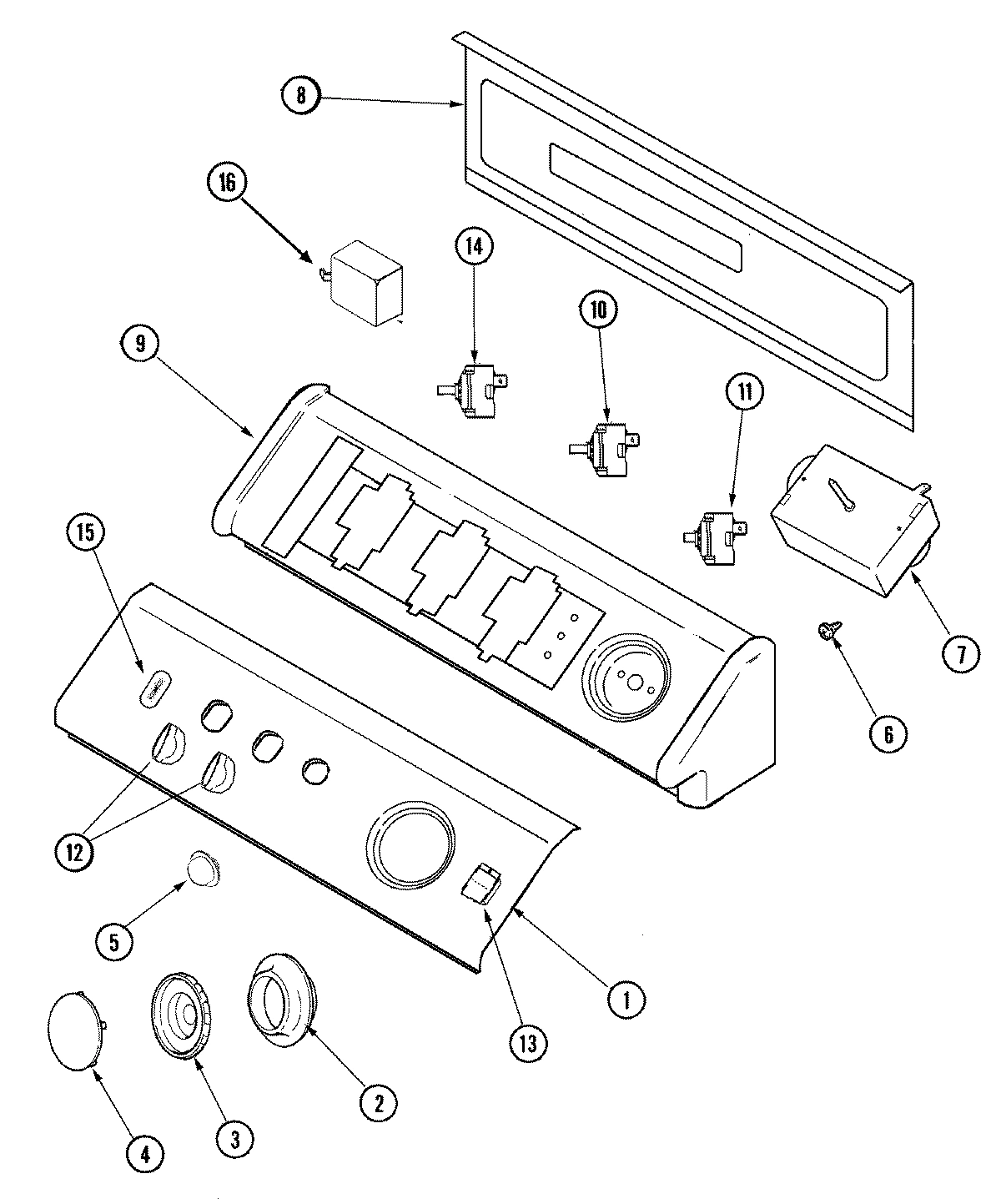

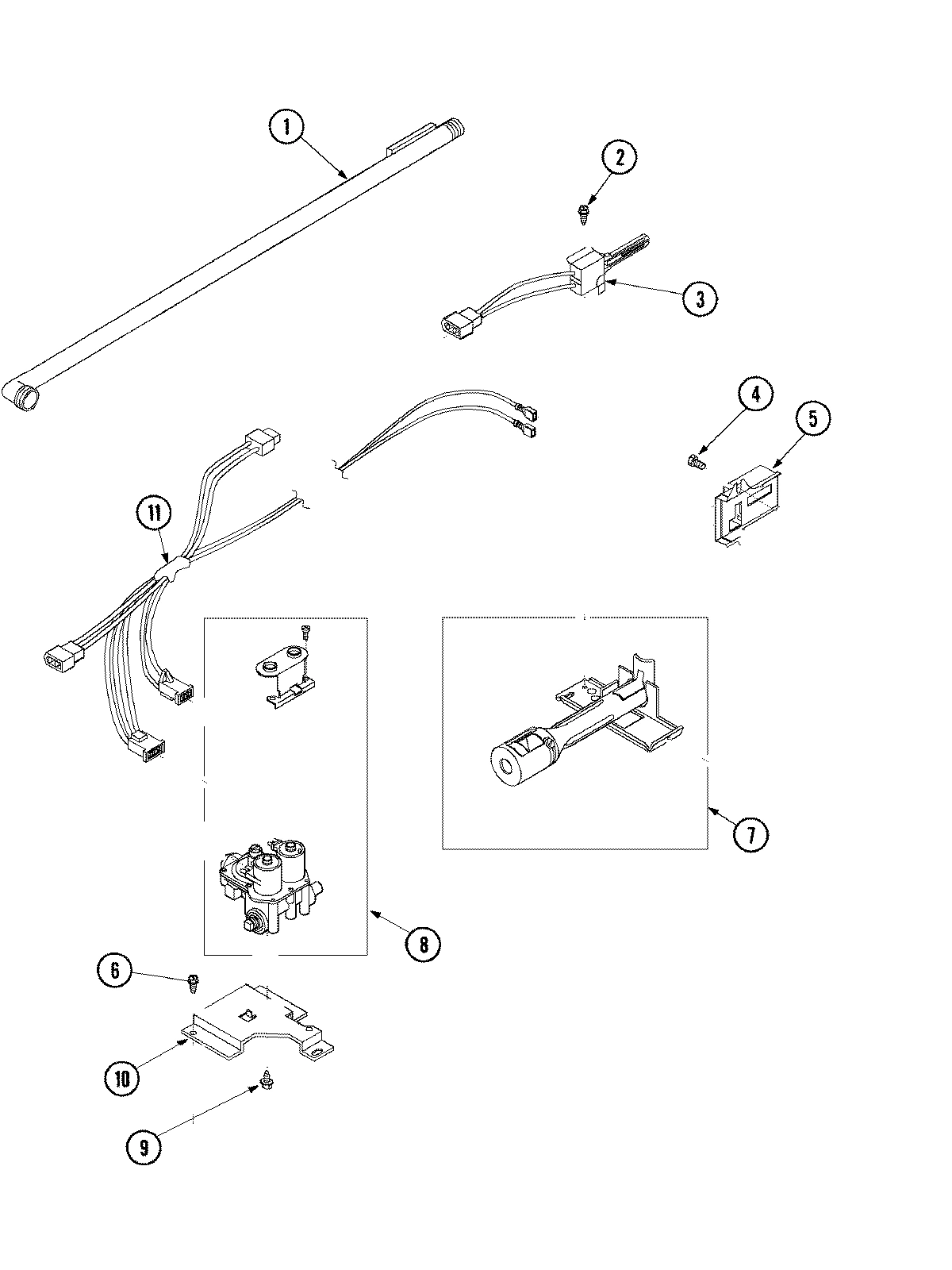

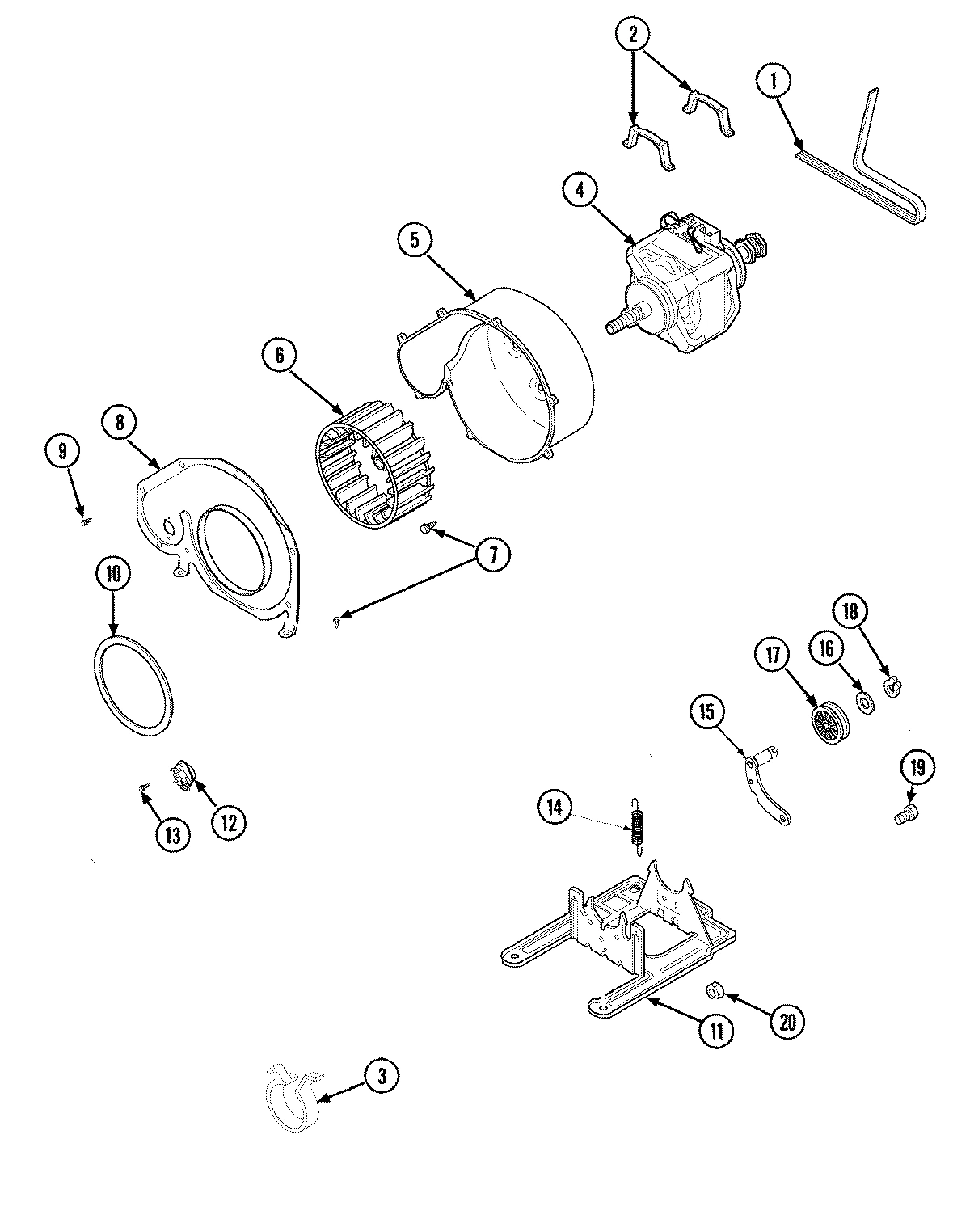

Model Whirlpool SDG5701AWQ GAS DRYER – Common Parts &amp; Diagrams

1

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

1

MANUAL, USE & CARE WPL 37001016 Contact Us For Availability

1

MNL,SERVICE-HOME LAUNDRY DRYER WPL RS3200007 Contact Us For Availability

1

PIPE, LEAD-IN WPL 37001001 Contact Us For Availability

1

CYLINDER ASSEMBLY (PAINTED) WPL 504467WP Contact Us For Availability

1

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

1

GRAPHIC CONTROL PANEL/FACIA/BS WPL 37001045 Contact Us For Availability

2

LPK1 Whirlpool Gas Dryer Natural to LP Propan In Stock WPL LPK1 $63.02

2

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

DOOR, DRYER (BSQ) WPL 37001034 Contact Us For Availability

2

LP TO NATURAL CONVERSION KIT WPL 650P3 Contact Us For Availability

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

2

TIMER DIAL SKIRT (BSQ) WPL 37001046 Contact Us For Availability

3

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

3

WP37001308 Whirlpool Igniter In Stock WPL WP37001308 $33.72

3

TIMER KNOB (GREY/BLUE) WPL 22003915 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

HANDLE, DOOR (BSQ) WPL 37001047 Contact Us For Availability

3

HARNESS, WIRE -GAS WPL 37001049 Contact Us For Availability

3

CLIP, WIRE WPL 504034 Contact Us For Availability

4

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

SHROUD, HEAT DUCT WPL 500122 Contact Us For Availability

4

TIMER KNOB INSERT/CAP WPL 33002347 Contact Us For Availability

5

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

5

PANEL, TOP (BSQ) WPL 37001033 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

5

SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

5

ASSEMBLY, BULKHEAD-FRONT WPL 503709WP Contact Us For Availability

5

BUTTON, PUSH TO START (BSQ) WPL 33002324 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

6

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

6

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

6

THERMOSTAT, LIMIT WPL Y61886 Contact Us For Availability

7

WP33002676 Whirlpool Element Timer Backorder WPL WP33002676 $228.60

7

LOCATOR, PANEL WPL 505187 Contact Us For Availability

7

ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability

7

LIGHT ASSEMBLY WPL Y504452 Contact Us For Availability

7

DUCT, COMBUSTION WPL 37001041 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

ASSEMBLY, GAS VALVE WPL 37001002 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

8

LENS, LIGHT WPL 40094301 Contact Us For Availability

8

CONSOLE BACK PANEL WPL 22002529 Contact Us For Availability

9

BULKHEAD, REAR WPL 502614WP Contact Us For Availability

9

CONSOLE (BSQ) WPL 33002327 Contact Us For Availability

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

BRACKET, MOUNTING WPL 500821 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

HARNESS, WIRE (GAS VALVE) WPL 37001007 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

SWITCH, PUSH-TO-START (BSQ) WPL 33002356 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

PAD, FELT WPL 500092 Contact Us For Availability

ROTARY KNOB ASSEMBLY (BSQ) WPL 22003919 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

2 POS. ROCKER SWITCH (BSQ) WPL 33002418 Contact Us For Availability

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

SWITCH, TEMPERATURE WPL 33001640 Contact Us For Availability

PANEL, FRONT (BSQ) WPL 503656CP Contact Us For Availability

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

15

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

15

PANEL, ACCESS (BSQ) WPL 40045301CP Contact Us For Availability

15

DRYNESS DISPLAY CONTROL (BSQ) WPL 33002400 Contact Us For Availability

16

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

16

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

16

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

17

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

18

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

19

ASSY,UPPR/LWR AIR DUCT WPL 40124501 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

20

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

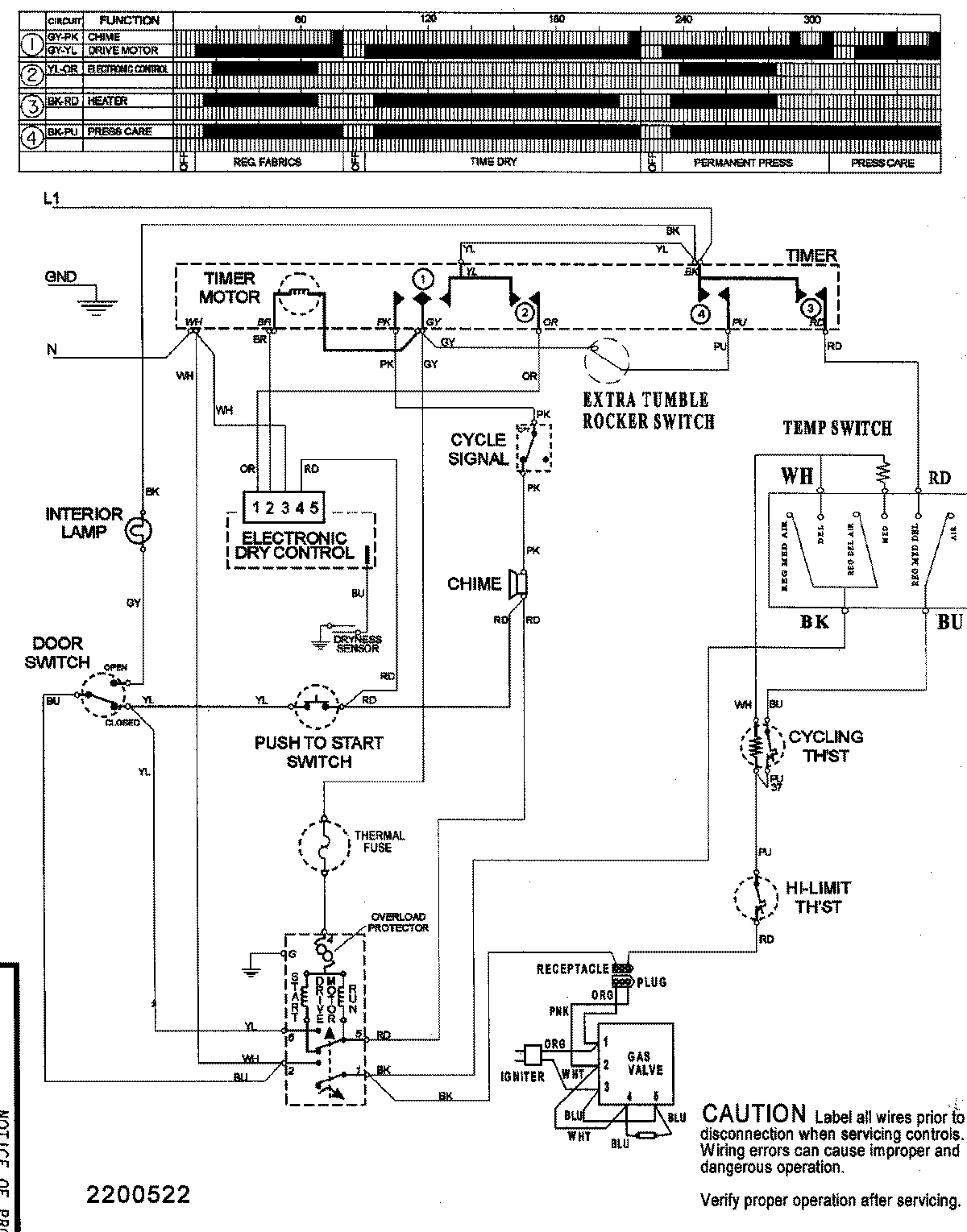

NI

WIRING INFORMATION WPL 15003155 Contact Us For Availability
