Model Whirlpool RT25BKXZL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2152553 WPL LIT2152553 Contact Us For Availability

WPL LIT2152554 WPL LIT2152554 Contact Us For Availability

WPL LIT2154430 WPL LIT2154430 Contact Us For Availability

WPL LIT4361178 WPL LIT4361178 Contact Us For Availability

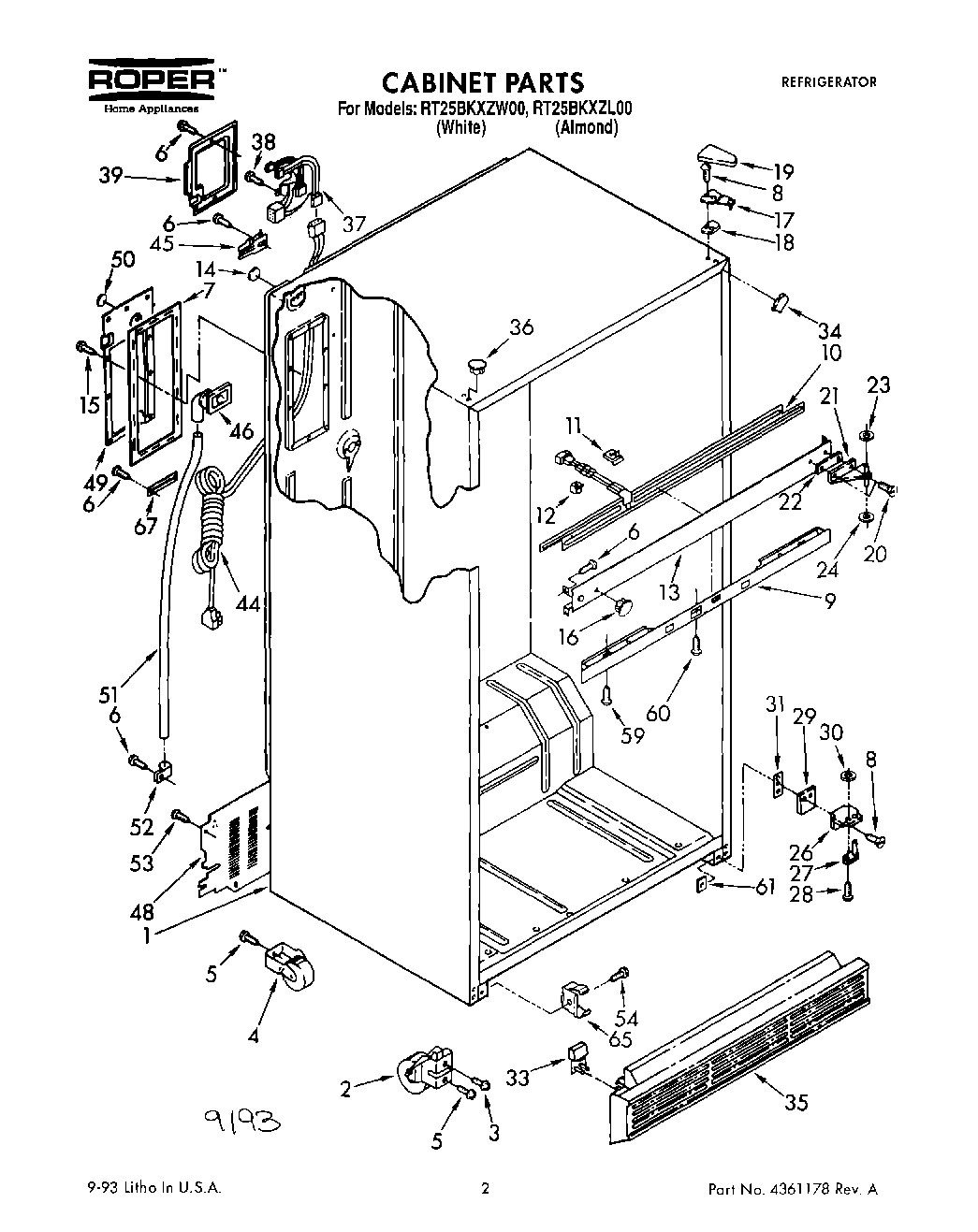

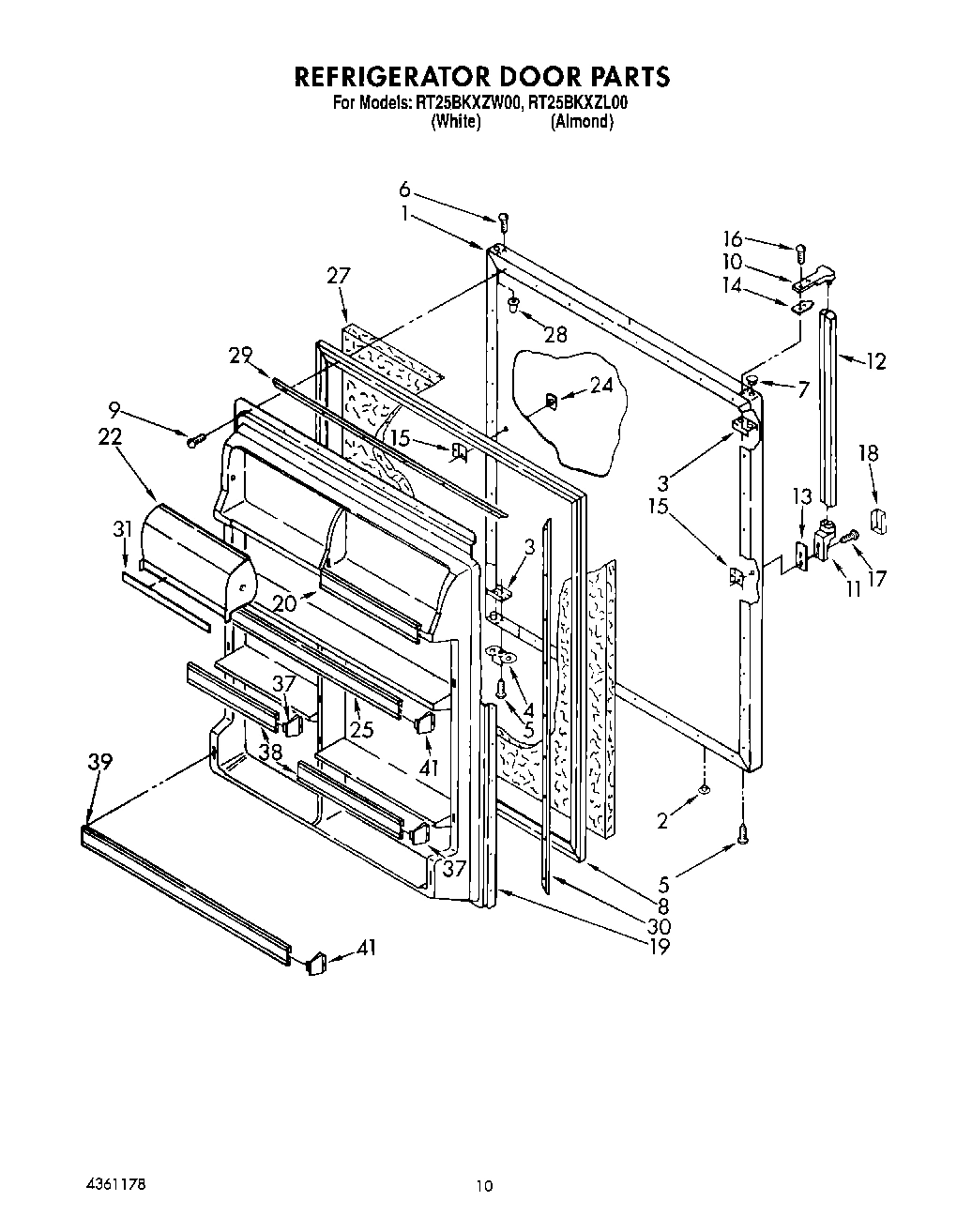

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

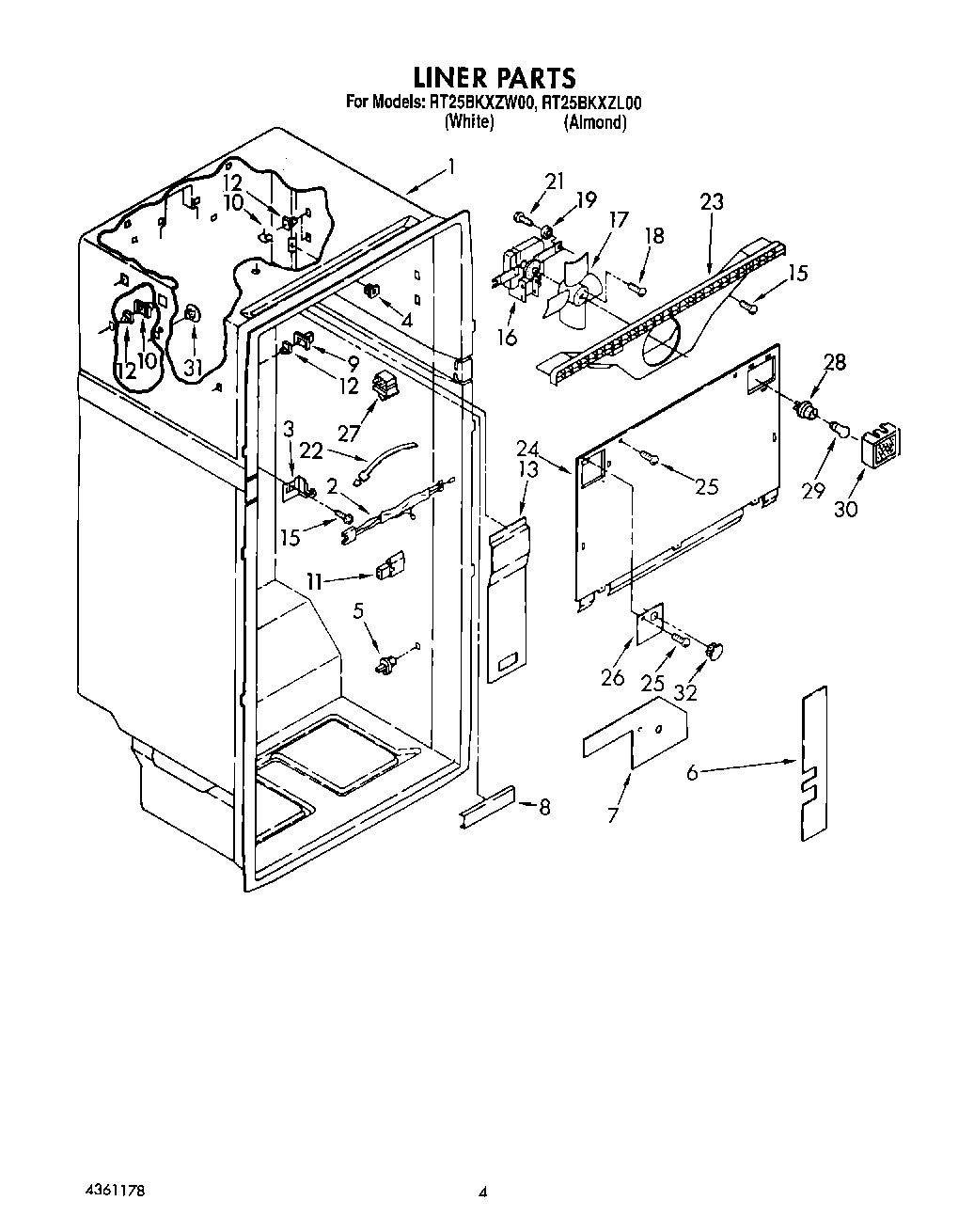

Cabinet (Not A Serviceable Part) WPL ARI128299A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI128300A Contact Us For Availability

1

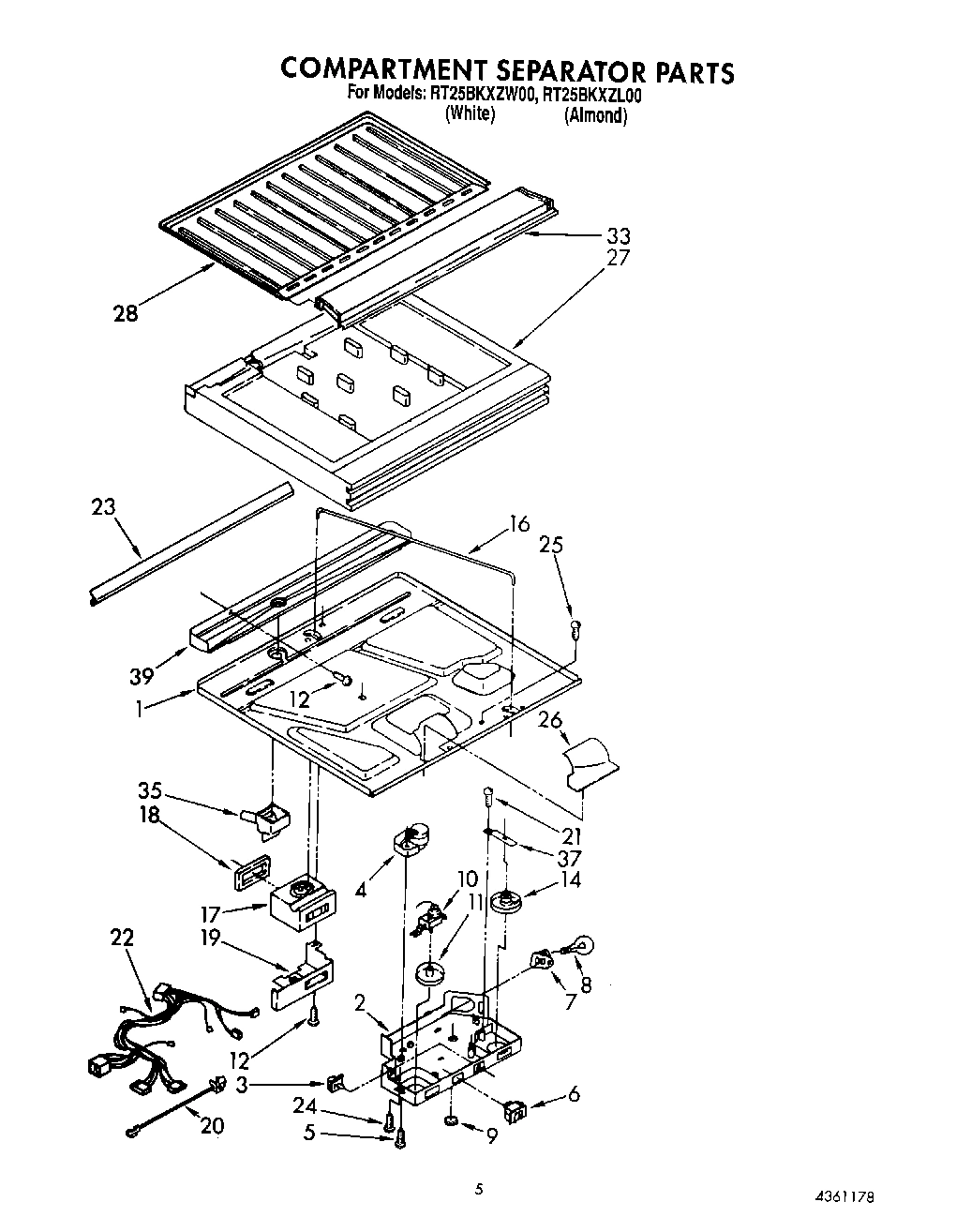

Bottom, Compartment Separator WPL 1114559 Contact Us For Availability

1

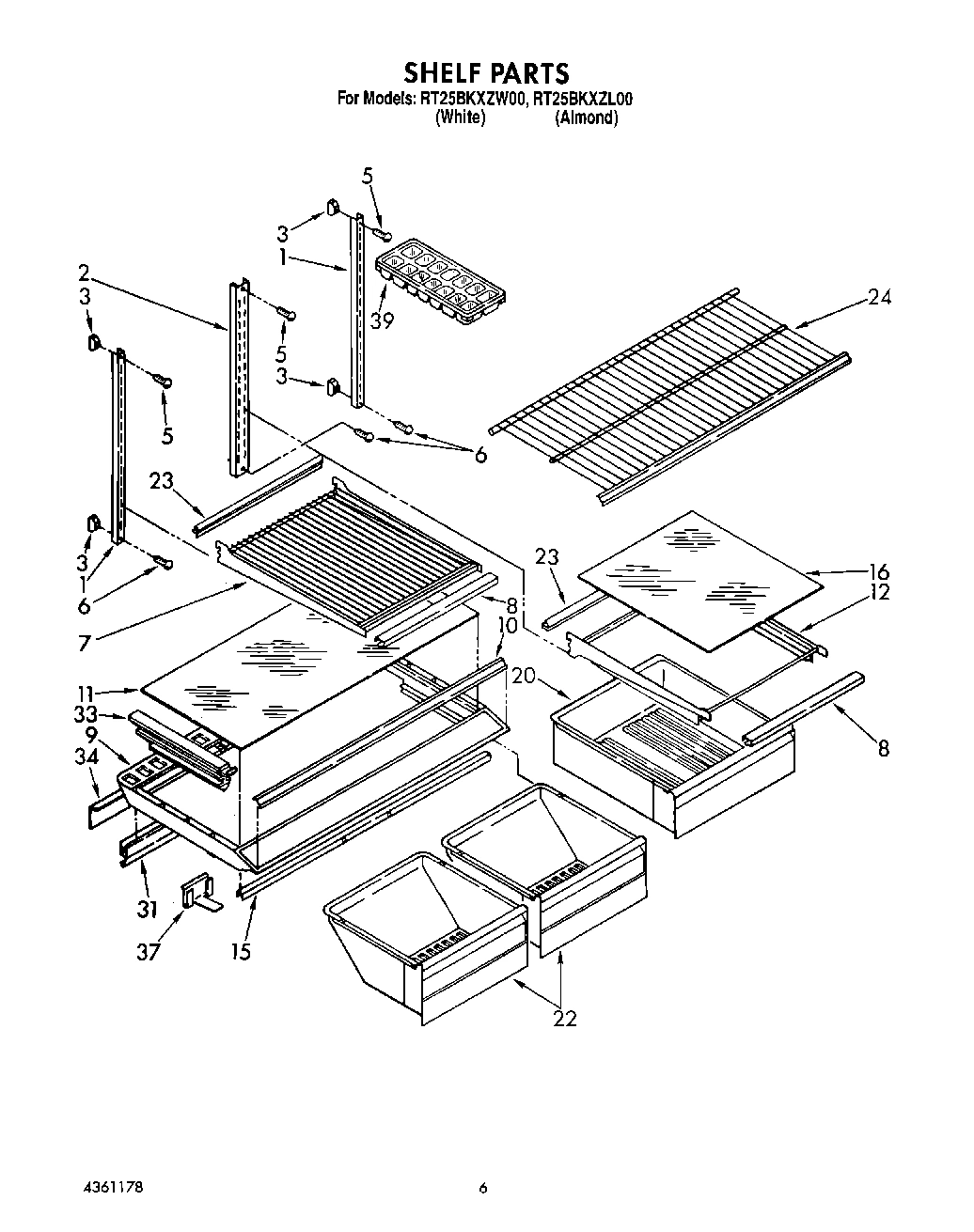

Shelf, Ladder (2) WPL 1118102 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1114573 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1114576 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Shelf Ladder, Center WPL 1118101 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Support, Evaporator WPL 842436 Contact Us For Availability

4

Roller, Rear (2) WPL 2147324 Contact Us For Availability

4

Grommet (2) WPL 848445 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Electrical Shield WPL 2151616 Contact Us For Availability

6

Switch, Toggle WPL 1106601 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

Sealing Gasket WPL 1114548 Contact Us For Availability

7

Electrical Shield WPL 2151608 Contact Us For Availability

7

Shelf, Cantilever WPL 2152542 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

8

Screw WPL 489327 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Trim, Shelf WPL 2152569 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1121176 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

NLA:SCREW Backorder WPL WPW10141645 $4.82

9

Control, Front Cover WPL 2148419 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 2152583 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $148.53

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 1114550 Contact Us For Availability

Trim, Crisper Cover WPL 1121136 Contact Us For Availability

Handle End, Top WPL 944157 Contact Us For Availability

Clip, Mullion (4) WPL 2149060 Contact Us For Availability

Housing Plug WPL 2149732 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

Glass, Crisper Cover WPL 2152572 Contact Us For Availability

End Cap, Handle (Bottom) WPL 935105 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Spacer (3) WPL 2149077 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 2147577 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Center Rail (White) WPL 1114538 Contact Us For Availability

Center Rail (Almond) WPL 1114541 Contact Us For Availability

Cover, Air Duct WPL 2157412 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Hole Seal WPL 1129056 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

15

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

15

Support, Cover WPL 1114568 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Hole Plug (White) WPL 1129062 Contact Us For Availability

Hole Plug (Almond) WPL 1129063 Contact Us For Availability

Rod, Connecting WPL 1118057 Contact Us For Availability

Shelf, Glass WPL 2152568 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

End Cap Cover WPL 987873 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

Grommet (2) WPL 531933 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Interior Door Panel WPL 2155999 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Ground Wire WPL 1114482 Contact Us For Availability

Pan, Meat WPL 2152570 Contact Us For Availability

Trim, Door Compartment WPL 2152562 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Kit, Foam Slab WPL 876029 Contact Us For Availability

Hinge, Center WPL 836153 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Shim, Hinge Center WPL 2151688 Contact Us For Availability

Shim, Center (Repair) WPL 841604 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

Wiring Assembly, Control Box WPL 2154415 Contact Us For Availability

Pan, Crisper WPL 2152582 Contact Us For Availability

Compartment Door WPL 2148289 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Scroll, Fan WPL 1114593 Contact Us For Availability

Gasket, Bottom Separator WPL 1116698 Contact Us For Availability

Reflector, Shelf WPL 1125754 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

Evaporator Cover WPL 1123353 Contact Us For Availability

Shelf, Freezer WPL 1121154 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

25

Tray, Evaporator WPL 1110674 Contact Us For Availability

25

Trim, Shelf WPL 2152563 Contact Us For Availability

26

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

26

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1114561 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

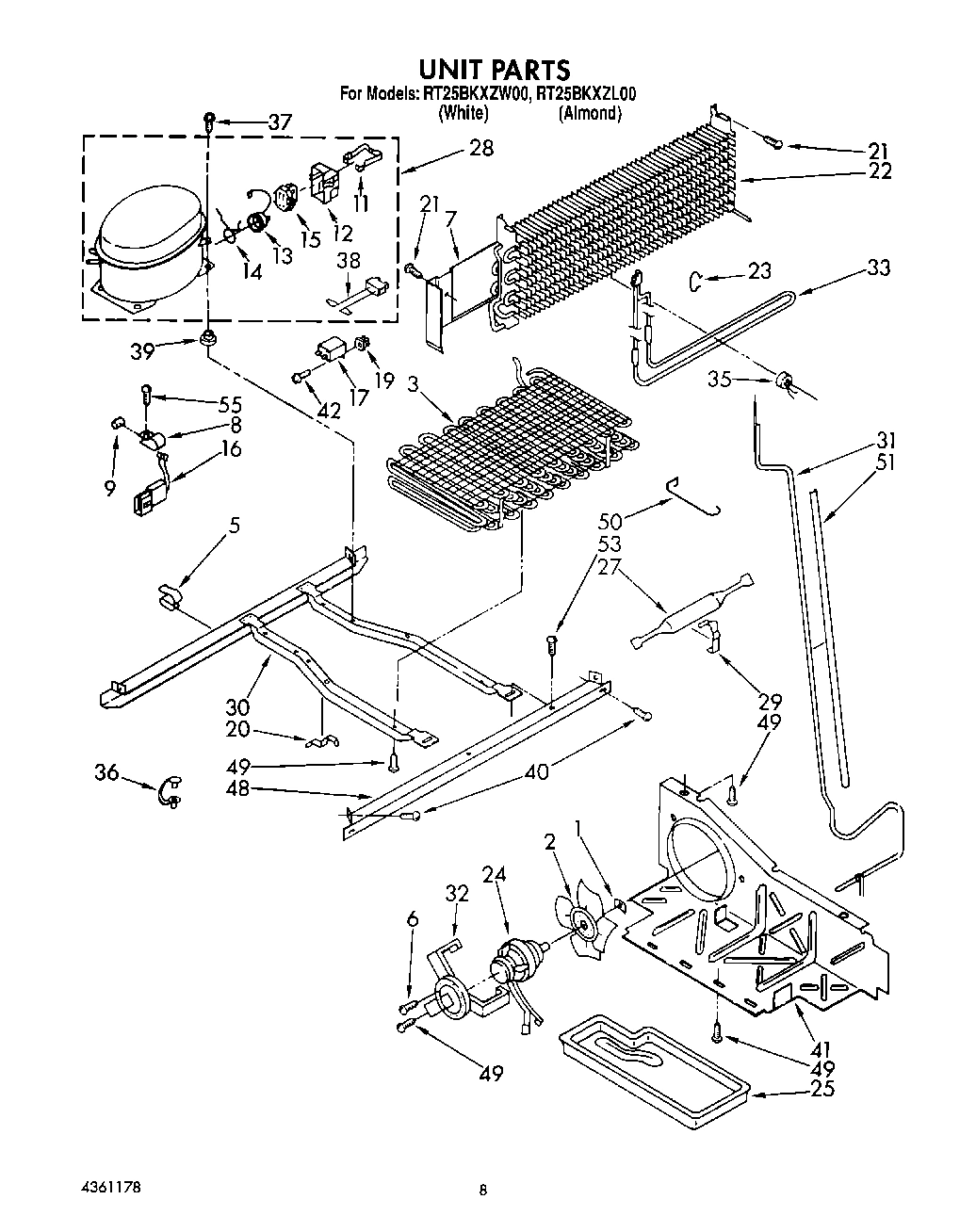

Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2149958 Contact Us For Availability

Socket, Light WPL 1123354 Contact Us For Availability

Separator, Compartment (Top) (Rear) WPL 1114562 Contact Us For Availability

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

29

Shim, Bottom WPL 836196 Contact Us For Availability

29

Gasket Retainer, Top & Bottom (2) WPL 1121119 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

Washer, 9/32 WPL 489295 Contact Us For Availability

Lens, Light WPL 981365 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1123245 Contact Us For Availability

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

Exchanger, Heat WPL 2154440 Contact Us For Availability

Spacer WPL 1129868 Contact Us For Availability

Crisper, Gasket Rear WPL 1116666 Contact Us For Availability

Trim, Door WPL 2152556 Contact Us For Availability

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

32

Hole Plug WPL 1103725 Contact Us For Availability

Heater, Defrost WPL 2149173 Contact Us For Availability

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability

Crisper Track, Center WPL 1118092 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability

34

Support Bar WPL 2147047 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

35

Grille WPL 1129002 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

36

Clip, Wire WPL 1115141 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $13.76

Cabinet, Wiring Assembly WPL 2149634 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

Clip (3) WPL 2149078 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

38

Trim, Door Shelf WPL 2152564 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Cover, Wiring WPL 1105606 Contact Us For Availability

Drain Pan WPL 1114597 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Trim, Door Shelf WPL 2152565 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

End Cap, Trim (4) WPL 1115364 Contact Us For Availability

41

See Complete Cross-Reference Listing Film Car WPL 4314268 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

44

Cord, Service WPL 937360 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

Fitting, Drain WPL 937062 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

48

Cover, Unit WPL 2147323 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

49

Cover, Plug WPL 1105527 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $27.86

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

52

Clamp WPL 836077 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

67

Tube Clamp WPL 1105607 Contact Us For Availability
