Model Whirlpool RT20DKXDW01 – Common Parts & Diagrams
03 - LINER

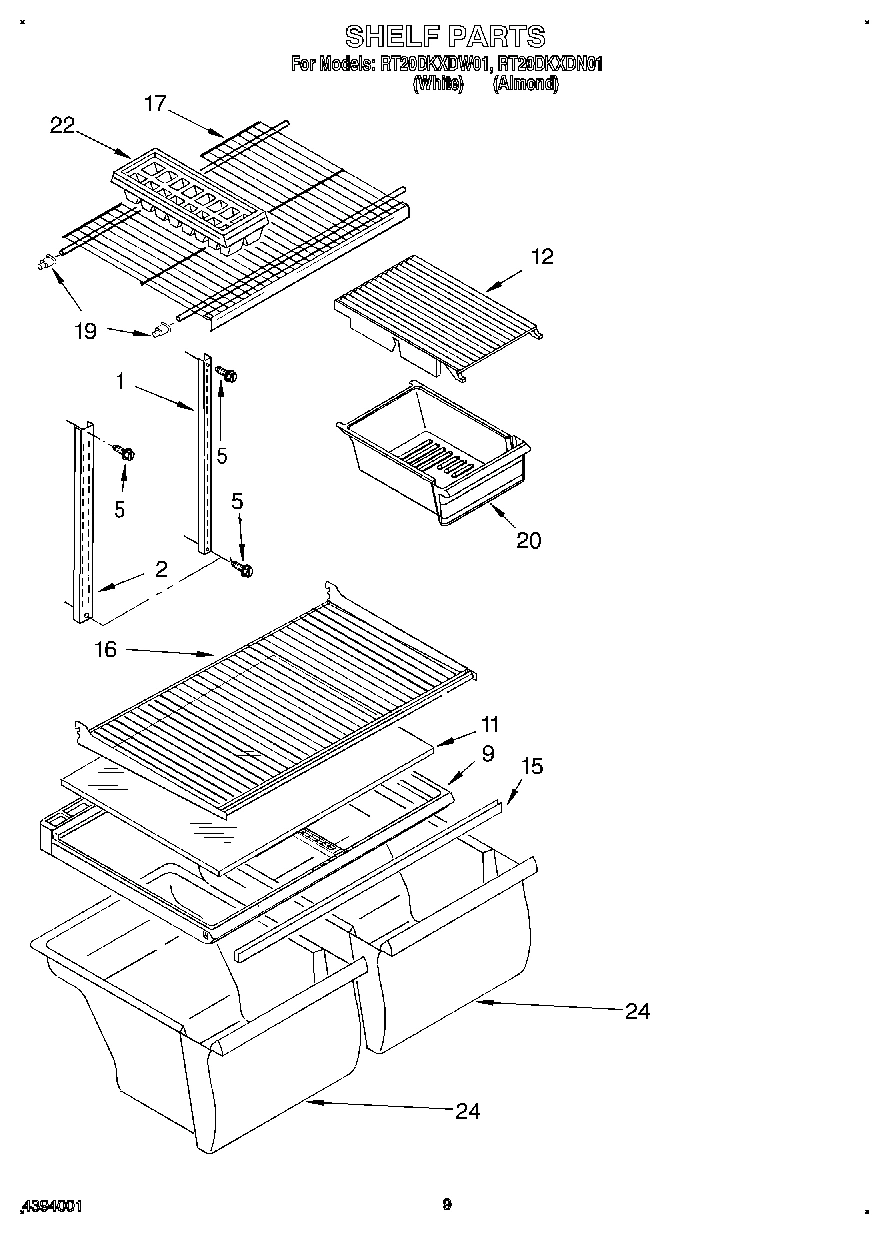

05 - SHELF, LIT/OPTIONAL

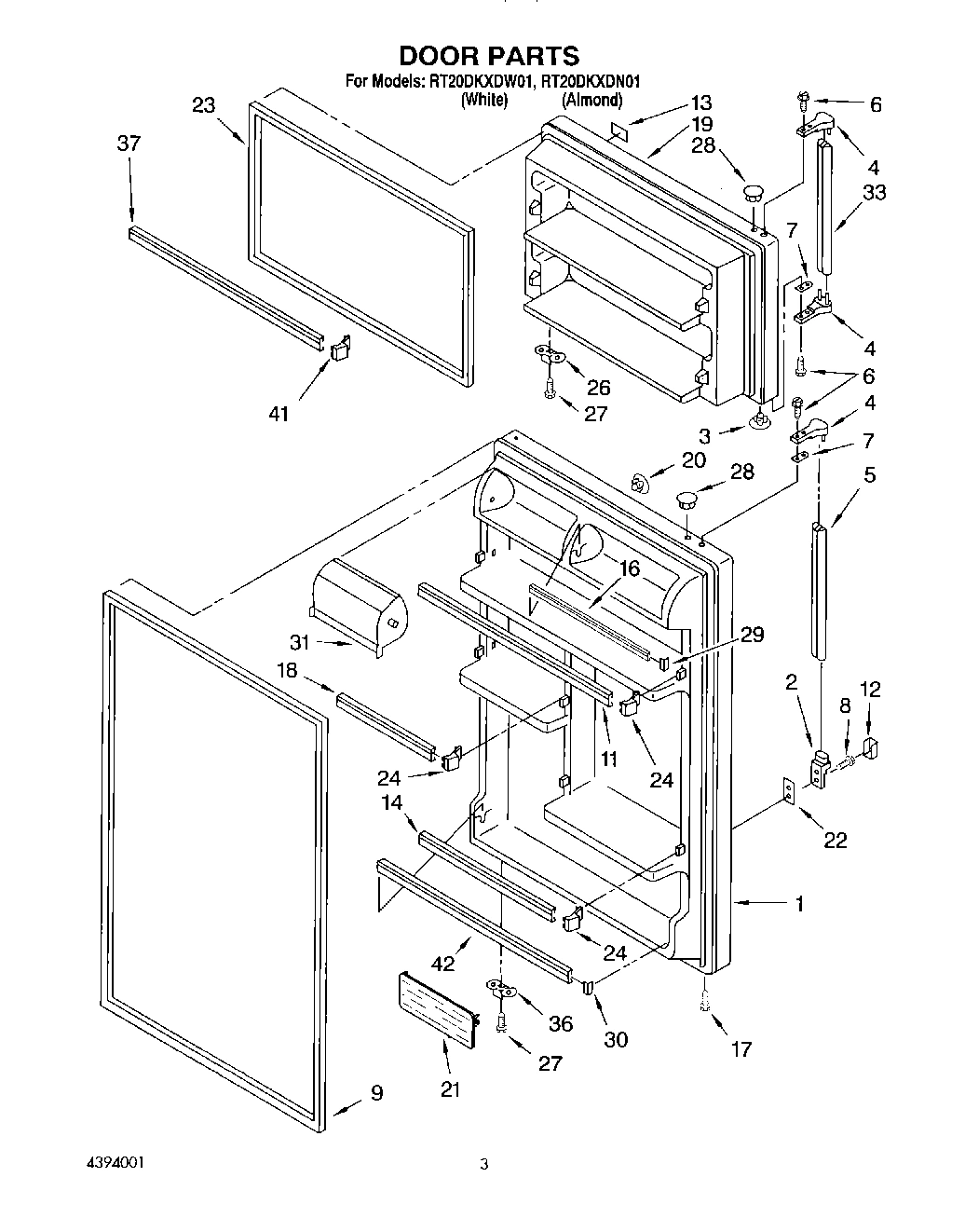

02 - DOOR

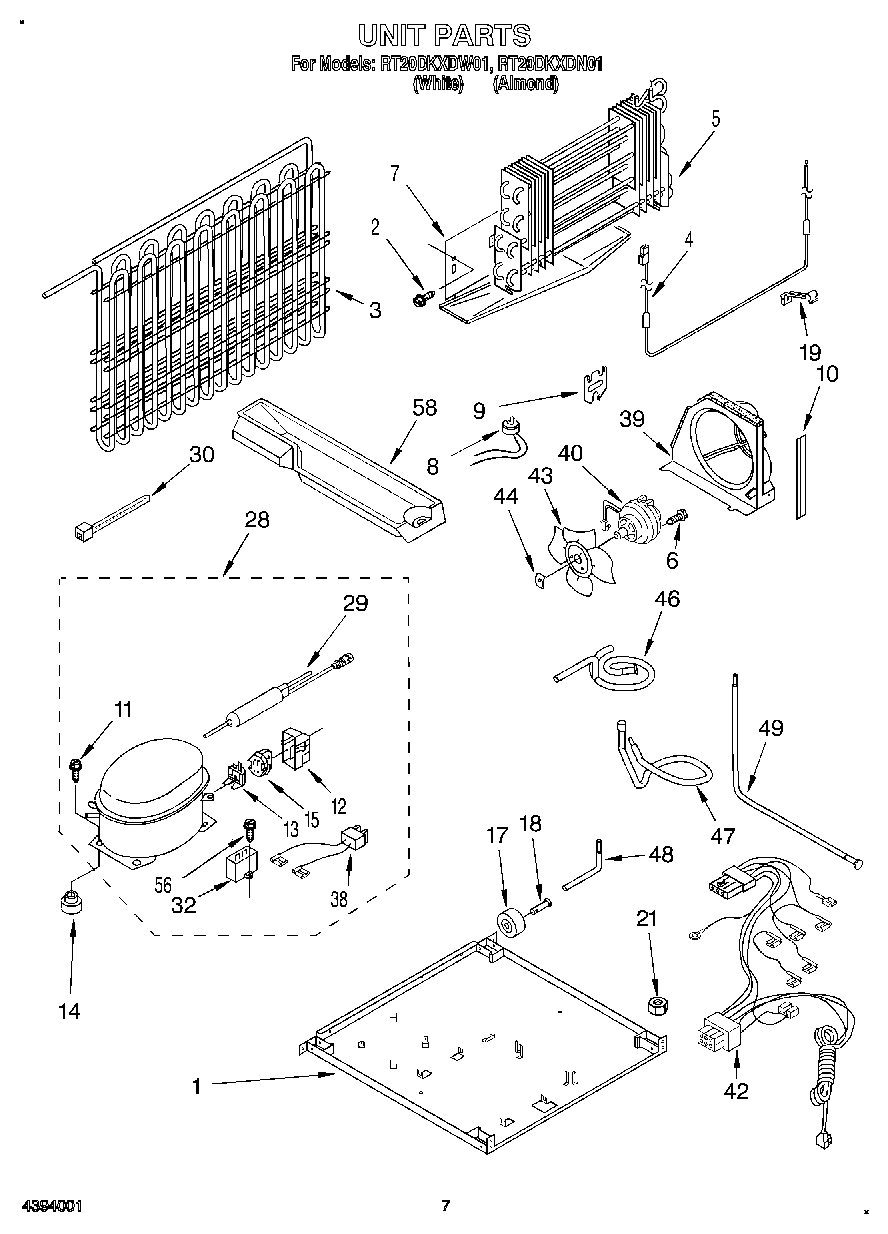

04 - UNIT

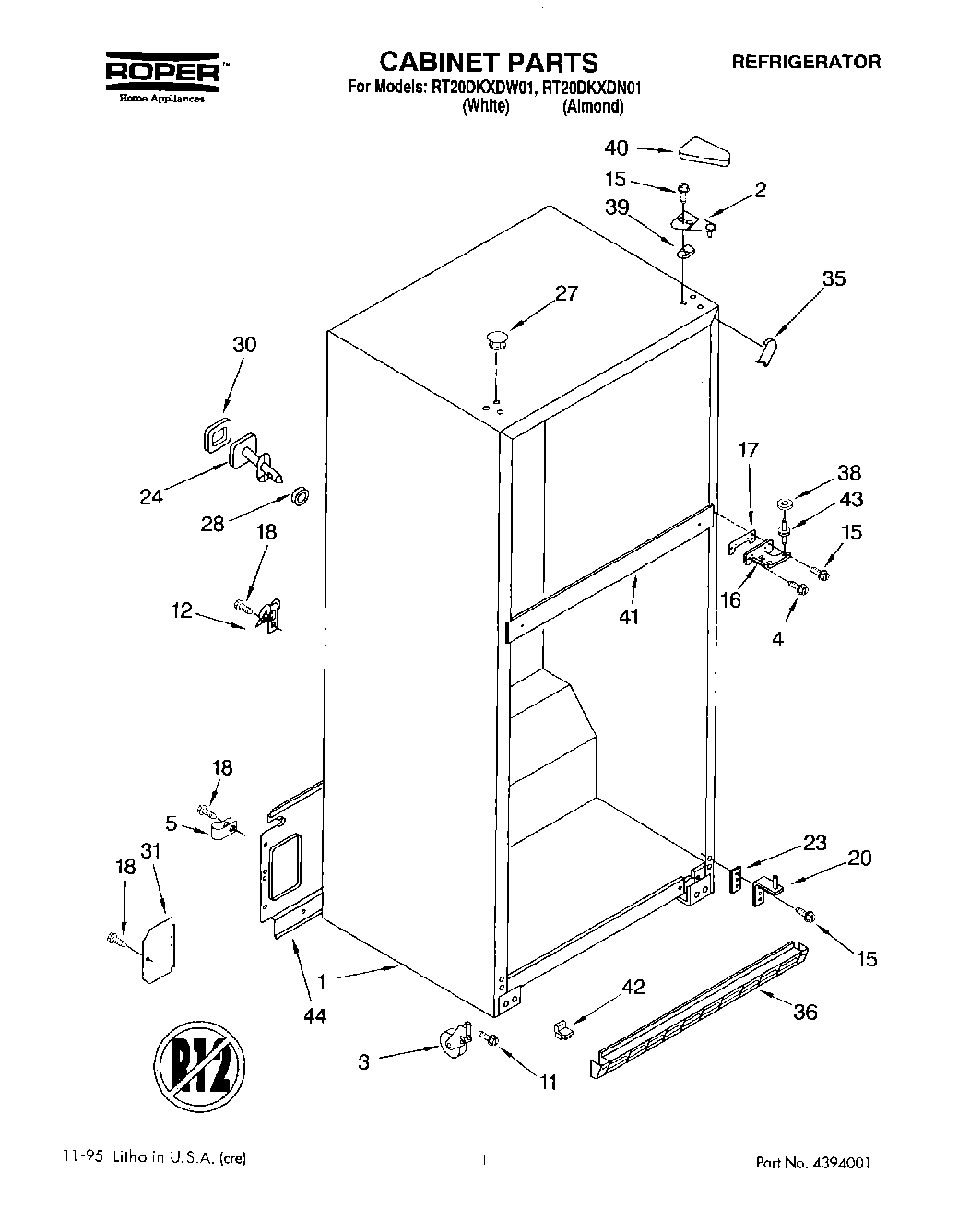

01 - CABINET
Common parts from model Whirlpool RT20DKXDW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2159276 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2159277 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI162447A Contact Us For Availability
2
End Cap WPL 935105 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Handle, Center WPL 1109181 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2173351 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Cover, Screw WPL 987873 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
14
Trim, Door Shelf WPL 2173326 Contact Us For Availability
15
Relay (See Overload) WPL ARI162453A Contact Us For Availability
15
Screw WPL 489459 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Door WPL 2173350 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159273 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159274 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI162454A Contact Us For Availability
22
Shim, Handle WPL 935076 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI162448A Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI162449A Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI162450A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2154565 Contact Us For Availability
33
Handle, F.C. WPL 2173301 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2182434 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI162451A Contact Us For Availability
42
Trim, Door WPL 2173352 Contact Us For Availability
42
Wire Assy. Unit WPL 2182378 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
