Model Whirlpool RT20AKXFN01 – Common Parts & Diagrams
01 - CABINET
03 - LINER

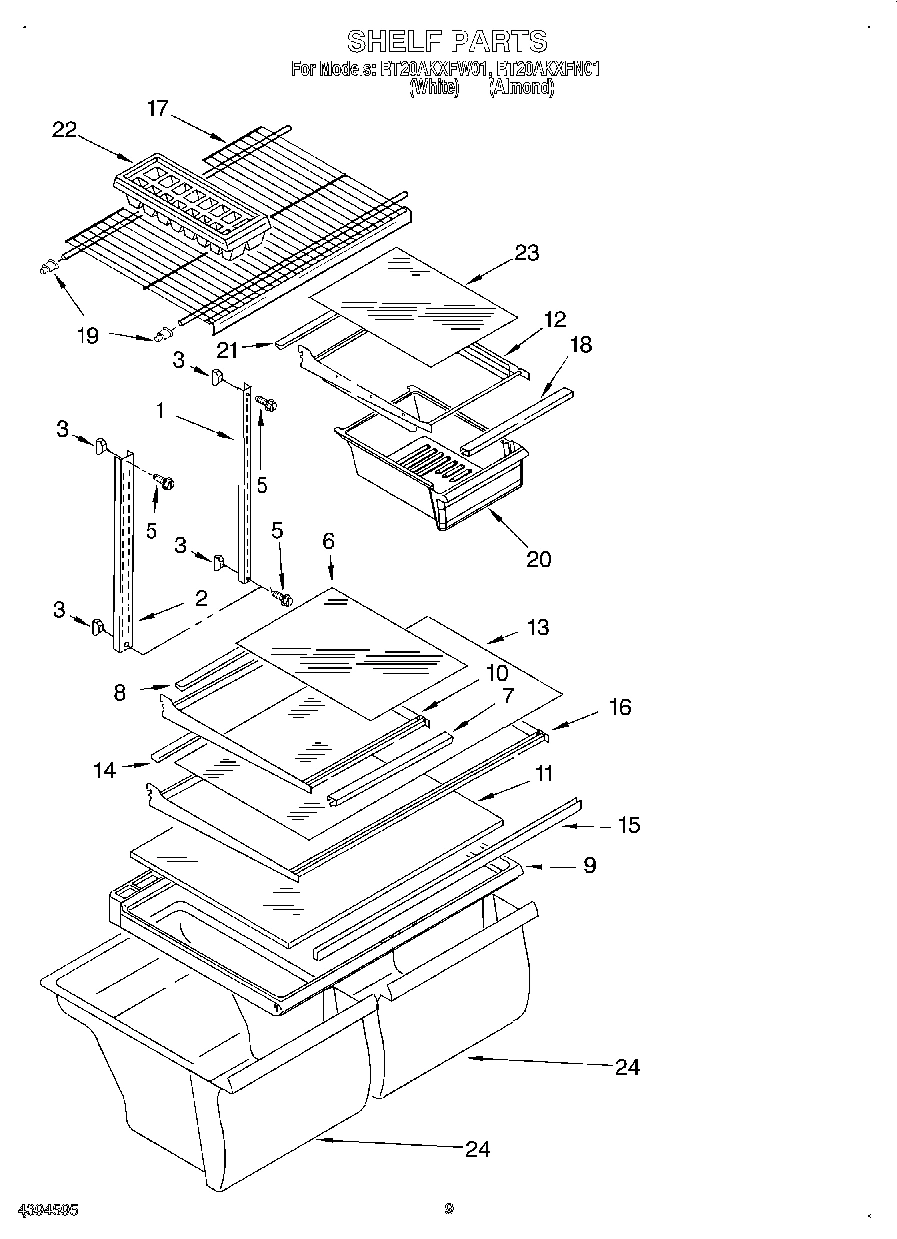

05 - SHELF, LIT/OPTIONAL

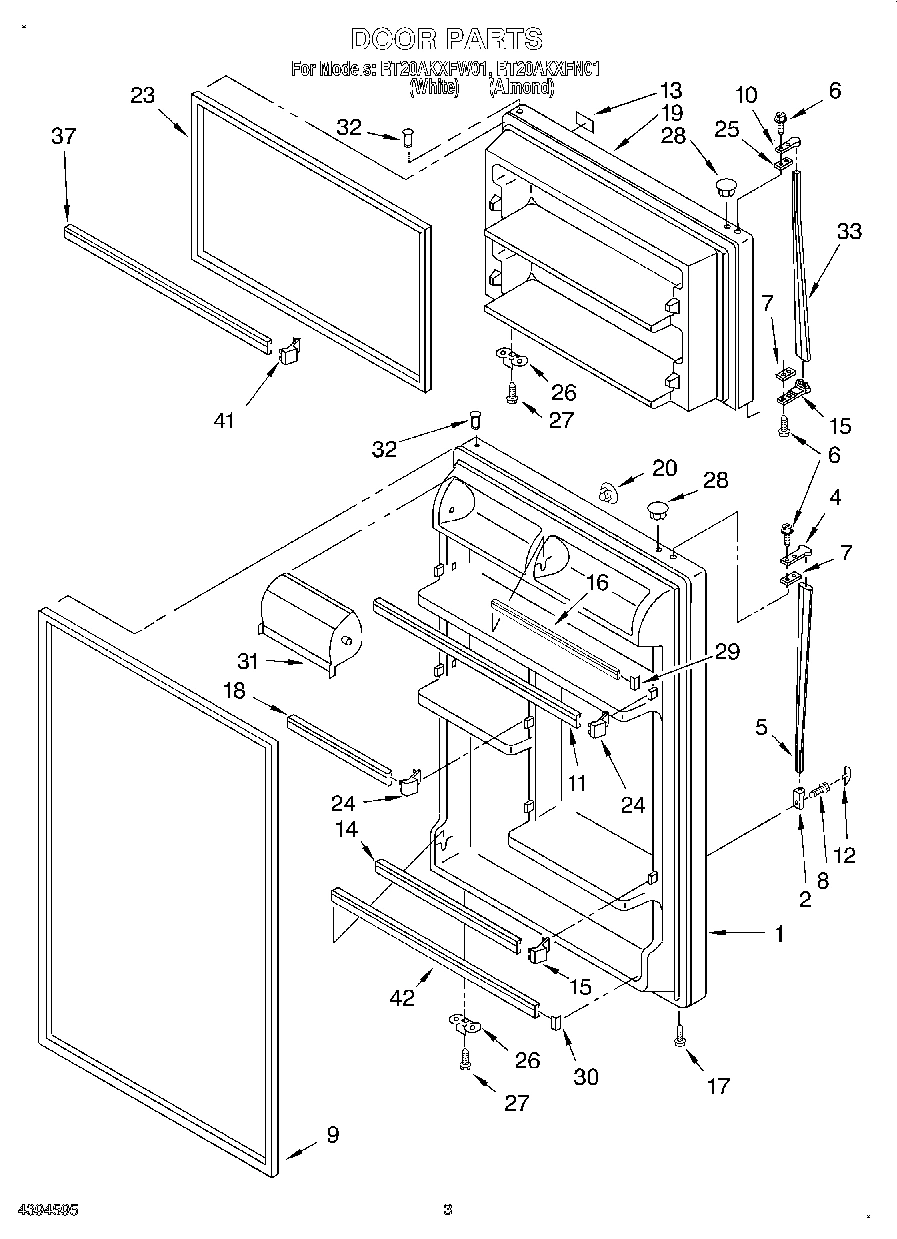

02 - DOOR

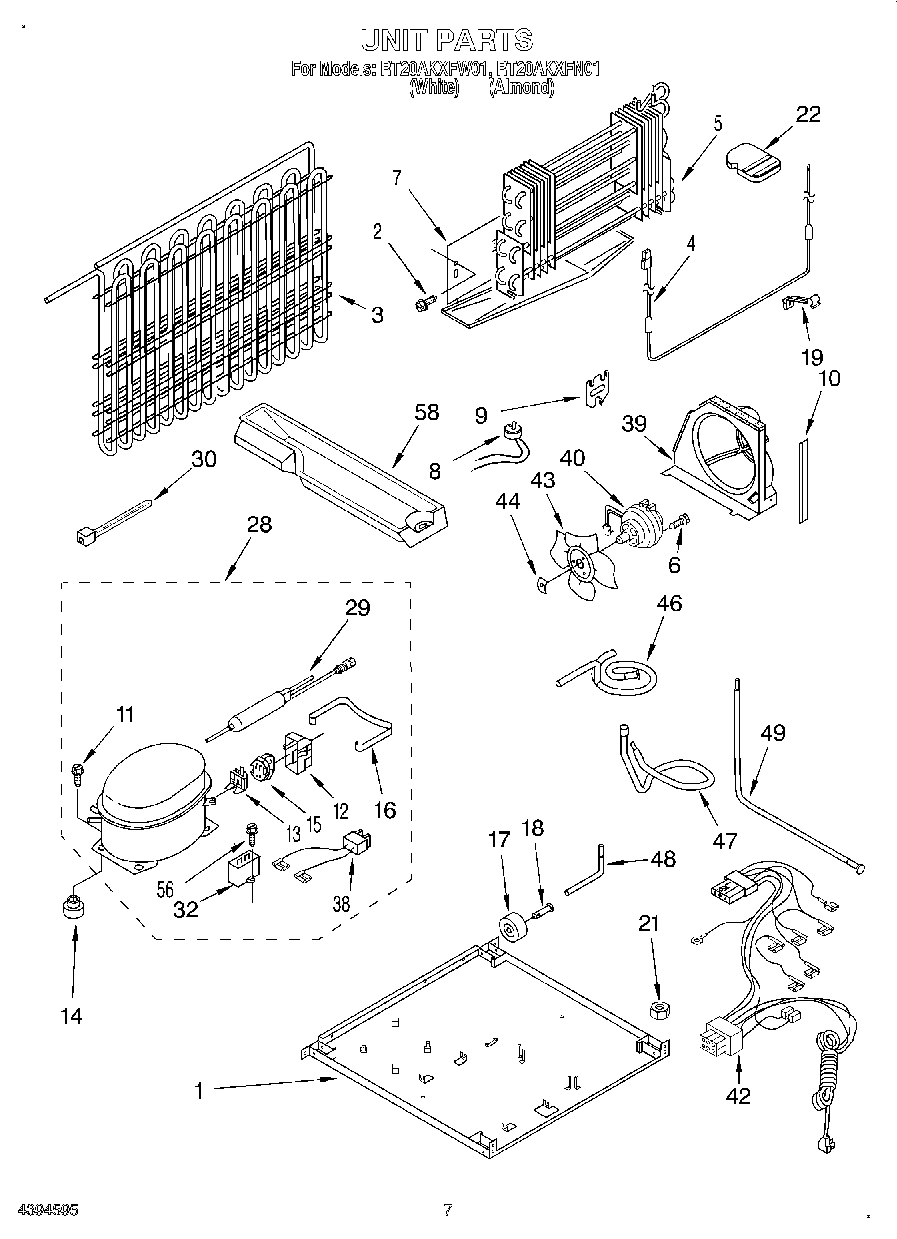

04 - UNIT
Common parts from model Whirlpool RT20AKXFN01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195601 WPL LIT2195601 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Al WPL 2183947 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195272 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Trim, Shelf WPL 2176263 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Shelf, Cantilever WPL 2163860 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195379 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
12
Cover WPL 1105055 Contact Us For Availability
13
Glass, Full Shelf WPL 2174693 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
14
Trim, Rear Shelf WPL 2193395 Contact Us For Availability
15
Relay (See Overload) WPL ARI127633A Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163863 Contact Us For Availability
16
Cover, Strap WPL 943322 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Trim, Shelf WPL 2193396 Contact Us For Availability
18
Trim, Door WPL 2195380 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23 & No.32) (Almond WPL 2184400 Contact Us For Availability
20
Pan, Meat WPL 2169974 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Shelf Rear WPL 2193393 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI127634A Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Glass, Shelf WPL 2174694 Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2173344 Contact Us For Availability
36
Grille (Almond) WPL 2189156 Contact Us For Availability
37
Trim-Door (2) WPL 2171265 Contact Us For Availability
39
Air Baffle WPL 2195677 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes11,14,16 18,24,29,30,37,4 WPL 2182599 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPO WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
