Model Whirlpool RT16DKXDN03 – Common Parts & Diagrams

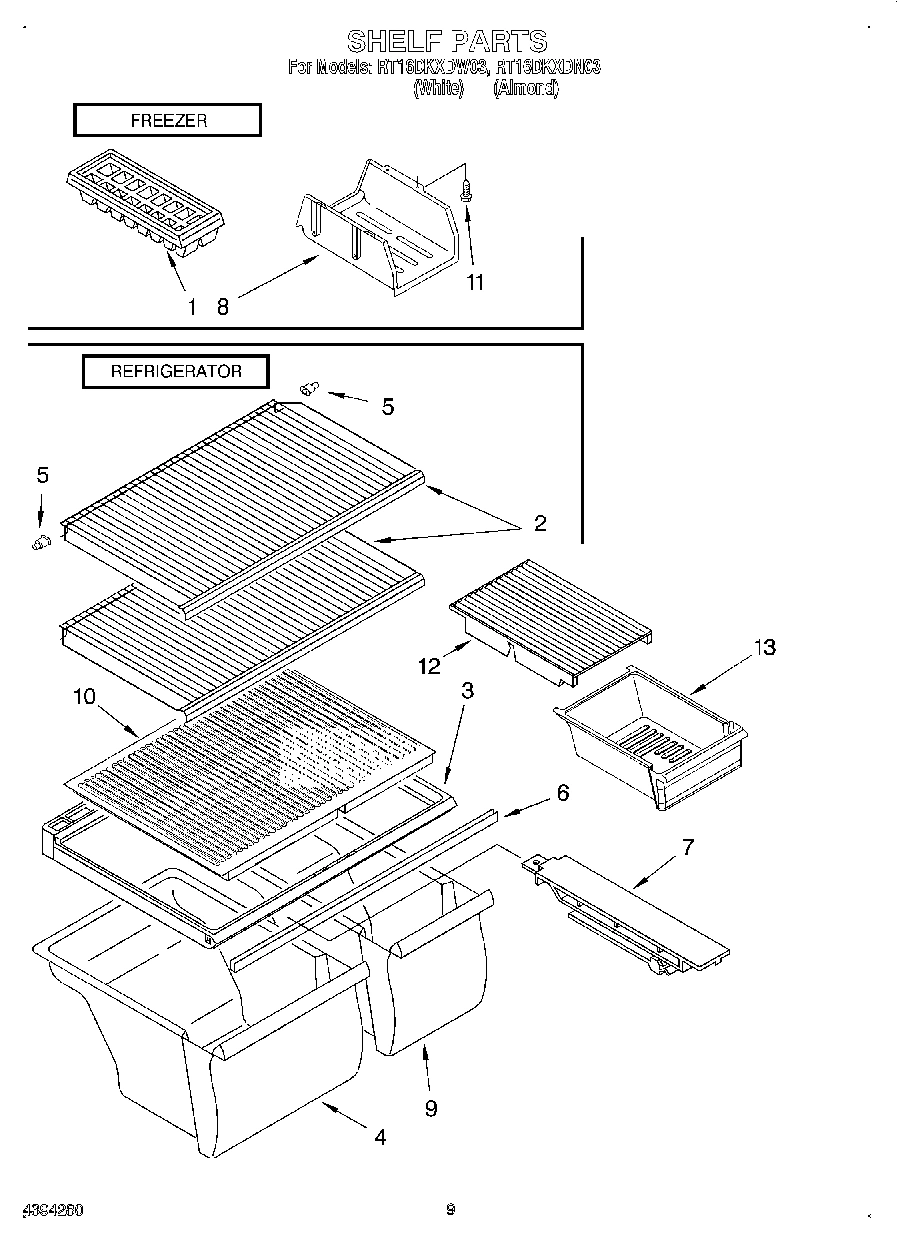

05 - SHELF, LIT/OPTIONAL

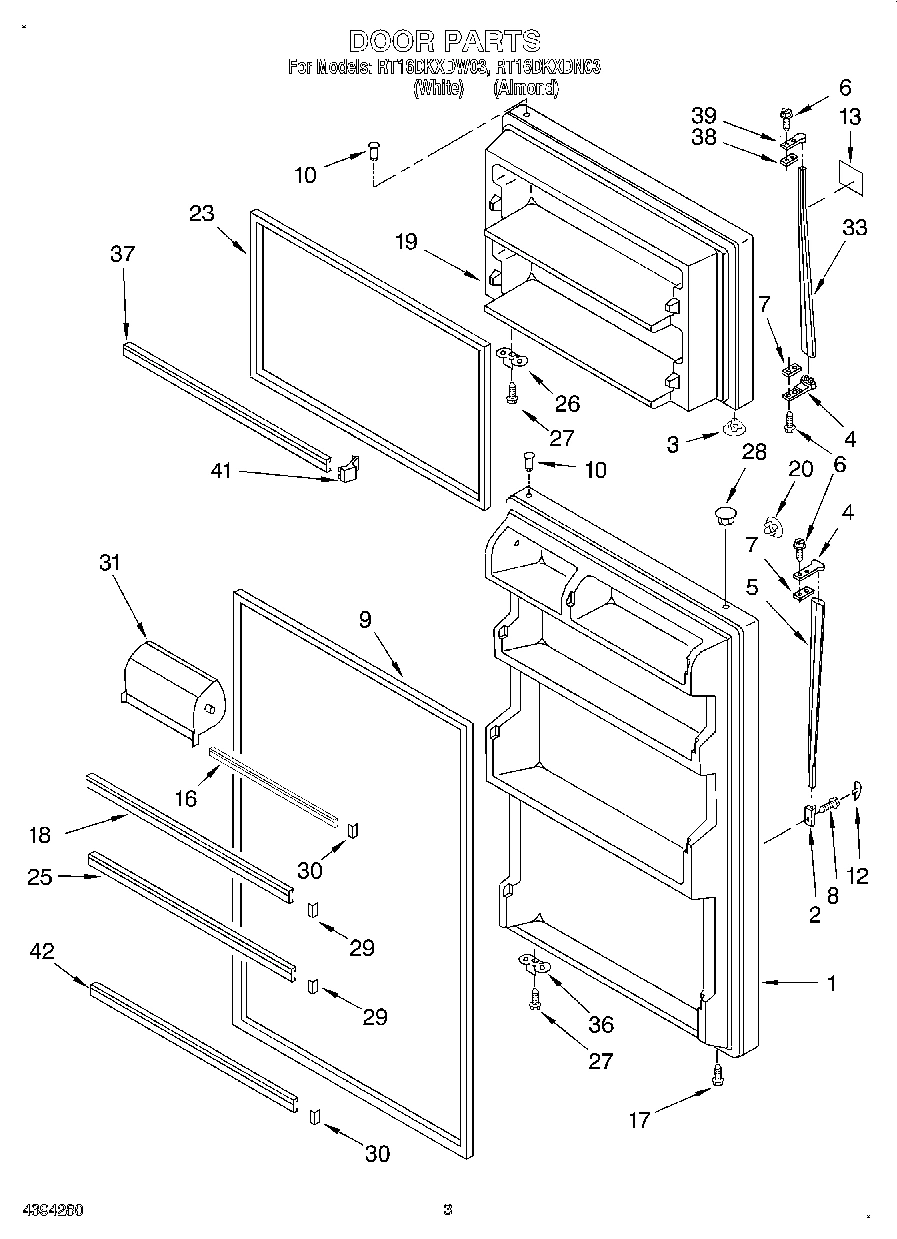

02 - DOOR

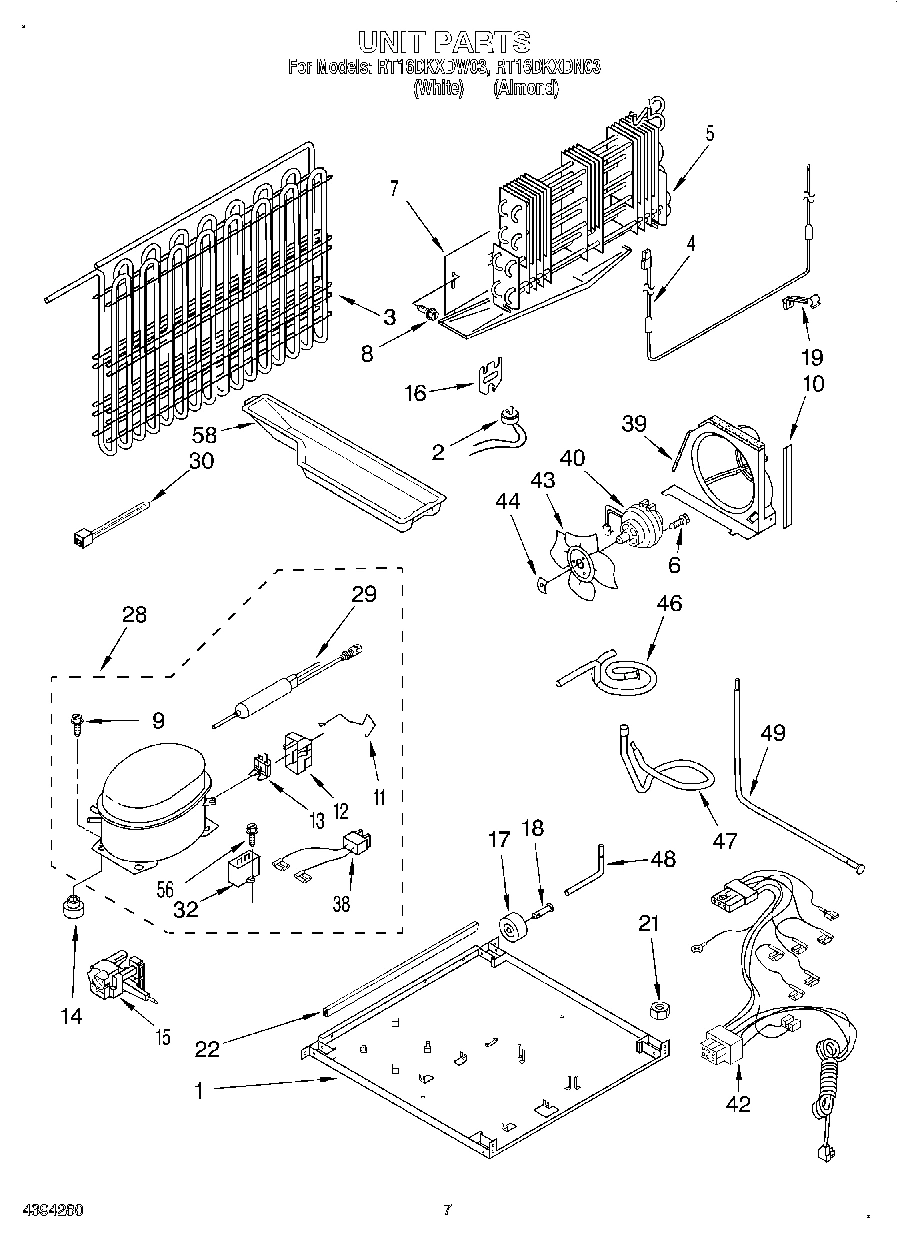

04 - UNIT

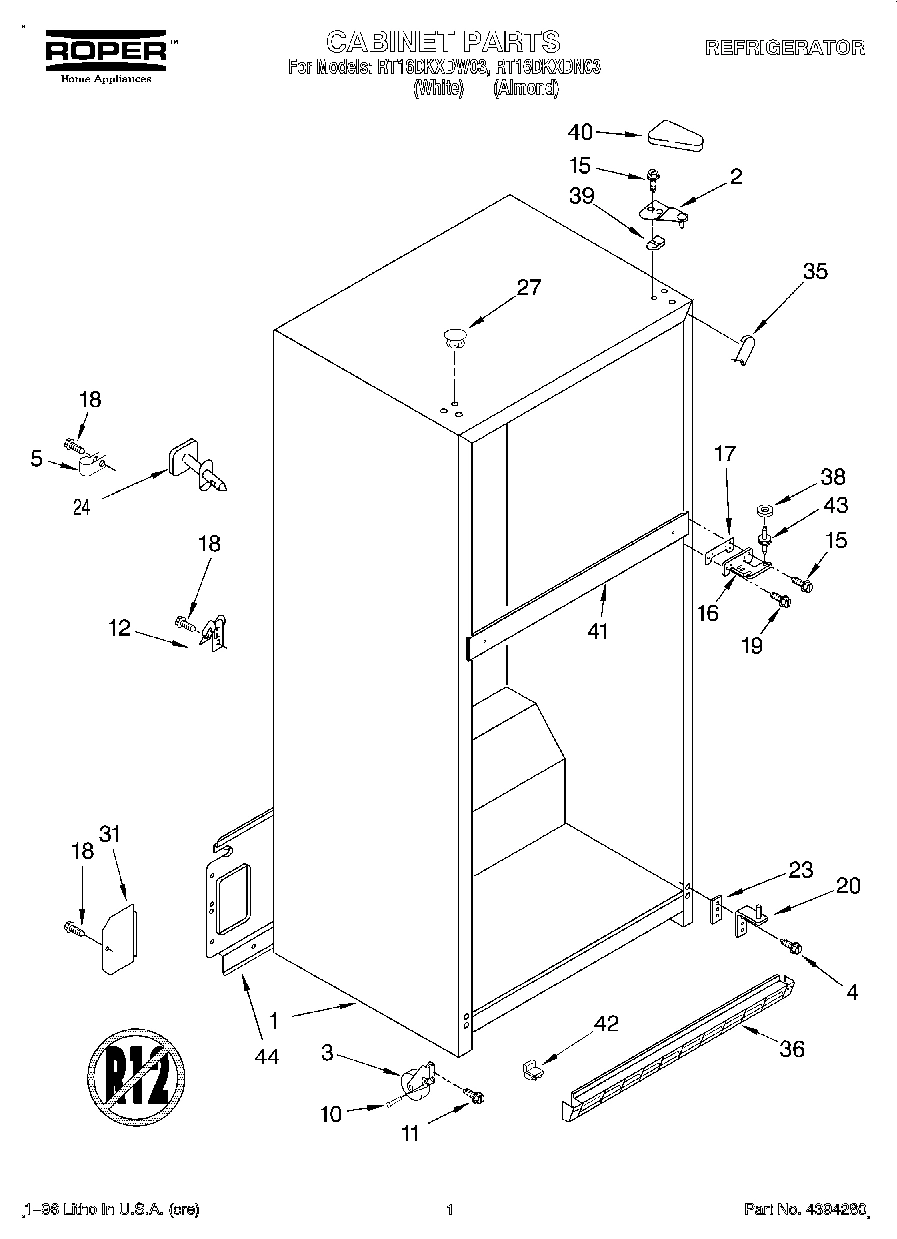

01 - CABINET

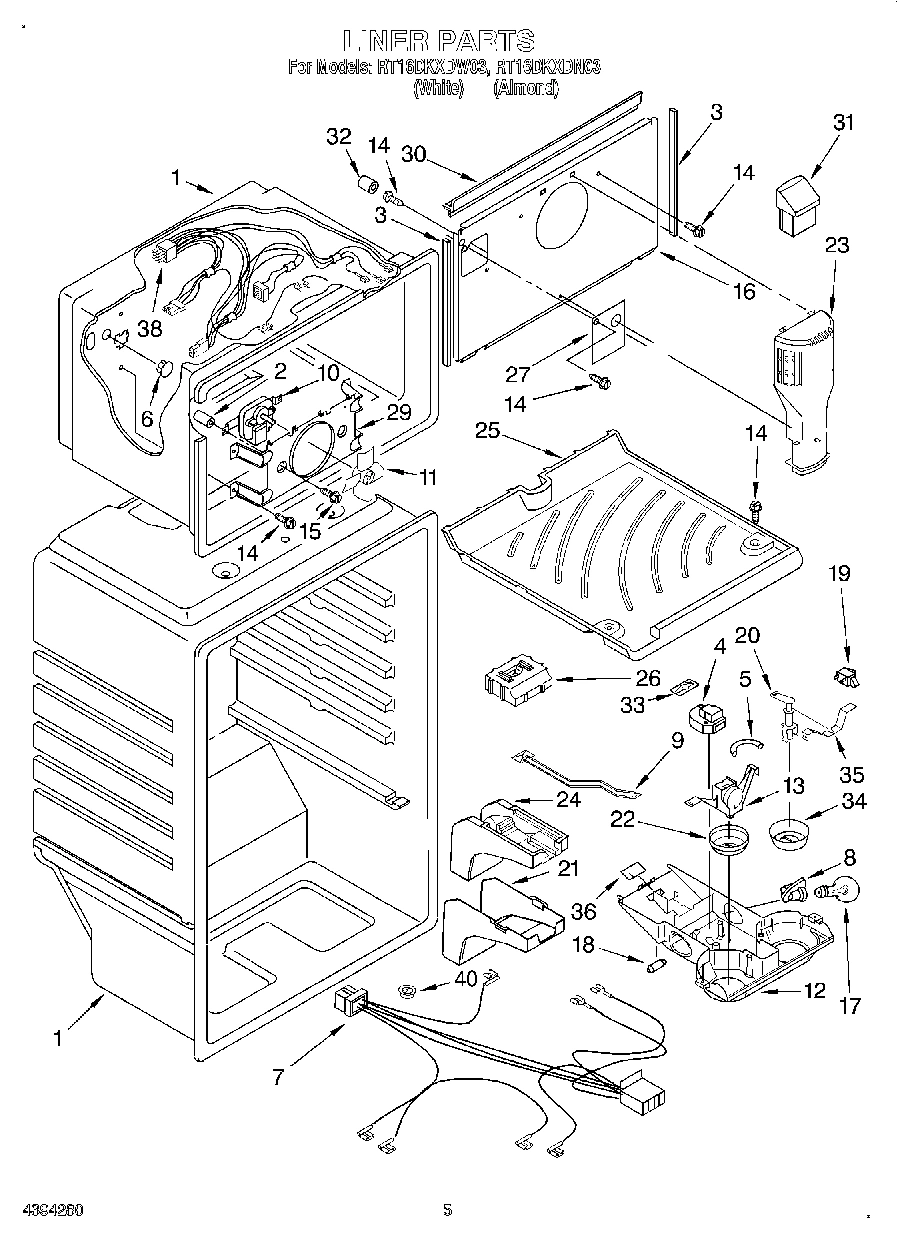

03 - LINER
Common parts from model Whirlpool RT16DKXDN03
1
Cabinet (Not A Serviceable Part) WPL ARI126058A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126061A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Screw WPL 489459 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Overload (Production) WPL 2169406 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Bracket, Heater WPL 2176301 Contact Us For Availability
16
Cover-Evaporator WPL 2183151 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126062A Contact Us For Availability
22
Protector WPL 2183183 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2182339 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI126059A Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille WPL 2182431 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126060A Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray Following WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
