Model Whirlpool RS675PXEQ0 COOKTOP – Common Parts & Diagrams

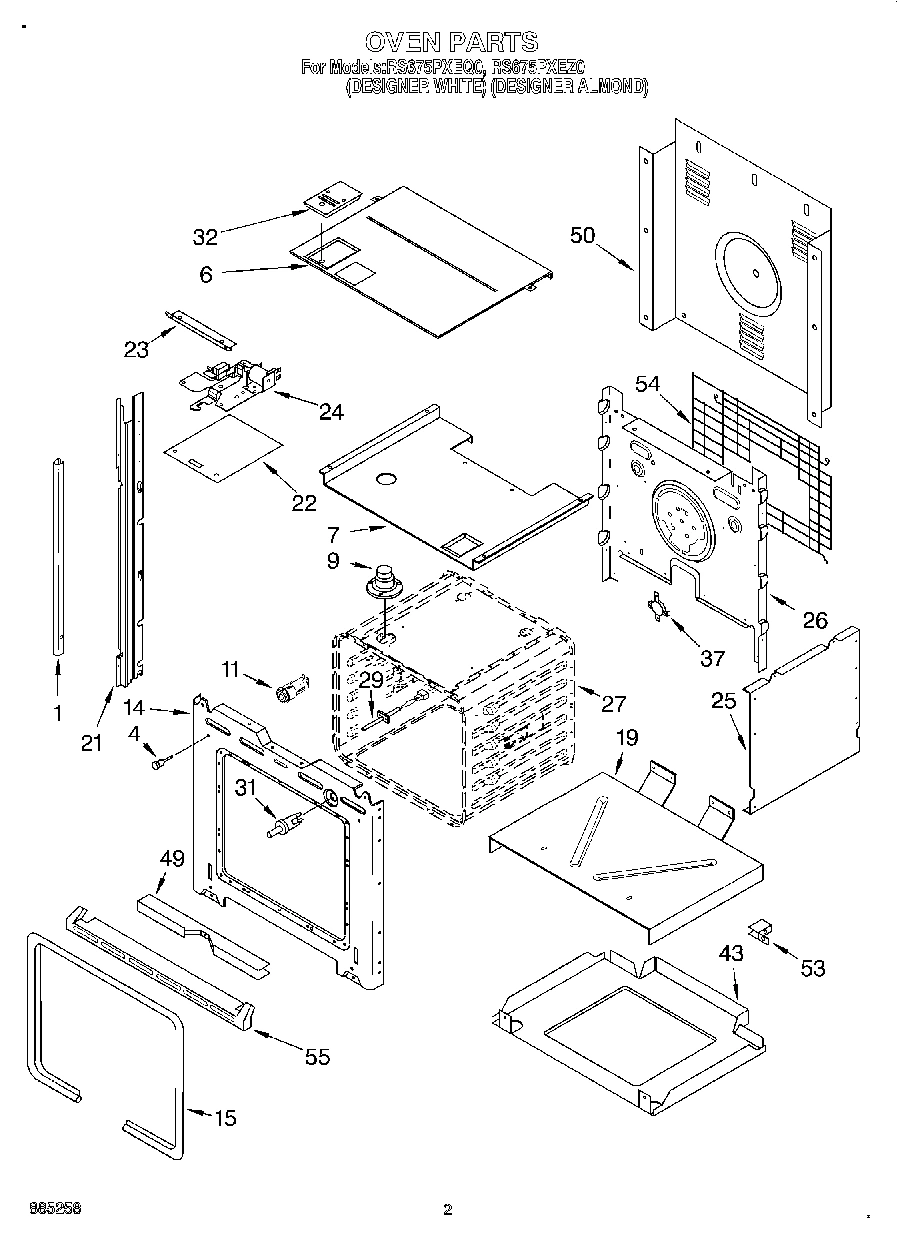

02 - OVEN

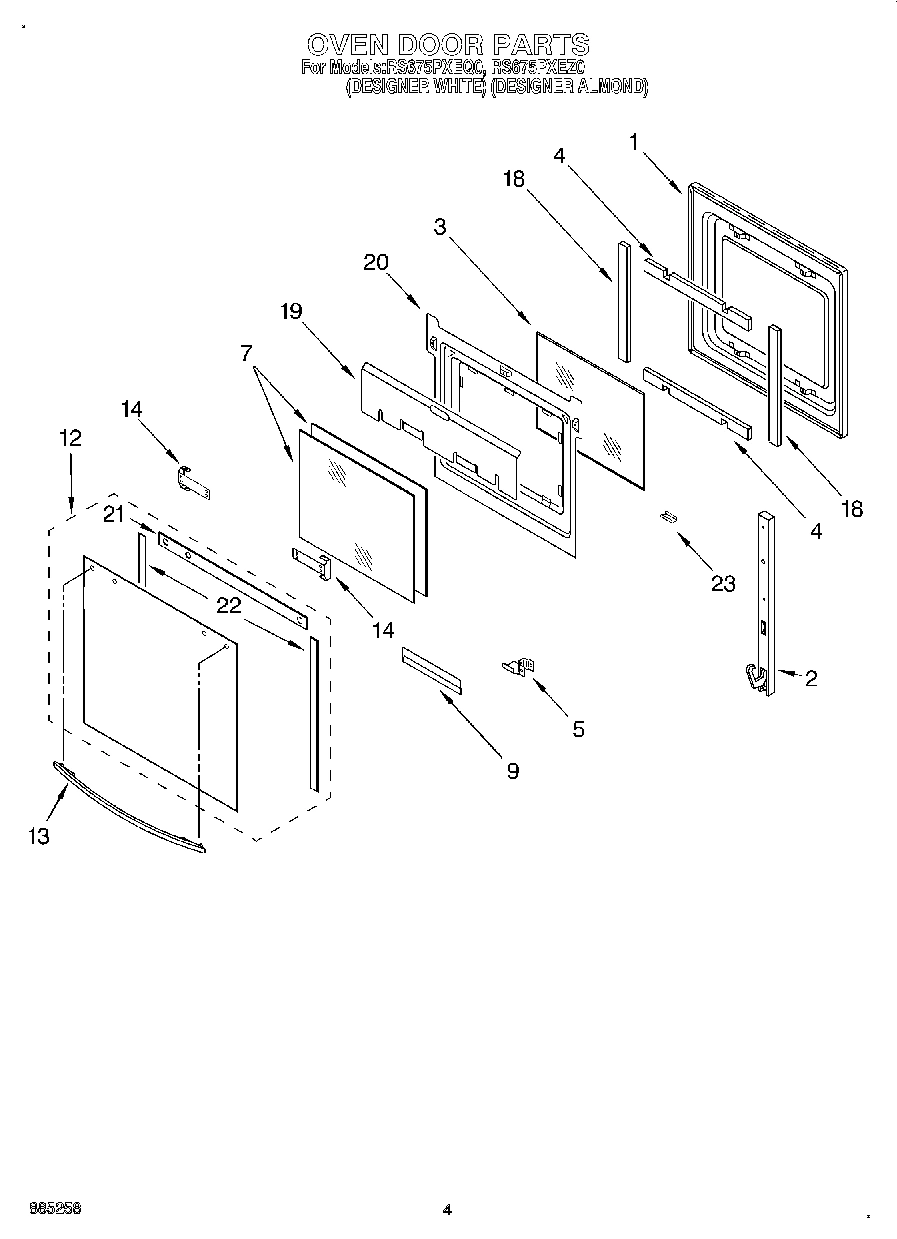

03 - OVEN DOOR

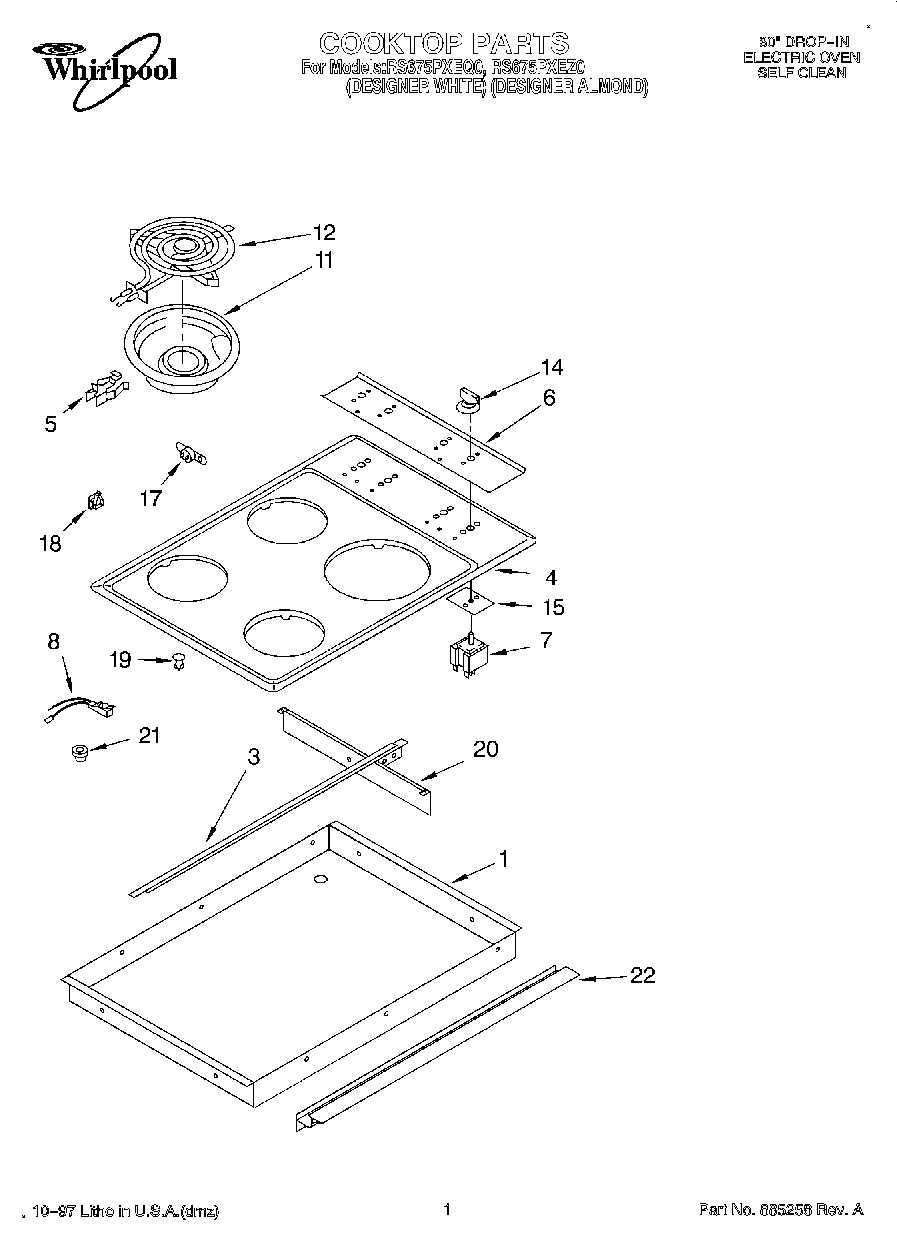

01 - COOKTOP

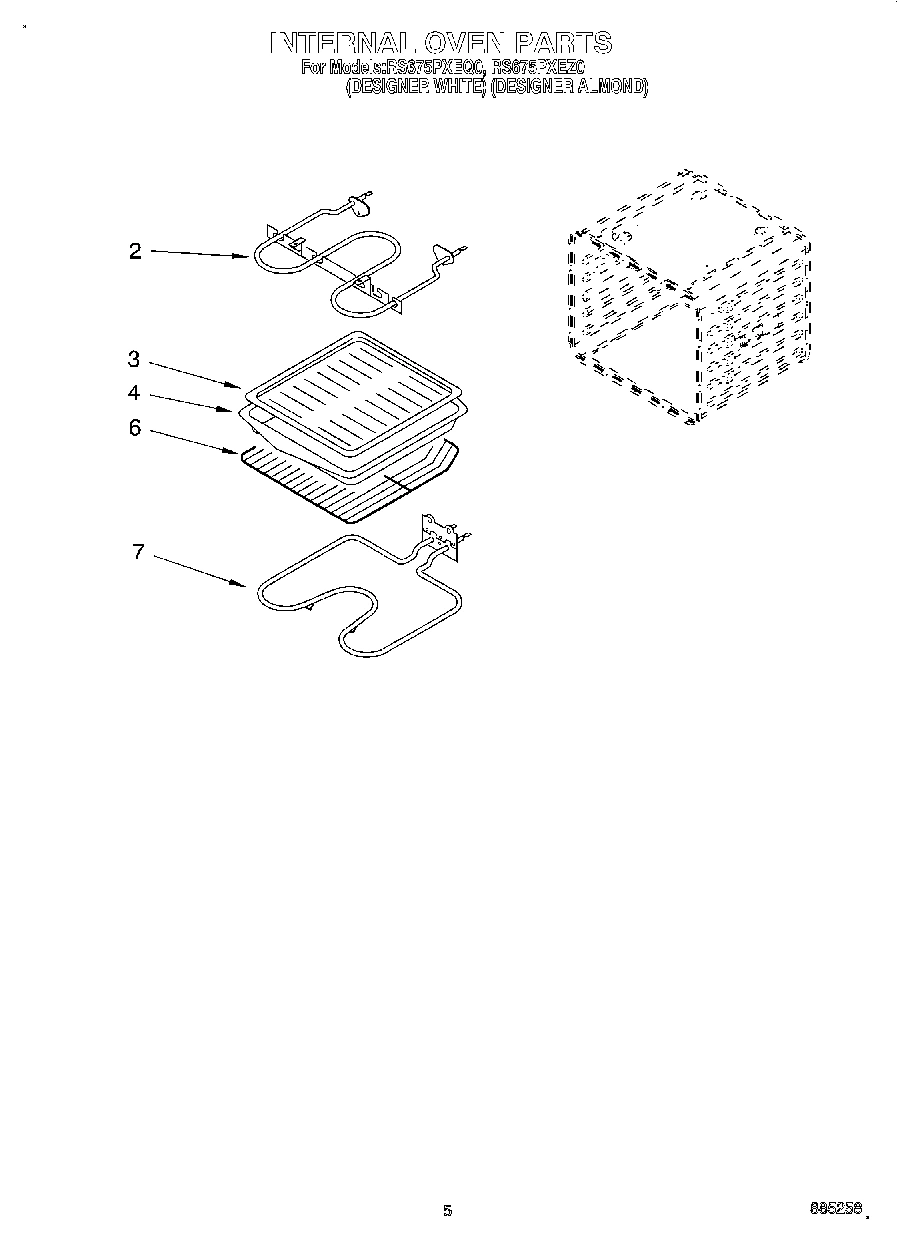

04 - INTERNAL OVEN

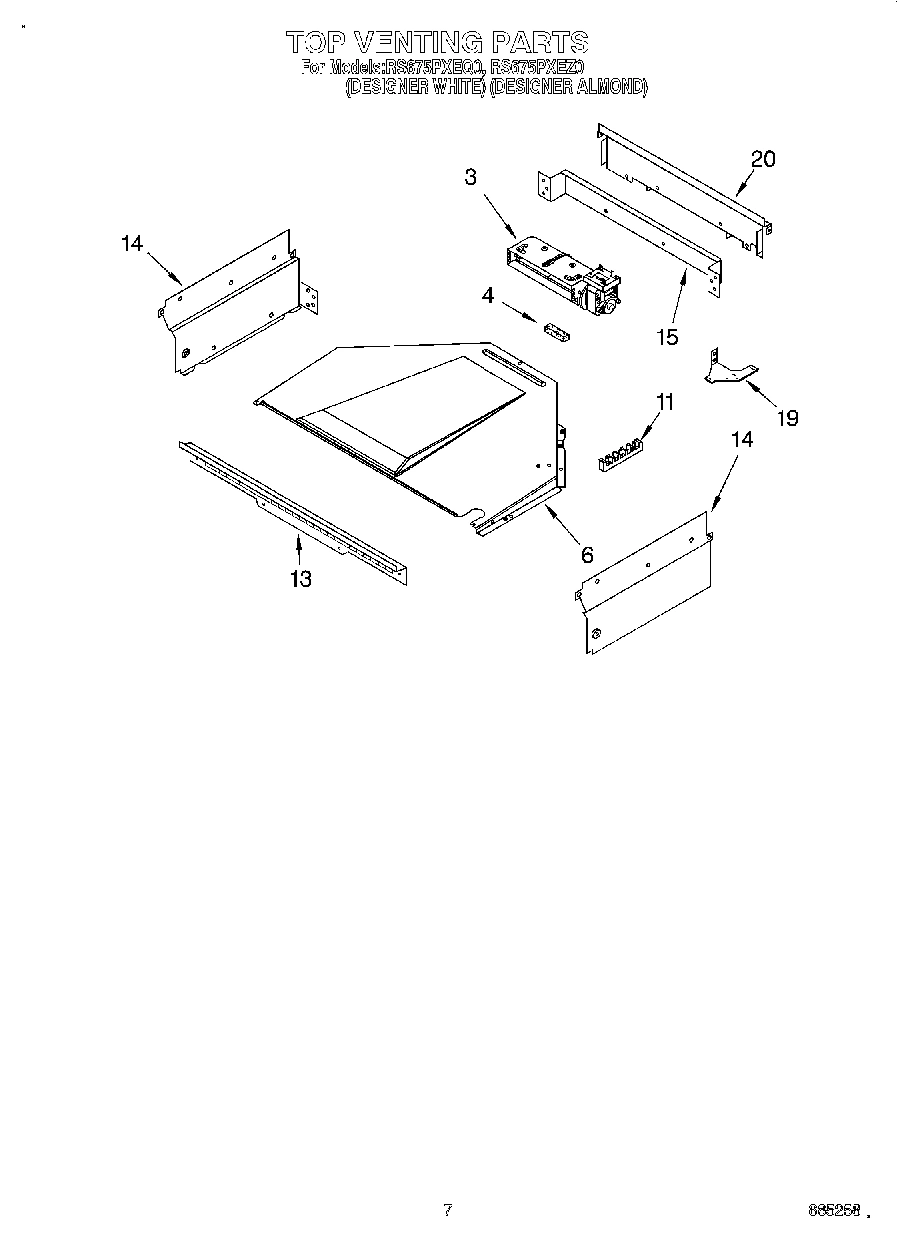

06 - TOP VENTING, OPTIONAL

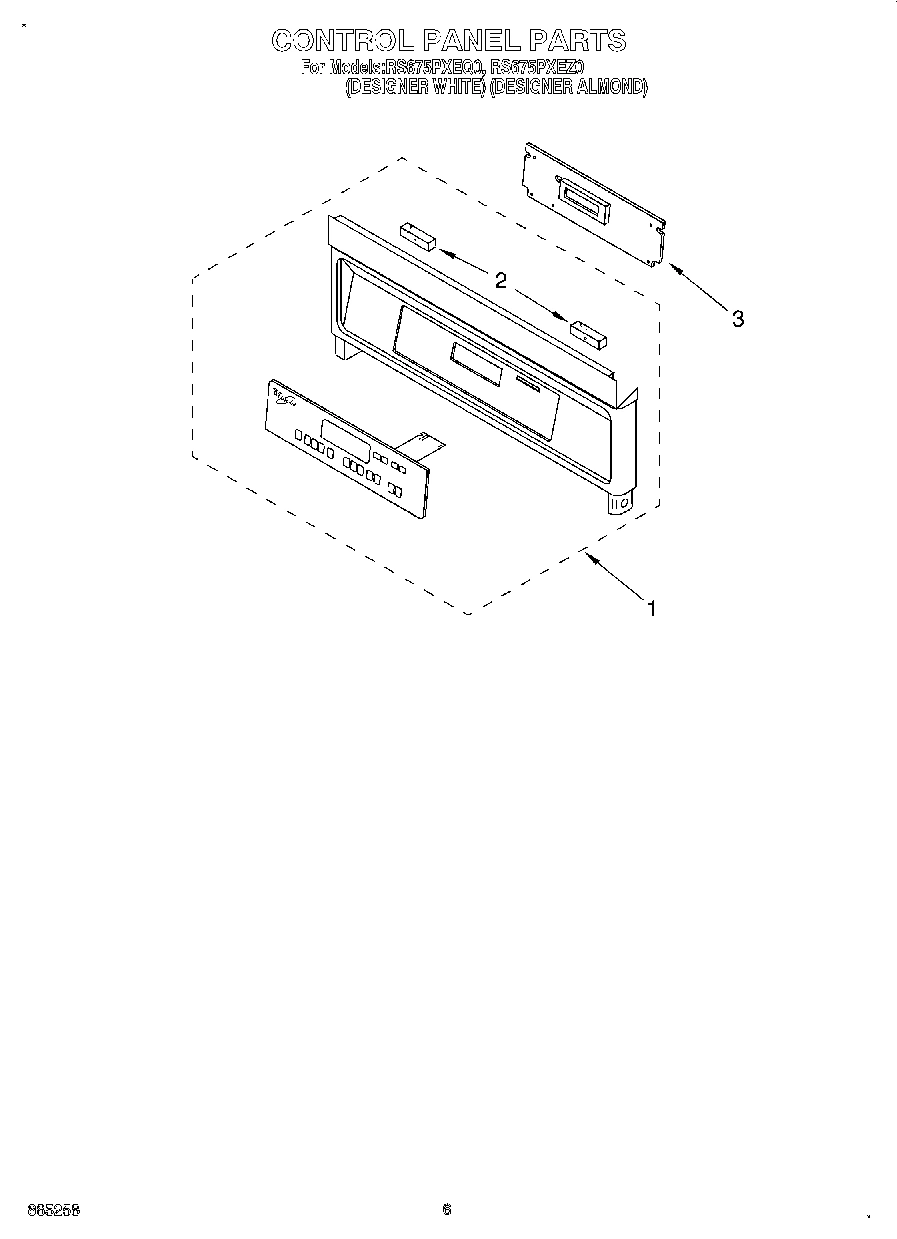

05 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RS675PXEQ0 COOKTOP
Installation Instructions WPL LIT4450269 Contact Us For Availability
Tech Sheet WPL LIT4450271 Contact Us For Availability
Use & Care Guide WPL LIT4450274 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Burner Box WPL 4450883 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451232 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451233 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Screw (6) WPL 4159456 Contact Us For Availability
3
Bracket, Mounting WPL 4454836 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
3
Microcomputer WPL 4448874 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Cooktop (White) WPL 3148754 Contact Us For Availability
4
Cooktop (Almond) WPL 3148755 Contact Us For Availability
4
Block, Foam WPL 3182384 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
6
Panel, Control (Almond) WPL 4449008 Contact Us For Availability
6
Panel, Control (White) WPL 4449025 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
7
Switch, Infinite (Use W/6`` Surface Unit) WPL 4454532 Contact Us For Availability
7
Switch, Infinite (Use W/8`` Surface Unit) WPL 4454534 Contact Us For Availability
8
Light, Indicator WPL 3187778 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
12
Door Glass, Outer (Almond Model) WPL 4450704 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4451213 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Knob, Control (Almond) WPL 3183114 Contact Us For Availability
14
Side, Control Compt. (Right) WPL 4451579 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
17
Screw (2) WPL 313806 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Light Lens WPL 313602 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Bracket, Support WPL 4454840 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
20
Shield, Heat WPL 4454837 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
20
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
20
Cover, Rear WPL 4449973 Contact Us For Availability
20
Conduit WPL 4451163 Contact Us For Availability
20
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
20
Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability
20
Harness, Wire (Main) (Also, order Door Switc WPL 4454872 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
WPL 814387 WPL 814387 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
21
Bushing WPL 4159035 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Trim, Extension (White) WPL 4451003 Contact Us For Availability
22
Trim, Extension (Almond) WPL 4451004 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
55
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
