Model Whirlpool RS6755XYW6 – Common Parts & Diagrams
05 - OVEN DOOR, LITERATURE

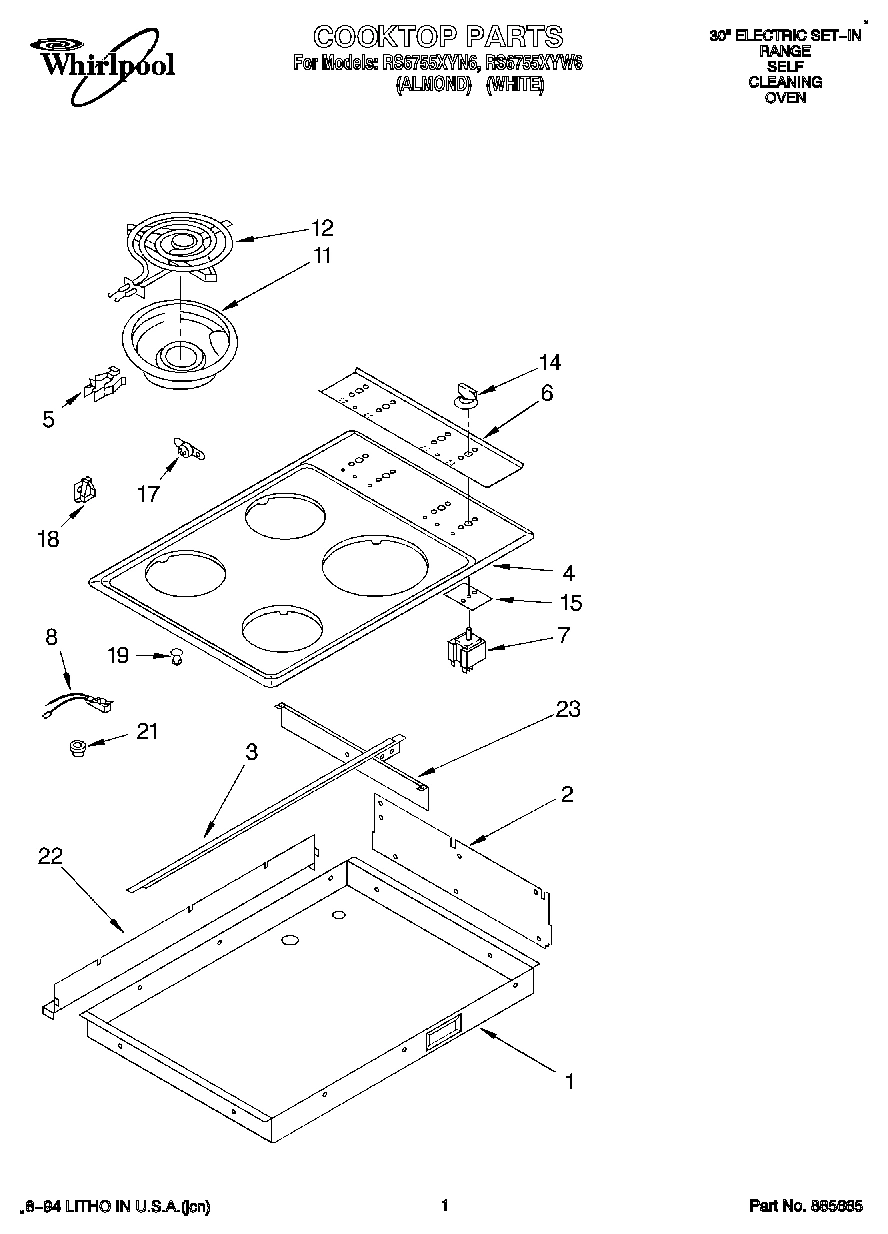

01 - COOKTOP

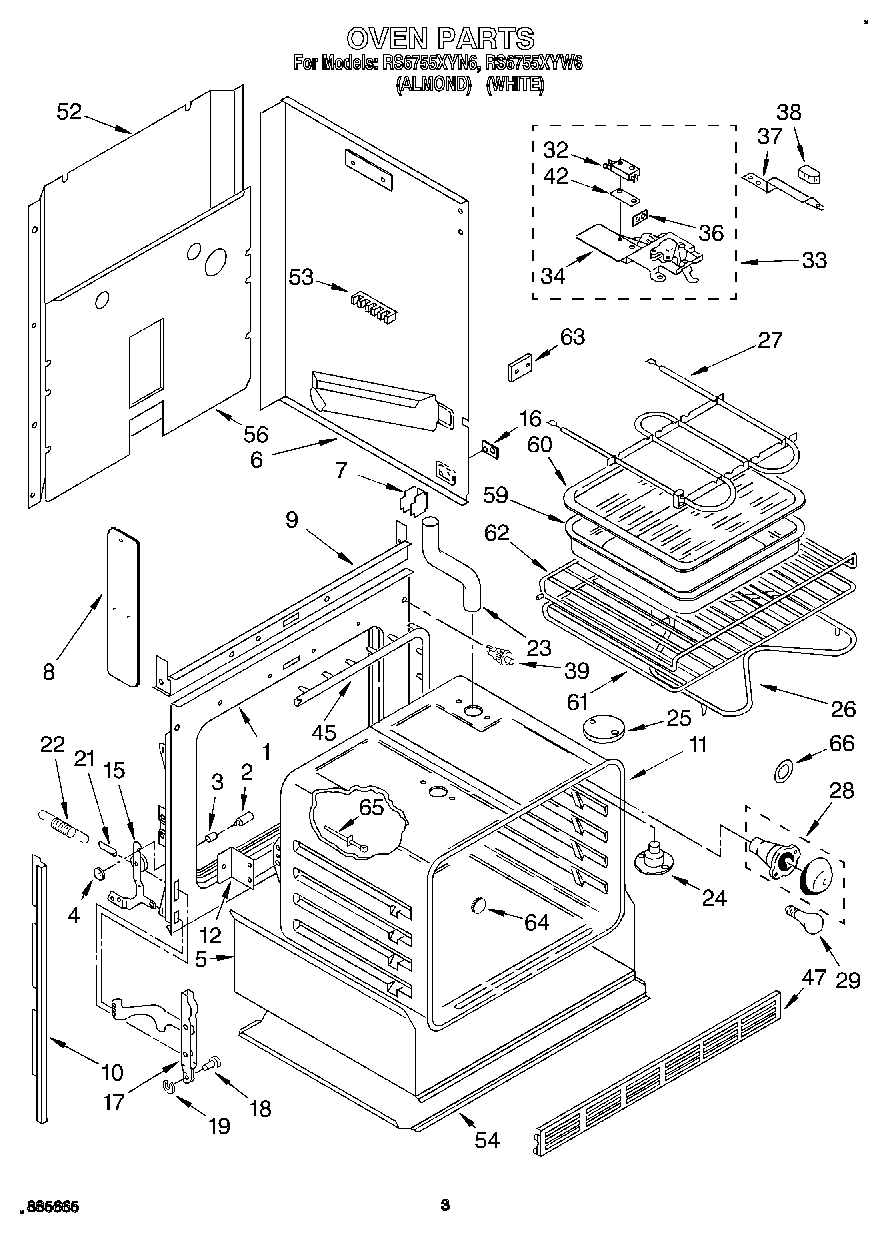

03 - OVEN

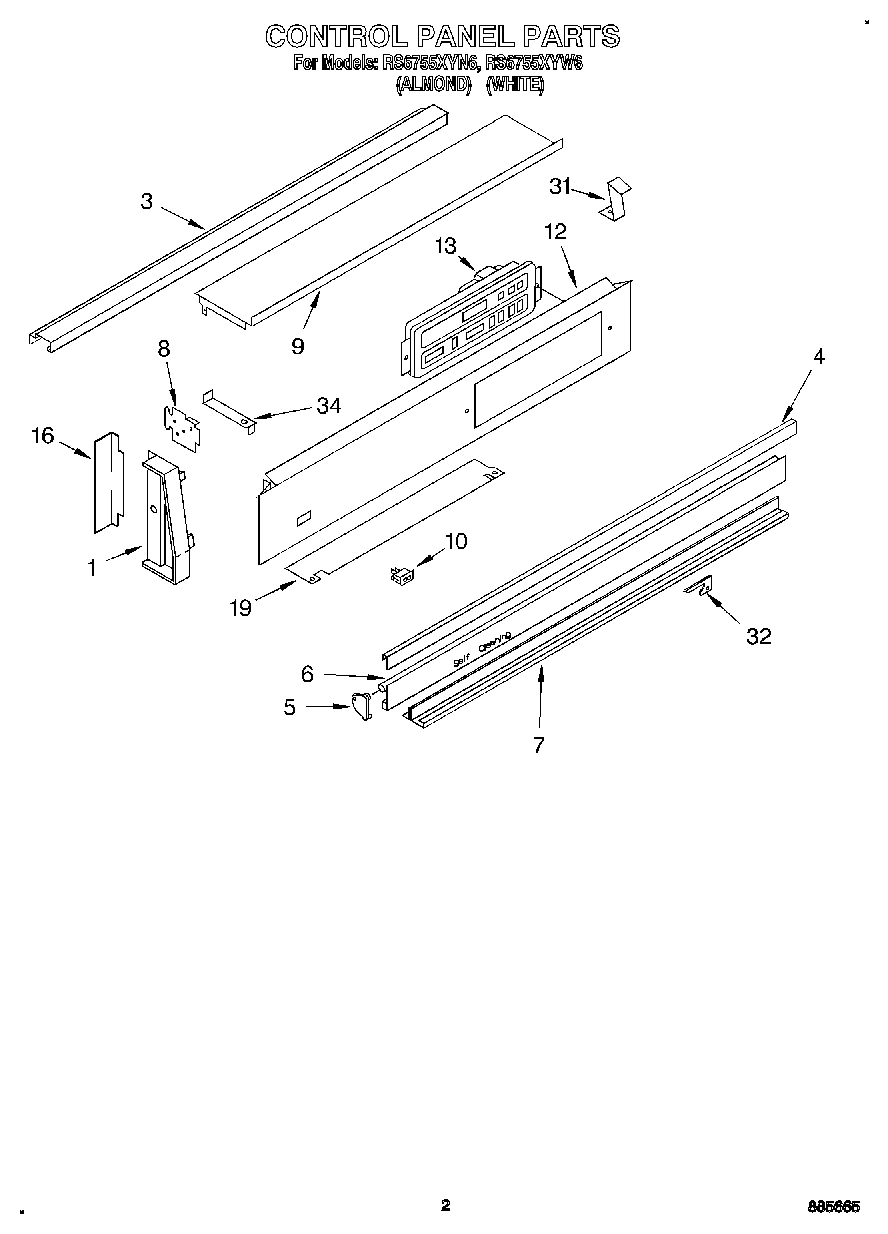

02 - CONTROL PANEL

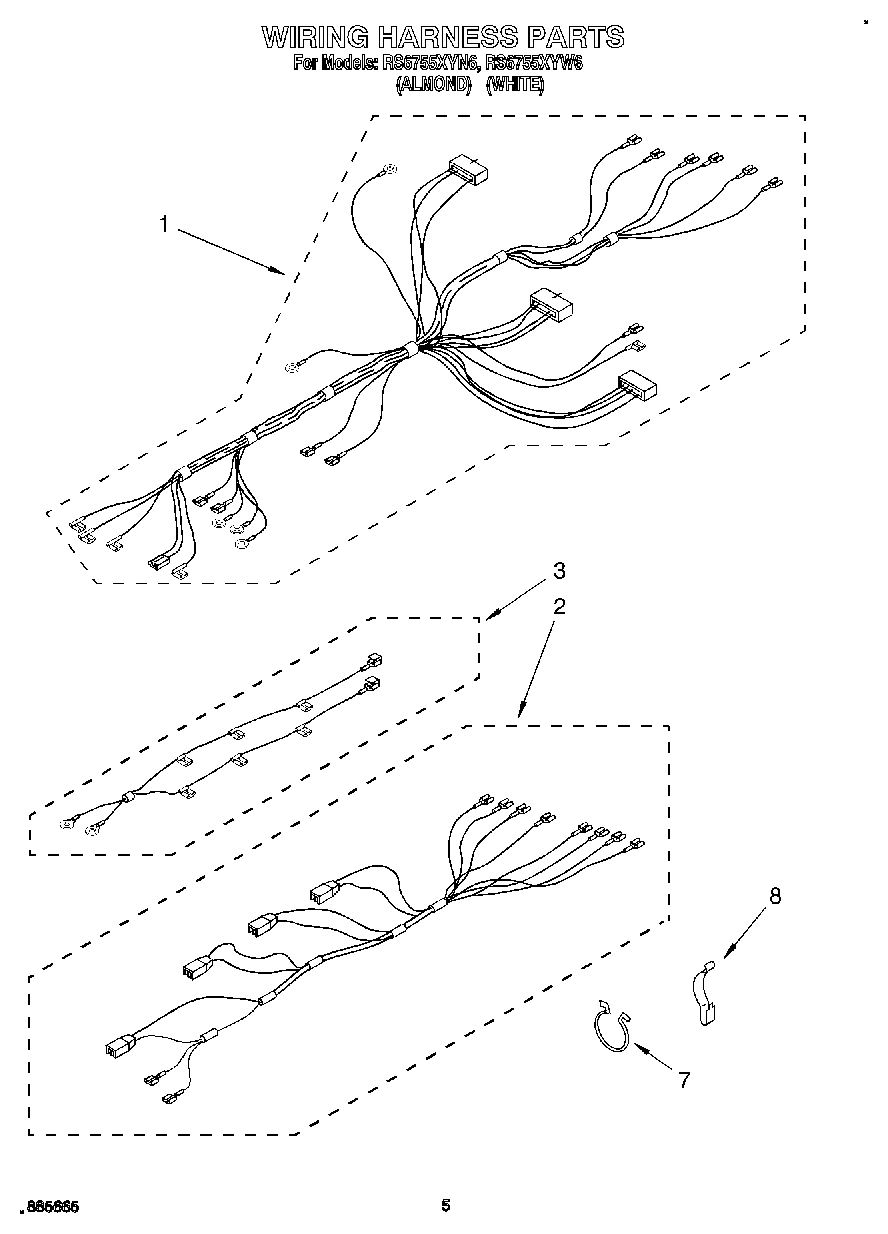

04 - WIRING HARNESS
Common parts from model Whirlpool RS6755XYW6
1
Frame Front WPL 3186975 Contact Us For Availability
1
Screw No.10x1/2 (2) WPL 307748 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Harness, Wire (Main) WPL 3188443 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
3
Support, Cooktop WPL 3188766 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Screw (2) WPL 98520 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
4
Cooktop (White) WPL 3148754 Contact Us For Availability
4
Cooktop (Almond) WPL 3148755 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 3148620 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
End Trim, Vent (R.H.) WPL 3148697 Contact Us For Availability
5
End Trim, Vent (L.H.) WPL 3148698 Contact Us For Availability
6
Panel, Control WPL 3185692 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Door, Vent WPL 3183505 Contact Us For Availability
7
Switch, Infinite (6`` Unit (2)) WPL 3148967 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
Light, Indicator WPL 3187778 Contact Us For Availability
8
Insulation Baffle WPL 311256 Contact Us For Availability
8
Screw WPL 3148442 Contact Us For Availability
8
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
8
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
9
Baffle, Top WPL 3183796 Contact Us For Availability
9
Shield, Heat WPL 3188534 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Switch, Rocker WPL 3182717 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 3182301 Contact Us For Availability
13
Control, Electronic WPL 3169256 Contact Us For Availability
14
Knob, Control WPL 3183120 Contact Us For Availability
14
Screw (3) WPL 3149333 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Trim, End Cap WPL 3149900 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
19
Window, Frame WPL 3149277 Contact Us For Availability
19
Lens, Light WPL 313602 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Shield, Control WPL 3183992 Contact Us For Availability
20
Retainer, Glass WPL 307792 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
22
Cover, Rear WPL 3188528 Contact Us For Availability
23
Screw WPL 4159456 Contact Us For Availability
23
Shield, Heat WPL 3187446 Contact Us For Availability
23
Tube, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
31
Bracket, Control WPL 3184395 Contact Us For Availability
32
Switch, Lock WPL 3178671 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
34
Latch Mechanism WPL 3148668 Contact Us For Availability
34
Support, Top Rail WPL 312752 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
42
Insulator, Switch WPL 309245 Contact Us For Availability
42
Screw WPL 98106 Contact Us For Availability
45
Seal, Pyro WPL 3185197 Contact Us For Availability
47
screw, 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
47
Bottom Grill WPL 310668 Contact Us For Availability
52
Cover, Rear WPL 3185960 Contact Us For Availability
53
Scre WPL 308043 Contact Us For Availability
54
WPL 3185945 WPL 3185945 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
63
WPL 3150532 WPL 3150532 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
64
WPL 3182814 WPL 3182814 Contact Us For Availability
65
WPL 3148440 WPL 3148440 Contact Us For Availability
66
WPL 310433 WPL 310433 Contact Us For Availability
66
WPL 310435 WPL 310435 Contact Us For Availability
66
WPL 3149328 WPL 3149328 Contact Us For Availability
66
WPL 3188439 WPL 3188439 Contact Us For Availability
× ![]()
