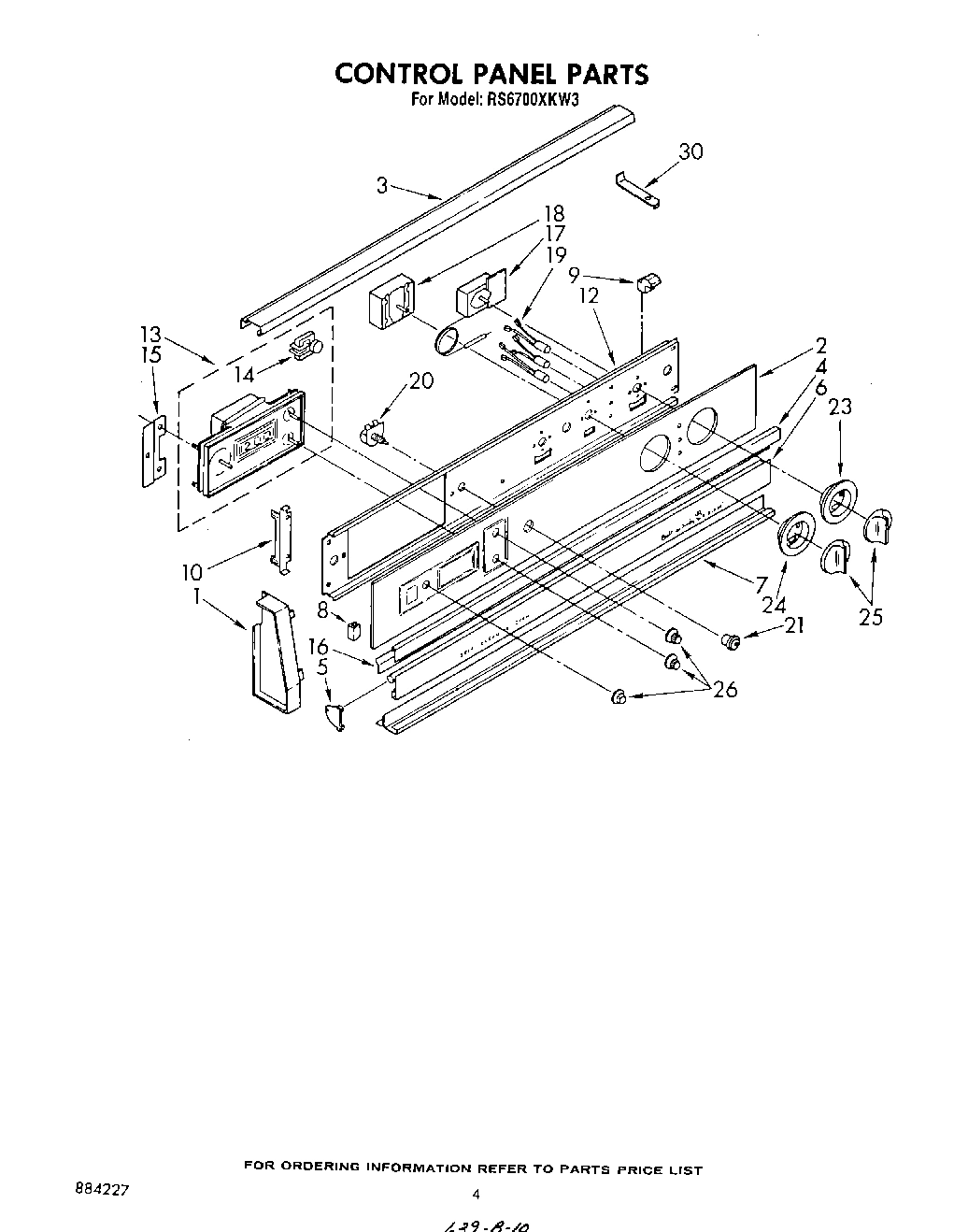

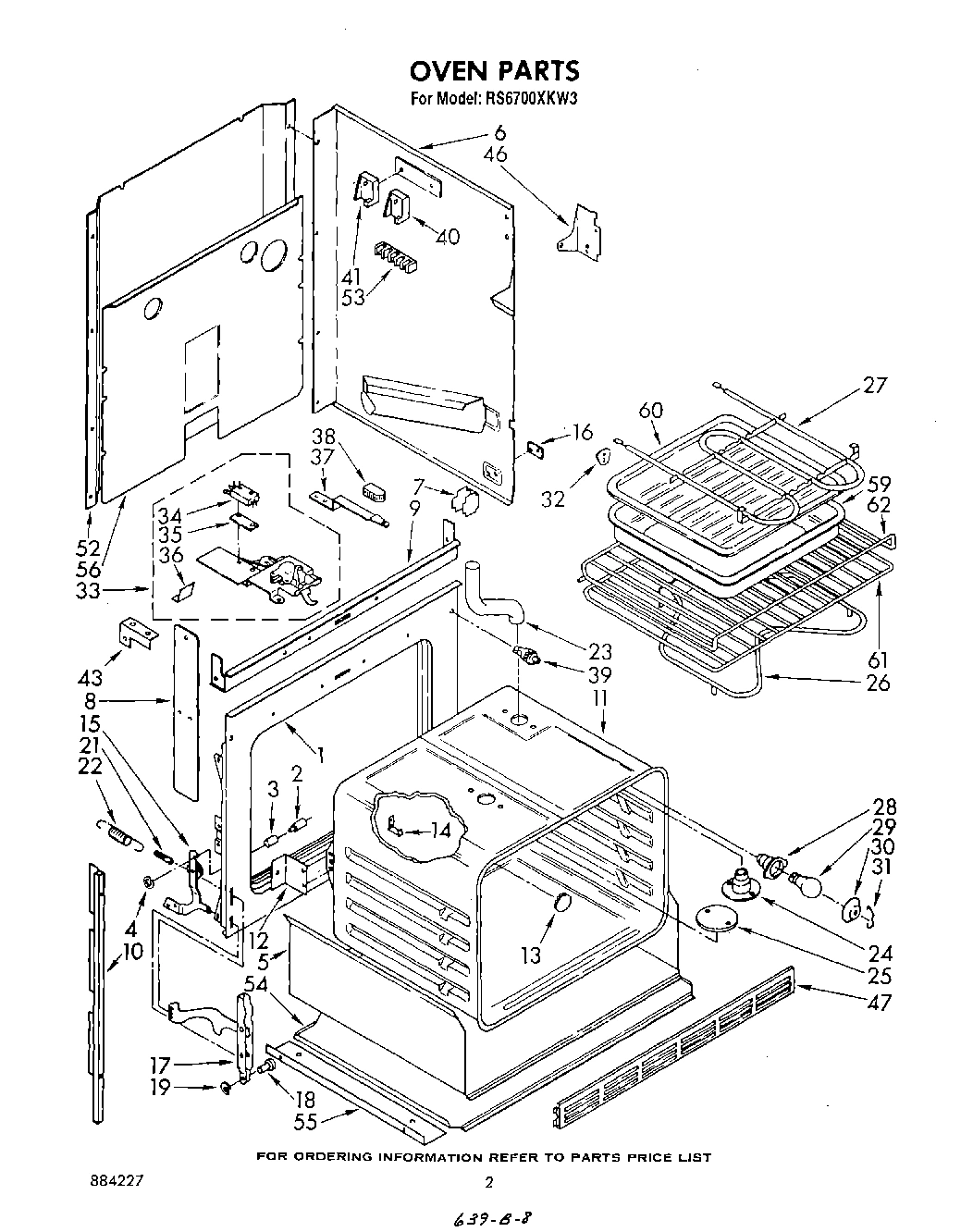

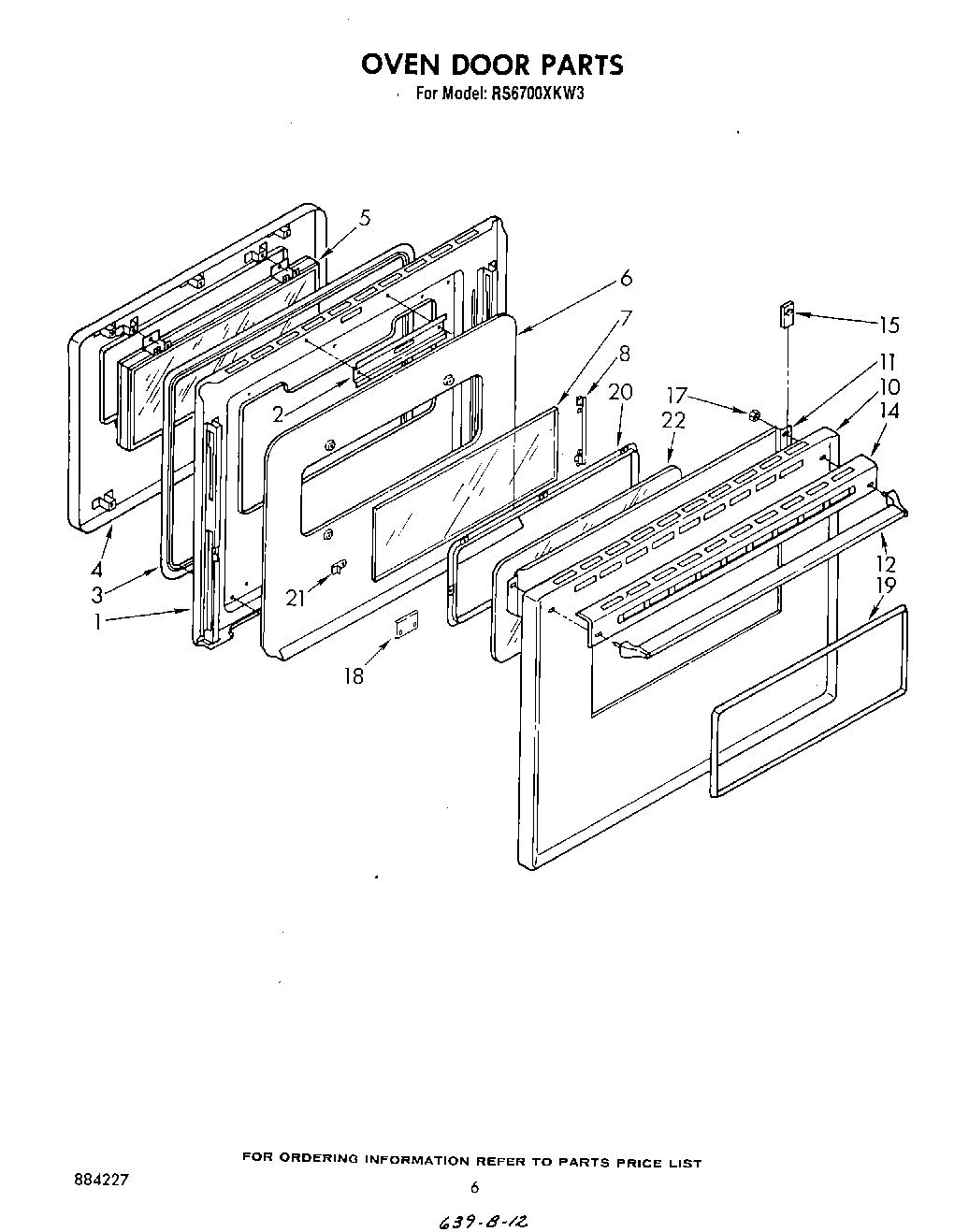

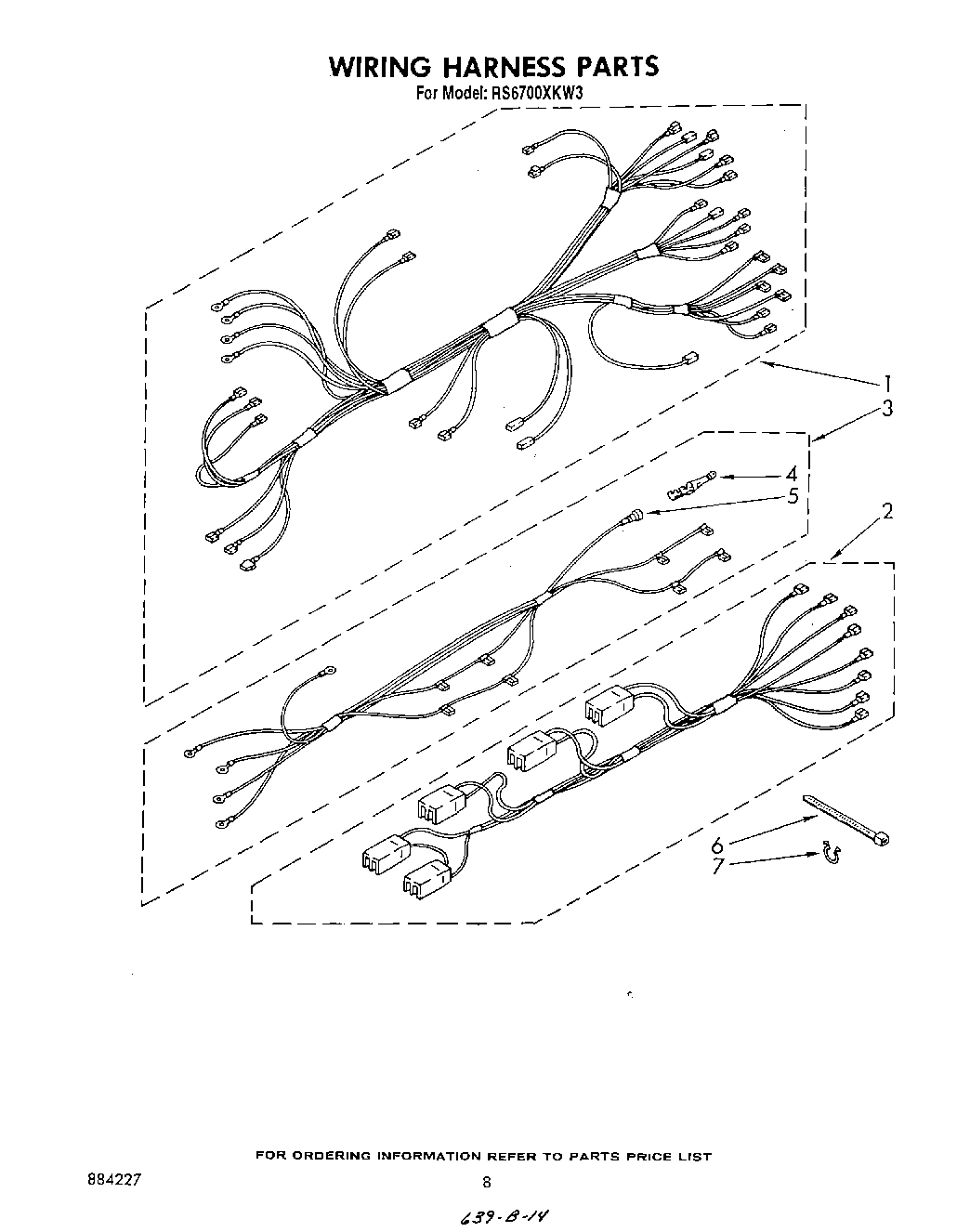

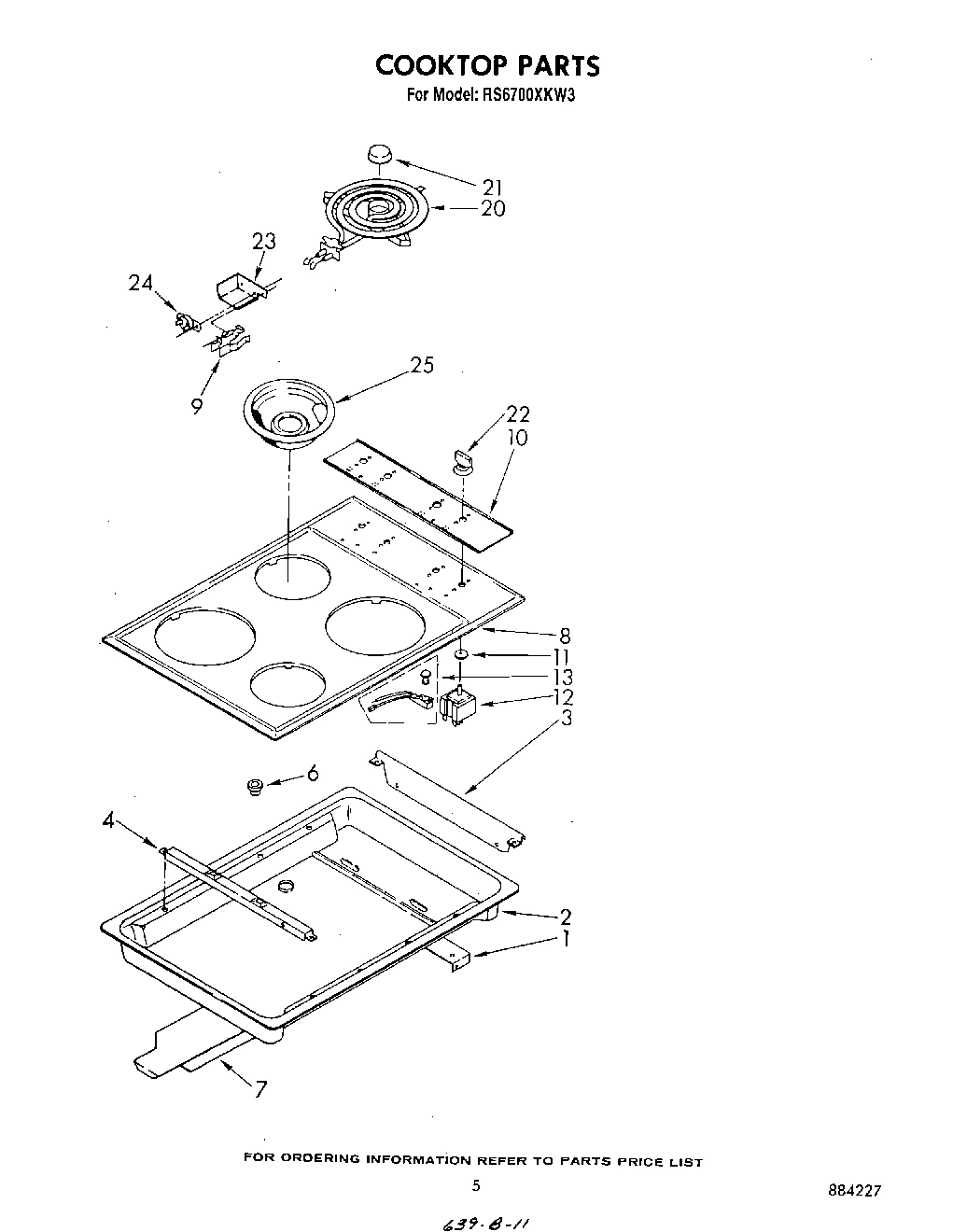

Model Whirlpool RS6700XKW3 – Common Parts &amp; Diagrams

WPL LIT311433 WPL LIT311433 Contact Us For Availability

WPL LIT312492 WPL LIT312492 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313873 WPL LIT313873 Contact Us For Availability

WPL LIT884227 WPL LIT884227 Contact Us For Availability

WPL 246127 WPL 246127 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

1

Frame, Front WPL 328747 Contact Us For Availability

1

Support, Burner Box (2) WPL 310718 Contact Us For Availability

1

Harness, Wire (Main) WPL 312189 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Screw (2) WPL 311054 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Burner Box WPL 311019 Contact Us For Availability

2

Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability

3

Seal, Fiberglass WPL 311904 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Shield, Switch WPL 310716 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

4

Panel, Inner WPL 327898 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

5

Window Package WPL 330038 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

Block, Disconnect WPL 351297 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

6

Retainer, Insulation WPL 308021 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $12.46

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

7

Glass WPL 309842 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

8

Retainer, Glass WPL 309843 Contact Us For Availability

8

Screw, 6A x 1 1/4 (2) WPL 308536 Contact Us For Availability

8

Insulation Baffle (2) WPL 311256 Contact Us For Availability

8

Cooktop (Screw, 10-32 x 5/16 (1)) WPL 166681 Contact Us For Availability

8

Cooktop (White) WPL 307493 Contact Us For Availability

8

Cooktop (Harvest Gold) WPL 308944 Contact Us For Availability

8

Cooktop (Almond) WPL 308946 Contact Us For Availability

8

Cooktop (Toast) WPL 308947 Contact Us For Availability

8

Cooktop (Platinum) WPL 308948 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.76

9

WP313808 Whirlpool Screw Backorder WPL WP313808 $4.82

9

Baffle, Top Insulation WPL 310693 Contact Us For Availability

Panel, Door (White) WPL 307909 Contact Us For Availability

Panel, Door (Harvest Gold) WPL 307915 Contact Us For Availability

Panel, Door (Almond) WPL 307917 Contact Us For Availability

Panel, Door (Screw, 8A x 5/8 (2)) WPL 309133 Contact Us For Availability

Panel, Door (Toast) WPL 313179 Contact Us For Availability

Panel, Door (Platinum) WPL 313180 Contact Us For Availability

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

Panel, Control WPL 313132 Contact Us For Availability

11

Baffle, Top WPL 308011 Contact Us For Availability

11

Oven, Self Clean WPL 328756 Contact Us For Availability

11

Seal, Switch (4) WPL 309839 Contact Us For Availability

12

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $35.69

12

Handle, Door WPL 311564 Contact Us For Availability

12

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

13

Timer, Digital (Included No.14) WPL 313520 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

13

Indicator Light (Includes Lens) WPL 313461 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

Motor, Timer WPL 308594 Contact Us For Availability

Trim, Panel WPL 311063 Contact Us For Availability

Clip, Top Trim WPL 311890 Contact Us For Availability

Bracket, Timer (2) WPL 310721 Contact Us For Availability

Spacer, Sheet (2) WPL 309845 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

16

Seal, Backguard WPL 313316 Contact Us For Availability

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

Thermostat, Oven WPL 313856 Contact Us For Availability

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

Channel Arm (2) WPL 329713 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

Selector Switch WPL 310006 Contact Us For Availability

Shield (2) WPL 311885 Contact Us For Availability

19

Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability

19

Frame, Window WPL 309173 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

Retainer, Glass WPL 307792 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Washer No.8 WPL 312796 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

Bezel Switch WPL 313030 Contact Us For Availability

Clip, Frame WPL 307731 Contact Us For Availability

Medallion, Surface Unit WPL 309195 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $17.80

WP330190 Whirlpool Knob In Stock WPL WP330190 $17.99

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

touch-up self WPL 261810 Contact Us For Availability

WPL 261825 WPL 261825 Contact Us For Availability

WPL 307732 WPL 307732 Contact Us For Availability

WPL 313045 WPL 313045 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Escutcheon, Thermostat WPL 311066 Contact Us For Availability

Tube, Vent Extension WPL 310835 Contact Us For Availability

Bracket, Sensor WPL 3147830 Contact Us For Availability

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $36.47

Thermostat WPL 3147833 Contact Us For Availability

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

Eliminator, Smoke WPL 310839 Contact Us For Availability

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $12.75

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

26

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $11.84

26

Spring, Knob WPL 313311 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

30

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

30

Top, Support Rail WPL 312752 Contact Us For Availability

30

Cover, Light WPL 308039 Contact Us For Availability

31

Retainer, Light WPL 308038 Contact Us For Availability

32

Co WPL 311982 Contact Us For Availability

33

WPL 311056 WPL 311056 Contact Us For Availability

33

WPL 328585 WPL 328585 Contact Us For Availability

34

WPL 308185 WPL 308185 Contact Us For Availability

34

WPL 98106 WPL 98106 Contact Us For Availability

35

WPL 309245 WPL 309245 Contact Us For Availability

36

WPL 309258 WPL 309258 Contact Us For Availability

36

WPL 313035 WPL 313035 Contact Us For Availability

37

WPL 308422 WPL 308422 Contact Us For Availability

37

WPL 310825 WPL 310825 Contact Us For Availability

38

WPL 246135 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 314209 WPL 314209 Contact Us For Availability

41

WPL 314215 WPL 314215 Contact Us For Availability

41

WPL 314211 WPL 314211 Contact Us For Availability

43

WPL 307748 WPL 307748 Contact Us For Availability

43

WPL 312320 WPL 312320 Contact Us For Availability

46

WPL 310714 WPL 310714 Contact Us For Availability

46

WPL 310715 WPL 310715 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

52

WPL 310459 WPL 310459 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability
